miliuco
miliuco
Posted
Posted
57 minutes ago, eSaF said:

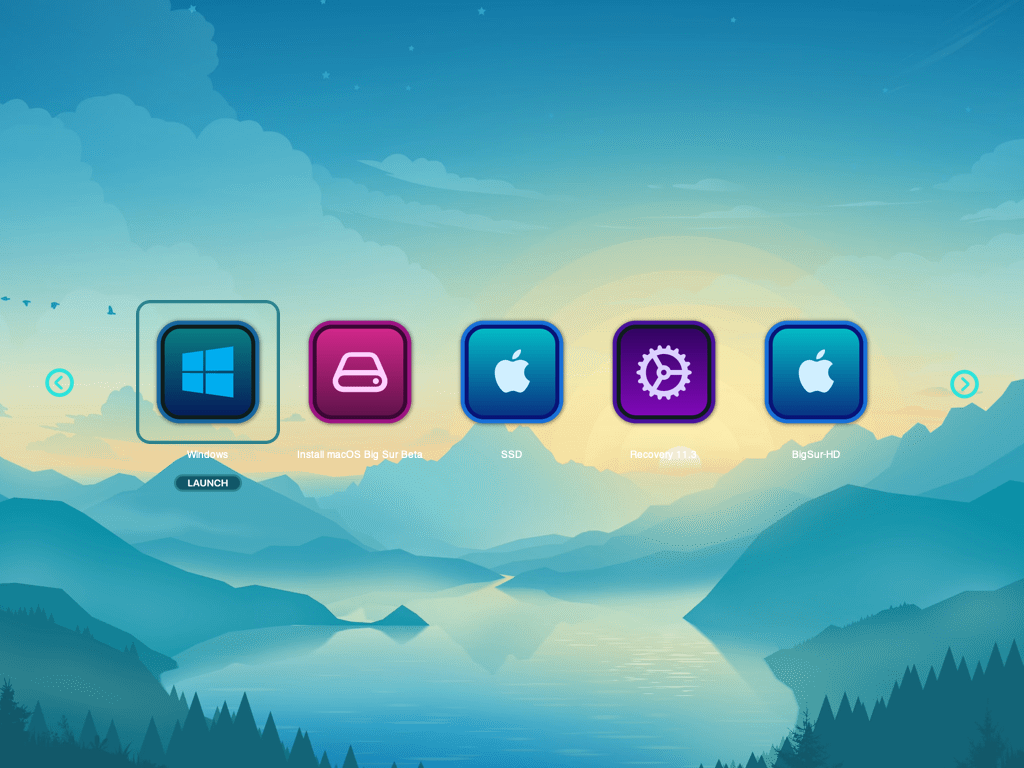

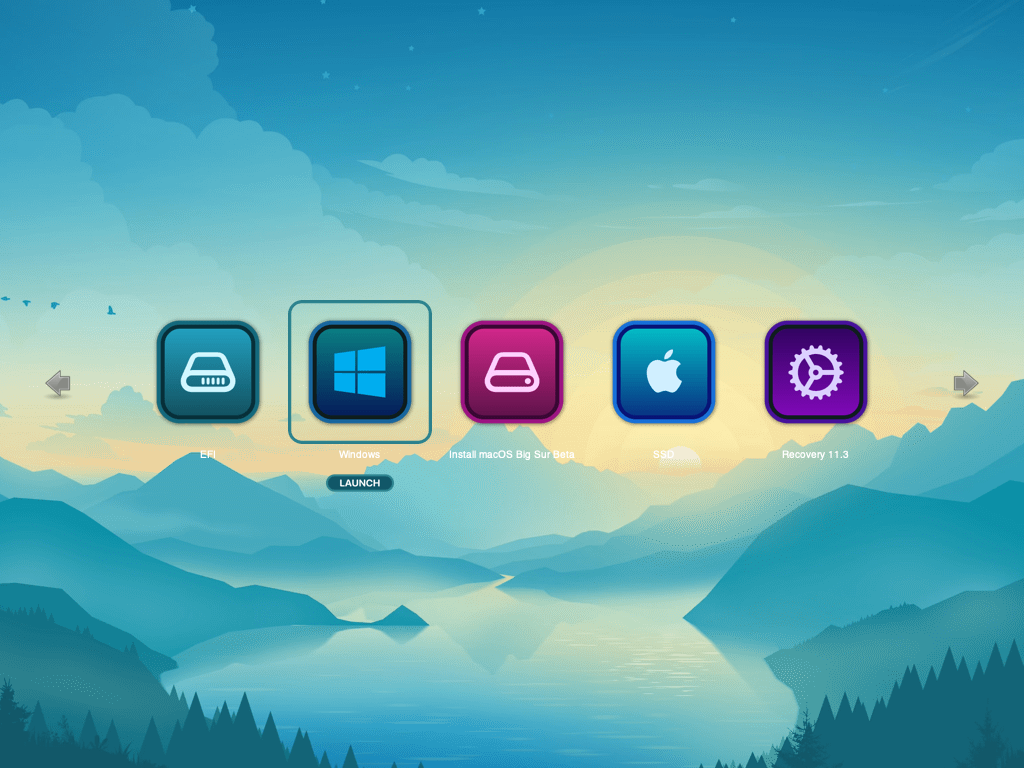

Seriously Bro this one rocks!!!!!!!! - Thanks for the recommendation. :thumbsup_anim:

  Reveal hidden contents

06155414.thumb.png.e5d36ff9ecb370a341d83c4a8a7d9054.png06151932.thumb.png.c015eb455d91fa671e4b366cef2207f0.png

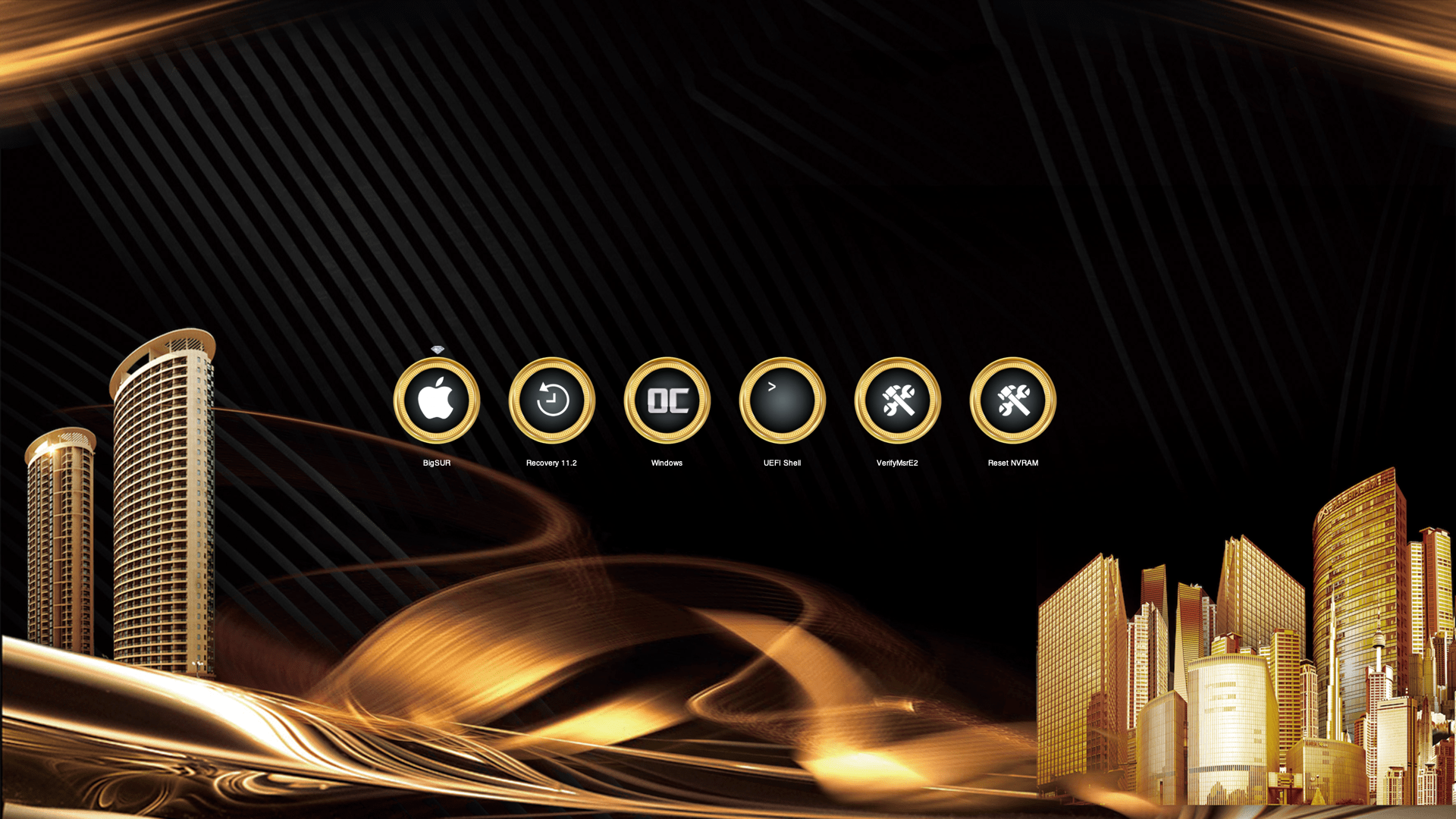

Today with free time I am testing themes with background. It is very entertaining. I have discovered another very nice one, Gold by @chris1111, what do you think?
As they say on the radio, over and out ... for now :)




  • Like 3
Link to comment
Share on other sites
Anto65
Anto65
Posted
Posted
34 minutes ago, wiliplasen said:

Hi, i have a ultra wide monitor 2560x1080

Is there any way to create a custom icns to use like background??



I use some programs but I have a very small icns



Thanks




AnyConv.com__AnyConv.com__background-stylish.icns 26.03 kB · 2 downloads AnyConv.com__AnyConv.com__background-tela.icns 16.02 kB · 2 downloads AnyConv.com__AnyConv.com__background-vimix.icns 32.63 kB · 1 download



  • Like 1
Link to comment
Share on other sites
chris1111
chris1111
Posted
Posted (edited)
1 hour ago, miliuco said:

Today with free time I am testing themes with background. It is very entertaining. I have discovered another very nice one, Gold by @chris1111, what do you think?
As they say on the radio, over and out ... for now :)




Thanks

You have probably windows in the same Drive so rename HardDrive.icns to Windows B)



EDIT ++

sorry typo

rename Windows.icns to HardDrive.icns :rofl:

Edited by chris1111
rename Windows.icns to HardDrive.icns
  • Like 1
Link to comment
Share on other sites
miliuco
miliuco
Posted
Posted
1 hour ago, chris1111 said:

Thanks

You have probably windows in the same Drive so rename HardDrive.icns to Windows B)



EDIT ++

sorry typo

rename Windows.icns to HardDrive.icns :rofl:

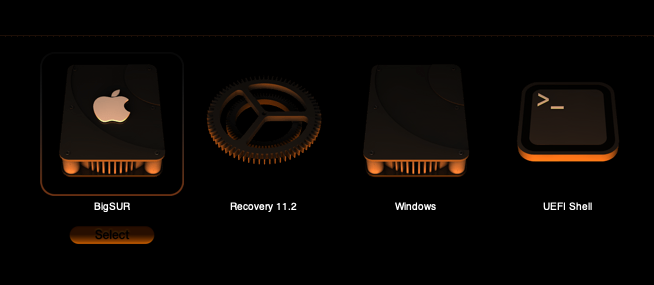

No, Windows is on another disk. Windows entry is not the one detected by OC (ScanPolicy does not include NTFS systems) but created from Misc> Entries. OC puts a generic OC icon to this entry. That's why you don't see a Windows icon.

I do it like this so that Windows is behind BigSur in the menu.  If OC detects NTFS systems, it puts Windows before BigSur with right icon.

It's a personal cosmetic fad :)

  • Like 2
Link to comment
Share on other sites
blackosx
blackosx
Posted
  • Author
Posted
23 hours ago, blackosx said:

Next time I’m on my desktop machine I’ll do it and update the files in the repo.



I've updated the backgrounds in the BlueGlow icon packs to have slightly stronger logos.

Previews and download links are the same as here.



@eSaF - Hope the Gigabyte one is now better for you, if you're still using it.

  • Like 1
  • Thanks 1
Link to comment
Share on other sites
eSaF
eSaF
Posted
Posted

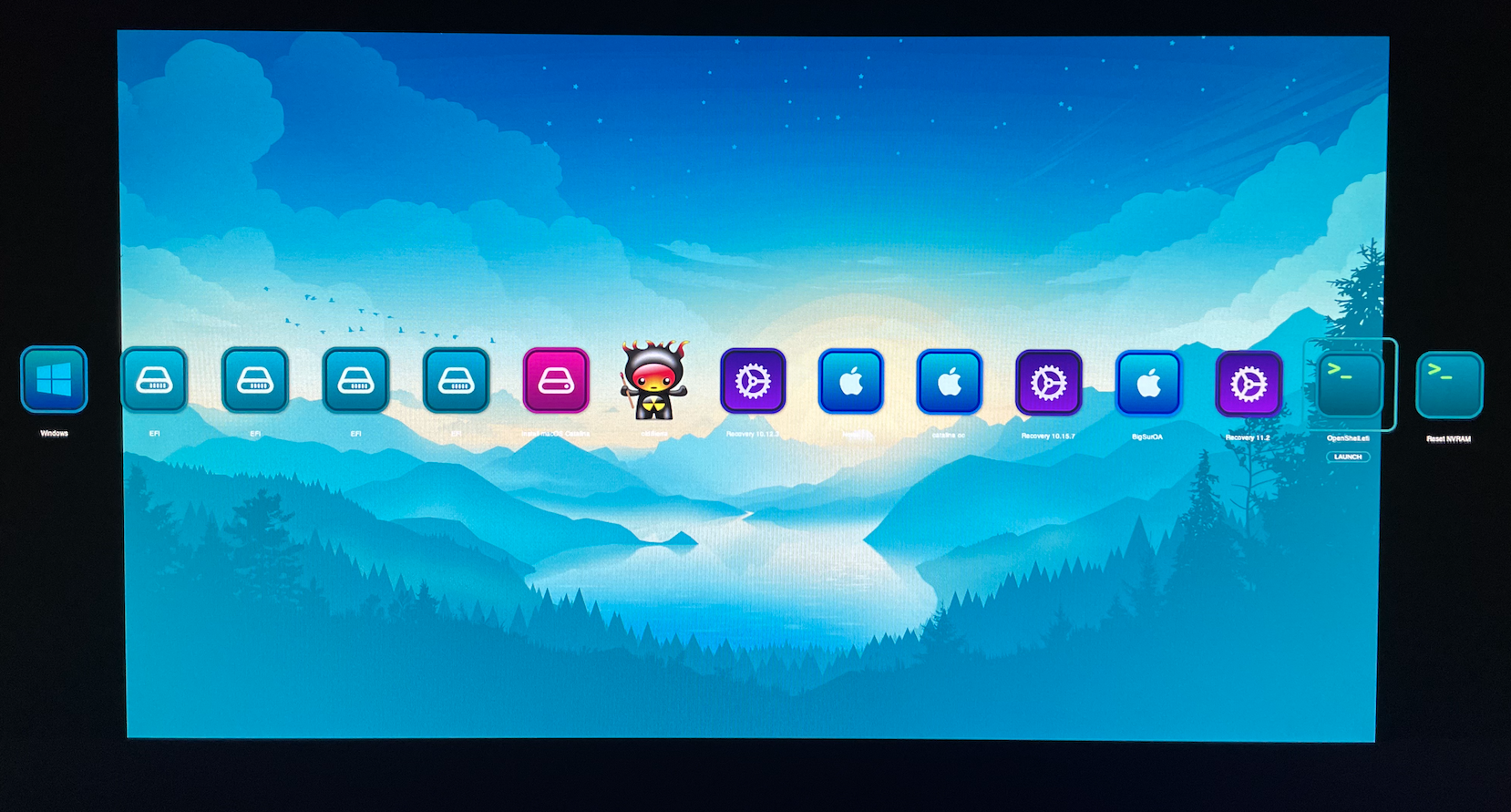

I am mostly happy with the way my Hack is, the one bugbear I have is in the Boot Menu where Windows appears as the first Boot Disk. Don't get me wrong, I can make the machine default to BS disk but Windows is always the first disk (see pic). I have tried different permutations/Combinations and the results are the same, there is one that I tried by @miliuco that gave an Icon result list like this - Windows, OS X, Windows - the last Windows Icon in the list does nothing, when clicked, it induces an error. If it is all possible to change the Boot order Icon list, can someone please enlighten me. I have attached my EFI Folder to assist. The OS X Disk is designated as the first boot disk in the BIOS, yet Windows places it self first.

Spoiler




EFI.zip

Link to comment
Share on other sites
eSaF
eSaF
Posted
Posted
9 minutes ago, blackosx said:

I don't see why having Windows first is an issue, but see @miliuco post above where he says what he did to achieve this.



Essentially:

1 - Change ScanPolicy to not include NTFS (ie. don't look for Microsoft basic data partitions)

2 - Create a custom entry to manually add Windows



:lol: Bro it's not really an issue, probably my OCD kicking in, will check out your recommendation though, if it doesn't work out will leave as is - Cheers.

  • Haha 1
Link to comment
Share on other sites
miliuco
miliuco
Posted
Posted (edited)
2 hours ago, eSaF said:

:lol: Bro it's not really an issue, probably my OCD kicking in, will check out your recommendation though, if it doesn't work out will leave as is - Cheers.

I think we're both quite picky :)



How to add a boot entry in OpenCore


Windows Boot Manager Path consists of an EFI path + a boot loader path.



How to find your Windows EFI path? Select Shell.efi from OpenCore boot options (should be enabled in config.plist).
Type FS0: > type DIR > if there is an EFI folder type cd EFI > type DIR again to see if it is the EFI folder of the Windows disk. Do this successively for each FS volume (FS1:, FS2:, etc.) until you find the Windows EFI folder. For example, mine is FS0 (first).


Windows EFI is where the Windows Boot Manager locates. You must memorize its identifier index. Print the mapping table of all volumes and save it to a file named map_table.txt this way:
map > map_table.txt
Where do you find the map_table.txt file? On the EFI volume the prompt is on when you type map > map_table.txt.
Exit.
Return to macOS.



Mount the volume where you stored the map_table.txt and open it with your preferred text editor. For example:
sudo diskutil mount disk0s1
open /Volumes/EFI/map_table.txt



Find the line that contains FS0 (or the one that corresponds to your Windows EFI folder) and copy its path. For example:

PciRoot(0x0)/Pci(0x17,0x0)/Sata(0x1,0xFFFF,0x0)/HD(1,GPT,4E088723- D4D9-4D7B-824A-2B38AB53CD72,0x3F,0x552FB)/



Add the bootloader path: \EFI\Microsoft\Boot\bootmgfw.efi



Finally, a completed path going to be filled in the /Misc/Entries of config.plist goes as follows:

PciRoot(0x0)/Pci(0x17,0x0)/Sata(0x1,0xFFFF,0x0)/HD(1,GPT,4E088723-D4D9-4D7B-824A-2B38AB53CD72,0x3F,0x552FB)/\EFI\Microsoft\Boot\bootmgfw.efi



Notice that there is no space between the PCI path and the bootloader path.



Windows behind macOS in the OpenCore menu



This is accompanied by a ScanPolicy value that does not show neither NTFS systems nor EFI partitions.

This way, macOS disk appears first and the Windows entry appears behind macOS disk.




Edited by miliuco
  • Like 3
Link to comment
Share on other sites
miliuco
miliuco
Posted
Posted (edited)

@eSaF

Windows entry example.

		<key>Entries</key>
		<array>
			<dict>
				<key>Arguments</key>
				<string></string>
				<key>Auxiliary</key>
				<false/>
				<key>Comment</key>
				<string>Windows 10</string>
				<key>Enabled</key>
				<true/>
				<key>Name</key>
				<string>Windows</string>
				<key>Path</key>
				<string>PciRoot(0x0)/Pci(0x1D,0x0)/Pci(0x0,0x0)/NVMe(0x1,18-CC-1C-49-8B-44-1B-00)/HD(1,GPT,DF3F0348-A4F8-4A34-9C86-963B0E98F2BE,0x800,0x54747)/\EFI\Microsoft\Boot\bootmgfw.efi</string>
				<key>TextMode</key>
				<false/>
			</dict>
		</array>

SanPolicy value to only show:

0x00000001 - OC_SCAN_FILE_SYSTEM_LOCK.
0x00000002 - OC_SCAN_DEVICE_LOCK.
0x00000100 - OC_SCAN_ALLOW_FS_APFS.
0x00000200 - OC_SCAN_ALLOW_FS_HFS.
0x00010000 - OC_SCAN_ALLOW_DEVICE_SATA.
0x00080000 - OC_SCAN_ALLOW_DEVICE_NVME.
0x00200000 - OC_SCAN_ALLOW_DEVICE_USB.
			<key>ScanPolicy</key>
			<integer>2687747</integer>



Edited by miliuco
  • Like 1
Link to comment
Share on other sites
blackosx
blackosx
Posted
  • Author
Posted
14 minutes ago, miliuco said:

I think we're both quite picky :)



How to add a boot entry in OpenCore


Windows Boot Manager Path consists of an EFI path + a boot loader path.

.../snip/...

Excellent explanation :)



I would like to add another way to obtain your Windows path which would be to use an OpenCore debug build and check the log for an entry like this:

05:758 00:005 OCB: Registering entry Windows (T:32|F:0|G:0|E:0) - PciRoot(0x0)/Pci(0x17,0x0)/Sata(0x1,0x0,0x0)/HD(1,GPT,558011E8-3667-464B-9BB2-B292181AE197,0x28,0x64000)/\EFI\Microsoft\Boot\bootmgfw.efi



  • Like 2
Link to comment
Share on other sites
miliuco
miliuco
Posted
Posted
1 minute ago, blackosx said:

Excellent explanation :)



I would like to add another way to obtain your Windows path which would be to use an OpenCore debug build and check the log for an entry like this:


05:758 00:005 OCB: Registering entry Windows (T:32|F:0|G:0|E:0) - PciRoot(0x0)/Pci(0x17,0x0)/Sata(0x1,0x0,0x0)/HD(1,GPT,558011E8-3667-464B-9BB2-B292181AE197,0x28,0x64000)/\EFI\Microsoft\Boot\bootmgfw.efi



Yes, I forgot this, but for me this way it's more difficult, I usually have OpenCore release.

  • Like 1
Link to comment
Share on other sites
eSaF
eSaF
Posted
Posted
20 minutes ago, miliuco said:

 I usually have OpenCore release.

Same here - Windows behind macOS in the OpenCore menu - is what I am aiming for, looks a lot cleaner in my opinion. Will give your method a try and hopefully get the desired effect. :thumbsup_anim:

Link to comment
Share on other sites
odemolay
odemolay
Posted
Posted (edited)

hy everybody, first thank you for you works.

i need you. i try to use this theme in OCC 066 (i have tried in 065 to without sucess)

https://u.pcloud.link/publink/show?code=kZjNWhXZbNyHqnJQ5c0thc94lnXAc01Ch5H7

i dont understand why it doesnt showup at the boot invit.

i use one of Chris1111:thumbsup_anim: it s running perfectly.

my OC settings seems to be good i've tried 3 different chris1111 themes and one made by blackosx program without any issue



would tou please help me?

Edited by odemolay
  • Like 1
Link to comment
Share on other sites
miliuco
miliuco
Posted
Posted
22 minutes ago, odemolay said:

hy everybody, first thank you for you works.

i need you. i try to use this theme in OCC 066 (i have tried in 065 to without sucess)

https://u.pcloud.link/publink/show?code=kZjNWhXZbNyHqnJQ5c0thc94lnXAc01Ch5H7

i dont understand why it doesnt showup at the boot invit.

i use one of Chris1111:thumbsup_anim: it s running perfectly.

my OC settings seems to be good i've tried 3 different chris1111 themes and one made by blackosx program without any issue



would tou please help me?

But with that theme yo must set PickerVariant to Modern. Have you do so?
