3 hours ago, talebabatto said:

First of all thank you for this fork because now I can boot both windows and macOS with OpenCore without ACPI patching issues.

I have two issues: the first is related to the contrast and brightness of the menu but I've already found how to fix this in the previous posts. The second issue is that I don't see every boot options I had in OpenCore I just see Windows 10, Linux, Mac. I can't see reset NVRAM and other .efi tools that there are in my Tools folder. Thank you.



EDIT: forgot to say that I set AllowNvramReset to True in config.plist but nothing changed

You need to press spacebar to see all hidden boot options, EFI, tools, hidden entries. ( It is explained in the first page of this thread )

Edited by Ellybz
  • Like 1
1 hour ago, meaganmargaret said:

I guess to use your c code menu you have to re-compile opencore.efi?

Correct. run again ./ndk-macbuild.tool after applying the color changes to the Simplebootmenu file.



Simple Ui boot picker is on!  Everything is the same just graphic instead of text. no mouse support yet



Don't forget to copy Icons folder EFI\OC\Icons



Details:



Icon image can be 128x128 pixel in either format icns or png image renamed to icns.



Text is auto scaled for 4k resolution screen.



Background, Font text colors are customizable by editing section below. file: OpenCorePkg/edk2/OcSupportPkg/Library/OcBootManagementLib/OcSimpleBootMenu.c

/*============ User's Color Settings Begin ==============*/

EFI_GRAPHICS_OUTPUT_BLT_PIXEL mTan = {0x28, 0x3d, 0x52, 0xff};
EFI_GRAPHICS_OUTPUT_BLT_PIXEL mWhitePixel  = {0xff, 0xff, 0xff, 0xff};
EFI_GRAPHICS_OUTPUT_BLT_PIXEL mBlackPixel  = {0x00, 0x00, 0x00, 0xff};
EFI_GRAPHICS_OUTPUT_BLT_PIXEL mDarkGray = {0x76, 0x81, 0x85, 0xff};
EFI_GRAPHICS_OUTPUT_BLT_PIXEL mLowWhitePixel  = {0xb8, 0xbd, 0xbf, 0xff};
/*
 Example:
 EFI_GRAPHICS_OUTPUT_BLT_PIXEL mNewColor = {0x3d, 0x3c, 0x3b, 0xff}; <- BGRA format

 EFI_GRAPHICS_OUTPUT_BLT_PIXEL *mFontColorPixel = &mNewColor;
*/
// Selection and Entry's description font color
EFI_GRAPHICS_OUTPUT_BLT_PIXEL *mFontColorPixel = &mLowWhitePixel;

// Date time, Version, and other color
EFI_GRAPHICS_OUTPUT_BLT_PIXEL *mFontColorPixelAlt = &mDarkGray;

// Background color
EFI_GRAPHICS_OUTPUT_BLT_PIXEL *mBackgroundPixel = &mTan;

/*============= User's Color Settings End ===============*/



Edited by n.d.k
  • Like 2
  • Thanks 1
4 hours ago, n.d.k said:

简单的Ui引导选择器已打开!一切都是相同的,只是图形而不是文本。尚无鼠标支持



不要忘记复制Icons文件夹EFI \ OC \ Icons



细节:



图标图像可以是128x128像素,格式为icns或重命名为icns的png图像。



文本会自动缩放为4k分辨率的屏幕。



可以通过下面的编辑部分自定义背景,字体文本颜色。文件:  OpenCorePkg / edk2 / OcSupportPkg / Library / OcBootManagementLib / OcSimpleBootMenu.c

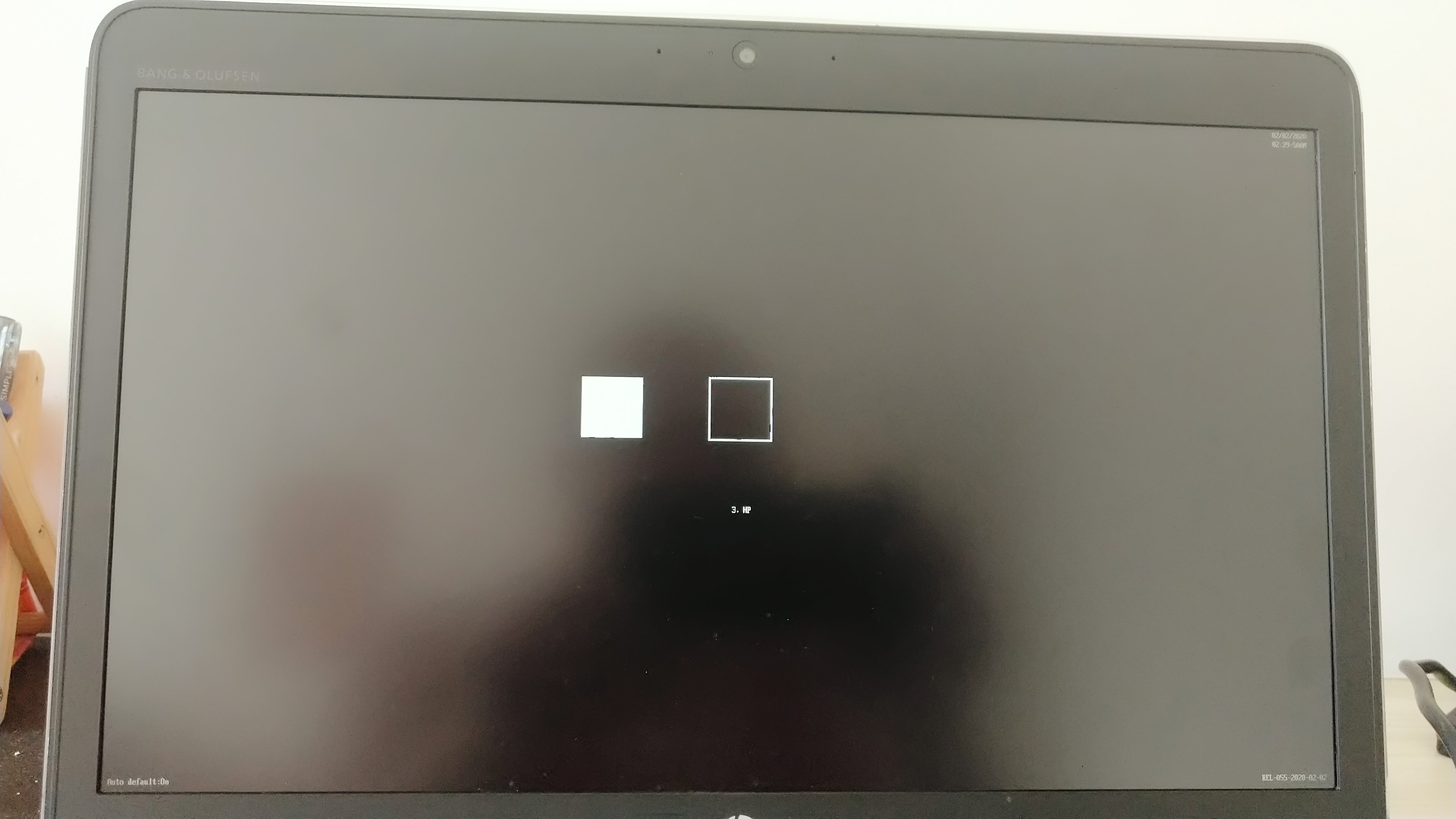

I recompiled the new version, but why the icon only sees the black and white boxes, but the icon is not visible. The Icons folder has been copied to the OC directory. What options do I need to set to display correctly?


5 minutes ago, btwise said:

I recompiled the new version, but why the icon only sees the black and white boxes, but the icon is not visible. The Icons folder has been copied to the OC directory. What options do I need to set to display correctly?




run a DEBUG version and post the log, make sure Icons folder is in the right place..look like it can't read the icon files.

6 minutes ago, n.d.k said:



run a DEBUG version and post the log, make sure Icons folder is in the right place..look like it can't read the icon files.

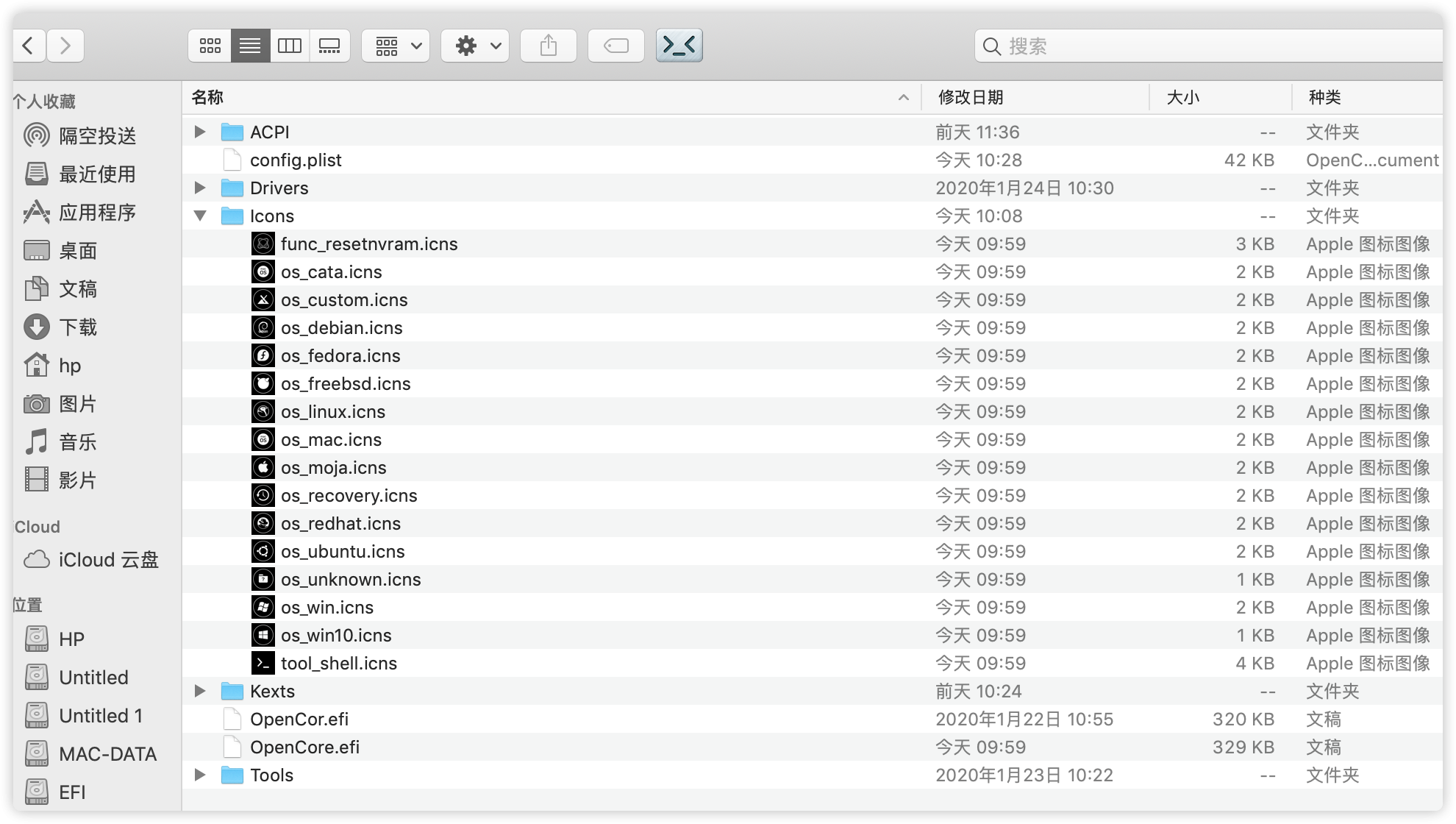

I'm re-downloading your source code. After compiling it once, the icon path should be correct.image.thumb.png.059f2cad2ad0fa32d9db50e554df6248.png

1 hour ago, btwise said:

I have redownloaded the build and formatted the EFI partition, but the icons still does not appear correctly

Maybe icons format incorrect something like this PNG-8 or PNG-24

Icons can not use icons with color elements?



No BANNER didn't seem to fit the picture

11 minutes ago, HmO said:

也许图标格式不正确,例如PNG-8或PNG-24

no,Because there are two EFI partitions, the menu does not determine which one is the Mac Os boot partition

45 minutes ago, btwise said:

Icons can not use icons with color elements?



No BANNER didn't seem to fit the picture

no,Because there are two EFI partitions, the menu does not determine which one is the Mac Os boot partition

Log message

OCUI: Failed to locate valid png file - 0!

25 minutes ago, HmO said:

Log message

OCUI: Failed to locate valid png file - 0!



It's the issue with locating the right EFI partition on system with Multiple EFI, I need a better function to find the correct one. For now, just copy the Icons folder to other EFI partition until it show up if there are multiple one.

Whether the icon can be scaled automatically based on resolution, and the icon should use a standard that automatically adapts to the background color, rather than changing the icon's background color when the background color changes

  • Like 1
5 minutes ago, MacPato™ said:

a nice feature, better than the text, but not able to get it to work and i have 1 EFI, OCUI: complains it can't locate PNG file and halts. and the icon folder is on the EFI partition.

Oh nevermind i recompiled and all is good, and it seems to boot faster too!, nice job.

28 minutes ago, n.d.k said:

Just pushed new commit, should fix the icons problem.



Great job, thanks :) Is it possible to set resolution for bootpicker somehow?



I've a issue with NDK-OC USB and Clover-Catalina HDD connected at the same time: no keyboard to select Catalina, my computer display Clover GUI without showing macOS. Before there is no issue.



Sorry for my bad english

20 minutes ago, darthsian said:

Is it possible to set resolution for bootpicker somehow? On 32" LCD with 2560 x 1440 the icons are large and rough. Thanks.

Try Misc->Boot->ConsoleMode = Blank and Resolution = Max

  • Like 1
5 minutes ago, n.d.k said:

Try Misc->Boot->ConsoleMode = Blank and Resolution = Max



Not working for my 27" 1920x1080.



About my keyboard issue, what do you think, please (see my previous post).
