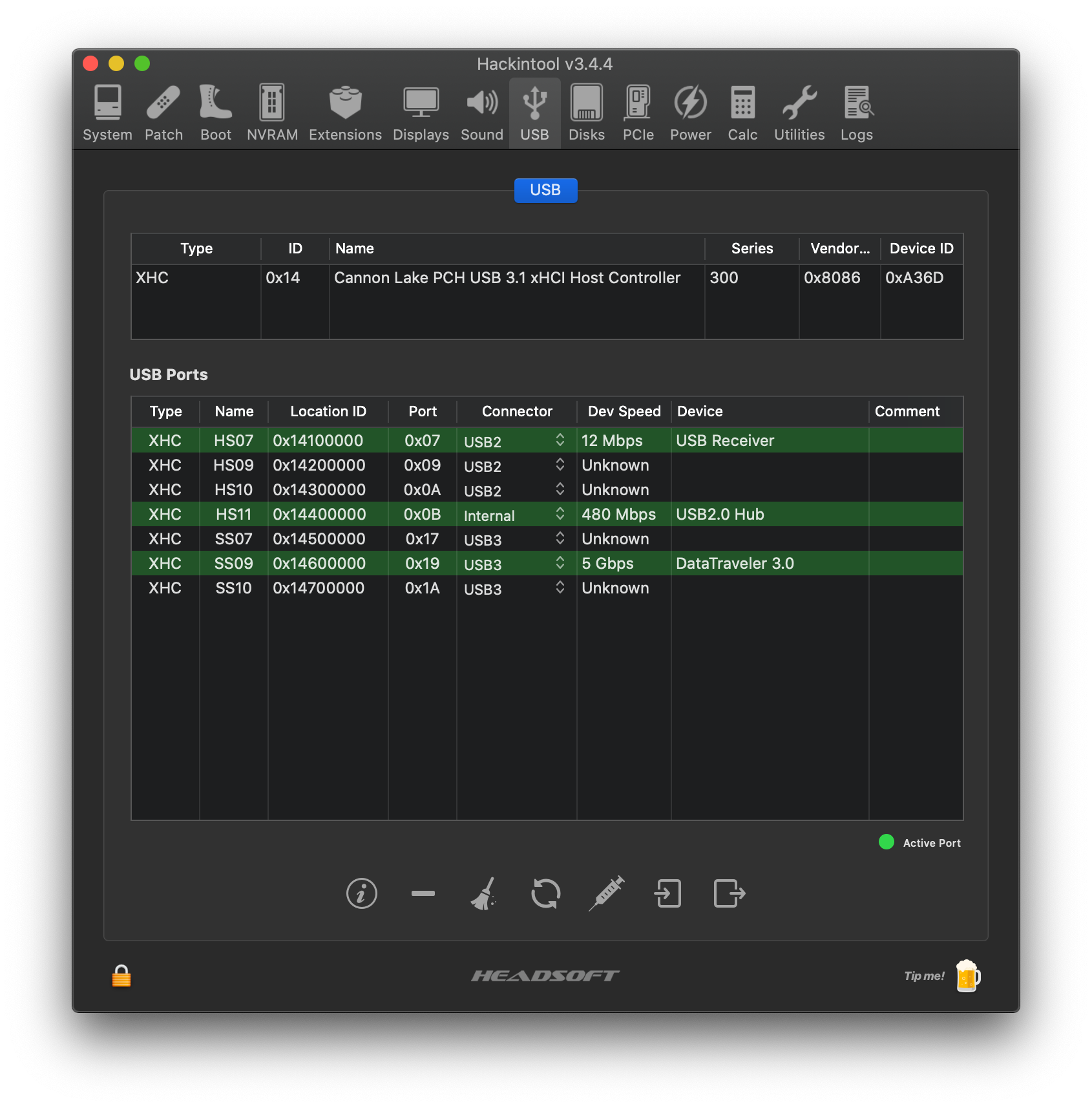

Tiem Posted August 4, 2020 Share Posted August 4, 2020 (edited) On 7/18/2020 at 3:23 AM, thief said: Hello @glasgood How do you solve the sleep issue with bluetooth under a USB2.0 Hub? I tried to set the Hub as internal but the computer still couldn't sleep. Please check the attached picture for more detail Also my USBMap Kext doesn't work, I'm using Asrock B460M pro4, can you check why my USB3 devices are not recognized? Thanks USBMap.kext.zip Use Hackintool to specify your ports, it produces a better kext and is just generally easier to work with than a script, especially if you're new to all this. Your mapping is wrong. HS01 does not exist on this board. HS11 is internal and should be 255. SS06 is a USB-C with switch and should be 9. Remember that HS is USB2.0 and not necessary. Both HS and SS can occupy the same port but are physically different connectors. You can use HS13, which is actually a hub, so it gets its own 15 port count for all USB2.0 devices. Just for posterity: USB2.0 = 0 USB3.0 = 3 USB-C/switch = 9 Internal = 255 Fix your ports and you will likely fix your sleep. 10.11+ has changed the way USB ports work as they are now tied very heavily to your ACPI. Hence why sleep breaks if your mapping is wrong. Here is what a healthy port map looks like. There are two ports beside the Ethernet port on the back of this board. I have the farthest one away mapped. You can see my mouse is plugged into that one. Most mice, even modern ones are typically USB2.0. Then I have the internal hub where my BT/WiFi card is mounted to. Lastly, the two case USB ports are mapped and you can see my USB3.0 stick mounted into one (HS09 is the one of the left, HS10 is the one on the right). Edited August 4, 2020 by Tiem Link to comment https://www.insanelymac.com/forum/topic/337837-glasgoods-macos-mojave-successguide-for-aorus-z390-pro/page/63/#findComment-2732959 Share on other sites More sharing options...
lefoly Posted August 4, 2020 Share Posted August 4, 2020 Hi. Where can I find the Audiogod EFI download? It looks like the link is broken ... And does it work with Catalina 10.5.6? Thanks. Link to comment https://www.insanelymac.com/forum/topic/337837-glasgoods-macos-mojave-successguide-for-aorus-z390-pro/page/63/#findComment-2732977 Share on other sites More sharing options...

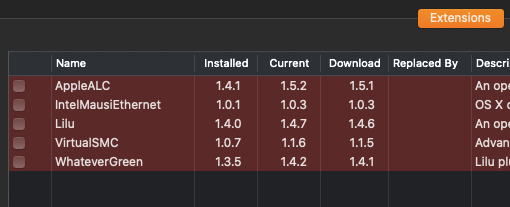

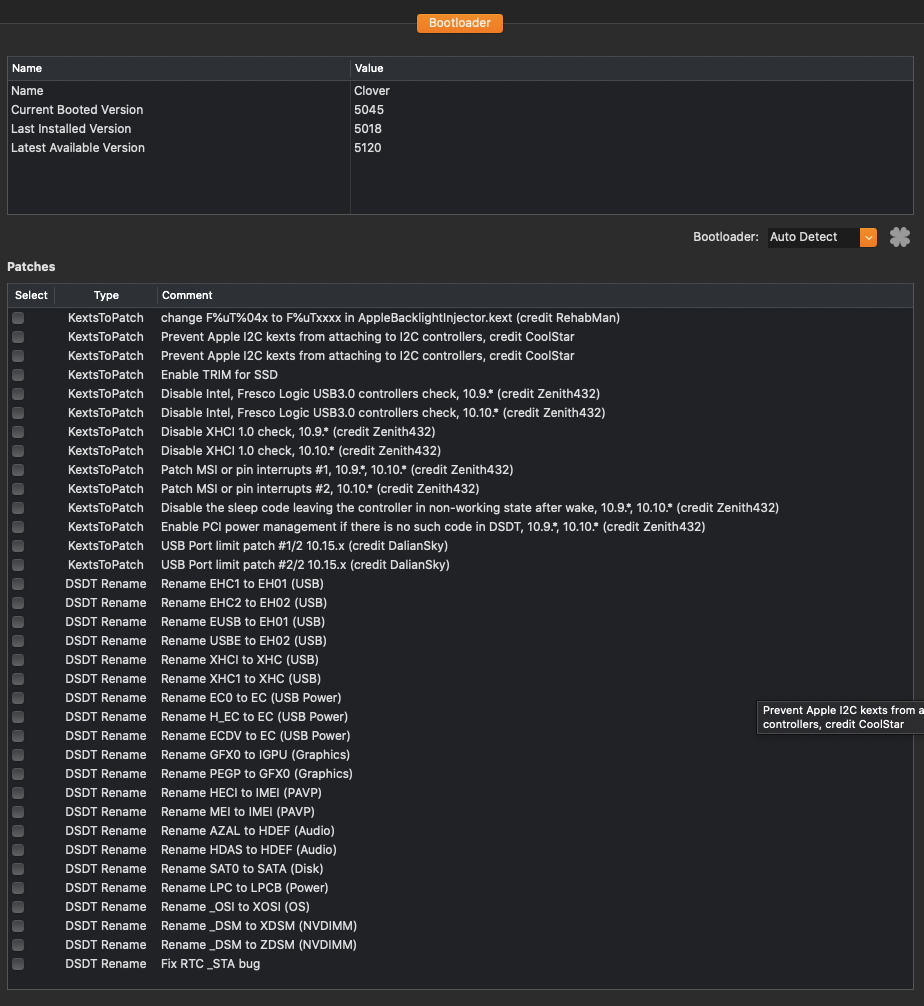

gino8080 Posted August 8, 2020 Share Posted August 8, 2020 Hello all! I was long time away, so I'm still at 10.15 (19A602) Tried to read all the older post, but please be nice with me I want to upgrade to upgrade to latest 10.15.6 What is the safer way to do it? Can I start updating kexts and clover (while I'm still on 10.15) ? Whats the best and safer way to update clover? I'm still on BIOS F10 thank you! Link to comment https://www.insanelymac.com/forum/topic/337837-glasgoods-macos-mojave-successguide-for-aorus-z390-pro/page/63/#findComment-2733587 Share on other sites More sharing options...
AudioGod Posted August 8, 2020 Share Posted August 8, 2020 54 minutes ago, gino8080 said: Hello all! I was long time away, so I'm still at 10.15 (19A602) Tried to read all the older post, but please be nice with me I want to upgrade to upgrade to latest 10.15.6 What is the safer way to do it? Can I start updating kexts and clover (while I'm still on 10.15) ? Whats the best and safer way to update clover? I'm still on BIOS F10 thank you! Hey Bud, What you doing asking on this thread? come across to mine and grab the latest EFI and upgrade away or ask for help on there as there are many helpful ones waiting. 1 Link to comment https://www.insanelymac.com/forum/topic/337837-glasgoods-macos-mojave-successguide-for-aorus-z390-pro/page/63/#findComment-2733592 Share on other sites More sharing options...
jimborae Posted August 11, 2020 Share Posted August 11, 2020 On 8/4/2020 at 12:16 PM, lefoly said: Hi. Where can I find the Audiogod EFI download? It looks like the link is broken ... And does it work with Catalina 10.5.6? Thanks. Here - Yes works with 10.5.6 Link to comment https://www.insanelymac.com/forum/topic/337837-glasgoods-macos-mojave-successguide-for-aorus-z390-pro/page/63/#findComment-2733860 Share on other sites More sharing options...
siglo99 Posted August 29, 2020 Share Posted August 29, 2020 THanks @STLVNUB I removed the Apple folde Link to comment https://www.insanelymac.com/forum/topic/337837-glasgoods-macos-mojave-successguide-for-aorus-z390-pro/page/63/#findComment-2735761 Share on other sites More sharing options...

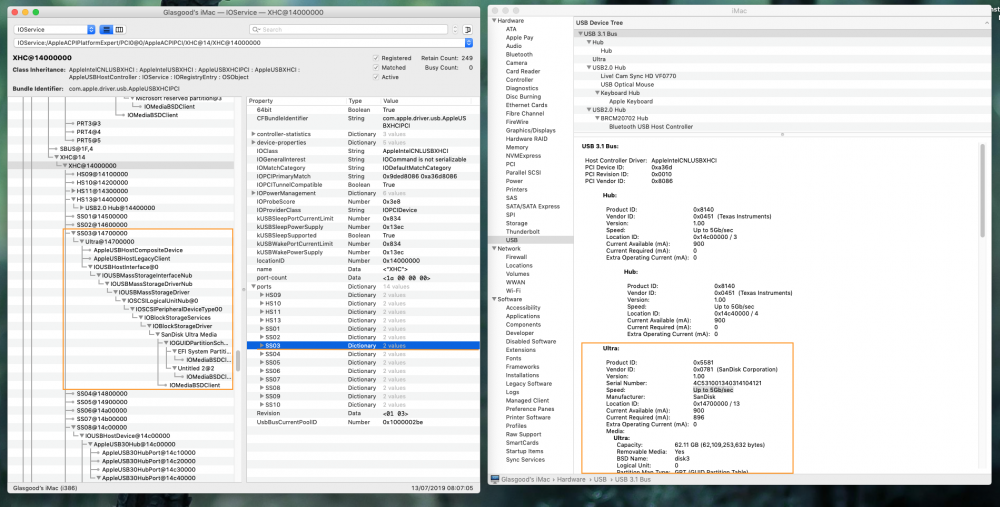

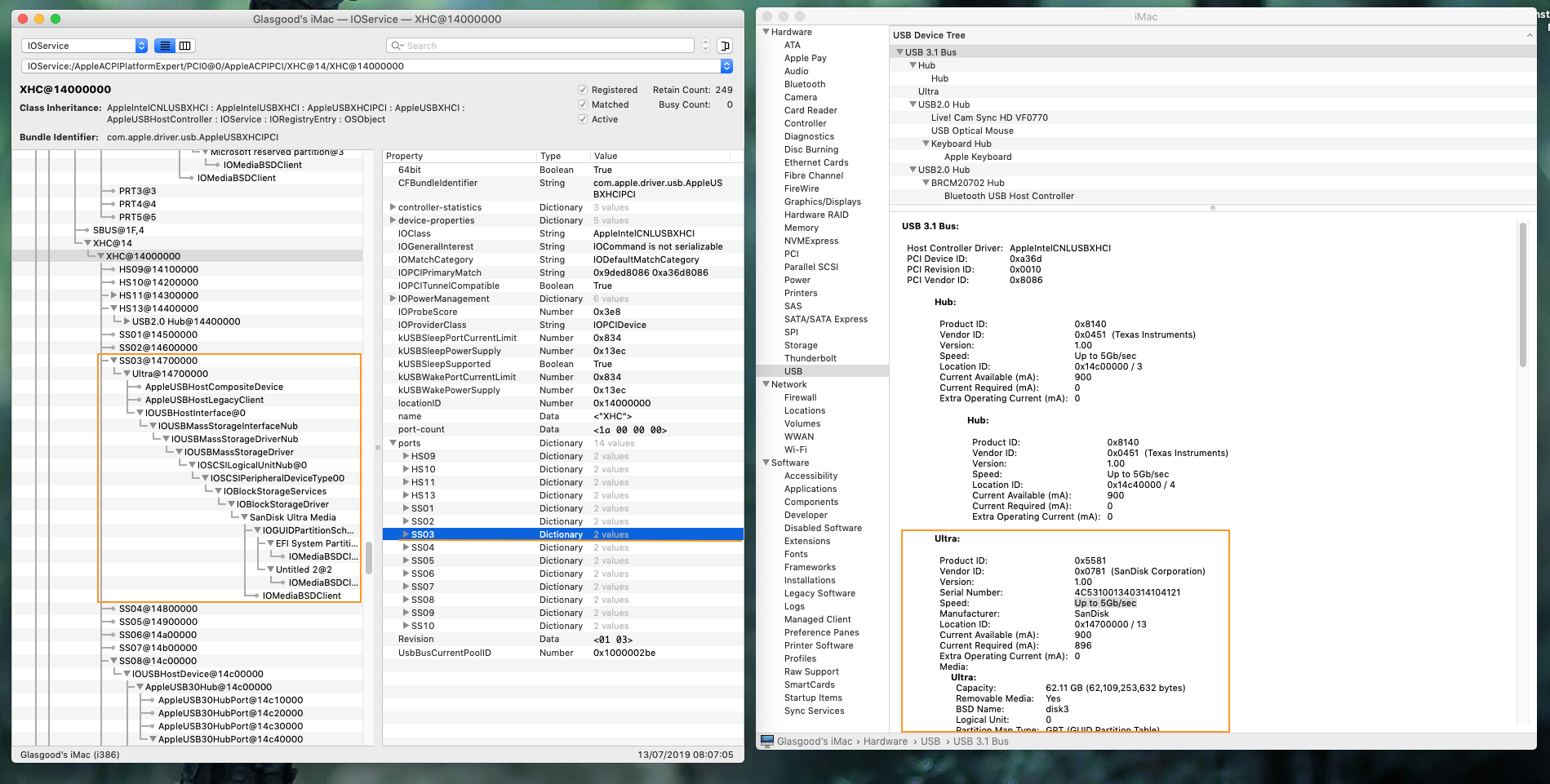

jeffbellamy Posted October 27, 2020 Share Posted October 27, 2020 On 7/13/2019 at 12:18 AM, glasgood said: Hi, All USB3.0 ports are working on back plate of motherboard, but USB2.0 is not enabled on those USB3.0 ports on the back of motherboard. So USB3.0 port SS03 just below HDMI port is working, but USB2 wont work on that port. USB2 is intentionally disabled on motherboard to keep port count down. USB2.0 ( HS09, HS10) are enabled on F_USB30 motherboard header for use on computer case, chassis. Where is HS09 on the "Gigabyte z390 Aorus Pro Wifi"? Link to comment https://www.insanelymac.com/forum/topic/337837-glasgoods-macos-mojave-successguide-for-aorus-z390-pro/page/63/#findComment-2742269 Share on other sites More sharing options...
pkdesign Posted October 28, 2020 Share Posted October 28, 2020 OC USB Setting.pdf Link to comment https://www.insanelymac.com/forum/topic/337837-glasgoods-macos-mojave-successguide-for-aorus-z390-pro/page/63/#findComment-2742386 Share on other sites More sharing options...
amuse.me Posted December 6, 2020 Share Posted December 6, 2020 Hi @glasgood, i believe you are using BCM943602cs for your setup. i just got mine. i would like to know if you are facing minor problem, where you hackintosh is unable to receive shared password from other apple device. Link to comment https://www.insanelymac.com/forum/topic/337837-glasgoods-macos-mojave-successguide-for-aorus-z390-pro/page/63/#findComment-2746350 Share on other sites More sharing options...
existation Posted June 26, 2021 Share Posted June 26, 2021 Hello. i am planing to buy this mobo - Aorus Z390 Pro. Can you upload EFI FOR SMBIOS iMac 19,1 for use with GPU & IGPU enabled in BIOS this EFI folder. I must change mobo without changing mac model. I have a lot musical soft activated on this mac model. Thank You. Link to comment https://www.insanelymac.com/forum/topic/337837-glasgoods-macos-mojave-successguide-for-aorus-z390-pro/page/63/#findComment-2761623 Share on other sites More sharing options...
pkdesign Posted June 28, 2021 Share Posted June 28, 2021 Read first post and go to link provided there. Link to comment https://www.insanelymac.com/forum/topic/337837-glasgoods-macos-mojave-successguide-for-aorus-z390-pro/page/63/#findComment-2761750 Share on other sites More sharing options...
