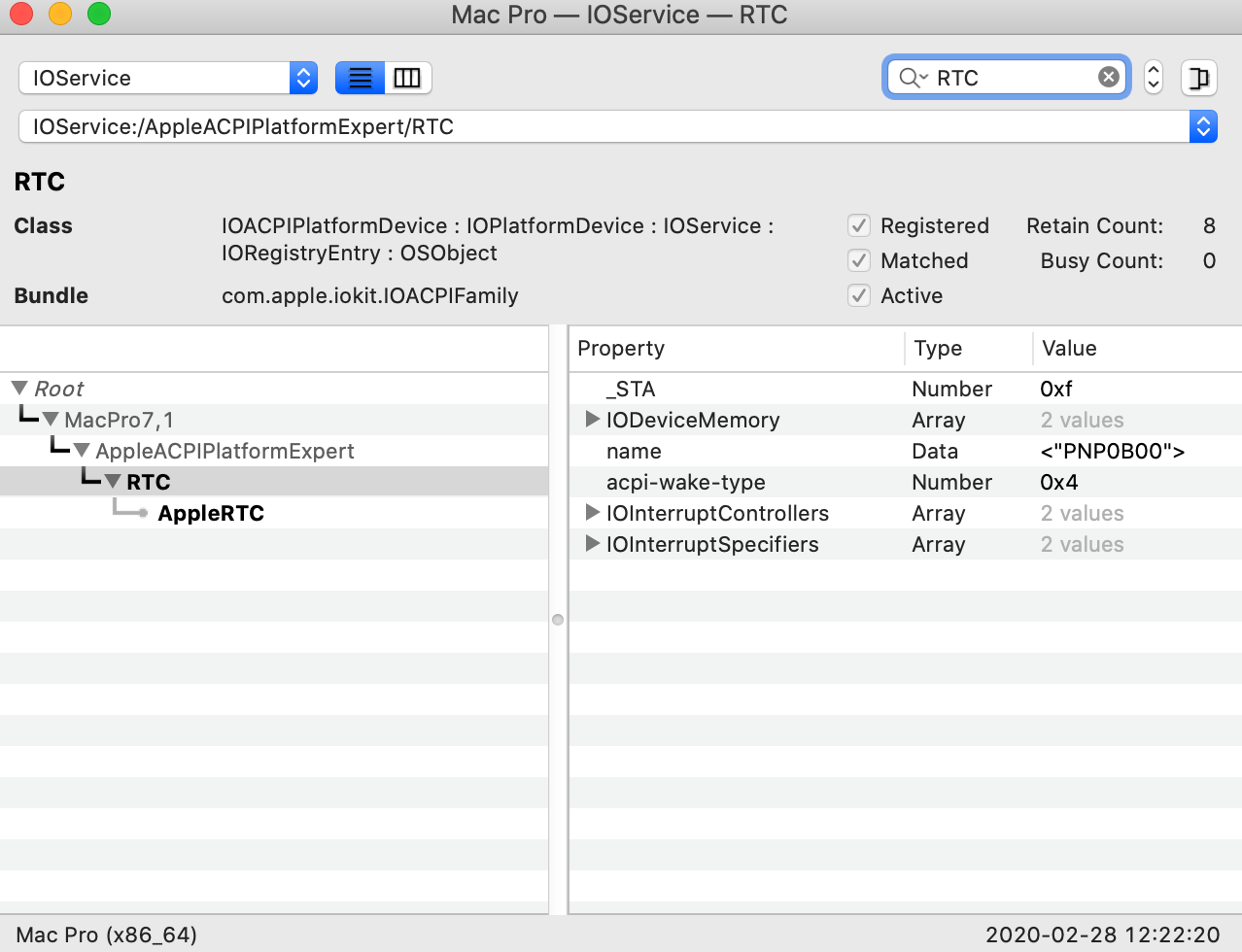

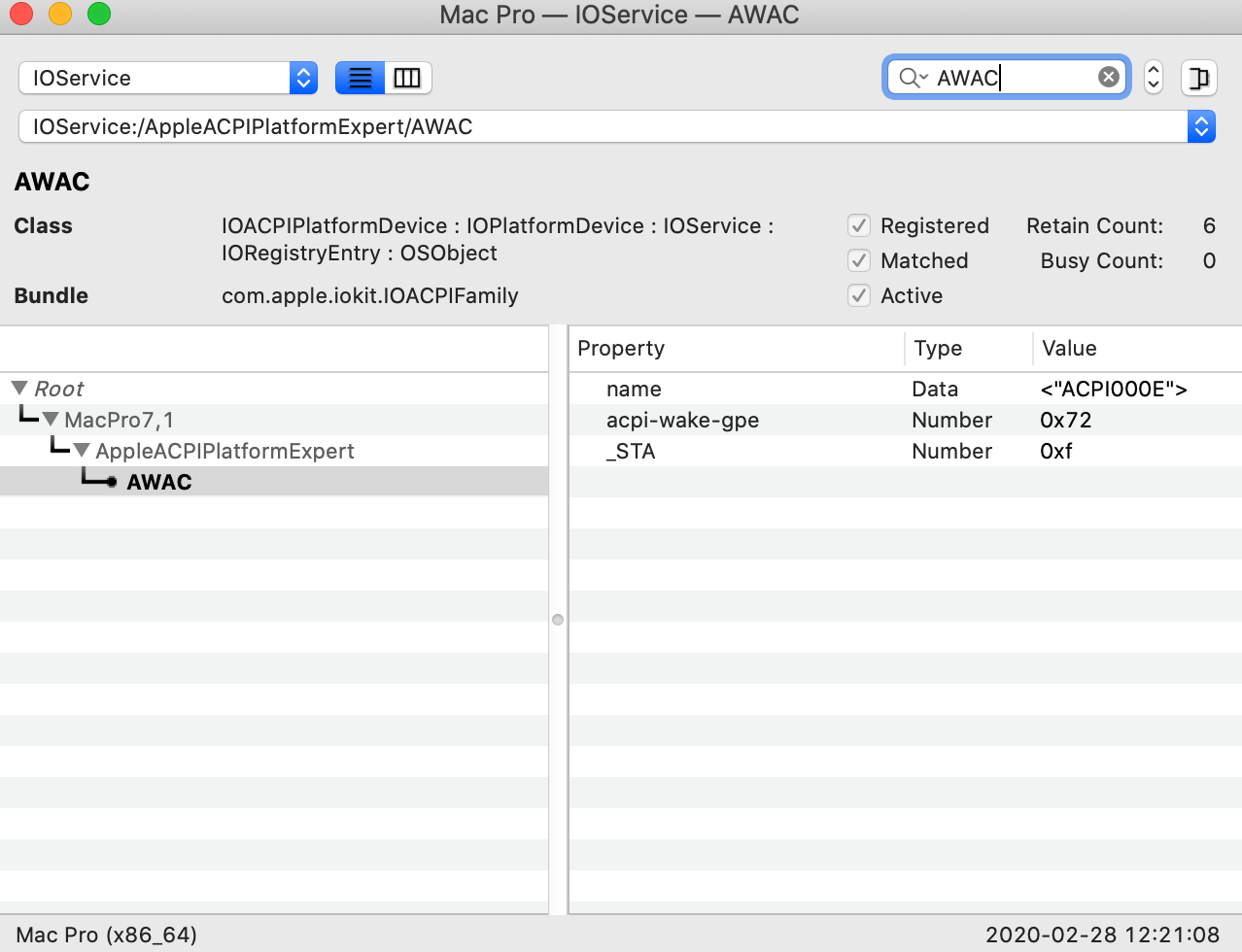

obus Posted February 28, 2020 Author Share Posted February 28, 2020 14 hours ago, yapan4 said: Thank you @obus I will be test and this path. The results - tomorrow... What type of Bluetooth you using? Another one bug in v.3003? My bad. Bluetooth is working now in UEFI as it should after reseating cmos.. If you use the SSDT you tested first (attached) you will get AWAC working after boot. We need ONLY this SSDT together wit 3003 bios for working boot and initialised AWAC. SSDT-RTC.aml Link to comment Share on other sites More sharing options...
yapan4 Posted February 28, 2020 Share Posted February 28, 2020 (edited) On 2/28/2020 at 1:24 PM, obus said: If you use the SSDT you tested first (attached) you will get AWAC working after boot. We need ONLY this SSDT together wit 3003 bios for working boot and initialised AWAC. I agree, i notice longer boot time with RTC+AWAC. Probably single RTC is more suitable for ASUS vs RTC+AWAC for Supermicro, owned by @lovest.fhd (my speculation) About ACPI path "find - replace" for Clover: negative result. Edited February 29, 2020 by yapan4 Link to comment Share on other sites More sharing options...

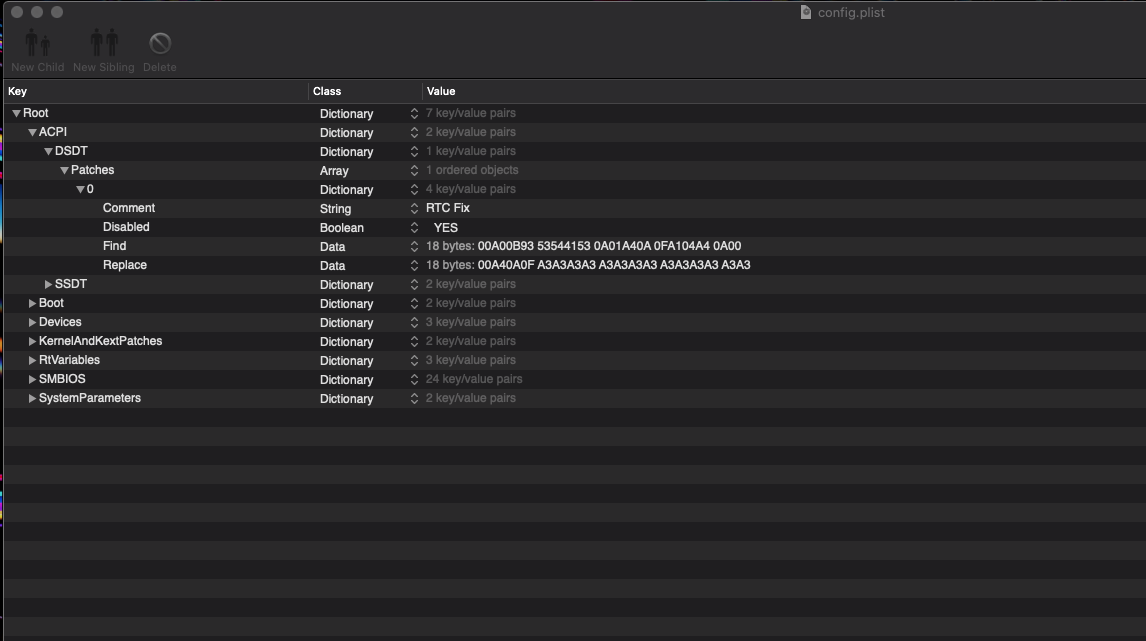

lovest.fhd Posted February 29, 2020 Share Posted February 29, 2020 16 hours ago, yapan4 said: I agree, i notice longer boot time with RTC+AWAC. Probably single RTC is more suitable for ASUS vs RTC+AWAC for Supermicro, owned by @lovest.fhd (my speculation) About ACPI path "find - rename" for Clover: negative result. RTC 0XF find:00 A0 0B 93 53 54 41 53 0A 01 A4 0A 0F A1 04 A4 0A 00 rep:00 A4 0A 0F A3 A3 A3 A3 A3 A3 A3 A3 A3 A3 A3 A3 A3 A3 awac 0x00 find:00 A0 0B 93 53 54 41 53 0A 00 A4 0A 0F A1 04 A4 0A 00 rep:00 A4 0A 00 A3 A3 A3 A3 A3 A3 A3 A3 A3 A3 A3 A3 A3 A3 2 Link to comment Share on other sites More sharing options...
yapan4 Posted February 29, 2020 Share Posted February 29, 2020 @obus r5102 ASUS.zip Note: do not use my serial numbers from SMBIOS, they are not valid ! 1 Link to comment Share on other sites More sharing options...
yapan4 Posted February 29, 2020 Share Posted February 29, 2020 2 hours ago, lovest.fhd said: RTC 0XF find:00 A0 0B 93 53 54 41 53 0A 01 A4 0A 0F A1 04 A4 0A 00 rep:00 A4 0A 0F A3 A3 A3 A3 A3 A3 A3 A3 A3 A3 A3 A3 A3 A3 awac 0x00 find:00 A0 0B 93 53 54 41 53 0A 00 A4 0A 0F A1 04 A4 0A 00 rep:00 A4 0A 00 A3 A3 A3 A3 A3 A3 A3 A3 A3 A3 A3 A3 A3 A3 Tested RTC 0XF only - don't work yapan4_origin_ACPI_3003.zip Link to comment Share on other sites More sharing options...
lovest.fhd Posted February 29, 2020 Share Posted February 29, 2020 3 hours ago, yapan4 said: Tested RTC 0XF only - don't work yapan4_origin_ACPI_3003.zip it work for my mobo.And i check your acpis,these 2 patchs also useful for you I extracted patch information when the sys started 归档.zip 1 Link to comment Share on other sites More sharing options...
yapan4 Posted February 29, 2020 Share Posted February 29, 2020 2 hours ago, lovest.fhd said: it work for my mobo.And i check your acpis,these 2 patchs also useful for you I extracted patch information when the sys started 归档.zip it means something is wrong on my side, sorry man, i will repeat test Link to comment Share on other sites More sharing options...
metacollin Posted March 1, 2020 Share Posted March 1, 2020 Hi everyone, I'm pleased to announce that I've discovered what I hope is a generalized way of unlocking both 0xE2 and 0x1AA MSRs regardless of whether or not the BIOS has a configuration option, hidden or otherwise, to do so. In other words, I think I figured out how to unlock any X299/C422/C620 series BIOS to allow fully native, patch-free power management in macOS. I'm working on a tool that will automatically apply the patch if given the correct PE32 BIOS image (extractable via UEFITool), but for now, if anyone has a BIOS image for their motherboard that they want those two registers unlocked on, post it here (either upload it or a link) and I'll try to do it manually. And it will help me make sure the module is similar enough for a generalized tool. But at least in my BIOS, tucked away in the PpmInitialize (3FFCAE95-23CF-4967-94F5-16352F68E43B) module is the code that writes a 1 to the lock bit of both 0xE2 and 0x1AA. I patched this module to, well, not do that, and it worked. I can now boot without a single power management related kernel patch. Here is the magic BIOS: X11DAi-N_3_2_E2_1AA_unlocked.rom.zip 2 2 Link to comment Share on other sites More sharing options...
antagon Posted March 1, 2020 Share Posted March 1, 2020 Hi @metacollin, please try this Asus X299 Prima A Bios: https://dlcdnets.asus.com/pub/ASUS/mb/LGA2066/PRIME_X299-A/PRIME-X299-A-ASUS-3006.zip?_ga=2.122174795.1512704165.1582998052-554465667.1582158797 It has an option to unlock msr 0xE2 but that seems to be not working anymore since 3006. Link to comment Share on other sites More sharing options...
yapan4 Posted March 1, 2020 Share Posted March 1, 2020 6 hours ago, metacollin said: Hi everyone, I'm pleased to announce that I've discovered what I hope is a generalized way of unlocking both 0xE2 and 0x1AA MSRs regardless of whether or not the BIOS has a configuration option, hidden or otherwise, to do so. In other words, I think I figured out how to unlock any X299/C422/C620 series BIOS to allow fully native, patch-free power management in macOS. I'm working on a tool that will automatically apply the patch if given the correct PE32 BIOS image (extractable via UEFITool), but for now, if anyone has a BIOS image for their motherboard that they want those two registers unlocked on, post it here (either upload it or a link) and I'll try to do it manually. And it will help me make sure the module is similar enough for a generalized tool. But at least in my BIOS, tucked away in the PpmInitialize (3FFCAE95-23CF-4967-94F5-16352F68E43B) module is the code that writes a 1 to the lock bit of both 0xE2 and 0x1AA. I patched this module to, well, not do that, and it worked. I can now boot without a single power management related kernel patch. Here is the magic BIOS: X11DAi-N_3_2_E2_1AA_unlocked.rom.zip Great news. We've been waiting for this for three years. https://dlcdnets.asus.com/pub/ASUS/mb/Socket2066/WS_C422_PRO_SE/WS-C422-PRO-SE-ASUS-3003.zip Link to comment Share on other sites More sharing options...
obus Posted March 1, 2020 Author Share Posted March 1, 2020 18 hours ago, lovest.fhd said: it work for my mobo.And i check your acpis,these 2 patchs also useful for you I extracted patch information when the sys started 归档.zip But this is only for bios v.3003 or ??!! Link to comment Share on other sites More sharing options...
skyflying5 Posted March 1, 2020 Share Posted March 1, 2020 9 hours ago, metacollin said: Hi everyone, I'm pleased to announce that I've discovered what I hope is a generalized way of unlocking both 0xE2 and 0x1AA MSRs regardless of whether or not the BIOS has a configuration option, hidden or otherwise, to do so. In other words, I think I figured out how to unlock any X299/C422/C620 series BIOS to allow fully native, patch-free power management in macOS. I'm working on a tool that will automatically apply the patch if given the correct PE32 BIOS image (extractable via UEFITool), but for now, if anyone has a BIOS image for their motherboard that they want those two registers unlocked on, post it here (either upload it or a link) and I'll try to do it manually. And it will help me make sure the module is similar enough for a generalized tool. But at least in my BIOS, tucked away in the PpmInitialize (3FFCAE95-23CF-4967-94F5-16352F68E43B) module is the code that writes a 1 to the lock bit of both 0xE2 and 0x1AA. I patched this module to, well, not do that, and it worked. I can now boot without a single power management related kernel patch. Here is the magic BIOS: X11DAi-N_3_2_E2_1AA_unlocked.rom.zip supermicro x11srm-f,thx! https://www.supermicro.com/about/policies/disclaimer.cfm?SoftwareItemID=10187 Link to comment Share on other sites More sharing options...
lovest.fhd Posted March 1, 2020 Share Posted March 1, 2020 10 hours ago, metacollin said: Hi everyone, I'm pleased to announce that I've discovered what I hope is a generalized way of unlocking both 0xE2 and 0x1AA MSRs regardless of whether or not the BIOS has a configuration option, hidden or otherwise, to do so. In other words, I think I figured out how to unlock any X299/C422/C620 series BIOS to allow fully native, patch-free power management in macOS. I'm working on a tool that will automatically apply the patch if given the correct PE32 BIOS image (extractable via UEFITool), but for now, if anyone has a BIOS image for their motherboard that they want those two registers unlocked on, post it here (either upload it or a link) and I'll try to do it manually. And it will help me make sure the module is similar enough for a generalized tool. But at least in my BIOS, tucked away in the PpmInitialize (3FFCAE95-23CF-4967-94F5-16352F68E43B) module is the code that writes a 1 to the lock bit of both 0xE2 and 0x1AA. I patched this module to, well, not do that, and it worked. I can now boot without a single power management related kernel patch. Here is the magic BIOS: X11DAi-N_3_2_E2_1AA_unlocked.rom.zip good news ,x11sra-f https://www.supermicro.com/zh_cn/products/motherboard/X11SRA-F 1 hour ago, obus said: But this is only for bios v.3003 or ??!! jsut v.3003,Maybe newer versions will work 1 Link to comment Share on other sites More sharing options...
addoil Posted March 1, 2020 Share Posted March 1, 2020 @metacollin Great News! Please try ASUS C422 Sage 10G v3003 BIOS. Thank you. https://dlcdnets.asus.com/pub/ASUS/mb/Socket2066/WS_C422_SAGE_10G/BIOS&FW/WS-C422-SAGE-10G-ASUS-3003.zip Link to comment Share on other sites More sharing options...
yapan4 Posted March 1, 2020 Share Posted March 1, 2020 (edited) @lovest.fhd Tried three times, this time AWAC+RTC patch. Still no success. Maybe You have some thoughts that I'm doing wrong? config.plist preboot.log EFI.zip Also SSDT-RTC.aml (SSDT-RTC-AWAC) do not work when i boot from installation flash drive with Clover. But work O'k when booting from installation flash drive with OpenCore. Patches Find-->Replace not tested from flash drive. Edited March 1, 2020 by yapan4 Link to comment Share on other sites More sharing options...
lovest.fhd Posted March 2, 2020 Share Posted March 2, 2020 7 hours ago, yapan4 said: @lovest.fhd Tried three times, this time AWAC+RTC patch. Still no success. Maybe You have some thoughts that I'm doing wrong? config.plist preboot.log EFI.zip Also SSDT-RTC.aml (SSDT-RTC-AWAC) do not work when i boot from installation flash drive with Clover. But work O'k when booting from installation flash drive with OpenCore. Patches Find-->Replace not tested from flash drive. rename not work for clover，I don't know why? maybe you need SortedOrder 1 Link to comment Share on other sites More sharing options...
hardcorehenry Posted March 2, 2020 Share Posted March 2, 2020 (edited) 3 hours ago, lovest.fhd said: rename not work for clover，I don't know why? maybe you need SortedOrder I wonder why you trying inject this rename. Macos doesn't expect _STA 0xF in RTC, in fact macos expect there's no _STA at all. In recap renaming _STA to XSTA in RTC should be enough. Edited March 2, 2020 by hardcorehenry 1 Link to comment Share on other sites More sharing options...
lovest.fhd Posted March 2, 2020 Share Posted March 2, 2020 2 hours ago, hardcorehenry said: I wonder why you trying inject this rename. Macos doesn't expect _STA 0xF in RTC, in fact macos expect there's no _STA at all. In recap renaming _STA to XSTA in RTC should be enough. There are many ways to control these two devices Link to comment Share on other sites More sharing options...
yapan4 Posted March 2, 2020 Share Posted March 2, 2020 13 hours ago, lovest.fhd said: rename not work for clover，I don't know why? maybe you need SortedOrder Thanks again, i will be experimented. Link to comment Share on other sites More sharing options...
hardcorehenry Posted March 2, 2020 Share Posted March 2, 2020 @yapan4, try this rename: RTC _STA to XSTA (remove refine) Find:5F535441 00A00B93 53544153 0A01A40A Repleace:58535441 00A00B93 53544153 0A01A40A 1 Link to comment Share on other sites More sharing options...
yapan4 Posted March 2, 2020 Share Posted March 2, 2020 1 hour ago, hardcorehenry said: @yapan4, try this rename: RTC _STA to XSTA (remove refine) Find:5F535441 00A00B93 53544153 0A01A40A Repleace:58535441 00A00B93 53544153 0A01A40A Also a failure. config.plist preboot.log Link to comment Share on other sites More sharing options...
metacollin Posted March 3, 2020 Share Posted March 3, 2020 On 3/1/2020 at 4:30 AM, yapan4 said: Great news. We've been waiting for this for three years. https://dlcdnets.asus.com/pub/ASUS/mb/Socket2066/WS_C422_PRO_SE/WS-C422-PRO-SE-ASUS-3003.zip Not sure if a generalized solution is feasible... your bios is very different. But thats ok. I have no way to test this and you flash this at your own risk, please be familiar with the bios recovery procedure for your motherboard in case it doesn't work. Unless it has IPMI, in which case no worries, you can just flash a working BIOS using that :). Anyway, this should prevent the bios from locking both E2 and 1AA MSRs on your motherboard: WS-C422-PRO-SE-ASUS-3003_UNLOCK.CAP.xz 2 Link to comment Share on other sites More sharing options...
metacollin Posted March 3, 2020 Share Posted March 3, 2020 On 3/1/2020 at 2:21 AM, antagon said: Hi @metacollin, please try this Asus X299 Prima A Bios: https://dlcdnets.asus.com/pub/ASUS/mb/LGA2066/PRIME_X299-A/PRIME-X299-A-ASUS-3006.zip?_ga=2.122174795.1512704165.1582998052-554465667.1582158797 It has an option to unlock msr 0xE2 but that seems to be not working anymore since 3006. I *think* your bios is leaving 0x1AA unlocked, but I am not sure. I've unlocked E2 at least. Also, same disclaimer, I am not responsible if it doesn't work, and I have no way to test it. Be familiar with your motherboard's bios recovery procedure in case it doesn't work and you need to flash a working bios. PRIME-X299-A-ASUS-3006_UNLOCK_E2.CAP.xz Link to comment Share on other sites More sharing options...
metacollin Posted March 3, 2020 Share Posted March 3, 2020 On 3/1/2020 at 7:01 AM, skyflying5 said: supermicro x11srm-f,thx! https://www.supermicro.com/about/policies/disclaimer.cfm?SoftwareItemID=10187 Looks just like mine. This one should definitely work. X11SRM9_UNLOCKED.C12.xz Link to comment Share on other sites More sharing options...
metacollin Posted March 3, 2020 Share Posted March 3, 2020 On 3/1/2020 at 7:57 AM, lovest.fhd said: good news ,x11sra-f https://www.supermicro.com/zh_cn/products/motherboard/X11SRA-F jsut v.3003,Maybe newer versions will work Here you go! X11SRA9_UNLOCKED.C11.xz Link to comment Share on other sites More sharing options...
