GiorgioHeins

SAMSUNG NP300E5C Intel graphics HD3000 not working

21 posts in this topic

Recommended Posts



Hello everybody, it’s been a long long time since my last post here on this forum, I’m having a lot of issues trying to activate my graphic card, the system recognizes the graphic card but there’s not full acceleration, clearly shows up its name as Intel graphics HD 3000 with only 4 MB of video ram.



I would like to know how I could fix this problem or a least any suggestion about it. The reason I came to this site one more time is because I have no clue how to edit or patch a DSDt.aml file, I have clover bootloader and still  (seems to be easy but not for me LOL) so I don’t want to ruin the system once again.



My configuration is

OS macOS High Sierra 10.13

SAMSUNG series 3 NP300E5C-A0US

INTEL CORE i3 - 2370M 2.4 GHz

INTEL GRAPHICS HD 3000

WiFi ATHEROS AR5B95

MEMORY 6 GB DDR3





Wifi works *** Sound Works ***Ethernet Works***



Battery indicators and trackpad gestures are not working yet.



Thank you guys in advance, I’ll keep myself reading and searching for any kind of solution for my laptop..



See attachment



bootlog.txt

CLOVER.zip

DSDT.aml

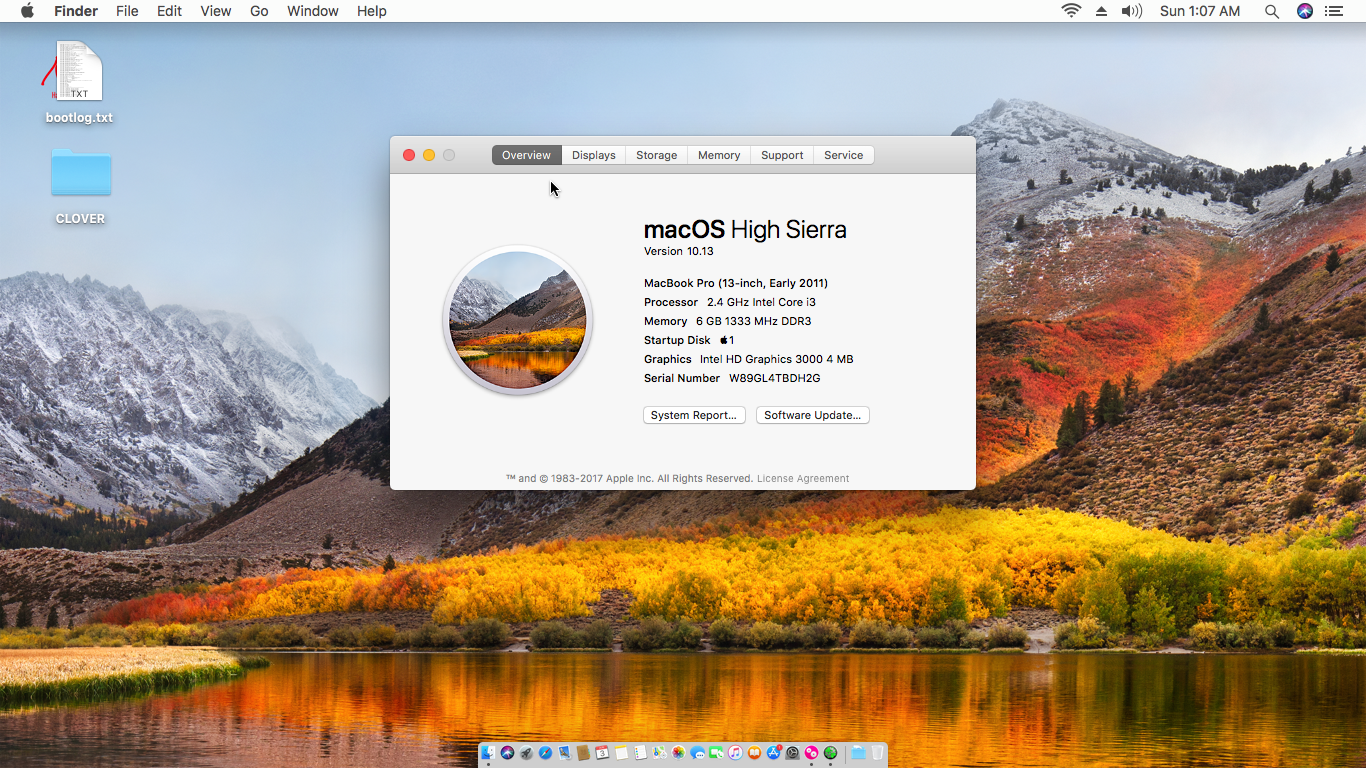

Screen Shot 2018-06-03 at 1.07.32 AM.png

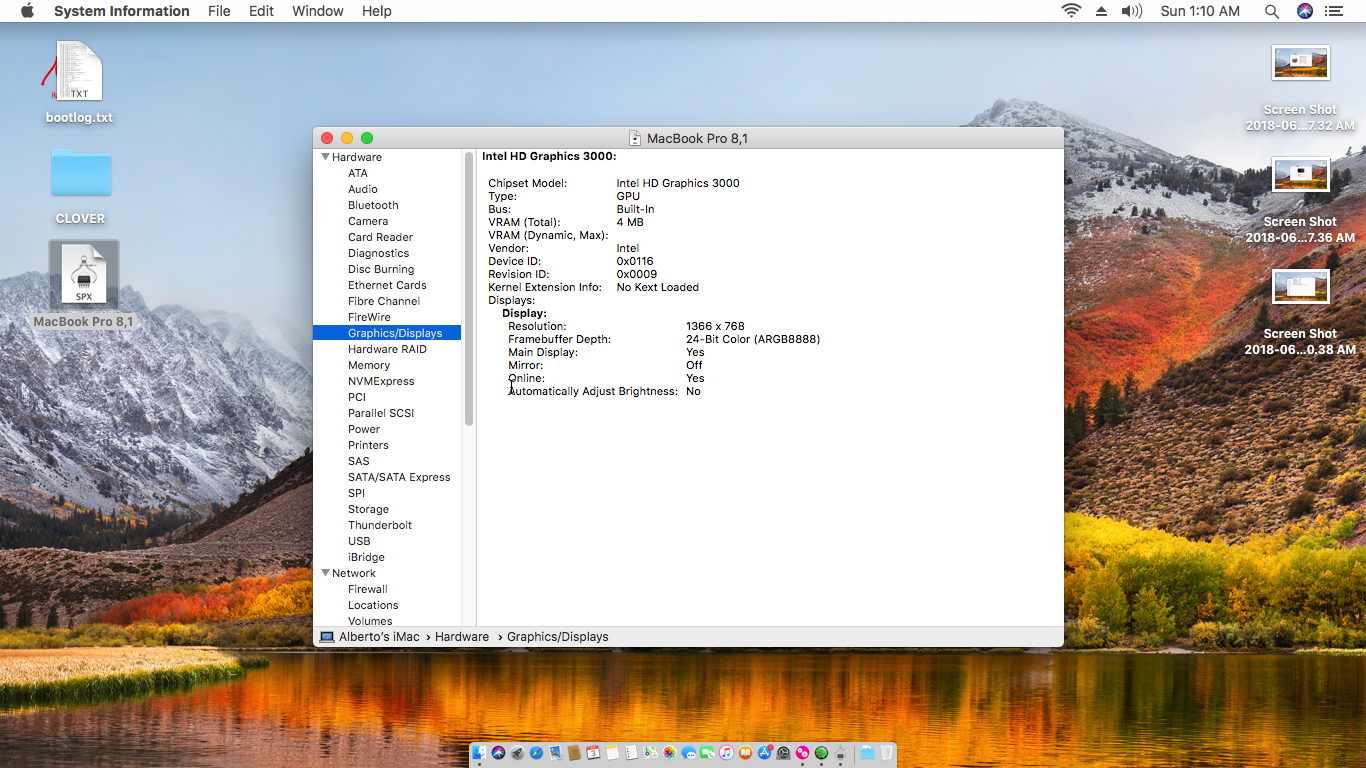

Screen Shot 2018-06-03 at 1.10.48 AM.png

Screen Shot 2018-06-03 at 1.10.48 AM.png

Share this post


Link to post
Share on other sites
Advertisement

Artur_pt  , you should specify to the user, that if he uses your DSDT, he must NOT use my Config, there are double renames

Share this post


Link to post
Share on other sites

Question: So if Clover finds elaborate DSDT, does he understand NOT to insert Fix introduced in Configplist ???Are you saying this ???

Share this post


Link to post
Share on other sites

Ehi @Baio77

If you want to use only config.plist for the HD3000 , in the case of laptops with 7 chipset series
you must also add FakeID / IMEI like this

Schermata 2018-06-03 alle 11.21.49.png



 But artur_pt has already put all this on dsdt ... ;)

Share this post


Link to post
Share on other sites
9 minutes ago, Allan said:

Would be a good idea you read more about Clover:



Clover Wiki

Clover v.2 Instructions

Clover Open Discussion



;)

My English it's veri bad ..... and with traslate many info are distorted , my guide for Clover is Gengik84  and various info I find on the web more experience on the subject .....
I speak only Italian ......

Share this post


Link to post
Share on other sites
10 hours ago, Baio77 said:

Test this Config , and add this kext , I cleaned the config, test if the battery goes and brightness control ........



This rename is OK

Archivio.zip add

VoodooPS2Controller.kext.zip

Hey bro thanks for these files, now I have the battery indicator which is great, thanks a lot for your help and support, I've done pretty much everything you guys said, but sill I have not full video acceleration, I've changed the config file, indeed the system boots so much faster than never before.

Share this post


Link to post
Share on other sites
10 hours ago, artur_pt said:

hello



if u want try also this



DSDT.aml.zip



good hack

Hello Artur_PT, according to what I know I placed the file (DSDT.aml) on EFI/CLOVER/ACPI/patched and nothing happened, I'm sorry for my ignorance, I think I'm doing something very wrong about the file you sent me.

Thank you for reply and support.

Share this post


Link to post
Share on other sites

I haven't mentioned guys but I'm running a Niresh High Sierra Distro, and perhaps there might be something wrong with it, do I have to use a fresh vanilla version of the OS instead?



This is what I got from DarwinDumper....

DarwinDumper_3.0.4_03.06_15.14.35_MacBookPro8,1_Phoenix_Technologies_Ltd._X64_High Sierra_17A405_beto.zip

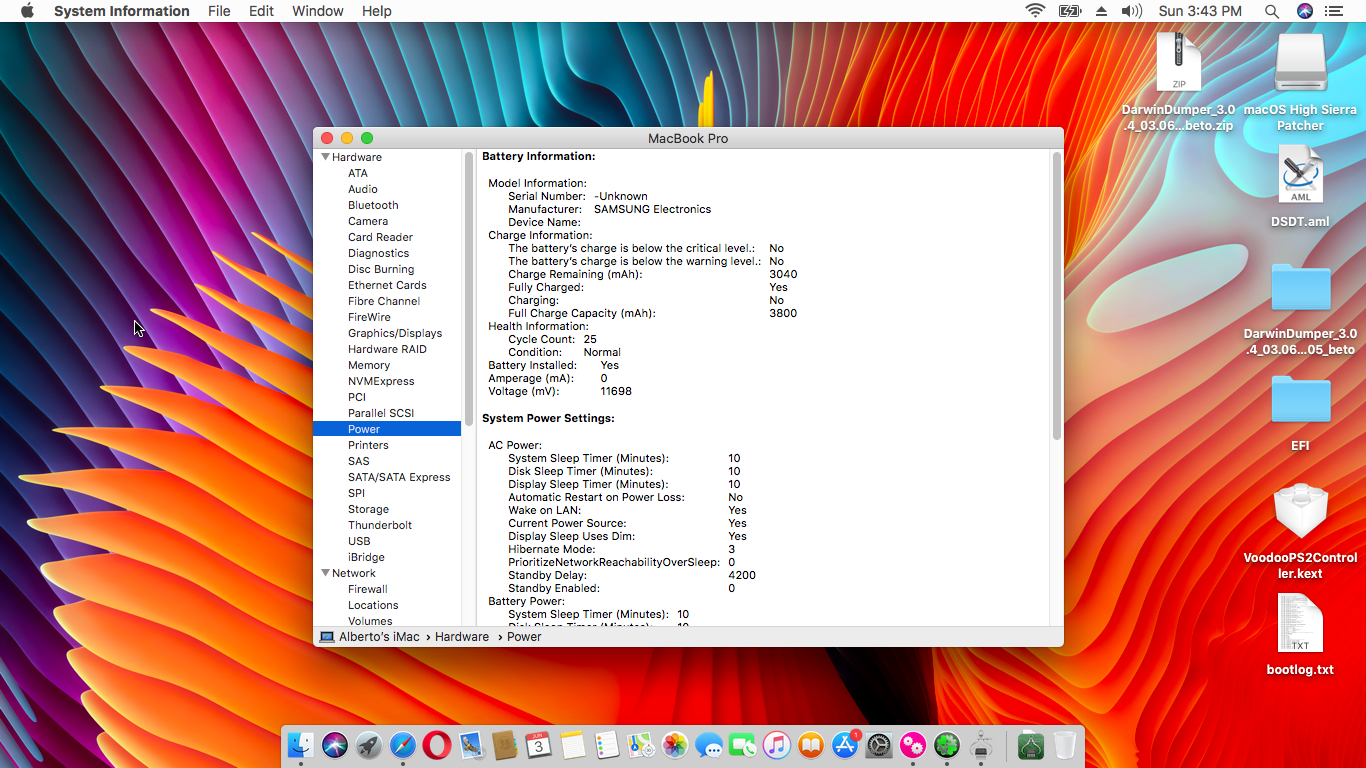

Screen Shot 2018-06-03 at 3.43.25 PM.png

Share this post


Link to post
Share on other sites

:drool:O M G   O.o Tha was amazing, this is the first time I see this app, how could be so tiny and so useful at the same time? I'm still impressed hahahahah, alright let me send you the file....:thumbsup_anim:

Send me Albertos-iMac.zip

58 minutes ago, Baio77 said:

POST THE CLOVER FOLDER

Done bro, I've posted it already :yes:

Share this post


Link to post
Share on other sites
2 hours ago, artur_pt said:

hello



try this config



config.plist.zip



then send new full dump



good hack

It feels like the systems is running a little bit faster, but once again there’s not full acceleration. Thanks for your support man :weight_lift: I think I have to learn a lot about clover bootloader and its configurator app too.



Here’s the file asked for

Send me Albertos-iMac.zip

Share this post


Link to post
Share on other sites

hello



should work ..



are u sure u have untouched kext for the intel ? maybe good idea .. make a new install over the one from the distro u have now



the problem is not loading the kext from s/l/e

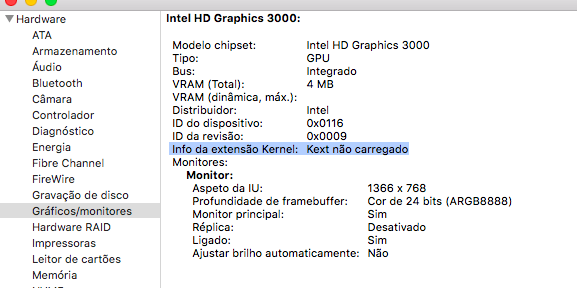

Captura de ecrã 2018-06-04, às 08.35.54.png



try also in config I send u before not inject the intel graphics card



and this

https://github.com/lvs1974/IntelGraphicsFixup

good hack

Share this post


Link to post
Share on other sites
1 hour ago, artur_pt said:

hello



should work ..



are u sure u have untouched kext for the intel ? maybe good idea .. make a new install over the one from the distro u have now



the problem is not loading the kext from s/l/e



Captura de ecrã 2018-06-04, às 08.35.54.png



try also in config I send u before not inject the intel graphics card



and this

https://github.com/lvs1974/IntelGraphicsFixup

good hack



Definitely you’re the best, I’ve just reinstalled macOS High Sierra 10.13 ( using the

same distro) this time I did not backup the graphics kexts, I left them in their own location System/Library/Extensions, so what happened was that they system wasn’t able to load the kexts-in this case INTEL HD 3000.



Now it seems to be working fine !!! Thank you for all the effort you have made to help me. Btw I’m thinking to make a new fresh install using macOS High Sierra 10.13.5 :thumbsup_anim::drool:

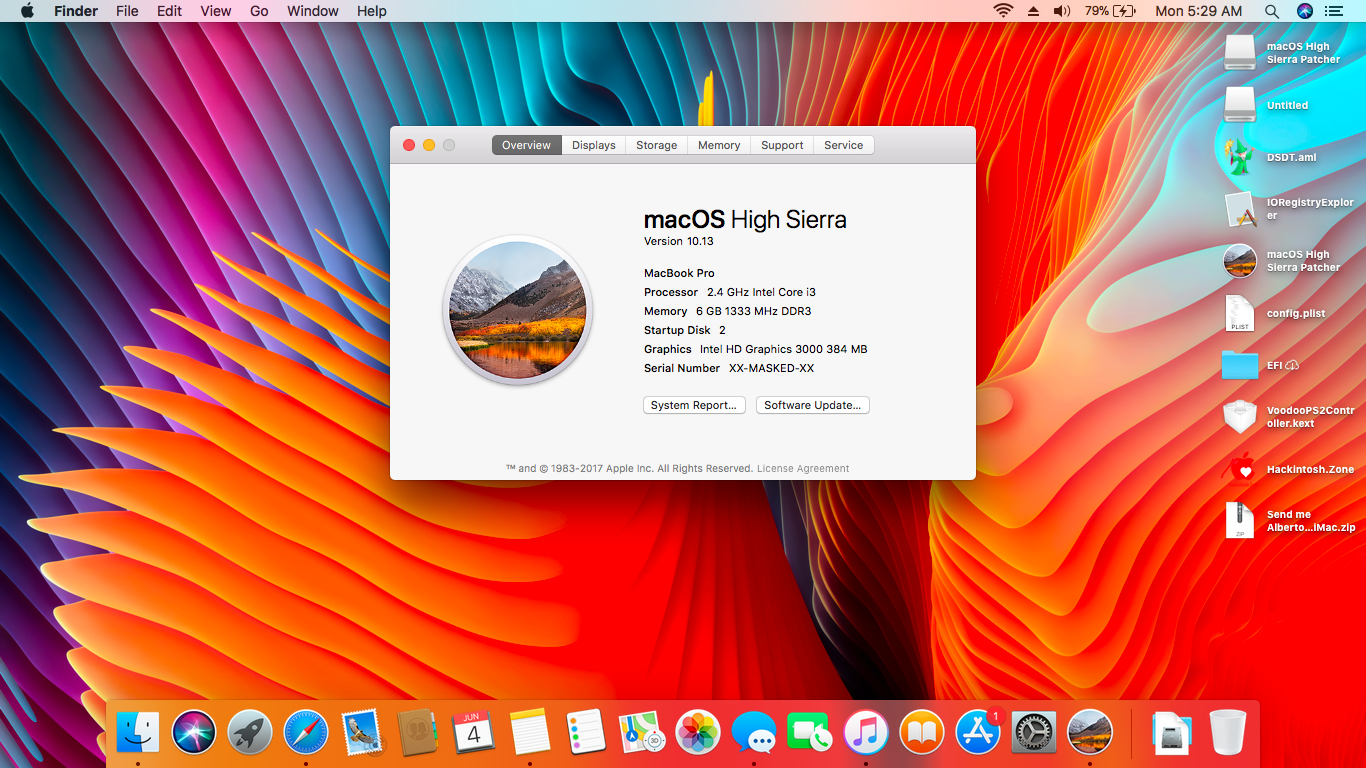

Screen Shot 2018-06-04 at 5.29.55 AM.png

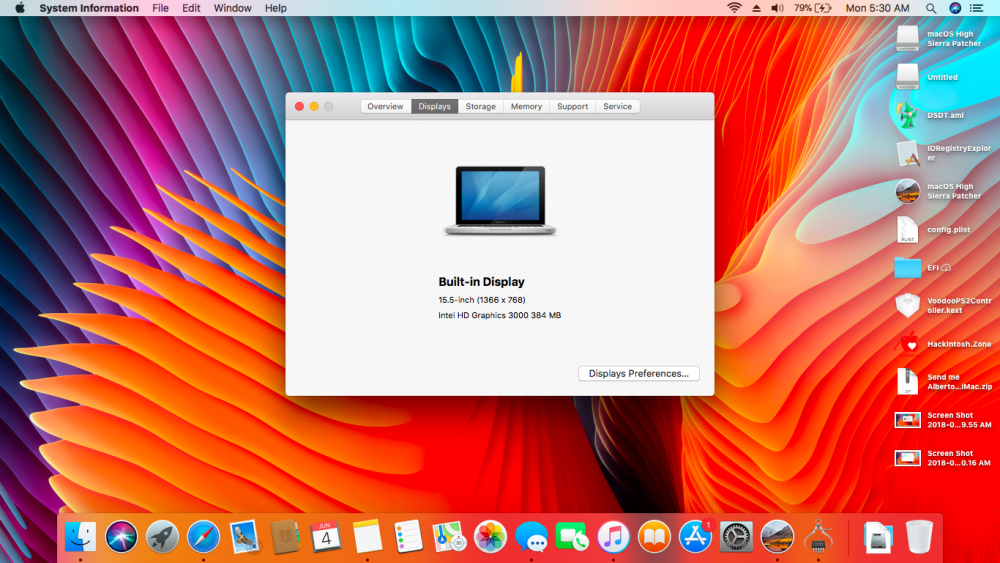

Screen Shot 2018-06-04 at 5.30.25 AM.png

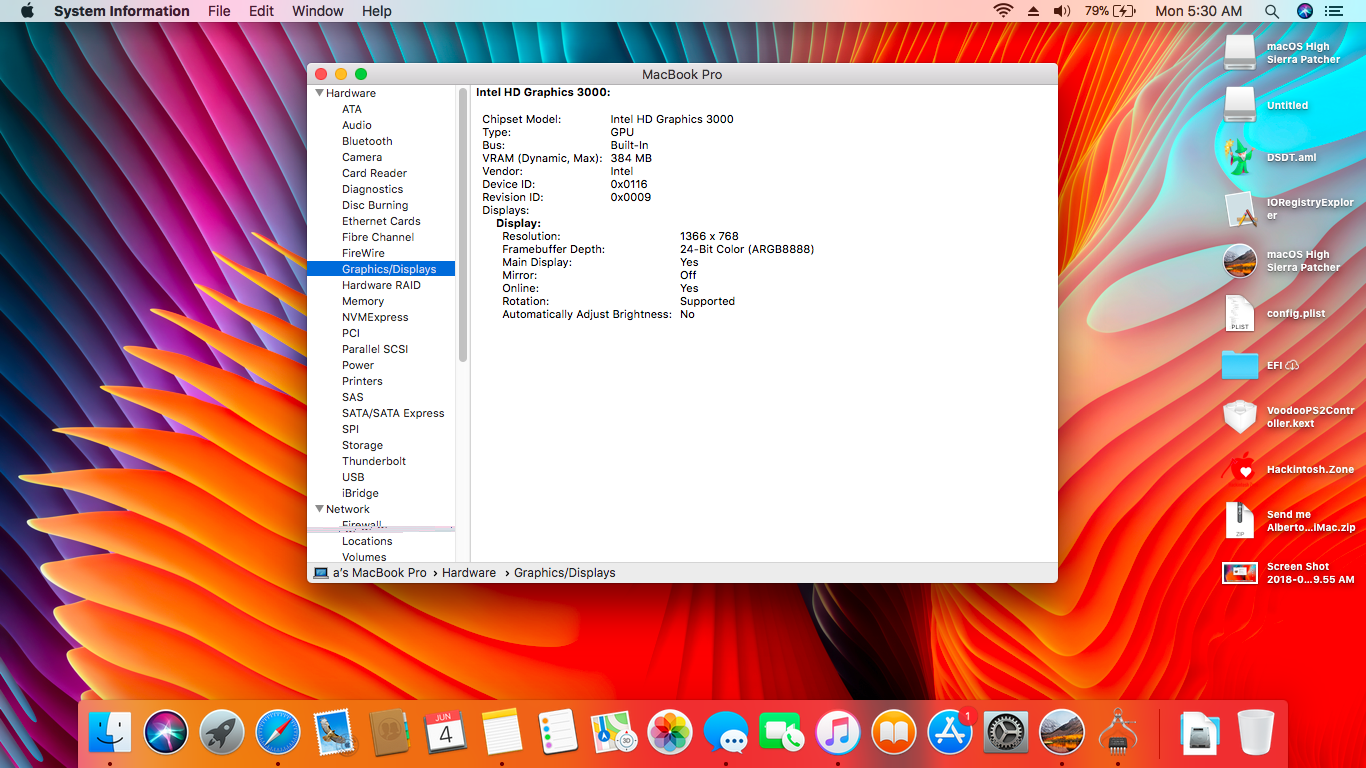

Screen Shot 2018-06-04 at 5.30.16 AM.png

12 hours ago, Baio77 said:

POST THE CLOVER FOLDER

Thanks a lot man you’ve made my day too! :angel:

Share this post


Link to post
Share on other sites

hello



glad ur problem is solved .. try to install from the store .. download the image and make a new install over that one



good hack

Share this post


Link to post
Share on other sites
