Ozmosis for 100 Series Skylake CPU's and up

167 posts in this topic

Recommended Posts

Posted (edited)



                    PLEASE READ CAREFULLY THIS GUIDE AS IT'S BEING UPDATED FRECENTLY



         Notice: THE LATEST ROM's DOESN'T WORK, MANUFACTURER FOUND TRICK FOR THAT BIOSES

                             TO BE CORRUPTED AFTER MODIFICATION



Guy's please you have to be seriously responsible for your machine as in the same way you hurry up to Hackintosh it, never hurry up to manufacturers technical support, because they can find that files on the M_BIOS, so they do more complication for us to find our how to hack!



Assume that you're aware about to do a bios hack, assume that if something goes wrong, you have to find how to solve the problem even if brick by yourself or a friend by helping him, and not going to the manufacturer, and finally read carefully the guide, yes i said carefully, i have here all the things for you to have a safe things, so don't forget some steps and lack at some point!



Again don't use latest bios updates, just use latest MMTool that I added to the repository to update CPU Microcodes that are important since last CPU Vulnerability!



I've tested Z170 chipset and i confirm that it work, but to be in ROM:

- Do not try on 64 Mbit chip, because simply it will not let you insert up to 3 files, so don't
- Your board must have 128 Mbit chip
- Do not try the work with UEFITool for inserting modules, use only MMTOOL to keep bios ROM flashable
- Do not change the name of ORIGINAL ROM file that need to be modded, do just save and not save as!
- Use UEFITool only for replacing modules body and use only save (overwrite that ROM) and not save as!

Space on the ROM is more than available on 128 Mbit, and to flash you need FPT-DOS files for 100 Series and do it with USB bootable

So you have to decompress "Setup" driver like what we do with CORE_DXE, once done you can insert other drivers using MMTOOL and insert them one by one, the first need to be the first the second need to be the second and etc...

I'll attach that files one by one for FFS extension:



AcpiPatcher and KernextPatcher have to be in the top of the nested Volume, as they are absolutely needed before other drivers get loaded, same thing should happen if on ESP, so one for dropping OEM _DSM, devices rename and the other for Kernel and Kexts to patch.



Please:

Don't be confused, if i said "they absolutely needed" because i only said "before other drivers get loaded", this is because some drivers have to be loaded first, in order to proper filesystems load, and for this reason on each Chipset family, Manufacturers put drivers in the same order, same thing here for Ozmosis about Z77MXQUO-AOS, there are macOS drivers that precede others from the top of the nested volume to the bottom, and to give you and example for that (Btrfs on the top followed by EnhancedFat and others, then HermitShellX64 followed by HermitCsmVideo on the middle, then SmcEmulatorKext and others, then finally Ozmosis), this is because it have a sense, not because of other thing.



-The oficial UEFTW Patchers from @cecekpawon are available in GitHub repos here these drivers aren't posted here, because of frequently updated, so i have to do that on each update, i prefer to put link for user own download and to get more informations about that tools and for proper knowledge.
1- Btrfs.ffs.zip
2- EXFat.ffs.zip insert it after Btrfs
3- EmuVariableUefi-64.ffs.zip insert it after EXFat and Before HfsPlus
4- HfsPlus.ffs.zip Updated



Drivers 1,2,3,4 have to follow the patchers on the Top of the nested Volume



5- HermitShellX64.ffs.zip
6- FakeSMC 234f2 FFS.zip For i7 CPU's
7- FakeSMC 233f10 FFS.zip For i5 CPU's
8- InjectorCompress (Rev1.3).ffs.zip 10 Series [8086:A102] ready, for 20 and 30 Series you need to add it by yourself
9- HorizontalTheme.ffs.zip
10- OzmosisDefaults.ffs.zip - OzmosisDefaults.plist.zip iMac17,1 Full example
11- Ozmosis.ffs.zip High Sierra @cecekpawon version

  a- Ozmosis.ffs.zip Mojave @TypeThree version

  b- KernextPatcher.ffs.zip Mojave version but the plist work by @TypeThree, to put on the top of the nested volume with the AcpiPatcher





MMTool v5.0.0.7: MMTool.exe.zip Note that I added the latest MMTool that work perfectly and you can even update CPU Microcodes easily
Working Directory: 100 Series.zip


IMPORTANT
- Now because iMac17,1 uses 2 different SMC's for i5 and i7, edit your already FakeSMC or download the 233f10 if you have i5 and 234f2 if you have i7
- Keep you updated about editing SMBios here
- If you got only one error while you're inserting the files on the ROM, don't save it, or don't use it, you don't have to see any error at all

Ozmosis related Options:

Start-up HotKeys
================

'Function' || 'Shortcut' || 'Notes'
===================||======================||=========
Disable Ozmosis || Escape || Press at start-up, screen will flash red to indicate Ozmosis is disabled.
Reset NVRAM || Option+Command+P+R || From F12 menu, Ozmosis GUI, Shell or BIOS Setup.
Start Ozmosis GUI || Option/Home || It can be controlled with mouse only for now.
Safe Boot Mode || Shift ||
Verbose Mode || Command+V ||
Single-User Mode || Command+S ||
32 Bit Boot Mode || 3+2 || Start Up In 32 Bit Mode
64 Bit Boot Mode || 6+4 || Start Up In 64 Bit Mode


Mac/PC Keyboard Legend
======================

'Mac' Key || 'PC' Key
Option || Alt
Command || WinLogo


Added the ability to control graphics and audio injection using NVRAM variables, complete list of variables:

Default Settings 1F8E0C02-58A9-4E34-AE22-2B63745FA101
======================================================

'Key' || 'Value' || 'Note/Example'
==============================||=========||==================================
AcpiLoaderMode || INTEGER || Control ACPI Loader
UserInterface || BOOLEAN || Display User Interface/GUI
TimeOut || INTEGER || Time-out In Seconds
DisableAtiInjection || BOOLEAN || De/activate ATI GFX device property injection
AtiFramebuffer || STRING || Name of the specific ATI framebuffer
DisableNvidaInjection || BOOLEAN || De/activate Nvidia GFX device property injection
DisableIntelInjection || BOOLEAN || De/activate Intel GFX device property injection
DisableVoodooHda || BOOLEAN || Disables loading VoodooHDA from firmware
EnableVoodooHdaInternalSpdif || BOOLEAN || Enable/Disable onboard S/PDIF header when using VoodooHDA from firmware
DisableBootEntriesFilter || BOOLEAN || Disables filtering of firmware generated boot entries
AAPL,snb_platform_id || INTEGER ||
AAPL,ig-platform-id || INTEGER ||
BootEntryTemplate || STRING || $label $guid
DarwinDiskTemplate || STRING || $label $platform $major $minor $build
DarwinRecoveryDiskTemplate || STRING || $label $platform $major $minor $build

Examples:
=========

!! Note on VoodooHDA, it covers ONLY the onboard codec and is enabled for the moment only for ALC892/ALC1150 !!
!! For discrete graphics HDMI/DP audio AppleHDA is used instead. Those who use internal GPU (IGPU) only will !!
!! have to disable VoodooHda and use AppleHda for HDMI/DP audio !!

To Disable loading VoodooHda.kext from Firmware

sudo nvram 1F8E0C02-58A9-4E34-AE22-2B63745FA101:DisableVoodooHda=%01

To Enable loading VoodooHda.kext from Firmware

sudo nvram 1F8E0C02-58A9-4E34-AE22-2B63745FA101:DisableVoodooHda=%00


Changing ATI Framebuffers
=========================

sudo nvram 1F8E0C02-58A9-4E34-AE22-2B63745FA101:AtiFramebuffer=Futomaki

Or based on VendorSubsystemId

sudo nvram 1F8E0C02-58A9-4E34-AE22-2B63745FA101:AtiFramebuffer10029440=Futomaki

Or based on pci addressing

sudo nvram 1F8E0C02-58A9-4E34-AE22-2B63745FA101:AtiFramebuffer00.01.00=Futomaki

Changing AAPL,ig-platform-id
============================

sudo nvram 1F8E0C02-58A9-4E34-AE22-2B63745FA101:AAPL,ig-platform-id=0x01620005

Changing AcpiLoader Mode
============================

Add The Following Values Together For Default Acpi Loader Mode

ACPI_LOADER_MODE_DISABLE 0x00000000
ACPI_LOADER_MODE_ENABLE 0x00000001
ACPI_LOADER_MODE_DUMP 0x00000002
ACPI_LOADER_MODE_WINDOWS 0x00000008
ACPI_LOADER_MODE_UPDATE_LEGACY 0x00000040

Default Value : ACPI_LOADER_MODE_ENABLE | ACPI_LOADER_MODE_DARWIN | ACPI_LOADER_MODE_UPDATE_LEGACY = 0x45

To Change

sudo nvram 1F8E0C02-58A9-4E34-AE22-2B63745FA101:AcpiLoaderMode=0x45

Note: They can also be controlled by using Defaults.plist placed on boot hard-drive efi system partition and path is /EFI/OZ/Defaults.plist, see bellow for example.

WARNING! Defaults.plist will override the one found in firmware and values are used only if variables are not already added.
For example if you want to set BiosVersion using Defaults.plist and was already set by Defaults from Firmware, you will need
to do a 4 finger NVRAM reset or delete the BiosVersion variable from shell, for the new one to be used.

Default Settings Example of Modifications on Defaults.plist
===========================================================

// If AcpiLoaderMode NEEDS to be changed, change second line, put desired value, then add both line in Defaults.plist
<key>AcpiLoaderMode</key>
<integer>0x45</integer>

// If UserInterface NEEDS to be enabled on every boot, change second line and set to true, then add both line in Defaults.plist
<key>UserInterface</key>
<false/>

// If TimeOut NEEDS to be changed, change second line and put desired value in seconds, then add both line in Defaults.plist
<key>TimeOut</key>
<integer>5</integer>

// If DisableAtiInjection NEEDS to be enabled, change second line bellow and set to true, then add both line in Defaults.plist
<key>DisableAtiInjection</key>
<false/>

// If AtiFramebuffer NEEDS to be changed, modify second line bellow and set to correct one, then add both line in Defaults.plist
<key>AtiFramebuffer</key>
<string>ReplaceMe</string>
!! WARNING DisableAtiInjection needs to be set to false to function !!

// If DisableNvidaInjection NEEDS to be enabled, change second line bellow and set to true, then add both line in Defaults.plist
<key>DisableNvidaInjection</key>
<false/>

// If DisableIntelInjection NEEDS to be enabled, change second line bellow and set to true, then add both line in Defaults.plist
<key>DisableIntelInjection</key>
<false/>

// If AAPL,snb_platform_id NEEDS to be changed, change second line bellow and set to correct one, then add both line in Defaults.plist
<key>AAPL,snb_platform_id</key>
<integer>0x00030010</integer>
!! WARNING DisableIntelInjection needs to be set to false to function !!

// If AAPL,ig-platform-id NEEDS to be changed, modify second line bellow and set to correct one, then add both line in Defaults.plist
<key>AAPL,ig-platform-id</key>
<integer>0x0166000A</integer>
!! WARNING DisableIntelInjection needs to be set to false to function !!

// If DisableVoodooHda NEEDS to be enabled, change second line bellow and set to true, then add both line in Defaults.plist
<key>DisableVoodooHda</key>
<false/>

// If EnableVoodooHdaInternalSpdif NEEDS to be enabled, change second line bellow and set to true, then add both line in Defaults.plist
<key>EnableVoodooHdaInternalSpdif</key>
<false/>
!! WARNING DisableVoodooHda needs to be set to false to function !!

// If DisableBootEntriesFilter NEEDS to be enabled, change second line bellow and set to true, then add both line in Defaults.plist
<key>DisableBootEntriesFilter</key>
<false/>

You don't have to put Fat or PartitionDxe, or EnhancedFat or Extfs!
EmuVariableUefi-64 is needed on some Mobo's that have NVRAM writing problem

you will have to insert OzmosisDefaults.ffs already ready (must suitable), do the UEFITool at your own risk for only replacing it's RAW body!


For flashing the 128 Mbit chip here's the files and how to:

1- Make USB Bootable with RUFUS soft and choose DOS files from the attached zip
2- Copy a whole of files inside the provided zip and paste them into that USB you just created
3- Save a backup ROM using @BIOS
4- Rename your Ozmosis BIOS ROM to bios.bin and copy paste it to the USB
5- Reboot and press F12 to select booting from USB, wait until all the steps finished



FPT files are for GIGABYTE Z170 only
fpt_DOS-Z170.zip


As some 64Mb Mobo ROM's, you'll have to setup the BIOS:

- Windows 8/10 WHQL
- CSM Disabled
- I/O Ports disabled
- Super I/O disabled
- HPET to disabled
- VT-D disabled


Here's the efi files for who want to try on Efi\Directory:

- EmuVariableUefi-64.efi.zip - EXFat.efi.zip - HfsPlus.efi.zip - Ozmosis.efi.zip - BOOTX64.efi.zip - Defaults.plist.zip iMac17,1 - HorizontalTheme.bin.zip - FakeSMC 234f2 Kexts.zip - Injector (Rev1.3).kext.zip 10 Series [8086:A102] ready



Ozmosis.efi.zip  KernextPatcher.efi.zip   KernextPatcher.plist.zip  Mojave @TypeThree version "they absolutely have to be used together in order to work otherwise fail"

Installation inputs:
* Your hd must be the first bootable: Disk0
1- Register drivers:

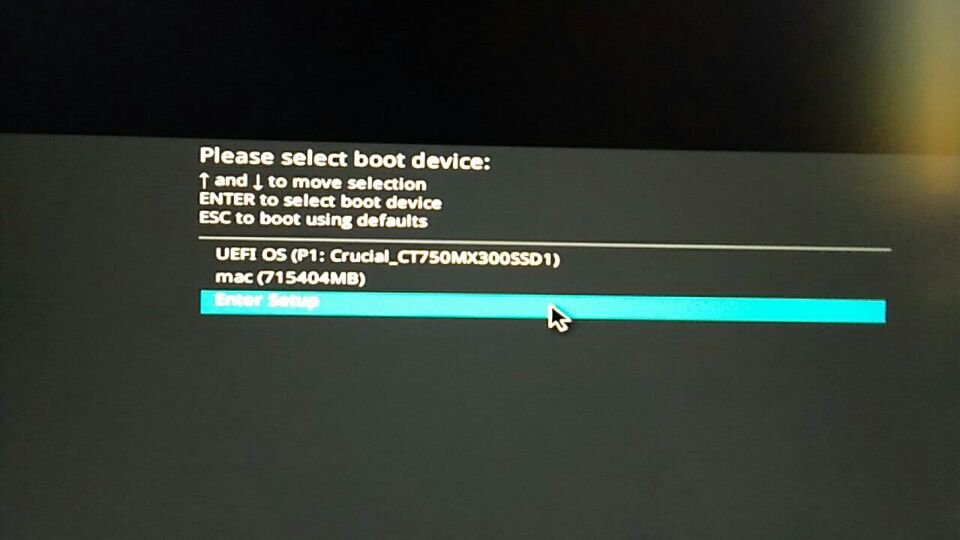

a- From F12 boot menu select (UEFI OS)
b- fs0:
c- cd efi
d- bcfg driver add 1 HfsPlus.efi "HfsPlus" [choose what driver to add after HfsPlus as a second 2 and third 3 etc...] You can choose at any time to change that order from bios setup

2- HDD:
In some cases, when you open Disk Utility the drive that need to be Formated to install macOS on it doesn't appear, so you have to close Disk Utility go to the Main install screen and then go back to Disk Utility, now you should see the drive

3- ACPI (DSDT or SSDT's)
Patched DSDT or some SSDT's are needed in order to reach both the Installation and the post Installation, but you have to care about that this will be Motherboard and/or Manufacturer specific, i'll do it for GIGABYTE boards as it's simple to do it as always
# Multiple SSDT:

DTGP.dsl.zip - GfxSsdt.dsl.zip - GpuSsdt.dsl.zip - HdfSsdt.dsl.zip Please modify with your ALCXXXX Codec name, Codec-ID and Layout-id desired - LanSsdt.dsl.zip - MeiSsdt.dsl.zip - SatSsdt.dsl.zip - UsbSsdt.dsl.zip
They are build with MaciASL 1.4(269) using iASL: 5.0A-20131218 but you can open them with later version and save them

# DSDT & SSDT's:
- Under GBTBoardSMI module, there are a list of all ACPI Freeform modules that contain them on raw format, it start with DSDT, you just need to extract them as .aml and start patching as you like.
- GIGABYTE compiled them with iasl 20160422, so you can start patching them with that compiler version from RehabMan bitbucket MaciASL-2016-0423 and RehabMan bitbucket MaciASL-20161210 which is the same one. [Thanks to RehabMan]
- Use UEFITool for only replacing that raw body and overwrite that rom once you finished replacing the ACPI files, don't use save as, always save (overwrite) that rom


GIGABYTE 100 Series 128 Mbit Chip repository:

This repos will contain only last revision and version for 128 Mbit ROM's with all required files "except AppleALC" on EXTERNAL LINK due to files size, but it require time!
If you need to change any FakeSMC or other kexts then you just have to replace them using MMTool, but care that they have GUID number, so you can use cecekpawon yod-KextToFfs.sh , drag your kexts with others by order, in order to have the same GUID number

Dropbox Repos

ROMs added:
GA-Z170X-ULTRA GAMING.F23g
GA-Z170X-UD5 TH F22d
GA-Z170X-UD5 TH F23f
GA-Z170X-Designare F23d
GA-Z170MX-Gaming 5 F22c
GA-Z170X-Gaming 7 F22i
GA-Z170X-Gaming 7-EK F22i
GA-Z170X-Gaming 7-EU F22i
GA-Z170X-Gaming 6 F23c
GA-Z170X-Gaming 5 F23c
GA-Z170X-UD3 Ultra F23e
GA-Z170X-Gaming GT F22c
GA-Z170X-SOC FORCE F20i

PLEASE SHARE YOUR SUCCESS HERE FOR OTHERS



Here's video tuts:



Insert Ozmosis and stuffs on the ROM:





FakeSMC SMC update:





ACPI Patching on the ROM is the next video, but it need time

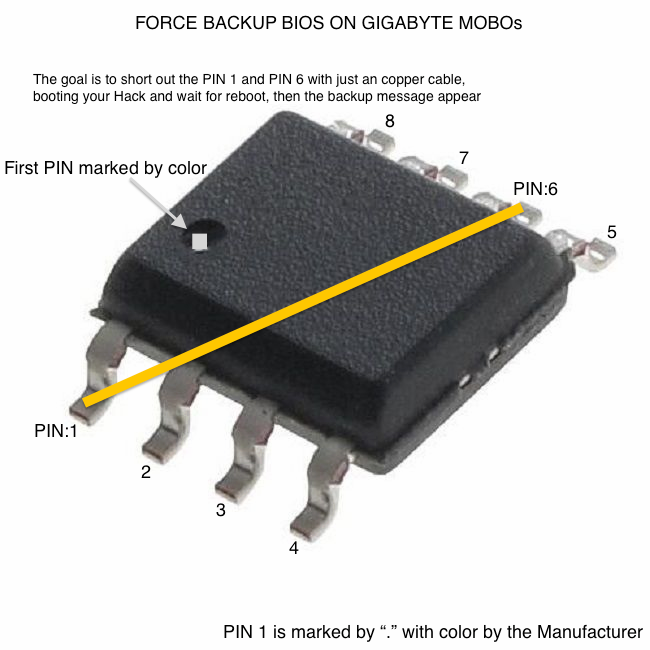

Quick look-up for GIGABYTE BIOS CHIP:




Sorry guys, if it not worked for you, check again what you missed, so remember to not skip some steps!


I'm currently updating this guide, more steps or files or tweaks will be added






CREDITS:
InsanelyMac, The HermitCrab Labs, @Allan@xpamamadeus, @THe KiNG, @CodeRush, @MaLd0n@cecekpawon, @TypeThree@crusher., @Slice, @STLVNUB@RehabMan, @vit9696, @Mieze, @Rampage Dev, for any kind of help "Tools, rom, kexts, knowledge"....



Edited by ammoune78

Share this post


Link to post
Share on other sites
Advertisement

by my test,it's not work on ASUS Z170AR,it will stuck on MACOS LOGO,:)



but it's still a good job

Share this post


Link to post
Share on other sites

No, do a verbose, as this chipset need step by step, and don't forget to add InjectorKext, or if your SATA device id isn't a102, it will not boot!





Sent from ammoune78's iPhone using Tapatalk

Share this post


Link to post
Share on other sites

i insert all as you said,and step by step,stuck on macos logo,no verbose,power on with commond + v

Share this post


Link to post
Share on other sites

If no loading bar, it will be InjectorKext or ACPI, the SSDT's given are for GIGABYTE boards i'll take a look at the ASUS MoBos and MSI because they haven't same ACPI code!
Also what's the device-id of your SATA?
Know that i spent 43 hours to boot into the installer, if you already have SSDT's from working clover use them, but there will be no reason for your board to don't boot, just check!


Sent from ammoune78's iPhone using Tapatalk

Share this post


Link to post
Share on other sites

Is Setup module that have this guid on your ROM: 899407D7-99FE-43D8-9A21-79EC328CAC21 because it is in GIGABYTE boards, for 128 Mbit it should have 2,3 Mb instead of 1,7Mb, can you confirm, there's no name on modules

Here's:

z170ra(1).bin.zip



And from Device Manager on Windope you can find there SATA device-id, i need more id's to add them in Injector!

Share this post


Link to post
Share on other sites

I wish you Ozmosis for your board  :D

Share this post


Link to post
Share on other sites

thanks big god,report later...



lol



F U C K I N G windows,i'm trying reinstall windows



by the way:



it's DisableNvid i aInjection



not DisableNvidaInjection

please edit it

Share this post


Link to post
Share on other sites

What? it's: DisableNvidiaInjection! You can access also EFI partition from windows by doing Diskpart, and assign letter "whatever you want" to mount it, then put Defaults.plist because i don't know the hardware you are using for this board

Share this post


Link to post
Share on other sites

Good job my man!



Just a question:

and don't forget to add InjectorKext

What exactly does your InjectorKext do? Is it just a modified Version of the old InjectorKext? (Hadnt had the time to take a look at your InjectorKext yet...)

Share this post


Link to post
Share on other sites

Good job my man!



Just a question:

What exactly does your InjectorKext do? Is it just a modified Version of the old InjectorKext? (Hadnt had the time to take a look at your InjectorKext yet...)



Yes it's the same, just have more SATA Device-id's to support more motherboard series credited to InsanelyMac and Ozmosis Team: (The HermitCrab Labs)



Booted to the Installer, if not, just try to boot in verbose and post the screenshot to see where it stops loading

Share this post


Link to post
Share on other sites

it does not work for ga-z170x-soc-force f20

After several attempts, I do not get all the ffs data in the room.

Share this post


Link to post
Share on other sites

Delete this ROM, download it again, try inserting the files but on the first error message!

Questions:



1- tell me what the module you've insert it before getting it?

2- Now if no error message while inserting the files, and after flashing the bios:

a- Can you see the Apple Logo without progress bar?

b- black screen only?

c- From the bios setup do you see the HFS+ drives partitions?



Could you try the ROM provided for your board from the dropbox repos, and then could please reply for the question a or b or c?



Because excuse me, if you tell me "it does not work for xx-xxxx-xxx-xxxxx xxx" can't help me to figure out how to help you getting it ride!



Also, can you edit your signature to match your Hack-Hardware-Config, have a nice Oz  ^_^

Share this post


Link to post
Share on other sites

Hey,  ammoune78

it's nice thing to hear that ozm has upgraded,I want to known that only support Z170 ?

or h110 b150 series support too?



BTW, my board is ASUS H110T with 16m bios, any suggestions ?



thx

Share this post


Link to post
Share on other sites

Hey,  ammoune78

it's nice thing to hear that ozm has upgraded,I want to known that only support Z170 ?

or h110 b150 series support too?



BTW, my board is ASUS H110T with 16m bios, any suggestions ?



thx





There's no Ozm upgrade, it support big ROM's chip 128Mb, your mobo ASUS H110T has enough ROM space free, no need compressing setup, just extract from the capsule the Intel image, and start inserting modules directly, there's up to 4096 Kb free.



Here's modded Ozm rom:

H110T-ASUS-3601.BIN.zip

Share this post


Link to post
Share on other sites
On 1/17/2018 at 4:14 PM, derInselfan said:

@ammoune78 Can you please create a ROM for ASRock B150M Pro4?



You can try it on EFI partition!



Edited by ammoune78

Share this post


Link to post
Share on other sites

ASRock makes Ultra compression for the Setup file to get enough free space on ROM to insert a lot of ASRock files, this is why, we can't get free space on the nested volume.

Share this post


Link to post
Share on other sites

No way my friend, Setup on this ROM is Compressed with an "UNKNOWN-ALIEN-TOOL", ASRock ASMalicious Company, here's MMTool report, see Setup file size already compressed inside by ASRock Manufacturer:

+------------------------------------------------------------------------+
| MMTOOL  5.00.0007						         |
| Copyright (c)2014 American Megatrends, Inc.                                 |
+------------------------------------------------------------------------+
| Firmware Image Information                                                  |
+-----------------------------------------------------------------------------+
| Image Size : 1000000   PI Specification Level: 1.0                           |
+------+-------------------------------+--------------+-----------+-----------+
|  FV  |            FV TYPE            |   Location   |   Length  |    FFSs   |
+------+-------------------------------+--------------+-----------+-----------+
|  00  |          FFS FV               |   00700000   |  020000   |    001    |
|  01  |          FFS FV               |   00750000   |  6D0000   |    002    |
|  02  |          Nested FV            |   00000000   |  4FA000   |    662    |
|  03  |          FFS FV               |   00E20000   |  080000   |    002    |
|  04  |          FFS FV               |   00EA0000   |  15E000   |    067    |
|  05  |          Boot Block FV        |   00FFE000   |  002000   |    002    |
+------+-------------------------------+--------------+-----------+-----------+
| Nested Firmware Volume Information                                          |
+-----------------------------------------------------------------------------+
|  FV  |            Nesting Information       	      |   Length  |    FFSs   |
+-----------------------------------------------------------------------------+
|  02  |  Parent Fv : 01        Parent FFS : 01       |   4FA000  |    662    |
+------+-------------------------------+--------------+-----------+-----------+
| NCB Information                                                             |
+-----------------------------------------------------------------------------+
| NCB No : 0                         Location :  00000000   Length :  700000  |
| NCB No : 1                         Location :  00720000   Length :  030000  |
+-----------------------------------------------------------------------------+
| Driver Information                                                          |
+-----------------------------------------------------------------------------+
| Firmware Volume : 00               Location :  00700000   Length :  020000  |
+---+---------------+------------------------------------+--------+------+----+
|NO |    FileName   |               GUID                 |Location| Size |Type|
+---+---------------+------------------------------------+--------+------+----+
|000|               |CEF5B9A3-476D-497F-9FDC-E98143E0422C|00700048|01FFB8|RAW |
+---+---------------+------------------------------------+--------+------+----+
| Bytes Free       : 000000 (  0 KB)    Bytes Used       : 020000 (128 KB)    |
+-----------------------------------------------------------------------------+
| Firmware Volume : 01               Location :  00750000   Length :  6D0000  |
+---+---------------+------------------------------------+--------+------+----+
|NO |    FileName   |               GUID                 |Location| Size |Type|
+---+---------------+------------------------------------+--------+------+----+
|000|               |414D94AD-998D-47D2-BFCD-4E882241DE32|00750078|00102C|FRFM|
|001|               |9E21FD93-9C72-4C15-8C4B-E77F1DB2D792|007510A8|4EBA64|FV  |
+---+---------------+------------------------------------+--------+------+----+
| Bytes Free       : 1E351C (1933 KB)    Bytes Used       : 4ECAE4 (5042 KB)    |
+-----------------------------------------------------------------------------+
| Firmware Volume : 02               Location :  00000000   Length :  4FA000  |
+---+---------------+------------------------------------+--------+------+----+
|NO |    FileName   |               GUID                 |Location| Size |Type|
+---+---------------+------------------------------------+--------+------+----+
|000|               |FC510EE7-FFDC-11D4-BD41-0080C73C8881|00000048|00012C|FRFM|
|001|RomLayoutDxe   |AB7ED12E-1D78-4635-AB87-23F00A911EC7|00000174|000665|DRVR|
|002|DxeCore        |D6A2CB7F-6A18-4E2F-B43B-9920A733700A|000007D9|00C9C5|DXEC|
|003|Bds            |8F4B8F82-9B91-4028-86E6-F4DB7D4C1DFF|0000D19E|007A83|DRVR|
|004|DataHubDxe     |53BCC14F-C24F-434C-B294-8ED2D4CC1860|00014C21|0005D6|DRVR|
|005|DevicePathDxe  |9B680FCE-AD6B-4F3A-B60B-F59899003443|000151F7|0037EF|DRVR|
|006|EnglishDxe     |CD3BAFB6-50FB-4FE8-8E4E-AB74D2C1A600|000189E6|00045E|DRVR|
|007|EbcDxe         |13AC6DD0-73D0-11D4-B06B-00AA00BD6DE7|00018E44|0019B0|DRVR|
|008|HiiDatabase    |348C4D62-BFBD-4882-9ECE-C80BB1C4783B|0001A7F4|008D93|DRVR|
|009|SecurityStubDxe|F80697E9-7FD6-4665-8646-88E33EF71DFC|00023587|00262E|DRVR|
|010|TimestampDxe   |C10194E7-DEB2-4AF4-9EEE-BFFDE4D7D4C7|00025BB5|0001FC|DRVR|
|011|CpuDxe         |B03ABACF-A532-5E78-ACA0-B11F765B3AFD|00025DB1|001669|DRVR|
|012|CpuSpSMI       |116E1ACF-2533-4CC2-820A-BBC10A2AB07C|0002741A|000B0F|SMM |
|013|CpuIoDxe       |BAE7599F-3C6B-43B7-BDF0-9CE07AA91AA6|00027F29|000441|DRVR|
|014|AmiCpuFeaturesD|10B12ADD-F5E2-CC78-5CA0-B77F76223ACD|0002836A|000CD6|DRVR|
|015|NbDxe          |E4ECD0B2-E277-4F2B-BECB-E4D75C9A812E|00029040|00213A|DRVR|
|016|SmbiosUpdateData|B98999A4-E96F-475A-99FC-762126F50F5A|0002B17A|000665|DRVR|
|017|UpdateMemoryRec|24CCD374-3DF6-4181-86F6-E3C66920A145|0002B7DF|00080B|DRVR|
|018|SbDxe          |B7D19491-E55A-470D-8508-85A5DFA41974|0002BFEA|00362B|DRVR|
|019|AmiTxtDxe      |87D402CD-8B07-4B93-B38B-F8799F28B033|0002F615|00095E|DRVR|
|020|PlatformInitDxe|C5046EFD-7BC3-4206-987C-32DA45026E6D|0002FF73|001580|DRVR|
|021|PolicyInitDxe  |490D0119-4448-440D-8F5C-F58FB53EE057|000314F3|0017A2|DRVR|
|022|PlatformInfoDxe|1314216C-CB8D-421C-B854-06231386E642|00032C95|0006D1|DRVR|
|023|SavePegConfig  |DD5E92D1-DDAC-48CB-907A-882D8610E89E|00033366|0003DF|DRVR|
|024|SaveMemoryConfig|E0ECBEC9-B193-4351-A488-36A655F22F9F|00033745|000386|DRVR|
|025|PlatformSetup  |A4F2909C-5E2A-438A-91BA-272B0923049A|00033ACB|0007B6|DRVR|
|026|UsbTypeC       |15B985C5-7103-4F35-B59D-2235FC5F3FFE|00034281|000257|DRVR|
|027|WdtAppDxe      |CE366D33-B057-4C03-8561-CAF17738B66F|000344D8|000382|DRVR|
|028|MeSmbios       |E764500B-E398-4AB7-BBBC-99A8E683681F|0003485A|00071A|DRVR|
|029|GopPolicy      |FA990751-0795-4D5E-AB70-A6F5A6771AC9|00034F74|000627|DRVR|
|030|AmtWrapperDxe  |D77C900D-A1C7-41C5-B989-0C3D37FCA432|0003559B|0071BB|DRVR|
|031|AsfTable       |E72527CF-505B-4B50-99CD-A32467FA4AA4|0003C756|0002F1|DRVR|
|032|AmtPetAlert    |290EA249-6E88-423C-B0DA-75CDDE7920CC|0003CA47|00193E|DRVR|
|033|AmtSetup       |773CB08B-511A-4BD5-85AD-41D4F4B64A52|0003E385|00020C|DRVR|
|034|AMTbypass      |908C3852-B61B-4F26-AB66-F74F97E7DC1C|0003E591|000385|DRVR|
|035|AmtCompatiblity|890A3508-E816-41CF-B7E6-ED28E5BB5C28|0003E916|000247|DRVR|
|036|ASFVerbosity   |4F4FF580-B8A0-4332-A6B0-E2E568E36C9C|0003EB5D|000516|DRVR|
|037|AMTLockKBD     |5507247A-846B-4F22-B55F-72B4049435EF|0003F073|000728|DRVR|
|038|AcpiPlatform   |FC90EB7A-3E0A-483C-A26C-484D36593FF4|0003F79B|005780|DRVR|
|039|AcpiS3SaveDxe  |2BDED685-F733-455F-A840-43A22B791FB3|00044F1B|000658|DRVR|
|040|AcpiDebugTable |83C30E53-7A4C-4273-A686-65E9DC09D75B|00045573|000FBD|DRVR|
|041|HstiPlatformDxe|00B46EC9-2712-486B-A6A4-E2933581C28B|00046530|000A35|DRVR|
|042|SecureErase    |FB62F7F0-5433-11E4-B810-402CF41D8A90|00046F65|002808|DRVR|
|043|CpuInitDxe     |62D171CB-78CD-4480-8678-C6A2A797A8DE|0004976D|003685|DRVR|
|044|PowerMgmtDxe   |F7731B4C-58A2-4DF4-8980-5645D39ECE58|0004CDF2|000BEF|DRVR|
|045|TxtDxe         |FF917E22-A228-448D-BDAA-68EFCCDDA5D3|0004D9E1|000E03|DRVR|
|046|BdatAccessHandl|6DB9486F-6AF6-4090-984D-238482CE3EA4|0004E7E4|0005C8|DRVR|
|047|PciHostBridge  |8D6756B9-E55E-4D6A-A3A5-5E4D72DDF772|0004EDAC|00266E|DRVR|
|048|SmmAccess      |1323C7F8-DAD5-4126-A54B-7A05FBF41515|0005141A|00058F|DRVR|
|049|ActiveBios     |BFD59D42-FE0F-4251-B772-4B098A1AEC85|000519A9|0002EC|DRVR|
|050|LegacyInterrupt|C1C418F9-591D-461C-82A2-B9CD96DFEA86|00051C95|0003BE|DRVR|
|051|PchInitDxe     |DE23ACEE-CF55-4FB6-AA77-984AB53DE823|00052053|00511C|DRVR|
|052|SataController |BB65942B-521F-4EC3-BAF9-A92540CF60D2|0005716F|0009E9|DRVR|
|053|PchSerialGpio  |FC1B7640-3466-4C06-B1CC-1C935394B5C2|00057B58|000E83|DRVR|
|054|SmartTimer     |90CB75DB-71FC-489D-AACF-943477EC7212|000589DB|0003FF|DRVR|
|055|PchSmbusDxe    |E052D8A6-224A-4C32-8D37-2E0AE162364D|00058DDA|000D71|DRVR|
|056|AlertStandardFo|33C6406D-2F6B-41B5-8705-52BAFB633C09|00059B4B|000FDF|DRVR|
|057|ActiveManagement|D739F969-FB2D-4BC2-AFE7-081327D3FEDE|0005AB2A|0005ED|DRVR|
|058|SerialOverLan  |FB142B99-DF57-46CB-BC69-0BF858A734F9|0005B117|001480|DRVR|
|059|BiosExtensionLo|32C1C9F8-D53F-41C8-94D0-F6739F231011|0005C597|001F49|DRVR|
|060|HeciInit       |55E76644-78A5-4A82-A900-7126A5798892|0005E4E0|0022F5|DRVR|
|061|MeFwDowngrade  |5820EEB4-C135-4854-9D2A-AA9EFC4475E9|000607D5|00089A|DRVR|
|062|SiInitDxe      |ACD28235-075B-48B5-98A1-DA04FCAF84F3|0006106F|001C69|DRVR|
|063|HstiSiliconDxe |60740CF3-D428-4500-80E6-04A5798241ED|00062CD8|002701|DRVR|
|064|Aint13         |67820532-7613-4DD3-9ED7-3D9BE3A7DA63|000653D9|000F1D|DRVR|
|065|AhciInt13Dxe   |4DF53F89-D421-4F9D-8392-BE3BECC6288E|000662F6|000815|DRVR|
|066|Setup          |899407D7-99FE-43D8-9A21-79EC328CAC21|00066B0B|026FF9|DRVR|> Is about 156Kb
|067|ACPI           |16D0A23E-C09C-407D-A14A-AD058FDD0CA1|0008DB04|004317|DRVR|
|068|BootScriptHideD|A570F393-B0F5-44A4-8550-61600597B409|00091E1B|00057E|DRVR|
|069|SioDxeInit     |4E82091E-32A1-4689-8A00-CDE41ED63CDD|00092399|00155C|DRVR|
|070|IdeBusBoard    |00364A4C-6A0A-4F08-8FFD-0937F3DBB13E|000938F5|000509|DRVR|
|071|OA3            |76D5CF91-0C55-434E-97C2-D2825C82E610|00093DFE|000937|DRVR|
|072|PciDynamicSetup|2CE5604F-A982-4D2E-8FD0-D1600C2E1515|00094735|003F91|DRVR|
|073|PciDxeInit     |502B04F3-71AB-47B4-BEAE-4736EA190AA4|000986C6|0005F0|DRVR|
|074|PciOutOfResourc|CDC1C80D-E6D3-4A42-9229-75F3BEFCF109|00098CB6|00174E|DRVR|
|075|ExportHiiDb    |271B424E-A4CC-4E0E-90A2-7EA4841F12F3|0009A404|0005F4|DRVR|
|076|DpcDxe         |A210F973-229D-4F4D-AA37-9895E6C9EABA|0009A9F8|0003B8|DRVR|
|077|NetworkStackSet|21891A9E-763E-4377-8841-8D5C90D88C51|0009ADB0|000542|DRVR|
|078|AmiBoardInfo2  |9F3A0016-AE55-4288-829D-D55FD3AAC347|0009B2F2|000829|DRVR|
|079|CsmDxe         |A062CF1F-8473-4AA3-8793-600BC4FFE9A8|0009BB1B|0061FE|DRVR|
|080|HardwareSignatu|B7EE4835-84CE-4B15-BF52-2D11574CE470|000A1D19|0016F4|DRVR|
|081|HddSmart       |D57C852E-809F-45CF-A377-D77BC0CB78EE|000A340D|001FEA|DRVR|
|082|HddSecurity    |A9B700CF-019E-4D8B-A3A7-88E1EA01699E|000A53F7|0022C6|DRVR|
|083|KbcEmulDxe     |81A4F912-E72F-44ED-8931-16A9FE9650E0|000A76BD|000789|DRVR|
|084|NvmeInt13      |C9A6DE36-FDFF-4FAF-8343-85D9E3470F43|000A7E46|000446|DRVR|
|085|OpalSecurity   |59AF16B0-661D-4865-A381-38DE68385D8D|000A828C|000915|DRVR|
|086|RsdpPlus       |8F3F1DE2-2FE4-4D5C-A8EC-49E8CCA17EBC|000A8BA1|000C43|DRVR|
|087|Smbios         |B13EDD38-684C-41ED-A305-D7B7E32497DF|000A97E4|0026FA|DRVR|
|088|SmbiosBoard    |CEF68C66-06AB-4FB3-A3ED-5FFA885B5725|000ABEDE|000602|DRVR|
|089|SmbiosGetFlashD|DED7956D-7E20-4F20-91A1-190439B04D5B|000AC4E0|0006E2|DRVR|
|090|AmiTcgNvflagSam|50F6096D-7C98-4C78-9A1D-C5A1833B6A88|000ACBC2|00057D|DRVR|
|091|AmiTcgPlatformD|A29A63E3-E4E7-495F-8A6A-07738300CBB3|000AD13F|002A1B|DRVR|
|092|TcgDxeplatform |2688B232-9C02-4C12-BE1F-857C0FF2AAE3|000AFB5A|0003DB|DRVR|
|093|TcgLegacy      |858EBE6F-360F-415B-B7DC-463AAEB03412|000AFF35|0009B5|DRVR|
|094|Tpm20PlatformDxe|0718AD81-F26A-4850-A6EC-F268E309D707|000B08EA|0037C8|DRVR|
|095|Tpm20Acpi      |4C8BDF60-2085-4577-8A46-96CB180967BC|000B40B2|0007E9|DRVR|
|096|Uhcd           |580DD900-385D-11D7-883A-00500473D4EB|000B489B|005C70|DRVR|
|097|UsbInt13       |4C006CD9-19BA-4617-8483-609194A1ACFC|000BA50B|000C7F|DRVR|
|098|PciPort        |92E33E65-20F0-455D-9D71-02C09D5060AE|000BB18A|000A46|DRVR|
|099|AAFTblDxe      |FF11E702-8923-47CC-AD30-D9E0E240DD10|000BBBD0|00097B|DRVR|
|100|G3WakeupDxe    |D462AE45-FF5A-4448-A474-B986E2A0D5B1|000BC54B|000B1B|DRVR|
|101|ATAIdentify    |5788464F-3773-4A29-8AF7-E81BBEE419C3|000BD066|001C1C|DRVR|
|102|CaseOpenDxe    |D5919FF6-D708-4918-87A0-1BB21B157C08|000BEC82|000731|DRVR|
|103|IccDxe         |96E198EC-CDBC-4C21-9743-EB4577648E59|000BF3B3|000AFE|DRVR|
|104|DramTweakerDxe |EE90D8FC-6181-4B15-83C4-7D1CA0C36E2A|000BFEB1|001F7F|DRVR|
|105|EzConfigDxe    |62C1E22F-BF7A-462E-A037-BF97BBC3ADF9|000C1E30|0008AC|DRVR|
|106|ASRockHDAudioDxe|B9C464F5-E8DF-49FB-8FE5-86DA958D8133|000C26DC|000804|DRVR|
|107|IFlashDxeBin   |4E304BC0-3B03-4A97-BB55-91375189A31D|000C2EE0|003EBF|DRVR|
|108|IntelLANDxe    |3316A5D0-FE16-40E2-8114-75E5724449F8|000C6D9F|001E44|DRVR|
|109|LedCtrlDxe     |0F886E75-3029-4ECF-B694-22894D3F2143|000C8BE3|000990|DRVR|
|110|Mdot2Driver    |6FF479F5-6120-4A41-A8C9-D9500F7DF594|000C9573|000C0E|DRVR|
|111|ASRockNetTcpWra|60FABA47-419B-4E50-85C7-20E86AEE00FC|000CA181|003045|DRVR|
|112|ASRGetDLSiteWra|8D1F8D27-31C2-4B5B-B736-4BB5B4A25FBA|000CD1C6|001D60|DRVR|
|113|SecuritySelectD|E469AA26-9268-4EB0-A087-DD4CEE37404B|000CEF26|000626|DRVR|
|114|TimerSmiDxe    |783D7527-85EE-4A95-A909-03F745E4E91D|000CF54C|00053F|DRVR|
|115|aDefaultDxe    |93F1025B-B6D4-4F2F-A4A9-A4ABA0CF604F|000CFA8B|0017F3|DRVR|
|116|CapsuleRuntimeD|42857F0A-13F2-4B21-8A23-53D3F714B840|000D127E|00091B|DRVR|
|117|RuntimeDxe     |B601F8C4-43B7-4784-95B1-F4226CB40CEE|000D1B99|00081B|DRVR|
|118|SbRun          |E23F86E1-056E-4888-B685-CFCD67C179D4|000D23B4|0018CE|DRVR|
|119|PchResetRuntime|BB1FBD4F-2E30-4793-9BED-74F672BC8FFE|000D3C82|000944|DRVR|
|120|SmmControl     |A0BAD9F7-AB78-491B-B583-C52B7F84B9E0|000D45C6|0006E4|DRVR|
|121|PchSpiRuntime  |C194C6EA-B68C-4981-B64B-9BD271474B20|000D4CAA|000A6E|DRVR|
|122|MePlatformReset|9A9A912B-5F53-4586-8820-704485A29D21|000D5718|0007B7|DRVR|
|123|CryptoDXE      |77EB6C06-FD48-488B-A1B3-AE0A70801369|000D5ECF|005E62|DRVR|
|124|NTFS           |768BEDFD-7B4B-4C9F-B2FF-6377E3387243|000DBD31|002C5D|DRVR|
|125|SmiFlashDxe    |BB8C2CF3-A5E3-49EF-941B-4A01FAC6FD5F|000DE98E|000716|DRVR|
|126|PiSmmIpl       |2FA2A6DA-11D5-4DC3-999A-749648B03C56|000DF0A4|001614|DRVR|
|127|AsrBootOptionDxe|565D3FCA-F06D-4FED-95EB-370EDFFA9E57|000E06B8|000645|DRVR|
|128|MouseDriver    |C7A7030C-C3D8-45EE-BED9-5D9E76762953|000E0CFD|001664|DRVR|
|129|ConSplitter    |628A497D-2BF6-4264-8741-069DBD3399D6|000E2361|002A23|DRVR|
|130|GraphicsConsole|43E7ABDD-E352-4CFB-A230-4CDC1D350E5C|000E4D84|002769|DRVR|
|131|DiskIoDxe      |6B38F7B4-AD98-40E9-9093-ACA2B5A253C4|000E74ED|0011B9|DRVR|
|132|PartitionDxe   |1FA1F39E-FEFF-4AAE-BD7B-38A070A3B609|000E86A6|0018FC|DRVR|
|133|IntegratedTouch|CBF486B7-D196-4C03-AFE2-33F38E64DA16|000E9FA2|001102|DRVR|
|134|Ahci           |8F5A2E02-538C-4D59-B920-C4786ACBC552|000EB0A4|003A9F|DRVR|
|135|GenericSio     |8EEF9AD2-463E-425F-A4FE-2F6783D6F97E|000EEB43|0036EF|DRVR|
|136|IdeBusSrc      |AAECDC89-2A49-46F1-A163-F7979C039998|000F2232|003D9C|DRVR|
|137|OA2            |952821AA-EACD-465B-B478-5429DFC9A747|000F5FCE|000712|DRVR|
|138|PciBus         |3C1DE39F-D207-408A-AACC-731CFB7F1DD7|000F66E0|006FCC|DRVR|
|139|Ps2Main        |5FECEF6B-5FA4-4570-8163-0CF72A9C04C5|000FD6AC|0029DD|DRVR|
|140|SnpDxe         |A2F436EA-A127-4EF8-957C-8048606FF670|00100089|00283E|DRVR|
|141|MnpDxe         |025BBFC7-E6A9-4B8B-82AD-6815A1AEAF4A|001028C7|0037BB|DRVR|
|142|ArpDxe         |529D3F93-E8E9-4E73-B1E1-BDF6A9D50113|00106082|001A52|DRVR|
|143|TcpDxe         |1A7E4468-2F55-4A56-903C-01265EB7622B|00107AD4|0062F3|DRVR|
|144|UefiPxeBcDxe   |B95E9FDA-26DE-48D2-8807-1F9107AC5E3A|0010DDC7|006C0A|DRVR|
|145|Dhcp4Dxe       |94734718-0BBC-47FB-96A5-EE7A5AE6A2AD|001149D1|00371E|DRVR|
|146|Ip4ConfigDxe   |26841BDE-920A-4E7A-9FBE-637F477143A6|001180EF|00257C|DRVR|
|147|Ip4Dxe         |9FB1A1F3-3B71-4324-B39A-745CBB015FFF|0011A66B|0053BF|DRVR|
|148|Mtftp4Dxe      |DC3641B8-2FA8-4ED3-BC1F-F9962A03454B|0011FA2A|003AD5|DRVR|
|149|Tcp4Dxe        |6D6963AB-906D-4A65-A7CA-BD40E5D6AF4D|001234FF|005B1D|DRVR|
|150|Udp4Dxe        |6D6963AB-906D-4A65-A7CA-BD40E5D6AF2B|0012901C|003742|DRVR|
|151|Ip6Dxe         |5BEDB5CC-D830-4EB2-8742-2D4CC9B54F2C|0012C75E|008D6B|DRVR|
|152|Udp6Dxe        |D912C7BC-F098-4367-92BA-E911083C7B0E|001354C9|003631|DRVR|
|153|Dhcp6Dxe       |95E3669D-34BE-4775-A651-7EA41B69D89E|00138AFA|0037FF|DRVR|
|154|Mtftp6Dxe      |99F03B99-98D8-49DD-A8D3-3219D0FFE41E|0013C2F9|003C62|DRVR|
|155|AtaPassThru    |2E3AB8B6-AC9D-4D70-A675-54F52FB22D66|0013FF5B|001159|DRVR|
|156|CsmBlockIo     |25ACF158-DD61-4E64-9A49-55851E9A26C7|001410B4|0018A5|DRVR|
|157|CsmVideo       |29CF55F8-B675-4F5D-8F2F-B87A3ECFD063|00142959|00245C|DRVR|
|158|FastBootOption |0C989D41-F4B4-4244-9D7F-E9FFB4163273|00144DB5|000DCF|DRVR|
|159|Fat            |961578FE-B6B7-44C3-AF35-6BC705CD2B1F|00145B84|003677|DRVR|
|160|Nvme           |634E8DB5-C432-43BE-A653-9CA2922CC458|001491FB|002806|DRVR|
|161|ASRockNetFtpBin|4D7267F0-F48C-4050-AE55-8FE1708096A0|0014BA01|0010DC|DRVR|
|162|ASRockNetSmtpBin|16C58600-554B-4587-8C62-A40997CFE206|0014CADD|0021FE|DRVR|
|163|ASRockNetDnsBin|9EFE0B7E-27E8-46D5-8387-CDDAFD2C3A67|0014ECDB|000E77|DRVR|
|164|PiSmmCore      |E94F54CD-81EB-47ED-AEC3-856F5DC157A9|0014FB52|002CCA|SMMC|
|165|FlashDriverSmm |0C375A90-4C4C-4428-8EA0-531BE8959BF7|0015281C|002282|SMM |
|166|NVRAMSmm       |447A1B58-8F3E-4658-ABAA-9E7B2280B90A|00154A9E|006696|SMM |
|167|CpuIo2Smm      |A47EE2D8-F60E-42FD-8E58-7BD65EE4C29B|0015B134|000445|SMM |
|168|NCT6791DSmm    |0C3798AA-D22E-4DD6-8CB4-3C9CFB1D86D3|0015B579|000F0E|SMM |
|169|PiSmmCpuDxeSmm |A3FF0EF5-0C28-42F5-B544-8C7DE1E80014|0015C487|0029C5|SMM |
|170|PiSmmCommunicat|E21F35A8-42FF-4050-82D6-93F7CDFA7073|0015EE4C|000616|SMM |
|171|NbSmi          |D933DEDE-0260-4E76-A7D9-2F9F2440E5A5|0015F462|0017A1|SMM |
|172|PowerButton    |E566B097-4378-485F-91D0-1C097C190CE2|00160C03|001C6C|SMM |
|173|SbRunSmm       |C99E42D0-4964-4B09-B924-4A59E13E4F04|0016286F|001807|SMM |
|174|SleepSmi       |6298FE18-D5EF-42B7-BB0C-2953283F5704|00164076|001BE1|SMM |
|175|TcoSmi         |2B4034AE-8566-412F-9CA5-67FD698FC261|00165C57|00081C|SMM |
|176|AcpiModeEnable |750890A6-7ACF-4F4F-81BD-B400C2BEA95A|00166473|000F93|SMM |
|177|SmramSaveInfoHa|63296C52-01CF-4EEA-A47C-782A14DA6894|00167406|0004E4|SMM |
|178|SmmPlatform    |CB73C3D9-2F01-4342-AE67-04DDE5264092|001678EA|000A5C|SMM |
|179|AMTLockUsbKBD  |9173C39B-08DA-429A-BE15-0F7481CF72CE|00168346|0007FB|SMM |
|180|AmtLockPbtn    |61ED3D94-30D8-408C-97DF-DEDF2740F630|00168B41|00059E|DRVR|
|181|PttWrapper     |B19EF33C-10A6-4066-9217-8E5EE011A52F|001690DF|000964|SMM |
|182|PowerMgmtSmm   |8F0B5301-C79B-44F1-8FD3-26D73E316700|00169A43|0012CE|SMM |
|183|SaLateInitSmm  |2D1E361C-7B3F-4D15-8B1F-66E551FABDC7|0016AD11|0016BA|SMM |
|184|PchInitSmm     |D7B10D4E-67E6-4C74-83E9-F9AF0ACC33CC|0016C3CB|0029FA|SMM |
|185|PchSmbusSmm    |59287178-59B2-49CA-BC63-532B12EA2C53|0016EDC5|00084E|SMM |
|186|PchSpiSmm      |27F4917B-A707-4AAD-9676-26DF168CBF0D|0016F613|000A03|SMM |
|187|PchPortCF9hTrap|88C065E7-900D-4899-B7B0-CD404E113F95|00170016|00059F|SMM |
|188|AhciSmm        |BC3245BD-B982-4F55-9F79-056AD7E987C5|001705B5|001421|SMM |
|189|AhciInt13Smm   |501F30E9-D14F-47DA-AE60-B101E4189D07|001719D6|000FD8|SMM |
|190|CryptoSMM      |2AD511C7-1B60-4002-841D-2998DDC138EE|001729AE|005EE9|SMM |
|191|S3SaveSmm      |413B1952-D564-4AEB-8CDA-8353161500BC|00178897|001617|SMM |
|192|BootScriptHideS|70B8BACB-0B26-4048-A6F8-03A6AF2C5029|00179EAE|0009CC|SMM |
|193|OA3_SMM        |8434DA1F-5CEB-402E-A93C-038CBE0F3F0E|0017A87A|000A43|SMM |
|194|SmiVariable    |BE216BA8-38C4-4535-A6CA-5DCA5B43ADDF|0017B2BD|000B19|SMM |
|195|RuntimeSmm     |4A6D890F-93C3-4B6D-A67D-5F2C4DCE347B|0017BDD6|0007AB|SMM |
|196|CmosSmm        |F44875AB-B9FC-4578-A280-AA335B49967C|0017C581|001A1E|SMM |
|197|SmmHddSecurity |316B1230-0500-4592-8C09-EABA0FB6B07F|0017DF9F|0013AC|SMM |
|198|MicrocodeUpdate|F3331DE6-4A55-44E4-B767-7453F7A1A021|0017F34B|00245C|SMM |
|199|KbcEmul        |3B24F79D-91A0-46FF-BE29-458AE211FAC5|001817A7|001CA4|SMM |
|200|NvmeSmm        |E5E2C9D9-5BF5-497E-8860-94F81A09ADE0|0018344B|001261|SMM |
|201|Ofbd           |57E56594-CE95-46AD-9531-3C49310CA7CE|001846AC|0029A5|SMM |
|202|SmbiosDmiEdit  |E2A74738-8934-48F5-8412-99E948C8DC1B|00187051|0022E6|SMM |
|203|SmiFlash       |BC327DBD-B982-4F55-9F79-056AD7E987C5|00189337|003719|SMM |
|204|SmmLockBox     |33FB3535-F15E-4C17-B303-5EB94595ECB6|0018CA50|0007CD|SMM |
|205|TcgSmm         |FD93F9E1-3C73-46E0-B7B8-2BBA3F718F6C|0018D21D|000A9E|SMM |
|206|UsbRt          |04EAAAA1-29A1-11D7-8838-00500473D4EB|0018DCBB|00D859|SMM |
|207|WakeCtrlSmm    |1B6E9D50-12E4-4B55-81D9-1ABFEC59D4FC|0019B514|0012F3|SMM |
|208|BFGSmm         |3A53114D-5673-4DD9-B5B3-CB72C347669B|0019C807|00081F|SMM |
|209|TimerSMISmm    |3DE30DC2-D84E-48EA-8E38-A9C17D743F10|0019D026|000F22|SMM |
|210|CrbSmi         |221F1D4F-034C-4BEA-B2BB-B7A9672B06D7|0019DF48|0009B7|SMM |
|211|               |22046D50-F390-498C-92E5-5BA4F8E7F8B6|0019E8FF|0001FD|FRFM|
|212|               |6684D675-EE06-49B2-876F-79C58FDDA5B7|0019EAFC|000163|FRFM|
|213|               |C118F50D-391D-45F4-B3D3-11BC931AA56D|0019EC5F|005A9C|FRFM|
|214|               |A54C760E-415D-4157-A74A-F74941873F65|001A46FB|0000CD|FRFM|
|215|               |8DE8964F-2939-4B49-A348-F6B2B2DE4A42|001A47C8|0000CE|FRFM|
|216|               |E3164526-690A-4E0D-B028-AEA16FE2BCF3|001A4896|000348|FRFM|
|217|               |A08276EC-A0FE-4E06-8670-385336C7D093|001A4BDE|0002EE|FRFM|
|218|               |E998C6D8-572B-4E18-96CC-031EA3DD558C|001A4ECC|0005DA|FRFM|
|219|               |2B8A4061-9131-4D2A-A20B-D845D0EB1D83|001A54A6|00020C|FRFM|
|220|               |142204E2-C7B1-4AF9-A729-923758D96D03|001A56B2|0006B0|FRFM|
|221|               |0AA31BC6-3379-41E8-825A-53F82CC0F254|001A5D62|001237|FRFM|
|222|               |7D113AA9-6280-48C6-BACE-DFE7668E8307|001A6F99|0003A5|FRFM|
|223|               |B733C141-E88F-4786-94AF-8B87BC4867FE|001A733E|000081|FRFM|
|224|StatusCodeDxe  |61422D26-81EC-47FF-B6CF-939EAEE73FBA|001A73BF|00277F|DRVR|
|225|StatusCodeSmm  |DB08F6CA-3048-4CD8-9B1F-20BED33ECFE7|001A9B3E|001B18|SMM |
|226|FlashDriver    |CBC59C4A-383A-41EB-A8EE-4498AEA567E4|001AB656|002243|DRVR|
|227|NVRAMDxe       |1807040D-5934-41A2-A088-8E0F777F71AB|001AD899|006516|DRVR|
|228|PcdDxe         |80CF7257-87AB-47F9-A3FE-D50B76D89541|001B3DAF|001586|DRVR|
|229|RaidDriver     |91B4D9C1-141C-4824-8D02-3C298E36EB3F|001B5335|01278F|DRVR|
|230|S3Save         |26A2481E-4424-46A2-9943-CC4039EAD8F8|001C7AC4|001533|DRVR|
|231|               |7E374E25-8E01-4FEE-87F2-390C23C606CD|001C8FF7|0023FB|FRFM|
|232|AmiRecoveryRcHo|3CCECA60-020D-4382-A647-D06C8C4A648F|001CB3F2|000817|DRVR|
|233|               |C38FB0E2-0C43-49C9-B544-9B17AA4DCBA3|001CBC09|002FC8|FRFM|
|234|               |3C0ED5E2-91EA-4B94-820D-9DAF9A3BB4A2|001CEBD1|000260|FRFM|
|235|               |CA89914D-2317-452E-B245-36C6FB77A9C6|001CEE31|00522E|FRFM|
|236|SaInit         |DE23ACEE-CF55-4FB6-AA77-984AB53DE811|001D405F|002755|DRVR|
|237|PchSmiDispatcher|B0D6ED53-B844-43F5-BD2F-61095264E77E|001D67B4|003B29|SMM |
|238|WdtDxe         |5AAB83E5-F027-4CA7-BFD0-16358CC9E453|001DA2DD|0004C9|DRVR|
|239|               |9A8F82D5-39B1-48DA-92DC-A22DA8834DF6|001DA7A6|000067|FRFM|
|240|               |A59A0056-3341-44B5-9C9C-6D76F7673817|001DA80D|000092|FRFM|
|241|               |7B9A0A12-42F8-4D4C-82B6-32F0CA1953F4|001DA89F|000480|FRFM|
|242|CmosDxe        |3237418A-478C-4700-B59F-768E2CCBC726|001DAD1F|00174F|DRVR|
|243|FastBootRuntime|80D7491A-F7D9-479D-A8F7-1B393B02ED66|001DC46E|000A3C|DRVR|
|244|PeiRamBootDxe  |534F73CF-0937-418A-90C7-4F1079DCAED1|001DCEAA|0008B8|DRVR|
|245|SecureBootDXE  |4551F2F5-C684-4F27-936F-C7B04A5C5FF1|001DD762|001A00|DRVR|
|246|               |DAF4BF89-CE71-4917-B522-C89D32FBC59F|001DF162|00016B|FRFM|
|247|TcgDxe         |5E9CABA3-F2B1-497A-ADAC-24F575E9CDE9|001DF2CD|002AED|DRVR|
|248|TrEEDxe        |39045756-FCA3-49BD-8DAE-C7BAE8389AFF|001E1DBA|0043B2|DRVR|
|249|TcgPlatformSetu|196CA3D8-9A5A-4735-B328-8FFC1D93D188|001E616C|00072B|DRVR|
|250|BFGDxe         |734F8167-996B-4C5D-BBA3-815A72167FF8|001E6897|000792|DRVR|
|251|IntelLanUefiDri|9006872D-3A86-4BAE-A2F0-E527B9D7119E|001E7029|019026|DRVR|
|252|CpuIo2Dxe      |A19B1FE7-C1BC-49F8-875F-54A5D542443F|0020004F|00039C|DRVR|
|253|CrbDxe         |16271FCA-55D9-4A33-93FC-5A3EB128DEB6|002003EB|00088C|DRVR|
|254|               |DAC2B117-B5FB-4964-A312-0DCC77061B9B|00200C77|001E8A|FRFM|
|255|               |9221315B-30BB-46B5-813E-1B1BF4712BD3|00202B01|000477|FRFM|
|256|               |DD9EE903-68AF-40C8-B16E-1B0BC11B85F2|00202F78|004CFD|FRFM|
|257|               |878AC2CC-5343-46F2-B563-51F89DAF56BA|00207C75|001218|RAW |
|258|               |B62EFBBB-3923-4CB9-A6E8-DB818E828A80|00208E8D|008CE4|DRVR|
|259|               |B1DA0ADF-4F77-4070-A88E-BFFE1C60529A|00211B71|06CF09|DRVR|
|260|               |365C62BA-05EF-4B2E-A7F7-92C1781AF4F9|0027EA7A|009BF2|FRFM|
|261|               |CC0F8A3F-3DEA-4376-9679-5426BA0A907E|0028866C|000424|FRFM|
|262|               |9FE7DE69-0AEA-470A-B50A-139813649189|00288A90|00093B|FRFM|
|263|               |FBF95065-427F-47B3-8077-D13C60710998|002893CB|000D2D|FRFM|
|264|               |9D7A05E9-F740-44C3-858B-75586A8F9C8E|0028A0F8|000B6E|FRFM|
|265|               |968CA832-F64E-4B30-AC17-29936404CFFA|0028AC66|016C65|FRFM|
|266|               |55206EFC-1338-4F0C-B3EA-9F49655C39B9|002A18CB|00EA35|FRFM|
|267|               |212AB3C3-1C34-4042-83CA-0D16E8992242|002B0300|004800|FRFM|
|268|               |8B6AE4EE-8E0C-4DEA-AD70-97D305F8C93A|002B4B00|00DC0E|FRFM|
|269|               |3BC9E670-64E0-479A-A1FD-1AD3D32EA42E|002C270E|004397|FRFM|
|270|               |4084F173-EE65-4E06-B276-F7EBAF2AD02A|002C6AA5|00050A|FRFM|
|271|               |0377CCC8-E5E5-4E7E-A7ED-C2D4BFE20E49|002C6FAF|000470|FRFM|
|272|               |81A7C161-AB74-481F-A251-83BD41C15C00|002C741F|000502|FRFM|
|273|               |C3F33D7F-BA2C-4AF2-94EE-DF488E7C38CC|002C7921|000463|FRFM|
|274|               |9A55CF27-8B7B-4F3A-9C3A-4A90C70A2C29|002C7D84|006DAB|FRFM|
|275|               |543D244B-0CFD-4EA0-9F16-4BEBE25E865B|002CEB2F|0153DF|FRFM|
|276|               |839721FB-A9CE-4C6B-8518-1F7BF79D59AE|002E3F0E|0002F5|FRFM|
|277|               |84ACD8DA-9218-4854-A0FD-45EE58B9E22E|002E4203|0002D2|FRFM|
|278|               |01B9E85A-D5E7-4F75-8755-02DE085CD96F|002E44D5|0002BE|FRFM|
|279|               |1F536937-F50B-4E79-9BCC-40432F6BA320|002E4793|00034A|FRFM|
|280|               |076444DB-E81C-4CA8-912F-205BC937346C|002E4ADD|000233|FRFM|
|281|               |A8A4807B-35BE-4524-955C-88FB63740945|002E4D10|00043C|FRFM|
|282|               |30FC1738-D11F-4D2F-8AB7-42748BA04922|002E514C|00041A|FRFM|
|283|               |AAED70DC-C15C-402F-A7C1-7E39771EFB94|002E5566|0003CE|FRFM|
|284|               |3F1BFA78-AD14-4AD5-97A2-B8B6B7E74E10|002E5934|0003CE|FRFM|
|285|               |9CFBBBB6-1FF2-4CAB-9AAB-664619945261|002E5D02|00024A|FRFM|
|286|               |361D9F39-F89E-48BF-AFDB-E8DE08F11229|002E5F4C|0003DE|FRFM|
|287|               |05117A27-AD88-4975-8A11-98FE3C16AEEA|002E632A|000387|FRFM|
|288|               |DD8F7CBB-D0C6-418C-AEC0-4565F3A9B699|002E66B1|0003BB|FRFM|
|289|               |F6226695-9CC7-4AFF-A5A7-15689AF3CF97|002E6A6C|00039A|FRFM|
|290|               |AB3325D9-BF68-4045-BA9A-5566BFF2A5B2|002E6E06|0001ED|FRFM|
|291|               |0C832AC7-6A09-4EDA-974E-589A07E03644|002E6FF3|0003CF|FRFM|
|292|               |8EABF9EC-97EB-4680-AF59-E6BFF1675C78|002E73C2|0003B7|FRFM|
|293|               |F7AB5363-53C0-4A22-B3F6-73BECFC23537|002E7779|0003DC|FRFM|
|294|               |92DEA820-7E16-4170-A796-675BF357F1F0|002E7B55|0003CD|FRFM|
|295|               |3204C294-EA3F-4402-99FF-A94320401D7D|002E7F22|000574|FRFM|
|296|               |CA4918AB-41D3-4C7A-B9AB-7EC8D761D503|002E8496|000591|FRFM|
|297|               |3D75C245-9988-4A2E-B481-91E65C83C0AD|002E8A27|0005B3|FRFM|
|298|               |A56F771E-D081-4069-B0FC-2FECB68B6915|002E8FDA|0005A2|FRFM|
|299|               |8C736413-E083-46AE-B2BB-A50261F293EF|002E957C|00055A|FRFM|
|300|               |72872057-F5D8-47E0-9CD5-A827537BFE1B|002E9AD6|000571|FRFM|
|301|               |514BB640-72F9-4321-94B6-3EDA9FE26197|002EA047|000569|FRFM|
|302|               |19C9DC7F-9E70-4DE2-B79F-0EB345BCE618|002EA5B0|000543|FRFM|
|303|               |9A254674-0007-4E93-9567-644D86B939C6|002EAAF3|00057B|FRFM|
|304|               |D97F8D34-9683-46EC-A931-C376C7745B5F|002EB06E|000501|FRFM|
|305|               |C0ED18D4-BD2B-4F63-BDA8-626889B6676C|002EB56F|000555|FRFM|
|306|               |FF3859D7-9F1B-432E-A3DB-2FEFFEDAEB6C|002EBAC4|00057A|FRFM|
|307|               |53A747C0-FFA5-41A0-96A4-4507325CEDCD|002EC03E|00056E|FRFM|
|308|               |09946A96-1B61-4FFF-81DC-02784631ACE8|002EC5AC|0005A7|FRFM|
|309|               |CFA20906-D5BC-4F6E-ADAA-EB0C93264FD6|002ECB53|000575|FRFM|
|310|               |94BE4A0E-1292-44F6-9D0C-85F64E6D0FED|002ED0C8|000F0B|FRFM|
|311|               |68BA3E2A-9992-47E6-A087-1C2CC9874CA5|002EDFD3|01B7F7|FRFM|
|312|               |4A7C6E15-6041-4E11-964D-E5B392FA4A23|003097CA|0076DC|FRFM|
|313|               |755B767F-B056-4D9F-8DE6-969317F479D9|00310EA6|000365|FRFM|
|314|               |4B9B5838-12F8-4AB3-855D-68784A0DB829|0031120B|000477|FRFM|
|315|               |1605C0E2-9142-4763-B813-DFAB2005BF65|00311682|0003AA|FRFM|
|316|               |DAACA4DC-FB71-4063-86E5-F3DF9D0672DA|00311A2C|003A93|FRFM|
|317|               |A1193CFF-4C39-4432-87F6-0A73A67317F8|003154BF|00036C|FRFM|
|318|               |263A3F34-3DD2-4536-82D0-C6CC85E8D7D4|0031582B|00046C|FRFM|
|319|               |8FD5FDAD-A422-4BC9-841F-00015BBDE580|00315C97|00081B|FRFM|
|320|               |7ECEE4C9-005F-4131-A8E2-BE090FDCAFB6|003164B2|00052C|FRFM|
|321|               |02088838-19CE-48FE-ADF2-9F0BA72B4085|003169DE|0007E7|FRFM|
|322|               |ADAF7A80-1C1B-46A5-A785-D04988FF6CF6|003171C5|00052F|FRFM|
|323|               |25E0269E-EBFF-4D5D-AF48-C162D48A211E|003176F4|0007F3|FRFM|
|324|               |9EA6488D-8B5A-4CC6-BAEE-2C63D16232DE|00317EE7|00056C|FRFM|
|325|               |B43E0D50-2568-4F2E-948A-C21DAEA1CD40|00318453|000900|FRFM|
|326|               |F3BC9F38-6528-4C83-A42C-4B2E0DAFFEC7|00318D53|0006DE|FRFM|
|327|               |5F4DCDEE-BD26-406A-933B-55D15DF91B8F|00319431|0008D7|FRFM|
|328|               |ED3F50E2-06B2-429B-A6B9-5A1AC47FACD9|00319D08|000668|FRFM|
|329|               |CC749EF1-B611-4F76-8E53-858A6F77433A|0031A370|000803|FRFM|
|330|               |707A6E13-0C28-4E63-B735-A4383FEBE598|0031AB73|000558|FRFM|
|331|               |4B708A74-EE4C-4B66-928E-654BA6AF0832|0031B0CB|0007FB|FRFM|
|332|               |A969CE58-1628-4876-A3E7-392D07E0240E|0031B8C6|000539|FRFM|
|333|               |BC88CB4C-8382-46DD-878E-6CC7590B3D34|0031BDFF|0007FE|FRFM|
|334|               |1F726773-4FAA-44C9-9790-2108FC416E82|0031C5FD|0005AD|FRFM|
|335|               |D4D47FB4-C683-4387-BFD4-70268A2E072C|0031CBAA|0007CC|FRFM|
|336|               |FA54910A-7F70-45F7-BD3D-36F72002988F|0031D376|00037D|FRFM|
|337|               |30C84F09-F0B9-47A0-9192-10DBDBA61322|0031D6F3|0003E5|FRFM|
|338|               |90CB864F-AC7D-4570-85FE-A2F9066640F6|0031DAD8|0002BB|FRFM|
|339|               |57C9A6FC-A1DE-44CA-AF35-E4852E9A8A5C|0031DD93|00044D|FRFM|
|340|               |2AD962F0-1517-4ACC-8F0A-EC194A09F53F|0031E1E0|000398|FRFM|
|341|               |61A573ED-6722-4740-B353-716FAB106731|0031E578|000788|FRFM|
|342|               |857014BF-FB14-4FC7-A040-84D0705E6013|0031ED00|000843|FRFM|
|343|               |DE63BC3C-4BCE-47BA-A8D0-0755FD9C2633|0031F543|009B44|FRFM|
|344|               |0D8361E4-4AA9-4764-9548-72FE55F8D49C|00329087|000AF2|FRFM|
|345|               |6D38FFB8-AFA4-47E3-8310-FBA76439765A|00329B79|000259|FRFM|
|346|               |E0C98661-2080-4957-B6DD-BF1AABB41F2E|00329DD2|0002FB|FRFM|
|347|               |2B5AFB9C-C324-477E-8985-2908B18A44D3|0032A0CD|000259|FRFM|
|348|               |5525ECA2-E017-4088-879E-8A75076A5519|0032A326|000307|FRFM|
|349|               |E441659C-D45F-4E56-A978-3545028F9FCF|0032A62D|000744|FRFM|
|350|               |375B2114-CFD1-41F7-9786-31C76E8784BE|0032AD71|0011B1|FRFM|
|351|               |442FA849-3F7A-42D3-B38E-FBF25100CEEE|0032BF22|0007EB|FRFM|
|352|               |FC9F38D5-C097-4CF0-8D96-8AEB8488127A|0032C70D|000D7A|FRFM|
|353|               |AA478709-BE9B-454E-B827-0550F7D168A6|0032D487|0023EB|FRFM|
|354|               |6AE8EEA7-7272-4C7C-8976-35C36C3C606F|0032F872|0000F1|FRFM|
|355|               |F022F3D1-5641-4857-8316-2DDA5A8BB4EE|0032F963|0000FE|FRFM|
|356|               |1EFEF22D-2960-4AE1-A3D3-4C7688CF4712|0032FA61|000108|FRFM|
|357|               |A95D35F6-3B6D-4970-9B12-27F82D571475|0032FB69|0001AE|FRFM|
|358|               |B49B2093-DA82-41A7-BD38-902D7C9EE9DC|0032FD17|0001C3|FRFM|
|359|               |152EC085-50A2-4579-8D4D-8C14712D5AD8|0032FEDA|0003E5|FRFM|
|360|               |D0ADF218-C5FC-4E2D-A525-C9D7DDE6E7E1|003302BF|000477|FRFM|
|361|               |60709B4B-F6E6-4559-9886-0D8647790EDB|00330736|00045F|FRFM|
|362|               |291506EB-2A60-4BF3-AF96-9B7C89B8F0AF|00330B95|0004F0|FRFM|
|363|               |A622C1E6-41DE-4656-940C-F993E7495561|00331085|0004D5|FRFM|
|364|               |5A6F7188-1993-4BD0-A085-45DE0BAEFE71|0033155A|0004C0|FRFM|
|365|               |C273393C-D5FE-4B12-B3A7-A44727B536C5|00331A1A|0004D1|FRFM|
|366|               |51BAAAA5-E446-4CB7-9CB8-81031981C71F|00331EEB|000514|FRFM|
|367|               |5D09A8AE-5180-4900-A03C-CB5360CB5D2F|003323FF|000523|FRFM|
|368|               |49F14700-9F55-4E4A-928C-502C7CEF742E|00332922|000507|FRFM|
|369|               |DB29EBD6-098F-4C3C-9251-6FBB24A4E362|00332E29|000516|FRFM|
|370|               |FDD910C0-6AE5-4204-8AB7-0BF45B686C47|0033333F|00054D|FRFM|
|371|               |65C9553C-E0F1-4893-B9D1-E144E7AE8ACC|0033388C|00055D|FRFM|
|372|               |C1F61DF0-722C-4F32-A428-B2ADEA9758AD|00333DE9|00059F|FRFM|
|373|               |455612A8-8BD4-419C-8714-30970DFBD1B8|00334388|00059D|FRFM|
|374|               |8441EF9B-495E-4B7B-9D04-BB18DCEB993D|00334925|0004FE|FRFM|
|375|               |AE906B04-56D0-4AB6-B528-37A2C319677A|00334E23|0004F4|FRFM|
|376|               |85D2220D-BE1B-428C-8189-02549689EC42|00335317|000392|FRFM|
|377|               |B9DF8DED-A130-411C-9358-9A297FD88340|003356A9|0003D3|FRFM|
|378|               |6DEC678E-9AFF-4EDE-B1CC-B2BFF2825441|00335A7C|0003B7|FRFM|
|379|               |717539BE-520A-4158-89D3-89E599AF47C5|00335E33|000371|FRFM|
|380|               |05DF2256-B0F7-439A-A3A1-60215CECC7F8|003361A4|00045E|FRFM|
|381|               |D2EA26AD-D33D-4882-81CB-66B6FBA0E10D|00336602|000448|FRFM|
|382|               |A662B0C2-2821-4483-8383-3C504EDD2FA2|00336A4A|0003CE|FRFM|
|383|               |48624FD9-23C8-417F-A423-931511493C86|00336E18|0003FA|FRFM|
|384|               |B98CF0EE-CC74-43A2-BEE0-76057B02317C|00337212|00043F|FRFM|
|385|               |33AA2B9D-EA75-4D39-9A03-94051D93B333|00337651|000367|FRFM|
|386|               |0F9639D6-20B1-4AF4-9F69-4B67A54C1CF4|003379B8|00046F|FRFM|
|387|               |8AB56C7C-0A1A-46D8-9D99-C079AEB61466|00337E27|0003BA|FRFM|
|388|               |454837EF-BD48-4EF9-B31E-C3944BCE672A|003381E1|000364|FRFM|
|389|               |B6DB6DE8-92D9-4900-9C4B-42F41827D602|00338545|0003BA|FRFM|
|390|               |2915AF7D-6426-48EB-9F65-7109F2313645|003388FF|0003C5|FRFM|
|391|               |48BCE565-91EF-4D61-BB2E-018988ECEA65|00338CC4|000433|FRFM|
|392|               |9C5C3341-525B-40EA-A017-6CC55993FD8D|003390F7|000246|FRFM|
|393|               |F7625B66-935F-49C8-9A91-0D655CA90D9F|0033933D|03264F|FRFM|
|394|               |3E1850AF-DEE6-49F1-A857-9B8EC19D248D|0036B98C|00C780|FRFM|
|395|               |F8AABB7D-4F76-4425-8759-8D6274EC7A73|0037810C|0003F7|FRFM|
|396|               |C659DD1A-FEDD-48CB-9369-D13B64A1CC8A|00378503|0005A3|FRFM|
|397|               |0FC131DD-BB05-4199-A612-C90471E20C81|00378AA6|000422|FRFM|
|398|               |B4C9FA78-A0A3-4405-805F-854A0C0480B6|00378EC8|004E89|FRFM|
|399|               |7E82B01F-6660-4929-A330-41B614B8D5B9|0037DD51|000646|FRFM|
|400|               |EF4B59CF-354A-4A48-92EF-E2CB26FD6F3D|0037E397|000708|FRFM|
|401|               |34734893-D884-4B10-AFE5-EE12DDA1313C|0037EA9F|000C86|FRFM|
|402|               |4246F956-516C-4B6A-8F80-A46B046BFEF7|0037F725|000616|FRFM|
|403|               |B11B593F-4111-4B52-9A0A-D3A747958BF2|0037FD3B|000B8D|FRFM|
|404|               |C2944076-057A-4041-8281-DDA4F225EE7C|003808C8|000603|FRFM|
|405|               |641EC682-AC23-4050-9D41-6F91A054FB79|00380ECB|000B93|FRFM|
|406|               |E7BFFE00-6503-4506-A0DB-012C095CA466|00381A5E|000644|FRFM|
|407|               |A23E99CA-F2AC-42A9-A5A5-AA45A4EA3723|003820A2|000D9E|FRFM|
|408|               |9265FE3F-9FB0-448A-A9A3-C35237CA7646|00382E40|0008BF|FRFM|
|409|               |55BA181E-B84E-4D84-831D-0BB9FF4058A0|003836FF|000D60|FRFM|
|410|               |7CE2B05D-BF18-4D50-BB2B-56CDFCA4B3F3|0038445F|000814|FRFM|
|411|               |82162AD6-E96F-4565-8056-021245EF5727|00384C73|000BB0|FRFM|
|412|               |CB0740F9-E293-4F82-9231-6A744E686B7A|00385823|00060F|FRFM|
|413|               |2E95D50E-056C-4B76-B64D-EB3B0F85F3EE|00385E32|000BAE|FRFM|
|414|               |F2F8F2F6-FF45-47B6-9370-3A6E3B6F398C|003869E0|00063F|FRFM|
|415|               |55157244-191C-4965-AD8B-F18ECAE17ECA|0038701F|000CB2|FRFM|
|416|               |DED486B8-3F83-480C-B577-DB38179CDF53|00387CD1|0005EA|FRFM|
|417|               |F2848913-E30C-4B4C-8DEF-027246CED5B7|003882BB|000FEB|FRFM|
|418|               |E5B96E3F-FDC4-49B0-80A6-0DAC862E37E2|003892A6|000550|FRFM|
|419|               |B17092E3-3978-42E8-8541-BA8B3C6F515E|003897F6|00071E|FRFM|
|420|               |44B723FF-6BA8-46C4-9178-70DE92B69667|00389F14|00062F|FRFM|
|421|               |D0BC4730-9E34-46AA-928E-F57486D10656|0038A543|000BF1|FRFM|
|422|               |E1019319-A71E-434A-9BBC-A2C041FB37D1|0038B134|0004D9|FRFM|
|423|               |1E2585C3-90FB-4CB2-B33E-A26220C31C85|0038B60D|000D6F|FRFM|
|424|               |AEEE930F-FCC3-4A3D-8612-57E5555C53F8|0038C37C|000F18|FRFM|
|425|               |B45751A4-21D9-4501-8B72-538FB0F0AFBC|0038D294|0007E0|FRFM|
|426|               |326DCD5F-6BA9-48CF-8AC7-73B57C17645B|0038DA74|001EA4|FRFM|
|427|               |254142AC-8388-48FA-B65C-06B011BB2A64|0038F918|0006D1|FRFM|
|428|               |5529EA3F-CB9F-40E1-803D-1D603408396C|0038FFE9|000959|FRFM|
|429|               |8C301301-8856-48B0-9817-B8DD74A1B8FC|00390942|003AB1|FRFM|
|430|               |93B3F54D-0988-4D0F-B0EC-E6CC442FD3C1|003943F3|0005A5|FRFM|
|431|               |D6EE0794-8B4A-4887-9707-5DC5A9D7E197|00394998|000741|FRFM|
|432|               |9B69F941-28B9-4A33-8109-97D7A63DA780|003950D9|00067B|FRFM|
|433|               |0DBE874F-132E-408F-9C80-C9C78D47BDE7|00395754|000952|FRFM|
|434|               |45799128-FA37-4EB8-A9E9-B296F77AF749|003960A6|00088F|FRFM|
|435|               |E1E0A0F9-9B8F-4BCA-8ADE-B047CB571EDE|00396935|00094B|FRFM|
|436|               |967BE10D-B5A7-4E1F-A151-51C7ECFEFC79|00397280|0008F4|FRFM|
|437|               |5659C16F-760F-4980-863C-2F366562ACAB|00397B74|000AAC|FRFM|
|438|               |06B95596-FBED-4F92-A3E7-FE3DDD3E70CB|00398620|000A3C|FRFM|
|439|               |622F389F-C1CA-44DB-A418-0B8D568DB7AA|0039905C|000A51|FRFM|
|440|               |C8F5E303-EDAC-436B-959A-16873432E36A|00399AAD|000A13|FRFM|
|441|               |B10388DF-A91E-4020-A51A-70398A3FDB2B|0039A4C0|0009BD|FRFM|
|442|               |E9AF1E1C-9C69-42B9-95EB-84FF970E9A06|0039AE7D|0009A6|FRFM|
|443|               |58B501F6-2A4C-422B-932D-EBCA844F91D8|0039B823|000ADA|FRFM|
|444|               |AC1BECBB-C1BA-445E-8484-E49BB7FD9C38|0039C2FD|000A58|FRFM|
|445|               |1201AF5E-0C1E-4B81-AD2C-6C2555238B94|0039CD55|000794|FRFM|
|446|               |D6BEB4D4-ACFE-4B82-A41E-A2126CC261AA|0039D4E9|000761|FRFM|
|447|               |3D9028BD-BE8F-4394-95D9-EF907804F8D7|0039DC4A|000420|FRFM|
|448|               |16A03D70-8A87-44A3-B1F6-C60F21B459A3|0039E06A|0004BA|FRFM|
|449|               |9307876B-C98A-4697-A292-0A98BFA08E74|0039E524|000467|FRFM|
|450|               |956B5627-93AA-43D2-BDF7-72BDC456A776|0039E98B|0003E8|FRFM|
|451|               |05EFDA86-8878-418D-A008-2EC9D65AC8E1|0039ED73|000558|FRFM|
|452|               |150968D7-23E8-421B-8DD4-91E58F09C823|0039F2CB|000558|FRFM|
|453|               |4CD28F59-C65F-466B-808A-1AA88AB63683|0039F823|00043F|FRFM|
|454|               |88B142D0-440F-4165-A027-2D9C1B32848E|0039FC62|0004CD|FRFM|
|455|               |A98634FE-2E1A-4E48-83E3-02EE215E272E|003A012F|000580|FRFM|
|456|               |B4E54BFF-5478-434A-B27F-78452068EC33|003A06AF|000361|FRFM|
|457|               |2503A0D3-2FFC-4270-9489-791D71708696|003A0A10|0005A3|FRFM|
|458|               |F2928C5D-9FE0-40D4-8371-FC009E92AE3A|003A0FB3|00041A|FRFM|
|459|               |64721FFC-FE97-44FF-95E1-BDC00020A71F|003A13CD|0003DC|FRFM|
|460|               |2D886079-50FD-4F5F-BC4C-60594736701B|003A17A9|000441|FRFM|
|461|               |6B7034EE-4748-430B-965D-9C5685107F9F|003A1BEA|000478|FRFM|
|462|               |3709C2BF-CFDF-4E28-A5A4-910AC26079E7|003A2062|000537|FRFM|
|463|               |0D9F560A-BC46-4DAA-BF61-B43A2C0DEF2D|003A2599|000314|FRFM|
|464|               |ACB93808-5A10-4A79-8446-9E7E5583E17C|003A28AD|06007D|FRFM|
|465|               |944130C6-8564-48B0-B0F7-7C0E3011E17A|0040292A|000136|FRFM|
|466|               |285D8EE0-964D-4FB3-8E63-009FF3E9C546|00402A60|000138|FRFM|
|467|               |D5AC2D09-8308-4A5F-9411-A6BCFFAA1377|00402B98|0001CD|FRFM|
|468|               |202C5E59-00F6-49F1-8223-484F9889F1BE|00402D65|0001B2|FRFM|
|469|               |1E58F36C-8F88-4704-B7C0-C97A009802DC|00402F17|000602|FRFM|
|470|               |2AFDD1E4-DBEC-4193-B83A-ED8B15D7671E|00403519|000318|FRFM|
|471|               |AC49CC38-C0B1-4A39-BF15-DA9A21A0660A|00403831|000332|FRFM|
|472|               |262D9B15-7A37-486E-B9FE-714600C2D647|00403B63|0002E7|FRFM|
|473|               |04D4DD6D-B58C-4CF2-8517-3406F9D914A4|00403E4A|0004C3|FRFM|
|474|               |1B1E8725-927F-48E5-9103-2FFC55512407|0040430D|00016D|FRFM|
|475|               |32656F3A-64D7-4258-AA15-850796C6B298|0040447A|00017D|FRFM|
|476|               |F479CAD6-9C45-4E62-8C19-C3FF792DF056|004045F7|0001CD|FRFM|
|477|               |CDC1F44D-8595-4BA7-A9FF-9CF4558845C3|004047C4|0001B2|FRFM|
|478|               |76E71416-E1ED-47AD-B84A-542C8CFB1D2C|00404976|000602|FRFM|
|479|               |60C485D8-F768-48CE-A95C-E1BF7F88BB04|00404F78|000318|FRFM|
|480|               |B2021A0F-B870-48C5-BE66-35AF0A189AE3|00405290|000332|FRFM|
|481|               |B836DAFB-04DC-462D-8597-7CFFBB2AD0B1|004055C2|0002E7|FRFM|
|482|               |0AB2DC9E-9E7F-48C8-A375-BDEF818F2090|004058A9|0004C3|FRFM|
|483|               |67F7D0B8-B769-44CD-A72B-B313870D34B4|00405D6C|0087B2|FRFM|
|484|               |CA10C70E-EB3E-4E54-8DF2-EABDF80D5D60|0040E51E|0007DD|FRFM|
|485|               |DEC8CEE5-1FC7-43E2-9C3A-7FA26CBE724C|0040ECFB|0007C7|FRFM|
|486|               |EE073199-0DE8-46D8-AD54-555F078C1363|0040F4C2|000774|FRFM|
|487|               |2795EAF0-2D24-44B8-8E55-4012F92C063F|0040FC36|00075D|FRFM|
|488|               |12A82B21-A204-47A5-BC83-1551576F38C8|00410393|000561|FRFM|
|489|               |65F4A460-A369-43C5-939B-49883279A748|004108F4|000547|FRFM|
|490|               |9400C396-EDBC-4726-9B59-4129728CCE91|00410E3B|000C64|FRFM|
|491|               |86546269-F808-4766-944F-7A8D79F6B6AB|00411A9F|000C30|FRFM|
|492|               |2EEB7684-0A6E-45DC-8F89-0E82A69DB591|004126CF|000C65|FRFM|
|493|               |C613F2CF-1DF7-4956-943F-6F4B0FEF162C|00413334|000C8A|FRFM|
|494|               |4CA9C059-4576-4134-AAED-4D9358BDAFD3|00413FBE|000A1E|FRFM|
|495|               |109BAED9-7151-4D1F-B45C-C60624D085DE|004149DC|0009FC|FRFM|
|496|               |8ED07A85-E43B-4475-9667-3E36DC4A5940|004153D8|000ABE|FRFM|
|497|               |247FF605-4C07-4704-8529-FEBCCE2D21EE|00415E96|000A6A|FRFM|
|498|               |E6A1C916-59F2-416C-8A7E-D224420AF74D|00416900|000BB5|FRFM|
|499|               |D68C13CA-7641-4777-A78E-BB4D3E2042F5|004174B5|000B3D|FRFM|
|500|               |71F5268B-94AA-4C33-AF91-8BA9A2088EB1|00417FF2|001491|FRFM|
|501|               |99C29D1C-6997-42DC-AE99-C4D25EFEF647|00419483|00143C|FRFM|
|502|               |BEADDDA1-FB59-46D6-96AB-E967BDCE4B82|0041A8BF|0006DB|FRFM|
|503|               |CF9EF258-9577-447F-8FDA-D16BC9BB2B80|0041AF9A|0006D9|FRFM|
|504|               |2F7D144F-B4E2-4375-BEAC-5D3EC44E5868|0041B673|00038D|FRFM|
|505|               |4C205200-CA86-43F3-96E3-A6192D7E1DBB|0041BA00|00033E|FRFM|
|506|               |D3E70DC9-C5A2-476D-B072-865E1C19AE06|0041BD3E|000564|FRFM|
|507|               |6562682A-C982-4E8A-AE0A-07B203DD142F|0041C2A2|000578|FRFM|
|508|               |E124441D-3654-43F4-981D-35522992BD6D|0041C81A|0003B2|FRFM|
|509|               |EE9774B6-A1CD-4129-A1A9-09E2FF3D88B1|0041CBCC|00038B|FRFM|
|510|               |3BE58C2C-2815-43F7-B17D-156908FD3887|0041CF57|0004C2|FRFM|
|511|               |FEE3B649-8126-4E77-AC4C-2BB1C0FD2A48|0041D419|0003BC|FRFM|
|512|               |13236029-F612-4E99-94CD-BFB315AF94FD|0041D7D5|00041C|FRFM|
|513|               |147EAE0B-42E8-4D69-8D82-FBB695F2C33F|0041DBF1|0006CC|FRFM|
|514|               |55E6C92F-5E5B-407B-8200-63E1B9CE18DB|0041E2BD|00101C|FRFM|
|515|               |12037DC3-5FAB-4D6F-A5D5-A9C0863EAF41|0041F2D9|001048|FRFM|
|516|               |72E60CC8-B41D-4D16-9AC1-ABF1D8EB5470|00420321|001876|FRFM|
|517|               |F8CF2616-EEEE-402C-B763-E75351BC5D51|00421B97|0019C6|FRFM|
|518|               |082373EA-0F8A-4AE8-8E29-B4FF658AD2B0|0042355D|0047E0|FRFM|
|519|               |C016AE55-A2F7-4A97-9FC2-460927E9F95E|00427D3D|004742|FRFM|
|520|               |A832AD4C-9A2E-41D2-9E4E-B6F3EF7AFFC5|0042C47F|006E51|FRFM|
|521|               |B5CD3C73-95B1-4F7E-B9B2-DE60571DA764|004332D0|007319|FRFM|
|522|               |517C0471-5B2A-4DEC-B00C-1837A543D850|0043A5E9|00F99E|FRFM|
|523|               |FBC3E19F-A601-49D5-B52F-23BFE8200C0D|00449F87|000AD9|FRFM|
|524|               |D3DBFCFC-6C6B-4A47-AF28-2EB1723CD18E|0044AA60|000A4A|FRFM|
|525|               |321191FB-58CB-47DE-A77D-7A0B7C752C5C|0044B4AA|000921|FRFM|
|526|               |60685F3C-4A8B-491C-A4F7-8AE19B1BEAFE|0044BDCB|000900|FRFM|
|527|               |1A7A5170-1E87-44F4-9B42-985EA06E9C3E|0044C6CB|0006E4|FRFM|
|528|               |34E99D04-A943-4AC1-82FF-34324E13C61F|0044CDAF|0006A7|FRFM|
|529|               |B83120B8-8167-4E26-BC85-5CBE8E59BF9C|0044D456|001FF4|FRFM|
|530|               |D33B82F9-1498-4C0A-BAC5-B7B638874AA1|0044F44A|002006|FRFM|
|531|               |8D6AFC0C-4B7E-4BD9-9C4B-7576DA4446BE|00451450|002129|FRFM|
|532|               |C6DF52DE-95F9-447A-AE96-1087AA9E16E1|00453579|002144|FRFM|
|533|               |336EF3B6-3899-4ED9-AB8F-02AA62919563|004556BD|001455|FRFM|
|534|               |3457AE5D-3A27-43AF-8C47-7624DDBAB36C|00456B12|00149E|FRFM|
|535|               |CF2CADAB-48F7-4E67-9491-A0FDF75E7D53|00457FB0|0016CB|FRFM|
|536|               |9452B4CD-A4C0-45E5-8783-B9F8E4B3A54F|0045967B|0015F3|FRFM|
|537|               |5F58DA07-12CE-444B-AB14-3DA631DDC031|0045AC6E|000DC1|FRFM|
|538|               |E89CC91A-7E6F-4F56-B933-22D42F96E160|0045BA2F|000D01|FRFM|
|539|               |68BAFF69-7331-45CC-A599-9D06BEA4543B|0045C730|001881|FRFM|
|540|               |C0192235-32BF-4506-B5A6-EE44C0D36B24|0045DFB1|0017CC|FRFM|
|541|               |B1F6B054-750F-4C5E-BD9B-AC154AE7298E|0045F77D|000B0C|FRFM|
|542|               |1DB3499E-03B2-4B86-B79C-9BB54F20E5C8|00460289|000AFC|FRFM|
|543|               |72D67A8B-52D1-4C5F-889D-7256ACC8BDFF|00460D85|000474|FRFM|
|544|               |54AFD58B-84A5-4CBA-834D-DAC584F8D036|004611F9|000404|FRFM|
|545|               |D1BF638A-7F17-4168-8DB3-0C17E951E722|004615FD|0009CD|FRFM|
|546|               |01025BA8-A938-4253-99A9-9D7A21CDB154|00461FCA|000A0D|FRFM|
|547|               |06724E01-CA90-4724-8FB8-E8F00D3F20AD|004629D7|00035B|FRFM|
|548|               |2DEDEF7B-AADC-4F21-ACD0-EC19CCFFA04F|00462D32|0003E0|FRFM|
|549|               |80657853-5D28-4E02-B30D-210BAE0FC0E0|00463112|00055F|FRFM|
|550|               |E4B17274-7FEF-4743-A586-878824C5BC33|00463671|0003F6|FRFM|
|551|               |93A4457C-861C-432D-8294-CCCD4B070115|00463A67|000460|FRFM|
|552|               |FE8C1675-F0BF-4B8B-9B33-BEFBB527FFB3|00463EC7|00090A|FRFM|
|553|               |23167D48-1FA8-40B2-8B0E-79B8FDE1A257|004647D1|001807|FRFM|
|554|               |3B845B2E-3186-417D-B0D0-A788031A5785|00465FD8|001868|FRFM|
|555|               |54950722-73E1-4EF0-A7ED-586EF0AD2972|00467840|001E49|FRFM|
|556|               |DF4A0BC8-196A-4995-B99F-E826EB2C7253|00469689|001FC9|FRFM|
|557|               |A018F6CE-DF2F-41D7-81A4-DD9150B716DD|0046B652|0071A2|FRFM|
|558|               |E32393AC-8AEB-47A5-B24C-53D268CB296E|004727F4|007152|FRFM|
|559|               |A06FD4C9-CCDC-4A3D-A706-91C5E213DDE2|00479946|00A6F5|FRFM|
|560|               |DEE6A056-C44D-4BE2-B661-1664370995D7|0048403B|00AC8E|FRFM|
|561|               |A0D3BED2-E04B-4136-92B0-A566D0F7F3D9|0048ECC9|000193|FRFM|
|562|               |D1F4F805-5149-4C6E-85B3-47E760320E1C|0048EE5C|00018A|FRFM|
|563|               |CF326718-E8AF-4595-8A57-2019D4A79CF9|0048EFE6|00019C|FRFM|
|564|               |41EAAD87-CC6B-4DAF-A97A-923D0AF145C9|0048F182|0001A1|FRFM|
|565|               |6052182F-FB8A-4FE4-B4A3-E673720FA76E|0048F323|0004A3|FRFM|
|566|               |9EA58A59-D9D6-48C8-9A64-714B8F0C9C0E|0048F7C6|0004B6|FRFM|
|567|               |3CCFB3F8-3FC6-489C-BF5C-F8006A6816C5|0048FC7C|00057B|FRFM|
|568|               |43493751-0323-491C-A996-B3A75B4E55DE|004901F7|00059A|FRFM|
|569|               |AAB8DD49-9C76-4668-95B6-A33260299A7C|00490791|000799|FRFM|
|570|               |9BCF0337-9ED9-4361-B0D1-365EC72B73EF|00490F2A|0007C6|FRFM|
|571|               |35770012-6D7A-4159-8C27-AA57914D5A56|004916F0|00049A|FRFM|
|572|               |0CD37002-DB0C-47FB-A06C-64B2659229A9|00491B8A|0004C8|FRFM|
|573|               |48866914-0D50-4956-85BA-D3567C5FDFCD|00492052|00057B|FRFM|
|574|               |1977C84B-0DDB-4528-BAF7-CAB9CF6F3520|004925CD|0005BB|FRFM|
|575|               |22E84E9A-8E97-4C1E-AE8D-C3076B00BF91|00492B88|0006D8|FRFM|
|576|               |75E48A84-8028-481C-B755-EBB6A211DBBA|00493260|0006E0|FRFM|
|577|               |25A7E74A-02DD-4176-851F-768868735BD4|00493940|000685|FRFM|
|578|               |F4DB4AA8-1121-4544-A390-36F6220A8321|00493FC5|000686|FRFM|
|579|               |17AB917E-3E8F-4A32-913F-B5A79B9A5450|0049464B|0007E7|FRFM|
|580|               |80CE8051-619B-4E9F-A621-704C16586556|00494E32|000819|FRFM|
|581|               |26121E23-8B60-44BB-801F-0B8D7D497AD3|0049564B|0005A0|FRFM|
|582|               |32AE97ED-4AE1-45F0-B4EB-D387684687B9|00495BEB|0005A1|FRFM|
|583|               |5099ADB5-93E7-4C3C-A7F0-F91B9E6C7A26|0049618C|000419|FRFM|
|584|               |1E63B881-084A-4125-B7CC-6923CB6E139A|004965A5|000429|FRFM|
|585|               |FEA1D00F-AED1-4A19-A2F7-9E6E64F0F145|004969CE|000118|FRFM|
|586|               |45830961-709B-4BC3-9AEF-761064B30E71|00496AE6|000111|FRFM|
|587|               |2138DD76-99B2-4AFA-809E-541CA7707A64|00496BF7|00062C|FRFM|
|588|               |45C0107C-9324-4257-AEFE-A7EA63332414|00497223|00063B|FRFM|
|589|               |300F44FF-2E37-4BE9-8BFA-843C80291BAC|0049785E|0002E1|FRFM|
|590|               |955EDCA4-2182-495D-BEC7-8DA55C76BFD3|00497B3F|0001FB|FRFM|
|591|               |3E7D3629-E92E-458C-BB39-F07D6CF3095E|00497D3A|0002A9|FRFM|
|592|               |DADCFA55-AA98-4457-8D83-CCC2D0E35AAD|00497FE3|00010D|FRFM|
|593|               |5185FD72-D54C-49F6-AD47-81C12355349B|004980F0|0000EA|FRFM|
|594|               |690C072A-1CA0-479C-BDE1-D7B1D038780A|004981DA|000405|FRFM|
|595|               |88689E41-A948-428A-8BB3-64F234043FD9|004985DF|00040D|FRFM|
|596|               |14F4E03F-C193-4FE7-8221-CE70361057F9|004989EC|0004AD|FRFM|
|597|               |B4B76E7E-24F0-4E7E-8D39-6235CB8AC6F3|00498E99|000499|FRFM|
|598|               |757A2A20-655A-4502-B3C2-682A8A1EE313|00499332|00054C|FRFM|
|599|               |B7171935-E022-42FD-AC11-1408C3C68B5B|0049987E|00058E|FRFM|
|600|               |86ED1351-5DC3-4E66-B677-19A50F659D4D|00499E0C|000776|FRFM|
|601|               |821B737C-1ADF-499E-84DC-1C10A3B4A1AC|0049A582|0007A7|FRFM|
|602|               |4FA8DF1F-A748-40DE-A2BA-7EDA05CC9210|0049AD29|000C20|FRFM|
|603|               |3CE386C4-2814-41C7-BF18-A3161C3CFE40|0049B949|000C92|FRFM|
|604|               |DF9F660A-D628-4474-BDBC-564D23AFB5F7|0049C5DB|00055B|FRFM|
|605|               |11DB2436-D4BA-40E9-BF68-58AC08B562B5|0049CB36|0005AD|FRFM|
|606|               |1EE48591-6763-4438-B4DD-FD4DA183EBD9|0049D0E3|00072F|FRFM|
|607|               |88F4BF3B-450E-420A-A064-15D9F77BE526|0049D812|0007AB|FRFM|
|608|               |2140D218-7B99-4DB3-AC8D-0414C2EC8BFE|0049DFBD|000AA4|FRFM|
|609|               |5B5ABDE6-403D-4492-BED5-255CF34CC073|0049EA61|000AEE|FRFM|
|610|               |0E116626-465B-4BD2-A83D-7544291E4B24|0049F54F|0008F5|FRFM|
|611|               |0275C62C-CD50-47F6-A8C1-FB343FCB895D|0049FE44|000951|FRFM|
|612|               |1A021303-7605-4A1E-A6A0-43977669686E|004A0795|000BF2|FRFM|
|613|               |55B102CB-27E1-4311-8A91-FFB308D3AA41|004A1387|000C33|FRFM|
|614|               |2A9CB3F3-E9D5-4B7F-B1FA-23D309ADB3E3|004A1FBA|0007BB|FRFM|
|615|               |A062ED73-BAF0-491F-99C6-6C55006C0E65|004A2775|000814|FRFM|
|616|               |F2CE6F62-5B25-4F53-A473-6102EB1B1627|004A2F89|00083F|FRFM|
|617|               |F8EDD0C1-F636-446F-B836-EA3D82BA0C74|004A37C8|00089E|FRFM|
|618|               |8D1AD092-8FF6-4CC5-A922-A5F95CD1B458|004A4066|00015D|FRFM|
|619|               |FC6784DB-8844-4F07-9060-CF7F2E90CACB|004A41C3|000147|FRFM|
|620|               |5C018579-81BD-4990-95C2-4F5BC8ED3BCB|004A430A|00084D|FRFM|
|621|               |ADD6C2AD-F3C1-4A8C-A62B-33C7E587DEAE|004A4B57|000879|FRFM|
|622|               |CC6EC389-FB59-4615-9CE6-5EF01FE9412A|004A53D0|0002E1|FRFM|
|623|               |7DC739BA-7D53-4AC5-A7C8-E94FB1BD799C|004A56B1|0002C2|FRFM|
|624|               |50F51B4D-0C12-4CB4-8771-9C7ECF643C3B|004A5973|00037A|FRFM|
|625|               |5CAF78DB-48CE-4EC1-AFC9-3D073A2EF911|004A5CED|00010D|FRFM|
|626|               |F21ACA4A-7007-4369-8F19-405542654069|004A5DFA|0000FC|FRFM|
|627|               |3A102651-824C-4F6E-8450-FA9CAA345DBF|004A5EF6|000409|FRFM|
|628|               |BAA87375-83B4-4CB1-80E3-97659F6E7FDA|004A62FF|000540|FRFM|
|629|               |6B2256A7-33D3-4A15-8BB5-F7AD80930B0A|004A683F|0008B8|FRFM|
|630|               |AFCC42DC-CB52-4433-ACD6-F1161DC6BEA6|004A70F7|000924|FRFM|
|631|               |76DFF168-D29C-4005-9A2B-C47BFCF83980|004A7A1B|0007C6|FRFM|
|632|               |EFF858D9-F52F-4811-AE83-256BA4586B95|004A81E1|00081B|FRFM|
|633|               |F6C1245F-77BF-44BE-AB4D-DECDC6796B5D|004A89FC|00030F|FRFM|
|634|               |9E022446-1DBE-4783-8FFA-05B0A0350D99|004A8D0B|00030E|FRFM|
|635|               |978E6FB3-E24E-4EBB-8078-781F72C975AD|004A9019|00031F|FRFM|
|636|               |11C2F3EA-F72D-4C9E-8268-B08A3893F1D3|004A9338|0005FF|FRFM|
|637|               |47A0694F-BB26-45F6-93F0-42E509CDB6AB|004A9937|000927|FRFM|
|638|               |7E3F9130-7EB5-49F3-8A70-61A52C80709F|004AA25E|000A73|FRFM|
|639|               |0DDCDE6E-AB43-4085-8D54-A1FA7DC12D0C|004AACD1|000AD8|FRFM|
|640|               |CDE9CA2C-03DD-4E76-915F-51D5B2592760|004AB7A9|0008BE|FRFM|
|641|               |4DA0B893-9417-43BA-8F66-E21EE525E802|004AC067|000986|FRFM|
|642|               |D09439D4-0307-4FB7-A478-5C0F089F0EFE|004AC9ED|00030F|FRFM|
|643|               |E54B73F7-27B0-4426-9975-865982E5BD7E|004ACCFC|000366|FRFM|
|644|               |B58B54F2-638F-411F-85B3-09A5C33D55BE|004AD062|0003FB|FRFM|
|645|               |5497C57F-FBD8-4880-9657-51ED66444BF0|004AD45D|000EA5|FRFM|
|646|               |D17BFB23-6A7A-427C-B85A-A684310B1C65|004AE302|000F13|FRFM|
|647|               |71206126-B944-4641-918A-C7501E474B26|004AF215|000F13|FRFM|
|648|               |6786E853-E416-45D1-923B-C08364049CB8|004B0128|00155D|FRFM|
|649|               |08BCA761-A61B-4351-ABC3-2A4F52314582|004B1685|001553|FRFM|
|650|               |4B413A55-CEEA-48A8-8D2B-1D3FB4ECF6F6|004B2BD8|001574|FRFM|
|651|               |6B93512D-A5DD-4769-9259-13051D7BE476|004B414C|0005F0|FRFM|
|652|               |9D09E73E-A42A-4C97-AF38-7E55FB81DD03|004B473C|0007C1|FRFM|
|653|               |60356837-9242-46F4-B5A4-E88D9D725193|004B4EFD|000804|FRFM|
|654|               |EE6D58E0-6E0E-42FD-BAC7-5390B0D19868|004B5701|000B20|FRFM|
|655|               |2AE09993-5D59-4515-8EA7-9E673A929A9B|004B6221|0008A6|FRFM|
|656|               |1400D0D8-DD45-4727-927C-779A3D913B19|004B6AC7|0008B9|FRFM|
|657|               |1D8F2499-9DA2-4BF2-B828-11B9F8857F91|004B7380|000BB3|FRFM|
|658|               |582259CF-2441-46B1-A158-FCDD7D07DBE4|004B7F33|000C49|FRFM|
|659|               |7BB28B99-61BB-11D5-9A5D-0090273FC14D|004B8B7C|0112FB|FRFM|
|660|               |494E3DF8-44EA-4B0B-BCAC-4E6F68A4A9CE|004C9E77|0078B7|FRFM|
|661|               |A0327FE0-1FDA-4E5B-905D-B510C45A61D0|004D172E|027B24|DRVR|
+---+---------------+------------------------------------+--------+------+----+
| Bytes Free       : 000DAE (  3 KB)    Bytes Used       : 4F9252 (5092 KB)    |
+-----------------------------------------------------------------------------+
| Firmware Volume : 03               Location :  00E20000   Length :  080000  |
+---+---------------+------------------------------------+--------+------+----+
|NO |    FileName   |               GUID                 |Location| Size |Type|
+---+---------------+------------------------------------+--------+------+----+
|000|               |B52282EE-9B66-44B9-B1CF-7E5040F787C1|00E200E8|000168|RAW |
|001|               |17088572-377F-44EF-8F4E-B09FFF46A070|00E20268|057028|RAW |
+---+---------------+------------------------------------+--------+------+----+
| Bytes Free       : 028E24 (163 KB)    Bytes Used       : 0571DC (348 KB)    |
+-----------------------------------------------------------------------------+
| Firmware Volume : 04               Location :  00EA0000   Length :  15E000  |
+---+---------------+------------------------------------+--------+------+----+
|NO |    FileName   |               GUID                 |Location| Size |Type|
+---+---------------+------------------------------------+--------+------+----+
|000|               |1B45CC0A-156A-428A-AF62-49864DA0E6E6|00EA0078|0000BC|FRFM|
|001|RomLayoutPei   |7EB7126D-C45E-4BD0-9357-7F507C5C9CF9|00EA0138|000EC2|PEIM|
|002|PeiCore        |52C05B14-0B98-496C-BC3B-04B50211D680|00EA1000|0063FE|PEIC|
|003|CapsulePei     |C779F6D8-7113-4AA1-9648-EB1633C7D53B|00EA7400|00184E|PEIM|
|004|DxeIpl         |86D70125-BAA3-4296-A62F-602BEBBB9081|00EA8C50|00362A|PEIM|
|005|NCT6791DPeiInit|9029F23E-E1EE-40D1-9382-36DD61A63EAA|00EAC280|001346|PEIM|
|006|PiSmmCommunicat|1C8B7F78-1699-40E6-AF33-9B995D16B043|00EAD5C8|0006E6|PEIM|
|007|CpuS3Pei       |B1E9E2CA-B078-4070-BCCD-87449AC7D2A6|00EADCB0|000C36|PEIM|
|008|CpuPei         |E60A79D5-DC9B-47F1-87D3-51BF697B6121|00EAE8E8|0010CE|PEIM|
|009|CpuPeiBeforeMem|91B886FD-2636-4FA8-A4A9-2EB04F235E09|00EAF9B8|000556|PEIM|
|010|AcpiVariableHob|5AC804F2-7D19-5B5C-A22D-FAF4A8FE5178|00EAFF10|0005FA|PEIM|
|011|AmiTxtTcgPeim  |9962883C-C025-4EBB-B699-4EA4D147C8A8|00EB0510|001172|PEIM|
|012|NbPei          |79AA6086-035A-4AD9-A89A-A6D5AA27F0E2|00EB1688|004056|PEIM|
|013|SbPei          |C1FBD624-27EA-40D1-AA48-94C3DC5C7E0D|00EB56E0|006AE6|PEIM|
|014|AmiTxtPei      |C7D4BBCF-EB0A-4C91-BD8B-FCA99F28B011|00EBC1C8|00038A|PEIM|
|015|PlatformInit   |59ADD62D-A1C0-44C5-A90F-A1168770468C|00EBC558|018DB2|PEIM|
|016|AmtStatusCodePei|A6AEF1F6-F25A-4082-AF39-2229BCF5A6E1|00ED5310|000F5A|PEIM|
|017|PlatformInfoPei|52B3DBA7-9565-48E8-8E13-EC7196721B3C|00ED6270|0005E6|PEIM|
|018|AmiPeiCreateDum|EFF9400A-AD95-475B-868F-C7AFC313BA72|00ED6858|0003E6|PEIM|
|019|SiInit         |299D6F8B-2EC9-4E40-9EC6-DDAA7EBF5FD9|00ED6C40|017BA6|PEIM|
|020|AhciRecovery   |BDAD7D1A-4C48-4C75-B5BC-D002D17F6397|00EEE7E8|001E46|PEIM|
|021|S3Resume       |EFD652CC-0E99-40F0-96C0-E08C089070FC|00EF0630|0020BE|PEIM|
|022|BootScriptHideP|9B8A0C3A-5186-4B55-89F4-CAFDE613DAB1|00EF26F0|000B9E|PEIM|
|023|NvmeRecovery   |00026AEB-F334-4C15-A7F0-E1E897E9FE91|00EF3290|002446|PEIM|
|024|TcgPei         |34989D8E-930A-4A95-AB04-2E6CFDFF6631|00EF56D8|0041FA|PEIM|
|025|TrEEPei        |961C19BE-D1AC-4BA7-87AF-4AE0F09DF2A6|00EF98D8|00A30A|PEIM|
|026|TcgPlatformSetu|0FE9DA53-043D-4265-A94D-FD77FEDE2EB4|00F03BE8|00060A|PEIM|
|027|AmiTcgPlatformP|9B3F28D5-10A6-46C8-BA72-BD40B847A71A|00F041F8|0013AE|PEIM|
|028|AmiTpm20Platfor|0D8039FF-49E9-4CC9-A806-BB7C31B0BCB0|00F055A8|00121E|PEIM|
|029|TcgPeiplatform |6B844C5B-6B75-42CA-8E8E-1CB94412B59B|00F067C8|0003D6|PEIM|
|030|MemPatch-PEI   |CE76670A-55C0-484B-962E-84A2F65210A6|00F06BA0|001846|PEIM|
|031|VCCMPei        |EB5F9A7C-4966-489B-90B6-A55F1CBC8ED9|00F083E8|000B0A|PEIM|
|032|IccPei         |4A4ECE10-61EB-4FC4-8839-F7CFDD962074|00F08EF8|0005BA|PEIM|
|033|GalaxyVGAPei   |10C8F6F8-FA08-474F-92FE-CD1FABF76047|00F094B8|000466|PEIM|
|034|LedCtrlPei     |710E415A-6A5B-4AEA-973F-6DD3F9CB0056|00F09920|00042E|PEIM|
|035|AmiTcgPlatformP|E9312938-E56B-4614-A252-CF7D2F377E26|00F09D50|00070E|PEIM|
|036|CrbPei         |0D1ED2F7-E92B-4562-92DD-5C82EC917EAE|00F0A460|00055A|PEIM|
|037|aDefaultPei    |FAE06C19-0F1C-47D3-832D-E3B9C25AD020|00F0A9C0|000D1E|PEIM|
|038|OEMBOARDPei    |4CBB6611-3608-492B-92A7-DD92FD6FE4FE|00F0B6E0|00034E|PEIM|
|039|StatusCodePei  |E9DD7F62-25EC-4F9D-A4AB-AAD20BF59A10|00F0BA30|002BC2|PEIM|
|040|               |3FD1D3A2-99F7-420B-BC69-8BB1D492A332|00F0E5F8|0000A4|FRFM|
|041|NVRAMPei       |838DCF34-907B-4D55-9A4B-A0EF7167B5F4|00F0E6A0|002A7A|PEIM|
|042|               |C91C3C17-FC74-46E5-BDBE-6F486A5A9F3C|00F11120|000154|FRFM|
|043|               |0DCA793A-EA96-42D8-BD7B-DC7F684E38C1|00F11278|0000EC|FRFM|
|044|CapsuleX64     |F7FDE4A6-294C-493C-B50F-9734553BB757|00F11368|0030EE|PEIM|
|045|PcdPeim        |9B3ADA4F-AE56-4C24-8DEA-F03B7558AE50|00F14458|00152A|PEIM|
|046|SiInitPreMem   |A8499E65-A6F6-48B0-96DB-45C266030D83|00F15988|05A042|PEIM|
|047|PlatformInitPre|EEEE611D-F78F-4FB9-B868-55907F169280|00F6F9D0|0212AE|PEIM|
|048|AfterMemoryDumm|0C4EE8AC-4BCB-43B4-9F05-E07523A9FC97|00F90C80|000286|PEIM|
|049|CryptoPPI      |67451698-1825-4AC5-999D-F350CC7D5D72|00F90F08|0051D4|PEIM|
|050|FsRecovery     |7ECD9C20-68B9-4A6F-B515-D64FF500B109|00F960E0|00206B|PEIM|
|051|IdeRecovery    |10C22623-DB6F-4721-AA30-4C12AF4230A7|00F98150|000C6D|PEIM|
|052|Recovery       |DACF705C-71DF-497D-AABE-10186B2E1DDE|00F98DC0|000821|PEIM|
|053|UsbRecovery    |8401A046-6F70-4505-8471-7015B40355E3|00F995E8|0027EC|PEIM|
|054|CmosPei        |654FE61A-2EDA-4749-A76A-56ED7ADE1CBE|00F9BDD8|002486|PEIM|
|055|PeiRamBootPei  |08EFD15D-EC55-4023-B648-7BA40DF7D05D|00F9E260|00124A|PEIM|
|056|               |FD44820B-F1AB-41C0-AE4E-0C55556EB9BD|00F9F4B0|000828|FRFM|
|057|G3WakeupPei    |2A205AA9-F7EA-47BE-B3BD-7631E99B4351|00F9FCD8|00029E|PEIM|
|058|BFGPei         |31F5B262-7D9E-4FCC-9BB8-0E415D0CD748|00F9FF78|000936|PEIM|
|059|CpuIoPei       |AE265864-CF5D-41A8-913D-71C155E76442|00FA08B0|00087A|PEIM|
|060|PcatSingleSegme|4F1F379F-2A62-48BB-AC34-D3F135C6E2B7|00FA1130|000CFE|PEIM|
|061|               |2D27C618-7DCD-41F5-BB10-21166BE7E143|00FA1FE8|02B818|RAW |
|062|               |C30FFF4A-10C6-4C0F-A454-FD319BAF6CE6|00FCD868|001018|RAW |
|063|               |7C9A98F8-2B2B-4027-8F16-F7D277D58025|00FCE8E8|001018|RAW |
|064|               |5B85965C-455D-4CC6-9C4C-7F086967D2B0|00FCF900|00003C|FRFM|
|065|               |D1E59F50-E8C3-4545-BF61-11F002233C97|00FDFFE8|00014E|RAW |
|066|               |1BA0062E-C779-4582-8566-336AE8F78F09|00FFC218|001DE8|SECC|
+---+---------------+------------------------------------+--------+------+----+
| Bytes Free       : 02CA3C (178 KB)    Bytes Used       : 1315C4 (1221 KB)    |
+-----------------------------------------------------------------------------+
| Firmware Volume : 05               Location :  00FFE000   Length :  002000  |
+---+---------------+------------------------------------+--------+------+----+
|NO |    FileName   |               GUID                 |Location| Size |Type|
+---+---------------+------------------------------------+--------+------+----+
|000|PeiCoreFake    |52C05B14-0B98-496C-BC3B-04B50211D680|00FFE078|000346|PEIC|
|001|               |1BA0062E-C779-4582-8566-336AE8F78F09|00FFFBB8|000448|SECC|
+---+---------------+------------------------------------+--------+------+----+
| Bytes Free       : 001824 (  6 KB)    Bytes Used       : 0007DC (  1 KB)    |
+-----------------------------------------------------------------------------+
| Total Bytes Free : 23A5A0 (2281 KB)   Total Bytes Used : DC5A60 (14102 KB)   |
+-----------------------------------------------------------------------------+

But you can try it on EFI partition!

I was able to insert everything just fine using UEFITool no issues


Share this post


Link to post
Share on other sites

This maybe related to MMTool with ASRock ROMs, I forgot, I've seen that in Win-Raid UBU topic!

But the problem using UEFITool instead after flashing, Ozmosis keep rebooting the Machine, as reported some friends users!



@derInselfan here's your MoBo rom with all Ozm stuffs, replace the raw module of the body of OzmosisDefaults with the one you use, according to your hardware, if you have i5 change that FakeSMC stuffs with the appropriate from FakeSMC i5 given above on this guide!



B15MP4_7.00.zip









Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

  • Recently Browsing   0 members

    No registered users viewing this page.

×
