bigwit Posted January 18, 2018 Share Posted January 18, 2018 There's no Ozm upgrade, it support big ROM's chip 128Mb, your mobo ASUS H110T has enough ROM space free, no need compressing setup, just extract from the capsule the Intel image, and start inserting modules directly, there's up to 4096 Kb free. Here's modded Ozm rom: H110T-ASUS-3601.BIN.zip OK, I'll test this rom, then feedback, 1 Link to comment https://www.insanelymac.com/forum/topic/331264-ozmosis-for-100-series-skylake-cpus-and-up/page/2/#findComment-2571223 Share on other sites More sharing options...
bigwit Posted January 18, 2018 Share Posted January 18, 2018 I've another mobo Asrock z170 game k4, I have tried myself, but cannot work! It not have enough rom to insert Ozm files, so sad! Could U have a look? thx 1 Link to comment https://www.insanelymac.com/forum/topic/331264-ozmosis-for-100-series-skylake-cpus-and-up/page/2/#findComment-2571325 Share on other sites More sharing options...
CMLNT Posted January 18, 2018 Share Posted January 18, 2018 I use UEFItool 0.21.5 will lose the UEFI partition. But I use Windows 0.22.1 will not lose any uefi partition But ozmosis does not run on ASRock Z170 game K4, can not see the HFS installation partition. I also use MMtool can not run - delete the unwanted FFS ozmosis into it. I do not know why no I now bought a Z170Xgame 7 for testing 1 Link to comment https://www.insanelymac.com/forum/topic/331264-ozmosis-for-100-series-skylake-cpus-and-up/page/2/#findComment-2571460 Share on other sites More sharing options...
ammoune78 Posted January 18, 2018 Author Share Posted January 18, 2018 I've another mobo Asrock z170 game k4, I have tried myself, but cannot work! It not have enough rom to insert Ozm files, so sad! Could U have a look? thx Here's: Z17GK47.10.zip I use UEFItool 0.21.5 will lose the UEFI partition. But I use Windows 0.22.1 will not lose any uefi partition But ozmosis does not run on ASRock Z170 game K4, can not see the HFS installation partition. I also use MMtool can not run - delete the unwanted FFS ozmosis into it. I do not know why no I now bought a Z170Xgame 7 for testing Can you try inserting Btrfs + ExFat + EmuVariableUefi-64 + HfsPlus on the top of the nested volume like the picture above?: Link to comment https://www.insanelymac.com/forum/topic/331264-ozmosis-for-100-series-skylake-cpus-and-up/page/2/#findComment-2571532 Share on other sites More sharing options...

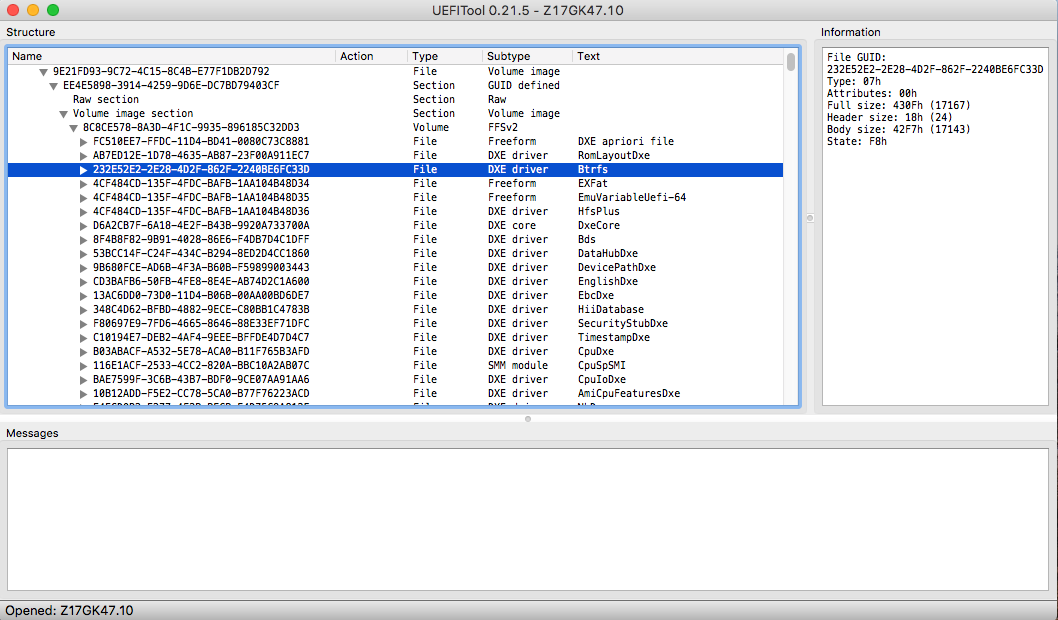

CMLNT Posted January 18, 2018 Share Posted January 18, 2018 Here's: Z17GK47.10.zip Can you try inserting Btrfs + ExFat + EmuVariableUefi-64 + HfsPlus on the top of the nested volume like the picture above?: Oz.png HFS partition can not see the installation file After closing the CSM it can identify clover or winpe Link to comment https://www.insanelymac.com/forum/topic/331264-ozmosis-for-100-series-skylake-cpus-and-up/page/2/#findComment-2571544 Share on other sites More sharing options...
ammoune78 Posted January 18, 2018 Author Share Posted January 18, 2018 HFS partition can not see the installation file After closing the CSM it can identify clover or winpe Can you try this one? Z17GK47.10.zip Link to comment https://www.insanelymac.com/forum/topic/331264-ozmosis-for-100-series-skylake-cpus-and-up/page/2/#findComment-2571556 Share on other sites More sharing options...
CMLNT Posted January 18, 2018 Share Posted January 18, 2018 Can you try this one? Z17GK47.10.zip i try this one by fpt？ Link to comment https://www.insanelymac.com/forum/topic/331264-ozmosis-for-100-series-skylake-cpus-and-up/page/2/#findComment-2571563 Share on other sites More sharing options...
ammoune78 Posted January 18, 2018 Author Share Posted January 18, 2018 No this ASRock ROM doesn't have security image lock, just flash it normally using F6 or from BIOS Setup, also disabling CSM is needed only for Entry level motherboards, just set Defaults Settings and try booting! Link to comment https://www.insanelymac.com/forum/topic/331264-ozmosis-for-100-series-skylake-cpus-and-up/page/2/#findComment-2571566 Share on other sites More sharing options...
mosconi Posted January 18, 2018 Share Posted January 18, 2018 Any particular advice for apfs in ROM? Link to comment https://www.insanelymac.com/forum/topic/331264-ozmosis-for-100-series-skylake-cpus-and-up/page/2/#findComment-2571578 Share on other sites More sharing options...
CMLNT Posted January 18, 2018 Share Posted January 18, 2018 No this ASRock ROM doesn't have security image lock, just flash it normally using F6 or from BIOS Setup i5 7400 has no effect still can not see the HFS partition whether it is a local hard disk or flash drive Link to comment https://www.insanelymac.com/forum/topic/331264-ozmosis-for-100-series-skylake-cpus-and-up/page/2/#findComment-2571581 Share on other sites More sharing options...
ammoune78 Posted January 18, 2018 Author Share Posted January 18, 2018 i5 7400 has no effect still can not see the HFS partition whether it is a local hard disk or flash drive I don't know if Kabylake cpu's are supported but it's for Skylake, but try different bios settings and see if it change something to allow you see the HFS+ partitions Any particular advice for apfs in ROM? #5797 1 Link to comment https://www.insanelymac.com/forum/topic/331264-ozmosis-for-100-series-skylake-cpus-and-up/page/2/#findComment-2571590 Share on other sites More sharing options...
CMLNT Posted January 18, 2018 Share Posted January 18, 2018 I don't know if Kabylake cpu's are supported but it's for Skylake, but try different bios settings and see if it change something to allow you see the HFS+ partitions #5797 Have you had ozmosis installed the system? likeGA-Z170X-ULTRA GAMING.F23g GA-Z170X-UD5 TH F22d GA-Z170X-UD5 TH F23f GA-Z170X-Designare F23d GA-Z170MX-Gaming 5 F22c GA-Z170X-Gaming 7 F22i GA-Z170X-Gaming 7-EK F22i GA-Z170X-Gaming 7-EU F22i GA-Z170X-Gaming 6 F23c GA-Z170X-Gaming 5 F23c GA-Z170X-UD3 Ultra F23e GA-Z170X-Gaming GT F22c GA-Z170X-SOC FORCE F20 Link to comment https://www.insanelymac.com/forum/topic/331264-ozmosis-for-100-series-skylake-cpus-and-up/page/2/#findComment-2571596 Share on other sites More sharing options...
ammoune78 Posted January 18, 2018 Author Share Posted January 18, 2018 All these ROM are Ozmosis modded! And MMTool work fine with them Link to comment https://www.insanelymac.com/forum/topic/331264-ozmosis-for-100-series-skylake-cpus-and-up/page/2/#findComment-2571601 Share on other sites More sharing options...
mosconi Posted January 18, 2018 Share Posted January 18, 2018 #5797 Ok, and should be placed in a particular position? (i.e. befor or after other xxxx.ffs) Link to comment https://www.insanelymac.com/forum/topic/331264-ozmosis-for-100-series-skylake-cpus-and-up/page/2/#findComment-2571616 Share on other sites More sharing options...
ammoune78 Posted January 18, 2018 Author Share Posted January 18, 2018 Ok, and should be placed in a particular position? (i.e. befor or after other xxxx.ffs) On the top before or after btrfs or hfsplus Sent from ammoune78's iPhone using Tapatalk 1 Link to comment https://www.insanelymac.com/forum/topic/331264-ozmosis-for-100-series-skylake-cpus-and-up/page/2/#findComment-2571628 Share on other sites More sharing options...
stayupforever909 Posted January 18, 2018 Share Posted January 18, 2018 Hello All First of all I would like to say thank you ammoune78 this looks very interesting. I have been a long time lurker around these parts not posting much. I have a quo that has served me very well but is getting a bit long in the tooth. A few months ago I built myself a new hack with a GA-z170n-wifi great little machine but I would like to get Ozmosis on it. The problem is it has 64 Mbit bios chips tell me if I am crazy but does anybody think it would be possible to replace these with 128 Mbit chips. I found this on eBay BIOS-CHIP-for-Gigabyte-GA-Z170N-WIFI-GA-Z170X-UD3-GA-Z170X-Gaming-5-142000224814.html would the chips be a completely different size I would expect so but very hard to find information. If possible it would be great if someone with a supported z170 board could measure the BIOS chip. This would be greatly appreciated, call me crazy but it might just be possible. Thank you all Link to comment https://www.insanelymac.com/forum/topic/331264-ozmosis-for-100-series-skylake-cpus-and-up/page/2/#findComment-2571710 Share on other sites More sharing options...
ammoune78 Posted January 19, 2018 Author Share Posted January 19, 2018 No not crazy yet Hhhh, but before that step you have to contact CodeRush over twitter, and this master will tell you it's doable or not, because the problem isn't in the chip you want to buy itself, no, the problem is that ROM file is 64 Mb programmed by the Manufacturer, so if you just put it in that 128 Mb chip it will have 64 Mb free space while the ROM can't grow up, because of that file size security lock! Link to comment https://www.insanelymac.com/forum/topic/331264-ozmosis-for-100-series-skylake-cpus-and-up/page/2/#findComment-2571875 Share on other sites More sharing options...
CMLNT Posted January 19, 2018 Share Posted January 19, 2018 I use your bios Z170xgame7 But the problem still can not see any hfs + district Link to comment https://www.insanelymac.com/forum/topic/331264-ozmosis-for-100-series-skylake-cpus-and-up/page/2/#findComment-2572007 Share on other sites More sharing options...
ammoune78 Posted January 19, 2018 Author Share Posted January 19, 2018 Reboot your machine and do NVRAM reset by keep pressing "WIN ALT P R" on bios setup screen, and tell me what you've seen Link to comment https://www.insanelymac.com/forum/topic/331264-ozmosis-for-100-series-skylake-cpus-and-up/page/2/#findComment-2572024 Share on other sites More sharing options...
CMLNT Posted January 19, 2018 Share Posted January 19, 2018 Reboot your machine and do NVRAM reset by keep pressing "WIN ALT P R" on bios setup screen, and tell me what you've seen 4 color & reboot & black Link to comment https://www.insanelymac.com/forum/topic/331264-ozmosis-for-100-series-skylake-cpus-and-up/page/2/#findComment-2572039 Share on other sites More sharing options...
ammoune78 Posted January 19, 2018 Author Share Posted January 19, 2018 If so Ozmosis is loaded fine, just change BIOS settings, you should see there HFS+ drives, if no, you only maybe have to change that HfsPlus.ffs, but try changing bios settings! Excuse me, but I don't have 1151 chipset right now to help people, I've tested this chipset one month and half before doing this guide, and the hardware was sold Link to comment https://www.insanelymac.com/forum/topic/331264-ozmosis-for-100-series-skylake-cpus-and-up/page/2/#findComment-2572040 Share on other sites More sharing options...
CMLNT Posted January 19, 2018 Share Posted January 19, 2018 If so Ozmosis is loaded fine, just change BIOS settings, you should see there HFS+ drives, if no, you only maybe have to change that HfsPlus.ffs, but try changing bios settings! Excuse me, but I don't have 1151 chipset right now to help people, I've tested this chipset one month and half before doing this guide, and the hardware was sold Refresh bios interface can identify HFS + partition but F12 can not see any efi shell also shows the name of the partition that identifies HFS + But ls can not see any file Is HFS +. Efi problem? 1 Link to comment https://www.insanelymac.com/forum/topic/331264-ozmosis-for-100-series-skylake-cpus-and-up/page/2/#findComment-2572045 Share on other sites More sharing options...
ammoune78 Posted January 19, 2018 Author Share Posted January 19, 2018 Refresh bios interface can identify HFS + partition but F12 can not see any efi shell also shows the name of the partition that identifies HFS + But ls can not see any file Is HFS +. Efi problem? I did not understood, when you see the HFS+ drives, you have to put SSDT's given above to the EFI partition of that drive on it's Load folder, you have more work to do now! But I Assur that if macOS installed you're done! I guaranty that to make Ozmosis work on 1151 chipset is little bit difficult not same as other chipset, but it works! Link to comment https://www.insanelymac.com/forum/topic/331264-ozmosis-for-100-series-skylake-cpus-and-up/page/2/#findComment-2572054 Share on other sites More sharing options...
CMLNT Posted January 19, 2018 Share Posted January 19, 2018 I did not understood, when you see the HFS+ drives, you have to put SSDT's given above to the EFI partition of that drive on it's Load folder, you have more work to do now! But I Assur that if macOS installed you're done! I guaranty that to make Ozmosis work on 1151 chipset is little bit difficult not same as other chipset, but it works! I see inside the Q-Flash HFS + partition but not seen in F12 So there is no way to guide the installation disk Link to comment https://www.insanelymac.com/forum/topic/331264-ozmosis-for-100-series-skylake-cpus-and-up/page/2/#findComment-2572060 Share on other sites More sharing options...
ammoune78 Posted January 19, 2018 Author Share Posted January 19, 2018 From bios settings select that HFS+ partition that appears in boot override and press enter to boot from Sent from ammoune78's iPhone using Tapatalk Link to comment https://www.insanelymac.com/forum/topic/331264-ozmosis-for-100-series-skylake-cpus-and-up/page/2/#findComment-2572066 Share on other sites More sharing options...
