Bootloader Clover problems report & features request

georges valch · May 31, 2020

10 hours ago, Slice said:

It will be more informative if you provide Clover preboot.log in the situation.

Thank you for reply. Sorry, is not available anymore cause in the meantime I re-installed from scratch. The problem was that I have activated filevault. Now it's working fine without filevault, just wondering what extra drivers should I add to UEFI folder to be able to boot with filevault on.

Slice · May 31, 2020

There will be not a big mistake if you install all drivers that you don't know for a what.

There is full information FileVault 2

Biglibigli · June 9, 2020

Hi,
I stuck on loading Clover r5118 logo in Scan entries,

system info :

ASUS VivoBook K571GT Laptop

Intel® Core™ i7 9750H

Intel UHD 630, NVIDIA GeForce GTX 1650

what I did :
1. set BIOS Setting :

first Set to Default setting.
Network Stack = Disabled.
Secure Boot = Disabled.
SATA Mode = AHCI.
VT-d Option = Disabled
Intel Virtualization Technology = Enabled
Fast Boot = Disabled

2. copy install Catalina in USB flash
3. Installed Clover_r5118.pkg UEFI mode on USB flash
4. Placing required kexts in the EFI partition
5. Use config_UHD630 from RehabMan OS-X-Clover-Laptop-Config
6. Then I edit config.plist as said in for coffee lake CPU config.plist
Test the USB but it stuck on loading Clover logo in Scan entries AGAIN

I installed mac OS Catalina on another ASUS Laptop (K556UQ model) Before so I know what o do, but Never stuck in this state and I don't know where this error come from, search in google but can't find a way to pass it.

I Upload EFI Folder here : google drive EFI.zip and attach Debug.log file

debug.log.zip

Slice · June 9, 2020

Add EmuVariableUefi.efi to drivers.

Biglibigli · June 11, 2020

On 6/9/2020 at 6:59 PM, Slice said:

Add EmuVariableUefi.efi to drivers.

I add it and worked. then I choose "Boot macOS Install", after a while screen glitched with a white 'no entry icon' on it

Last Lines of debug is :

223:530  0:093  ->Extra kext: EFI\CLOVER\kexts\Other\Lilu.kext (v.1.3.9)
223:612  0:081  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10
224:775  1:163  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10_install
225:241  0:465  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10.15
225:342  0:100  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10.15_install
225:410  0:067  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10.15.1
226:915  1:505  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10.15.1_install
227:031  0:116  Custom boot screen not used because entry has unset use graphics
227:097  0:065  Closing log
227:164  0:066  start image 'boot.efi'
227:231  0:067  Using load options 'boot.efi dart=0 nv_disable=1 -disablegfxfirmware -cdfon -igfxnohdmi -v debug=0x100 keepsyms=1 '

I thought it might be USB related so I add these patches in kernel and kext patching tab :

Name*: com.apple.iokit.IOUSBHostFamily
Find*: 83FB0F0F
Replace*: 83FB3F0F

Name* com.apple.driver.usb.AppleUSBXHCI
Find*: 83F90F0F
Replace*: 83F93F0F

BUT same problem still exist ....

config.plist

debug.log.zip

Edited June 11, 2020 by Biglibigli

Biglibigli · June 11, 2020

3 hours ago, Biglibigli said:
I add it and worked. then I choose "Boot macOS Install", after a while screen glitched with a white 'no entry icon' on it

Last Lines of debug is :
223:530  0:093  ->Extra kext: EFI\CLOVER\kexts\Other\Lilu.kext (v.1.3.9)
223:612  0:081  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10
224:775  1:163  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10_install
225:241  0:465  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10.15
225:342  0:100  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10.15_install
225:410  0:067  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10.15.1
226:915  1:505  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10.15.1_install
227:031  0:116  Custom boot screen not used because entry has unset use graphics
227:097  0:065  Closing log
227:164  0:066  start image 'boot.efi'
227:231  0:067  Using load options 'boot.efi dart=0 nv_disable=1 -disablegfxfirmware -cdfon -igfxnohdmi -v debug=0x100 keepsyms=1 '
I thought it might be USB related so I add these patches in kernel and kext patching tab :

Name*: com.apple.iokit.IOUSBHostFamily
Find*: 83FB0F0F
Replace*: 83FB3F0F

Name* com.apple.driver.usb.AppleUSBXHCI
Find*: 83F90F0F
Replace*: 83F93F0F

BUT same problem still exist ....

config.plist

debug.log.zip

find the problem :

No EC0 rename is added. Add EC0 rename.

and now I'm in installer, more info will be added soon as I go forward ...

Edited June 11, 2020 by Slice
Don't cry

Dajjal · July 12, 2020

@Slice

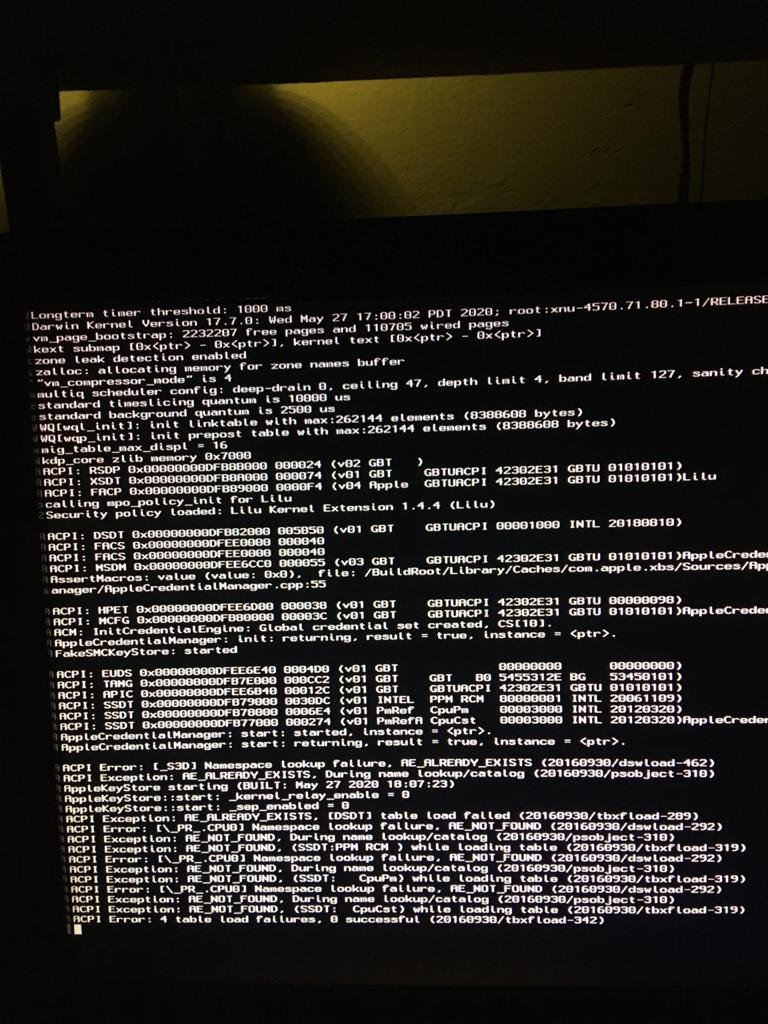

I know I said I won't bother since my hardware is quite old (X58A-UD5) but can't help but wonder why in hangs on boot now.This is the error that I get with anything past 5116. Plz tell me what is obvious that I'm missing

Spoiler

Slice · July 13, 2020

@Dajjal

I don't see from your picture what is the problem. Try different methods and workarounds until you get new result.

crazybirdy · July 13, 2020

12 hours ago, Dajjal said:

@Slice

I know I said I won't bother since my hardware is quite old (X58A-UD5) but can't help but wonder why in hangs on boot now.This is the error that I get with anything past 5116. Plz tell me what is obvious that I'm missing

Spoiler

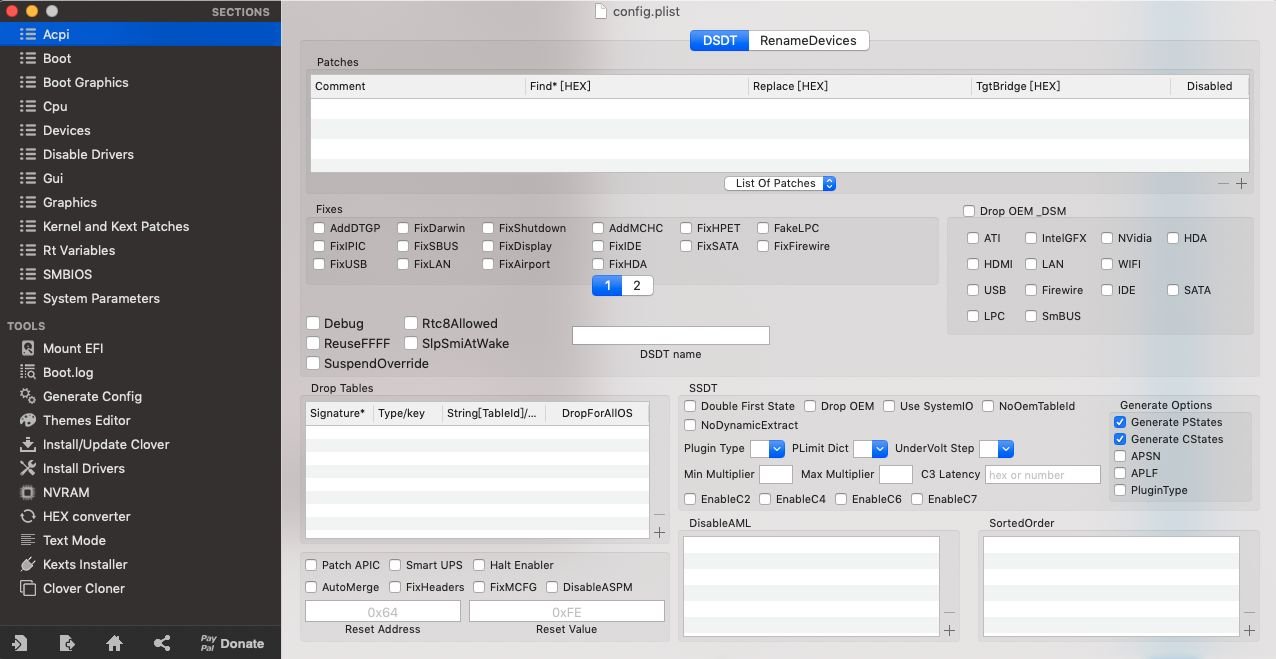

I have this ACPI issue before.

After I cancel all ACPI, it works fine for me.

Spoiler

Slice · July 13, 2020

Clover's DSDT Fixes are based on artificial intelligence so they may be wrong. If you encounter an error then you have two ways:

1. Found an exact reason and improve clover's sources.

2. Switch off DSDT fixes.

fusion71au · July 14, 2020

On 7/13/2020 at 3:08 AM, Dajjal said:

@Slice

I know I said I won't bother since my hardware is quite old (X58A-UD5) but can't help but wonder why in hangs on boot now.This is the error that I get with anything past 5116. Plz tell me what is obvious that I'm missing

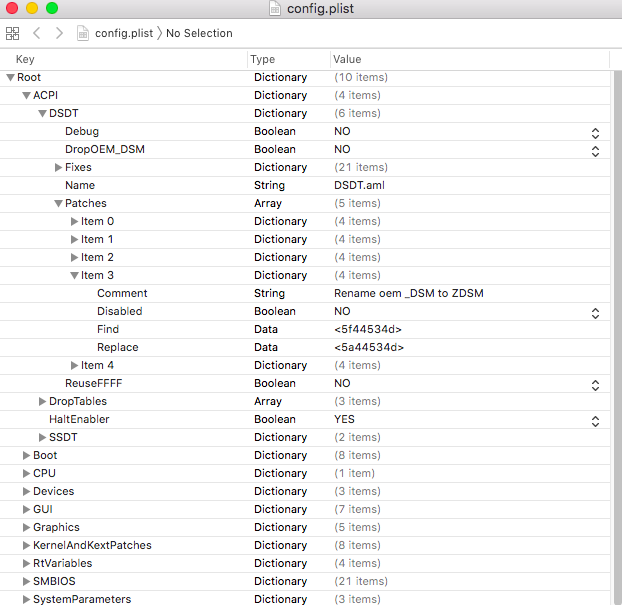

In the Clover changes thread, DropOEM_DSM methods were excluded after commit Rev 5116 0b7eed38f14400c8501228a30dcc023e1132cec3 by @Slice.

For my legacy BIOS desktop (GA-P55aUD3, No 2 in my signature), I had to add Clover DSDT patch "Rename oem_DSM to ZDSM" to avoid ACPI errors with newer Clover r5116+...

Spoiler


Good Luck!

hackintosh1984 · August 23, 2020

I have problem if boot in clover 5120, 5121
" error not found while loading boot.efi press any key continue"
And boots clover from fat32 msdos usb stick and also hard disk. I have legacy setup pc no uefi

Jief_Machak · August 23, 2020

@hackintosh1984 What is the OSX version you are trying to boot ? HFS+ or APFS ?

D-an-W · August 30, 2020

I think the latest commit of Clover is broken, when I try and build the .app.pkg is corrupt and if I try and boot with it I get a CPU Halted error.

Slice · August 31, 2020

13 hours ago, D-an-W said:

I think the latest commit of Clover is broken, when I try and build the .app.pkg is corrupt and if I try and boot with it I get a CPU Halted error.

Some more information? I have booted with latest commit.

D-an-W · August 31, 2020

2 hours ago, Slice said:

Some more information? I have booted with latest commit.

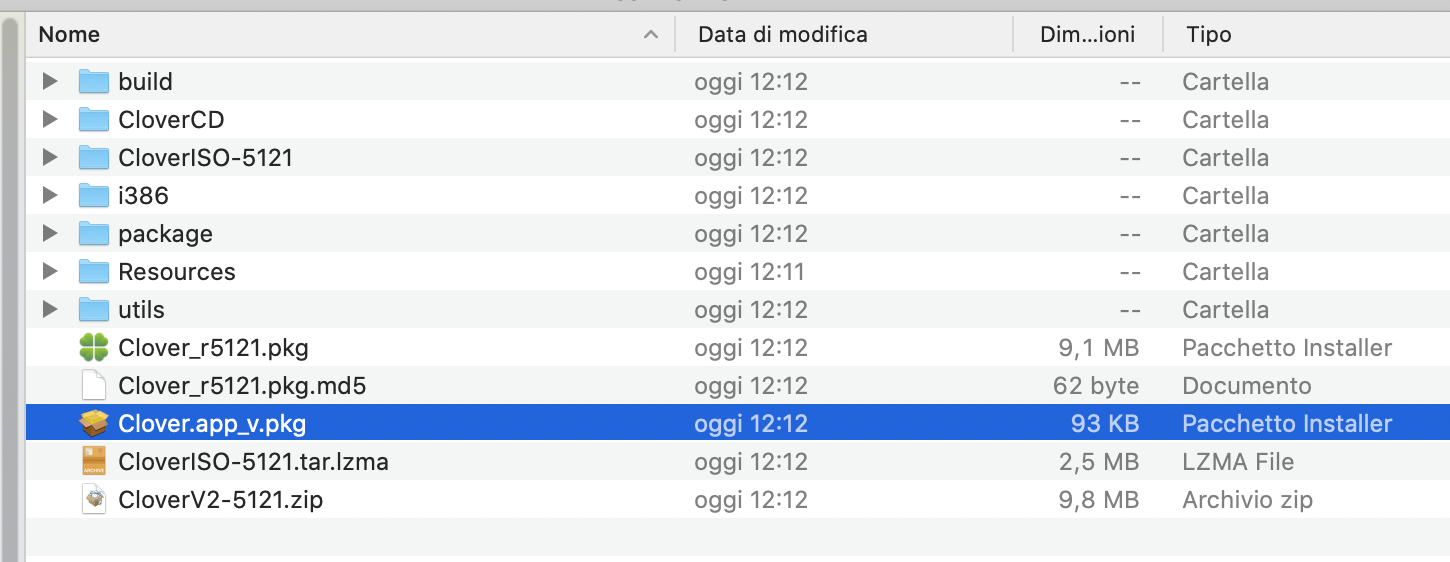

Morning Slice, I will try again but the first thing I noticed was the installer for the Clover.app seemed way too small and didn't actually work.

iCanaro · August 31, 2020

28 minutes ago, D-an-W said:

Morning Slice, I will try again but the first thing I noticed was the installer for the Clover.app seemed way too small and didn't actually work.

true

Matgen84 · August 31, 2020

Hi @Slice

I build latest commit 1963d37 (Mojave/ Xcode as usual) with my personal script: the different size seems to be good, if I'm not mistaken. I did not try to install and boot.

Clover app standalone + Clover app.pkg

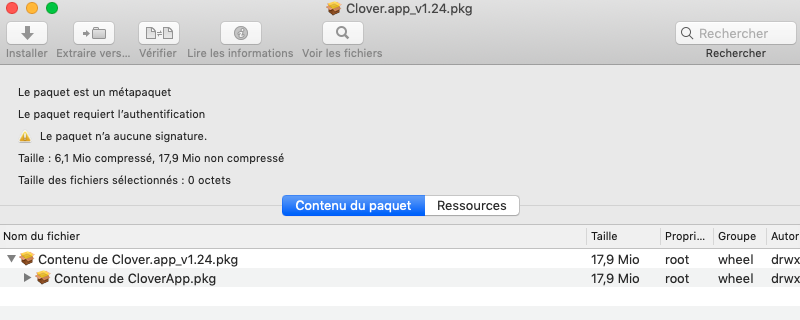

Clover app.pkg content from Pacifist

Edited August 31, 2020 by Matgen84

D-an-W · August 31, 2020

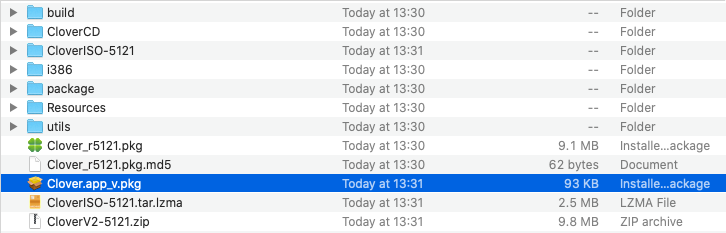

I tried again with 1963d37 but got the same result...


Tried again with latest commit, gives the same error with .app going to see if it boots now...

- Building Clover.app package installer..
2020-08-31 17:21:27.566 defaults[44736:1764656]
The domain/default pair of (/Users/dan/src/CloverBootloader/CloverApp/build/Clover.app/Contents/Info.plist, CFBundleShortVersionString) does not exist
pkgbuild: Reading components from package.plist
pkgbuild: Adding component at Applications/Clover.app
pkgbuild: error: Path "/Users/dan/src/CloverBootloader/CloverApp/build/package/temp/Applications/Clover.app" is not a valid bundle component (using destination path "/Users/dan/src/CloverBootloader/CloverApp/build/package/temp")
productbuild: warning: No package found for distribution URL "file:///Users/dan/src/CloverBootloader/CloverApp/build/package/CloverApp.pkg"
productbuild: Wrote product to /Users/dan/src/CloverBootloader/CloverPackage/sym/Clover.app_v.pkg

EDIT: 5121 now boots ok, thanks folks. It's just the Clover.app package issue now here.

Edited August 31, 2020 by D-an-W

Slice · August 31, 2020

@vector sigma

I confirm the problem

using Xcode 11.2.1
- Building Clover.app...
** BUILD FAILED **

CompileSwiftSources normal x86_64 com.apple.xcode.tools.swift.compiler

(53 failures)

But I see no reason for this.

Slice · August 31, 2020

Looks like headers became inaccessible because they changed. All structures should be redefined for Clover.app .

vector sigma · August 31, 2020

1 hour ago, Slice said:

Looks like headers became inaccessible because they changed. All structures should be redefined for Clover.app .

I guess this commit is the reason, on top of the header some 'imports' are also commented out. Can't work. Maybe Jief has posted something about it but I didn't realize he modified the bridging header, which reproduce some Clover's definitions. Restored.

D-an-W · September 1, 2020

Tried to check the latest commit but got the errors below...

Spoiler


[CC] Data
Section 1 .text mCoffOffset=576(0x240) mCoffOffsetNew=576(0x240) diff=0(0x0)
Section 5 .eh_frame mCoffOffset=25600(0x6400) mCoffOffsetNew=26560(0x67c0) diff=960(0x3c0)
Section 3 .data mCoffOffset=26560(0x67c0) mCoffOffsetNew=25600(0x6400) diff=-960(0xfffffc40)
[GENFW] CsmVideoDxe
[CC] ShellParametersProtocol
[CPP] stdio
[CC] FileExplorer
[CPP] string
[CC] ShellProtocol
[CPP] strlen
[SLINK] Shell
[CC] UpdatePage
[CPP] wchar
[CC] Variable
In file included from /Users/dan/src/CloverBootloader/rEFIt_UEFI/Platform/../../CloverApp/Clover/Clover-Bridging-Header.h:22,
                 from /Users/dan/src/CloverBootloader/rEFIt_UEFI/Platform/Settings.cpp:8078:
/Users/dan/src/CloverBootloader/rEFIt_UEFI/Platform/../../CloverApp/Clover/NSWindowFix.h:9:9: fatal error: Cocoa/Cocoa.h: No such file or directory
    9 | #import <Cocoa/Cocoa.h>
      |         ^~~~~~~~~~~~~~~
compilation terminated.
make: *** [/Users/dan/src/CloverBootloader/Build/Clover/RELEASE_GCC53/X64/rEFIt_UEFI/refit/OUTPUT/Platform/Settings.obj] Error 1
[VFR] BdsDxe


build.py...
 : error 7000: Failed to execute command
	make tbuild [/Users/dan/src/CloverBootloader/Build/Clover/RELEASE_GCC53/X64/rEFIt_UEFI/refit]


build.py...
 : error F002: Failed to build module
	/Users/dan/src/CloverBootloader/rEFIt_UEFI/refit.inf [X64, GCC53, RELEASE]

- Failed -
Build end time: 06:30:50, Sep.01 2020
Build total time: 00:00:59

dan@Dans-Mac-mini ~ %

Matgen84 · September 1, 2020

Hi @Slice @vector sigma

I can't build latest commit e4d1a40 (Mojave/ Xcode as usual)

Spoiler

[CC] uncompr
In file included from /Users/mathieu/src/Cloverbootloader/rEFIt_UEFI/Platform/Settings.cpp:8078:
In file included from /Users/mathieu/src/Cloverbootloader/rEFIt_UEFI/Platform/../../CloverApp/Clover/Clover-Bridging-Header.h:22:
/Users/mathieu/src/Cloverbootloader/rEFIt_UEFI/Platform/../../CloverApp/Clover/NSWindowFix.h:9:9: fatal error: 'Cocoa/Cocoa.h' file not found
#import <Cocoa/Cocoa.h>
^~~~~~~~~~~~~~~
[CC] zlib_uefi
[SLINK] OcCompressionLib
Building ... /Users/mathieu/src/Cloverbootloader/MemoryFix/OcQuirks/OcQuirks.inf [X64]
1 error generated.
make: *** [/Users/mathieu/src/Cloverbootloader/Build/Clover/RELEASE_XCODE8/X64/rEFIt_UEFI/refit/OUTPUT/Platform/Settings.obj] Error 1

build.py...
: error 7000: Failed to execute command
make tbuild [/Users/mathieu/src/Cloverbootloader/Build/Clover/RELEASE_XCODE8/X64/rEFIt_UEFI/refit]

build.py...
: error F002: Failed to build module
/Users/mathieu/src/Cloverbootloader/rEFIt_UEFI/refit.inf [X64, XCODE8, RELEASE]

- Failed -

iCanaro · September 1, 2020

ditto as above
you can not finish compiling correctly, in no hack and macOS (high sierra, catalina, mojave) where I tried
