AppleHDA Solution - Work in progress

[propolis]

Taruga, por favor, me ajude... Tá difícil, viu...



Aqui vão minhas informações usando a versão 1.15 (já usei todas as outras também, sem sucesso)



Após rodar o Patch?



AppleHDA Patcher - 2006/2007 Taruga v1.15



* Patching AppleHDA.kext to 0x10ec0883 Done

* Checking AppleHDA for patch Done

0001f2c4 cmpl $0x10ec0883,%eax

000203d0 cmpl $0x10ec0883,%eax

* Checking for SPDIF Out Detected

* Checking for SPDIF In Not Detected

* Creating AppleHDA configs

* Using the following nodes in pathmap



Back Mic: 9 34 24

Line In : 8 35 26

Speaker : 20 12 2

Headphone: 27 38 37

Spdif Out: 30 6



* Copying new config to destination Done

* Repairing Permissions

Started verify/repair permissions on disk disk0s2 MacintoshHD

Determining correct file permissions.

The privileges have been verified or repaired on the selected volume

Verify/repair finished permissions on disk disk0s2 MacintoshHD

* Deleting Extensions Cache Done



** Done patching - You can reboot now **



Meu DUMP vai em anexo (reconhecido como ALC883 MSI)



Por favor, me ajuda, Tarugaaaaaaa!!!



hehe



Abraços!



Thanks, brutha!

card0.txt

[TECH_ATTACK]

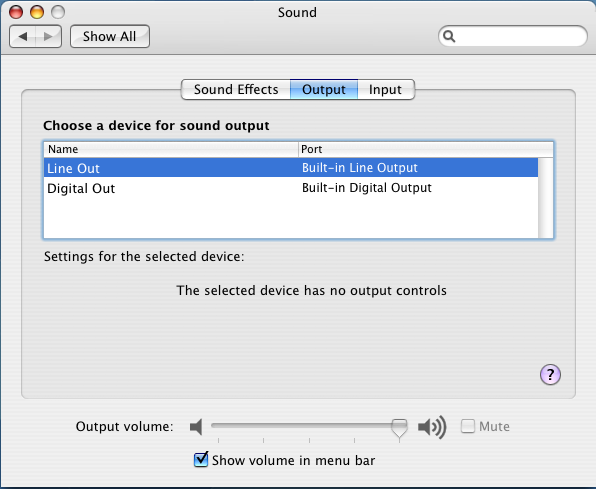

Hmm, for my ADI 1988b only SPIDF works. Line-Out is selectable, but no Sound.



With Patcher Version 1.15 my Soundcard was detected, but no patching.



Looks like:



AppleHDA Patcher - 2006/2007 Taruga V1.15

---------------------------------------------------------------

Codec: Analog Devices AD1988B

Vendor ID: 0x11d4198b

Subsystem ID: 0x104381f6

---------------------------------------------------------------







Thats all, all i can do is push the "quit" button!

[valerysch]

Does that mean you have working headphone jack



Yes, ext. mic and headphone jacks works. Internal speaker + mic works. External digital output and line in NOT TESTED - have no devices to add there. I have tested chatting over iChat via firewire, as do not have network connection yet and waiting for external wi-fi usb stick.

[looper]

v1.14 works like a charm on my Intel D945GNTLKR mobo- nice to see the port names fixed!



Taruga you should definitely have a dev badge for your efforts



[V3RT1G0]

hi taruga... for me it's not working....



the appleHDA patcher crash the system (kernel panic), every version.....



my system is JaS 10.4.8



I don't know what can I do more......

happening to me too... didnt even get past the password script... i have newest kernel btw and same DVD as my quoted person

[hixatchi]

i tried the patcher but it still kernal panics on my asus p5wdh deluxe anyone know how to fix?

[Taruga]

i tried the patcher but it still kernal panics on my asus p5wdh deluxe anyone know how to fix?



ok, one more time.....



Use mifki´s or daemon´s kernel... that problem happens with some versions of semthex kernel.

[StNick]

Hey Taruga, keep up the great work, you are helping so many people.



Sadly each release shows a new problem for me, now on v1.15 using ALC880 I get the same result as many people now...



AppleHDA Patcher - 2006/2007 Taruga v1.15

_______________________________________________________

Codec : Realtek ALC880

Vendor Id : 0x10ec0880

Subsystem Id : 0x8800000

_______________________________________________________

This is more than I had on the 1.14 release which commented it was not supported, but now it seems it maybe IS supported? but not actually doing anything... it just asks me to quit.



My codec dump is as follows;



Codec: Realtek ALC880

Address: 2

Vendor Id: 0x10ec0880

Subsystem Id: 0x8800000

Revision Id: 0x90500

Default PCM: rates 0x560, bits 0x0e, types 0x1

Default Amp-In caps: N/A

Default Amp-Out caps: N/A

Node 0x02 [Audio Output] wcaps 0x411: Stereo

PCM: rates 0x560, bits 0x0e, types 0x1

Power: 0x0

Node 0x03 [Audio Output] wcaps 0x411: Stereo

PCM: rates 0x560, bits 0x0e, types 0x1

Power: 0x0

Node 0x04 [Audio Output] wcaps 0x411: Stereo

PCM: rates 0x160, bits 0x0e, types 0x1

Power: 0x0

Node 0x05 [Audio Output] wcaps 0x411: Stereo

PCM: rates 0x160, bits 0x0e, types 0x1

Power: 0x0

Node 0x06 [Audio Output] wcaps 0x211: Stereo Digital

PCM: rates 0x160, bits 0x1e, types 0x1

Node 0x07 [Audio Input] wcaps 0x10051b: Stereo Amp-In

Amp-In caps: ofs=0x00, nsteps=0x23, stepsize=0x03, mute=1

Amp-In vals: [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00]

PCM: rates 0x160, bits 0x06, types 0x1

Power: 0x0

Connection: 7

0x18* 0x19 0x1a 0x1b 0x1c 0x14 0x15

Node 0x08 [Audio Input] wcaps 0x10051b: Stereo Amp-In

Amp-In caps: ofs=0x00, nsteps=0x23, stepsize=0x03, mute=1

Amp-In vals: [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00]

PCM: rates 0x160, bits 0x06, types 0x1

Power: 0x0

Connection: 7

0x18* 0x19 0x1a 0x1b 0x1c 0x14 0x15

Node 0x09 [Audio Input] wcaps 0x10051b: Stereo Amp-In

Amp-In caps: ofs=0x00, nsteps=0x23, stepsize=0x03, mute=1

Amp-In vals: [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00]

PCM: rates 0x160, bits 0x06, types 0x1

Power: 0x0

Connection: 10

0x18* 0x19 0x1a 0x1b 0x1c 0x0b 0x14 0x15 0x16 0x17

Node 0x0a [Audio Input] wcaps 0x100391: Stereo Digital

PCM: rates 0x160, bits 0x1e, types 0x1

Connection: 1

0x1f

Node 0x0b [Audio Mixer] wcaps 0x20010b: Stereo Amp-In

Amp-In caps: ofs=0x23, nsteps=0x41, stepsize=0x03, mute=1

Amp-In vals: [0x80 0x80] [0x00 0x00] [0x00 0x00] [0x80 0x80] [0x34 0x34] [0x92 0xa3] [0xa3 0xa3] [0xa3 0xa3]

Connection: 8

0x18 0x19 0x1a 0x1b 0x1c 0x1d 0x14 0x15

Node 0x0c [Audio Mixer] wcaps 0x20010f: Stereo Amp-In Amp-Out

Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1

Amp-In vals: [0x00 0x00] [0x00 0x00]

Amp-Out caps: ofs=0x40, nsteps=0x40, stepsize=0x03, mute=0

Amp-Out vals: [0x31 0x31]

Connection: 2

0x02 0x0b

Node 0x0d [Audio Mixer] wcaps 0x20010f: Stereo Amp-In Amp-Out

Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1

Amp-In vals: [0x80 0x80] [0x80 0x80]

Amp-Out caps: ofs=0x40, nsteps=0x40, stepsize=0x03, mute=0

Amp-Out vals: [0x00 0x00]

Connection: 2

0x03 0x0b

Node 0x0e [Audio Mixer] wcaps 0x20010f: Stereo Amp-In Amp-Out

Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1

Amp-In vals: [0x80 0x80] [0x80 0x80]

Amp-Out caps: ofs=0x40, nsteps=0x40, stepsize=0x03, mute=0

Amp-Out vals: [0x00 0x00]

Connection: 2

0x04 0x0b

Node 0x0f [Audio Mixer] wcaps 0x20010f: Stereo Amp-In Amp-Out

Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1

Amp-In vals: [0x80 0x80] [0x80 0x80]

Amp-Out caps: ofs=0x40, nsteps=0x40, stepsize=0x03, mute=0

Amp-Out vals: [0x00 0x00]

Connection: 2

0x05 0x0b

Node 0x10 [Audio Selector] wcaps 0x300101: Stereo

Connection: 4

0x0c 0x0d 0x0e* 0x0f

Node 0x11 [Audio Selector] wcaps 0x300101: Stereo

Connection: 4

0x0c* 0x0d 0x0e 0x0f

Node 0x12 [Audio Selector] wcaps 0x300101: Stereo

Connection: 4

0x0c 0x0d 0x0e 0x0f*

Node 0x13 [Audio Selector] wcaps 0x300101: Stereo

Connection: 4

0x0c* 0x0d 0x0e 0x0f

Node 0x14 [Pin Complex] wcaps 0x40018d: Stereo Amp-Out

Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1

Amp-Out vals: [0x00 0x00]

Pincap 0x083f: IN OUT HP Detect

Pin Default 0x00000000: [Jack] Line Out at Ext N/A

Conn = Unknown, Color = Unknown

Pin-ctls: 0x40: OUT

Connection: 1

0x0c

Node 0x15 [Pin Complex] wcaps 0x40018d: Stereo Amp-Out

Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1

Amp-Out vals: [0x80 0x80]

Pincap 0x083f: IN OUT HP Detect

Pin Default 0x00000000: [Jack] Line Out at Ext N/A

Conn = Unknown, Color = Unknown

Pin-ctls: 0x40: OUT

Connection: 1

0x0d

Node 0x16 [Pin Complex] wcaps 0x40018d: Stereo Amp-Out

Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1

Amp-Out vals: [0x80 0x80]

Pincap 0x083f: IN OUT HP Detect

Pin Default 0x00000000: [Jack] Line Out at Ext N/A

Conn = Unknown, Color = Unknown

Pin-ctls: 0x40: OUT

Connection: 1

0x0e

Node 0x17 [Pin Complex] wcaps 0x40018d: Stereo Amp-Out

Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1

Amp-Out vals: [0x80 0x80]

Pincap 0x083f: IN OUT HP Detect

Pin Default 0x00000000: [Jack] Line Out at Ext N/A

Conn = Unknown, Color = Unknown

Pin-ctls: 0x40: OUT

Connection: 1

0x0f

Node 0x18 [Pin Complex] wcaps 0x40018d: Stereo Amp-Out

Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1

Amp-Out vals: [0x00 0x00]

Pincap 0x08133f: IN OUT HP Detect

Pin Default 0x00000000: [Jack] Line Out at Ext N/A

Conn = Unknown, Color = Unknown

Pin-ctls: 0x40: OUT

Connection: 1

0x10

Node 0x19 [Pin Complex] wcaps 0x40018d: Stereo Amp-Out

Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1

Amp-Out vals: [0x00 0x00]

Pincap 0x08133f: IN OUT HP Detect

Pin Default 0x00000000: [Jack] Line Out at Ext N/A

Conn = Unknown, Color = Unknown

Pin-ctls: 0xc0: OUT HP

Connection: 1

0x11

Node 0x1a [Pin Complex] wcaps 0x40018d: Stereo Amp-Out

Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1

Amp-Out vals: [0x00 0x00]

Pincap 0x08133f: IN OUT HP Detect

Pin Default 0x00000000: [Jack] Line Out at Ext N/A

Conn = Unknown, Color = Unknown

Pin-ctls: 0x40: OUT

Connection: 1

0x12

Node 0x1b [Pin Complex] wcaps 0x40018d: Stereo Amp-Out

Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1

Amp-Out vals: [0x80 0x80]

Pincap 0x08133f: IN OUT HP Detect

Pin Default 0x00000000: [Jack] Line Out at Ext N/A

Conn = Unknown, Color = Unknown

Pin-ctls: 0x24: IN

Connection: 1

0x13

Node 0x1c [Pin Complex] wcaps 0x400001: Stereo

Pincap 0x0820: IN

Pin Default 0x00000000: [Jack] Line Out at Ext N/A

Conn = Unknown, Color = Unknown

Pin-ctls: 0x00:

Node 0x1d [Pin Complex] wcaps 0x400000: Mono

Pincap 0x0820: IN

Pin Default 0x00000000: [Jack] Line Out at Ext N/A

Conn = Unknown, Color = Unknown

Pin-ctls: 0x00:

Node 0x1e [Pin Complex] wcaps 0x400300: Mono Digital

Pincap 0x0810: OUT

Pin Default 0x00000000: [Jack] Line Out at Ext N/A

Conn = Unknown, Color = Unknown

Pin-ctls: 0x00:

Connection: 1

0x06

Node 0x1f [Pin Complex] wcaps 0x400200: Mono Digital

Pincap 0x0820: IN

Pin Default 0x00000000: [Jack] Line Out at Ext N/A

Conn = Unknown, Color = Unknown

Pin-ctls: 0x00:

Node 0x20 [Vendor Defined Widget] wcaps 0xf00040: Mono

Node 0x21 [Volume Knob Widget] wcaps 0x600080: Mono



Is there a document anywhere showing the supported chipsets for each release of your patcher?



Thanks once again for all your hard-work

[Taruga]

Hey Taruga, keep up the great work, you are helping so many people.



Sadly each release shows a new problem for me, now on v1.15 using ALC880 I get the same result as many people now...



This is more than I had on the 1.14 release which commented it was not supported, but now it seems it maybe IS supported? but not actually doing anything... it just asks me to quit.



My codec dump is as follows;

Is there a document anywhere showing the supported chipsets for each release of your patcher?



Thanks once again for all your hard-work

Some problematic codecs where commented out of the patcher, like alc880 for ex. there are being studyed

[rainman2006]

ok, one more time.....



Use mifki´s or daemon´s kernel... that problem happens with some versions of semthex kernel.

i read that bit and considered, but after considerable research i found that is suitable for sse3 processors. i have sse2, as mentioned before. as asked before, if there is a particular download that I need please tell me where to get it from exactly.



thanks.

[hixatchi]

ok, one more time.....



Use mifki´s or daemon´s kernel... that problem happens with some versions of semthex kernel.



gotcha!!!

[EtherealRemnant]

Argh. I can't get this to work with my Bad Axe 2... I tried using the posted 9274D info but it doesn't matter whether I open the patcher with a file or without, it ends up in either a freeze or the multi-language screen of death either way.



EDIT: I fixed it myself (yes I went back and read the thread).



Now lets see if I can go back to semthex kernel... I never had any problems with it outside of this one so why stop using it?

Edited February 14, 2007 by EtherealRemnant

[XanthraX]

Hi Taruga. I still didn't found a Linux dump for AD1888 (Asus P4P800-X mobo and many other Asus mobo's). I will give you the specifications in .pdf (maybe helps you or others). I mention the ID's are: Vendor ID = 8086; Dev ID = 24D5. Rest of the specifications can be found in the attached pdf (I hope). I have no idea how to make a Linux dump.



Thanks in advance.

AD1888.pdf

[ppan76]

Does anybody have a Linux Codec Dump for



Codec : Realtek ALC260

Vendor Id : 0x10ec

Hardware Id: 0260



I know the 0262 is working as I see a dump on the repository.



None of the Linux Live Cd work and I have tried a few of them.



Thanks

[tjammer]

just for info:



I have working audio with 10.4.8 Jas, semthex kernel 8.8.1 on Dell D620 with sse2.



i used patcher v1.11 and someones STAC9200G codec dump file. Not one crash or problem.





the only issue is the known headphones+internal problem

[jjduro]

just for info:



I have working audio with 10.4.8 Jas, semthex kernel 8.8.1 on Dell D620 with sse2.



i used patcher v1.11 and someones STAC9200G codec dump file. Not one crash or problem.





the only issue is the known headphones+internal problem



What is your DVD "release"? Beta2?

And Semthex's kernel version?

Thanks

[a-yama]

Does anybody have a Linux Codec Dump for



Codec : Realtek ALC260

Vendor Id : 0x10ec

Hardware Id: 0260



I know the 0262 is working as I see a dump on the repository.



None of the Linux Live Cd work and I have tried a few of them.



Thanks



see post #1213 of this topic



http://forum.insanelymac.com/index.php?s=&...st&p=299694

Edited February 14, 2007 by a-yama

[tjammer]

I don't really know about the DVD version, but here are some basic info:



Dell D620, sse2 Duo Core disabled,



Jas 10.4.8 Intel/AMD, sse2/3 DVD



Stac9200



System Version: Mac OS X 10.4.8 (8L2127)

Kernel Version: Darwin 8.8.1



8.8.1 Darwin Kernel Version 8.8.1: Sat Dec 9 22:18:27 AZOT 2006; semthex:/nebukadnezar/BUILD/obj/RELEASE_I386 i386 i386





and using patcher v1.11 with some codec file(s) works out of the box - sound out (both internal and headphones)

+ sound effects, sound in (internal mic).

[artship]

M/B : Asus M2NPV-VM

Sound : ADI 1986a (Dev-1986 / Ven-11D4)

Controller : nForce (Dev-026c / Ven-10DE)



I patched AppleHDA.KEXT with AppleHDAPatcher_v1.15 and AD1986a.txt.



Sound recognition is successful, but there is no output controls.



Sound do not work.

[sunhongyi18]

after running system crash~~~~~~~

even 1.5

who have ich7 + alc880 solution?

[slipttees]

M/B : Asus M2NPV-VM

Sound : ADI 1986a (Dev-1986 / Ven-11D4)

Controller : nForce (Dev-026c / Ven-10DE)



I patched AppleHDA.KEXT with AppleHDAPatcher_v1.15 and AD1986a.txt.



Sound recognition is successful, but there is no output controls.



Sound do not work.





hey man...use patcher v1.13



v1.15 imcompatible with your hardware =)



enjoy!



PS :my sound's ad1986a work two channel, bud doesn't charge volume + and volume -

it doesn't ask me why. .'cause I do not know!



intel

[DaveGee]

While this question might be a little off-topic I can't resist since we have so many people and they are all interested in audio....



I just built a badaxe2 based system and everything works really well (I highly recommend that mobo - Last friday I built the system from scratch and had it triple booting OSX Ubuntu and XP before dinner (CPU and video card weren't delivered till noon that same day).



Anyway I need some advise on some good (good as in $$ as opposed to great as in $$$$) speakers to attach to this new baby of mine... It has a STAC9274D audio chip (supported in the latest versions from what I've read)... I'm guessing this mobo pretty much handles all of the latest audio formats 5.1 7.1 etc and I know it as optical out and a few other audio ports on the back as well as the front... Intel manual states some/all of those ports are user definable via software - I'm going to go out on a limb here and guess that that ain't gonna happen in OS X any time soon... but Ubuntu and XP will work fine I'm sure (sigh).



So anyone wanna throw out some speaker models that aren't too expensive yet sound 'pretty good' - I've got permanint ringing in both ears so lets just say I'm not looking for or wanting to pay for perfection...



Dave

[slipttees]

OFF TOPIC:



look source code super-easy



http://www.google.com/codesearch



enjoy!!



PS: http://www.google.com/codesearch?hl=pt-BR&.../hda_intel.c#a0

Edited February 14, 2007 by slipttees

[elpato488]

I have an ALC262, and posted my codec dump a page or 2 back. I updated my kernel to the latest semthex. v15 just gives 3 lines stating my card info, v13 goes through the whole deal of patching the file, but upon reboot I have no sound and nothing appearing in the audio system preferences panel. What version should I try, if any, to get sound working? is the 262 unsupported?

[B612]

Hey guys!

I have an ASUS P5GL-MX as a motherboard.

As many of us, I have experienced a strange problem with the audio.

I can see the volume bar, apparently the computer is working and the audio as well, but nothing comes out from the speakers. It is not a question of plugging and unplugging them, because I have made all sorts of tries, with no results.



Now: I have tried also Tartuga's method with the patcher etc., but I believe it is not working for me.

First of all: if I take off from my extensions "AppleAzaliaAudio.kext", my "HD Audio Output" just disappears from the list of Audio devices.

It disappears even when I install AppleHDA.kext.

Then: several months ago, I had taken this note regarding my onboard sound card:



A) VEN_11D4&DEV_1986
B) "8086" and "2668"



Now: would anybody be able to help me to get the sound coming out from my speakers?!?

Thank you so much for your help, whomever you are. I won't forget it.
