surfinchina

Success with High Sierra on i9-7900x X299 GA Aorus 9, Radeon Vega

194 posts in this topic

Recommended Posts

Firstly, this is not a guide, although it probably contains enough information to get your X299 hackintosh working.
I'm not some flash software guy so you won't get good answers if you ask something technical.



Secondly, huge credit to fabiosun. This is his X99 clover and it worked on my X299.

So this is just a starting point and I'm looking forward to your help to make it better :)

This was the easiest Hackintosh I have ever made!
As background, my last hack was an X99 i7-5960x, with an R9 Nano and helper card.
First hack was an X58 with xeon 6 core cpu

X299 HackinCAD specs:
Gigabyte X299 Aorus Gaming 9
i9-7900x
Radeon Vega Frontier Edition
Samsung NVME 960 evo (1tb) and backup Samsung 850 evo (1tb) SSD
32Gb 4x8gb Gskill DDR4 RGB (colourful!)
EKWB 420 + 360 rad for cooling (which is really necessary for this CPU)

Method:
On my X99 hack I copied the whole EFI onto the most current Clover bootloader EFI. I pretty well stripped out the kexts and patches from that EFI and made a new and vanilla High Sierra install.
Things to watch -
Something on my previous HS install was borking it, possibly some modified kexts in S/L/E to do with my Nano, hence the new install. I used migration assistant after that, so all good.
HWSensors in the plugins folder in FakeSMC was causing kp, had to remove.
Still no Power management. The i9-7900 is sitting on full noise, using 140 watts and 60 deg even with my loop!
I'm working on this but as I've pointed out, I'm not very technical, just stubborn.
It's winter here and the CPU is warming my entire office, so it's not all bad.

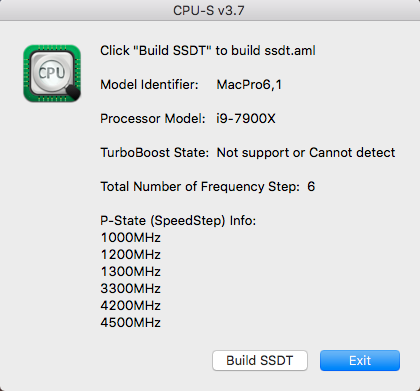

I have to use the normal heater now. Full speedstep working! Thanks again fabiosun :)

The vega worked oob. I have nothing flagged or ticked. Boot screen is good, clover menu good. No boot to black or helper or igpu. BUT! It's less than half as fast in Cinebench as my old Nano. I'm hoping it'll get better as the drivers mature.

My only boot flags are -V and npci=0x2000.

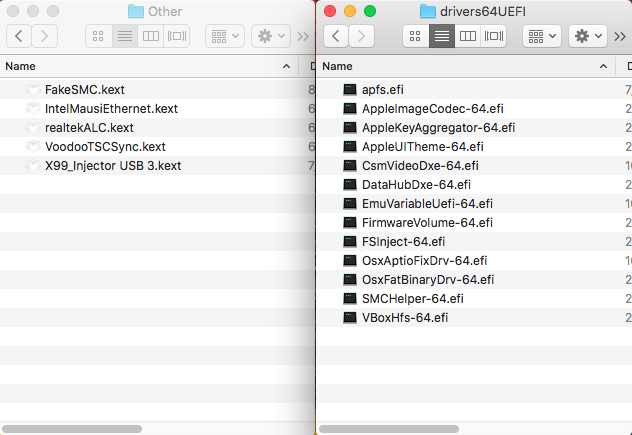

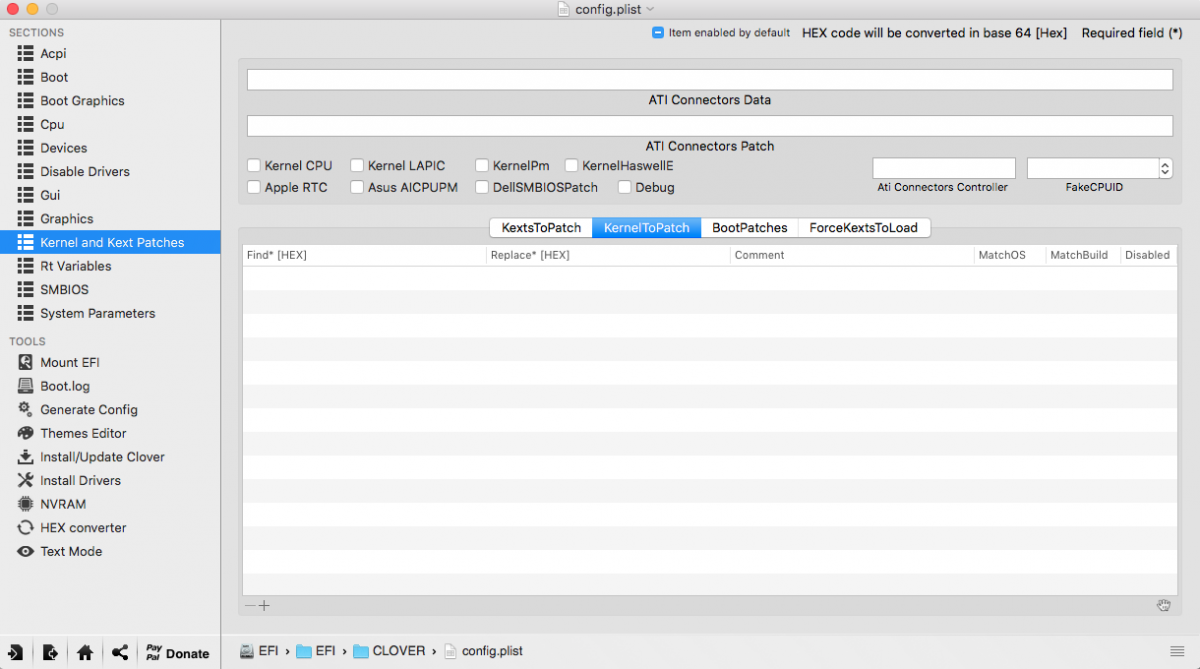

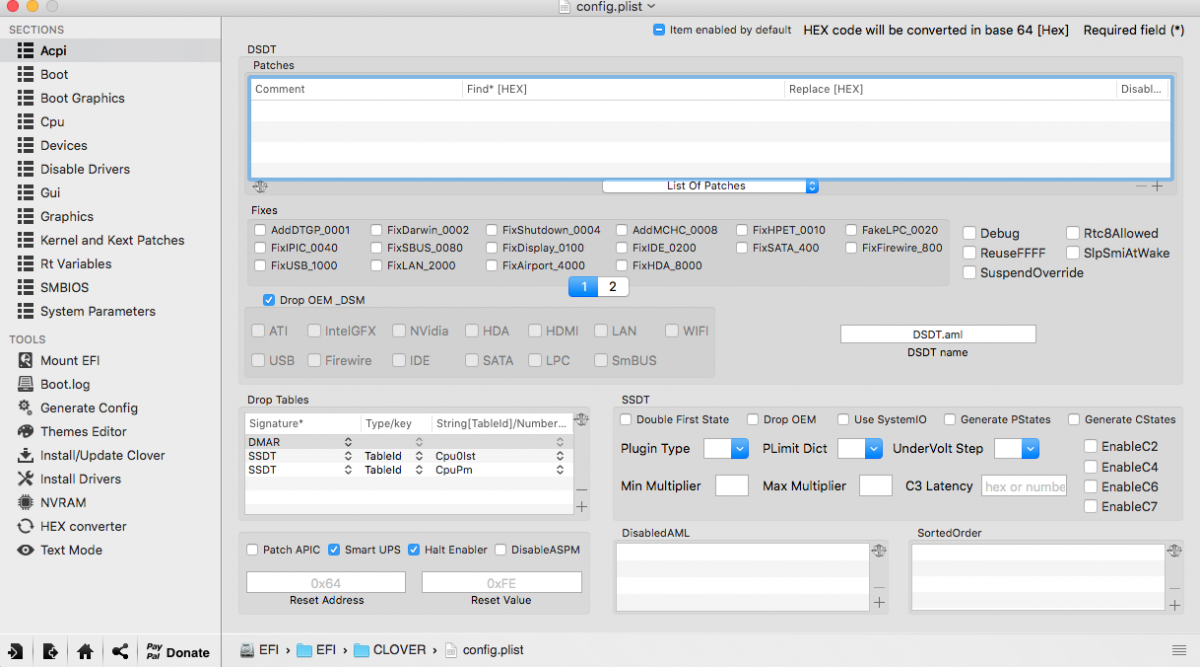

This is how to do it (in pictures):
Note 1: Some of the patches, efis and kexts might not be needed, I haven't tested them all yet.
Note 2: Kernel patches to do with power management didn't work and can be removed.

Note 3: I've since changed back to Mac Pro 6,1 with no issues.

Since updated the SMBIOS to iMac 19,1 - you'll see it in the clover attachment.

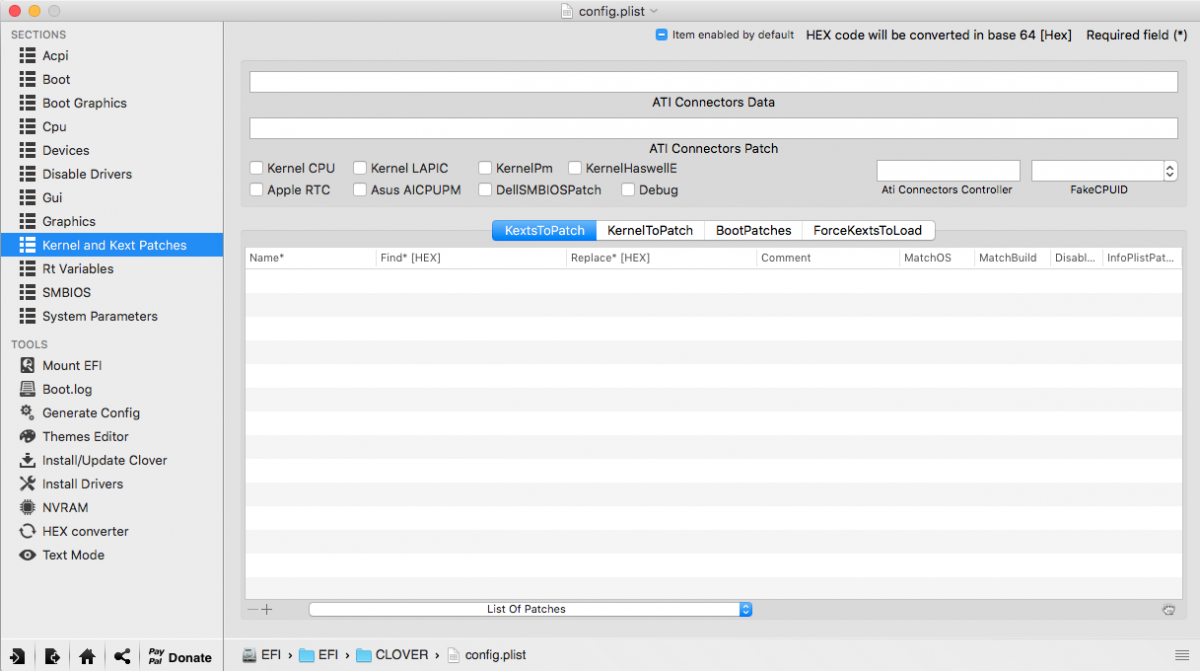

I've removed ALL of the kext and kernel patches and some of the kexts.

Next up I'll do an overclock, now that idle has gone from 61 to 21 degrees.



edit: head on over to guides to see my "How to overclock the skylake x" now running at 4.8Ghz

http://www.insanelymac.com/forum/topic/327056-guide-how-to-overclock-your-skylake-x/



After that I'll test the drivers.

edit: drivers pruned down, still no patches and now no speedstep kext, still have 10 speedsteps. Check in the clover attachment for kexts and drivers.











CLOVER.zip (refined and updated 12 Sept 2017)

Share this post


Link to post
Share on other sites

Please you config.plist updown

Give me a couple of days. I've taken it off the test bench and am doing a proper build now.

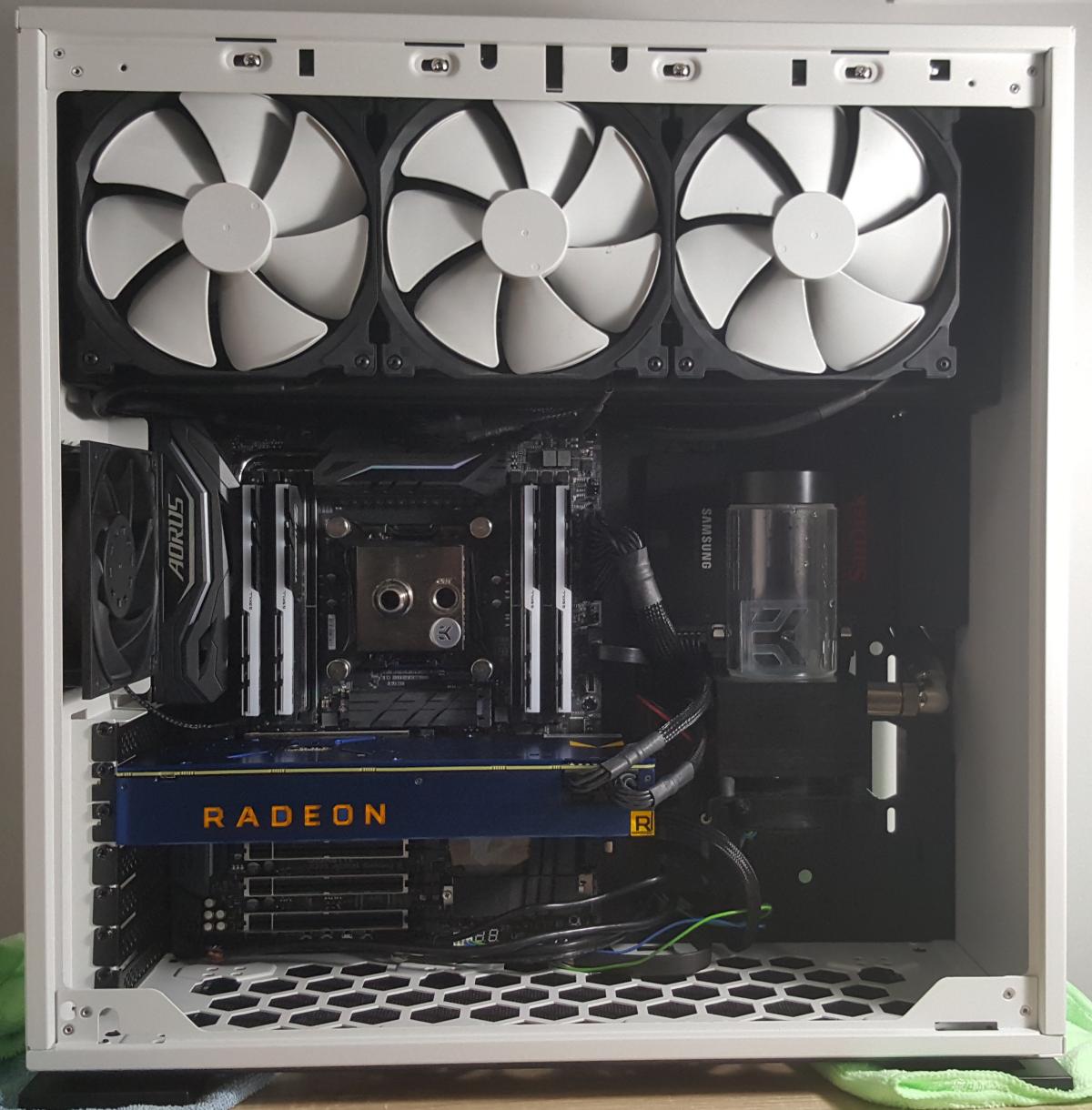

Apple white  :D




Share this post


Link to post
Share on other sites

Hi surfinchina



in this attachment you have some work to do:




you have two performance fix kernel patches and you have to investigate for the latest 5 if they are all necessary to you to boot

Performance fix in x99 system is useful only if you have eist enabled in bios

This fix helps to reach higher performance but you loose some lower steps for your cpu

Share this post


Link to post
Share on other sites

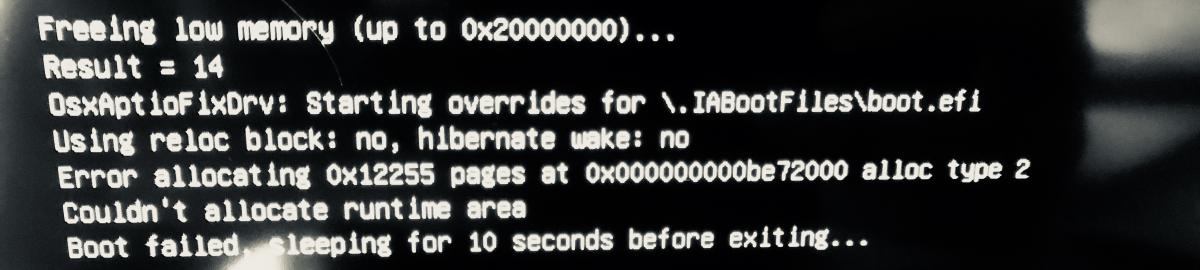

Any idea how to fix this? Could you maybe upload your full efi Folder ?



Yes, @surfinchina, your EFI folder please!



Many thanks in advance!



KGP

Share this post


Link to post
Share on other sites

Any idea how to fix this? Could you maybe upload your full efi Folder ?





Yes, @surfinchina, your EFI folder please!



Many thanks in advance!



KGP





Hi surfinchina



in this attachment you have some work to do:




you have two performance fix kernel patches and you have to investigate for the latest 5 if they are all necessary to you to boot

Performance fix in x99 system is useful only if you have eist enabled in bios

This fix helps to reach higher performance but you loose some lower steps for your cpu



I now have full speedstep!

Following fabiosun's advice I removed patches - all of them actually, checked C states in clover (I don't know if this is necessary.

I also have all USB ports without patches and HDMI sound. No onboard sound but I don't use that (have a USB DAC).



edited my instructions at top and added attachment - my clover



Wait though. I'm getting a logoff and once even a freeze when I do certain things on my browser - Chrome.

Which patch fixed this on my old list...  Any ideas?

Share this post


Link to post
Share on other sites

Hi

I see your clover folder in other post you did..it is full of config.plist files

To be sure of what you are really using you have to start only with one config.plist in your system..and maybe with only an efi partition...

In my experience with some clover version it can be a problem

Share this post


Link to post
Share on other sites

Hi

I see your clover folder in other post you did..it is full of config.plist files

To be sure of what you are really using you have to start only with one config.plist in your system..and maybe with only an efi partition...

In my experience with some clover version it can be a problem



Hi fabio,

It's a habit that I backup the plist when I make changes. That way I can revert to the backup one in clover / configs.

I don't understand maybe only an efi partition? :P



One problem I'm having since I deleted all patches is that sometimes it'll hang or logout when I do certain things in Chrome browser... Today's job is to fix that...

Share this post


Link to post
Share on other sites

Ok well where are the bench marks and stuff lol a sample config also helps and what got Vega working I’m guessing whatever green ?





Sent from my iPhone using Tapatalk

Ignore me haha lag on forum didn’t see anything





Sent from my iPhone using Tapatalk

Share this post


Link to post
Share on other sites

Ok well where are the bench marks and stuff lol a sample config also helps and what got Vega working I’m guessing whatever green ?





Sent from my iPhone using Tapatalk

Ignore me haha lag on forum didn’t see anything





Sent from my iPhone using Tapatalk

Hi Wardoc,

The clover is in a zip in the first post, has a config in it as well as kexts and what not :)

Vega is working oob! No kexts or patches to support it.

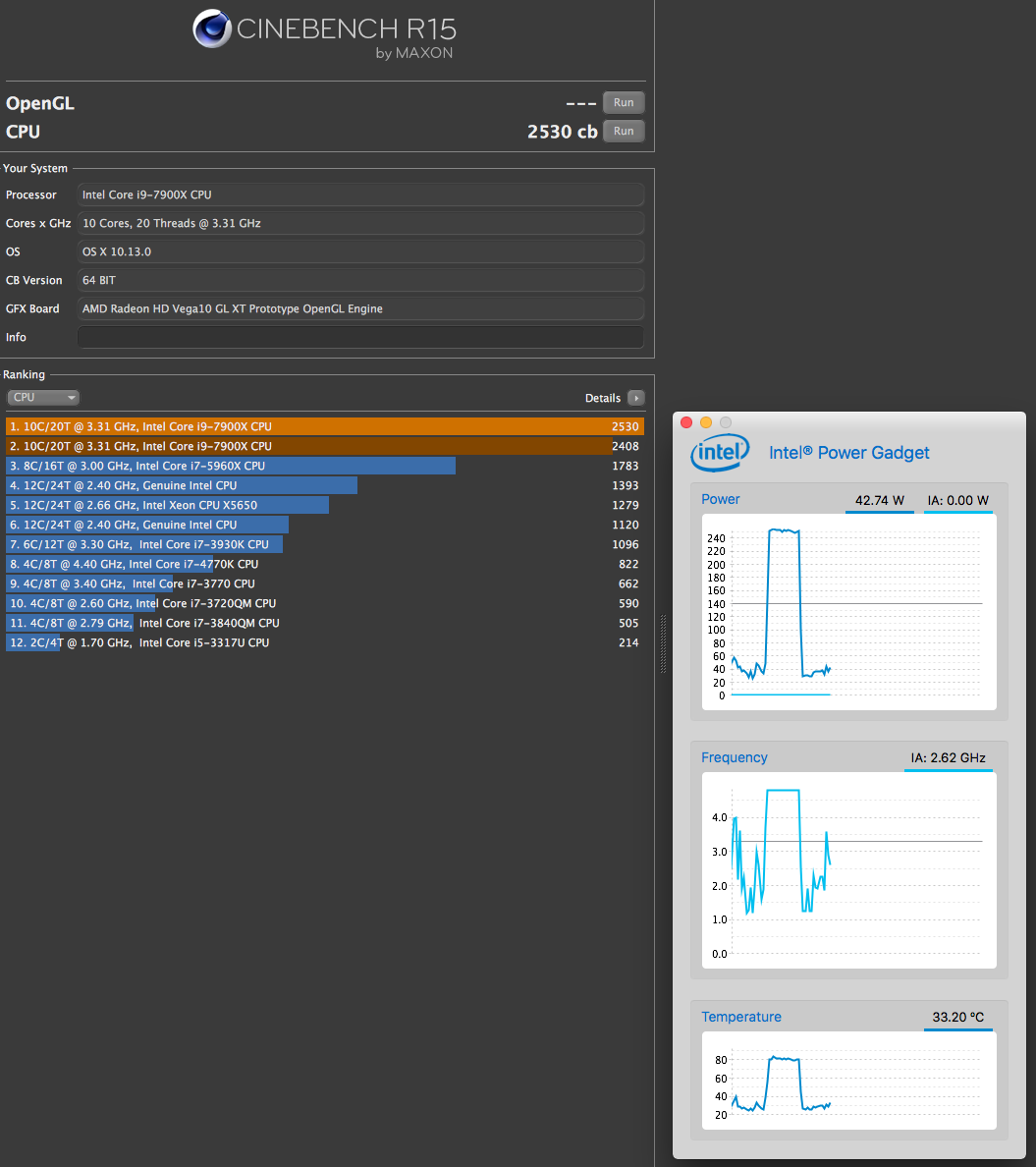

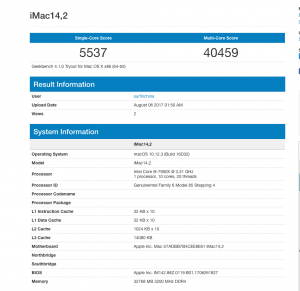

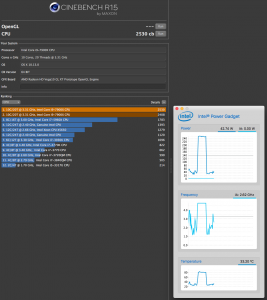

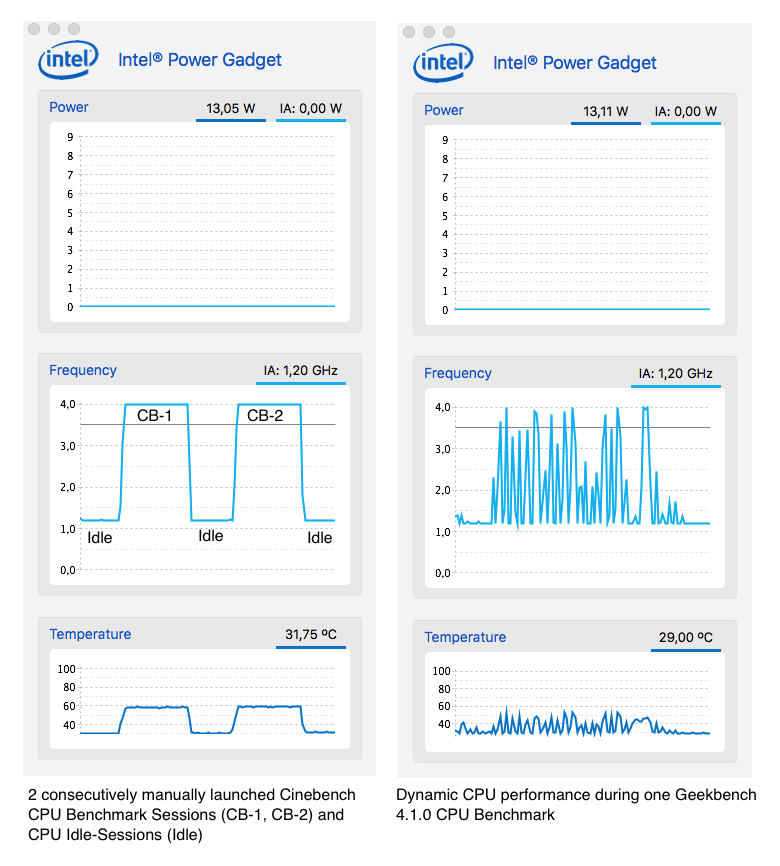

I like to use cinebench to benchmark because my CAD software uses cinerender.




Share this post


Link to post
Share on other sites

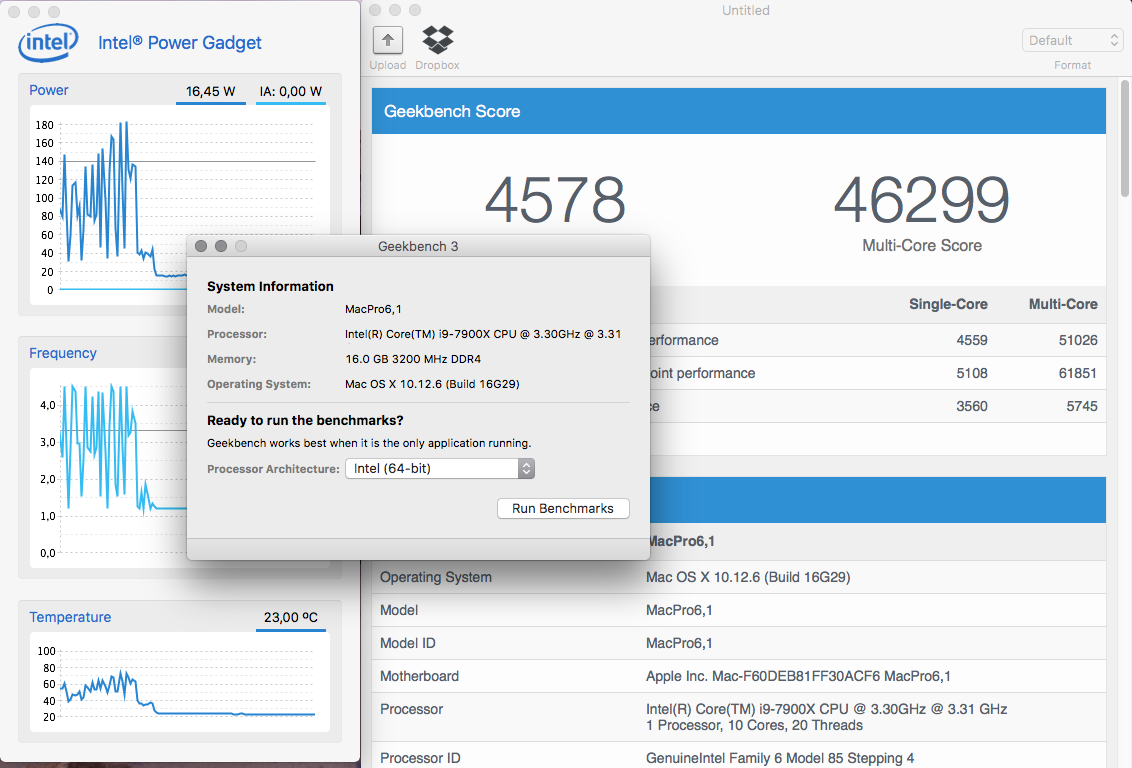

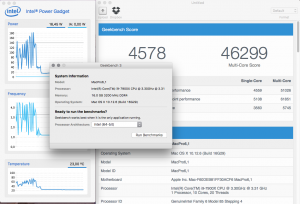

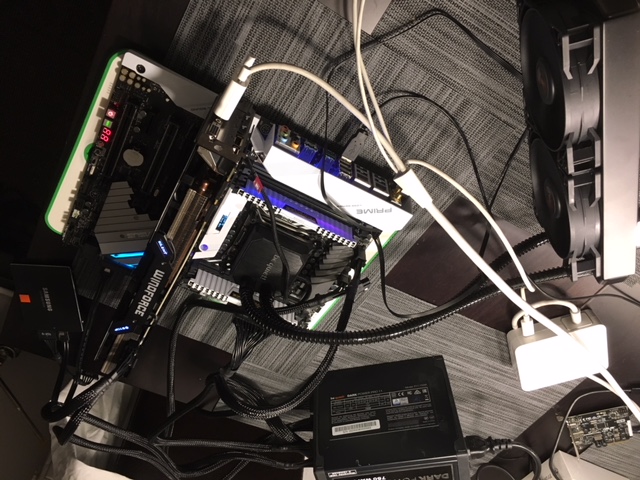

First test setup, nothing optimized, but it runs ...



Which mobo do you use?? An did you configure XCPM (ssdt.aml) to have these nice Idle frequencies?

Share this post


Link to post
Share on other sites

Hi surfinchina

Hi hope IPG power value are not real at all...above 240 Watt ....If I don't mind your cpu has a TDP of about 140...

It should be however an IPG problem..if not your cpu should be very powerful...and hot! :-)

Share this post


Link to post
Share on other sites
I do not understand anything here in this thread!  :(



I returned my ASUS X299 Prime Deluxe because @surfinchina claims that everything is working natively on the Gigabyte X299 AORUS Gaming! So today I received and tested the latter mobo...  :(



1.) Sound does not work natively at all.. (not sound yet)  :(



2.) WIFI does not work at all  :)



3.) USB does not work natively at all (without kext and KextToPatch entry the system does not even boot)...With kext and KextToPatch entry only USB 2.0 works...  :(



4.) XCPM (no KernelToPatch entries, just ssdt.aml created with ssdPrgen in EFI) is scaring when compared with the ASUS board (sync cores)... Very noise idle and max. load frequencies..  :(  look to the results I obtained below with the ASUS X299 Prime Deluxe and please show me that this is possible with the Gigabyte AORUS Gaming!  :thumbsup_anim:



I feel extremely stupid of having returned my ASUS X299 Prime Deluxe!  :no:  :bye:  :wallbash:  :blowup:


Share this post


Link to post
Share on other sites

Which mobo do you use?? An did you configure XCPM (ssdt.aml) to have these nice Idle frequencies?

1. ASUS PRIME X299 DELUXE

2. Nope. I use the "PMDrvr.kext". Simple but effective.

Share this post


Link to post
Share on other sites

1. ASUS PRIME X299 DELUXE

2. Nope. I use the "PMDrvr.kext". Simple but effective.

Anyway the important answers is  ASUS PRIME X299 DELUXE! clean idle and max. load frequencies! In any case on the ASUS PRIME X299 DELUXE PMDrvr.kext is obsolete! Same results without xcpm kerneltopatch entries but ssdt.aml in EFI. The ASUS PRIME X299 DELUXE is amazing and I returned it because of this promising but misleading thread!  :(

Share this post


Link to post
Share on other sites

I now have full speedstep!

Following fabiosun's advice I removed patches - all of them actually, checked C states in clover (I don't know if this is necessary.

I also have all USB ports without patches and HDMI sound. No onboard sound but I don't use that (have a USB DAC).



edited my instructions at top and added attachment - my clover



Wait though. I'm getting a logoff and once even a freeze when I do certain things on my browser - Chrome.

Which patch fixed this on my old list...  Any ideas?



In High Sierra Beta 6 (dev) I have Audio through HDMI and Displayports on my RX Vega 64 8gb.     Just an FYI!     Great Job with this monster rig, it's a beautiful thing.

Share this post


Link to post
Share on other sites

Hi surfinchina

Hi hope IPG power value are not real at all...above 240 Watt ....If I don't mind your cpu has a TDP of about 140...

It should be however an IPG problem..if not your cpu should be very powerful...and hot! :-)

Hi Fabio,

The IPG power is real, tests on windows as well. These things can pull 400! Even at stock they're doing 250, so you really need a lot of cooling.

My overclock of 4.8 is probably too high even at just 1.25 volts it gets to 85deg which I don't like so much.

Share this post


Link to post
Share on other sites

First test setup, nothing optimized, but it runs ...

@apfelnico I'm also very interested in your build! Tell us more!



It's great to see that the Gigabyte board is working, but I'm more interested in using

an ASUS board myself (Never like the UEFI on Gigabyte-board, found them unstable an unreliable compared to ASUS).



It would be great if you could do some kind of build guide or summary? It seems like a great setup.

Another thing I'm interested in is how your GC Thunderbolt-card is working with this setup? And if you are using NVME?



Really hoping for x299 to be a stable HEDT-platform for hacks going forward, but It's an investment, so I really appreciate as much information

as possible before investing.



Thanks.

Share this post


Link to post
Share on other sites
