[Guide] Catalina / BigSur / Monterey on mobos Serie 100 / 200 / 300 / 400 / 500 / 600 SkyLake / KabyLake / CoffeeLake / CometLake / RocketLake / AlderLake DSDT

[MaLd0n]

6 hours ago, augustopaulo said:

Changed my system recently to:

• Motherboard: Gigabyte AORUS Z390 Xtreme, with latest BIOS F5 (link)
• CPU: Intel i9900K
• Graphics card: Sapphire Vega VII 16MB
• Bluetooth/Wifi: ABWB 802.11AC WI-FI With Bluetooth 4.0 PCI-Express BCM943602CS

replace full EFI, reboot

EFI.zip

[dtpro]

Hi MaLd0N,



Can you please help me to patch my DSDT in attached file.

This is my first post in this forum so please tell me if you need any further information.

I got instant wake after sleep and my PCIs are empty.



Thanks so much.

Send me dtpro.zip

Edited June 1, 2019 by dtpro

[MaLd0n]

1 hour ago, dtpro said:

Hi MaLd0N,



Can you please help me to patch my DSDT in attached file.

This is my first post in this forum so please tell me if you need any further information.

I got instant wake after sleep and my PCIs are empty.



Thanks so much.

Send me dtpro.zip

DSDT.aml.zip

[dtpro]

7 hours ago, MaLd0n said:

DSDT.aml.zip

Dear MaLd0n,



Thanks so much for your effort, after applying your DSDT patches, everything works fine except the sleep is still the same (instant wake), and the screen is flickering sometimes.

I checked the syslog and the Wake reason is:

(AppleACPIPlatform) AppleACPIPlatformPower Wake reason: XHC



Can you please give me a solution for this?

 My laptop is: Acer Predator Helios 300 G3-572-79S6.



 I don't know maybe it is involved in SSDT (I'm not expert).



Thanks so much. Beer donated.





Send me dtpro_updated.zip

Edited June 2, 2019 by dtpro

[Matgen84]

Hi MaLd0N,



Can you please help me to patch my original DSDT in attached file.



My new hack under construction:

MB: Asus Prime Z390-A

CPU: i7 9700K

CG: MSI Radean RX580 Armor 8Go

RAM: Corsair Vengeance LPX 3000Mhz (2x8Go)



For USB3 type A and type C, I want follow your guide Here in Olarilla.I extract original DSDT/SSDT, but I doesn't find SSDT for USBs



Thanks in advance for your great job.

DSDT.aml

[MaLd0n]

5 hours ago, Matgen84 said:

Hi MaLd0N,



Can you please help me to patch my original DSDT in attached file.



My new hack under construction:

MB: Asus Prime Z390-A

CPU: i7 9700K

CG: MSI Radean RX580 Armor 8Go

RAM: Corsair Vengeance LPX 3000Mhz (2x8Go)



For USB3 type A and type C, I want follow your guide Here in Olarilla.I extract original DSDT/SSDT, but I doesn't find SSDT for USBs



Thanks in advance for your great job.

DSDT.aml

replace full EFI, reboot, goto bios/uefi setup, Advanced/System Agent (SA) Configuration/Graphics Configuration, Enable iGPU Multi-Monitor and set Primary Display to PEG

EFI.zip



boot into system and run app for more patches

--Run_Me
RunMe.app
https://www.youtube.com/watch?v=k9wmIfGLe3A

[MaLd0n]

8 hours ago, dtpro said:

Dear MaLd0n,



Thanks so much for your effort, after applying your DSDT patches, everything works fine except the sleep is still the same (instant wake), and the screen is flickering sometimes.

I checked the syslog and the Wake reason is:

(AppleACPIPlatform) AppleACPIPlatformPower Wake reason: XHC



Can you please give me a solution for this?

 My laptop is: Acer Predator Helios 300 G3-572-79S6.



 I don't know maybe it is involved in SSDT (I'm not expert).



Thanks so much. Beer donated.





Send me dtpro_updated.zip

here

DSDT.aml.zip

use power button for wake

[dtpro]

34 minutes ago, MaLd0n said:

here

DSDT.aml.zip

use power button for wake

You are the man,  thanks so much. Everything works fine now, I even can wake my system by keyboard (except by mouse).

One more thing, my laptop is dual GPUs (Intel hd630 & gtx 1060, optimus technology I think), so I can only use Intel GPU, right? No way to active Nvidia card?

Have a nice day.



Cheers.

Edited June 2, 2019 by dtpro

[MaLd0n]

11 minutes ago, dtpro said:

You are the man,  thanks so much. Everything works fine now, I even can wake my system by keyboard (except by mouse).

One more thing, my laptop is dual GPUs (Intel hd630 & gtx 1060, optimus technology I think), so I can only use Intel GPU, right? No way to active Nvidia card?

Have a nice day.



Cheers.

no way, need use intelHD only xD

[Matgen84]

1 hour ago, MaLd0n said:

replace full EFI, reboot, goto bios/uefi setup, Advanced/System Agent (SA) Configuration/Graphics Configuration, Enable iGPU Multi-Monitor and set Primary Display to PEG

EFI.zip



boot into system and run app for more patches

--Run_Me
RunMe.app





Here Send Me file in attachment.



My new hack under construction:

MB: Asus Prime Z390-A

CPU: i7 9700K

CG: MSI Radean RX580 Armor 8Go

RAM: Corsair Vengeance LPX 3000Mhz (2x8Go)



For USB3 type A and type C, I want follow your guide  in Olarilla. But I doesn't find SSDT for USBs

Send me iMac-de-Mathieu.zip

Edited June 2, 2019 by Matgen84

[MaLd0n]

13 minutes ago, Matgen84 said:



Here Send Me file in attachment.



My new hack under construction:

MB: Asus Prime Z390-A

CPU: i7 9700K

CG: MSI Radean RX580 Armor 8Go

RAM: Corsair Vengeance LPX 3000Mhz (2x8Go)



For USB3 type A and type C, I want follow your guide  in Olarilla. But I doesn't find SSDT for USBs

Send me iMac-de-Mathieu.zip

Arquivo Comprimido.zip

check ssdt, looks good, check if shutdown/restart. nvram, etc work fine

[Matgen84]

39 minutes ago, MaLd0n said:

Arquivo Comprimido.zip

check ssdt, looks good, check if shutdown/restart. nvram, etc work fine

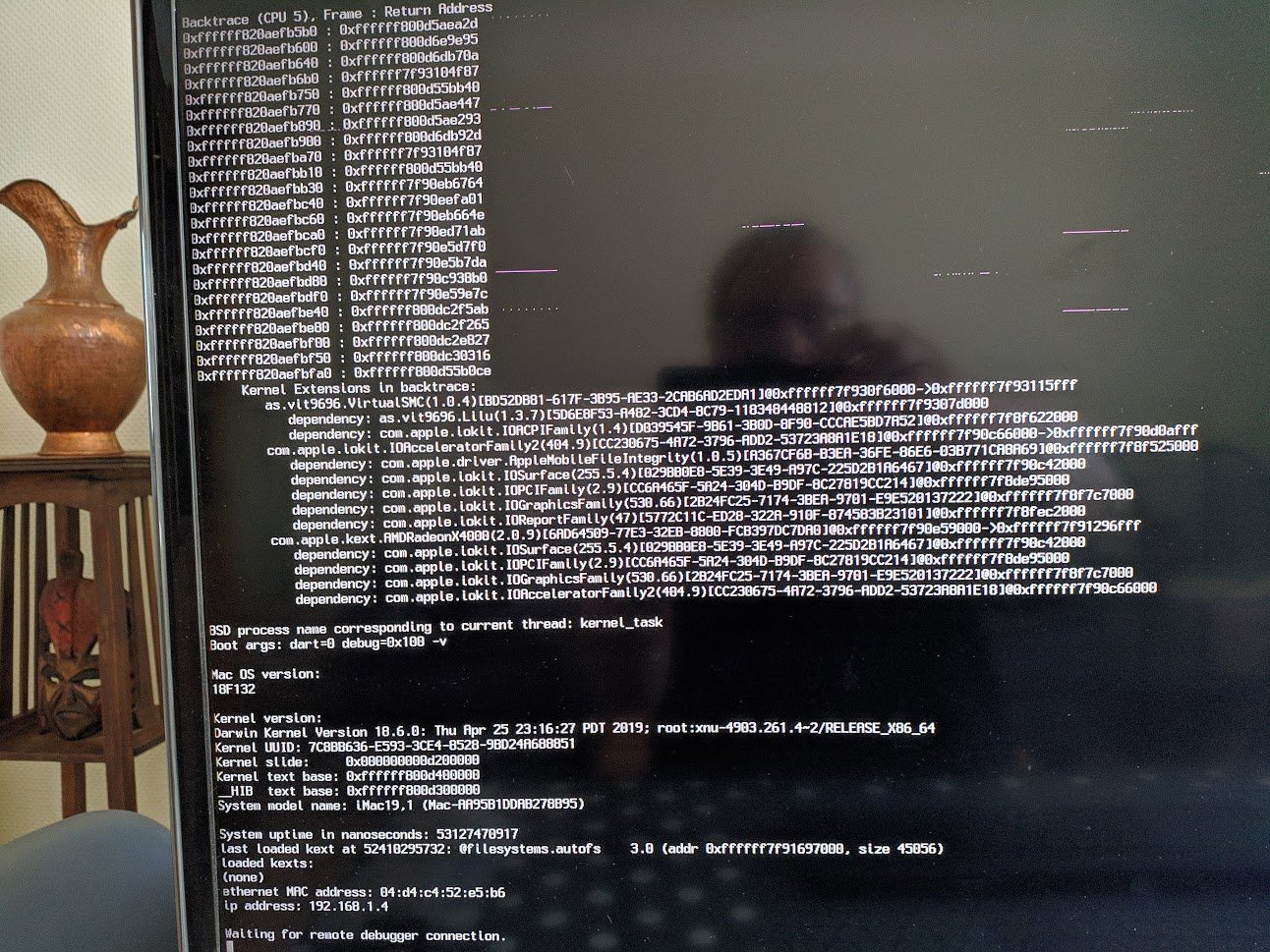

Thanks  Panic randomly at restart (see picture below)



I doesn't remember how to check NVRAM work correctly.

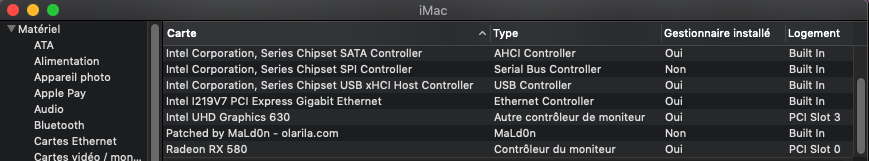

In "About my mac" System report: what means PCI "Patched byMaLdOn" not installed



Sorry for my bad english

Edited June 2, 2019 by Matgen84

[MaLd0n]

22 minutes ago, Matgen84 said:



Thanks  Panic randomly at restart (see picture below)



I doesn't remember how to check NVRAM work correctly.



In "About my mac" System report: what means PCI "Patched byMaLdOn" not installed



Sorry for my bad english



DSDT.aml.zip



u can try with fakesmc instead virtualsmc and use a release kexts, i put compiled debug version

[MaLd0n]

9 hours ago, Matgen84 said:



Thanks  Panic randomly at restart (see picture below)



try it for intel quick sync, is a correct value from iMac19,1



IntelGFX 0x3E928086
ig-platform-id 0x3E920003
Check InjectIntel
shikigva=60

[Matgen84]

10 hours ago, MaLd0n said:

try it for intel quick sync, is a correct value from iMac19,1



IntelGFX 0x3E928086
ig-platform-id 0x3E920003
Check InjectIntel
shikigva=60



 Thanks a lot

EDIT: same issue at first restart



What do you think of that: on Clover Topic, Slice said: "Chipset 390 has no support for real NVRAM even with AptioMemoryFix. You have to install EmuVariableUefi-64.efi."



Question: macOS display "Intel 11 series chipset" without DSDT, "Intel 10 series chipset" with DSDT.



What it means, I don't understand: Patched bt MaLdOn - olarila.com -->No--->Built In

Edited June 3, 2019 by Matgen84

[MaLd0n]

6 hours ago, Matgen84 said:



 Thanks a lot

EDIT: same issue at first restart



What do you think of that: on Clover Topic, Slice said: "Chipset 390 has no support for real NVRAM even with AptioMemoryFix. You have to install EmuVariableUefi-64.efi."



Question: macOS display "Intel 11 series chipset" without DSDT, "Intel 10 series chipset" with DSDT.



What it means, I don't understand: Patched bt MaLdOn - olarila.com -->No--->Built In



don't need EmuVariableUefi-64.efi, ur nvram work now, i think the problem is about weg or virtualsmc or clover or about intel quick sync, try without intelHD enable for check if work, the problem appears in boot from system

need investigate







use it to solve sata 10 series

DSDT.aml.zip

[Matgen84]

43 minutes ago, MaLd0n said:

don't need EmuVariableUefi-64.efi, ur nvram work now, i think the problem is about weg or virtualsmc or clover or about intel quick sync, try without intelHD enable for check if work, the problem appears in boot from system

need investigate







use it to solve sata 10 series

DSDT.aml.zip



I think too for EmuvariableUefi-64.efi.

Except at first boot, no problem now. I will try the new DSDT. And report.



Thanks for your help



EDIT: Replace DSDT in EFI Folder, Panic again at first restart. Maybe cause by VirtualSMC. I will use FakeSMC instead.

Edited June 3, 2019 by Matgen84

[MaLd0n]

16 minutes ago, Matgen84 said:



I think too for EmuvariableUefi-64.efi.

Except at first boot, no problem now. I will try the new DSDT. And report.



Thanks for your help



EDIT: Replace DSDT in EFI Folder, Panic again at first restart. Maybe cause by VirtualSMC. I will use FakeSMC instead.

take one shot with emuvariable

let me know

[Matgen84]

28 minutes ago, MaLd0n said:

take one shot with emuvariable

let me know



Test:

Copy again DSDT in EFI folder

Use VirtualSMC.kext, EmuVariableUEFI----> No problem at first restart



Copy again DSDT in EFI folder

Use VirtualSMC.kext, don't use EmuVariableUEFI----> No problem at first restart



I can't reproduce the problem. Maybe is randomly issue? I don't know

[MaLd0n]

1 hour ago, Matgen84 said:



Test:

Copy again DSDT in EFI folder

Use VirtualSMC.kext, EmuVariableUEFI----> No problem at first restart



Copy again DSDT in EFI folder

Use VirtualSMC.kext, don't use EmuVariableUEFI----> No problem at first restart



I can't reproduce the problem. Maybe is randomly issue? I don't know

ye, random



u try without IGPU enable?

[Matgen84]

14 hours ago, MaLd0n said:

ye, random



u try without IGPU enable?



Test without IGPU enable----> No problem for the moment.

Very strange this random issue.

[MaLd0n]

2 hours ago, Jehoshua said:

Having shutdown=restart problem

Using iGPU UHD630, no discrete

Send me MyiMac.zip

DSDT.aml.zip



change GFX0 to IGPU
47465830
49475055

change HDAS to HDEF
48444153
48444546

change HECI to IMEI
48454349
494d4549

change SAT0 to SATA
53415430
53415441

[MaLd0n]

Updater First Post

*FULL CATALINA SUPPORT*

[corint1]

hi .. try to send files but this error has repeat to infinit



IOREG dump failed. Retrying
Increased delay x2 for IOREG dump. This will take a while...(33 sec)


[MaLd0n]

1 hour ago, corint1 said:

hi .. try to send files but this error has repeat to infinit



IOREG dump failed. Retrying
Increased delay x2 for IOREG dump. This will take a while...(33 sec)


--Run_Me
RunMe.app
https://www.youtube.com/watch?v=k9wmIfGLe3A
