[GUIDE] Dell XPS 15 (9550) Mojave 10.14 / 10.15 Quick Installation


Krim404
1,809 posts in this topic

Recommended Posts

Sorry to all who replied to me, I am short on time so I cannot write anything lengthy at the moment. I think I have solved my sleep issues simply by changing the dark wake bootflag. In this tutorial it is set as "darkwake=no" -- I simply changed it to "darkwake=0" as I believe it was in the past. No more kernel panics after sleep. I will confirm this resolution and get back to all who took the time to reply to me this evening. Thank you all, your ongoing research and efforts to maintain this platform's operability with macOS are greatly appreciated!

Link to comment
Share on other sites

55 minutes ago, kennylauer said:

In this tutorial it is set as "darkwake=no" -- I simply changed it to "darkwake=0" as I believe it was in the past.



I think I saw the tutorial you are referring to, and I believe you are correct that it should be 0, as (according to what I read) most boot arguments do not allow yes/no values. I changed mine to 0 as well, and I think it would be good if this change were implemented in the guide/repo. In my case, it didn't actually fix anything, but it was helpful in eliminating it as a possibility while I was testing. In any case, glad you got your sleep working so far! If it turns out that you still have trouble, there is now a wealth of information and other solutions available here, haha.

Link to comment
Share on other sites

7 hours ago, agrafuese said:

To confirm, I allowed my laptop to stay closed overnight for 7 hours, and it woke up perfectly fine. So, the PowerManagement.plist truly was the culprit in all of this.



One thing I should also mention, I did my best to clear up any experimental sleep settings I may have applied earlier while I was trying to figure all of this out. I did the following:



First I restored all power management defaults, both in the GUI system prefs and then via this Terminal command:


sudo pmset restoredefaults



Then, to be safe, I applied the "hibernate mode off + reboot" command to prevent the potential corruption issues described by wmchris in the guide, as shown here:


sudo pmset -a hibernatemode 0 & sudo reboot



I also made the sleepimage file unwriteable as an extra precaution to prevent hibernation writing to the drive at all, like so:


sudo rm -f /private/var/vm/sleepimage
sudo touch /private/var/vm/sleepimage
sudo chflags uchg /private/var/vm/sleepimage

I got most of these ideas from wmchris' script ([repo]/10.15/Post-Install/Additional Steps/Hibernation/disablehibernate.sh), but I didn't use the whole script because I'm not sure if I want everything else turned off.



Then, I set energy settings in system prefs as I normally would. I'm attaching screenshots of my settings here.








There is a script for this already, have you tried before running it manually?

DellXPS15-9550-OSX/10.15/Post-Install/Additional Steps/Hibernation/disablehibernate.sh


Also:
https://github.com/wmchris/DellXPS15-9550-OSX/blob/10.15/Tutorial_10.15.md#step-4-post-installation

It's a (sort of) mandatory script that we run after every MacOS upgrade or new install.

Link to comment
Share on other sites

Yes :) ...



9 hours ago, agrafuese said:

I got most of these ideas from wmchris' script ([repo]/10.15/Post-Install/Additional Steps/Hibernation/disablehibernate.sh), but I didn't use the whole script because I'm not sure if I want everything else turned off.



Moments like these, I start to realize that I type too much and risk people missing parts as they fall asleep while reading, haha ;)



Edit: To elaborate, I ran it originally (while I was having trouble), then I restored defaults after I fixed sleep, and then I ran those specific commands again, selectively.

Edited by agrafuese
I can't stop typing, someone help me.
  • Like 1
Link to comment
Share on other sites

7 hours ago, agrafuese said:

Yes :) ...





Moments like these, I start to realize that I type too much and risk people missing parts as they fall asleep while reading, haha ;)



Edit: To elaborate, I ran it originally (while I was having trouble), then I restored defaults after I fixed sleep, and then I ran those specific commands again, selectively.


Sorry, I really need to work on my reading skills :whistle: :)

  • Like 1
Link to comment
Share on other sites

  • 3 weeks later...

My system fell apart again for no reason. Opened it up this morning and it wouldn't boot, just kept panicking and rebooting itself. The last thing I did before it happened was install an ICC profile for the display (the one in the repo)... I highly doubt that it had anything to do with that, though.



The only weird thing that I noticed just before this was that the keyboard would suddenly stop working at random times, especially at the login screen when it was time to type in my password. It seems like something corrupted the drive again, but I have no idea what it could have been. I had stopped messing with anything system-related once I got everything stabilized weeks ago, and I was only using it lightly after that point (pretty much just web browsing and graphics apps). No new software installs or anything.



When I went to reinstall Catalina on top of the existing install to try and fix it, it said permission denied. So, I had to format the drive and install from scratch.



The good news is, this time around I didn't get the "bless" error once the install was finished. I'm really not sure why this time was different. So far, it seems to be more stable this time. For example, I didn't have to delete my power management plist to get sleep/wake working, and I'm noticing fewer quirks in the system overall. Previously, I think the bless error had really messed with permissions. This time, I'm encountering less issues related to that sort of problem.

Link to comment
Share on other sites

On 5/8/2020 at 4:43 PM, agrafuese said:

My system fell apart again for no reason. Opened it up this morning and it wouldn't boot, just kept panicking and rebooting itself. The last thing I did before it happened was install an ICC profile for the display (the one in the repo)... I highly doubt that it had anything to do with that, though.



The only weird thing that I noticed just before this was that the keyboard would suddenly stop working at random times, especially at the login screen when it was time to type in my password. It seems like something corrupted the drive again, but I have no idea what it could have been. I had stopped messing with anything system-related once I got everything stabilized weeks ago, and I was only using it lightly after that point (pretty much just web browsing and graphics apps). No new software installs or anything.



When I went to reinstall Catalina on top of the existing install to try and fix it, it said permission denied. So, I had to format the drive and install from scratch.



The good news is, this time around I didn't get the "bless" error once the install was finished. I'm really not sure why this time was different. So far, it seems to be more stable this time. For example, I didn't have to delete my power management plist to get sleep/wake working, and I'm noticing fewer quirks in the system overall. Previously, I think the bless error had really messed with permissions. This time, I'm encountering less issues related to that sort of problem.



sorry to hear that... btw, have you tried the new VoodooI2C?

  • Like 1
Link to comment
Share on other sites

On 5/13/2020 at 12:38 PM, agrafuese said:



Ooooh.... not yet... any good? I just realized I am behind two versions!



I noticed that the double tap to drag is working now. Other than that, it seems as good as it was before for me.


Edited by golimpio
Changed from click to drag to double tap to drag
Link to comment
Share on other sites

On 5/12/2020 at 11:10 PM, golimpio said:



I noticed that the double tap to drag is working now. Other than that, it seems as good as it was before for me.


That's interesting... I have been testing it over the past couple of days, and I haven't noticed anything different. I'm not able to do double tap to drag for some reason either (I don't use it anyway, but strange that it doesn't work for me).

Link to comment
Share on other sites

56 minutes ago, agrafuese said:

That's interesting... I have been testing it over the past couple of days, and I haven't noticed anything different. I'm not able to do double tap to drag for some reason either (I don't use it anyway, but strange that it doesn't work for me).


If you set to "three fingers drag", does it work?

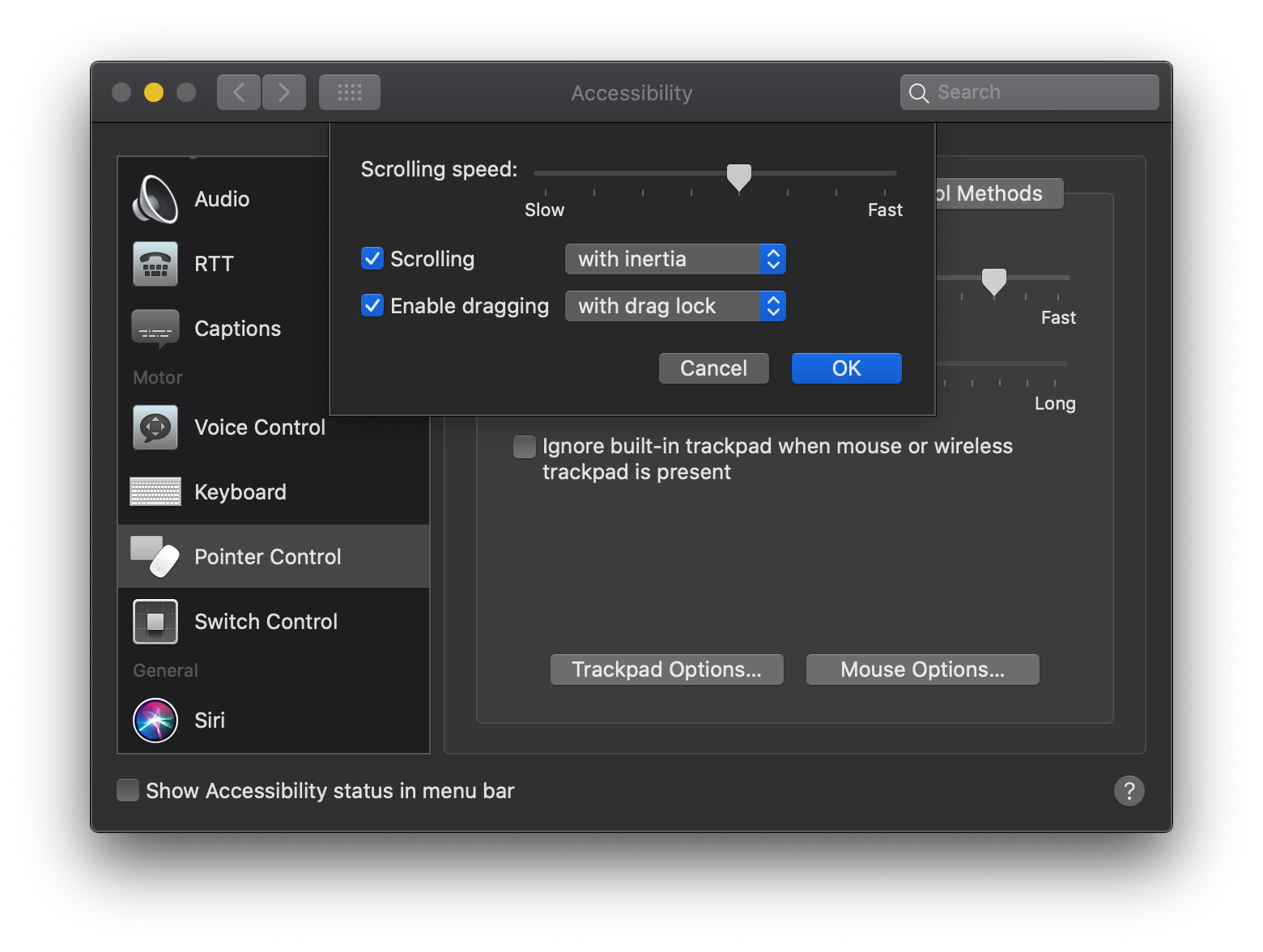

I've attached a screenshot from my "System Preferences > Accessibility > Pointer Control > Trackpad Options..." (but there is nothing out of the ordinary in there).

VoodooI2C 2.4.2
VoodooInput 1.0.5
VoodooPS2Controller 2.1.4
Lilu 1.4.4

Screen Shot 2020-05-15 at 3.05.09 pm.png

  • Like 1
Link to comment
Share on other sites

Ah! That did it. Dragging was turned off in those settings. Oddly, there's a weird "wait time" after I drag something before it releases, even when my finger leaves the trackpad completely. I've never used this feature in the past, so I don't know if that is normal macOS functionality, or if the kext is acting a bit strangely. In any case, I'm glad it works for you now! Tap tap tap tap, drag drag drag drag! :)



Edit: I see you use drag lock, so you might not notice the "wait time" because you manually release. But yeah, auto release is slow.

Edited by agrafuese
  • Like 1
Link to comment
Share on other sites

6 hours ago, agrafuese said:

Ah! That did it. Dragging was turned off in those settings. Oddly, there's a weird "wait time" after I drag something before it releases, even when my finger leaves the trackpad completely. I've never used this feature in the past, so I don't know if that is normal macOS functionality, or if the kext is acting a bit strangely. In any case, I'm glad it works for you now! Tap tap tap tap, drag drag drag drag! :)



Edit: I see you use drag lock, so you might not notice the "wait time" because you manually release. But yeah, auto release is slow.


You're right, I use the drag lock to avoid the delay. I'm not sure if the delay is normal, but I've always noticed it and just assumed that it was normal, I've never looked into it actually.

Anyway, this is a very particular use case, I'd guess that most of people don't use it and just stick to the normal trackpad operation. In my case, at first I found the "click" noise from the trackpad annoying, so I've started using the tap to drag and I just got addicted to it :)

  • Like 1
Link to comment
Share on other sites

On 5/15/2020 at 9:42 PM, golimpio said:


You're right, I use the drag lock to avoid the delay. I'm not sure if the delay is normal, but I've always noticed it and just assumed that it was normal, I've never looked into it actually.

Anyway, this is a very particular use case, I'd guess that most of people don't use it and just stick to the normal trackpad operation. In my case, at first I found the "click" noise from the trackpad annoying, so I've started using the tap to drag and I just got addicted to it :)



I agree, I do like the silent tapping part!

Link to comment
Share on other sites

Hi guys! Just a quick check to understand if something is wrong on my machine or is something someone has already experienced.

Since Mojave I started having my CPU jumping to 100%, especially when doing screen sharing or doing calls via either Google Meet or Whereby.



I tried formatting and upgrading to Catalina (and switched to a 4K compatible nvme on the occasion), but after repasting I only noticed an improvement in the temps, while the stress on the cpu looks to be behaving similarly.

Link to comment
Share on other sites

12 hours ago, phaberest said:

Hi guys! Just a quick check to understand if something is wrong on my machine or is something someone has already experienced.

Since Mojave I started having my CPU jumping to 100%, especially when doing screen sharing or doing calls via either Google Meet or Whereby.



I tried formatting and upgrading to Catalina (and switched to a 4K compatible nvme on the occasion), but after repasting I only noticed an improvement in the temps, while the stress on the cpu looks to be behaving similarly.



I have the same build as you, but a different hard drive. I've had several Google Meet sessions and never noticed any performance issues at the time. I've never looked at the Activity Monitor app while running a meeting, so I don't know what my % values actually were, but right now I am sitting in an empty meeting alone as a test, and I am only seeing around 8% usage. I suspect that would go up with several other people in the meeting, but I don't think it would be extremely different. I've never done a screen share, however, so I can't evaluate on that.



A while back in this thread, user golimpio shared his Clover folder. If you haven't done so already, you might want to search for that post and try out his setup. It's essentially the same one I use as well. If you're still experiencing issues after that, I'm not really sure what else would be causing them.

  • Thanks 1
Link to comment
Share on other sites

Also, please let us know what BIOS version you have and what version of Clover as well. Those two things could make a difference, if neither have been updated in the last month or so, although I suspect you wouldn't even be able to run Catalina 10.15.4 at all if you didn't have them at least somewhat current. But anything is possible, I suppose.

Link to comment
Share on other sites

16 hours ago, phaberest said:

Hi guys! Just a quick check to understand if something is wrong on my machine or is something someone has already experienced.

Since Mojave I started having my CPU jumping to 100%, especially when doing screen sharing or doing calls via either Google Meet or Whereby.



I tried formatting and upgrading to Catalina (and switched to a 4K compatible nvme on the occasion), but after repasting I only noticed an improvement in the temps, while the stress on the cpu looks to be behaving similarly.


I don't use video conference / screen sharing apps, but I've noticed that most applications that make use of the GPU will cause similar issue.

I usually turn off the GPU-accelerated support if the software allows it, but then, normal stuff like watching a video on Youtube will make the fans go crazy in just a few seconds.

I used to edit photos in this laptop without any issue, I usually use Lightroom for this, and nowadays I have to turn off the GPU option to be able to use it. Performance is not as good as it used to be, it's less than OK. But because I've upgraded Lightroom so many times over the years, it's really hard to tell if the performance is worst because I've turned off GPU-acceleration or just because the software became heavier (which is expected).

Even terminal emulators nowadays make use of the GPU. I use iTerm2, which allows me to turn off GPU rendering, but I also use Alacritty, which is, as they describe a GPU-accelerated terminal emulator.

@agrafuese Haven't you noticed anything unusual with the fans when you watch a video on Youtube in the Chrome web browser?

Link to comment
Share on other sites

Just some notes about GPU/CPU use in Chrome vs Safari.

It seems that Safari handles it more efficiently than Chrome in my laptop. CPU utilization when watching Youtube videos in Safari is below 20% (usually close to 10%) for the browser + ~10-20% for WindowServer process

In Chrome, there are 2 processes that will run over 30%: Google Chrome Helper (Renderer) and Google Chrome Helper (GPU). Usually the "Renderer" process will go over 40% for Youtube.

When watching something on Plex in Chrome, the GPU process will use 30~40% of CPU, while the Renderer process will increase to 90~100%.

In Safari, Plex won't use that much CPU and will run similar to Youtube (CPU: 15-25%).

My guess is that Chrome makes a lot more use of the GPU than Safari, or perhaps, it's just the fact that Safari is more efficient, but it's hard to tell without debugging it.

Link to comment
Share on other sites

Do you know, if there is any new progress about the Thunderbol 3 on the XPS 9550? My Thunderbolt Device is only recognized at boot and adter a Sleep it doesn't work anymore. I tried also the IOElectrify Kext but that didn't work for me. Sorry if this has maybe asked again before.

Link to comment
Share on other sites

22 hours ago, golimpio said:

@agrafuese Haven't you noticed anything unusual with the fans when you watch a video on Youtube in the Chrome web browser?



I've never/rarely heard anything unusually loud or sudden in macOS... Windows is another story, haha. So, unless you suspect something is abnormal, I think it's just the way this laptop is.



For example, I just let a youtube video play and it took about 10 minutes before I heard even a light fan sound. And this is in Chrome. My CPU % values for Chrome are around 23-26% for the Renderer process and around 17-19% for the GPU process.



Chrome for Windows throws the fans on for most websites (especially ones with lots of sidebar ads), and the GT630M GPU makes the fans blast like jet engines when you play even the simplest games - and almost immediately. What I hear in macOS is a silent whisper by comparison :D

  • Thanks 1
Link to comment
Share on other sites

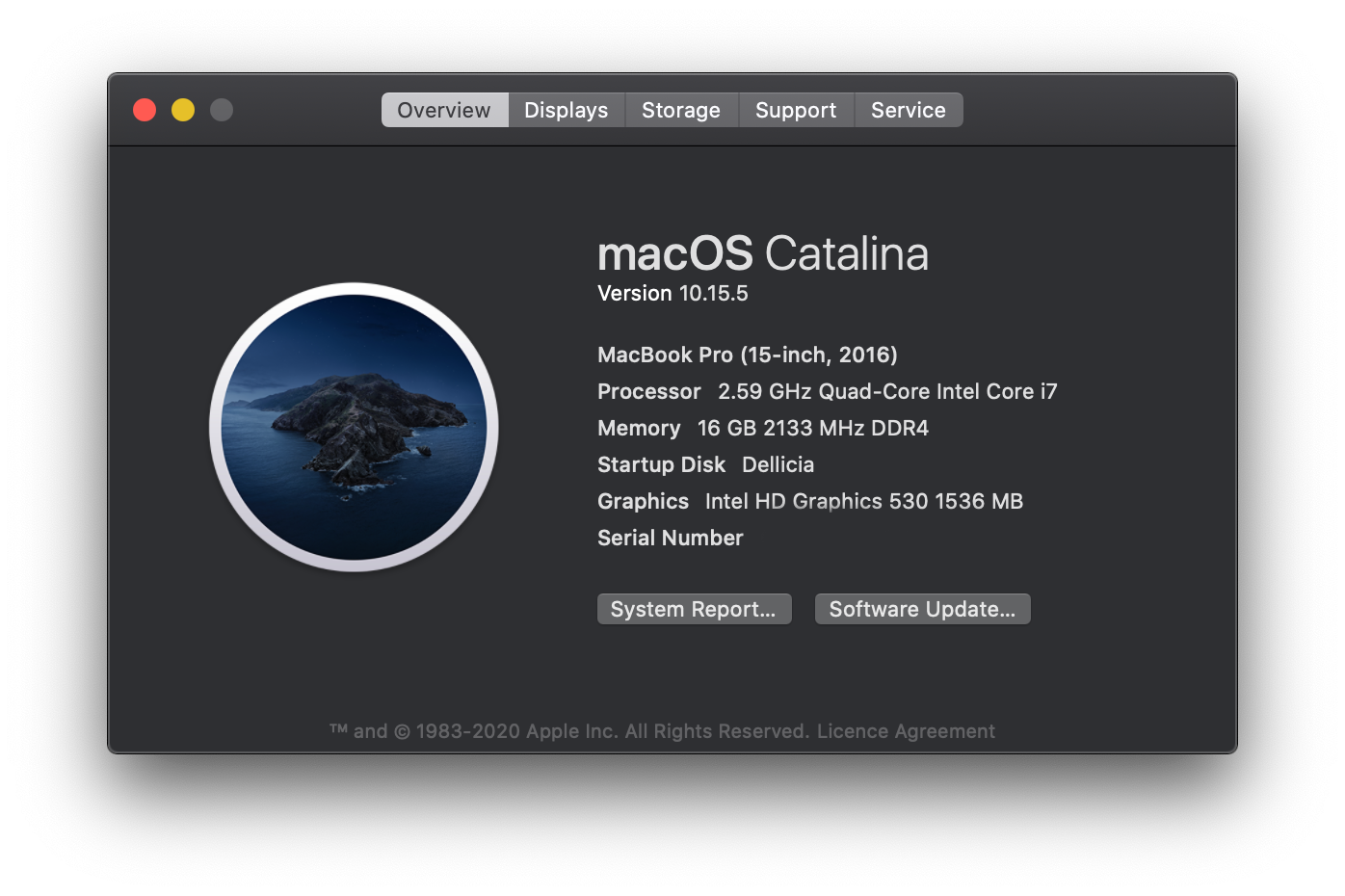

Just updated to 10.15.5, and I have no issues while updating it.

It's too early to say if something has broken, but so far, it seems that nothing has changed.

I can't see the new battery health button. Probably it's not available for hackintoshes or it might be related to the model set on config.plist

Note: The last BIOS update is installed // Clover is the latest one available: r5118 // Kexts are updated to the latest as well.

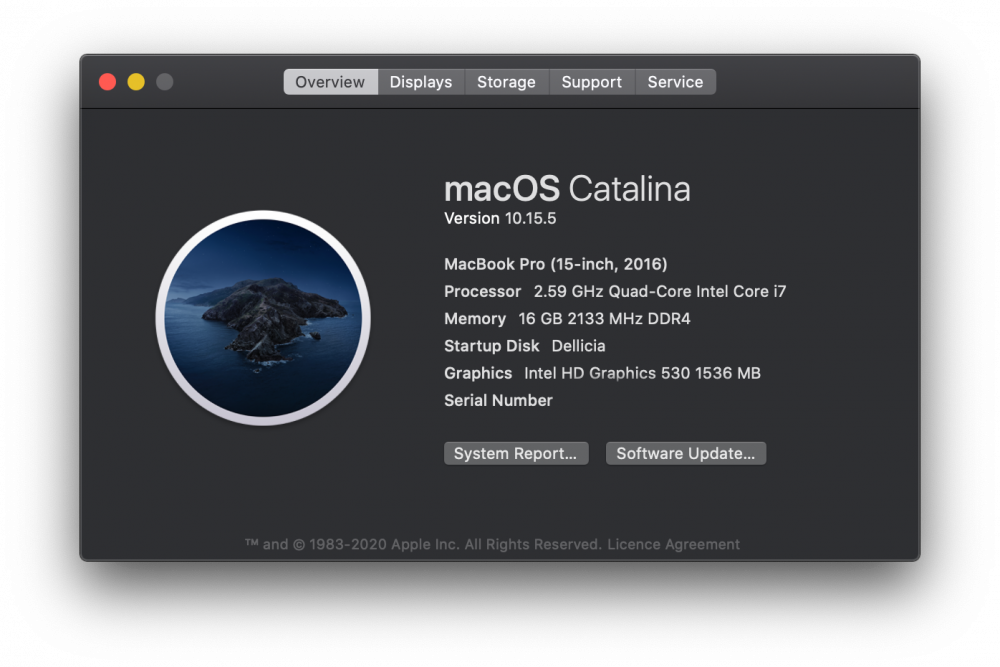

Screen Shot 2020-05-27 at 1.50.09 pm.png

  • Like 2
  • Thanks 1
Link to comment
Share on other sites

Nice man! I haven't been keeping up on Mac news lately, but I had a feeling this morning that Apple was going to drop an update for Catalina soon :) I'll probably give it another few days before I get bored enough to update it, haha. Keep us posted if you notice anything strange. It's probably good that the battery health button doesn't work, I don't want to know what mine would say (Catalina already tells me that I need to replace my battery soon, bah!).



  • Like 1
Link to comment
Share on other sites

I've attached my latest EFI folder here, in case anyone is having issues to install Catalina and want to compare the EFI files.

Clover: r5118 / BIOS: Latest (1.13.1)
i7 // PM951 NVMe SAMSUNG 512GB // 16GB RAM // 4K



@Mr.C


EFI.zip

  • Like 1
  • Thanks 2
Link to comment
Share on other sites

On 5/26/2020 at 3:47 AM, agrafuese said:

Also, please let us know what BIOS version you have and what version of Clover as well. Those two things could make a difference, if neither have been updated in the last month or so, although I suspect you wouldn't even be able to run Catalina 10.15.4 at all if you didn't have them at least somewhat current. But anything is possible, I suppose.

Thank you agrafuese, I'll definitely double check golimpio's efi! Everything is up to date, latest BIOS (1.13.1), latest Clover (r5118) even tho I didn't check all the kext to be the latest, I just downloaded them from the repo



On 5/26/2020 at 8:56 AM, golimpio said:

Just some notes about GPU/CPU use in Chrome vs Safari.

It seems that Safari handles it more efficiently than Chrome in my laptop. CPU utilization when watching Youtube videos in Safari is below 20% (usually close to 10%) for the browser + ~10-20% for WindowServer process

In Chrome, there are 2 processes that will run over 30%: Google Chrome Helper (Renderer) and Google Chrome Helper (GPU). Usually the "Renderer" process will go over 40% for Youtube.

When watching something on Plex in Chrome, the GPU process will use 30~40% of CPU, while the Renderer process will increase to 90~100%.

In Safari, Plex won't use that much CPU and will run similar to Youtube (CPU: 15-25%).

My guess is that Chrome makes a lot more use of the GPU than Safari, or perhaps, it's just the fact that Safari is more efficient, but it's hard to tell without debugging it.

Yeah, youtube is making some noise, but it's been better since I started using Vivaldi, Chrome is really gone too far in system usage :/

  • Like 1
