[Guide] Mac OSX 10.12 and 10.13 with X99 Broadwell-E family and Haswell-E family

nmano

By nmano,
in Installation Guides

 Share
1,954 posts in this topic

Recommended Posts

nmano
nmano
Posted
  • Author
Posted

Yes I confirm, I tested the with the last nmano plist, with the latest patches and the system sometimes restarts. For now, I chose to come back again to the previous patches for the system to work stable. Soon I will test your appleintel and then say if it works.

Try this without Fake ID

config.plist.zip

  • Like 1
Link to comment
Share on other sites
SammlerG
SammlerG
Posted
Posted

i dont't understand why if i do not use any patch 5 Type my msr 0xE2 change from 0xE2 to 0x1E000005

because 1E000005 is the standard config of msr 0xE2. This value is programmed from xcpm.



Before my patches, you have blocked all msr from xcpm. No writing to them.

I only changed it to 7E000006 because this is the max. for Hassell-E, and the best. I think  :)

With my patch, you can set 1E/3E/5E .... what you want to msr 0xE2, feel free to test.

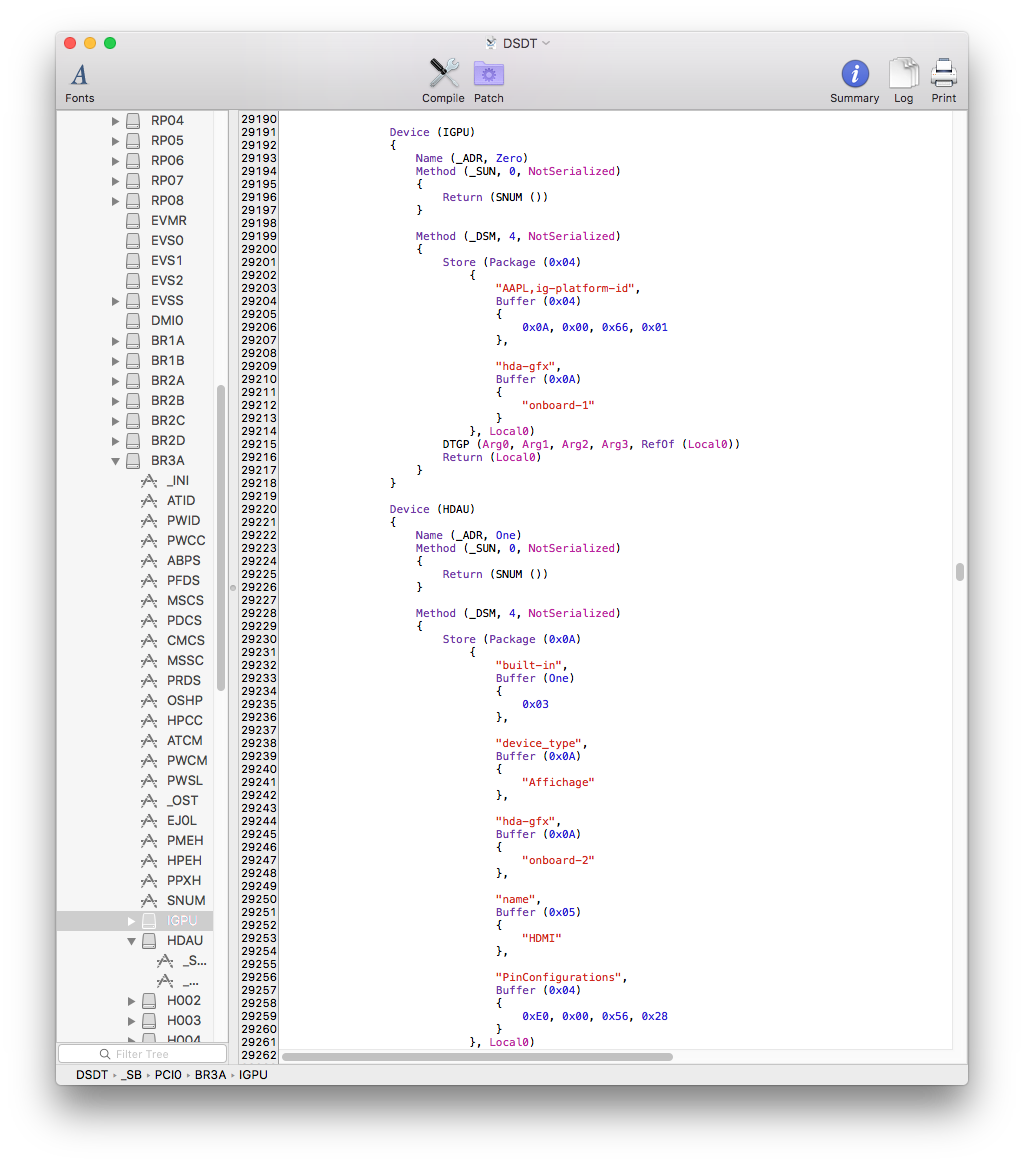

And the 2 patches (063A + 0642) are for iGpu. Absolute necessary. We don´t have one :D ... without patching this 2 msr you system do not boot, or KP.



I´m no coder, i don´t understand much of this things. It was a long time of testing, changing and much try and error...



I hope you it´s useful  :)

  • Like 1
Link to comment
Share on other sites
thenightflyer
thenightflyer
Posted
Posted

@SammlerG

Finally i got it working with a fresh installation of Sierra. With the old install it doesnt work and without nullcpu i've my cpu at high frequency value, it never goes down....

Another question....we have same motherboard but different cpu so i would like to know which kexts do you have in EFI/CLOVER/kext/10.12 dir...thanks



PS maybe I've something else to fix in my bios...Package C-State Auto Demotion and Package C-State Undemotion are still disabled.

MSR_PMG_CST_CONFIG_CONTROL.......(0xE2)  : 0x1E000005
------------------------------------------
 - I/O MWAIT Redirection Enable......... : 0 (not enabled)
 - CFG Lock............................. : 0 (MSR not locked)
 - C3 State Auto Demotion............... : 1 (enabled)
 - C1 State Auto Demotion............... : 1 (enabled)
 - C3 State Undemotion.................. : 1 (enabled)
 - C1 State Undemotion.................. : 1 (enabled)
 - Package C-State Auto Demotion........ : 0 (disabled/unsupported)
 - Package C-State Undemotion........... : 0 (disabled/unsupported)
  • Like 1
Link to comment
Share on other sites
Fergarth
Fergarth
Posted
Posted

delete all Appleintelinfo.kext in kext clover or in S/L/E if you have

copy it on your desktop before

then

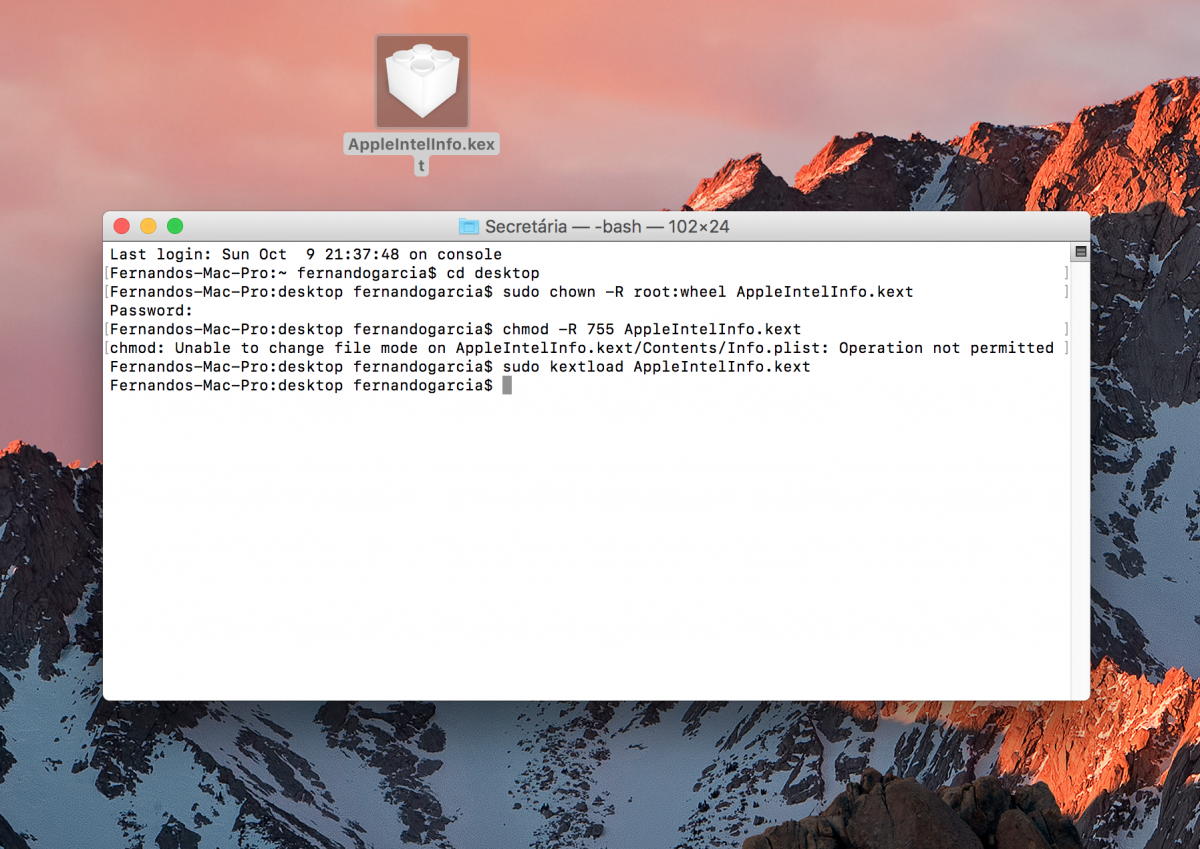

open terminal

cd desktop

sudo chown -R root:wheel AppleIntelInfo.kext

chmod -R 755 AppleIntelInfo.kext
sudo kextload AppleIntelInfo.kext
if it starts
check msr 0XE2 value

PS.
during this writing my system reboots one time..  and restart without USB 2 only 3 working i have to investigate and maybe delete some line of the config.plist of nmano/SammlerG I used:-)


edit added kext if you need it

Thanks Fabio, this one not reboot the system, but not run... :(


Link to comment
Share on other sites
Fergarth
Fergarth
Posted
Posted

Try this without Fake ID

Hi boss,

With this your .plist, i does not have restarts, open and runs stable as a good boy. I tested with IEST active and inactive and behavior in Power Gadget looks the same and performance is the same also. But it works without errors and is stable. I can not test with appleintelinfo, cause not run on my system and I do not know why...

Should I use IEST disable or enable? Now I´m using disable.

At this point i dont use any SSDT for PM. Should I use or with this patchs is not need?

And one more innocent question: How can I confirm that my BIOS is unlocked? This because AppleIntelInfo not run on my system, and I don´t know why...any alternatives?

Thanks.

  • Like 1
Link to comment
Share on other sites
jsl
jsl
Posted
Posted

I confirm

I have X99-A with 5820K



Here my EFI



Last login: Sun Oct 2 13:03:51 on console

Mac-Pro-de-Fljagd:~ fljagd$ bdmesg

0:100 0:100 MemLog inited, TSC freq: 3300000160

0:100 0:000

0:100 0:000 Now is 2.10.2016, 11:3:31 (GMT)

0:100 0:000 Starting Clover revision: 3781 on American Megatrends EFI

0:100 0:000 Build with: [Args: -x64 -D NO_GRUB_DRIVERS_EMBEDDED -D CHECK_FLAGS -t XCODE5 | -D NO_GRUB_DRIVERS_EMBEDDED -D CHECK_FLAGS -D USE_LOW_EBDA -a X64 -b RELEASE -t XCODE5 -n 13 | OS: 10.12 | XCODE: 8.0]

0:100 0:000 SelfDevicePath=PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x3,0xFFFF,0x0)\HD(1,GPT,0A2A3BFE-C3AC-4090-A736-7453B3238CE2,0x28,0x64000) @C87CAE98

0:100 0:000 SelfDirPath = \EFI\BOOT

0:102 0:002 === [ Get Smbios ] ========================================

0:103 0:000 Total Memory Slots Count = 8

0:103 0:000 Type 17 Index = 0

0:103 0:000 SmbiosTable.Type17->Speed = 2133MHz

0:103 0:000 SmbiosTable.Type17->Size = 4096MB

0:103 0:000 SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_A1

0:103 0:000 SmbiosTable.Type17->Vendor = G-Skill

0:103 0:000 SmbiosTable.Type17->SerialNumber = 00000000

0:103 0:000 SmbiosTable.Type17->PartNumber = F4-3000C15-4GRR

0:103 0:000 Type 17 Index = 1

0:103 0:000 SmbiosTable.Type17->Speed = 2133MHz

0:103 0:000 SmbiosTable.Type17->Size = 4096MB

0:103 0:000 SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_A2

0:103 0:000 SmbiosTable.Type17->Vendor = G-Skill

0:103 0:000 SmbiosTable.Type17->SerialNumber = 00000000

0:103 0:000 SmbiosTable.Type17->PartNumber = F4-3000C15-4GRR

0:103 0:000 Type 17 Index = 2

0:103 0:000 SmbiosTable.Type17->Speed = 2133MHz

0:103 0:000 SmbiosTable.Type17->Size = 4096MB

0:103 0:000 SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_B1

0:103 0:000 SmbiosTable.Type17->Vendor = G-Skill

0:103 0:000 SmbiosTable.Type17->SerialNumber = 00000000

0:103 0:000 SmbiosTable.Type17->PartNumber = F4-3000C15-4GRR

0:103 0:000 Type 17 Index = 3

0:103 0:000 SmbiosTable.Type17->Speed = 2133MHz

0:103 0:000 SmbiosTable.Type17->Size = 4096MB

0:103 0:000 SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_B2

0:103 0:000 SmbiosTable.Type17->Vendor = G-Skill

0:103 0:000 SmbiosTable.Type17->SerialNumber = 00000000

0:103 0:000 SmbiosTable.Type17->PartNumber = F4-3000C15-4GRR

0:103 0:000 Type 17 Index = 4

0:103 0:000 Ignoring insane frequency value 0MHz

0:103 0:000 SmbiosTable.Type17->Speed = 0MHz

0:103 0:000 SmbiosTable.Type17->Size = 0MB

0:103 0:000 SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_C1

0:103 0:000 SmbiosTable.Type17->Vendor =

0:103 0:000 SmbiosTable.Type17->SerialNumber =

0:103 0:000 SmbiosTable.Type17->PartNumber =

0:103 0:000 Type 17 Index = 5

0:103 0:000 Ignoring insane frequency value 0MHz

0:103 0:000 SmbiosTable.Type17->Speed = 0MHz

0:103 0:000 SmbiosTable.Type17->Size = 0MB

0:103 0:000 SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_C2

0:103 0:000 SmbiosTable.Type17->Vendor =

0:103 0:000 SmbiosTable.Type17->SerialNumber =

0:103 0:000 SmbiosTable.Type17->PartNumber =

0:103 0:000 Type 17 Index = 6

0:103 0:000 Ignoring insane frequency value 0MHz

0:103 0:000 SmbiosTable.Type17->Speed = 0MHz

0:103 0:000 SmbiosTable.Type17->Size = 0MB

0:103 0:000 SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_D1

0:103 0:000 SmbiosTable.Type17->Vendor =

0:103 0:000 SmbiosTable.Type17->SerialNumber =

0:103 0:000 SmbiosTable.Type17->PartNumber =

0:103 0:000 Type 17 Index = 7

0:103 0:000 Ignoring insane frequency value 0MHz

0:103 0:000 SmbiosTable.Type17->Speed = 0MHz

0:103 0:000 SmbiosTable.Type17->Size = 0MB

0:103 0:000 SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_D2

0:103 0:000 SmbiosTable.Type17->Vendor =

0:103 0:000 SmbiosTable.Type17->SerialNumber =

0:103 0:000 SmbiosTable.Type17->PartNumber =

0:103 0:000 Boot status=0

0:103 0:000 Running on: 'All Series' with board 'X99-A'

0:103 0:000 === [ GetCPUProperties ] ==================================

0:103 0:000 CPU Vendor = 756E6547 Model=306F2

0:103 0:000 got cores from CPUID_1 = 0

0:103 0:000 The CPU supported turbo

0:103 0:000 BrandString = Intel® Core i7-5820K CPU @ 3.30GHz

0:103 0:000 MSR 0xE2 before patch 00008400

0:103 0:000 MSR 0xE2 is locked, PM patches will be turned on

0:103 0:000 MSR 0xE4 00010414

0:103 0:000 MSR 0xCE 20080C3B_F3812100

0:103 0:000 MSR 0x1B0 00000000

0:103 0:000 FSBFrequency=100MHz DMIvalue=100000kHz

0:103 0:000 Corrected FSBFrequency=100MHz

0:103 0:000 Vendor/Model/Stepping: 0x756E6547/0x3F/0x2

0:103 0:000 Family/ExtFamily: 0x6/0x0

0:103 0:000 MaxDiv/MinDiv: 33.0/12

0:103 0:000 Turbo: 43/43/43/43

0:103 0:000 Features: 0xBFEBFBFF

0:103 0:000 Threads: 12

0:103 0:000 Cores: 6

0:103 0:000 FSB: 100 MHz

0:103 0:000 CPU: 3300 MHz

0:103 0:000 TSC: 3300 MHz

0:103 0:000 PIS: 400 MHz

0:103 0:000 === [ GetDevices ] ========================================

0:103 0:000 PCI (00|00:03.00) : 8086 2F08 class=060400

0:103 0:000 PCI (00|01:00.00) : 1002 679A class=030000

0:103 0:000 - GFX: Model=AMD Radeon HD 7950/8950/R9 280 (ATI/AMD)

0:103 0:000 PCI (00|01:00.01) : 1002 AAA0 class=040300

0:103 0:000 - HDMI Audio:

0:103 0:000 PCI (00|00:01.00) : 8086 2F02 class=060400

0:103 0:000 PCI (00|00:01.01) : 8086 2F03 class=060400

0:103 0:000 PCI (00|00:00.00) : 8086 2F00 class=060000

0:103 0:000 PCI (00|00:05.00) : 8086 2F28 class=088000

0:103 0:000 PCI (00|00:05.01) : 8086 2F29 class=088000

0:103 0:000 PCI (00|00:05.02) : 8086 2F2A class=088000

0:103 0:000 PCI (00|00:05.04) : 8086 2F2C class=080020

0:103 0:000 PCI (00|00:05.06) : FFFF FFFF class=FFFFFF

0:103 0:000 PCI (00|00:1F.00) : 8086 8D47 class=060100

0:103 0:000 PCI (00|00:1F.02) : 8086 8D02 class=010601

0:103 0:000 PCI (00|00:1F.03) : 8086 8D22 class=0C0500

0:103 0:000 PCI (00|00:1F.06) : FFFF FFFF class=FFFFFF

0:103 0:000 PCI (00|00:11.00) : 8086 8D7C class=FF0000

0:103 0:000 PCI (00|00:11.04) : 8086 8D62 class=010601

0:103 0:000 PCI (00|00:14.00) : 8086 8D31 class=0C0330

0:103 0:000 PCI (00|00:16.00) : 8086 8D3A class=078000

0:103 0:000 PCI (00|00:16.01) : FFFF FFFF class=FFFFFF

0:103 0:000 PCI (00|00:16.02) : FFFF FFFF class=FFFFFF

0:103 0:000 PCI (00|00:16.03) : FFFF FFFF class=FFFFFF

0:103 0:000 PCI (00|00:19.00) : 8086 15A1 class=020000

0:103 0:000 - LAN: 0 Vendor=Intel

0:103 0:000 PCI (00|00:1A.00) : 8086 8D2D class=0C0320

0:103 0:000 PCI (00|00:1B.00) : 8086 8D20 class=040300

0:103 0:000 PCI (00|00:1C.00) : 8086 8D10 class=060400

0:103 0:000 PCI (00|00:1C.04) : 8086 8D18 class=060400

0:103 0:000 PCI (00|05:00.00) : 1B21 1142 class=0C0330

0:103 0:000 PCI (00|00:1D.00) : 8086 8D26 class=0C0320

0:103 0:000 === [ GetDefaultSettings ] ================================

0:103 0:000 Clover load options size = 0 bytes

0:105 0:001 , Status=Success

0:105 0:000 EFI\CLOVER\config.plist loaded: Success

0:105 0:000 === [ GetListOfThemes ] ===================================

0:107 0:002 - [00]: CrispyOSX

0:109 0:001 === [ Found config plists ] ===============================

0:109 0:000 - config.plist

0:110 0:001 === [ GetEarlyUserSettings ] ==============================

0:110 0:000 timeout set to 5

0:110 0:000 Custom boot CUSTOM_BOOT_DISABLED (0x0)

0:125 0:014 KextsToPatch: 3 requested

0:131 0:006 - [00]: AppleUSBXHCIPCI (usb 3 limit 10.11) :: MatchOS: 10.11.x :: BinPatch :: data len: 7

0:161 0:029 - [01]: IOAHCIBlockStorage (Trim) :: MatchOS: 10.11.x,10.12.x :: BinPatch :: data len: 11

0:191 0:030 - [02]: AppleUSBXHCIPCI (usb 3 limit 10.12) :: MatchOS: 10.12.x :: BinPatch :: data len: 7

0:224 0:033 KernelToPatch: 6 requested

0:230 0:005 - [00]: NoLabel :: MatchOS: 10.11.x :: data len: 9

0:254 0:023 - [01]: NoLabel :: MatchOS: 10.11.x :: data len: 6

0:278 0:024 - [02]: NoLabel :: MatchOS: 10.12.x :: data len: 9

0:302 0:023 - [03]: NoLabel :: MatchOS: 10.11.x :: data len: 28

0:326 0:023 - [04]: NoLabel :: MatchOS: 10.12.x :: data len: 6

0:350 0:023 - [05]: NoLabel :: MatchOS: 10.12.x :: data len: 28

0:377 0:027 Default theme: CrispyOSX

0:383 0:005 Hiding entries with string BOOTX64.EFI

0:389 0:006 Hiding entries with string windows

0:395 0:005 Hiding entries with string Recovery

0:401 0:005 === [ LoadDrivers ] =======================================

0:648 0:246 Loading DataHubDxe-64.efi status=Success

0:667 0:019 Loading EmuVariableUefi-64.efi status=Success

0:685 0:018 EmuVariableUefi Initialize: VariableCommonInitialize = Success, orig services stored, install gEmuVariableControlProtocolGuid = Success

0:713 0:027 Loading FSInject-64.efi status=Success

0:731 0:018 Loading HFSPlus.efi status=Success

0:749 0:018 - driver needs connecting

0:755 0:005 Loading OsxAptioFixDrv-64.efi status=Success

0:773 0:018 Loading OsxFatBinaryDrv-64.efi status=Success

0:792 0:018 1 drivers needs connecting ...

0:798 0:006 PlatformDriverOverrideProtocol not found. Installing ... Success

0:810 0:011 HFS+ driver loaded

0:816 0:005 Searching for invalid DiskIo BY_DRIVER connects: not found, all ok

1:054 0:238 EmuVariable InstallEmulation: orig vars copied, emu.var.services installed, CreateEvent VirtualAddressChange = Success, CreateEvent ExitBootServices = Success, set Status=Success

1:094 0:040 === [ InitScreen ] ========================================

1:346 0:251 SetScreenResolution: 1920x1080 - already set

1:358 0:011 Console modes reported: 4, available modes:

1:364 0:005 - [01]: 80x25 (current mode)

1:370 0:005 - [02]: 80x50

1:376 0:005 - [03]: 100x31

1:385 0:009 - [04]: 240x56

1:391 0:005 reinit: self device path=PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x3,0xFFFF,0x0)\HD(1,GPT,0A2A3BFE-C3AC-4090-A736-7453B3238CE2,0x28,0x64000)

1:398 0:006 === [ GetMacAddress ] =====================================

1:631 0:233 MAC address of LAN #0= 30:5A:3A:57:61:82:

1:679 0:047 === [ ScanSPD ] ===========================================

1:949 0:270 SMBus device : 8086 8D22 class=0C0500 status=Success

1:955 0:005 SMBus CmdReg: 0x1

1:961 0:005 Scanning SMBus [8086:8D22], mmio: 0xFBF3C004, ioport: 0x580, hostc: 0x1

1:971 0:009 Slots to scan [8]...

1:978 0:007 === [ GetAcpiTablesList ] =================================

2:188 0:210 Get Acpi Tables List from RSDT:

2:200 0:011 - [00]: FACP A M I len=132

2:206 0:005 - [01]: APIC A M I len=256

2:212 0:005 - [02]: FPDT A M I len=68

2:218 0:006 - [03]: FIDT A M I len=156

2:224 0:005 - [04]: MCFG A M I len=60

2:230 0:005 - [05]: ASF! HCG len=160

2:236 0:006 - [06]: SSDT SataTabl len=877

2:245 0:009 - [07]: UEFI A M I len=66

2:251 0:006 - [08]: HPET A M I len=56

2:257 0:005 - [09]: MSCT A M I len=144

2:263 0:006 - [10]: SLIT A M I len=45

2:269 0:005 - [11]: SRAT A M I len=4440

2:275 0:005 - [12]: WDDT A M I len=64

2:281 0:005 - [13]: SSDT PmMgt len=85085

2:287 0:005 - [14]: VFCT A M I len=65668

2:293 0:005 - [15]: BGRT A M I len=56

2:299 0:005 Calibrated TSC frequency =3300000160 =3300MHz

2:305 0:006 === [ GetUserSettings ] ===================================

2:530 0:224 USB FixOwnership: yes

2:536 0:005 Dropping 3 tables:

2:542 0:005 - [00]: Drop table signature="SSDT" (54445353) table-id="Cpu0Ist" (0074734930757043)

2:644 0:101 - set table: 54445353, 74734930757043 to drop: no

2:656 0:011 - [01]: Drop table signature="DMAR" (52414D44)

2:703 0:047 - set table: 52414D44, 0 to drop: no

2:715 0:011 - [02]: Drop table signature="SSDT" (54445353) table-id="CpuPm" (0000006D50757043)

2:809 0:093 - set table: 54445353, 6D50757043 to drop: no

2:821 0:011 - final DSDT Fix mask=90400000

2:827 0:005 EnableC6: yes

2:833 0:005 Using smbios.plist at path: EFI\CLOVER\smbios.plist, Status=Not Found

2:845 0:012 === [ ScanVolumes ] =======================================

3:090 0:245 Found 17 volumes with blockIO

3:096 0:006 - [00]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)

3:111 0:014 - [01]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)

3:128 0:017 - [02]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x4,0xFFFF,0x0)

3:140 0:012 Found optical drive

3:146 0:005 - [03]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(1,GPT,00960645-06CE-4E0A-B82C-747B390637C8,0x800,0x100000)

3:158 0:012 Result of bootcode detection: bootable unknown (legacy)

3:164 0:006 - [04]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(2,GPT,6CC56453-A3D4-4AAC-871A-914E80991FB0,0x100800,0xBEC0800)

3:180 0:015 - [05]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(3,GPT,3AB5D446-EF8B-47DC-B1A7-73B1E3FA80F1,0xBFC1000,0x1FD3800)

3:193 0:012 - [06]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(1,GPT,E306BFEC-2CD4-47F2-B260-BC8AF4736067,0x28,0x64000)

3:205 0:012 Result of bootcode detection: bootable unknown (legacy)

3:212 0:007 - [07]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(2,GPT,A9DD86F4-69CE-4B54-86A3-9A2D95BBD68A,0x64028,0xDDFAC40)

3:228 0:015 - [08]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(3,GPT,27798B1C-2997-452F-A8F6-31FC9B5A44BD,0xDE5EC68,0x135F20)

3:241 0:012 hiding this volume

3:247 0:005 - [09]: Volume: PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x2,0xFFFF,0x0)

3:259 0:012 - [10]: Volume: PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x3,0xFFFF,0x0)

3:272 0:012 - [11]: Volume: PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x2,0xFFFF,0x0)\HD(1,GPT,B1650157-FE7D-492F-AC4C-7B333B79F801,0x28,0x64000)

3:284 0:012 Result of bootcode detection: bootable unknown (legacy)

3:314 0:029 - [12]: Volume: PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x2,0xFFFF,0x0)\HD(2,GPT,9128246A-7393-40AC-BB96-75465F7DE11D,0x64028,0xA30723F8)

3:327 0:012 - [13]: Volume: PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x2,0xFFFF,0x0)\HD(3,GPT,63C4321E-4CF1-4831-93BC-0B8AC34F5751,0xA3116420,0x45CB2468)

3:339 0:012 - [14]: Volume: PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x3,0xFFFF,0x0)\HD(1,GPT,0A2A3BFE-C3AC-4090-A736-7453B3238CE2,0x28,0x64000)

3:352 0:012 Result of bootcode detection: bootable unknown (legacy)

3:361 0:009 This is SelfVolume !!

3:367 0:006 - [15]: Volume: PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x3,0xFFFF,0x0)\HD(2,GPT,F9EB2C88-4756-4B60-B231-6CDC92DABA9E,0x64028,0x1BD8A540)

3:380 0:012 - [16]: Volume: PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x3,0xFFFF,0x0)\HD(3,GPT,69789CCA-F8B6-4C40-AE30-89A595B6863B,0x1BDEE568,0x135F20)

3:393 0:012 hiding this volume

3:402 0:009 Loading nvram.plist from Vol 'El Capitan' - loaded, size=5427

3:419 0:017 === [ PutNvramPlistToRtVars ] =============================

3:605 0:186 Skipping EmuVariableUefiPresent

3:611 0:005 Skipping OsxAptioFixDrv-RelocBase

3:617 0:006 === [ InitTheme ] =========================================

3:875 0:257 Using theme 'CrispyOSX' (EFI\CLOVER\themes\CrispyOSX)

3:881 0:005 theme CrispyOSX defined in NVRAM found and theme.plist parsed

3:887 0:006 OS main and drive as badge

3:895 0:007 Choosing theme CrispyOSX

3:901 0:005 after NVRAM boot-args=npci=0x2000 -alcoff

3:910 0:009 === [ ScanLoader ] ========================================

4:161 0:251 - [03]: 'EFI'

4:179 0:017 - [06]: 'EFI'

4:195 0:016 - [07]: 'Sierra'

4:210 0:015 AddLoaderEntry for Volume Name=Sierra

4:218 0:007 Check if volume Is Hibernated:

4:224 0:006 Check sleep image 'by signature':

4:233 0:008 read prefs \Library\Preferences\SystemConfiguration\com.apple.PowerManagement.plist status=Not Found

4:239 0:006 using default sleep image name = \private\var\vm\sleepimage

4:250 0:011 Reading first 512 bytes of sleepimage ...

4:257 0:006 OurBlockIoRead: Lba=16FD5D8, Offset=2DFABB000 (BlockSize=512)

4:263 0:005 sig lion: 0

4:269 0:005 sig snow: 0

4:275 0:006 no valid sleep image offset was found

4:281 0:005 Reading completed -> Success

4:287 0:006 sleepimage offset could not be acquired

4:293 0:005 hibernated: no - sign

4:299 0:006 [!] Icon 17 (icons\vol_internal_hfs.icns) not found (path: EFI\CLOVER\themes\CrispyOSX)

4:313 0:013 - [08]: 'Recovery HD', hidden

4:325 0:012 - [11]: 'EFI'

4:357 0:031 AddLoaderEntry for Volume Name=EFI

4:363 0:006 [!] Icon 19 (icons\vol_internal_ext3.icns) not found (path: EFI\CLOVER\themes\CrispyOSX)

4:371 0:008 - [12]: 'Stockage'

4:388 0:016 - [13]: 'Time Machine'

4:405 0:017 - [14]: 'EFI'

4:421 0:016 - [15]: 'El Capitan'

4:436 0:015 AddLoaderEntry for Volume Name=El Capitan

4:446 0:009 Check if volume Is Hibernated:

4:455 0:009 Check sleep image 'by signature':

4:466 0:011 read prefs \Library\Preferences\SystemConfiguration\com.apple.PowerManagement.plist status=Success

4:472 0:006 SleepImage name from pref: ImageVolume = 'El Capitan', ImageName = '\private\var\vm\sleepimage'

4:480 0:007 Reading first 512 bytes of sleepimage ...

4:487 0:006 OurBlockIoRead: Lba=13624048, Offset=26C4809000 (BlockSize=512)

4:493 0:006 sig lion: 0

4:499 0:005 sig snow: 0

4:508 0:009 no valid sleep image offset was found

4:514 0:006 Reading completed -> Success

4:520 0:005 sleepimage offset could not be acquired

4:526 0:005 hibernated: no - sign

4:537 0:010 - [16]: 'Recovery HD', hidden

4:549 0:012 === [ AddCustomLegacy ] ===================================

4:772 0:222 Scanning legacy ...

4:778 0:005 0: 'Whole Disc Boot' (legacy) not legacy

4:790 0:011 1: 'Whole Disc Boot' (legacy) not legacy

4:802 0:011 2: 'Whole Disc Boot' (legacy) not legacy

4:817 0:015 3: 'EFI' (legacy) not legacy

4:829 0:011 4: 'Legacy HD2' (legacy) not legacy

4:841 0:011 5: 'Legacy HD3' (legacy) not legacy

4:853 0:011 6: 'EFI' (legacy) not legacy

4:865 0:011 7: 'Sierra' (legacy) not legacy

4:877 0:011 8: 'Recovery HD' (legacy) not legacy

4:889 0:011 9: 'Whole Disc Boot' (legacy) not legacy

4:901 0:011 10: 'Whole Disc Boot' (legacy) not legacy

4:913 0:011 11: 'EFI' (legacy) not legacy

4:925 0:012 12: 'Stockage' (legacy) not legacy

4:940 0:015 13: 'Time Machine' (legacy) not legacy

4:952 0:011 14: 'EFI' (legacy) not legacy

4:964 0:011 15: 'El Capitan' (legacy) not legacy

4:976 0:012 16: 'Recovery HD' (legacy) not legacy

4:988 0:012 === [ AddCustomTool ] =====================================

5:222 0:234 found tool \EFI\CLOVER\tools\Shell64U.efi

5:228 0:006 Checking EFI partition Volume 3 for Clover

5:234 0:005 Checking EFI partition Volume 6 for Clover

5:240 0:005 Checking EFI partition Volume 11 for Clover

5:250 0:009 Checking EFI partition Volume 14 for Clover

5:256 0:005 Found Clover

5:262 0:006 EmuVariable UninstallEmulation: CloseEvent = Success, original var services restored

5:280 0:018 === [ FindDefaultEntry ] ==================================

5:496 0:215 EmuVariable InstallEmulation: orig vars copied, emu.var.services installed, CreateEvent VirtualAddressChange = Success, CreateEvent ExitBootServices = Success, set Status=Success

5:536 0:040 === [ GetEfiBootDeviceFromNvram ] =========================

5:701 0:165 Default boot entry not found

5:707 0:005 EmuVariable UninstallEmulation: CloseEvent = Success, original var services restored

5:725 0:017 DefaultIndex=-1 and MainMenu.EntryCount=9

5:981 0:255 Found Mouse device:

5:989 0:007 GUI ready

7:199 1:209 BootOption of the entry is empty

7:210 0:011 === [ StartLoader ] =======================================

7:455 0:245 Finally: Bus=100000kHz CPU=3300MHz

7:461 0:005 Loading boot.efi status=Success

7:495 0:034 GetOSVersion: 10.12 (16A323)

7:507 0:011 CSR_CFG: CSR_ALLOW_UNTRUSTED_KEXTS | CSR_ALLOW_UNRESTRICTED_FS | CSR_ALLOW_TASK_FOR_PID | CSR_ALLOW_UNRESTRICTED_DTRACE | CSR_ALLOW_UNRESTRICTED_NVRAM

7:513 0:005 Filtering KextPatches:

7:519 0:005 - [00]: AppleUSBXHCIPCI (usb 3 limit 10.11) :: BinPatch :: [OS: 10.12 | MatchOS: 10.11.x | MatchBuild: All] ==> not allowed

7:531 0:011 - [01]: IOAHCIBlockStorage (Trim) :: BinPatch :: [OS: 10.12 | MatchOS: 10.11.x,10.12.x | MatchBuild: All] ==> allowed

7:546 0:015 - [02]: AppleUSBXHCIPCI (usb 3 limit 10.12) :: BinPatch :: [OS: 10.12 | MatchOS: 10.12.x | MatchBuild: All] ==> allowed

7:558 0:011 Filtering KernelPatches:

7:564 0:005 - [00]: NoLabel :: [OS: 10.12 | MatchOS: 10.11.x | MatchBuild: All] ==> not allowed

7:576 0:011 - [01]: NoLabel :: [OS: 10.12 | MatchOS: 10.11.x | MatchBuild: All] ==> not allowed

7:588 0:011 - [02]: NoLabel :: [OS: 10.12 | MatchOS: 10.12.x | MatchBuild: All] ==> allowed

7:600 0:011 - [03]: NoLabel :: [OS: 10.12 | MatchOS: 10.11.x | MatchBuild: All] ==> not allowed

7:615 0:015 - [04]: NoLabel :: [OS: 10.12 | MatchOS: 10.12.x | MatchBuild: All] ==> allowed

7:627 0:011 - [05]: NoLabel :: [OS: 10.12 | MatchOS: 10.12.x | MatchBuild: All] ==> allowed

7:639 0:011 EmuVariable InstallEmulation: orig vars copied, emu.var.services installed, CreateEvent VirtualAddressChange = Success, CreateEvent ExitBootServices = Success, set Status=Success

7:680 0:040 === [ PatchSmbios ] =======================================

7:929 0:248 insert table 9 for dev 0:0

7:935 0:005 insert table 9 for dev 0:1

7:941 0:005 insert table 9 for dev 19:0

7:947 0:006 Trusting SMBIOS...

7:953 0:005 Detected alternating SMBIOS channel banks

7:959 0:005 Channels: 4

7:965 0:005 Interleave: 0 2 4 6 1 3 5 7 8 10 12 14 9 11 13 15 16 18 20 22 17 19 21 23

8:121 0:155 partNum=F4-3000C15-4GRR

8:127 0:005 SMBIOS Type 17 Index = 0 => 0 0:

8:133 0:005 DIMM1 2133MHz 4096MB

8:139 0:005 partNum=F4-3000C15-4GRR

8:148 0:009 SMBIOS Type 17 Index = 1 => 1 2:

8:154 0:005 DIMM2 2133MHz 4096MB

8:160 0:005 partNum=F4-3000C15-4GRR

8:166 0:005 SMBIOS Type 17 Index = 2 => 2 4:

8:172 0:005 DIMM3 2133MHz 4096MB

8:178 0:005 partNum=F4-3000C15-4GRR

8:184 0:005 SMBIOS Type 17 Index = 3 => 3 6:

8:190 0:005 DIMM4 2133MHz 4096MB

8:196 0:005 SMBIOS Type 17 Index = 4 => 4 1:

8:202 0:005 DIMM5 EMPTY

8:208 0:005 SMBIOS Type 17 Index = 5 => 5 3:

8:214 0:005 DIMM6 EMPTY

8:223 0:009 SMBIOS Type 17 Index = 6 => 6 5:

8:229 0:005 DIMM7 EMPTY

8:235 0:005 SMBIOS Type 17 Index = 7 => 7 7:

8:241 0:006 DIMM8 EMPTY

8:247 0:005 mTotalSystemMemory = 16384

8:253 0:005 NumberOfMemoryDevices = 8

8:259 0:005 Type20[0]->End = 0x3FFFFF, Type17[0] = 0x1000

8:265 0:005 Type20[1]->End = 0x7FFFFF, Type17[1] = 0x3000

8:271 0:005 Type20[2]->End = 0xBFFFFF, Type17[2] = 0x6000

8:277 0:005 Type20[3]->End = 0xFFFFFF, Type17[3] = 0xA000

8:283 0:005 Table 131 is present, CPUType=10

8:292 0:009 Change to: 507

8:298 0:005 === [ PatchACPI ] =========================================

8:555 0:257 RSDT 0xCB39D028

8:561 0:006 FADT from RSDT: 0xCB39D148

8:567 0:005 XSDT 0xCB39D098

8:573 0:006 FADT from XSDT: 0xCB3D33A0

8:579 0:005 Xsdt reallocation done

8:585 0:005 old FADT length=10C

8:591 0:006 Found OperationRegion(PSYS, SystemMemory, CC5E4000, ...)

8:597 0:006 Found OperationRegion(HPTC, SystemMemory, FED1F404, ...)

8:603 0:005 Found OperationRegion(MCTL, SystemMemory, E0000188, ...)

8:613 0:009 Found OperationRegion(MCTL, SystemMemory, E0008188, ...)

8:619 0:006 Found OperationRegion(MCTL, SystemMemory, E0009188, ...)

8:625 0:005 Found OperationRegion(MCTL, SystemMemory, E0010188, ...)

8:631 0:005 Found OperationRegion(MCTL, SystemMemory, E0011188, ...)

8:637 0:005 Found OperationRegion(MCTL, SystemMemory, E0012188, ...)

8:643 0:005 Found OperationRegion(MCTL, SystemMemory, E0013188, ...)

8:648 0:005 Found OperationRegion(MCTL, SystemMemory, E0018188, ...)

8:658 0:009 Found OperationRegion(MCTL, SystemMemory, E0019188, ...)

8:664 0:005 Found OperationRegion(MCTL, SystemMemory, E001A188, ...)

8:670 0:006 Found OperationRegion(MCTL, SystemMemory, E001B188, ...)

8:676 0:005 Found OperationRegion(MCTL, SystemMemory, E0000188, ...)

8:682 0:005 Found OperationRegion(MCTL, SystemMemory, E0008188, ...)

8:688 0:006 Found OperationRegion(MCTL, SystemMemory, E0009188, ...)

8:694 0:005 Found OperationRegion(MCTL, SystemMemory, E0010188, ...)

8:703 0:009 Found OperationRegion(MCTL, SystemMemory, E0011188, ...)

8:709 0:005 Found OperationRegion(MCTL, SystemMemory, E0012188, ...)

8:715 0:005 Found OperationRegion(MCTL, SystemMemory, E0013188, ...)

8:721 0:005 Found OperationRegion(MCTL, SystemMemory, E0018188, ...)

8:727 0:005 Found OperationRegion(MCTL, SystemMemory, E0019188, ...)

8:733 0:005 Found OperationRegion(MCTL, SystemMemory, E001A188, ...)

8:739 0:005 Found OperationRegion(MCTL, SystemMemory, E001B188, ...)

8:748 0:009 Found OperationRegion(MCTL, SystemMemory, E0000188, ...)

8:754 0:005 Found OperationRegion(MCTL, SystemMemory, E0008188, ...)

8:760 0:005 Found OperationRegion(MCTL, SystemMemory, E0009188, ...)

8:766 0:006 Found OperationRegion(MCTL, SystemMemory, E0010188, ...)

8:772 0:005 Found OperationRegion(MCTL, SystemMemory, E0011188, ...)

8:778 0:006 Found OperationRegion(MCTL, SystemMemory, E0012188, ...)

8:784 0:005 Found OperationRegion(MCTL, SystemMemory, E0013188, ...)

8:793 0:009 Found OperationRegion(MCTL, SystemMemory, E0018188, ...)

8:799 0:006 Found OperationRegion(MCTL, SystemMemory, E0019188, ...)

8:805 0:005 Found OperationRegion(MCTL, SystemMemory, E001A188, ...)

8:811 0:005 Found OperationRegion(MCTL, SystemMemory, E001B188, ...)

8:817 0:005 Found OperationRegion(MCTL, SystemMemory, E0000188, ...)

8:823 0:005 Found OperationRegion(MCTL, SystemMemory, E0008188, ...)

8:829 0:005 Found OperationRegion(MCTL, SystemMemory, E0009188, ...)

8:838 0:009 Found OperationRegion(MCTL, SystemMemory, E0010188, ...)

8:844 0:006 Found OperationRegion(MCTL, SystemMemory, E0011188, ...)

8:850 0:005 Found OperationRegion(MCTL, SystemMemory, E0012188, ...)

8:856 0:005 Found OperationRegion(MCTL, SystemMemory, E0013188, ...)

8:862 0:005 Found OperationRegion(MCTL, SystemMemory, E0018188, ...)

8:868 0:005 Found OperationRegion(MCTL, SystemMemory, E0019188, ...)

8:874 0:005 Found OperationRegion(MCTL, SystemMemory, E001A188, ...)

8:884 0:009 Found OperationRegion(RAMW, SystemMemory, CC5D3018, ...)

8:890 0:006 Found OperationRegion(RAMX, SystemMemory, CC5F2D98, ...)

8:896 0:006 Found OperationRegion(TMMB, SystemMemory, FED40000, ...)

8:902 0:005 Found OperationRegion(CRBD, SystemMemory, FED40000, ...)

8:908 0:005 Found OperationRegion(TPMR, SystemMemory, FFFFFFFF, ...)

8:914 0:005 Found OperationRegion(TBNV, SystemMemory, FFFF0000, ...)

8:920 0:005 Unable to determine address for OperationRegion(PXVD, SystemMemory, ...) skipping

8:929 0:009 Unable to determine address for OperationRegion(PXVD, SystemMemory, ...) skipping

8:935 0:005 Unable to determine address for OperationRegion(MMMM, SystemMemory, ...) skipping

8:941 0:005 Unable to determine address for OperationRegion(RP_X, SystemMemory, ...) skipping

8:947 0:005 Unable to determine address for OperationRegion(RP_X, SystemMemory, ...) skipping

8:953 0:005 Unable to determine address for OperationRegion(RP_X, SystemMemory, ...) skipping

8:959 0:005 Unable to determine address for OperationRegion(PXVD, SystemMemory, ...) skipping

8:968 0:009 Unable to determine address for OperationRegion(RP_X, SystemMemory, ...) skipping

8:974 0:005 Unable to determine address for OperationRegion(RP_X, SystemMemory, ...) skipping

8:980 0:005 Unable to determine address for OperationRegion(PCFG, SystemMemory, ...) skipping

8:986 0:005 Unable to determine address for OperationRegion(PCFG, SystemMemory, ...) skipping

8:992 0:005 Unable to determine address for OperationRegion(PCFG, SystemMemory, ...) skipping

9:001 0:009 Unable to determine address for OperationRegion(PCFG, SystemMemory, ...) skipping

9:007 0:005 Unable to determine address for OperationRegion(PCFG, SystemMemory, ...) skipping

9:013 0:005 Unable to determine address for OperationRegion(PCFG, SystemMemory, ...) skipping

9:019 0:005 Unable to determine address for OperationRegion(PCFG, SystemMemory, ...) skipping

9:025 0:005 DSDT found in Clover volume OEM folder: EFI\CLOVER\ACPI\patched\DSDT.aml

9:037 0:012 Apply DsdtFixMask=0x90400000 new way

9:044 0:006 drop _DSM mask=0x0000

9:050 0:006 === [ FixBiosDsdt ] =======================================

9:295 0:244 VideoCard devID=0x679A1002

9:301 0:005 DisplayADR1[0] = 0x30000, DisplayADR2[0] = 0x0

9:307 0:006 USBADR[0] = 0x140000 and PCIe = 0xFFFE

9:313 0:006 USBADR[1] = 0x1A0000 and PCIe = 0xFFFE

9:346 0:033 Audio HDA (addr:0x1B0000) setting specified layout-id=1 (0x1)

9:352 0:006 USBADR[2] = 0x1C0004 and PCIe = 0x0

9:362 0:009 USBADR[3] = 0x1D0000 and PCIe = 0xFFFE

9:367 0:005 first CPU found at 2A5B offset 2A5F

9:373 0:005 device candidate at 29C7

9:379 0:005 device inserted in acpi_cpu_score SCK0

9:385 0:005 score candidate at 27F4

9:391 0:005 score inserted in acpi_cpu_score _SB_SCK0

9:397 0:005 Found ACPI CPU: CP00 | CP01 | CP02 | CP03 | CP04 | CP05 | CP06 | CP07 | CP08 | CP09 | CP0A | CP0B | CP0C | CP0D | CP0E | CP0F | CP10 | CP11 | CP12 | CP13 | CP14 | CP15 | CP16 | CP17 | CP18 | CP19 | CP1A | CP1B | CP1C | CP1D | CP1E | CP1F , within the score: _SB_SCK0

9:599 0:201 Found PCIROOTUID = 0

9:605 0:005 deleting device CRT_

9:612 0:006 deleting device DVI_

9:618 0:006 deleting device SPKR

9:624 0:006 deleting device ECP_

9:631 0:006 deleting device LPT_

9:637 0:006 deleting device FDC0

9:644 0:006 deleting device ECP1

9:650 0:006 deleting device LPT1

9:657 0:006 OperationRegion (PSYS...) corrected to addr=0xCC5E4000

9:663 0:006 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:672 0:009 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:678 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:684 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:690 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:696 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:702 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:708 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:717 0:009 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:723 0:006 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:729 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:735 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:741 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:747 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:753 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:762 0:009 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:768 0:006 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:774 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:780 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:786 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:792 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:798 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:804 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:813 0:009 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:819 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:825 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:831 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:837 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:843 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:849 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:858 0:009 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:864 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:870 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:876 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:882 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:888 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:894 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:904 0:009 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:910 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:916 0:006 indirect name=RAMB

9:922 0:005 OperationRegion (RAMW...) corrected to addr=0xCC5D3018

9:928 0:006 indirect name=RAMS

9:934 0:005 OperationRegion (RAMX...) corrected to addr=0xCC5F2D98

9:940 0:005 indirect name=TPMM

9:946 0:005 indirect name=FTPM

9:952 0:006 === [ ACPIDropTables ] ====================================

10:179 0:227 === [ PatchAllSSDT ] ======================================

10:422 0:242 Patch table: SSDT SataTabl

10:428 0:005 SSDT len = 0x36D

10:434 0:005 Patch table: SSDT PmMgt

10:440 0:005 SSDT len = 0x14C5D

10:446 0:006 Drop tables from Xsdt, SIGN=XXXX TableID= Length=0

10:452 0:005 Xsdt has tables count=16

10:458 0:005 corrected XSDT length=164

10:464 0:005 CPUBase=0 and ApicCPUBase=0 ApicCPUNum=12

10:470 0:005 Maximum control=0x21

10:476 0:005 Turbo control=0x2B

10:482 0:005 P-States: min 0xC, max 0x2B

10:491 0:009 SSDT with CPU P-States generated successfully

10:497 0:006 SSDT with CPU C-States generated successfully

10:503 0:006 === [ RestSetupOSX ] ======================================

10:743 0:239 Framebuffer @0xD0000000 MMIO @0xFBE00000 I/O Port @0x0000E000 ROM Addr @0xFBE40000

10:749 0:005 ATI card POSTed,

10:761 0:012 Set VRAM for Cedar+ =3072Mb

10:767 0:005 ATI: get_vram_size returned 0xC0000000

10:773 0:006 ATI Radeon EVERGREEN family

10:782 0:009 Users config name Aji

10:788 0:006 (AtiPorts) Nr of ports set to: 5

10:794 0:006 ATI Tahiti AMD Radeon HD 7950/8950/R9 280 3072MB (Aji) [1002:679A] (subsys [174B:E208]):: PciRoot(0x0)\Pci(0x3,0x0)\Pci(0x0,0x0)

10:800 0:006 HDA Controller [8086:8D20] :: PciRoot(0x0)\Pci(0x1B,0x0) => setting specified layout-id=1 (0x1)

10:812 0:012 stringlength = 6698

10:818 0:006 CurrentMode: Width=1920 Height=1080

10:824 0:005 Beginning FSInjection

FSInjectionInstall ...

- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: C8748A98

FSInjectionInstall ...

- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: C8748A98

10:834 0:009 Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\Other

10:847 0:013 Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10.12

10:855 0:008 Extra kext: EFI\CLOVER\kexts\10.12\FakeSMC.kext

10:863 0:007 Extra PlugIn kext: EFI\CLOVER\kexts\10.12\FakeSMC.kext\Contents\PlugIns\FakeSMC_ACPISensors.kext

10:869 0:005 Extra PlugIn kext: EFI\CLOVER\kexts\10.12\FakeSMC.kext\Contents\PlugIns\FakeSMC_CPUSensors.kext

10:875 0:005 Extra PlugIn kext: EFI\CLOVER\kexts\10.12\FakeSMC.kext\Contents\PlugIns\FakeSMC_GPUSensors.kext

10:884 0:009 Extra PlugIn kext: EFI\CLOVER\kexts\10.12\FakeSMC.kext\Contents\PlugIns\FakeSMC_LPCSensors.kext

10:893 0:008 Extra kext: EFI\CLOVER\kexts\10.12\USB_Injector.kext

10:898 0:005 Extra kext: EFI\CLOVER\kexts\10.12\Shiki.kext

10:906 0:008 Extra kext: EFI\CLOVER\kexts\10.12\IntelMausiEthernet.kext

10:915 0:008 Extra kext: EFI\CLOVER\kexts\10.12\VoodooHDA.kext

10:925 0:009 Extra kext: EFI\CLOVER\kexts\10.12\AppleHDADisabler.kext

10:935 0:009 Custom boot is disabled



Mac-Pro-de-Fljagd:~ fljagd$







Hi, Fljagd :

Thanks for your EFI and setup info for Asus X99A MB.

I'm using GTX-960 display card.

Just want to know whether internal ALC-1150 audio and HDMI audio from AMD 7950 working or not.

Or you have disabled ALC-1150 and applied VoodooHDA ?

Also in your DSDT.aml there is no PEGP or HDAU patching.

How many display ports working from AMD 7950 ?

Link to comment
Share on other sites
Fljagd
Fljagd
Posted
Posted

Hi, Fljagd :

Thanks for your EFI and setup info for Asus X99A MB.

I'm using GTX-960 display card.

Just want to know whether internal ALC-1150 audio and HDMI audio from AMD 7950 working or not.

Or you have disabled ALC-1150 and applied VoodooHDA ?

Also in your DSDT.aml there is no PEGP or HDAU patching.

How many display ports working from AMD 7950 ?

Hello,

ALC1150 works well with VoodooHDA 2.8.9 or AppleACL

All video ports (2DP, 1 DVI, 1 HDMI) works well (HD 7950)

HDMI Audio is not working

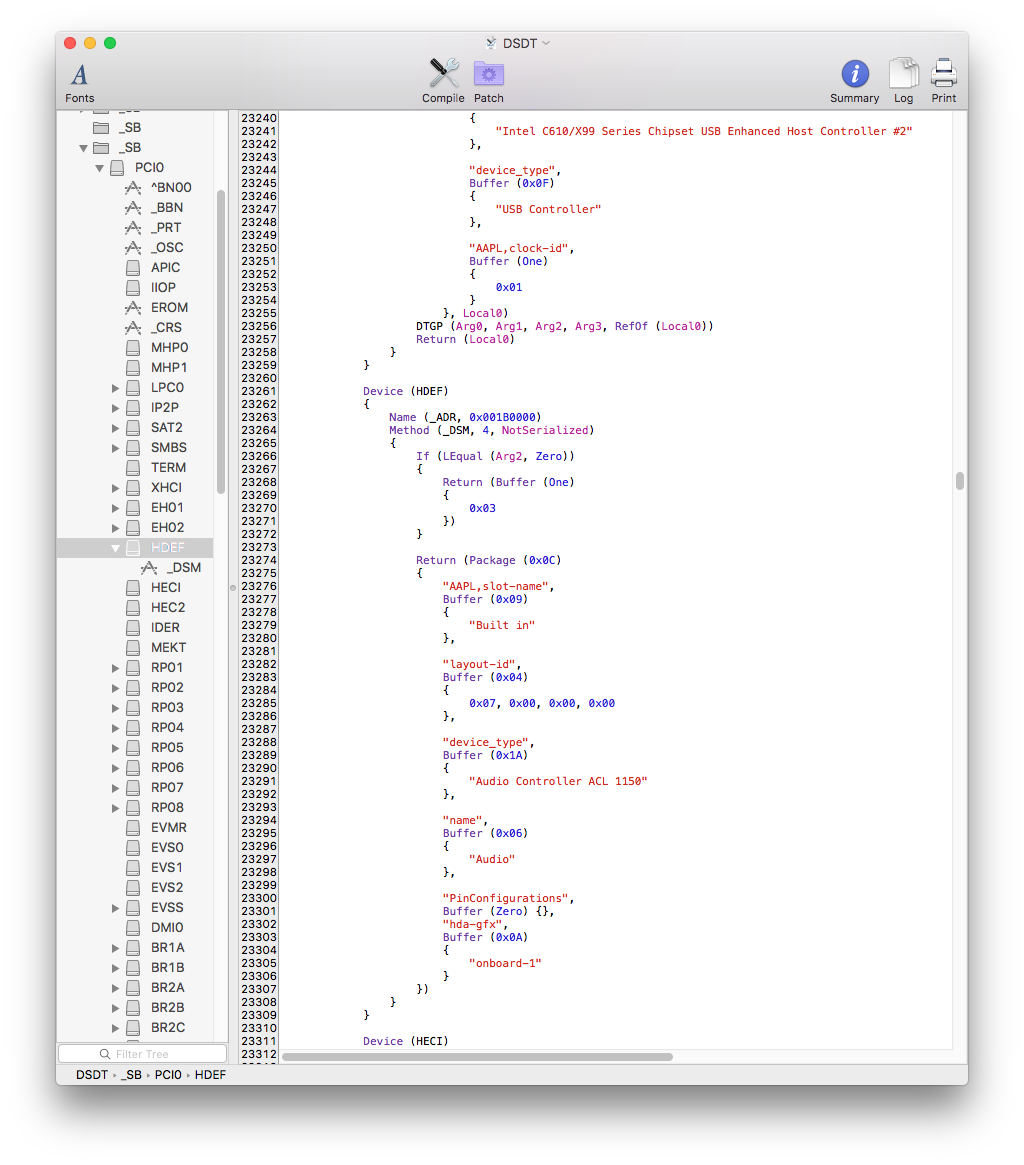

My DSDT is iGPU HDAU AND HDEF

H000 re name iGPU

H001 re name HDAU



  • Like 2
Link to comment
Share on other sites
ACIDSky
ACIDSky
Posted
Posted

Sorry for my bad English. Noticed this: With the patch from Pike for XCPM in the log here are the messages appear. Processor 5930К.

2016-10-10 15:51:47.733070+0300 0x15a      Error       0x0                  0      kernel: (IOHIDFamily) loginwindow is not entitled
2016-10-10 15:51:47.733158+0300 0x15a      Error       0x0                  0      kernel: (IOHIDFamily) UserEventAgent is not entitled
2016-10-10 15:51:47.733174+0300 0x158      Error       0x0                  0      kernel: (IOHIDFamily) loginwindow is not entitled
2016-10-10 15:51:47.733215+0300 0x158      Error       0x0                  0      kernel: (IOHIDFamily) UserEventAgent is not entitled
2016-10-10 15:51:47.733270+0300 0x158      Error       0x0                  0      kernel: (IOHIDFamily) UserEventAgent is not entitled

Without the patch these messages no.

Link to comment
Share on other sites
jsl
jsl
Posted
Posted

Hello,

ALC1150 works well with VoodooHDA 2.8.9 or AppleACL

All video ports (2DP, 1 DVI, 1 HDMI) works well (HD 7950)

HDMI Audio is not working

My DSDT is iGPU HDAU AND HDEF

H000 re name iGPU

H001 re name HDAU

Thanks for your kind help and prompt reply.

I'll try to edit it to fit my Nvidia GTX-960 display card and make its HDMI audio working without HDMIAudio.kext currently used.

Link to comment
Share on other sites
Fljagd
Fljagd
Posted
Posted (edited)

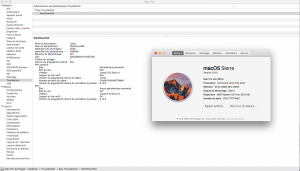

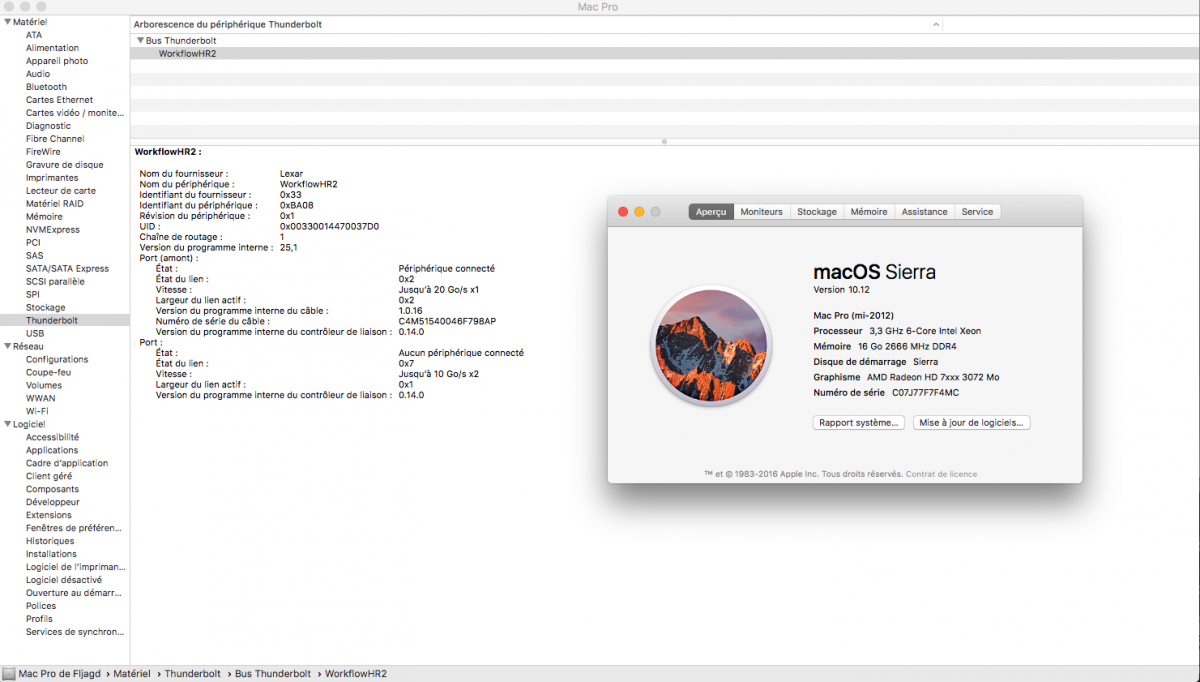

To show active status did you attach a peripheral? If so what peripheral, hd? sound card?

Yes my peripheral is plug

Hdd -SSD- SD card

I use https://www.amazon.fr/Lexar-Professional-Workflow-lecteurs-Thunderbolt/dp/B00L3JYATO/ref=sr_1_1?ie=UTF8&qid=1476194583&sr=8-1&keywords=lexar+thunderbolt

Edited by Fljagd
Link to comment
Share on other sites
thenightflyer
thenightflyer
Posted
Posted

Did you try to compress and uncompresso, copy move small file size? I use a Lacia Big Disk raid TB2 and sometimes when using unrar or moving/copying big or small files it hangs and disconnect and gives me I/O Error. Same with another TB disk...maybe it's because of allocation problems.

Link to comment
Share on other sites
Fljagd
Fljagd
Posted
Posted

I did some testing with multiple files
J have make a copy of, multiple file of 4.6 GB
All went well



I have not tested the compression
Also I have disassembled the map it was a test, I mounted a deluxe X99
I can take the test on the deluxe

Link to comment
Share on other sites
thenightflyer
thenightflyer
Posted
Posted

I did some testing with multiple files

J have make a copy of, multiple file of 4.6 GB

All went well



I have not tested the compression

Also I have disassembled the map it was a test, I mounted a deluxe X99

I can take the test on the deluxe

It would be appreciated if you could post screenshots of thunderbolt device menu in your bios...X99 A and Deluxe have the same bios and bios menu.

Link to comment
Share on other sites
Fljagd
Fljagd
Posted
Posted

works well also with the compressed file (zip)


It would be appreciated if you could post screenshots of thunderbolt device menu in your bios...X99 A and Deluxe have the same bios and bios menu.

here for deluxe

For X99-A it is the same principle

Deluxe.zip

  • Like 1
Link to comment
Share on other sites
Balamut
Balamut
Posted
Posted

@nmano



One more favor, can you please help out with this board too?



Hardware

Motherboard: X99-E WS

BIOS: 3302 MSR 0xE2 Patched/Unlocked

CPU: i7 5690X

GPU: Asus  Titan X

Memory: 64GB

HDEF: ALC1150



PCIE slots used

PCIE16_1 GPUs

PCIE16_5 X540-da2

PCIE16_6 WIFI, Apples Original.







Attachments

Original DSDT: DSDT.aml.zip

Full ACPI Dump from Clover:  origin.zip

IOJones ioreg file: Balamut’s Mac ProX99.ioreg.zip



Thanks a lot man.

Link to comment
Share on other sites
nmano
nmano
Posted
  • Author
Posted

@nmano



One more favor, can you please help out with this board too?



Hardware

Motherboard: X99-E WS

BIOS: 3302 MSR 0xE2 Patched/Unlocked

CPU: i7 5690X

GPU: Asus  Titan X

Memory: 64GB

HDEF: ALC1150



PCIE slots used

PCIE16_1 GPUs

PCIE16_5 X540-da2

PCIE16_6 WIFI, Apples Original.







Attachments

Original DSDT: attachicon.gifDSDT.aml.zip

Full ACPI Dump from Clover:  attachicon.giforigin.zip

IOJones ioreg file: attachicon.gifBalamut’s Mac ProX99.ioreg.zip



Thanks a lot man.

 #X99-E WS

#Test and Feedback

X99-E WS.zip

  • Like 1
Link to comment
Share on other sites
nmano
nmano
Posted
  • Author
Posted

XCPM Restat Fixed



I Disable patch 5

E2000000 90330000 00000000 00000000 0F040000 00000000 0800007E

00000000 00000000 00000000 00000000 00000000 00000000 00000000



Thanks.

SammlerG Sierra xcpm MSR Test Patch 5

config.plist.zip

  • Like 2
Link to comment
Share on other sites
Fergarth
Fergarth
Posted
Posted

XCPM Restat Fixed



I Disable patch 5

E2000000 90330000 00000000 00000000 0F040000 00000000 0800007E

00000000 00000000 00000000 00000000 00000000 00000000 00000000



Thanks.

SammlerG Sierra xcpm MSR Test Patch 5



Hi nmano, you all right?

As soon as I can I will try that your .plist

Only two questions:

EIST must be enabled or disabled?

It is best to use SSDT generated for the PM or not?

Thank you.

Link to comment
Share on other sites
thenightflyer
thenightflyer
Posted
Posted

Hi nmano, you all right?

As soon as I can I will try that your .plist

Only two questions:

EIST must be enabled or disabled?

It is best to use SSDT generated for the PM or not?

Thank you.

If you enable EIST you will have low scores but no high cpu score, your geekbench will be very low compared when you disable EIST.

  • Like 1
Link to comment
Share on other sites
 Share
Go to topic listing
×
×
  • Create New...
