[Guide] Mac OSX 10.12 and 10.13 with X99 Broadwell-E family and Haswell-E family

nmano · October 2, 2016

Hi Gajaciosif

#Gigabyte GA-X99-Ultra Gaming

#Test and feedback

Balamut · October 3, 2016

Thanks guys, I'm on my way to the office and will test all and report.

Fljagd · October 3, 2016

Hi nmano,
You are a true leader with the DSDT.
Congratulations.
Could you open a post, and we make an illustrated tutorial?
in which you explain how you build the DSDT, step by step.
With an example
Thank you

thenightflyer · October 3, 2016

Hi thenightflyer

#Test and feedback

#ASUS X99 Deluxe

Thanks nmano i will test in the afternoon and will report...

Inviato dal mio iPhone utilizzando Tapatalk

SammlerG · October 3, 2016

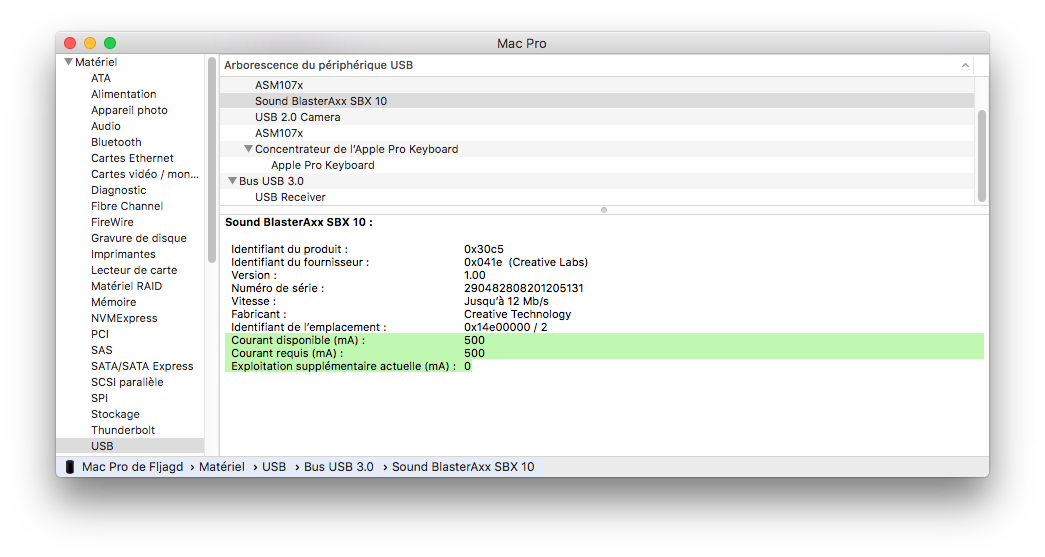

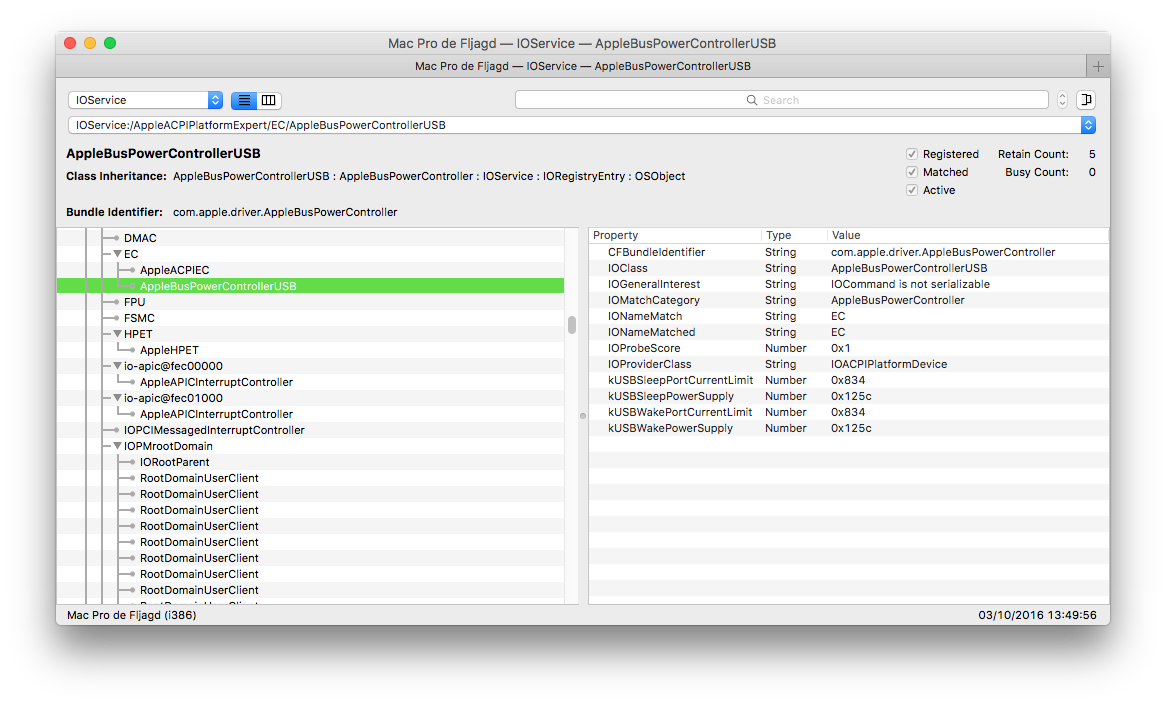

With X99 Board you can test to enable Apple Bus Power Controller USB

Rename

Scope (_SB.PCI0.LPC0)

{

Device (EC0)

to

Scope (_SB.PCI0.LPC0)

{

Device (EC)

Fljagd · October 3, 2016

With X99 Board you can't test to enable Apple Bus Power Controller USB

Rename

Scope (_SB.PCI0.LPC0)

{

Device (EC0)

to

Scope (_SB.PCI0.LPC0)

{

Device (EC)

Thank a lot :thumbsup_anim:

Balamut · October 3, 2016

Hi nmano, sorry for a bit late response.

Almost everything on the DSDT worked perfectly just a few bugs.

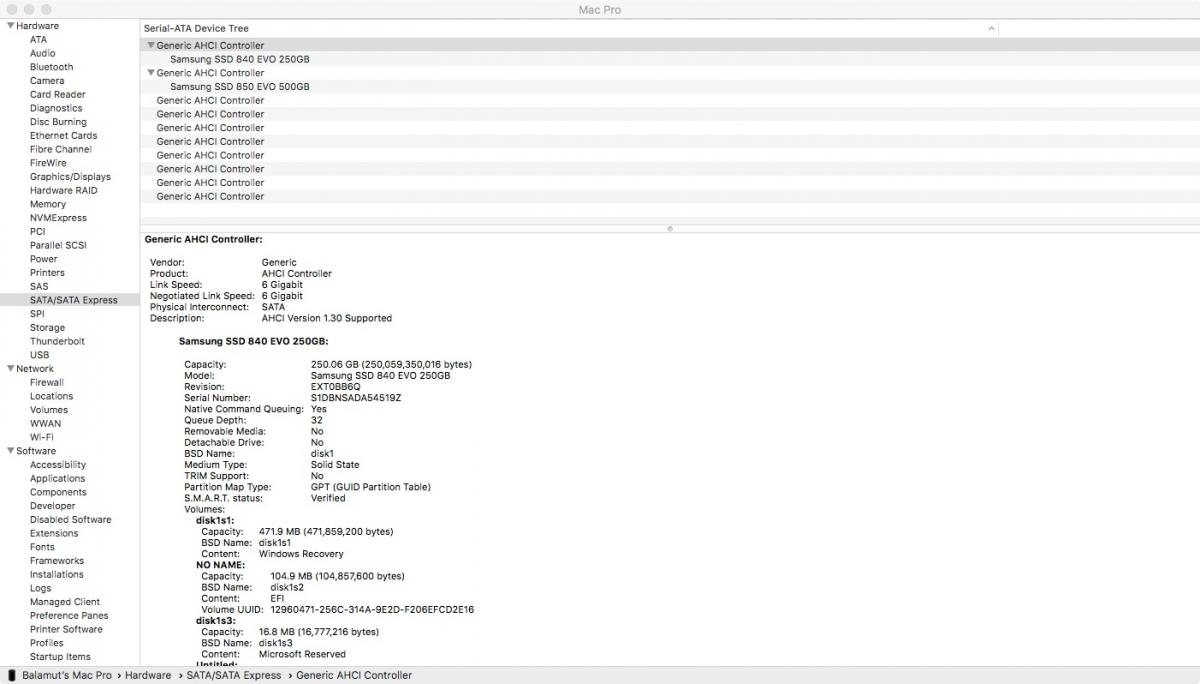

Under SATA - it says generic AHCI controller while in PCIE details it says Intel 99 Series Chipset

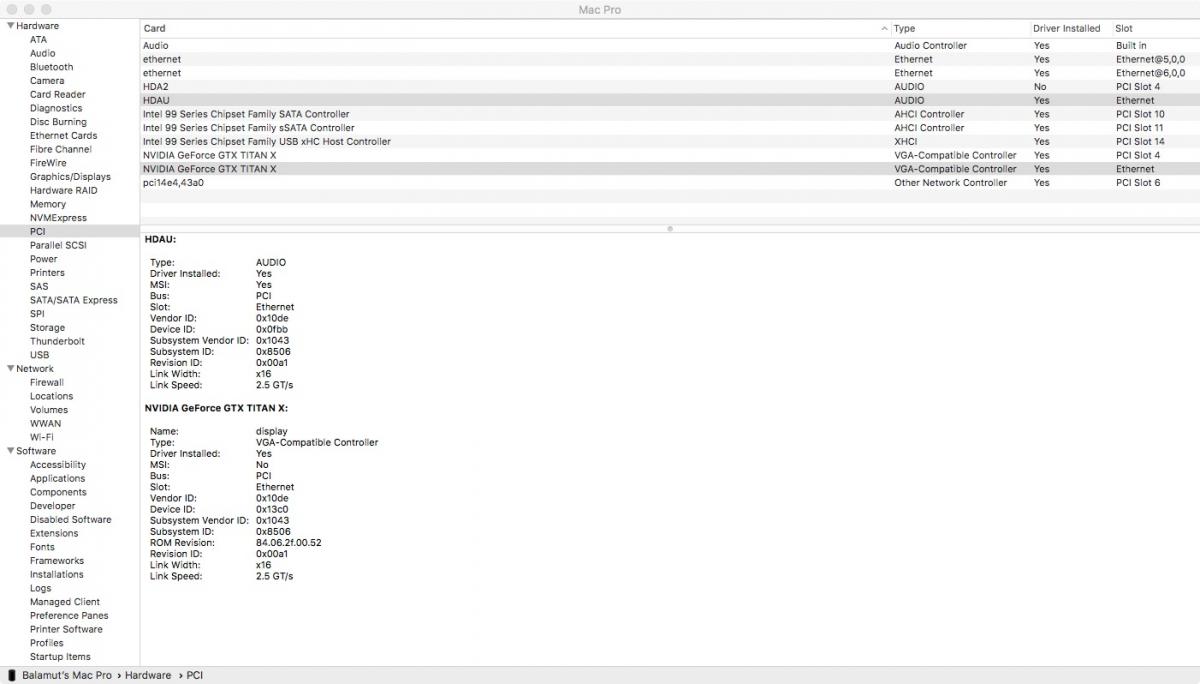

Under PCIE and Graphics one of the GPU with HDAU it shows the slot as ethernet.

Also is there 4 _SB_SCK0-_SB_SCK4 in the DSDT do you think it some how affects the hyper threading crash?

Thanks a lot,

Hi Balamut

#Z10PE-D16 WS(Socket 2011-3 for Intel Xeon processor E5-2600 v4)

#With Dual graphic

#test and feedback

It is, it's more on the pro side then gaming.

Attaching the CPU power management screens, sorry for some odd reason I thought I zip them.

Ram is correct way, memtest, ubuntu and windows ran on 72h full load test and passed with flying colors, ESXI doesn't have the problem on it ether.

According to Slice there is an issue on getting the SPD info from the second controller and he's been trying to figure out the fix for a while.

On the Cpu he said something a long the line that ACPI might not be passed on correctly.

Tried the file with different FakeCPUIDs same result, panic with hyper threading and same issues on the installed system without.

@Balamut

Your bios is clearly different from "gaming and consumer " boards as I remembered

You miss to show CPU Advanced PM tuning

IF you find Enhanced intel speedstep technology you can try to disable it

In USB section many X99 guides advice to enable also EHCI hand off and set IntelXhci from auto to enabled

Then , In AI Overclock Tuner try to change to manual and see with parameters you could modify

You say also that you see only 32 Gb of 128 Gb

It seems that only one cpu is feed, are you sure you have ram in correct way? you should see 64 gb without any clover injection

But maybe all of these advice are not relevant for your problem if you have on this rig a solid microsoft windows working setup

Edit

if you want try to boot with the attached files

without any modify and then modifying in clover only fakecpuid from the existed to 306E0 before was 40674

Screenshots.zip

thenightflyer · October 4, 2016

@nmano

Sorry for the delay but only tonight i tried your files...everything is ok, peripherals are showed correctly and at the momento there are no bugs.

Thanks again for your help

XCPM 10.12 Haswell-E

Last login: Sat Oct  1 21:29:38 on console
manoranjans-Pro:~ manoranjan$ sudo chown -R root:wheel /Users/manoranjan/Desktop/AppleIntelInfo.kext
Password:
manoranjans-Pro:~ manoranjan$ sudo chmod -R 755 /Users/manoranjan/Desktop/AppleIntelInfo.kext
Password:
manoranjans-Pro:~ manoranjan$ sudo kextload /Users/manoranjan/Desktop/AppleIntelInfo.kext
manoranjans-Pro:~ manoranjan$ sudo cat /tmp/AppleIntelInfo.dat

AppleIntelInfo.kext v1.7 Copyright © 2012-2016 Pike R. Alpha. All rights reserved

Settings:
------------------------------------
logMSRs............................: 1
logIGPU............................: 0
logCStates.........................: 1
logIPGStyle........................: 1
InitialTSC.........................: 0x21717d8a4d0c (1225 MHz)
MWAIT C-States.....................: 8480

Processor Brandstring..................: Intel(R) Core(TM) i7-5960X CPU @ 3.00GHz

Processor Signature................... : 0x306F2
----------------------------------------
 - Family............................. : 6
 - Stepping........................... : 2
 - Model.............................. : 0x3F (63)

Model Specific Registers (MSRs)
---------------------------------------

MSR_CORE_THREAD_COUNT..........(0x35)  : 0x80010
----------------------------------------
 - Core Count......................... : 8
 - Thread Count....................... : 16

MSR_PLATFORM_INFO..............(0xCE)  : 0x80C3BF3811E00
----------------------------------------
 - Maximum Non-Turbo Ratio............ : 30
 - Ratio Limit for Turbo Mode......... : 1 (programmable)
 - TDP Limit for Turbo Mode........... : 1 (programmable)
 - Low Power Mode Support............. : 1 (LPM supported)
 - Number of ConfigTDP Levels......... : 1 (additional TDP level(s) available)
 - Maximum Efficiency Ratio........... : 12
 - Minimum Operating Ratio............ : 8

MSR_PMG_CST_CONFIG_CONTROL.....(0xE2)  : 0x3
----------------------------------------
 - I/O MWAIT Redirection Enable....... : 0 (not enabled)
 - CFG Lock........................... : 0 (MSR not locked)
 - C3 State Auto Demotion............. : 0 (disabled/unsupported)
 - C1 State Auto Demotion............. : 0 (disabled/unsupported)
 - C3 State Undemotion................ : 0 (disabled/unsupported)
 - C1 State Undemotion................ : 0 (disabled/unsupported)
 - Package C-State Auto Demotion...... : 0 (disabled/unsupported)
 - Package C-State Undemotion......... : 0 (disabled/unsupported)

MSR_PMG_IO_CAPTURE_BASE........(0xE4)  : 0x0
----------------------------------------
 - LVL_2 Base Address................. : 0x0
 - C-state Range...................... : 0 (C-States not included, I/O MWAIT redirection not enabled)

IA32_MPERF.....................(0xE7)  : 0x3A69185FE5
IA32_APERF.....................(0xE8)  : 0x4DC8D8DD29

MSR_FLEX_RATIO.................(0x194) : 0xE0000
----------------------------------------

MSR_IA32_PERF_STATUS...........(0x198) : 0x280F00002B00
----------------------------------------
 - Current Performance State Value.... : 0x2B00 (4300 MHz)

MSR_IA32_PERF_CONTROL..........(0x199) : 0xFF00
----------------------------------------
 - Target performance State Value..... : 0xFF00 (25500 MHz)
 - Intel Dynamic Acceleration......... : 0 (IDA engaged)

IA32_CLOCK_MODULATION..........(0x19A) : 0x0
IA32_THERM_STATUS..............(0x19C) : 0x883A0000

IA32_MISC_ENABLES..............(0x1A0) : 0x850081
----------------------------------------
 - Fast-Strings....................... : 1 (enabled)
 - Automatic Thermal Control Circuit.. : 0 (disabled)
 - Performance Monitoring............. : 1 (available)
 - Enhanced Intel SpeedStep Technology : 1 (enabled)

MSR_MISC_PWR_MGMT..............(0x1AA) : 0x0
----------------------------------------
 - EIST Hardware Coordination......... : 0 (enabled)

MSR_TURBO_RATIO_LIMIT..........(0x1AD) : 0x2B2B2B2B2B2B2B2B
----------------------------------------
 - Maximum Ratio Limit for C01........ : 2B (4300 MHz)
 - Maximum Ratio Limit for C02........ : 2B (4300 MHz)
 - Maximum Ratio Limit for C03........ : 2B (4300 MHz)
 - Maximum Ratio Limit for C04........ : 2B (4300 MHz)
 - Maximum Ratio Limit for C05........ : 2B (4300 MHz)
 - Maximum Ratio Limit for C06........ : 2B (4300 MHz)
 - Maximum Ratio Limit for C07........ : 2B (4300 MHz)
 - Maximum Ratio Limit for C08........ : 2B (4300 MHz)

IA32_ENERGY_PERF_BIAS..........(0x1B0) : 0x0
----------------------------------------
 - Power Policy Preference.............: 0 (highest performance)

MSR_POWER_CTL..................(0x1FC) : 0x21040059
----------------------------------------

MSR_RAPL_POWER_UNIT............(0x606) : 0xA0E03
----------------------------------------
 - Power Units........................ : 3 (1/8 Watt)
 - Energy Status Units................ : 14 (61 micro-Joules)
 - Time Units ........................ : 10 (976.6 micro-Seconds)

MSR_PKG_POWER_LIMIT............(0x610) : 0x7FFD00014EA82
----------------------------------------
 - Package Power Limit #1............. : 3408 Watt
 - Enable Power Limit #1.............. : 1 (enabled)
 - Package Clamping Limitation #1..... : 0 (disabled)
 - Time Window for Power Limit #1..... : 10 (2560 milli-Seconds)
 - Package Power Limit #2............. : 4090 Watt
 - Enable Power Limit #2.............. : 1 (enabled)
 - Package Clamping Limitation #2..... : 1 (allow going below OS-requested P/T state setting Time Window for Power Limit #2)
 - Time Window for Power Limit #2..... : 3 (20 milli-Seconds)
 - Lock............................... : 0 (MSR not locked)

MSR_PKG_ENERGY_STATUS..........(0x611) : 0x4EFF1F81
----------------------------------------
 - Total Energy Consumed.............. : 80892 Joules (Watt = Joules / seconds)

MSR_PKG_POWER_INFO.............(0x614) : 0x1280460
----------------------------------------
 - Thermal Spec Power................. : 140 Watt
 - Minimum Power...................... : 0
 - Maximum Power...................... : 0
 - Maximum Time Window................ : 0

MSR_PP0_POWER_LIMIT............(0x638) : 0x14FFD0
----------------------------------------
 - Power Limit........................ : 4090 Watt
 - Enable Power Limit................. : 1 (enabled)
 - Clamping Limitation................ : 0 (disabled)
 - Time Window for Power Limit........ : 10 (10240 milli-Seconds)
 - Lock............................... : 0 (MSR not locked)

MSR_PP0_ENERGY_STATUS..........(0x639) : 0x0
----------------------------------------
 - Total Energy Consumed.............. : 0 Joules (Watt = Joules / seconds)

MSR_TURBO_ACTIVATION_RATIO.....(0x64C) : 0x0

MSR_CONFIG_TDP_NOMINAL.........(0x648) : 0x1E
MSR_CONFIG_TDP_LEVEL1..........(0x649) : 0x940000001B0460
MSR_CONFIG_TDP_LEVEL2..........(0x64a) : 0x94000000000000
MSR_CONFIG_TDP_CONTROL.........(0x64b) : 0x0
MSR_TURBO_ACTIVATION_RATIO.....(0x64c) : 0x0
MSR_PKGC6_IRTL.................(0x60b) : 0x0
MSR_PKG_C2_RESIDENCY...........(0x60d) : 0x9AE6266143E
MSR_PKG_C6_RESIDENCY...........(0x3f9) : 0xC5F87BB4EC6
IA32_TSC_DEADLINE..............(0x6E0) : 0x21718085B9F6

CPU Ratio Info:
----------------------------------------
CPU Maximum Efficiency Ratio...........: 1200 MHz
CPU Maximum non-Turbo Frequency........: 3000 MHz
CPU Maximum Turbo Frequency............: 4300 MHz
CPU P-States [ 32 (43) ]
CPU C6-Cores [ 0 2 4 6 8 10 12 14 ]
CPU P-States [ 30 32 (43) ]
CPU P-States [ (12) 29 30 32 43 ]
CPU P-States [ 12 29 30 32 34 (43) ]
CPU P-States [ 12 29 30 32 33 34 (43) ]
CPU P-States [ (12) 27 29 30 32 33 34 43 ]
CPU C6-Cores [ 0 2 4 6 7 8 10 12 14 ]
CPU P-States [ 12 26 27 29 30 32 33 34 (43) ]
CPU P-States [ 12 26 27 28 29 30 32 33 34 (43) ]
CPU P-States [ 12 24 26 27 28 29 30 32 33 34 (43) ]
CPU P-States [ (12) 24 26 27 28 29 30 32 33 34 35 43 ]
CPU C6-Cores [ 0 2 3 4 6 7 8 10 12 14 ]
CPU P-States [ (12) 24 26 27 28 29 30 31 32 33 34 35 43 ]
CPU P-States [ 12 24 26 27 28 29 30 31 32 33 34 35 39 (43) ]
CPU C6-Cores [ 0 2 3 4 6 7 8 10 12 14 15 ]
CPU C6-Cores [ 0 1 2 3 4 6 7 8 10 12 14 15 ]
CPU P-States [ (12) 24 26 27 28 29 30 31 32 33 34 35 37 39 43 ]
manoranjans-Pro:~ manoranjan$

This is my AppleIntelinfo.kext with patches applied as in your config.plist

AppleIntelInfo.kext v1.8c Copyright © 2012-2016 Pike R. Alpha. All rights reserved

Settings:
------------------------------------------
logMSRs..................................: 1
logIGPU..................................: 0
logCStates...............................: 1
logIPGStyle..............................: 1
InitialTSC...............................: 0x10f99e7de1a (38 MHz)
MWAIT C-States...........................: 8480

Processor Brandstring....................: Intel(R) Core(TM) i7-5960X CPU @ 3.00GHz

Processor Signature..................... : 0x306F2
------------------------------------------
- Family............................... : 6
- Stepping............................. : 2
- Model................................ : 0x3F (63)

Model Specific Registers (MSRs)
------------------------------------------

MSR_CORE_THREAD_COUNT............(0x35)  : 0x0
------------------------------------------
- Core Count........................... : 8
- Thread Count......................... : 16

MSR_PLATFORM_INFO................(0xCE)  : 0x20080C3BF3811E00
------------------------------------------
- Maximum Non-Turbo Ratio.............. : 0x1E (3000 MHz)
- Ratio Limit for Turbo Mode........... : 1 (programmable)
- TDP Limit for Turbo Mode............. : 1 (programmable)
- Low Power Mode Support............... : 1 (LPM supported)
- Number of ConfigTDP Levels........... : 1 (additional TDP level(s) available)
- Maximum Efficiency Ratio............. : 12
- Minimum Operating Ratio.............. : 8

MSR_PMG_CST_CONFIG_CONTROL.......(0xE2)  : 0x400
------------------------------------------
- I/O MWAIT Redirection Enable......... : 1 (enabled, IO read of MSR(0xE4) mapped to MWAIT)
- CFG Lock............................. : 0 (MSR not locked)
- C3 State Auto Demotion............... : 0 (disabled/unsupported)
- C1 State Auto Demotion............... : 0 (disabled/unsupported)
- C3 State Undemotion.................. : 0 (disabled/unsupported)
- C1 State Undemotion.................. : 0 (disabled/unsupported)
- Package C-State Auto Demotion........ : 0 (disabled/unsupported)
- Package C-State Undemotion........... : 0 (disabled/unsupported)

MSR_PMG_IO_CAPTURE_BASE..........(0xE4)  : 0x10414
------------------------------------------
- LVL_2 Base Address................... : 0x414
- C-state Range........................ : 1 (C6 is the max C-State to include)

IA32_MPERF.......................(0xE7)  : 0x2A5A6D18C8
IA32_APERF.......................(0xE8)  : 0x30BE11A19A

MSR_FLEX_RATIO...................(0x194) : 0xE0000
------------------------------------------

MSR_IA32_PERF_STATUS.............(0x198) : 0x271C00002800
------------------------------------------
- Current Performance State Value...... : 0x2800 (4000 MHz)

MSR_IA32_PERF_CONTROL............(0x199) : 0xFF00
------------------------------------------
- Target performance State Value....... : 0xFF00 (25500 MHz)
- Intel Dynamic Acceleration........... : 0 (IDA engaged)

IA32_CLOCK_MODULATION............(0x19A) : 0x0
IA32_THERM_STATUS................(0x19C) : 0x884E0000

IA32_MISC_ENABLES................(0x1A0) : 0x840089
------------------------------------------
- Fast-Strings......................... : 1 (enabled)
- Automatic Thermal Control Circuit.... : 1 (enabled)
- Performance Monitoring............... : 1 (available)
- Enhanced Intel SpeedStep Technology.. : 0 (disabled)

MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x691200
------------------------------------------
- Turbo Attenuation Units.............. : 0
 - Temperature Target................... : 105
- TCC Activation Offset................ : 0

MSR_MISC_PWR_MGMT................(0x1AA) : 0x400000
------------------------------------------
- EIST Hardware Coordination........... : 0 (enabled)

MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x2828282828282828
------------------------------------------

IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x0

MSR_POWER_CTL....................(0x1FC) : 0x2904005B
------------------------------------------
- C1E Enable............................: 1

MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03
------------------------------------------
- Power Units.......................... : 3 (1/8 Watt)
- Energy Status Units.................. : 14 (61 micro-Joules)
- Time Units .......................... : 10 (976.6 micro-Seconds)

MSR_PKG_POWER_LIMIT..............(0x610) : 0x7FFF80015FFF8
------------------------------------------
- Package Power Limit #1............... : 4095 Watt
- Enable Power Limit #1................ : 1 (enabled)
- Package Clamping Limitation #1....... : 1 (allow going below OS-requested P/T state during Time Window for Power Limit #1)
- Time Window for Power Limit #1....... : 10 (2560 milli-Seconds)
- Package Power Limit #2............... : 4095 Watt
- Enable Power Limit #2................ : 1 (enabled)
- Package Clamping Limitation #2....... : 1 (allow going below OS-requested P/T state setting Time Window for Power Limit #2)
- Time Window for Power Limit #2....... : 3 (20 milli-Seconds)
- Lock................................. : 0 (MSR not locked)

MSR_PKG_ENERGY_STATUS............(0x611) : 0x1F2EE3
------------------------------------------
- Total Energy Consumed................ : 124 Joules (Watt = Joules / seconds)

MSR_PKG_POWER_INFO...............(0x614) : 0x1280460
------------------------------------------
- Thermal Spec Power................... : 140 Watt
- Minimum Power........................ : 0
- Maximum Power........................ : 0
- Maximum Time Window.................. : 0

MSR_PP0_POWER_LIMIT..............(0x638) : 0x0

MSR_PP0_ENERGY_STATUS............(0x639) : 0x0

MSR_TURBO_ACTIVATION_RATIO.......(0x64C) : 0x0

MSR_CONFIG_TDP_NOMINAL...........(0x648) : 0x1E
MSR_CONFIG_TDP_LEVEL1............(0x649) : 0x940000001B0460
MSR_CONFIG_TDP_LEVEL2............(0x64a) : 0x94000000000000
MSR_CONFIG_TDP_CONTROL...........(0x64b) : 0x0
MSR_TURBO_ACTIVATION_RATIO.......(0x64c) : 0x0
MSR_PKGC6_IRTL...................(0x60b) : 0x0
MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x0
MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x0

IA32_TSC_DEADLINE................(0x6E0) : 0x10FA83D6090

CPU Ratio Info:
------------------------------------------
Base Clock Frequency (BLCK)............. : 100 MHz
Maximum Efficiency Ratio/Frequency.......: 12 (1200 MHz)
Maximum non-Turbo Ratio/Frequency........: 30 (3000 MHz)
Maximum Turbo Ratio/Frequency............: 40 (4000 MHz)
P-State ratio * 100 = Frequency in MHz
------------------------------------------
CPU P-States [ 35 (40) ]
CPU C6-Cores [ 1 3 5 7 9 10 13 14 ]
CPU P-States [ (12) 24 35 40 ]
CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 9 10 12 13 14 ]
CPU P-States [ 12 20 24 35 (40) ]
CPU P-States [ 12 20 24 25 35 (40) ]
CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 ]
CPU P-States [ 12 20 22 24 25 35 (40) ]
CPU P-States [ (12) 20 22 24 25 35 37 40 ]
CPU P-States [ (12) 20 22 24 25 31 35 37 40 ]
CPU P-States [ (12) 20 22 24 25 28 31 35 37 40 ]
CPU P-States [ 12 20 22 24 25 27 28 31 35 37 (40) ]
CPU P-States [ (12) 19 20 22 24 25 27 28 31 35 37 40 ]
CPU P-States [ (12) 18 19 20 22 24 25 27 28 31 35 37 40 ]
CPU P-States [ 12 18 19 20 22 24 25 27 28 31 32 35 37 (40) ]
CPU P-States [ (12) 18 19 20 21 22 24 25 27 28 31 32 35 37 40 ]
CPU P-States [ (12) 18 19 20 21 22 24 25 27 28 29 31 32 35 37 40 ]
CPU P-States [ (12) 18 19 20 21 22 24 25 27 28 29 31 32 35 37 38 40 ]
CPU P-States [ (12) 18 19 20 21 22 23 24 25 27 28 29 31 32 35 37 38 40 ]
CPU P-States [ 12 18 19 20 21 22 23 24 25 27 28 29 30 31 32 35 37 38 (40) ]
CPU P-States [ 12 18 19 20 21 22 23 24 25 27 28 29 30 31 32 35 36 37 38 (40) ]

ekwipt · October 4, 2016

X99 DSDT Help request files

1-ORI DSDT

2-ioreg

3-Motherboard name and bios version

4-Graphics and sound card model names

5-HDEF layout ID

Hi Nmano, if you get a chance you you patch the DSDT for me also :rolleyes:

1- uploaded

2 - uploaded

3 - gigabyte X99P-SLI and Bios version F23

4 - Graphics - Gigabyte GeForce GT 710 (954MHz), 1GB DDR3 (1600MHz), PCIE2.0, DVI, HDMI, VGA, Silent Fanless

Sound - Onboard Realtek ALC1150

5 - sorry how do i go about getting this??

original dsdt.zip

ekwipt Mac Pro ioreg.zip

thenightflyer · October 4, 2016

Lau

5 - sorry how do i go about getting this??

Launch IORegistryExplorer and find the line with HDEF and copy the parameter

SammlerG · October 4, 2016

it gives you extra operating current (mA) for some USB Devices, if supported from your motherboard.

An iPad can use 500 ma + extra current of 1600 mA.

nmano · October 4, 2016

Hi Nmano, if you get a chance you you patch the DSDT for me also

1- uploaded

2 - uploaded

3 - gigabyte X99P-SLI and Bios version F23

4 - Graphics - Gigabyte GeForce GT 710 (954MHz), 1GB DDR3 (1600MHz), PCIE2.0, DVI, HDMI, VGA, Silent Fanless

Sound - Onboard Realtek ALC1150

5 - sorry how do i go about getting this??

Hi Ekwipt

#Gigabyte X99 P-SLI

#Test and Feedback

gigabyte X99P-SLI.zip

Fljagd · October 4, 2016

Hi

Could you explain a bit more?

This patch is useful for?

thank you

scarface9x · October 4, 2016

Hello,

This is my first hackintosh, forgive me if i write something stupid.

-attached DSDT and ioreg

-Motherboard: Gigabyte GA-X99-SLI

-Cpu: i7 5820k

-Graphics: Palit Super Jetstream GTX 980

I have an issue what i could not find anywhere with nvda_drv=1 is not loading the web driver, but if go to clover options, graphic injector i have "use nvidia web driver". if i tick the box it will load properly. it's annoying that i have to do this every time i restart.

Also can't get working sound. I got to one point that i can see that volume control is active but no sound at all.

I attached my EFI folder here: goo.gl/ziMLaU

Thanks in advance

origin.zip

ioreg.zip

scarface9x · October 4, 2016

http://www.insanelymac.com/forum/topic/312525-nvidia-web-driver-updates-for-macos-sierra-update-09202016/page-19?do=findComment&comment=2279454

For nvidia problem read here

It worked thanks a lot.

nmano · October 5, 2016

Hello,

This is my first hackintosh, forgive me if i write something stupid.

-attached DSDT and ioreg

-Motherboard: Gigabyte GA-X99-SLI

-Cpu: i7 5820k

-Graphics: Palit Super Jetstream GTX 980

I have an issue what i could not find anywhere with nvda_drv=1 is not loading the web driver, but if go to clover options, graphic injector i have "use nvidia web driver". if i tick the box it will load properly. it's annoying that i have to do this every time i restart.

Also can't get working sound. I got to one point that i can see that volume control is active but no sound at all.

I attached my EFI folder here: goo.gl/ziMLaU

Thanks in advance

Hi Scarface9x

#Gigabyte GA-X99-SLI

#I set dsdt HDEF layout ID-1

#Test and Feedback

Gigabyte GA-X99-SLI.zip

Balamut · October 5, 2016

Guys,

Just found this:

https://browser.primatelabs.com/v4/cpu/536299

128GiB and 2x E5-2683 v4 total 64 cores. So it is Possible, back to the drawing board I guess.

ekwipt · October 5, 2016

Hi Ekwipt

#Gigabyte X99 P-SLI

#Test and Feedback

thanks nmano

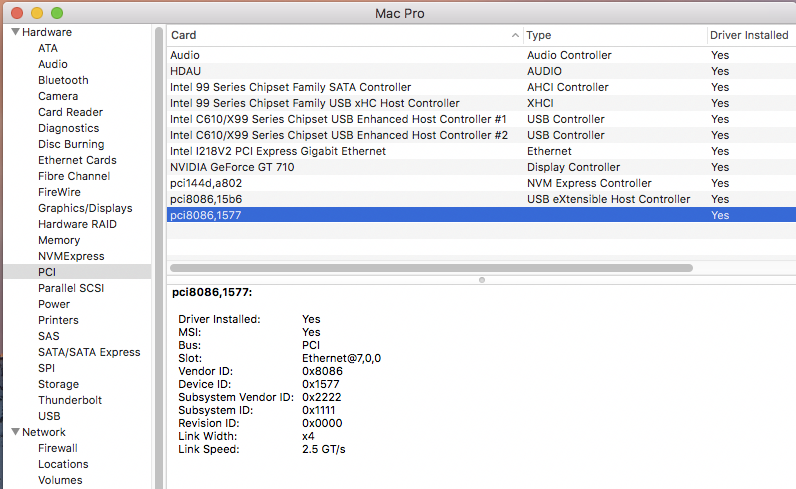

it works well, is this an error??

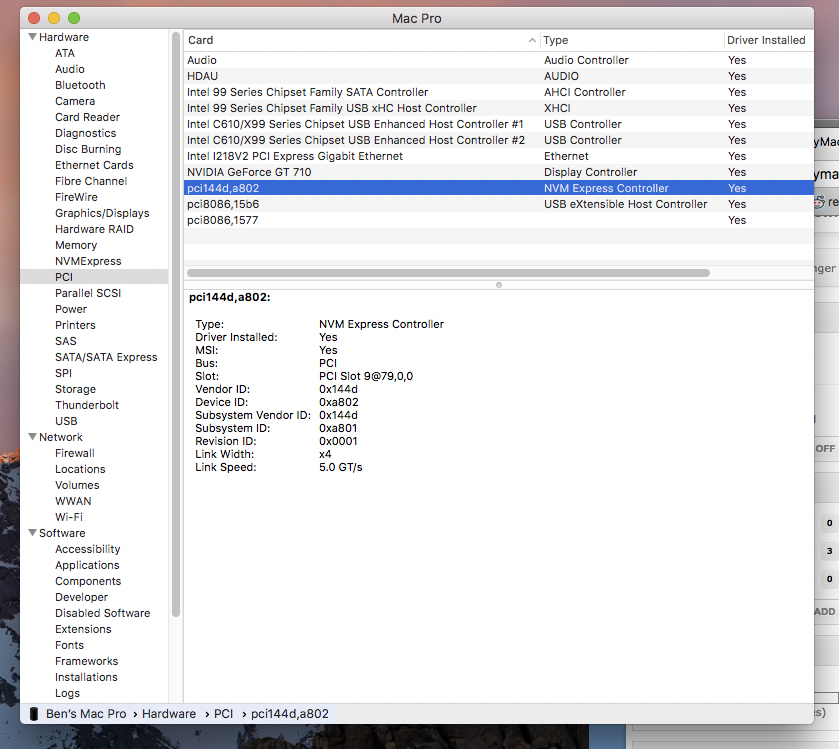

Also nmano here's the screenshot you requested for NVME:

Balamut · October 5, 2016

I do, slowly but surely with your guys great help I'm getting there

Is that yours?

Balamut · October 5, 2016

Compile latest clover, v3790. Slice did some tweaking on it, works like a charm on mine.

Balamut · October 5, 2016

Yeah, on the clover tread download my preboot log. Now clover sees all the memory slots and installed memory sticks.

Balamut · October 5, 2016

Damn, sorry to hear that man.

I'd suggest doing smbios dump from clover efi shell and see what's off.

Questions sleep is working on yours? Just curious.

Balamut · October 5, 2016

When I'll manage to get the system functioning or at least get the terminal working, I'll play with it to see if I can get the lower p-states activated.

I'd say play with frequency vectors and Pikes patches, see what works.

SammlerG · October 5, 2016

P-State problems with X99 seems to be a general Bios problem.

With disabled EIST the same problems are noticed with Windows. CPU jumping from min. to max. multiplier when CPU is in idle mode.

This can only fixed with a new/fixed BIOS and correct C- and P-States.

Check another big forum, ASUS Rampage Extrem V, El Capitan guide... Other motherboard, but P-States problem.

Fljagd · October 5, 2016

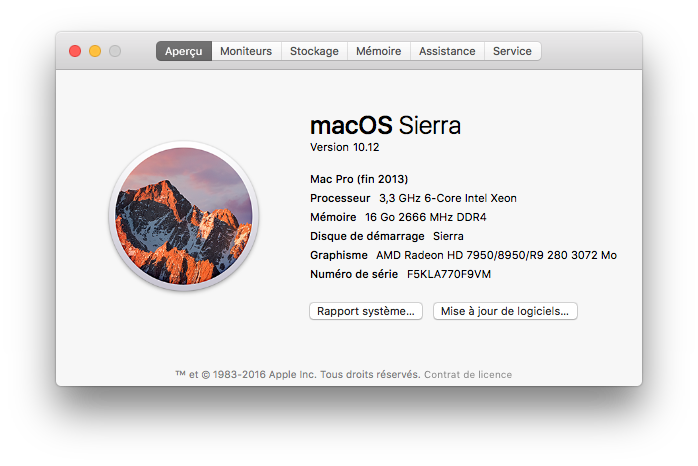

I have the bios updater (bios 3402)
Now Ram speed is displayed correctly

[Guide] Mac OSX 10.12 and 10.13 with X99 Broadwell-E family and Haswell-E family

Recommended Posts

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites
