sameh0 Posted October 2, 2015 Share Posted October 2, 2015 i managed to install os x el capitan yesterday and since then almost everything worked except the AppleRTC patch so i get a cmos reset every time i sleep or wake the device . back on Mountain lion , Maverick and Yosemite i used this patch sudo perl -pi -e 's|\x75\x2e\x0f\xb6|\xeb\x2e\x0f\xb6|' /System/Library/Extensions/AppleRTC.kext/Contents/MacOS/AppleRTC sudo touch /System/Library/Extensions the patch isn't working anymore , anyone patched it yet ? 1 Link to comment https://www.insanelymac.com/forum/topic/308326-applertc-patch-problem/ Share on other sites More sharing options...
sameh0 Posted October 3, 2015 Author Share Posted October 3, 2015 After some digging I started to suspect that it's not applertc who is the culprit I guess it might be clover UEFI preventing me from waking from deep sleep (hibernation ) , any thoughts ?? Link to comment https://www.insanelymac.com/forum/topic/308326-applertc-patch-problem/#findComment-2172622 Share on other sites More sharing options...
mitch_de Posted October 3, 2015 Share Posted October 3, 2015 The patch works! Without patch i also get CMOS reset. Same hex sequence ist in 10.11 for that RTC Cmos problem. What can be, if you patched ist and not worked: 1. Old unpatched version is in the cache / prelinkied kernel. Try to update prelinked kernel and reboot. HINT: To avoid CMOS reset with unpatched / or after patch at shutdown: Close all apps, wait short and then switch off PC on the power button (hold button for 2-3 sec). 2. patch failed, check the patched code if really that hex x75 was changed to xEB. Link to comment https://www.insanelymac.com/forum/topic/308326-applertc-patch-problem/#findComment-2172760 Share on other sites More sharing options...

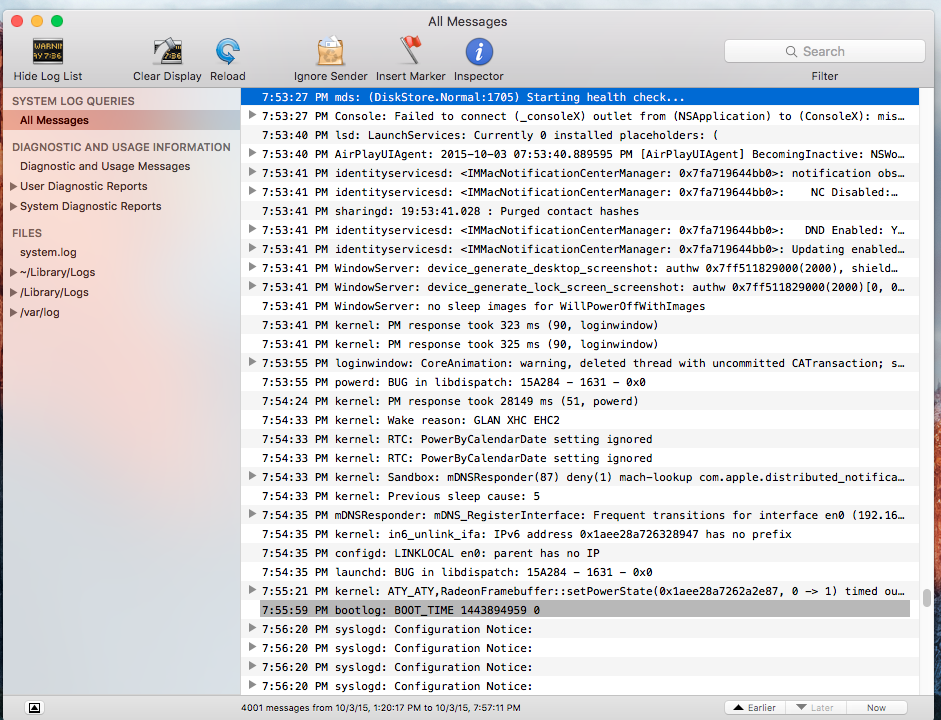

sameh0 Posted October 3, 2015 Author Share Posted October 3, 2015 Thanks for replying , it's patched , and i attached if you want check .of course i update system cache after doing the kext . this a console screenshot of what happening before and after sleep AppleRTC.kext.zip Link to comment https://www.insanelymac.com/forum/topic/308326-applertc-patch-problem/#findComment-2172769 Share on other sites More sharing options...
PippoX0 Posted October 5, 2015 Share Posted October 5, 2015 Very strange - I patched El Capitan AppleRTC.kext and i have sleep and wake without reset ... Try to apply RTC patch also to DSDT : use MaciASL and use this code - RTC Patch for DSDT (Thanks to RehabMan) #Maintained by: RehabMan for: Laptop Patches #system_RTC.txt # RTC fix into device name_hid PNP0B00 code_regex (IO\s\((?:\s*[^,]+,\s*(?:\/\/\s.*)?\s*\n)+\s*)(\dx\d+)(,\s*(?:\/\/\s.*)?\s*\n\s*\)) replace_matched begin %10x02%3 end; Link to comment https://www.insanelymac.com/forum/topic/308326-applertc-patch-problem/#findComment-2173600 Share on other sites More sharing options...
sameh0 Posted October 5, 2015 Author Share Posted October 5, 2015 tried it , no luck . can't you find any indication about the problem on the console log i've uploaded in the previous post ? this is my DSDT btw DSDT.aml.zip Link to comment https://www.insanelymac.com/forum/topic/308326-applertc-patch-problem/#findComment-2173716 Share on other sites More sharing options...
artur_pt Posted October 5, 2015 Share Posted October 5, 2015 hello try this one DSDT.aml.zip good hack Link to comment https://www.insanelymac.com/forum/topic/308326-applertc-patch-problem/#findComment-2173723 Share on other sites More sharing options...
sameh0 Posted October 5, 2015 Author Share Posted October 5, 2015 hello try this one DSDT.aml.zip good hack Thanks buddy , but didn't work either , i've go this machine since Lion and never had this problem before , the only different this year that i've upgraded from [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url]/Chimera to Clover UEFI which i've completely optimized it's settings to be like what i had previously , and everything seem to work EXCPET waking from sleep . Link to comment https://www.insanelymac.com/forum/topic/308326-applertc-patch-problem/#findComment-2173815 Share on other sites More sharing options...
mitch_de Posted October 6, 2015 Share Posted October 6, 2015 If your dsdt worked since Lion in case of avoid the cmos reset problem should not be the dsdt. I would try again to install the patched RTC kext with an tool like kext wizard or similar. Before that, i would copy the patched RTC to desktop, erase it in /S/L/E (empty trash). Check if Kernelcache and prelinked kernel getting updated (time = erase time of RTC) or sudo touch /System/Library/Extensions If the cache / prelinked kernel getting updated (now without "old" RTC) install the patched. Check if cache / prelinked kernel got also updated to be sure it now uses new patched version. It can be, even you use sudo touch /System/Library/Extensions , the cache / prelinked kernel didnt got updated! Link to comment https://www.insanelymac.com/forum/topic/308326-applertc-patch-problem/#findComment-2173967 Share on other sites More sharing options...
sameh0 Posted October 6, 2015 Author Share Posted October 6, 2015 If your dsdt worked since Lion in case of avoid the cmos reset problem should not be the dsdt. I would try again to install the patched RTC kext with an tool like kext wizard or similar. Before that, i would copy the patched RTC to desktop, erase it in /S/L/E (empty trash). Check if Kernelcache and prelinked kernel getting updated (time = erase time of RTC) or sudo touch /System/Library/Extensions If the cache / prelinked kernel getting updated (now without "old" RTC) install the patched. Check if cache / prelinked kernel got also updated to be sure it now uses new patched version. It can be, even you use sudo touch /System/Library/Extensions , the cache / prelinked kernel didnt got updated! i'm gonna try that , i tried to install Yosemite now with clover UEFI and with exact the same settings that i had in el capitan and it works ! . Seems that the problem happens with 10.11 only , i don't know what's going on here .... Link to comment https://www.insanelymac.com/forum/topic/308326-applertc-patch-problem/#findComment-2174108 Share on other sites More sharing options...
eliminyro Posted October 6, 2015 Share Posted October 6, 2015 I have exact same problem. I have x58 mobo with Core i7 CPU which have their own issues, but the system worked up until El Capitan. I tried instructions from mitch_de and it didn't work, as well as the ones above it. P.S.: I don't use DSDT and it worked perfectly fine with Yosemite and older systems. Link to comment https://www.insanelymac.com/forum/topic/308326-applertc-patch-problem/#findComment-2174144 Share on other sites More sharing options...
mitch_de Posted October 6, 2015 Share Posted October 6, 2015 For tests: my patched AppleRTC. Worked at least to avoid cmos reset by shutdown/reboot. Sleep / Wakeup reset untested. AppleRTC.kext.zip Link to comment https://www.insanelymac.com/forum/topic/308326-applertc-patch-problem/#findComment-2174302 Share on other sites More sharing options...
sameh0 Posted October 6, 2015 Author Share Posted October 6, 2015 For tests: my patched AppleRTC. Worked at least to avoid cmos reset by shutdown/reboot. Sleep / Wakeup reset untested. Nope didn't work , and by the way i have no problem with Shutdown/reboot , the problem is the machine doesn't wake up from sleep . Here's what happens: i press sleep the machine goes to sleep after a few seconds the fans stops and the light goes down so it's in Deep Sleep /Hibernation when i hit a keyboard button it wakes up Fans and lights works again but no thing on the screen and no sound comes out of the speaker . it stays like that until i restart via the power button . Link to comment https://www.insanelymac.com/forum/topic/308326-applertc-patch-problem/#findComment-2174311 Share on other sites More sharing options...
mitch_de Posted October 8, 2015 Share Posted October 8, 2015 Yep,but CMOS Reset now fixed? Link to comment https://www.insanelymac.com/forum/topic/308326-applertc-patch-problem/#findComment-2175253 Share on other sites More sharing options...
sameh0 Posted October 9, 2015 Author Share Posted October 9, 2015 Yep,but CMOS Reset now fixed? i don't have a CMOS reset ! my machine does not wake from sleep , that's it . Link to comment https://www.insanelymac.com/forum/topic/308326-applertc-patch-problem/#findComment-2175546 Share on other sites More sharing options...
mitch_de Posted October 10, 2015 Share Posted October 10, 2015 ???? You wrote in the first post: "......except the AppleRTC patch so i get a cmos reset every time i sleep or wake the device . " Link to comment https://www.insanelymac.com/forum/topic/308326-applertc-patch-problem/#findComment-2175736 Share on other sites More sharing options...
DuongTHVN Posted October 10, 2015 Share Posted October 10, 2015 apply patch RTC on DSDt and choice appleRTC on kernel patcher of Clover 1 Link to comment https://www.insanelymac.com/forum/topic/308326-applertc-patch-problem/#findComment-2175743 Share on other sites More sharing options...
sameh0 Posted October 12, 2015 Author Share Posted October 12, 2015 ???? You wrote in the first post: "......except the AppleRTC patch so i get a cmos reset every time i sleep or wake the device . " I replied to that few days ago I don't know why it's erased , I said I'm so sorry I mistakenly mentioned cmos reset and I didn't won't to say that I want to say that my machine goes full black screen after waking up from sleep , and it doesn't work until I push the restart button Link to comment https://www.insanelymac.com/forum/topic/308326-applertc-patch-problem/#findComment-2176999 Share on other sites More sharing options...
VirusX Posted October 13, 2015 Share Posted October 13, 2015 so it's not a CMOS reset / AppleRTC problem but a sleep problem? wake reason "GLAN XHC EHC" -- how did you wake up your computer after sleep? does your computer work after sleep besides the black screen? (sound etc) Link to comment https://www.insanelymac.com/forum/topic/308326-applertc-patch-problem/#findComment-2177123 Share on other sites More sharing options...
sameh0 Posted October 15, 2015 Author Share Posted October 15, 2015 so it's not a CMOS reset / AppleRTC problem but a sleep problem? wake reason "GLAN XHC EHC" -- how did you wake up your computer after sleep? does your computer work after sleep besides the black screen? (sound etc) sorry for the delay , had an internet problem . i wake the computer using the keyboard/mouse (both are usb) , nope no sound . Link to comment https://www.insanelymac.com/forum/topic/308326-applertc-patch-problem/#findComment-2177969 Share on other sites More sharing options...
Slice Posted October 16, 2015 Share Posted October 16, 2015 Nope didn't work , and by the way i have no problem with Shutdown/reboot , the problem is the machine doesn't wake up from sleep . Here's what happens: i press sleep the machine goes to sleep after a few seconds the fans stops and the light goes down so it's in Deep Sleep /Hibernation when i hit a keyboard button it wakes up Fans and lights works again but no thing on the screen and no sound comes out of the speaker . it stays like that until i restart via the power button . I see you still don't catch that the problem is not in RTC. The problem is very common "AMD Radeon 6000+ will not wake up in ElCapitan, no signal on monitor". That's all. And you will see in your attached screenshot RadeonFramebuffer:: setPowerState... timed out. Nobody has a solution. Guys, please, gather here No graphics / USB / Audio after wake for next investigation of the issue Link to comment https://www.insanelymac.com/forum/topic/308326-applertc-patch-problem/#findComment-2178260 Share on other sites More sharing options...
sameh0 Posted October 18, 2015 Author Share Posted October 18, 2015 I see you still don't catch that the problem is not in RTC. The problem is very common "AMD Radeon 6000+ will not wake up in ElCapitan, no signal on monitor". That's all. And you will see in your attached screenshot RadeonFramebuffer:: setPowerState... timed out. Nobody has a solution. Guys, please, gather here No graphics / USB / Audio after wake for next investigation of the issue Yup I guess you're right Link to comment https://www.insanelymac.com/forum/topic/308326-applertc-patch-problem/#findComment-2179309 Share on other sites More sharing options...
jrhende Posted December 13, 2015 Share Posted December 13, 2015 Fixed my CMOS reset problem. Not 100% sure what fixed it. I have a EX58-UD5 i7 920 hackintosh. It was either the DSDT.aml or the ACPI section of config.plist that i took from @ROBASEFR http://www.insanelymac.com/forum/topic/196771-ga-ex58-and-ga-x58a-dsdt-native-power-management-modifications/page-1 http://www.insanelymac.com/forum/topic/185097-guide-scripted-yosemitemavericks-install-on-gigabyte-mobos/page-228 But now it works w/o the wake CMOS reset issue. My CMOS reset issue would manifest itself from wake by not waking up all the way (black screen) and showing error code CF on my mobo. Error code CF means CMOS integrity error. Link to comment https://www.insanelymac.com/forum/topic/308326-applertc-patch-problem/#findComment-2196632 Share on other sites More sharing options...
lemmyc Posted December 26, 2015 Share Posted December 26, 2015 Fixed my CMOS reset problem. Not 100% sure what fixed it. I have a EX58-UD5 i7 920 hackintosh. It was either the DSDT.aml or the ACPI section of config.plist that i took from @ROBASEFR http://www.insanelymac.com/forum/topic/196771-ga-ex58-and-ga-x58a-dsdt-native-power-management-modifications/page-1 http://www.insanelymac.com/forum/topic/185097-guide-scripted-yosemitemavericks-install-on-gigabyte-mobos/page-228 But now it works w/o the wake CMOS reset issue. My CMOS reset issue would manifest itself from wake by not waking up all the way (black screen) and showing error code CF on my mobo. Error code CF means CMOS integrity error. I have a similar setup to you and I'm having CMOS resets when El Capitan sleeps. Would you mind sharing your config.plist and clarifying which DSDT file you're using? My BIOS is v13 so I guess I would need d00d's v6 DSDT.aml Link to comment https://www.insanelymac.com/forum/topic/308326-applertc-patch-problem/#findComment-2200643 Share on other sites More sharing options...
Romker Posted April 9, 2016 Share Posted April 9, 2016 I have the same problem. Clover fix doesn't work for me. I think the reason is my old mobo. Does anyone helpme me with a dsdt fix? Links: IOReg, DSDT. Link to comment https://www.insanelymac.com/forum/topic/308326-applertc-patch-problem/#findComment-2231238 Share on other sites More sharing options...
