[AMD] Yosemite Kernel Testing (for help use the Help Topic)

[gils83]



good job Bronya



maestro !!!



C1E enable

cool n'quiet enable

[Bronya]

I uploaded boot and you can download this boot in this post #1436 !

[gils83]

Sorry, I was using Duran Keeley (http://www.insanelymac.com/forum/topic/302076-amd-yosemite-kernel-release-for-help-use-the-help-topic/?p=2079528) build script to pull and build  10.10.1 & 10.10.2 vanillas without any problem, but 10.10.3 is another story.  I tried installing Xcode & CLT 6.1 but the build had errors.  Also tried Xcode & CLT 6.4 but same errors.



good job  y2k4u

[gils83]

y2k4u,for "makedef" this right ! )))



Hi !

Test kernel10.10.3_rc1 ! Created 25 aug ! ))



kernel_10.10.3_rc1.zip



P.S, in bootloader i added pseudo code "disable c1e" if in bios enabled c1e! I tested  - this now works sound without squeaks finally !

Please TEST sound with  this boot_c1e_amd ! This version 2715 ! Only beta ! )

boot_c1e.zip

or

boot_c1e_rc1.zip





Audio works good



thanks Bronya

[Shaneee]

So this kernel works on 10.10.5 without any kext/framework modifications? Unable to test just now but will soon.

[Gogeta5026]

Well.... I greatly appreciate ALL THE HARD WORK ON THE KERNEL and I'm sorry I stopped the programming thing 10 something years ago...



THE MAIN AGENDA



Has anybody had success with updating to 14F27 and had no issues with apps completely functioning the way they did in back in 14F7a? Or is everybody running into the same issue with a few not running anymore properly, the way they did before upgrading, and not opening at all. Ex. Chrome not keeping passwords saved, apps not compatible with this version. Or is it just me!?!?

[Zhivodar Ivanov]





use kernel Andy



Darwin Mac-Pro-de-gils 14.1.0 Darwin Kernel Version 14.1.0: di 10 feb 2015 02:21:50 CET; joris:XNU-AnV/BUILD/obj/RELEASE_X86_64 x86_64



now 10.10.5 14F27 works good    with Extensions 10.10.4 and AppleMatch/Sandbox 10.10.5/Pthread 10.10 / ACPI/iopci patched



but problem with kext-cache , boot -f and voodooPstate no works

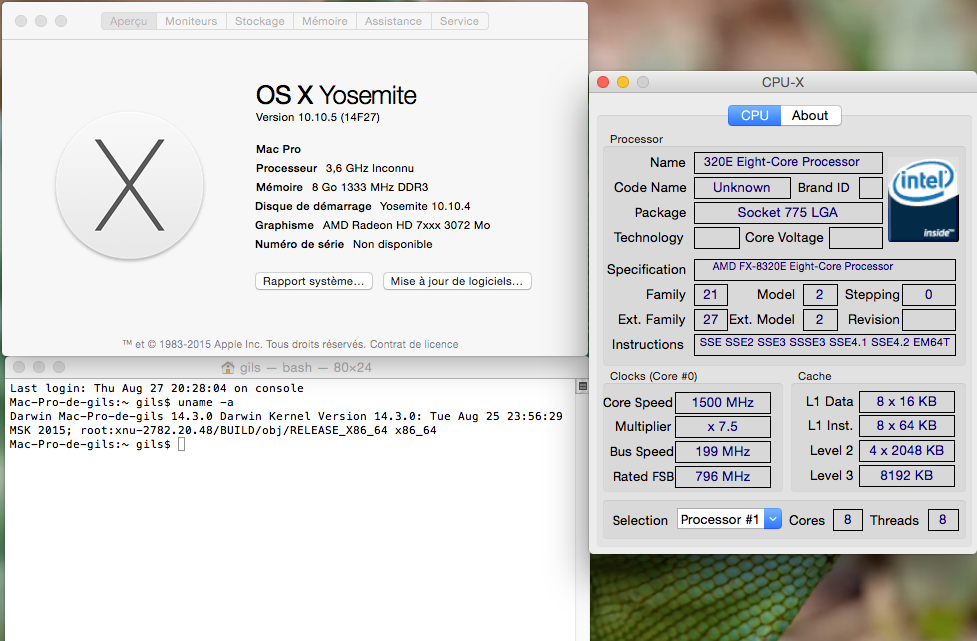

kernel Bronya works



Vue d’ensemble du logiciel système :



  Version du système : OS X 10.10.5 (14F27)

  Version du noyau : Darwin 14.0.0

  Volume de démarrage : test

  Mode de démarrage : Normal

  Nom de l’ordinateur : Mac Pro de gils

  Nom de l’utilisateur : gils (gils)

  Mémoire virtuelle sécurisée : activée

  Temps depuis le démarrage : 5 minutes







Darwin Mac-Pro-de-gils 14.0.0 Darwin Kernel Version 14.0.0: Wed Mar  4 18:21:33 MSK 2015; Bronya:xnu-2782.1.97_amd/BUILD/obj/RELEASE_X86_64 x86_64



Update work for me with this method, but clean my mac and istat menus not work!? Later will test new kernel but  run clean or any modifications? Sorry for my english!

[gils83]

Update work for me with this method, but clean my mac and istat menus not work!? Later will test new kernel but  run clean or any modifications? Sorry for my english!

I am not responsible for the malfunction of certain applications, lee best you can do is buy an Intel CPU

[lpukraine]

P.S, in bootloader i added pseudo code "disable c1e" if in bios enabled c1e! I tested  - this now works sound without squeaks finally !

Please TEST sound with  this boot_c1e_amd ! This version 2715 ! Only beta ! )

boot_c1e.zip

or

boot_c1e_rc1.zip

Do I need use this boot file if now I don't have any problems with my audio (use AppleHDA with my ADI1988). What problems are this boot file solve? Only audio or something else?

[krs360]

Hi all,



I have 2x hackintosh machines.



One intel x99 system and another amd system, has anyone got the 10.10.5 kernel working okay with the FX 8150 & Gigabyte mobo? Does it also include apple music in the update as the intel version did?



Thanks.

[spakk]

Gils, when you write "now 10.10.5 14F27 works good     with Extensions 10.10.4 and AppleMatch/Sandbox 10.10.5/Pthread 10.10 / ACPI/iopci patched", do you actually mean you replaced all 10.10.5 kexts by those from 10.10.4, except the AppleMatch/Sandbox and so on? Sounds quite harsh to me and reminds me of the MLPF hack that pretends to be ML 10.8->10.8.5 with ML DP1 kernel + kexts under the sheet...



Wouldn't it be better to try and identify the potentially problematic kext(s) instead? I'm thinking System.kext or any other "sensitive" kext like that.

which is exactly that what I asked in some pages earlier.

we need to find the cause, as this is the moment, it is not sufficient.

to system.kext alone it will not lie, I have already tested. compares the system drivers which were renewed after the update. the drivers in S/L/E are about five or six system drivers have been completely renewed.

I've tried using of replace the five or six system drivers from a previous OS X version, unfortunately, something else came in between and have not pursued the resulat.

[Bronya]

Do I need use this boot file if now I don't have any problems with my audio (use AppleHDA with my ADI1988). What problems are this boot file solve? Only audio or something else?

This boot's can disable c1e if in bios enabled c1e ! If enable c1e and no support for c1e in boot, i get problem sound and work system and problem loading .

[gils83]

which is exactly that what I asked in some pages earlier.

we need to find the cause, as this is the moment, it is not sufficient.

to system.kext alone it will not lie, I have already tested. compares the system drivers which were renewed after the update. the drivers in S/L/E are about five or six system drivers have been completely renewed.

I've tried using of replace the five or six system drivers from a previous OS X version, unfortunately, something else came in between and have not pursued the resulat.



AppleMCP89RootPortPM.kext peut-être la cause de nos maux , il rejeté par le kernel lors de cette opération terminal



ommiting kext

cd /Volumes/Macintosh_HD

sudo kextcache -system-prelinked-kernel

sudo kextcache -system-caches

[Shaneee]

With Bronya's 10.10.3 kernel running 10.10.5 I tried replacing the following files from 10.10.4,



Kexts - AppleACPIPlatform.kext, AppleAPIC.kext, AppleMatch.kext, IOACPIFamily.kext, Sandbox.kext, System.kext



CoreServices - mDNSResponder.bundle, loginwindow.app, logind



I also patched the dyld with the amd_insn_patcher



Here is a log from loginwindow crashing. This is on a 10.10.5 install that has never loaded the GUI. Was a clean install using the YosemiteHD installer and kernel/kexts added for current installation.



See it references /usr/lib/dyld

Process:               loginwindow [163]
Path:                  /System/Library/CoreServices/loginwindow.app/Contents/MacOS/loginwindow
Identifier:            loginwindow
Version:               ???
Code Type:             X86-64 (Native)
Parent Process:        launchd [1]
Responsible:           loginwindow [163]
User ID:               0

Date/Time:             2015-08-28 11:23:53.190 -0700
OS Version:            Mac OS X 10.10.5 (14F27)
Report Version:        11
Anonymous UUID:        5E7CD694-F763-AD5F-ABCF-05546F9DC5FD


Time Awake Since Boot: 63 seconds

Crashed Thread:        0

Exception Type:        EXC_CRASH (Code Signature Invalid)
Exception Codes:       0x0000000000000000, 0x0000000000000000

kernel messages:

VM Regions Near 0x7fff7b3ff0a0 (cr2):
    __LINKEDIT             00007fff64b4b000-00007fff64b5f000 [   80K] r--/rwx SM=COW  /usr/lib/dyld
--> Submap                 00007fff70000000-00007fff80000000 [256.0M] r--/rwx SM=PRV  process-only VM submap
    unused shlib __DATA    00007fff7925e000-00007fff7b85e000 [ 38.0M] rw-/rw- SM=COW  system shared lib __DATA not used by this process

Thread 0 Crashed:
0   dyld                          	0x00007fff64adc000 _dyld_start + 0

Thread 0 crashed with X86 Thread State (64-bit):
  rax: 0x000000000000000d  rbx: 0x0000000000000000  rcx: 0x0000000000000000  rdx: 0x0000000000000000
  rdi: 0x0000000000000000  rsi: 0x0000000000000000  rbp: 0x0000000000000000  rsp: 0x00007fff51d7ce38
   r8: 0x0000000000000000   r9: 0x0000000000000000  r10: 0x0000000000000000  r11: 0x0000000000000000
  r12: 0x0000000000000000  r13: 0x0000000000000000  r14: 0x0000000000000000  r15: 0x0000000000000000
  rip: 0x00007fff64adc000  rfl: 0x0000000000000201  cr2: 0x00007fff7b3ff0a0

Logical CPU:     0
Error Code:      0x020000f4
Trap Number:     133


Binary Images:
    0x7fff64adb000 -     0x7fff64b11887  dyld (???) <B1B370A5-479F-3533-8AD7-97B687D4F989> /usr/lib/dyld

External Modification Summary:
  Calls made by other processes targeting this process:
    task_for_pid: 0
    thread_create: 0
    thread_set_state: 0
  Calls made by this process:
    task_for_pid: 0
    thread_create: 0
    thread_set_state: 0
  Calls made by all processes on this machine:
    task_for_pid: 4
    thread_create: 0
    thread_set_state: 0

VM Region Summary:
ReadOnly portion of Libraries: Total=300K resident=300K(100%) swapped_out_or_unallocated=0K(0%)
Writable regions: Total=8420K written=0K(0%) resident=12K(0%) swapped_out=0K(0%) unallocated=8408K(100%)

REGION TYPE                      VIRTUAL
===========                      =======
STACK GUARD                        56.0M
Stack                              8192K
VM_ALLOCATE                           8K
VM_ALLOCATE (reserved)                8K        reserved VM address space (unallocated)
__DATA                              228K
__LINKEDIT                           80K
__TEXT                              220K
mapped file                         824K
shared memory                         4K
===========                      =======
TOTAL                              65.3M
TOTAL, minus reserved VM space     65.3M


[spakk]

@Shaneee, but use AutoAPBDecrypt 1.2, "the automatic Apple Protected Binary Decryptor" by Andy Vandijck,

then start "AutoAPBDecrypt / Release Mountain Lion / AutoAPBDecrypt.app" it works on 10.10

[Shaneee]

I did and it never patched dyld it did however patch loginwindow ect.



I will keep working on finding the culprit.

[spakk]

That's right, dyld was not decrypted but in my last download link are all others decrypted binary files in the package.



these files were found and decrypted by the tool:





\System\Library\CoreServices\Finder\Contents\MacOS\Finder
\System\Library\CoreServices\Dock\Contents\MacOS\Dock
\System\Library\CoreServices\Loinwindow\Contents\MacOS\Loginwindow
\System\Library\Frameworks\CoreServices.framework\Versions\A\Frameworks\Metadata.framework\Versions\A\Support\mds
\System\Library\CoreServices\backupd.bundle\Contents\Resources\backupd
\System\Library\Frameworks\ATS.framework\Versions\A\Support\fontd





I have not found any other

Edited August 28, 2015 by spakk

[gils83]



resume for me with Extensions 10.10.4 // kernel 10.10 and 10.10.3



crash MplayerX/DivX HEVC

vlc/QuickTime works



with Extensions 10.10.5, no works



[Gogeta5026]



resume for me with Extensions 10.10.4 // kernel 10.10 and 10.10.3



crash MplayerX/DivX HEVC

vlc/QuickTime works



with Extensions 10.10.5, no works



I just deleted the /usr folder from 14F27, copied the ENTIRE /usr folder from 14F6a to 14F27, repaired permissions and EVERYTHING runs 100% perfectly with no crashes!!!

[spakk]

similar with installing 10.10.5 build14F9a to14F19a and to14F25a ... However, we should definitely find the cause, why we do so much work, so that the app's can works?



Ps:

I start with tests tomorrow. Today I was busy with my real iMac. I have everything formatted and reinstalled OS X.

[Zhivodar Ivanov]

I am not responsible for the malfunction of certain applications, lee best you can do is buy an Intel CPU

Hi gils83 my motherboard is for amd may be upgrade with phenom someday,this is maximum upgrade for my motherboard. PC is old yes but for this moment work perfectly I will test tomorrow new kernel for my problem. However later this year i will solved generally my problems with new Mac Mini later 2014! Best Regards! ?

[spakk]

@daksi99 and @Gils

long term is that the best solution, but I must confess that my hackintosh, if everything works, then runs much better than my real iMac12,1.





Edit to our problem:

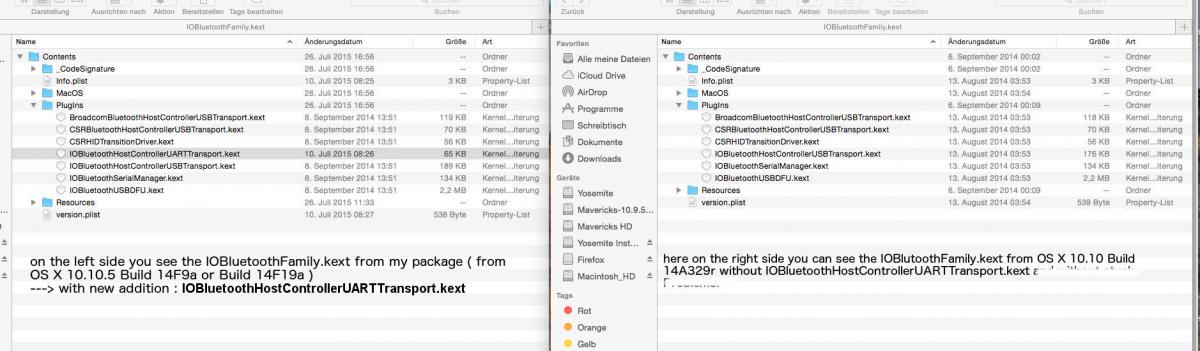

I can at the moment do not try to test,, but if I see the IOBluetoothFamily.kext driver from 10.10 and 10.10.5, then these have a small differences, is as seen in the picture. - the files differ even in their size!



... no idea what function this driver has. I have not researched.



Edit:

here is a good tool (FreeFileSync.app) to compare two directories.

Set in the options either by file content or date and time, I have set the Settings option on file content and make search, and receive these differences, see csv -file


Edit:

these are the differences that I have found on my Extensions folder, the rest is understandable, see differneces.xls

FileList.csv.zip

differences.xls.zip

Edited August 29, 2015 by spakk

[victor moises n]

Here with this kernel update with 10.10.3 ,10.10.5 audio was bad seeing the procedures that you guys made doing the same could not get the audio, anyone can make available audio files and my realtek 8111 but with the kext [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] does not work .

[gils83]



and voodooHDA 2.8.4 ?







[Gogeta5026]

I have been playing with the kernel trying to fix the invalid opcode error when booting 10.10.5 and I have one that seems to fix the opcode error and booted all the way (with just the pthread.kext, video and audio kext replaced) to  "Missing Bluetooth Controller Transport" and then "Resetting IOCatalogue" but stucked there.  I am not verse with OS X kexts, and I am not certain if the problem is in my video driver or something else but the same kernel works well with 10.10.4.



10103R2.zip



Test this kernel and see if you can get further than I am.  For those who already have 10.10.5 running, could you check if this kernel runs on existing 10.10.5 system?

Your kernel booted 10.10.5 14F27 and 14F6a just fine with no issues over on my end!
