anonymousnbs Posted October 6, 2014 Share Posted October 6, 2014 but in my case I have used other guides but pin operating efficiently and I had taken from the windows: D Link to comment https://www.insanelymac.com/forum/topic/293246-osx-on-dell-vostro-3450-inspiron-n4110-xps-l702x-uefi-clover/page/30/#findComment-2066786 Share on other sites More sharing options...
Brabbelbla Posted October 6, 2014 Share Posted October 6, 2014 @Timewalker Used your package for reinstalling Hackintosh on my L702X, works like a charm and better than ever before. Myself, I never managed to fix the brightness levels and ethernet on wake always meant trouble. Also, your way of using on-the-fly fixes promises a way smoother updating process. Thanks very much. Really having the smooth feel now. Now just fetch a replacement for the Intel WLAN card... Two questions, hoping you'd like to answer them: 1) Is it possible (where to look) to flip the media/function key behaviour? I have always had it set to function key as primary, but now, regardless of that, media key is primary. 2) How/where DID you fix the brightness levels? I think I once saw a comment of yours on some EDID patch, but never understood. @anonymousnbs Your profile picture is just too sweet. Link to comment https://www.insanelymac.com/forum/topic/293246-osx-on-dell-vostro-3450-inspiron-n4110-xps-l702x-uefi-clover/page/30/#findComment-2066803 Share on other sites More sharing options...
TimeWalker75a Posted October 6, 2014 Author Share Posted October 6, 2014 Glad you like your renewed install 1. Go to keyboard preferences pane, toggle 2. See SSDT-2 ( https://github.com/Dolnor/DELL-SCT-Support/blob/master/Clover/OEM/Motherboard/ACPI/SSDT-2-NVDA-17.dsl ) Link to comment https://www.insanelymac.com/forum/topic/293246-osx-on-dell-vostro-3450-inspiron-n4110-xps-l702x-uefi-clover/page/30/#findComment-2066804 Share on other sites More sharing options...
Brabbelbla Posted October 6, 2014 Share Posted October 6, 2014 ... ... That was just too simple Thanks anyway. Just updated to 10.9.5, no hiccups. Haven't got hibernate to work so far, at least modes 1 and 25 don't work, but it doesn't really matter much. Just noticed that you even took care of the touchpad switch, awesome Link to comment https://www.insanelymac.com/forum/topic/293246-osx-on-dell-vostro-3450-inspiron-n4110-xps-l702x-uefi-clover/page/30/#findComment-2066815 Share on other sites More sharing options...
Inter95 Posted October 6, 2014 Share Posted October 6, 2014 That was just too simple Thanks anyway. Just updated to 10.9.5, no hiccups. Haven't got hibernate to work so far, at least modes 1 and 25 don't work, but it doesn't really matter much. Just noticed that you even took care of the touchpad switch, awesome set hibernatemode to 7 Link to comment https://www.insanelymac.com/forum/topic/293246-osx-on-dell-vostro-3450-inspiron-n4110-xps-l702x-uefi-clover/page/30/#findComment-2066949 Share on other sites More sharing options...
TimeWalker75a Posted October 6, 2014 Author Share Posted October 6, 2014 Installer sets it to 7 already by default. Link to comment https://www.insanelymac.com/forum/topic/293246-osx-on-dell-vostro-3450-inspiron-n4110-xps-l702x-uefi-clover/page/30/#findComment-2066955 Share on other sites More sharing options...
webcivilian Posted October 6, 2014 Share Posted October 6, 2014 @Timewalker Used your package for reinstalling Hackintosh on my L702X, works like a charm and better than ever before. Myself, I never managed to fix the brightness levels and ethernet on wake always meant trouble. Also, your way of using on-the-fly fixes promises a way smoother updating process. Thanks very much. Really having the smooth feel now. Now just fetch a replacement for the Intel WLAN card... Can I get some credit too? Link to comment https://www.insanelymac.com/forum/topic/293246-osx-on-dell-vostro-3450-inspiron-n4110-xps-l702x-uefi-clover/page/30/#findComment-2066960 Share on other sites More sharing options...
jamesharding Posted October 6, 2014 Share Posted October 6, 2014 Hi everyone. Firstly thank you so much for your hard work, your guide has finally allowed me to boot my Dell L702x into Mac OSX. Great work indeed. I have a slight problem I expect caused by using Niresh's distro (I do not have access to a mac to get mavericks without a distro) Mac OSX currently states in 'About This Mac' that I have a MacBook Pro and Intel HD Graphics 3000 as my graphics. I have run your Dell SCT OSX software twice but the system profile and Nvidia Optimus Graphics are not sticking. As I said, its probably because I used Niresh's distro. Is there any way I can get the XPS L702x profile to work for me? Thanks James Link to comment https://www.insanelymac.com/forum/topic/293246-osx-on-dell-vostro-3450-inspiron-n4110-xps-l702x-uefi-clover/page/30/#findComment-2066987 Share on other sites More sharing options...
webcivilian Posted October 7, 2014 Share Posted October 7, 2014 @ jamessharding - Can you provide a screenshot of what you are talking about? Also, you can download OS X Mavericks by going to the App Store as you are already running OS X. It's free. Link to comment https://www.insanelymac.com/forum/topic/293246-osx-on-dell-vostro-3450-inspiron-n4110-xps-l702x-uefi-clover/page/30/#findComment-2066996 Share on other sites More sharing options...
TimeWalker75a Posted October 7, 2014 Author Share Posted October 7, 2014 He is referring to custom image and system definition in system profiler, the one you see in OP, only for XPS. There may be an issue with the script, I need to check this. Also with Yosemite the image only updates after a certain period of time, the image is cached somewhere and I have no idea what triggers it to change exactly. For me it changed after an OSX update. Link to comment https://www.insanelymac.com/forum/topic/293246-osx-on-dell-vostro-3450-inspiron-n4110-xps-l702x-uefi-clover/page/30/#findComment-2067016 Share on other sites More sharing options...
Brabbelbla Posted October 7, 2014 Share Posted October 7, 2014 Can I get some credit too? Used your stuff for quite some timeI didn't know you were involved here, too. Used your stuff for quite some time, so thanks anyway for that. Didn't know you were involved here, in which case credits for you, too @Timewalker, Inter95 Reason for not setting hibernatemode to 7 was thinking it doesn't allow you to enter hibernation on demand. Correct? @Timewalker Noticed the custom definition not working, too. The image does, though. Link to comment https://www.insanelymac.com/forum/topic/293246-osx-on-dell-vostro-3450-inspiron-n4110-xps-l702x-uefi-clover/page/30/#findComment-2067055 Share on other sites More sharing options...
TimeWalker75a Posted October 7, 2014 Author Share Posted October 7, 2014 You will never get an on-demand option for hibernate with the current state of things. Encryption has to be disabled, but with it disabled on-demand is not possible. So you have to put the laptop to sleep yourself when you get the battery warning. At least everything you do can survive even if the battery drains completely. The system definition not appearing is an odd one, can you check what does the com.apple.SystemProfier.plist says at ~/Library/Preferences The serial ends with DF92 for XPS17 model and that is what I have defined for custom model string.. Link to comment https://www.insanelymac.com/forum/topic/293246-osx-on-dell-vostro-3450-inspiron-n4110-xps-l702x-uefi-clover/page/30/#findComment-2067057 Share on other sites More sharing options...
jamesharding Posted October 7, 2014 Share Posted October 7, 2014 under Volume/Mac OSX (my hard drive)/Library/Preferences/ I was unable to find com.apple.SystemProfiler.plist. Is this purely an aesthetic problem, or would the correct system profile change the functionality? I am assuming the graphics card is always going to be Intel HD3000 as as far as I know no one has managed to get Nvidia Optimus to work on a hackintosh? Thank you for looking into this. Link to comment https://www.insanelymac.com/forum/topic/293246-osx-on-dell-vostro-3450-inspiron-n4110-xps-l702x-uefi-clover/page/30/#findComment-2067064 Share on other sites More sharing options...
TimeWalker75a Posted October 7, 2014 Author Share Posted October 7, 2014 ~ = User Folder Link to comment https://www.insanelymac.com/forum/topic/293246-osx-on-dell-vostro-3450-inspiron-n4110-xps-l702x-uefi-clover/page/30/#findComment-2067066 Share on other sites More sharing options...
jamesharding Posted October 7, 2014 Share Posted October 7, 2014 This is the text found in the com.apple/systemprofiler.plist bplist00“_NSWindow Frame SystemProfileYCPU Names_246 190 639 688 0 0 1600 878 —ZDF92-en_US_XPS 17 (17-inch, Mid 2011) ,6VYdÅ Link to comment https://www.insanelymac.com/forum/topic/293246-osx-on-dell-vostro-3450-inspiron-n4110-xps-l702x-uefi-clover/page/30/#findComment-2067071 Share on other sites More sharing options...

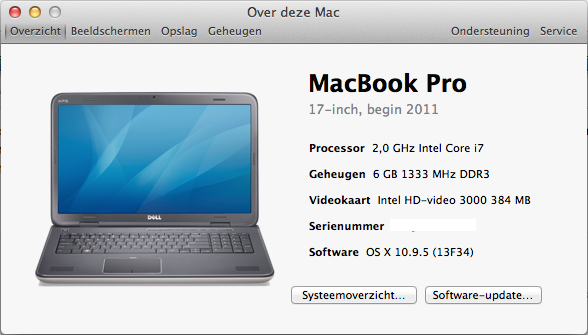

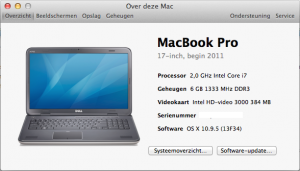

TimeWalker75a Posted October 7, 2014 Author Share Posted October 7, 2014 @Timewalker Noticed the custom definition not working, too. The image does, though. Schermafbeelding 2014-10-07 om 11.27.07.png Ok, makes sense .. I've only assumed people will be using en-US locale for their system language, while yours seems like Dutch? .. hence DF92-en_US doesn't work. Link to comment https://www.insanelymac.com/forum/topic/293246-osx-on-dell-vostro-3450-inspiron-n4110-xps-l702x-uefi-clover/page/30/#findComment-2067088 Share on other sites More sharing options...
jkbuha Posted October 7, 2014 Share Posted October 7, 2014 D'oh that explains why I have the same issues with en_UK locale as well... Looking at your config.plist I noticed that States C2/C4 are disabled, and C6/C7 are enabled. Have you disabled the former to allow rapid entry back to C0 (and save energy)? Also why is C3 latency specifically set to 250us - just curious as the power efficiency is really good with these settings (steady state consumption is ~700mAh for an i7 & 1080p screen w/ ACPI brightness settings on lowest). If anyone else is also interested, to obtain max power savings if you use the SSDTs provided, devices RP04 and RP06 on the XPS15/15z point to the USB 3.0 and Ethernet controllers respectively (same as XPS 17) as opposed to RP03 and RP05 on the Vostro/Inspiron. @jamesharding - yes that's correct AFAIK. Your NVIDIA card under Optimus will show up but you won't be able to use it. On my L511z w/ NV-GT525M (2GB) I can see the card if I don't insert the NOFF() method, but Card RAM shows up as 0GB. Unless of course I'm missing something. Link to comment https://www.insanelymac.com/forum/topic/293246-osx-on-dell-vostro-3450-inspiron-n4110-xps-l702x-uefi-clover/page/30/#findComment-2067097 Share on other sites More sharing options...
TimeWalker75a Posted October 7, 2014 Author Share Posted October 7, 2014 Looking at your config.plist I noticed that States C2/C4 are disabled, and C6/C7 are enabled. Have you disabled the former to allow rapid entry back to C0 (and save energy)? Also why is C3 latency specifically set to 250us - just curious as the power efficiency is really good with these settings (steady state consumption is ~700mAh for an i7 & 1080p screen w/ ACPI brightness settings on lowest). C2 was never working, only C1 and C3 were. Sandy Bridge M supports C6 and C7 (even extended C7) which are used for faster fallback to C0, indeed. I don't recall the source of 250 us exactly, someone has suggested em to use it with an SNB CPU based on their own experience .. this value was taken from FACP table of some low voltage machine .. and for some reason it works exceptionally well. Sadly, I don't know whom to give credit at this point. 1 Link to comment https://www.insanelymac.com/forum/topic/293246-osx-on-dell-vostro-3450-inspiron-n4110-xps-l702x-uefi-clover/page/30/#findComment-2067148 Share on other sites More sharing options...
ciuffoly Posted October 8, 2014 Share Posted October 8, 2014 Have you the bias for Dell Vostro 2520 ? Link to comment https://www.insanelymac.com/forum/topic/293246-osx-on-dell-vostro-3450-inspiron-n4110-xps-l702x-uefi-clover/page/30/#findComment-2067358 Share on other sites More sharing options...
TimeWalker75a Posted October 8, 2014 Author Share Posted October 8, 2014 This guide will discuss the process of getting OS X Mavericks or Yosemite to run on Vostro 3450 / Inspiron N4110 / XPS L702x using UEFI Clover, no other discussions please. Link to comment https://www.insanelymac.com/forum/topic/293246-osx-on-dell-vostro-3450-inspiron-n4110-xps-l702x-uefi-clover/page/30/#findComment-2067359 Share on other sites More sharing options...
Blacktopvitz Posted October 9, 2014 Share Posted October 9, 2014 Hey TimeWalker, So ive finally had some free time to tinker with my hackintosh n4110. I had an issue before with the network card not working. I tried your fixes with booting without caches. and without cache and injected kext. I double checked to make sure the kext files were good. I did the sudo touch to system library extensions. i mounted the efi to make sure the kext files were there on boot. I had done a full wipe and reinstall. experienced the sluggishness and did a bios reload with /cvar and bingo system was perfect... I then swapped the old wireless intel card back in. My bluetooth works and i have sound. Interesting thing is with the azurewave aw-nb290 i have no sound! So i have come to the conclusion that it must be a bad wireless card. What do you think? Do you have a known working wireless card that i could purchase instead of trying another one that could be bad on ebay... Thanks again for all your help! I love this hackintosh. And i would make it a daily driver if i can get that damn wireless working! BTW yosemite beta 5 works flawlessly. Link to comment https://www.insanelymac.com/forum/topic/293246-osx-on-dell-vostro-3450-inspiron-n4110-xps-l702x-uefi-clover/page/30/#findComment-2067617 Share on other sites More sharing options...
Inter95 Posted October 9, 2014 Share Posted October 9, 2014 1 - when you ran SCT OSX Support Package did you select NB290 2 - if you have windows make sure to shut down from windows no just restart 3 - after everything is setup you don't have to boot with injected kext, just press ENTER 4 - for some reason the CodecCommander that come with SCT OSX doesn't work properly in my system, i have to use this one CC-D&R_test1.zip install it with Kext Utility v2.5.1 regarding wireless card i have the same card NB290 working with no issues. Link to comment https://www.insanelymac.com/forum/topic/293246-osx-on-dell-vostro-3450-inspiron-n4110-xps-l702x-uefi-clover/page/30/#findComment-2067628 Share on other sites More sharing options...
DMP87 Posted October 9, 2014 Share Posted October 9, 2014 Hi All. Finally received and installed this wifi card for my dell l702x Broadcom BCM943225HMB 2x2 802.11b/g/n Wireless + BlueTooth 3.0 Combo Card After i installed, i booted up my windows partition to confirm that the card did indeed work. On the maverick partition, bluetooth works fine and connected with my iPhone. But i cannot get wifi to work. I have installed the SCT package. I searched this thread and saw the 'sudo touch' command and I tried that and I was met with "touch: System/Library/Extensions: No such file or directory" I have attached a darwin dump. any help would be greatly appreciated. DarwinDumper_2.9.6_Phoenix_Technologies_Ltd._X64_Mav_Domo.zip Link to comment https://www.insanelymac.com/forum/topic/293246-osx-on-dell-vostro-3450-inspiron-n4110-xps-l702x-uefi-clover/page/30/#findComment-2067644 Share on other sites More sharing options...
Blacktopvitz Posted October 9, 2014 Share Posted October 9, 2014 Hi All. Finally received and installed this wifi card for my dell l702x Broadcom BCM943225HMB 2x2 802.11b/g/n Wireless + BlueTooth 3.0 Combo Card After i installed, i booted up my windows partition to confirm that the card did indeed work. On the maverick partition, bluetooth works fine and connected with my iPhone. But i cannot get wifi to work. I have installed the SCT package. I searched this thread and saw the 'sudo touch' command and I tried that and I was met with "touch: System/Library/Extensions: No such file or directory" I have attached a darwin dump. any help would be greatly appreciated. Make sure your on the root of your drive before you run the sudo touch. so "CD /" should get you there 1 - when you ran SCT OSX Support Package did you select NB290 2 - if you have windows make sure to shut down from windows no just restart 3 - after everything is setup you don't have to boot with injected kext, just press ENTER 4 - for some reason the CodecCommander that come with SCT OSX doesn't work properly in my system, i have to use this one CC-D&R_test1.zip install it with Kext Utility v2.5.1 regarding wireless card i have the same card NB290 working with no issues. I did select nb290. I don't have windows. I did also try just enter. I'll try the new codec commander and see how it goes. just need to replace the card once again Link to comment https://www.insanelymac.com/forum/topic/293246-osx-on-dell-vostro-3450-inspiron-n4110-xps-l702x-uefi-clover/page/30/#findComment-2067668 Share on other sites More sharing options...
Blacktopvitz Posted October 9, 2014 Share Posted October 9, 2014 Update... Well i think i figured it out. It must be my card. I ran DCPIManager to see what hardware is installed. I get BCM43227 which is clearly no supported.. Does anyone have a recommendation on what card on ebay i should buy. Send me a link to an auction and i'll buy it! What a sigh of relief... I thought there was something i was doing wrong. I literally did everything. good thing is ive learned lots! Link to comment https://www.insanelymac.com/forum/topic/293246-osx-on-dell-vostro-3450-inspiron-n4110-xps-l702x-uefi-clover/page/30/#findComment-2067675 Share on other sites More sharing options...
