wyhtc
wyhtc
Posted
Posted
14 minutes ago, gujiangjiang said:

My XPS was NVMe and my HP was AHCI SATA SSD

Both XPS and HP are all have this problem.

My PLEXTOR M6S+ 128GB have no problem. Both SM951 and SM961 are all have this problem.

Link to comment
Share on other sites
WeBeRiO
WeBeRiO
Posted
Posted
On 8/10/2018 at 9:38 AM, Matgen84 said:

Hi

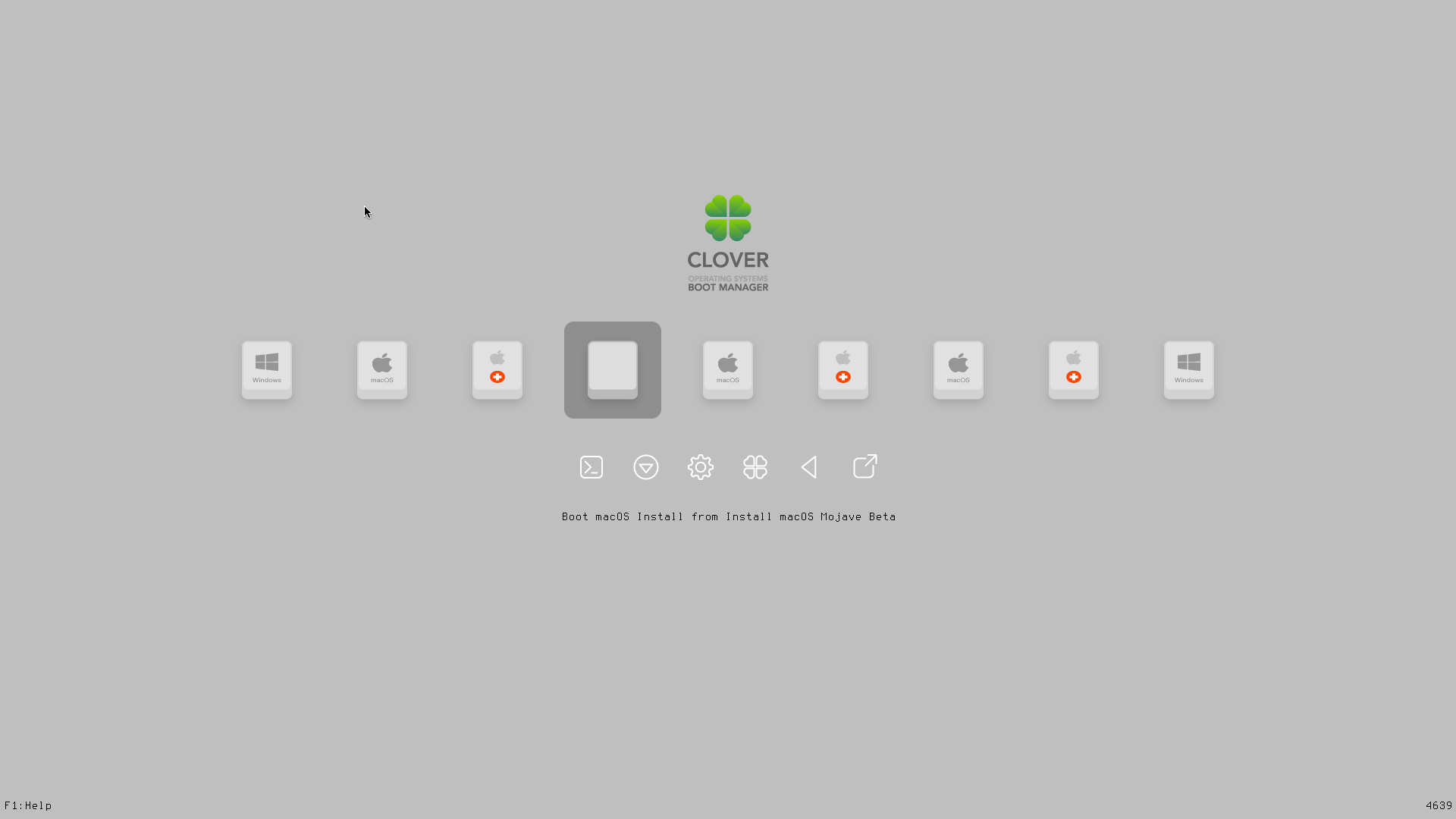

Wonderful embedded theme with commit r4639



Can we have a usb icon on vol_clover and vol_external. Please. it would be convenient for the macOS Installer pen drive for example.





Sorry for my bad english








Hi, thk for new look theme, i love embedded theme, but work with @2x for 4k ?

  • Like 2
Link to comment
Share on other sites
Badruzeus
Badruzeus
Posted
Posted (edited)
15 hours ago, wyhtc said:

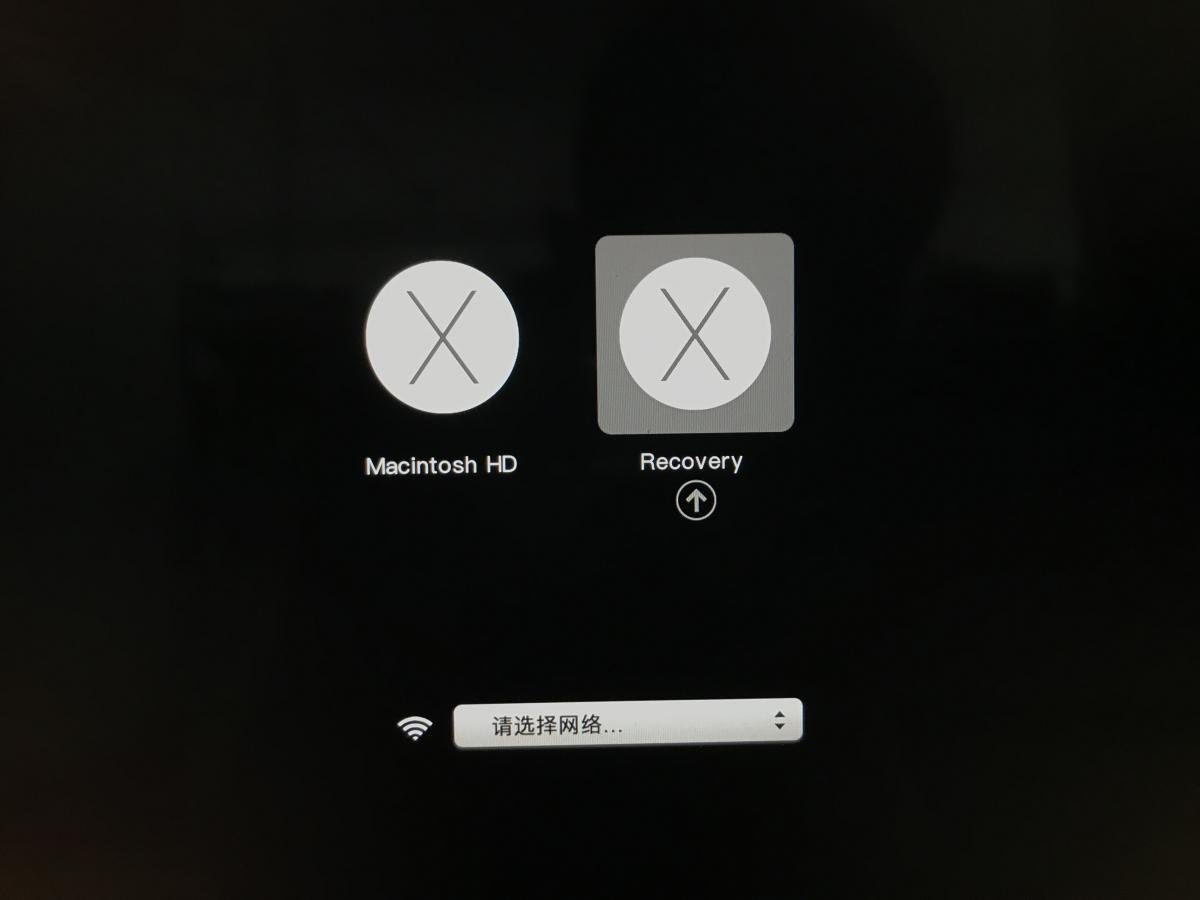

Hi，this problem is only appeared with using NVMe SSD and apfs，when using BootCamp style theme. When using AHCI Disk Device, it has no problem. Could you please fixed this bug？ Thanks.



This is BootCamp theme







Bootcamp4k.zip






Which macOS version are you using? I've just checked /icons dir on this theme, and it has no os_hsierra.icns, os_moja.icns. So, if you're using HighSierra or Mojave, on Clover GUI it will use generic "os_mac.icns" by default (as seen on your screenshot above). Also if you've installed it using APFS, try following @fusion71au guides here for creating custom entries, so both MainSystem && RecoveryHD show proper icons (this theme already contains os_recovery, vol_recovery icns). Thanks.

Edited by Badruzeus
  • Like 2
Link to comment
Share on other sites
wyhtc
wyhtc
Posted
Posted (edited)
12 hours ago, Badruzeus said:



Which macOS version are you using? I've just checked /icons dir on this theme, and it has no os_hsierra.icns, os_moja.icns. So, if you're using HighSierra or Mojave, on Clover GUI it will use generic "os_mac.icns" by default (as seen on your screenshot above). Also if you've installed it using APFS, try following @fusion71au guides here for creating custom entries, so both MainSystem && RecoveryHD show proper icons (this theme already contains os_recovery, vol_recovery icns). Thanks.

OK，Thank you~:D I am using High Sierra now，with this problem，I have to use HFS+ file system.Thank you for your answer, I will try it

Edited by wyhtc
  • Like 1
Link to comment
Share on other sites
  • 2 weeks later...
wyhtc
wyhtc
Posted
Posted
On 8/13/2018 at 8:07 AM, gujiangjiang said:

My XPS was NVMe and my HP was AHCI SATA SSD

Both XPS and HP are all have this problem.

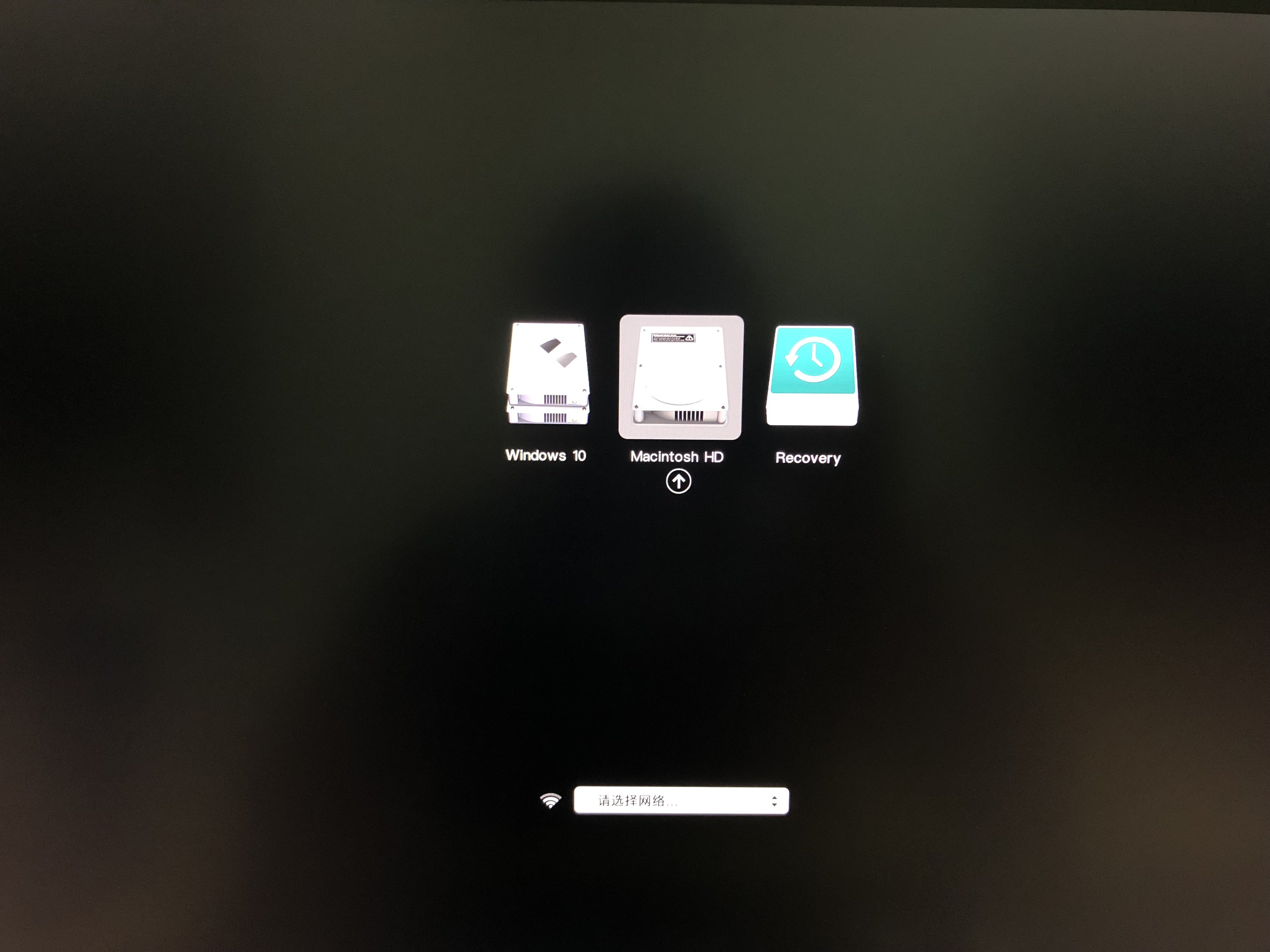

Clover 4656 and newer version has fix this bug.

  • Like 1
Link to comment
Share on other sites
wyhtc
wyhtc
Posted
Posted
On 8/13/2018 at 2:18 PM, Badruzeus said:



Which macOS version are you using? I've just checked /icons dir on this theme, and it has no os_hsierra.icns, os_moja.icns. So, if you're using HighSierra or Mojave, on Clover GUI it will use generic "os_mac.icns" by default (as seen on your screenshot above). Also if you've installed it using APFS, try following @fusion71au guides here for creating custom entries, so both MainSystem && RecoveryHD show proper icons (this theme already contains os_recovery, vol_recovery icns). Thanks.

Clover 4656 and newer version has fix this bug. Thanks.

  • Like 1
Link to comment
Share on other sites
Badruzeus
Badruzeus
Posted
Posted
1 hour ago, gujiangjiang said:



It has fixed the Recovery ICON but the text was “Recovery" not "RecoveryHD".

It seems, not related to Clover Theme. If what you mean is under 10.13 / 10.14 with APFS, just check it with $ `diskutil list` take a look, does it use "Recovery" only or "Recovery HD" for volumes name? Though, following @fusion71au guides for creating Custom Entries with "FullTitle" is solving this (not) issue.

  • Thanks 1
Link to comment
Share on other sites
Matgen84
Matgen84
Posted
Posted
1 hour ago, gujiangjiang said:



It has fixed the Recovery ICON but the text was “Recovery" not "RecoveryHD".



Recovery HD ---> HFS+ Volume

Recovery --------> Apfs Volume

  • Like 4
Link to comment
Share on other sites
Matgen84
Matgen84
Posted
Posted
12 minutes ago, SavageAUS said:

How do we enable dark mode for embedded theme?


Sent from my iPhone using Tapatalk



Just in Clover explanation:



Rev 4644
A possibility to choose between Light and Dark embedded themes
	<key>GUI</key>
	<dict>
		<key>Theme</key>
		<string>embedded</string>
		<key>EmbeddedThemeType</key>
		<string>Dark</string>
Possible values Dark/Light/SVG



  • Like 1
Link to comment
Share on other sites
pbryanw
pbryanw
Posted
Posted

Hi, I'm having a problem with the (lovely new) embedded theme in Clover (I'm using revision 4662).



My Mojave beta drive (which is an external SSD attached by USB 3.0), doesn't show the correct drive icon when connected.



I've created a custom entry for it:


<dict>
	<key>FullTitle</key>
	<string>Mojave</string>
	<key>Path</key>
	<string>\System\Library\CoreServices\boot.efi</string>
	<key>Type</key>
	<string>OSX</string>
	<key>Volume</key>
	<string>65B63FF2-3335-42CA-A3BD-B04DEFCBEBEA</string>
</dict>

Any help greatly appreciated (and thanks to Chris1111 & Matgen84 for the help received on the Clover General Thread).




  • Like 1
Link to comment
Share on other sites
chris1111
chris1111
Posted
Posted
1 minute ago, pbryanw said:

Hi, I'm having a problem with the (lovely new) embedded theme in Clover (I'm using revision 4662).



My Mojave beta drive (which is an external SSD attached by USB 3.0), doesn't show the correct drive icon when connected.



I've created a custom entry for it:



<dict>
	<key>FullTitle</key>
	<string>Mojave</string>
	<key>Path</key>
	<string>\System\Library\CoreServices\boot.efi</string>
	<key>Type</key>
	<string>OSX</string>
	<key>Volume</key>
	<string>65B63FF2-3335-42CA-A3BD-B04DEFCBEBEA</string>
</dict>

Any help greatly appreciated (and thanks to Chris1111 & Matgen84 for the help received on the Clover General Thread).




I notice same issue with APFS external USB Drive

  • Like 1
Link to comment
Share on other sites
Badruzeus
Badruzeus
Posted
Posted (edited)
31 minutes ago, WeBeRiO said:

Well, it should be. It's one more.

"embedded" theme hard coded into Clover binary that make it bigger #afaik (on my case is @9xx KB for r4664 CLOVERX64.efi). I'm pretty sure it's possible to include @2x theme as well, but plz consider the size.

Edited by Badruzeus
Link to comment
Share on other sites
WeBeRiO
WeBeRiO
Posted
Posted
1 hour ago, Badruzeus said:

"embedded" theme hard coded into Clover binary that make it bigger #afaik (on my case is @9xx KB for r4664 CLOVERX64.efi). I'm pretty sure it's possible to include @2x theme as well, but plz consider the size.

Don't understand #afaik and @9xx KB

Excuse me, I'm spanish :)

I put embedded@9xx ?

Link to comment
Share on other sites
