[GUIDE] 1st Generation Intel HD Graphics QE/CI

[MacPeet]

The graphic works now or how should I understand this?

[Sheyna]

The graphic works now or how should I understand this?

Sorry for my English. Yes, with your help it all worked

[MacPeet]

very beautiful

Which nationality do you belong to? What's your language? Your English is sufficient! My english is also not perfect either.

[Sheyna]



very beautiful

Which nationality do you belong to? What's your language? Your English is sufficient! My english is also not perfect either.



I'm from russia, my sister is an English teacher, she sometimes helps me

[MacPeet]

OK very nice

Small hint yet. The i3 380M works more stable with VoodooTSCSync.kext in the Clover Kext folder.

With 10.10.5 I get the brightness control with IntelBacklight.kext and DSDT-Patch.

Of course, battery control is model dependent, here with ACPIBatteryManager.kext and DSDT patch everything goes.

[Blaggah]



I also have i3 380M in my Medion laptop.

SMBIOS - MacBook Pro 6.1

For me 17.3 "display with 1600x900 (Alternate LW1).

Everything works fine in Yosemite and High Sierra.

Disable Nvidia (optimus) in bios or disable it in the DSDT or Bootflag -nv_disable = 1



no natit.kext, no EDID injection here



All kext are too big for upload.



Each 4 Kext from here and my Framebuffer kext from Archiv.zip try (original exchange in S/L/E).



10.12 or 10.13:

http://www.insanelymac.com/forum/files/file/208-1st-gen-intel-hd-graphics-kexts/



And for 10.10.5:

http://www.insanelymac.com/forum/index.php?app=downloads&module=display&section=download&do=version_download&id=541&record=11476



Archiv.zip



Try this!





Thank you man, your Archive folder worked out for me for my pavilion G7.  I'm grateful for you and Baio777.



Just now realized that my screen is also the hd screen, that explains why the framebuffer kext worked for me MacPeet.. I was just looking some HD screens too on ebay to see if i could replace it. This whole time, i thought it was a regular lcd screen.

[oracle100]

try this configplist .....

Of course you must have installed AppleIntelHDGraphicsFB.kext .....

Otherwise start with fake id 0x12345678 install the kext reboot and try ...



download and start this tool HACK INFO http://www.insanelymac.com/forum/topic/306828-guide-installation-mac-os-x-101x-clover-usb/?p=2148392and mail folder zipped, only after have entered my Configplist and restarted



I tried booting with your config.plist. I still cannot boot without fake id 0x12345678. I ran HACK_INFO but it gave me an error saying it cannot access folder. Enclosed is Hackinfo_Report.



ls: /Volumes/EFI/EFI/CLOVER/kexts/10.10: No such file or directory

2018-02-25 16:44:08.060 AllowPasswordPref[628:13075] Hardware Check err == -1



I am running Sierra 10.12.6. I deleted all the folders except EFI/CLOVER/kexts/other. I put all the kexts in /other.



Thank you for helping me.



[MacPeet]

Missing posts with new forum soft
Only with new Edit are all displayed. Deleting the caches and browsing history does not help.

Edit: last 14 posts were missing
Everything is visible again with this post

[Moorre]

@GhostRaider @giofrida

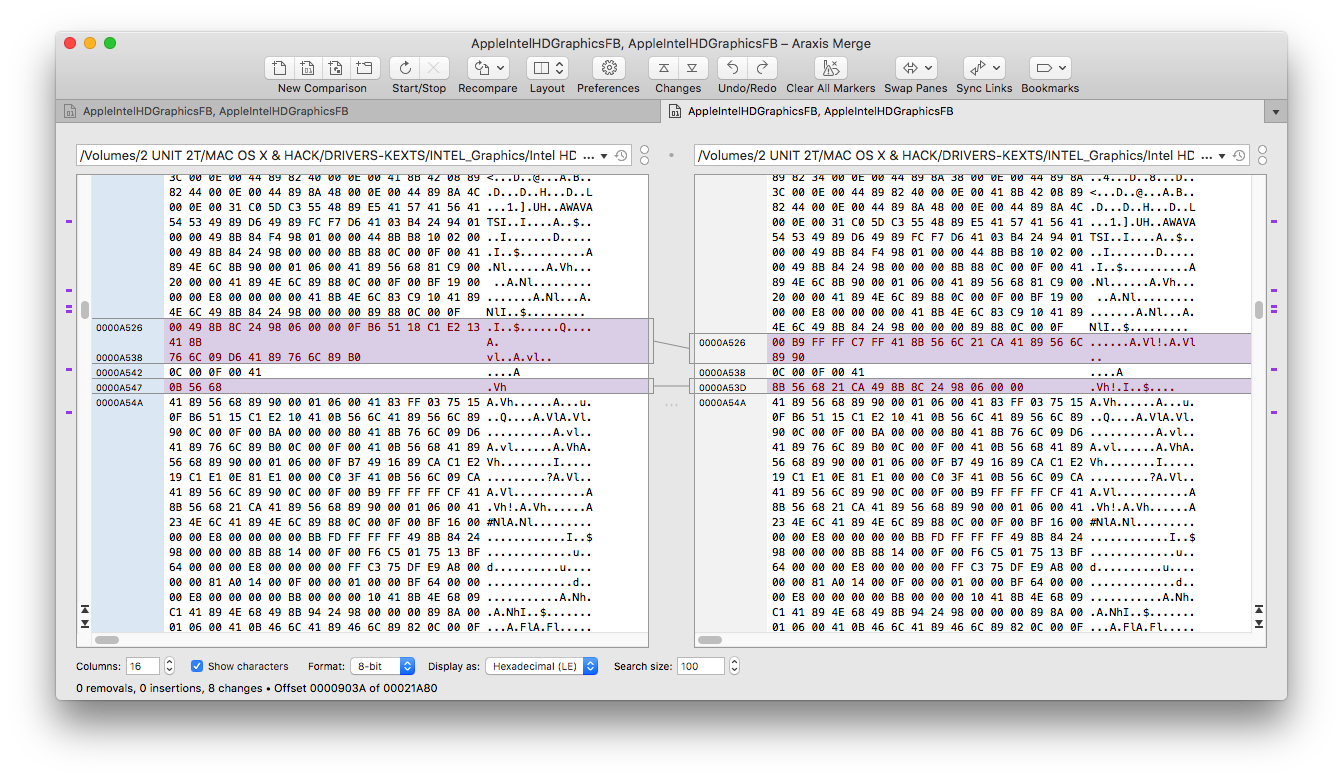

I've looked at the patched version of Sierra's native FB kext. It diffs with unpatched at the same 5 locations (for Capitan) and with different LW1.

So I tried a "dirty" patch. Just added a 36 byte Find->Repl pattern which was found in binaries inside the function __ZN22AppleIntelHDGraphicsFB8TrainFDIEiPNS_10CRTCParamsE:

49 8B 8C 24 98 06 00 00 0F B6 51 18 C1 E2 13 41 8B 76 6C 09 D6 41 89 76 6C 89 B0 0C 00 0F 00 41 0B 56 68
B9 FF FF C7 FF 41 8B 56 6C 21 CA 41 89 56 6C 89 90 0C 00 0F 00 41 8B 56 68 21 CA 49 8B 8C 24 98 06 00 00

And it worked.

So we need this patterns for AppleIntelHDGraphicsFB:

0F45C842898C33F00100
90909042898C33F00100

C7030100000048B80A
C7030000000048B80A

FFB800600009BE006000040F44F009D6
FFB800600008BE006000040F44F009D6

3C033080
00033080

3049011101100800
3049011105100800

3049010101000800
3049010105000800

498B8C24980600000FB65118C1E213418B766C09D64189766C89B00C000F00410B5668
B9FFFFC7FF418B566C21CA4189566C89900C000F00418B566821CA498B8C2498060000

Also I managed, that all known LW1-4 patched differs only in one byte. And no difference between SingleLink and DualLink patches.



High Sierra's patterns are slightly different. I have to look sometime later.

[ronaldo9_r9]

Hello Guys,

I have Acer Aspre 5742 i5-480M 2.66GHz processor, Intel HD Graphics and 1366 x 768 Res. I have been trying to install High Sierra using clover method but nothing is working.

I have created USB installer using my Ryzen hackintosh HS 10.13.3. I am not sure which kext files I need and which config.plist is compatible with my laptop.

I tried to follow the guide on first page. I only see System/Library but Extensions in USB installer.

Can someone please advice if I can install High Sierra on my laptop.



Thanks

[ronaldo9_r9]

I have managed to install high Sierra. Can someone please wifi, bluetooth,trackpad kext files please. Also I have downloaded those files on the first page, i am not fully if they would work.

I am running High Sierra 13.3.3 and I have 1st gen Acer 5742 i5 480m processor with Inter HD graphics.

Thanks

Sent from my SM-N950F using Tapatalk

[ronaldo9_r9]

Hi,

I have added all kext files to enable the acceleration into S/L/E and used kext utility to repair and rebuild cache. I still don't get full acceleration. What Am I missing Baio77

[Baio77]

post your Clover folder, install is UEFI o legacy?????

[ronaldo9_r9]

I have managed to sort out acceleration issue. Thanks for your clover folder you shared few post back with config.plist.orgin that was in the folder. I can boot and have full acceleration@baio77. I have only one problem i don't have trackpad working i tried various ps2trackpad kexts files etc no success. Maybe you can help me.

Sent from my SM-N950F using Tapatalk

[rokenlacked]

1) The easiest way that you can create an OS X USB installer with Clover is by using Chris111's Clover 2.3K Special Edition V2 Installer (http://www.insanelymac.com/forum/files/file/471-clover-v23k-special-edition-v2/).



Guys, the link doesn't work.. Do you have another link?

[baddles]

2 minutes ago, rokenlacked said:

1) The easiest way that you can create an OS X USB installer with Clover is by using Chris111's Clover 2.3K Special Edition V2 Installer (http://www.insanelymac.com/forum/files/file/471-clover-v23k-special-edition-v2/).



Guys, the link doesn't work.. Do you have another link?

You don't really need to actually. The point of using this Clover is to have access to the native installer files, so that you can delete AppleIntelHDGraphicsFB.kext on the installer.

Just use normal Clover and you can insert FakeID and ig-platform-id as 0x12345678, and you're good to go.

[rokenlacked]

57 minutes ago, baddles said:

Just use normal Clover and you can insert FakeID and ig-platform-id as 0x12345678, and you're good to go.

I don't know what this means, also, which config.plist should I use?

[baddles]

7 hours ago, rokenlacked said:

I don't know what this means, also, which config.plist should I use?

Grab Clover Bootloader (non-modified), and install it.

When it is installed, create a new config.plist from Clover Configurator. Set the SmBios to MacbookPro6,1 or MacbookPro6,2 in SmBios (I use 6,1 because that one has a nearly identical CPU to my i5-m460, but it shouldn't affect in normal uses) and save to your EFI.

Restart, now, before you press install, there is a Clover screen, go to options, Graphics Injector, in the Intel section, there is a FakeID and ig-platform-id, set it as 0x12345678, then return to the screen where you would choose which thing to boot, choose "Install macOS on Install macOS (version)".

Proceed to install as normal. Remember, everytime the machine restarts, you have to set both ig-platform-id and fakeid as 0x12345678.

(Sorry, my English is terrible and I'm really tired today.)

[rokenlacked]

2 hours ago, baddles said:

(Sorry, my English is terrible and I'm really tired today.)

Don't worry man, that was pretty clear!

I'm not English too btw, so I understand.

And finally thank you very much, your help is totally appreciated!

[Baio77]

Post your Efi folder

[rokenlacked]

On 4/2/2018 at 7:59 PM, Baio77 said:

Post your Efi folder

you're talking to me?

[Baio77]

with those who need help

[rokenlacked]

On 4/4/2018 at 8:21 AM, Baio77 said:

with those who need help

Here it is.
The problem I have now is that I have to choose a config.plist, actually I'm trying to create a brand new one using clover configurator but I don't know how to fill it. :/

I attached my computer specs also.

EFI folder.tiff

hardware_info.html

[my03]

Hi all,



I'm running my Arrandale based laptop (a souped up thinkpad T410 with an i7-640m cpu and 1440x900 display panel, running 10.13.3. I'm using a patched framebuffer from 10.10.x (or if it was 10.11.x) downloaded here and patched with giofridas tool (i.e dual-link and normal FB).

i have successfully been running this patched FB on El Cap, Sierra and now High Sierra.

But now, i sometimes get some sporadic "garbled" graphics when i for example watch a youtube video (and similar). The part of the screen that plays said video will show some odd mosaic-pattern momentarily. Normally, it looks ok, but as soon as anything video-related is playing, it gets weird.

Do anyone recognize this behaviour?

[rokenlacked]

Okay guys I followed the guide but there's a problem.
If I don't inject intel it just won't boot.
It gets stuck on

**** [IOBluetoothFamily][SearchForTransportEventTimeOutHandler] -- Missing Bluetooth Controller Transport!
ignored is_io_service_close(0x100000316, IOHIDParamUserClient)

What do I do?

Also, my /System/Library/Extensions folder is full of AppleIntelHDxxxx, should I remove all of them?
extensions_folder.tiff // a screenshot of the folder

Edited April 7, 2018 by rokenlacked
