Florin9doi Posted September 18, 2019 Share Posted September 18, 2019 (edited) A revision which increases with every commit may be generated from git using "git rev-list --count HEAD" but the revision will be smaller than what is present on svn unless all the history is added into git. A solution may be to add 6000 to git-rev-list. Edited September 18, 2019 by Florin9doi 1 Link to comment Share on other sites More sharing options...
Matgen84 Posted September 18, 2019 Share Posted September 18, 2019 (edited) 2 hours ago, Slice said: Compiling from github you will have version v2.5k, revision r5084, and additionally commit id like 9cddc6. 1 hour ago, Florin9doi said: A revision which increases with every commit may be generated from git using "git rev-list --count HEAD" but the revision will be smaller than what is present on svn unless all the history is added into git. A solution may be to add 6000 to git-rev-list. Thanks @Slice I know that. Once compiled, the ID number does not appear. I think @Florin9doi solution will be interesting. Especially for those who compile intermediate versions, and to identify those that might have any bugs. SF repo is very good for that. Edited September 18, 2019 by Matgen84 Link to comment Share on other sites More sharing options...
fusion71au Posted September 19, 2019 Share Posted September 19, 2019 (edited) On 9/18/2019 at 4:44 PM, ellaosx said: Hi Just want to report. Im still getting x64 exception in legacy mode. I have tried both SVN & Github sources. With SF commit r5089, I needed to reapply Patches_for_EDK2 to get good build... cd ~/src/edk2/BaseTools make clean cd .. source edksetup.sh cp -R Clover/Patches_for_EDK2/* ./ ./ebuild.sh -fr -D NO_GRUB_DRIVERS_EMBEDDED Before I reapplied the patches, I also saw red screen on legacy boot. 6 hours ago, ellaosx said: What about in github? as a note, the red screen happens AFTER the clover gui. All good with GitHub Clover r5084_80c5b67d compilation in macOS with default GCC53 toolchain. Here is build log today (note I chose option 8 "reset update" Clover in ./buildme)... fusion71aus-iMac:~ fusion71au$ cd /Users/fusion71au/src/CloverBootloader fusion71aus-iMac:CloverBootloader fusion71au$ ./buildme ------------------------------------------------------------------------ buildme, Clover v2.5k r5084 (SHA: 22714fdc) TOOLCHAIN: GCC53 (override example: './buildme GCC53') 1) build Clover 2) make pkg 3) make iso 4) build all 5) test build (no autogen, no boot files) 6) status 7) update Clover 8) update Clover (reset changes) 9) show diff 10) open drivers directory 11) clean BaseTools 12) quit Please enter your choice: 8 [UPDATE RESET CLOVER] Fetching origin remote: Enumerating objects: 14, done. remote: Counting objects: 100% (14/14), done. remote: Compressing objects: 100% (8/8), done. remote: Total 14 (delta 8), reused 9 (delta 6), pack-reused 0 Unpacking objects: 100% (14/14), done. From https://github.com/CloverHackyColor/CloverBootloader 22714fdc..80c5b67d master -> origin/master HEAD is now at 80c5b67d fix memory leaks From https://github.com/CloverHackyColor/CloverBootloader * branch master -> FETCH_HEAD Already up-to-date. ------------------------------------------------------------------------ buildme, Clover v2.5k r5084 (SHA: 80c5b67d) TOOLCHAIN: GCC53 (override example: './buildme GCC53') 1) build Clover 2) make pkg 3) make iso 4) build all 5) test build (no autogen, no boot files) 6) status 7) update Clover 8) update Clover (reset changes) 9) show diff 10) open drivers directory 11) clean BaseTools 12) quit Please enter your choice: 11 /Applications/Xcode.app/Contents/Developer/usr/bin/make -C Source/C clean Attempting to detect HOST_ARCH from 'uname -m': x86_64 Detected HOST_ARCH of X64 using uname. /Applications/Xcode.app/Contents/Developer/usr/bin/make -C BrotliCompress clean /Applications/Xcode.app/Contents/Developer/usr/bin/make -C Common clean /Applications/Xcode.app/Contents/Developer/usr/bin/make -C DevicePath clean /Applications/Xcode.app/Contents/Developer/usr/bin/make -C EfiLdrImage clean /Applications/Xcode.app/Contents/Developer/usr/bin/make -C EfiRom clean /Applications/Xcode.app/Contents/Developer/usr/bin/make -C GenCrc32 clean /Applications/Xcode.app/Contents/Developer/usr/bin/make -C GenFfs clean /Applications/Xcode.app/Contents/Developer/usr/bin/make -C GenFv clean /Applications/Xcode.app/Contents/Developer/usr/bin/make -C GenFw clean /Applications/Xcode.app/Contents/Developer/usr/bin/make -C GenPage clean /Applications/Xcode.app/Contents/Developer/usr/bin/make -C GenSec clean /Applications/Xcode.app/Contents/Developer/usr/bin/make -C LzmaCompress clean /Applications/Xcode.app/Contents/Developer/usr/bin/make -C Split clean /Applications/Xcode.app/Contents/Developer/usr/bin/make -C TianoCompress clean /Applications/Xcode.app/Contents/Developer/usr/bin/make -C VfrCompile clean BIN_DIR='.' /Applications/Xcode.app/Contents/Developer/usr/bin/make -C Pccts/antlr clean rm -f ./antlr *.o core BIN_DIR='.' /Applications/Xcode.app/Contents/Developer/usr/bin/make -C Pccts/dlg clean rm -f ./dlg *.o core rm -f EfiVfrParser.cpp EfiVfrParser.h VfrParser.dlg VfrTokens.h VfrLexer.cpp VfrLexer.h VfrSyntax.cpp tokens.h /Applications/Xcode.app/Contents/Developer/usr/bin/make -C VolInfo clean rm -f ./bin/* rmdir ./libs ./bin /Applications/Xcode.app/Contents/Developer/usr/bin/make -C Source/Python clean find . -name '*.pyc' -exec rm '{}' ';' /Applications/Xcode.app/Contents/Developer/usr/bin/make -C Tests clean find . -name '*.pyc' -exec rm '{}' ';' ------------------------------------------------------------------------ buildme, Clover v2.5k r5084 (SHA: 80c5b67d) TOOLCHAIN: GCC53 (override example: './buildme GCC53') 1) build Clover 2) make pkg 3) make iso 4) build all 5) test build (no autogen, no boot files) 6) status 7) update Clover 8) update Clover (reset changes) 9) show diff 10) open drivers directory 11) clean BaseTools 12) quit Please enter your choice: 4 Loading previous configuration from /Users/fusion71au/src/CloverBootloader/Conf/BuildEnv.sh WORKSPACE: /Users/fusion71au/src/CloverBootloader EDK_TOOLS_PATH: /Users/fusion71au/src/CloverBootloader/BaseTools CONF_PATH: /Users/fusion71au/src/CloverBootloader/Conf [BUILD CLOVER] TOOLCHAIN_DIR: /Users/fusion71au/src/opt/local NASM_PREFIX: /Users/fusion71au/src/opt/local/bin/ NASM_VER: 2.14.02 Building from: /Users/fusion71au/src/CloverBootloader Building tools as they are not found make -C Source/C Attempting to detect HOST_ARCH from 'uname -m': x86_64 Detected HOST_ARCH of X64 using uname. mkdir -p . mkdir ./libs make -C Common gcc -c -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 BasePeCoff.c -o BasePeCoff.o gcc -c -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 BinderFuncs.c -o BinderFuncs.o gcc -c -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 CommonLib.c -o CommonLib.o gcc -c -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 Crc32.c -o Crc32.o gcc -c -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 Decompress.c -o Decompress.o gcc -c -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 EfiCompress.c -o EfiCompress.o gcc -c -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 EfiUtilityMsgs.c -o EfiUtilityMsgs.o gcc -c -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 FirmwareVolumeBuffer.c -o FirmwareVolumeBuffer.o gcc -c -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 FvLib.c -o FvLib.o gcc -c -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 MemoryFile.c -o MemoryFile.o gcc -c -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 MyAlloc.c -o MyAlloc.o gcc -c -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 OsPath.c -o OsPath.o gcc -c -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 ParseGuidedSectionTools.c -o ParseGuidedSectionTools.o gcc -c -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 ParseInf.c -o ParseInf.o gcc -c -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 PeCoffLoaderEx.c -o PeCoffLoaderEx.o gcc -c -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 SimpleFileParsing.c -o SimpleFileParsing.o gcc -c -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 StringFuncs.c -o StringFuncs.o gcc -c -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 TianoCompress.c -o TianoCompress.o gcc -c -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 PcdValueCommon.c -o PcdValueCommon.o ar crs ../libs/libCommon.a BasePeCoff.o BinderFuncs.o CommonLib.o Crc32.o Decompress.o EfiCompress.o EfiUtilityMsgs.o FirmwareVolumeBuffer.o FvLib.o MemoryFile.o MyAlloc.o OsPath.o ParseGuidedSectionTools.o ParseInf.o PeCoffLoaderEx.o SimpleFileParsing.o StringFuncs.o TianoCompress.o PcdValueCommon.o mkdir ./bin make -C VfrCompile VfrLexer.h BIN_DIR='.' make -C Pccts/dlg cc -O -I. -I../support/set -I../h -DUSER_ZZSYN -DZZLEXBUFSIZE=65536 -c dlg_p.c cc -O -I. -I../support/set -I../h -DUSER_ZZSYN -DZZLEXBUFSIZE=65536 -c dlg_a.c cc -O -I. -I../support/set -I../h -DUSER_ZZSYN -DZZLEXBUFSIZE=65536 -c main.c cc -c -O -I. -I../support/set -I../h -DUSER_ZZSYN -DZZLEXBUFSIZE=65536 err.c -o err.o cc -c -O -I. -I../support/set -I../h -DUSER_ZZSYN -DZZLEXBUFSIZE=65536 ../support/set/set.c cc -c -O -I. -I../support/set -I../h -DUSER_ZZSYN -DZZLEXBUFSIZE=65536 support.c -o support.o cc -c -O -I. -I../support/set -I../h -DUSER_ZZSYN -DZZLEXBUFSIZE=65536 output.c -o output.o cc -c -O -I. -I../support/set -I../h -DUSER_ZZSYN -DZZLEXBUFSIZE=65536 relabel.c -o relabel.o cc -c -O -I. -I../support/set -I../h -DUSER_ZZSYN -DZZLEXBUFSIZE=65536 automata.c -o automata.o cc -O -I. -I../support/set -I../h -DUSER_ZZSYN -DZZLEXBUFSIZE=65536 -o ./dlg dlg_p.o dlg_a.o main.o err.o set.o support.o output.o relabel.o automata.o BIN_DIR='.' make -C Pccts/antlr gcc -c -O -I. -I../support/set -I../h -DUSER_ZZSYN -DZZLEXBUFSIZE=65536 antlr.c -o antlr.o gcc -c -O -I. -I../support/set -I../h -DUSER_ZZSYN -DZZLEXBUFSIZE=65536 scan.c -o scan.o gcc -c -O -I. -I../support/set -I../h -DUSER_ZZSYN -DZZLEXBUFSIZE=65536 err.c -o err.o gcc -c -O -I. -I../support/set -I../h -DUSER_ZZSYN -DZZLEXBUFSIZE=65536 bits.c -o bits.o gcc -c -O -I. -I../support/set -I../h -DUSER_ZZSYN -DZZLEXBUFSIZE=65536 build.c -o build.o gcc -c -O -I. -I../support/set -I../h -DUSER_ZZSYN -DZZLEXBUFSIZE=65536 fset2.c -o fset2.o gcc -c -O -I. -I../support/set -I../h -DUSER_ZZSYN -DZZLEXBUFSIZE=65536 fset.c -o fset.o gcc -c -O -I. -I../support/set -I../h -DUSER_ZZSYN -DZZLEXBUFSIZE=65536 gen.c -o gen.o gcc -c -O -I. -I../support/set -I../h -DUSER_ZZSYN -DZZLEXBUFSIZE=65536 globals.c -o globals.o gcc -c -O -I. -I../support/set -I../h -DUSER_ZZSYN -DZZLEXBUFSIZE=65536 hash.c -o hash.o gcc -c -O -I. -I../support/set -I../h -DUSER_ZZSYN -DZZLEXBUFSIZE=65536 lex.c -o lex.o gcc -c -O -I. -I../support/set -I../h -DUSER_ZZSYN -DZZLEXBUFSIZE=65536 main.c -o main.o gcc -c -O -I. -I../support/set -I../h -DUSER_ZZSYN -DZZLEXBUFSIZE=65536 misc.c -o misc.o gcc -O -I. -I../support/set -I../h -DUSER_ZZSYN -DZZLEXBUFSIZE=65536 -c -o set.o ../support/set/set.c gcc -c -O -I. -I../support/set -I../h -DUSER_ZZSYN -DZZLEXBUFSIZE=65536 pred.c -o pred.o gcc -c -O -I. -I../support/set -I../h -DUSER_ZZSYN -DZZLEXBUFSIZE=65536 egman.c -o egman.o gcc -c -O -I. -I../support/set -I../h -DUSER_ZZSYN -DZZLEXBUFSIZE=65536 mrhoist.c -o mrhoist.o gcc -c -O -I. -I../support/set -I../h -DUSER_ZZSYN -DZZLEXBUFSIZE=65536 fcache.c -o fcache.o gcc -O -I. -I../support/set -I../h -DUSER_ZZSYN -DZZLEXBUFSIZE=65536 -o ./antlr antlr.o scan.o err.o bits.o build.o fset2.o fset.o gen.o globals.o hash.o lex.o main.o misc.o set.o pred.o egman.o mrhoist.o fcache.o Pccts/antlr/antlr -CC -e3 -ck 3 -k 2 -fl VfrParser.dlg -ft VfrTokens.h -o . VfrSyntax.g Antlr parser generator Version 1.33MR33 1989-2001 VfrSyntax.g, line 3508: warning: alts 1 and 2 of {..} ambiguous upon ( ";" RefreshGuid GuidOp Locked Image EndIf InconsistentIf DisableIf SuppressIf Default GrayOutIf ) VfrSyntax.g, line 3517: warning: alts 1 and 2 of {..} ambiguous upon ( ";" RefreshGuid GuidOp Locked Image EndIf InconsistentIf DisableIf SuppressIf Default GrayOutIf ) VfrSyntax.g, line 3526: warning: alts 1 and 2 of {..} ambiguous upon ( ";" RefreshGuid GuidOp Locked Image EndIf InconsistentIf DisableIf SuppressIf Default GrayOutIf ) VfrSyntax.g, line 3536: warning: alts 1 and 2 of {..} ambiguous upon ( ";" RefreshGuid GuidOp Locked Image EndIf InconsistentIf DisableIf SuppressIf Default GrayOutIf ) VfrSyntax.g, line 3566: warning: alts 1 and 2 of {..} ambiguous upon ( ";" RefreshGuid GuidOp Locked Image EndIf InconsistentIf DisableIf SuppressIf Default GrayOutIf ) VfrSyntax.g, line 3575: warning: alts 1 and 2 of {..} ambiguous upon ( ";" RefreshGuid GuidOp Locked Image EndIf InconsistentIf DisableIf SuppressIf Default GrayOutIf ) Pccts/dlg/dlg -C2 -i -CC -cl VfrLexer -o . VfrParser.dlg dlg Version 1.33MR33 1989-2001 make -C BrotliCompress gcc -c -I ./include -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 tools/brotli.c -o tools/brotli.o gcc -c -I ./include -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 common/dictionary.c -o common/dictionary.o gcc -c -I ./include -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 common/transform.c -o common/transform.o gcc -c -I ./include -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 dec/bit_reader.c -o dec/bit_reader.o gcc -c -I ./include -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 dec/decode.c -o dec/decode.o gcc -c -I ./include -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 dec/huffman.c -o dec/huffman.o gcc -c -I ./include -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 dec/state.c -o dec/state.o gcc -c -I ./include -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 enc/backward_references.c -o enc/backward_references.o gcc -c -I ./include -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 enc/backward_references_hq.c -o enc/backward_references_hq.o gcc -c -I ./include -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 enc/bit_cost.c -o enc/bit_cost.o gcc -c -I ./include -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 enc/block_splitter.c -o enc/block_splitter.o gcc -c -I ./include -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 enc/brotli_bit_stream.c -o enc/brotli_bit_stream.o gcc -c -I ./include -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 enc/cluster.c -o enc/cluster.o gcc -c -I ./include -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 enc/compress_fragment.c -o enc/compress_fragment.o gcc -c -I ./include -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 enc/compress_fragment_two_pass.c -o enc/compress_fragment_two_pass.o gcc -c -I ./include -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 enc/dictionary_hash.c -o enc/dictionary_hash.o gcc -c -I ./include -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 enc/encode.c -o enc/encode.o gcc -c -I ./include -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 enc/encoder_dict.c -o enc/encoder_dict.o gcc -c -I ./include -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 enc/entropy_encode.c -o enc/entropy_encode.o gcc -c -I ./include -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 enc/histogram.c -o enc/histogram.o gcc -c -I ./include -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 enc/literal_cost.c -o enc/literal_cost.o gcc -c -I ./include -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 enc/memory.c -o enc/memory.o gcc -c -I ./include -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 enc/metablock.c -o enc/metablock.o gcc -c -I ./include -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 enc/static_dict.c -o enc/static_dict.o gcc -c -I ./include -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 enc/utf8_util.c -o enc/utf8_util.o gcc -o ../bin/Brotli tools/brotli.o common/dictionary.o common/transform.o dec/bit_reader.o dec/decode.o dec/huffman.o dec/state.o enc/backward_references.o enc/backward_references_hq.o enc/bit_cost.o enc/block_splitter.o enc/brotli_bit_stream.o enc/cluster.o enc/compress_fragment.o enc/compress_fragment_two_pass.o enc/dictionary_hash.o enc/encode.o enc/encoder_dict.o enc/entropy_encode.o enc/histogram.o enc/literal_cost.o enc/memory.o enc/metablock.o enc/static_dict.o enc/utf8_util.o -L../libs -lm make -C VfrCompile g++ -c -DPCCTS_USE_NAMESPACE_STD -I Pccts/h -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -O2 Pccts/h/AParser.cpp -o AParser.o g++ -c -DPCCTS_USE_NAMESPACE_STD -I Pccts/h -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -O2 Pccts/h/DLexerBase.cpp -o DLexerBase.o g++ -c -DPCCTS_USE_NAMESPACE_STD -I Pccts/h -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -O2 Pccts/h/ATokenBuffer.cpp -o ATokenBuffer.o g++ -c -I Pccts/h -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -Wno-unused-result -O2 EfiVfrParser.cpp -o EfiVfrParser.o g++ -c -I Pccts/h -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -Wno-unused-result -O2 VfrLexer.cpp -o VfrLexer.o g++ -c -DPCCTS_USE_NAMESPACE_STD -I Pccts/h -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -O2 VfrSyntax.cpp -o VfrSyntax.o g++ -c -I Pccts/h -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -Wno-unused-result -O2 VfrFormPkg.cpp -o VfrFormPkg.o g++ -c -I Pccts/h -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -Wno-unused-result -O2 VfrError.cpp -o VfrError.o g++ -c -I Pccts/h -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -Wno-unused-result -O2 VfrUtilityLib.cpp -o VfrUtilityLib.o g++ -c -I Pccts/h -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -Wno-unused-result -O2 VfrCompiler.cpp -o VfrCompiler.o g++ -o ../bin/VfrCompile AParser.o DLexerBase.o ATokenBuffer.o EfiVfrParser.o VfrLexer.o VfrSyntax.o VfrFormPkg.o VfrError.o VfrUtilityLib.o VfrCompiler.o -L../libs -lCommon make -C EfiLdrImage gcc -c -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 EfiLdrImage.c -o EfiLdrImage.o gcc -o ../bin/EfiLdrImage EfiLdrImage.o -L../libs -lCommon make -C EfiRom gcc -c -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 EfiRom.c -o EfiRom.o gcc -o ../bin/EfiRom EfiRom.o -L../libs -lCommon make -C GenFfs gcc -c -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 GenFfs.c -o GenFfs.o gcc -o ../bin/GenFfs GenFfs.o -L../libs -lCommon make -C GenFv gcc -c -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 GenFv.c -o GenFv.o gcc -c -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 GenFvInternalLib.c -o GenFvInternalLib.o gcc -o ../bin/GenFv GenFv.o GenFvInternalLib.o -L../libs -lCommon make -C GenFw gcc -c -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 GenFw.c -o GenFw.o gcc -c -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 ElfConvert.c -o ElfConvert.o gcc -c -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 Elf32Convert.c -o Elf32Convert.o gcc -c -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 Elf64Convert.c -o Elf64Convert.o gcc -o ../bin/GenFw GenFw.o ElfConvert.o Elf32Convert.o Elf64Convert.o -L../libs -lCommon make -C GenPage gcc -c -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 GenPage.c -o GenPage.o gcc -o ../bin/GenPage GenPage.o -L../libs -lCommon make -C GenSec gcc -c -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 GenSec.c -o GenSec.o gcc -o ../bin/GenSec GenSec.o -L../libs -lCommon make -C GenCrc32 gcc -c -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 GenCrc32.c -o GenCrc32.o gcc -o ../bin/GenCrc32 GenCrc32.o -L../libs -lCommon make -C LzmaCompress gcc -c -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 -D_7ZIP_ST LzmaCompress.c -o LzmaCompress.o gcc -c -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 -D_7ZIP_ST Sdk/C/Alloc.c -o Sdk/C/Alloc.o gcc -c -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 -D_7ZIP_ST Sdk/C/LzFind.c -o Sdk/C/LzFind.o gcc -c -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 -D_7ZIP_ST Sdk/C/LzmaDec.c -o Sdk/C/LzmaDec.o gcc -c -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 -D_7ZIP_ST Sdk/C/LzmaEnc.c -o Sdk/C/LzmaEnc.o gcc -c -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 -D_7ZIP_ST Sdk/C/7zFile.c -o Sdk/C/7zFile.o gcc -c -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 -D_7ZIP_ST Sdk/C/7zStream.c -o Sdk/C/7zStream.o gcc -c -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 -D_7ZIP_ST Sdk/C/Bra86.c -o Sdk/C/Bra86.o gcc -o ../bin/LzmaCompress LzmaCompress.o Sdk/C/Alloc.o Sdk/C/LzFind.o Sdk/C/LzmaDec.o Sdk/C/LzmaEnc.o Sdk/C/7zFile.o Sdk/C/7zStream.o Sdk/C/Bra86.o -L../libs make -C Split gcc -c -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 Split.c -o Split.o gcc -o ../bin/Split Split.o -L../libs -lCommon make -C TianoCompress gcc -c -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 TianoCompress.c -o TianoCompress.o gcc -o ../bin/TianoCompress TianoCompress.o -L../libs -lCommon make -C VolInfo gcc -c -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 VolInfo.c -o VolInfo.o gcc -o ../bin/VolInfo VolInfo.o -L../libs -lCommon make -C DevicePath gcc -c -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 DevicePath.c -o DevicePath.o gcc -c -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 UefiDevicePathLib.c -o UefiDevicePathLib.o gcc -c -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 DevicePathFromText.c -o DevicePathFromText.o gcc -c -I .. -I ../Include/Common -I ../Include/ -I ../Include/IndustryStandard -I ../Common/ -I .. -I . -I ../Include/X64/ -MD -fshort-wchar -fno-strict-aliasing -Wall -Werror -Wno-deprecated-declarations -Wno-self-assign -Wno-unused-result -nostdlib -g -O2 DevicePathUtilities.c -o DevicePathUtilities.o gcc -o ../bin/DevicePath DevicePath.o UefiDevicePathLib.o DevicePathFromText.o DevicePathUtilities.o -L../libs -lCommon Finished building BaseTools C Tools with HOST_ARCH=X64 make -C Source/Python make[1]: Nothing to be done for `all'. make -C Tests testHelp (TianoCompress.Tests) ... ok testRandomDataCycles (TianoCompress.Tests) ... ok test_AutoGen_AutoGen (CheckPythonSyntax.Tests) ... ok test_AutoGen_AutoGenWorker (CheckPythonSyntax.Tests) ... ok test_AutoGen_BuildEngine (CheckPythonSyntax.Tests) ... ok test_AutoGen_CacheIR (CheckPythonSyntax.Tests) ... ok test_AutoGen_DataPipe (CheckPythonSyntax.Tests) ... ok test_AutoGen_GenC (CheckPythonSyntax.Tests) ... ok test_AutoGen_GenDepex (CheckPythonSyntax.Tests) ... ok test_AutoGen_GenMake (CheckPythonSyntax.Tests) ... ok test_AutoGen_GenPcdDb (CheckPythonSyntax.Tests) ... ok test_AutoGen_GenVar (CheckPythonSyntax.Tests) ... ok test_AutoGen_IdfClassObject (CheckPythonSyntax.Tests) ... ok test_AutoGen_InfSectionParser (CheckPythonSyntax.Tests) ... ok test_AutoGen_ModuleAutoGen (CheckPythonSyntax.Tests) ... ok test_AutoGen_ModuleAutoGenHelper (CheckPythonSyntax.Tests) ... ok test_AutoGen_PlatformAutoGen (CheckPythonSyntax.Tests) ... ok test_AutoGen_StrGather (CheckPythonSyntax.Tests) ... ok test_AutoGen_UniClassObject (CheckPythonSyntax.Tests) ... ok test_AutoGen_ValidCheckingInfoObject (CheckPythonSyntax.Tests) ... ok test_AutoGen_WorkspaceAutoGen (CheckPythonSyntax.Tests) ... ok test_AutoGen___init__ (CheckPythonSyntax.Tests) ... ok test_BPDG_BPDG (CheckPythonSyntax.Tests) ... ok test_BPDG_GenVpd (CheckPythonSyntax.Tests) ... ok test_BPDG_StringTable (CheckPythonSyntax.Tests) ... ok test_BPDG___init__ (CheckPythonSyntax.Tests) ... ok test_Capsule_GenerateCapsule (CheckPythonSyntax.Tests) ... ok test_Capsule_GenerateWindowsDriver (CheckPythonSyntax.Tests) ... ok test_Capsule_WindowsCapsuleSupportHelper (CheckPythonSyntax.Tests) ... ok test_CommonDataClass_CommonClass (CheckPythonSyntax.Tests) ... ok test_CommonDataClass_DataClass (CheckPythonSyntax.Tests) ... ok test_CommonDataClass_Exceptions (CheckPythonSyntax.Tests) ... ok test_CommonDataClass_FdfClass (CheckPythonSyntax.Tests) ... ok test_CommonDataClass___init__ (CheckPythonSyntax.Tests) ... ok test_Common_BuildToolError (CheckPythonSyntax.Tests) ... ok test_Common_BuildVersion (CheckPythonSyntax.Tests) ... ok test_Common_DataType (CheckPythonSyntax.Tests) ... ok test_Common_Edk2_Capsule_FmpPayloadHeader (CheckPythonSyntax.Tests) ... ok test_Common_Edk2_Capsule___init__ (CheckPythonSyntax.Tests) ... ok test_Common_Edk2___init__ (CheckPythonSyntax.Tests) ... ok test_Common_EdkLogger (CheckPythonSyntax.Tests) ... ok test_Common_Expression (CheckPythonSyntax.Tests) ... ok test_Common_GlobalData (CheckPythonSyntax.Tests) ... ok test_Common_LongFilePathOs (CheckPythonSyntax.Tests) ... ok test_Common_LongFilePathOsPath (CheckPythonSyntax.Tests) ... ok test_Common_LongFilePathSupport (CheckPythonSyntax.Tests) ... ok test_Common_Misc (CheckPythonSyntax.Tests) ... ok test_Common_MultipleWorkspace (CheckPythonSyntax.Tests) ... ok test_Common_Parsing (CheckPythonSyntax.Tests) ... ok test_Common_RangeExpression (CheckPythonSyntax.Tests) ... ok test_Common_StringUtils (CheckPythonSyntax.Tests) ... ok test_Common_TargetTxtClassObject (CheckPythonSyntax.Tests) ... ok test_Common_ToolDefClassObject (CheckPythonSyntax.Tests) ... ok test_Common_Uefi_Capsule_FmpAuthHeader (CheckPythonSyntax.Tests) ... ok test_Common_Uefi_Capsule_FmpCapsuleHeader (CheckPythonSyntax.Tests) ... ok test_Common_Uefi_Capsule_UefiCapsuleHeader (CheckPythonSyntax.Tests) ... ok test_Common_Uefi_Capsule___init__ (CheckPythonSyntax.Tests) ... ok test_Common_Uefi___init__ (CheckPythonSyntax.Tests) ... ok test_Common_VariableAttributes (CheckPythonSyntax.Tests) ... ok test_Common_VpdInfoFile (CheckPythonSyntax.Tests) ... ok test_Common___init__ (CheckPythonSyntax.Tests) ... ok test_Common_buildoptions (CheckPythonSyntax.Tests) ... ok test_Common_caching (CheckPythonSyntax.Tests) ... ok test_Ecc_CParser3_CLexer (CheckPythonSyntax.Tests) ... ok test_Ecc_CParser3_CParser (CheckPythonSyntax.Tests) ... ok test_Ecc_CParser3___init__ (CheckPythonSyntax.Tests) ... ok test_Ecc_CParser4_CLexer (CheckPythonSyntax.Tests) ... ok test_Ecc_CParser4_CListener (CheckPythonSyntax.Tests) ... ok test_Ecc_CParser4_CParser (CheckPythonSyntax.Tests) ... ok test_Ecc_CParser4___init__ (CheckPythonSyntax.Tests) ... ok test_Ecc_Check (CheckPythonSyntax.Tests) ... ok test_Ecc_CodeFragment (CheckPythonSyntax.Tests) ... ok test_Ecc_CodeFragmentCollector (CheckPythonSyntax.Tests) ... ok test_Ecc_Configuration (CheckPythonSyntax.Tests) ... ok test_Ecc_Database (CheckPythonSyntax.Tests) ... ok test_Ecc_EccGlobalData (CheckPythonSyntax.Tests) ... ok test_Ecc_EccMain (CheckPythonSyntax.Tests) ... ok test_Ecc_EccToolError (CheckPythonSyntax.Tests) ... ok test_Ecc_Exception (CheckPythonSyntax.Tests) ... ok test_Ecc_FileProfile (CheckPythonSyntax.Tests) ... ok test_Ecc_MetaDataParser (CheckPythonSyntax.Tests) ... ok test_Ecc_MetaFileWorkspace_MetaDataTable (CheckPythonSyntax.Tests) ... ok test_Ecc_MetaFileWorkspace_MetaFileParser (CheckPythonSyntax.Tests) ... ok test_Ecc_MetaFileWorkspace_MetaFileTable (CheckPythonSyntax.Tests) ... ok test_Ecc_MetaFileWorkspace___init__ (CheckPythonSyntax.Tests) ... ok test_Ecc_ParserWarning (CheckPythonSyntax.Tests) ... ok test_Ecc_Xml_XmlRoutines (CheckPythonSyntax.Tests) ... ok test_Ecc_Xml___init__ (CheckPythonSyntax.Tests) ... ok test_Ecc___init__ (CheckPythonSyntax.Tests) ... ok test_Ecc_c (CheckPythonSyntax.Tests) ... ok test_Eot_CParser3_CLexer (CheckPythonSyntax.Tests) ... ok test_Eot_CParser3_CParser (CheckPythonSyntax.Tests) ... ok test_Eot_CParser3___init__ (CheckPythonSyntax.Tests) ... ok test_Eot_CParser4_CLexer (CheckPythonSyntax.Tests) ... ok test_Eot_CParser4_CListener (CheckPythonSyntax.Tests) ... ok test_Eot_CParser4_CParser (CheckPythonSyntax.Tests) ... ok test_Eot_CParser4___init__ (CheckPythonSyntax.Tests) ... ok test_Eot_CodeFragment (CheckPythonSyntax.Tests) ... ok test_Eot_CodeFragmentCollector (CheckPythonSyntax.Tests) ... ok test_Eot_Database (CheckPythonSyntax.Tests) ... ok test_Eot_EotGlobalData (CheckPythonSyntax.Tests) ... ok test_Eot_EotMain (CheckPythonSyntax.Tests) ... ok test_Eot_EotToolError (CheckPythonSyntax.Tests) ... ok test_Eot_FileProfile (CheckPythonSyntax.Tests) ... ok test_Eot_Identification (CheckPythonSyntax.Tests) ... ok test_Eot_InfParserLite (CheckPythonSyntax.Tests) ... ok test_Eot_Parser (CheckPythonSyntax.Tests) ... ok test_Eot_ParserWarning (CheckPythonSyntax.Tests) ... ok test_Eot_Report (CheckPythonSyntax.Tests) ... ok test_Eot___init__ (CheckPythonSyntax.Tests) ... ok test_Eot_c (CheckPythonSyntax.Tests) ... ok test_GenFds_AprioriSection (CheckPythonSyntax.Tests) ... ok test_GenFds_Capsule (CheckPythonSyntax.Tests) ... ok test_GenFds_CapsuleData (CheckPythonSyntax.Tests) ... ok test_GenFds_CompressSection (CheckPythonSyntax.Tests) ... ok test_GenFds_DataSection (CheckPythonSyntax.Tests) ... ok test_GenFds_DepexSection (CheckPythonSyntax.Tests) ... ok test_GenFds_EfiSection (CheckPythonSyntax.Tests) ... ok test_GenFds_Fd (CheckPythonSyntax.Tests) ... ok test_GenFds_FdfParser (CheckPythonSyntax.Tests) ... ok test_GenFds_Ffs (CheckPythonSyntax.Tests) ... ok test_GenFds_FfsFileStatement (CheckPythonSyntax.Tests) ... ok test_GenFds_FfsInfStatement (CheckPythonSyntax.Tests) ... ok test_GenFds_Fv (CheckPythonSyntax.Tests) ... ok test_GenFds_FvImageSection (CheckPythonSyntax.Tests) ... ok test_GenFds_GenFds (CheckPythonSyntax.Tests) ... ok test_GenFds_GenFdsGlobalVariable (CheckPythonSyntax.Tests) ... ok test_GenFds_GuidSection (CheckPythonSyntax.Tests) ... ok test_GenFds_OptRomFileStatement (CheckPythonSyntax.Tests) ... ok test_GenFds_OptRomInfStatement (CheckPythonSyntax.Tests) ... ok test_GenFds_OptionRom (CheckPythonSyntax.Tests) ... ok test_GenFds_Region (CheckPythonSyntax.Tests) ... ok test_GenFds_Rule (CheckPythonSyntax.Tests) ... ok test_GenFds_RuleComplexFile (CheckPythonSyntax.Tests) ... ok test_GenFds_RuleSimpleFile (CheckPythonSyntax.Tests) ... ok test_GenFds_Section (CheckPythonSyntax.Tests) ... ok test_GenFds_UiSection (CheckPythonSyntax.Tests) ... ok test_GenFds_VerSection (CheckPythonSyntax.Tests) ... ok test_GenFds___init__ (CheckPythonSyntax.Tests) ... ok test_GenPatchPcdTable_GenPatchPcdTable (CheckPythonSyntax.Tests) ... ok test_GenPatchPcdTable___init__ (CheckPythonSyntax.Tests) ... ok test_PatchPcdValue_PatchPcdValue (CheckPythonSyntax.Tests) ... ok test_PatchPcdValue___init__ (CheckPythonSyntax.Tests) ... ok test_Pkcs7Sign_Pkcs7Sign (CheckPythonSyntax.Tests) ... ok test_Rsa2048Sha256Sign_Rsa2048Sha256GenerateKeys (CheckPythonSyntax.Tests) ... ok test_Rsa2048Sha256Sign_Rsa2048Sha256Sign (CheckPythonSyntax.Tests) ... ok test_Table_Table (CheckPythonSyntax.Tests) ... ok test_Table_TableDataModel (CheckPythonSyntax.Tests) ... ok test_Table_TableDec (CheckPythonSyntax.Tests) ... ok test_Table_TableDsc (CheckPythonSyntax.Tests) ... ok test_Table_TableEotReport (CheckPythonSyntax.Tests) ... ok test_Table_TableFdf (CheckPythonSyntax.Tests) ... ok test_Table_TableFile (CheckPythonSyntax.Tests) ... ok test_Table_TableFunction (CheckPythonSyntax.Tests) ... ok test_Table_TableIdentifier (CheckPythonSyntax.Tests) ... ok test_Table_TableInf (CheckPythonSyntax.Tests) ... ok test_Table_TablePcd (CheckPythonSyntax.Tests) ... ok test_Table_TableQuery (CheckPythonSyntax.Tests) ... ok test_Table_TableReport (CheckPythonSyntax.Tests) ... ok test_Table___init__ (CheckPythonSyntax.Tests) ... ok test_TargetTool_TargetTool (CheckPythonSyntax.Tests) ... ok test_TargetTool___init__ (CheckPythonSyntax.Tests) ... ok test_Trim_Trim (CheckPythonSyntax.Tests) ... ok test_UPT_BuildVersion (CheckPythonSyntax.Tests) ... ok test_UPT_Core_DependencyRules (CheckPythonSyntax.Tests) ... ok test_UPT_Core_DistributionPackageClass (CheckPythonSyntax.Tests) ... ok test_UPT_Core_FileHook (CheckPythonSyntax.Tests) ... ok test_UPT_Core_IpiDb (CheckPythonSyntax.Tests) ... ok test_UPT_Core_PackageFile (CheckPythonSyntax.Tests) ... ok test_UPT_Core___init__ (CheckPythonSyntax.Tests) ... ok test_UPT_GenMetaFile_GenDecFile (CheckPythonSyntax.Tests) ... ok test_UPT_GenMetaFile_GenInfFile (CheckPythonSyntax.Tests) ... ok test_UPT_GenMetaFile_GenMetaFileMisc (CheckPythonSyntax.Tests) ... ok test_UPT_GenMetaFile_GenXmlFile (CheckPythonSyntax.Tests) ... ok test_UPT_GenMetaFile___init__ (CheckPythonSyntax.Tests) ... ok test_UPT_InstallPkg (CheckPythonSyntax.Tests) ... ok test_UPT_InventoryWs (CheckPythonSyntax.Tests) ... ok test_UPT_Library_CommentGenerating (CheckPythonSyntax.Tests) ... ok test_UPT_Library_CommentParsing (CheckPythonSyntax.Tests) ... ok test_UPT_Library_DataType (CheckPythonSyntax.Tests) ... ok test_UPT_Library_ExpressionValidate (CheckPythonSyntax.Tests) ... ok test_UPT_Library_GlobalData (CheckPythonSyntax.Tests) ... ok test_UPT_Library_Misc (CheckPythonSyntax.Tests) ... ok test_UPT_Library_ParserValidate (CheckPythonSyntax.Tests) ... ok test_UPT_Library_Parsing (CheckPythonSyntax.Tests) ... ok test_UPT_Library_StringUtils (CheckPythonSyntax.Tests) ... ok test_UPT_Library_UniClassObject (CheckPythonSyntax.Tests) ... ok test_UPT_Library_Xml_XmlRoutines (CheckPythonSyntax.Tests) ... ok test_UPT_Library_Xml___init__ (CheckPythonSyntax.Tests) ... ok test_UPT_Library___init__ (CheckPythonSyntax.Tests) ... ok test_UPT_Logger_Log (CheckPythonSyntax.Tests) ... ok test_UPT_Logger_StringTable (CheckPythonSyntax.Tests) ... ok test_UPT_Logger_ToolError (CheckPythonSyntax.Tests) ... ok test_UPT_Logger___init__ (CheckPythonSyntax.Tests) ... ok test_UPT_MkPkg (CheckPythonSyntax.Tests) ... ok test_UPT_Object_POM_CommonObject (CheckPythonSyntax.Tests) ... ok test_UPT_Object_POM_ModuleObject (CheckPythonSyntax.Tests) ... ok test_UPT_Object_POM_PackageObject (CheckPythonSyntax.Tests) ... ok test_UPT_Object_POM___init__ (CheckPythonSyntax.Tests) ... ok test_UPT_Object_Parser_DecObject (CheckPythonSyntax.Tests) ... ok test_UPT_Object_Parser_InfBinaryObject (CheckPythonSyntax.Tests) ... ok test_UPT_Object_Parser_InfBuildOptionObject (CheckPythonSyntax.Tests) ... ok test_UPT_Object_Parser_InfCommonObject (CheckPythonSyntax.Tests) ... ok test_UPT_Object_Parser_InfDefineCommonObject (CheckPythonSyntax.Tests) ... ok test_UPT_Object_Parser_InfDefineObject (CheckPythonSyntax.Tests) ... ok test_UPT_Object_Parser_InfDepexObject (CheckPythonSyntax.Tests) ... ok test_UPT_Object_Parser_InfGuidObject (CheckPythonSyntax.Tests) ... ok test_UPT_Object_Parser_InfHeaderObject (CheckPythonSyntax.Tests) ... ok test_UPT_Object_Parser_InfLibraryClassesObject (CheckPythonSyntax.Tests) ... ok test_UPT_Object_Parser_InfMisc (CheckPythonSyntax.Tests) ... ok test_UPT_Object_Parser_InfPackagesObject (CheckPythonSyntax.Tests) ... ok test_UPT_Object_Parser_InfPcdObject (CheckPythonSyntax.Tests) ... ok test_UPT_Object_Parser_InfPpiObject (CheckPythonSyntax.Tests) ... ok test_UPT_Object_Parser_InfProtocolObject (CheckPythonSyntax.Tests) ... ok test_UPT_Object_Parser_InfSoucesObject (CheckPythonSyntax.Tests) ... ok test_UPT_Object_Parser_InfUserExtensionObject (CheckPythonSyntax.Tests) ... ok test_UPT_Object_Parser___init__ (CheckPythonSyntax.Tests) ... ok test_UPT_Object___init__ (CheckPythonSyntax.Tests) ... ok test_UPT_Parser_DecParser (CheckPythonSyntax.Tests) ... ok test_UPT_Parser_DecParserMisc (CheckPythonSyntax.Tests) ... ok test_UPT_Parser_InfAsBuiltProcess (CheckPythonSyntax.Tests) ... ok test_UPT_Parser_InfBinarySectionParser (CheckPythonSyntax.Tests) ... ok test_UPT_Parser_InfBuildOptionSectionParser (CheckPythonSyntax.Tests) ... ok test_UPT_Parser_InfDefineSectionParser (CheckPythonSyntax.Tests) ... ok test_UPT_Parser_InfDepexSectionParser (CheckPythonSyntax.Tests) ... ok test_UPT_Parser_InfGuidPpiProtocolSectionParser (CheckPythonSyntax.Tests) ... ok test_UPT_Parser_InfLibrarySectionParser (CheckPythonSyntax.Tests) ... ok test_UPT_Parser_InfPackageSectionParser (CheckPythonSyntax.Tests) ... ok test_UPT_Parser_InfParser (CheckPythonSyntax.Tests) ... ok test_UPT_Parser_InfParserMisc (CheckPythonSyntax.Tests) ... ok test_UPT_Parser_InfPcdSectionParser (CheckPythonSyntax.Tests) ... ok test_UPT_Parser_InfSectionParser (CheckPythonSyntax.Tests) ... ok test_UPT_Parser_InfSourceSectionParser (CheckPythonSyntax.Tests) ... ok test_UPT_Parser___init__ (CheckPythonSyntax.Tests) ... ok test_UPT_PomAdapter_DecPomAlignment (CheckPythonSyntax.Tests) ... ok test_UPT_PomAdapter_InfPomAlignment (CheckPythonSyntax.Tests) ... ok test_UPT_PomAdapter_InfPomAlignmentMisc (CheckPythonSyntax.Tests) ... ok test_UPT_PomAdapter___init__ (CheckPythonSyntax.Tests) ... ok test_UPT_ReplacePkg (CheckPythonSyntax.Tests) ... ok test_UPT_RmPkg (CheckPythonSyntax.Tests) ... ok test_UPT_TestInstall (CheckPythonSyntax.Tests) ... ok test_UPT_UPT (CheckPythonSyntax.Tests) ... ok test_UPT_UnitTest_CommentGeneratingUnitTest (CheckPythonSyntax.Tests) ... ok test_UPT_UnitTest_CommentParsingUnitTest (CheckPythonSyntax.Tests) ... ok test_UPT_UnitTest_DecParserTest (CheckPythonSyntax.Tests) ... ok test_UPT_UnitTest_DecParserUnitTest (CheckPythonSyntax.Tests) ... ok test_UPT_UnitTest_InfBinarySectionTest (CheckPythonSyntax.Tests) ... ok test_UPT_Xml_CommonXml (CheckPythonSyntax.Tests) ... ok test_UPT_Xml_GuidProtocolPpiXml (CheckPythonSyntax.Tests) ... ok test_UPT_Xml_IniToXml (CheckPythonSyntax.Tests) ... ok test_UPT_Xml_ModuleSurfaceAreaXml (CheckPythonSyntax.Tests) ... ok test_UPT_Xml_PackageSurfaceAreaXml (CheckPythonSyntax.Tests) ... ok test_UPT_Xml_PcdXml (CheckPythonSyntax.Tests) ... ok test_UPT_Xml_XmlParser (CheckPythonSyntax.Tests) ... ok test_UPT_Xml_XmlParserMisc (CheckPythonSyntax.Tests) ... ok test_UPT_Xml___init__ (CheckPythonSyntax.Tests) ... ok test_Workspace_BuildClassObject (CheckPythonSyntax.Tests) ... ok test_Workspace_DecBuildData (CheckPythonSyntax.Tests) ... ok test_Workspace_DscBuildData (CheckPythonSyntax.Tests) ... ok test_Workspace_InfBuildData (CheckPythonSyntax.Tests) ... ok test_Workspace_MetaDataTable (CheckPythonSyntax.Tests) ... ok test_Workspace_MetaFileCommentParser (CheckPythonSyntax.Tests) ... ok test_Workspace_MetaFileParser (CheckPythonSyntax.Tests) ... ok test_Workspace_MetaFileTable (CheckPythonSyntax.Tests) ... ok test_Workspace_WorkspaceCommon (CheckPythonSyntax.Tests) ... ok test_Workspace_WorkspaceDatabase (CheckPythonSyntax.Tests) ... ok test_Workspace___init__ (CheckPythonSyntax.Tests) ... ok test_build_BuildReport (CheckPythonSyntax.Tests) ... ok test_build___init__ (CheckPythonSyntax.Tests) ... ok test_build_build (CheckPythonSyntax.Tests) ... ok test_sitecustomize (CheckPythonSyntax.Tests) ... ok test32bitUnicodeCharInUtf8Comment (CheckUnicodeSourceFiles.Tests) ... ok test32bitUnicodeCharInUtf8File (CheckUnicodeSourceFiles.Tests) ... ok testSupplementaryPlaneUnicodeCharInUtf16File (CheckUnicodeSourceFiles.Tests) ... ok testSurrogatePairUnicodeCharInUtf16File (CheckUnicodeSourceFiles.Tests) ... ok testSurrogatePairUnicodeCharInUtf8File (CheckUnicodeSourceFiles.Tests) ... ok testSurrogatePairUnicodeCharInUtf8FileWithBom (CheckUnicodeSourceFiles.Tests) ... ok testUtf16InUniFile (CheckUnicodeSourceFiles.Tests) ... ok testValidUtf8File (CheckUnicodeSourceFiles.Tests) ... ok testValidUtf8FileWithBom (CheckUnicodeSourceFiles.Tests) ... ok ---------------------------------------------------------------------- Ran 280 tests in 2.075s OK Running edk2 build for CloverX64 using the command: build --conf=/Users/fusion71au/src/CloverBootloader/Conf -D USE_LOW_EBDA -p Clover.dsc -a X64 -b RELEASE -t GCC53 -n 5 Build environment: Darwin-16.7.0-x86_64-i386-64bit Build start time: 15:39:39, Sep.19 2019 WORKSPACE = /Users/fusion71au/src/CloverBootloader EDK_TOOLS_PATH = /Users/fusion71au/src/CloverBootloader/BaseTools CONF_PATH = /Users/fusion71au/src/CloverBootloader/Conf Architecture(s) = X64 Processing meta-data .Build target = RELEASE Toolchain = GCC53 Active Platform = /Users/fusion71au/src/CloverBootloader/Clover.dsc .............. done! Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/BaseCpuLib/BaseCpuLib.inf [X64] Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/UefiDriverEntryPoint/UefiDriverEntryPoint.inf [X64] Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/UefiLib/UefiLib.inf [X64] Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/UefiRuntimeServicesTableLib/UefiRuntimeServicesTableLib.inf [X64] Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/UefiDevicePathLib/UefiDevicePathLib.inf [X64] [CC] UefiRuntimeServicesTableLib [CC] DriverEntryPoint [CC] Acpi [NASM] CpuFlushTlb [SLINK] UefiRuntimeServicesTableLib [SLINK] UefiDriverEntryPoint Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/UefiMemoryAllocationLib/UefiMemoryAllocationLib.inf [X64] [CC] DevicePathFromText Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/BasePrintLib/BasePrintLib.inf [X64] [CC] PrintLib [CC] Console [CC] MemoryAllocationLib [SLINK] UefiMemoryAllocationLib Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/UefiBootServicesTableLib/UefiBootServicesTableLib.inf [X64] [NASM] CpuSleep [SLINK] BaseCpuLib Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/BaseMemoryLib/BaseMemoryLib.inf [X64] [CC] PrintLibInternal [SLINK] BasePrintLib Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/BaseLib/BaseLib.inf [X64] [CC] CompareMemWrapper [CC] UefiBootServicesTableLib [SLINK] UefiBootServicesTableLib [CC] DevicePathToText Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/BaseDebugLibNull/BaseDebugLibNull.inf [X64] [CC] CopyMem [CC] ARShiftU64 [CC] DebugLib [CC] CopyMemWrapper [SLINK] BaseDebugLibNull Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/BasePcdLibNull/BasePcdLibNull.inf [X64] [CC] BitField [CC] IsZeroBufferWrapper [CC] UefiDriverModel [CC] DevicePathUtilities [CC] CheckSum [CC] MemLibGeneric [CC] PcdLib [CC] ChkStkGcc [SLINK] BasePcdLibNull Building ... /Users/fusion71au/src/CloverBootloader/Library/OsxBdsPlatformLib/PlatformBds.inf [X64] [CC] MemLibGuid [CC] Cpu [CC] ScanMem16Wrapper [CC] UefiDevicePathLib [CC] CpuDeadLoop [SLINK] UefiDevicePathLib Building ... /Users/fusion71au/src/CloverBootloader/Library/GenericBdsLib/GenericBdsLib.inf [X64] [CC] ScanMem32Wrapper [CC] DivS64x64Remainder [CC] ScanMem64Wrapper [CC] DivU64x32 [CC] ScanMem8Wrapper [CC] UefiLib [CC] DivU64x32Remainder [CC] SetMem [CC] DivU64x64Remainder [CC] BdsPlatform [CC] SetMem16Wrapper [CC] FilePaths [CC] SetMem32Wrapper [CC] GetPowerOfTwo32 [CC] UefiLibPrint [CC] SetMem64Wrapper [CC] GetPowerOfTwo64 [CC] SetMemWrapper [CC] PlatformData [CC] HighBitSet32 [CC] ZeroMemWrapper [SLINK] DuetBds Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Library/DxeCapsuleLibNull/DxeCapsuleLibNull.inf [X64] [SLINK] BaseMemoryLib Building ... /Users/fusion71au/src/CloverBootloader/ShellPkg/Library/UefiShellNetwork1CommandsLib/UefiShellNetwork1CommandsLib.inf [X64] [CC] HighBitSet64 [CC] LRotU32 [CC] DxeCapsuleLibNull [CC] AutoGen [CC] LRotU64 [SLINK] DxeCapsuleLibNull [CC] UefiNotTiano Building ... /Users/fusion71au/src/CloverBootloader/ShellPkg/Library/UefiShellDebug1CommandsLib/UefiShellDebug1CommandsLib.inf [X64] [CC] AutoGen [SLINK] UefiLib Building ... /Users/fusion71au/src/CloverBootloader/ShellPkg/Library/UefiShellInstall1CommandsLib/UefiShellInstall1CommandsLib.inf [X64] [CC] LShiftU64 [CC] LinkedList [CC] UefiShellInstall1CommandsLib [CC] LongJump [SLINK] UefiShellInstall1CommandsLib Building ... /Users/fusion71au/src/CloverBootloader/ShellPkg/Library/UefiShellDriver1CommandsLib/UefiShellDriver1CommandsLib.inf [X64] [CC] LowBitSet32 [CC] LowBitSet64 [CC] Math64 [CC] Ifconfig [CC] ModU64x32 [CC] AutoGen [CC] MultS64x64 [CC] MultU64x32 [CC] MultU64x64 [CC] RRotU32 [CC] BdsBoot [CC] Connect [CC] Ping [CC] RRotU64 [CC] AutoGen [CC] RShiftU64 [CC] SafeString [CC] UefiShellNetwork1CommandsLib [CC] DevTree [CC] Comp [SLINK] UefiShellNetwork1CommandsLib Building ... /Users/fusion71au/src/CloverBootloader/ShellPkg/Library/UefiShellLevel3CommandsLib/UefiShellLevel3CommandsLib.inf [X64] [CC] SetJump [CC] String [CC] BdsConnect [CC] SwapBytes16 [CC] Alias [CC] Devices [CC] Compress [CC] SwapBytes32 [CC] SwapBytes64 [CC] SwitchStack [CC] Unaligned [CC] AutoGen [CC] Dblk [CC] BdsConsole [CC] Dh [CC] Cls [CC] Dmem [CC] Disconnect [CC] Echo [NASM] CpuId [CC] BdsMisc [CC] DmpStore [CC] GetMtc [CC] Drivers [NASM] CpuIdEx [CC] Edit [CC] Help [CC] DevicePath [CC] Pause [NASM] DisableCache [CC] String [CC] DrvCfg [SLINK] GenericBdsLib Building ... /Users/fusion71au/src/CloverBootloader/ShellPkg/Library/UefiShellLevel1CommandsLib/UefiShellLevel1CommandsLib.inf [X64] [CC] Touch [NASM] DisablePaging64 [CC] AutoGen [CC] DrvDiag [CC] FileBuffer [NASM] EnableCache [CC] Type [CC] Exit [CC] OpenInfo [CC] UefiShellLevel3CommandsLib [NASM] EnableDisableInterrupts [CC] For [CC] GccInline [CC] Ver [CC] MainTextEditor [CC] Reconnect [SLINK] UefiShellLevel3CommandsLib Building ... /Users/fusion71au/src/CloverBootloader/ShellPkg/Library/UefiShellLevel2CommandsLib/UefiShellLevel2CommandsLib.inf [X64] [CC] Goto [NASM] Lfence [CC] Misc [CC] UefiShellDriver1CommandsLib [CC] Attrib [NASM] LongJump [CC] EditInputBar [CC] Unload [CC] Non-existing [CC] If [SLINK] UefiShellDriver1CommandsLib Building ... /Users/fusion71au/src/CloverBootloader/ShellPkg/Library/UefiShellBcfgCommandLib/UefiShellBcfgCommandLib.inf [X64] [CC] AutoGen [NASM] RdRand [CC] Shift [CC] EditMenuBar [CC] Stall [CC] EditStatusBar [NASM] SetJump [CC] AutoGen [CC] UefiShellBcfgCommandLib [SLINK] UefiShellBcfgCommandLib Building ... /Users/fusion71au/src/CloverBootloader/ShellPkg/Library/UefiShellCommandLib/UefiShellCommandLib.inf [X64] [NASM] SwitchStack [CC] UefiShellLevel1CommandsLib [CC] EditTitleBar [SLINK] UefiShellLevel1CommandsLib Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Library/UefiBootManagerLib/UefiBootManagerLib.inf [X64] [CC] Cd [CC] EfiCompress [NASM] Thunk16 [CC] Cp [CC] ConsistMapping [CC] EfiDecompress [CC] BmBoot [CC] Load [CC] UefiShellCommandLib [SLINK] UefiShellCommandLib Building ... /Users/fusion71au/src/CloverBootloader/ShellPkg/Library/UefiHandleParsingLib/UefiHandleParsingLib.inf [X64] [CC] Ls [CC] BufferImage [NASM] WriteTr [CC] BmBootDescription [CC] AutoGen [CC] X86DisablePaging32 [CC] X86DisablePaging64 [CC] X86EnablePaging32 [CC] Clipboard [CC] X86EnablePaging64 [CC] Map [CC] X86FxRestore [CC] BmConnect [CC] X86FxSave [CC] X86GetInterruptState [CC] DiskImage [CC] MkDir [CC] X86Msr [CC] X86PatchInstruction [CC] X86RdRand [CC] FileImage [CC] BmConsole [CC] X86ReadGdtr [CC] Mv [CC] X86ReadIdtr [CC] X86SpeculationBarrier [CC] X86Thunk [CC] HexEdit [CC] Parse [CC] X86WriteGdtr [CC] BmDriverHealth [CC] X86WriteIdtr [SLINK] BaseLib Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Library/UefiHiiServicesLib/UefiHiiServicesLib.inf [X64] [CC] Reset [CC] UefiHandleParsingLib [CC] UefiHiiServicesLib [SLINK] UefiHandleParsingLib Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Library/CpuExceptionHandlerLibNull/CpuExceptionHandlerLibNull.inf [X64] [SLINK] UefiHiiServicesLib Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Library/DebugAgentLibNull/DebugAgentLibNull.inf [X64] [CC] DebugAgentLibNull [CC] Rm [CC] CpuExceptionHandlerLibNull [CC] MainHexEditor [SLINK] DebugAgentLibNull Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/BasePeCoffGetEntryPointLib/BasePeCoffGetEntryPointLib.inf [X64] [SLINK] CpuExceptionHandlerLibNull Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/BasePerformanceLibNull/BasePerformanceLibNull.inf [X64] [CC] BmHotkey [CC] PeCoffGetEntryPoint [SLINK] BasePeCoffGetEntryPointLib Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/BaseUefiDecompressLib/BaseUefiDecompressLib.inf [X64] [CC] PerformanceLib [CC] Set [SLINK] BasePerformanceLibNull Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/DxeCoreHobLib/DxeCoreHobLib.inf [X64] [CC] MemImage [CC] BaseUefiDecompressLib [SLINK] BaseUefiDecompressLib Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/DxeCoreEntryPoint/DxeCoreEntryPoint.inf [X64] [CC] HobLib [SLINK] DxeCoreHobLib Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Library/DxeCoreMemoryAllocationLib/DxeCoreMemoryAllocationLib.inf [X64] [CC] DxeCoreEntryPoint [CC] Misc [CC] BmLoadOption [SLINK] DxeCoreEntryPoint Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Library/CustomizedDisplayLib/CustomizedDisplayLib.inf [X64] [CC] TimeDate [CC] DxeCoreMemoryProfileLibNull [CC] AutoGen [CC] UefiShellLevel2CommandsLib [CC] MemoryAllocationLib [CC] LoadPciRom [SLINK] DxeCoreMemoryAllocationLib Building ... /Users/fusion71au/src/CloverBootloader/Library/LzmaCustomDecompressLib/LzmaCustomDecompressLib.inf [X64] [CC] CustomizedDisplayLib [CC] BmMisc [SLINK] UefiBootManagerLib Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/DxeExtractGuidedSectionLib/DxeExtractGuidedSectionLib.inf [X64] [CC] GuidedSectionExtraction [CC] Vol [CC] LzmaDecompress [CC] DxeExtractGuidedSectionLib [SLINK] UefiShellLevel2CommandsLib Building ... /Users/fusion71au/src/CloverBootloader/Library/WaveLib/WaveLib.inf [X64] [CC] MemMap [SLINK] DxeExtractGuidedSectionLib Building ... /Users/fusion71au/src/CloverBootloader/NetworkPkg/Library/DxeNetLib/DxeNetLib.inf [X64] [CC] CustomizedDisplayLibInternal [SLINK] CustomizedDisplayLib Building ... /Users/fusion71au/src/CloverBootloader/Library/OpensslLib/OpensslLibNull.inf [X64] [CC] WaveLib [CC] OpensslLibNull [SLINK] WaveLib Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/UefiMemoryLib/UefiMemoryLib.inf [X64] [SLINK] OpensslLib Building ... /Users/fusion71au/src/CloverBootloader/ShellPkg/Library/UefiShellNetwork2CommandsLib/UefiShellNetwork2CommandsLib.inf [X64] [CC] LzFind [CC] Mm [CC] CompareMemWrapper [CC] AutoGen [CC] CopyMemWrapper [CC] Mode [CC] LzmaDec [SLINK] LzmaDecompressLib Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Library/DxeSecurityManagementLib/DxeSecurityManagementLib.inf [X64] [CC] IsZeroBufferWrapper [CC] DxeNetLib [CC] MemLib [CC] DxeSecurityManagementLib [SLINK] DxeSecurityManagementLib Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/DxeServicesLib/DxeServicesLib.inf [X64] [CC] Ifconfig6 [CC] MemLibGeneric [CC] MemLibGuid [CC] NetBuffer [CC] DxeServicesLib [CC] Ping6 [SLINK] DxeNetLib Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/BaseCacheMaintenanceLib/BaseCacheMaintenanceLib.inf [X64] [CC] ScanMem16Wrapper [CC] X86Cache [CC] Allocate [SLINK] BaseCacheMaintenanceLib Building ... /Users/fusion71au/src/CloverBootloader/Library/VBoxPeCoffLib/VBoxPeCoffLib.inf [X64] [SLINK] DxeServicesLib Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/BasePeCoffExtraActionLibNull/BasePeCoffExtraActionLibNull.inf [X64] [CC] UefiShellNetwork2CommandsLib [CC] Pci [SLINK] UefiShellNetwork2CommandsLib Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Library/VarCheckLib/VarCheckLib.inf [X64] [CC] PeCoffExtraActionLib [CC] ScanMem32Wrapper [SLINK] PeCoffExtraActionLibNull Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Library/AuthVariableLibNull/AuthVariableLibNull.inf [X64] [CC] BasePeCoff [CC] PeCoffLoaderEx [SLINK] VBoxPeCoffLib Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Library/TpmMeasurementLibNull/TpmMeasurementLibNull.inf [X64] [CC] SerMode [CC] VarCheckLib [CC] AuthVariableLibNull [SLINK] VarCheckLib Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/DxeServicesTableLib/DxeServicesTableLib.inf [X64] [SLINK] AuthVariableLibNull Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/BaseSynchronizationLib/BaseSynchronizationLib.inf [X64] [CC] TpmMeasurementLibNull [SLINK] TpmMeasurementLibNull Building ... /Users/fusion71au/src/CloverBootloader/Library/VideoBiosPatchLib/VideoBiosPatchLib.inf [X64] [CC] InternalGetSpinLockProperties [CC] SetSize [CC] DxeServicesTableLib [CC] SynchronizationGcc [SLINK] DxeServicesTableLib Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/UefiScsiLib/UefiScsiLib.inf [X64] [CC] GccInline [SLINK] BaseSynchronizationLib Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/UefiUsbLib/UefiUsbLib.inf [X64] [CC] 915resolution [CC] SetVar [CC] Hid [CC] UefiScsiLib [SLINK] UefiScsiLib Building ... /Users/fusion71au/src/CloverBootloader/Library/MemLogLibDefault/MemLogLibDefault.inf [X64] [CC] VideoBiosPatchLib [CC] UsbDxeLib [SLINK] UefiUsbLib Building ... /Users/fusion71au/src/CloverBootloader/ShellPkg/Library/UefiShellLib/UefiShellLib.inf [X64] [CC] EventLogInfo [CC] ScanMem64Wrapper [CC] ScanMem8Wrapper [CC] LibSmbiosView [CC] SetMem16Wrapper [CC] UefiShellLib [SLINK] UefiShellLib Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/UefiApplicationEntryPoint/UefiApplicationEntryPoint.inf [X64] [CC] SetMem32Wrapper [CC] SetMem64Wrapper [CC] ApplicationEntryPoint [SLINK] UefiApplicationEntryPoint Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/BasePciLibCf8/BasePciLibCf8.inf [X64] [CC] SetMemWrapper [CC] PciLib [CC] MemLogLib [SLINK] BasePciLibCf8 Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/UefiFileHandleLib/UefiFileHandleLib.inf [X64] [CC] ZeroMemWrapper [SLINK] MemLogLibDefault Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Library/UefiHiiLib/UefiHiiLib.inf [X64] [SLINK] UefiMemoryLib Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Library/UefiSortLib/UefiSortLib.inf [X64] [CC] edid [SLINK] VideoBiosPatchLib Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/BasePciCf8Lib/BasePciCf8Lib.inf [X64] [CC] UefiFileHandleLib [SLINK] UefiFileHandleLib Building ... /Users/fusion71au/src/CloverBootloader/Library/UefiHiiServicesLib/UefiHiiServicesLib.inf [X64] [CC] PrintInfo [CC] UefiSortLib [CC] PciCf8Lib [SLINK] BasePciCf8Lib [SLINK] UefiSortLib Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/DxePcdLib/DxePcdLib.inf [X64] [CC] HiiLanguage [CC] UefiHiiServicesLib Building ... /Users/fusion71au/src/CloverBootloader/Library/DuetTimerLib/DuetTimerLib.inf [X64] [CC] QueryTable [SLINK] UefiHiiServicesLib Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/UefiRuntimeLib/UefiRuntimeLib.inf [X64] [CC] RuntimeLib [CC] X86TimerLib [SLINK] UefiRuntimeLib [CC] DxePcdLib Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/BaseIoLibIntrinsic/BaseIoLibIntrinsic.inf [X64] [SLINK] DuetTimerLib Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/DxeHobLib/DxeHobLib.inf [X64] [SLINK] DxePcdLib Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/BaseReportStatusCodeLibNull/BaseReportStatusCodeLibNull.inf [X64] [CC] SmbiosView [CC] IoHighLevel [CC] BaseReportStatusCodeLib [CC] IoLib [SLINK] BaseReportStatusCodeLibNull Building ... /Users/fusion71au/src/CloverBootloader/Protocols/AppleKeyAggregator/AppleKeyAggregator.inf [X64] [CC] HobLib [CC] IoLibGcc [SLINK] DxeHobLib Building ... /Users/fusion71au/src/CloverBootloader/CloverEFI/CpuDxe/Cpu.inf [X64] [CC] UefiShellDebug1CommandsLib [CC] IoLibMmioBuffer [SLINK] UefiShellDebug1CommandsLib Building ... /Users/fusion71au/src/CloverBootloader/FileSystems/VBoxFsDxe/VBoxExt2.inf [X64] [CC] HiiLib [CC] AutoGen [CC] AutoGen [CC] AppleKeyAggregator [NASM] IoFifo [CC] HiiString [SLINK] BaseIoLibIntrinsic Building ... /Users/fusion71au/src/CloverBootloader/PcAtChipsetPkg/IsaAcpiDxe/IsaAcpi.inf [X64] [SLINK] UefiHiiLib Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Universal/CapsuleRuntimeDxe/CapsuleRuntimeDxe.inf [X64] [CC] AutoGen [CC] Cpu [CC] AutoGen [CC] fsw_core [SLINK] AppleKeyAggregator [CC] AutoGen [CC] ComponentName [CC] fsw_efi [NASM] CpuInterrupt [CC] CapsuleCache [SLINK] Cpu [CC] IsaAcpi [CC] CapsuleReset [CC] fsw_efi_lib [CC] PcatIsaAcpi [CC] CapsuleService [SLINK] IsaAcpi [CC] fsw_ext2 [CC] SaveLongModeContext [SLINK] CapsuleRuntimeDxe [CC] fsw_lib [SLINK] VBoxExt2 [DLINK1] CapsuleRuntimeDxe [DLINK1] IsaAcpi [OBJCOPY] CapsuleRuntimeDxe [OBJCOPY] IsaAcpi [DLINK1] AppleKeyAggregator [OBJCOPY] AppleKeyAggregator [GENFW] IsaAcpi Building ... /Users/fusion71au/src/CloverBootloader/Protocols/OsxFatBinaryDrv/OsxFatBinaryDrv.inf [X64] [GENFW] AppleKeyAggregator [GENFW] CapsuleRuntimeDxe Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Universal/Console/ConSplitterDxe/ConSplitterDxe.inf [X64] Building ... /Users/fusion71au/src/CloverBootloader/FileSystems/FatPkg/EnhancedFatDxe/Fat.inf [X64] [CC] AutoGen [CC] AutoGen [CC] AutoGen [DLINK1] Cpu [OBJCOPY] Cpu [CC] OsxFatBinaryDrv [GENFW] Cpu Building ... /Users/fusion71au/src/CloverBootloader/FileSystems/GrubFS/src/ISO9660.inf [X64] [SLINK] OsxFatBinaryDrv [CC] ComponentName [CC] ComponentName [CC] AutoGen [CC] Data [CC] driver [CC] Delete [DLINK1] OsxFatBinaryDrv [OBJCOPY] OsxFatBinaryDrv [GENFW] OsxFatBinaryDrv Building ... /Users/fusion71au/src/CloverBootloader/Protocols/AppleUITheme/AppleUITheme.inf [X64] [CC] DirectoryCache [CC] file [CC] ConSplitter [CC] AppleUITheme [CC] grub [CC] DirectoryManage [CC] AutoGen [CC] ConSplitterGraphics [SLINK] AppleUITheme [SLINK] ConSplitterDxe [CC] fshelp [CC] DiskCache [DLINK1] AppleUITheme [OBJCOPY] AppleUITheme [GENFW] AppleUITheme Building ... /Users/fusion71au/src/CloverBootloader/FileSystems/VBoxFsDxe/VBoxIso9660.inf [X64] [CC] Fat [CC] iso9660 [CC] AutoGen [CC] FileName [DLINK1] VBoxExt2 [OBJCOPY] VBoxExt2 [CC] fsw_core [CC] FileSpace [GENFW] VBoxExt2 Building ... /Users/fusion71au/src/CloverBootloader/FileSystems/GrubFS/src/UDF.inf [X64] [CC] Flush [CC] AutoGen [CC] fsw_efi [CC] Hash [CC] fsw_efi_lib [CC] driver [CC] device [CC] Info [CC] fsw_iso9660 [CC] file [CC] err [CC] Init [CC] fsw_lib [CC] grub [SLINK] VBoxIso9600 [CC] list [CC] Misc [CC] fshelp [CC] misc [CC] Open [CC] grub_driver [CC] udf [CC] OpenVolume [DLINK1] ConSplitterDxe [OBJCOPY] ConSplitterDxe [CC] ReadWrite [CC] device [CC] grub_file [GENFW] ConSplitterDxe Building ... /Users/fusion71au/src/CloverBootloader/OsxLowMemFixDrv/OsxLowMemFixDrv.inf [X64] [CC] err [CC] UnicodeCollation [CC] AutoGen [CC] logging [SLINK] Fat [CC] list [CC] missing [CC] Lib [CC] path [CC] OsxLowMemFixDrv [SLINK] OsxLowMemFixDrv [CC] misc [CC] utf8 [SLINK] GrubISO9660 [DLINK1] VBoxIso9600 [OBJCOPY] VBoxIso9600 [DLINK1] OsxLowMemFixDrv [GENFW] VBoxIso9600 Building ... /Users/fusion71au/src/CloverBootloader/Protocols/AppleImageCodec/AppleImageCodec.inf [X64] [OBJCOPY] OsxLowMemFixDrv [GENFW] OsxLowMemFixDrv Building ... /Users/fusion71au/src/CloverBootloader/OsxAptioFixDrv/OsxAptioFixDrv.inf [X64] [CC] AppleImageCodec [CC] AutoGen [CC] AutoGen [CC] BootArgs [CC] load_bmp [CC] BootFixes [CC] load_icns [CC] grub_driver [CC] DecodedKernelCheck [CC] grub_file [CC] picopng [CC] device_tree [SLINK] AppleImageCodec [CC] logging [CC] Lib [CC] missing [CC] Mach-O [CC] path [CC] NVRAMDebug [CC] utf8 [CC] OsxAptioFixDrv [SLINK] GrubUDF [CC] VMem [DLINK1] Fat [OBJCOPY] Fat [GENFW] Fat Building ... /Users/fusion71au/src/CloverBootloader/FileSystems/ApfsDriverLoader/ApfsDriverLoader.inf [X64] [NASM] AsmFuncsX64 [SLINK] OsxAptioFixDrv [DLINK1] GrubISO9660 [OBJCOPY] GrubISO9660 [CC] ApfsDriverLoader [CC] AutoGen [CC] EfiComponentName [SLINK] ApfsDriverLoader [DLINK1] AppleImageCodec [OBJCOPY] AppleImageCodec [GENFW] AppleImageCodec Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Universal/MemoryTest/NullMemoryTestDxe/NullMemoryTestDxe.inf [X64] [CC] AutoGen [GENFW] GrubISO9660 Building ... /Users/fusion71au/src/CloverBootloader/FileSystems/VBoxFsDxe/VBoxExt4.inf [X64] [DLINK1] ApfsDriverLoader [OBJCOPY] ApfsDriverLoader [CC] NullMemoryTest [SLINK] NullMemoryTestDxe [CC] AutoGen [DLINK1] OsxAptioFixDrv [OBJCOPY] OsxAptioFixDrv [GENFW] OsxAptioFixDrv Building ... /Users/fusion71au/src/CloverBootloader/FileSystems/GrubFS/src/NTFS.inf [X64] [DLINK1] NullMemoryTestDxe [CC] fsw_core [OBJCOPY] NullMemoryTestDxe [GENFW] NullMemoryTestDxe Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Universal/EbcDxe/EbcDxe.inf [X64] [CC] AutoGen [CC] fsw_efi [CC] AutoGen [CC] driver [CC] EbcDebuggerHook [CC] fsw_efi_lib [CC] file [CC] fsw_ext4 [CC] grub [GENFW] ApfsDriverLoader Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Universal/HiiDatabaseDxe/HiiDatabaseDxe.inf [X64] [CC] EbcExecute [CC] AutoGen [CC] fshelp [CC] fsw_lib [CC] EbcInt [SLINK] VBoxExt4 [CC] ntfs [NASM] EbcLowLevel [CC] ntfscomp [CC] ConfigKeywordHandler [CC] EbcSupport [SLINK] EbcDxe [CC] device [CC] err [CC] list [DLINK1] GrubUDF [OBJCOPY] GrubUDF [GENFW] GrubUDF Building ... /Users/fusion71au/src/CloverBootloader/FileSystems/VBoxFsDxe/VBoxReiserFS.inf [X64] [CC] ConfigRouting [CC] misc [CC] AutoGen [CC] grub_driver [CC] fsw_core [CC] grub_file [CC] Database [CC] logging [CC] fsw_efi [CC] missing [CC] fsw_efi_lib [CC] path [CC] Font [CC] fsw_lib [CC] utf8 [SLINK] GrubNTFS [CC] HiiDatabaseEntry [DLINK1] VBoxExt4 [OBJCOPY] VBoxExt4 [GENFW] VBoxExt4 Building ... /Users/fusion71au/src/CloverBootloader/Protocols/DriverOverride/DriverOverride.inf [X64] [CC] fsw_reiserfs [SLINK] VBoxReiserFS [DLINK1] EbcDxe [OBJCOPY] EbcDxe [CC] AutoGen [CC] Image [CC] DriverOverride [SLINK] DriverOverride [CC] ImageEx [DLINK1] DriverOverride [OBJCOPY] DriverOverride [GENFW] DriverOverride Building ... /Users/fusion71au/src/CloverBootloader/CloverEFI/OsxEfiLdr/EfiLdr.inf [X64] [CC] String [CC] AutoGen [GENFW] EbcDxe Building ... /Users/fusion71au/src/CloverBootloader/Protocols/HashServiceFix/HashServiceFix.inf [X64] [SLINK] HiiDatabase [CC] Debug [CC] AutoGen [CC] EfiLoader [CC] HashServiceFix [CC] PeLoader [CC] Support [SLINK] EfiLoader [CC] sha1 [SLINK] HashServiceFix [DLINK1] VBoxReiserFS [OBJCOPY] VBoxReiserFS [GENFW] VBoxReiserFS Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Universal/SmbiosDxe/SmbiosDxe.inf [X64] [DLINK1] GrubNTFS [OBJCOPY] GrubNTFS [CC] AutoGen [DLINK1] HashServiceFix [OBJCOPY] HashServiceFix [GENFW] GrubNTFS Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Universal/Disk/DiskIoDxe/DiskIoDxe.inf [X64] [GENFW] HashServiceFix Building ... /Users/fusion71au/src/CloverBootloader/Protocols/DataHubDxe/DataHubDxe.inf [X64] [CC] SmbiosDxe [CC] AutoGen [SLINK] SmbiosDxe [CC] AutoGen [CC] ComponentName [CC] DataHub [SLINK] DataHubDxe [CC] DiskIo [SLINK] DiskIoDxe [DLINK1] EfiLoader [OBJCOPY] EfiLoader [GENFW] EfiLoader Building ... /Users/fusion71au/src/CloverBootloader/Drivers/SataControllerDxe/SataControllerDxe.inf [X64] [CC] AutoGen [DLINK1] DataHubDxe [DLINK1] SmbiosDxe [OBJCOPY] SmbiosDxe [OBJCOPY] DataHubDxe [CC] ComponentName [GENFW] SmbiosDxe Building ... /Users/fusion71au/src/CloverBootloader/FileSystems/GrubFS/src/HFSPLUS.inf [X64] [GENFW] DataHubDxe Building ... /Users/fusion71au/src/CloverBootloader/FileSystems/GrubFS/src/EXFAT.inf [X64] [CC] AutoGen [CC] SataController [CC] AutoGen [SLINK] SataController [CC] driver [CC] driver [DLINK1] DiskIoDxe [OBJCOPY] DiskIoDxe [GENFW] DiskIoDxe Building ... /Users/fusion71au/src/CloverBootloader/Protocols/FirmwareVolume/FirmwareVolume.inf [X64] [CC] file [CC] file [CC] AutoGen [DLINK1] SataController [CC] grub [OBJCOPY] SataController [CC] grub [GENFW] SataController Building ... /Users/fusion71au/src/CloverBootloader/Drivers/DVDDisk/ScsiDiskDxe.inf [X64] [CC] FirmwareVolume [SLINK] FirmwareVolume [CC] fshelp [CC] exfat [CC] AutoGen [DLINK1] FirmwareVolume [OBJCOPY] FirmwareVolume [CC] fshelp [CC] ComponentName [CC] hfsplus [GENFW] FirmwareVolume Building ... /Users/fusion71au/src/CloverBootloader/Protocols/DumpUefiCalls/DumpUefiCalls.inf [X64] [CC] device [CC] hfspluscomp [CC] ScsiDisk [CC] AppleProtocols [SLINK] ScsiDisk [CC] err [CC] gzio [CC] AutoGen [CC] list [CC] device [CC] misc [CC] BootServices [CC] err [CC] grub_driver [CC] DataHub [CC] list [CC] DumpUefiCalls [CC] grub_file [CC] misc [CC] FileLib [CC] logging [CC] grub_driver [CC] missing [CC] Fs [CC] path [DLINK1] ScsiDisk [CC] grub_file [OBJCOPY] ScsiDisk [GENFW] ScsiDisk Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Universal/MonotonicCounterRuntimeDxe/MonotonicCounterRuntimeDxe.inf [X64] [CC] logging [CC] utf8 [CC] Lib [SLINK] GrubEXFAT [CC] AutoGen [CC] missing [CC] MonotonicCounter [SLINK] MonotonicCounterRuntimeDxe [CC] Log [DLINK1] MonotonicCounterRuntimeDxe [OBJCOPY] MonotonicCounterRuntimeDxe [CC] path [CC] MemLog [GENFW] MonotonicCounterRuntimeDxe Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Universal/DevicePathDxe/DevicePathDxe.inf [X64] [CC] utf8 [CC] AutoGen [CC] RuntimeServices [SLINK] DumpUefiCalls [SLINK] GrubHFSPLUS [CC] DevicePath [SLINK] DevicePathDxe [DLINK1] GrubEXFAT [OBJCOPY] GrubEXFAT [GENFW] GrubEXFAT Building ... /Users/fusion71au/src/CloverBootloader/Drivers/PartitionDxe/PartitionDxe.inf [X64] [DLINK1] DumpUefiCalls [OBJCOPY] DumpUefiCalls [CC] Apple [GENFW] DumpUefiCalls Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Universal/Disk/UnicodeCollation/EnglishDxe/EnglishDxe.inf [X64] [CC] AutoGen [CC] AutoGen [CC] ComponentName [DLINK1] GrubHFSPLUS [OBJCOPY] GrubHFSPLUS [CC] UnicodeCollationEng [SLINK] EnglishDxe [GENFW] GrubHFSPLUS Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Bus/Usb/UsbMassStorageDxe/UsbMassStorageDxe.inf [X64] [CC] ElTorito [CC] AutoGen [CC] Gpt [DLINK1] EnglishDxe [OBJCOPY] EnglishDxe [GENFW] EnglishDxe Building ... /Users/fusion71au/src/CloverBootloader/Protocols/MsgLog/MsgLog.inf [X64] [CC] ComponentName [CC] Mbr [CC] AutoGen [CC] UsbMassBoot [CC] Partition [CC] MsgLog [SLINK] PartitionDxe [SLINK] MsgLog [CC] UsbMassBot [DLINK1] DevicePathDxe [OBJCOPY] DevicePathDxe [DLINK1] MsgLog [OBJCOPY] MsgLog [CC] UsbMassCbi [GENFW] MsgLog Building ... /Users/fusion71au/src/CloverBootloader/OsxAptioFixDrv/OsxAptioFix3Drv.inf [X64] [CC] UsbMassDiskInfo [CC] AutoGen [DLINK1] HiiDatabase [OBJCOPY] HiiDatabase [CC] UsbMassImpl [CC] BootArgs [SLINK] UsbMassStorageDxe [GENFW] HiiDatabase Building ... /Users/fusion71au/src/CloverBootloader/CloverEFI/PciRootBridgeDxe/PciRootBridge.inf [X64] [CC] BootFixes3 [CC] AutoGen [DLINK1] PartitionDxe [OBJCOPY] PartitionDxe [CC] DecodedKernelCheck [GENFW] DevicePathDxe Building ... /Users/fusion71au/src/CloverBootloader/CloverEFI/BiosKeyboard/KeyboardDxe.inf [X64] [CC] DeviceIo [GENFW] PartitionDxe Building ... /Users/fusion71au/src/CloverBootloader/CloverEFI/OsxPciBusNoEnumerationDxe/PciBusNoEnumeration.inf [X64] [CC] device_tree [CC] AutoGen [CC] PcatIo [CC] AppleKey [CC] AutoGen [CC] ComponentName [CC] Lib [CC] PcatPciRootBridge [CC] Mach-O [CC] PcatPciRootBridgeDevicePath [CC] PciBus [CC] NVRAMDebug [CC] BiosKeyboard [CC] PciCommand [CC] PcatPciRootBridgeIo [SLINK] PcatPciRootBridge [CC] OsxAptioFix3Drv [CC] ComponentName [CC] PciDeviceSupport [CC] VMem [CC] LegacyBiosThunk [CC] PciDriverOverride [SLINK] KeyboardDxe [DLINK1] UsbMassStorageDxe [CC] PciEnumerator [OBJCOPY] UsbMassStorageDxe [NASM] AsmFuncsX64 [GENFW] UsbMassStorageDxe Building ... /Users/fusion71au/src/CloverBootloader/CloverEFI/OsxBdsDxe/BdsDxe.inf [X64] [CC] PciEnumeratorSupport [NASM] RTShims [DLINK1] PcatPciRootBridge [SLINK] OsxAptioFix3Drv [OBJCOPY] PcatPciRootBridge [CC] AutoGen [GENFW] PcatPciRootBridge Building ... /Users/fusion71au/src/CloverBootloader/CloverEFI/OsxDxeIpl/DxeIpl.inf [X64] [CC] PciIo [CC] AutoGen [CC] PciOptionRomSupport [CC] Debug [CC] BdsEntry [DLINK1] KeyboardDxe [OBJCOPY] KeyboardDxe [CC] PciPowerManagement [VFR] BdsDxe [GENFW] KeyboardDxe Building ... /Users/fusion71au/src/CloverBootloader/CloverEFI/UefiCpuPkg/CpuIo2Dxe/CpuIo2Dxe.inf [X64] [CC] DxeInit [CC] Bm [CC] AutoGen [CC] PciRomTable [SLINK] PciBusNoEnumerationDxe [CC] HobGeneration [CC] CpuIo2Dxe [SLINK] CpuIo2Dxe [CC] BBSsupport [CC] LegacyTable [DLINK1] CpuIo2Dxe [OBJCOPY] CpuIo2Dxe [CC] EnterDxeCore [GENFW] CpuIo2Dxe Building ... /Users/fusion71au/src/CloverBootloader/Protocols/SMCHelper/SMCHelper.inf [X64] [CC] BmLib [CC] Paging [SLINK] DxeIpl [CC] AutoGen [CC] SMCHelper [SLINK] SMCHelper [DLINK1] DxeIpl [OBJCOPY] DxeIpl [CC] BootMaint [GENFW] DxeIpl Building ... /Users/fusion71au/src/CloverBootloader/Drivers/AtaBus/AtaBusDxe.inf [X64] [DLINK1] OsxAptioFix3Drv [DLINK1] SMCHelper [OBJCOPY] OsxAptioFix3Drv [OBJCOPY] SMCHelper [GENFW] SMCHelper Building ... /Users/fusion71au/src/CloverBootloader/FSInject/FSInject.inf [X64] [GENFW] OsxAptioFix3Drv [CC] AtaBus Building ... /Users/fusion71au/src/CloverBootloader/LegacyBios/VideoDxe/VideoDxe.inf [X64] [CC] BootOption [DLINK1] PciBusNoEnumerationDxe [OBJCOPY] PciBusNoEnumerationDxe [CC] AutoGen [CC] AutoGen [GENFW] PciBusNoEnumerationDxe Building ... /Users/fusion71au/src/CloverBootloader/Drivers/Isa/Ps2MouseDxe/Ps2MouseDxe.inf [X64] [CC] AtaPassThruExecute [CC] AutoGen [CC] Data [CC] AutoGen [CC] FSInject [CC] ComponentName [SLINK] AtaBusDxe [CC] CommPs2 [CC] Test [CC] FileExplorer [SLINK] FSInject [CC] ComponentName [CC] BiosVideo [CC] Ps2Mouse [CC] ComponentName [SLINK] Ps2MouseDxe [SLINK] CsmVideoDxe [CC] UpdatePage [CC] Variable [VFR] BdsDxe [CC] BootManagerVfr [DLINK1] Ps2MouseDxe [DLINK1] AtaBusDxe [OBJCOPY] Ps2MouseDxe [OBJCOPY] AtaBusDxe [GENFW] Ps2MouseDxe Building ... /Users/fusion71au/src/CloverBootloader/Drivers/Isa/Ps2KeyboardDxe/Ps2keyboardDxe.inf [X64] [GENFW] AtaBusDxe Building ... /Users/fusion71au/src/CloverBootloader/Drivers/DVDBus/ScsiBusDxe.inf [X64] [CC] BootManager [CC] AutoGen [CC] AutoGen [CC] ComponentName [CC] Capsules [CC] ComponentName [VFR] BdsDxe [CC] DeviceManagerVfr [CC] ScsiBus [CC] Ps2KbdCtrller [SLINK] ScsiBus [DLINK1] FSInject [OBJCOPY] FSInject [GENFW] FSInject Building ... /Users/fusion71au/src/CloverBootloader/Protocols/EmuVariableUefi/EmuVariableRuntimeDxe.inf [X64] [CC] Ps2KbdTextIn [CC] AutoGen [CC] Ps2Keyboard [SLINK] Ps2KeyboardDxe [CC] DeviceManager [VFR] BdsDxe [CC] EmuVariable [CC] DriverHealthVfr [VFR] BdsDxe [DLINK1] ScsiBus [OBJCOPY] ScsiBus [CC] FE [CC] InitVariable [GENFW] ScsiBus Building ... /Users/fusion71au/src/CloverBootloader/Drivers/AudioDxe/AudioDxe.inf [X64] [SLINK] EmuVariableUefi [CC] AudioDxe [CC] FrontPage [VFR] BdsDxe [CC] AutoGen [DLINK1] CsmVideoDxe [OBJCOPY] CsmVideoDxe [CC] FrontPageVfr [CC] HdaCodec [CC] Hotkey [CC] HdaCodecAudioIo [DLINK1] Ps2KeyboardDxe [OBJCOPY] Ps2KeyboardDxe [CC] HwErrRecSupport [GENFW] Ps2KeyboardDxe Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Universal/SetupBrowserDxe/SetupBrowserDxe.inf [X64] [CC] HdaCodecComponentName [CC] AutoGen [CC] Language [DLINK1] EmuVariableUefi [GENFW] CsmVideoDxe [OBJCOPY] EmuVariableUefi Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Universal/Console/ConPlatformDxe/ConPlatformDxe.inf [X64] [GENFW] EmuVariableUefi Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Bus/Pci/EhciDxe/EhciDxe.inf [X64] [CC] MemoryTest [CC] AutoGen [CC] Expression [CC] AutoGen [CC] ComponentName [CC] String [SLINK] BdsDxe [CC] ComponentName [CC] ConPlatform [SLINK] ConPlatformDxe [CC] HdaCodecInfo [CC] IfrParse [CC] Ehci [CC] HdaController [CC] EhciDebug [CC] HdaControllerComponentName [CC] Presentation [CC] EhciReg [CC] HdaControllerHdaIo [CC] EhciSched [CC] HdaControllerInfo [DLINK1] ConPlatformDxe [OBJCOPY] ConPlatformDxe [CC] EhciUrb [GENFW] ConPlatformDxe Building ... /Users/fusion71au/src/CloverBootloader/FileSystems/VBoxFsDxe/VBoxHfs.inf [X64] [CC] HdaControllerMem [CC] AutoGen [CC] HdaModels [CC] UsbHcMem [SLINK] AudioDxe [SLINK] EhciDxe [CC] Setup [SLINK] SetupBrowser [CC] fsw_core [CC] fsw_efi [CC] fsw_efi_lib [CC] fsw_hfs [CC] fsw_lib [SLINK] VBoxHfs [DLINK1] EhciDxe [OBJCOPY] EhciDxe [GENFW] EhciDxe Building ... /Users/fusion71au/src/CloverBootloader/ShellPkg/Application/Shell/Shell.inf [X64] [CC] AutoGen [CC] ConsoleLogger [DLINK1] AudioDxe [OBJCOPY] AudioDxe [GENFW] AudioDxe Building ... /Users/fusion71au/src/CloverBootloader/CloverEFI/OsxDxeCore/DxeMain.inf [X64] [CC] ConsoleWrappers [CC] AutoGen [CC] FileHandleWrappers [CC] Dependency [CC] Dispatcher [CC] Shell [CC] DxeMain [CC] ShellEnvVar [CC] DxeProtocolNotify [CC] ShellManParser [CC] Event [CC] ShellParametersProtocol [CC] Timer [CC] Tpl [CC] ShellProtocol [SLINK] Shell [CC] Ffs [CC] FwVol [CC] FwVolAttrib [CC] FwVolRead [CC] FwVolWrite [DLINK1] VBoxHfs [OBJCOPY] VBoxHfs [GENFW] VBoxHfs Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Universal/DisplayEngineDxe/DisplayEngineDxe.inf [X64] [CC] FwVolBlock [CC] AutoGen [CC] Gcd [CC] DriverSupport [CC] FormDisplay [CC] Handle [CC] InputHandler [CC] Locate [CC] Popup [CC] Notify [CC] ProcessOptions [SLINK] DisplayEngine [CC] Image [CC] Library [DLINK1] SetupBrowser [OBJCOPY] SetupBrowser [CC] MemData [GENFW] SetupBrowser Building ... /Users/fusion71au/src/CloverBootloader/Drivers/UsbBusDxe/UsbBusDxe.inf [X64] [CC] AutoGen [CC] Page [CC] ComponentName [CC] Pool [CC] UsbBus [CC] DebugImageInfo [CC] UsbDesc [CC] InstallConfigurationTable [CC] UsbEnumer [DLINK1] BdsDxe [OBJCOPY] BdsDxe [CC] SetWatchdogTimer [GENFW] BdsDxe Building ... /Users/fusion71au/src/CloverBootloader/PcAtChipsetPkg/8259InterruptControllerDxe/8259.inf [X64] [CC] UsbHub [CC] Stall [CC] 8259 [CC] UsbUtility [SLINK] UsbBusDxe [CC] AutoGen [SLINK] Legacy8259 [CC] CoreSectionExtraction [SLINK] DxeCore [DLINK1] Legacy8259 [OBJCOPY] Legacy8259 [GENFW] Legacy8259 Building ... /Users/fusion71au/src/CloverBootloader/CloverEFI/AcpiReset/Reset.inf [X64] [CC] AutoGen [CC] Reset [SLINK] AcpiReset [DLINK1] AcpiReset [OBJCOPY] AcpiReset [GENFW] AcpiReset Building ... /Users/fusion71au/src/CloverBootloader/Drivers/XhciDxe/XhciDxe.inf [X64] [CC] AutoGen [CC] ComponentName [DLINK1] UsbBusDxe [OBJCOPY] UsbBusDxe [CC] UsbHcMem [GENFW] UsbBusDxe Building ... /Users/fusion71au/src/CloverBootloader/Drivers/AtaAtapi/AtaAtapiPassThru.inf [X64] [CC] Xhci [CC] AhciMode [CC] XhciReg [CC] AtaAtapiPassThru [CC] AutoGen [CC] XhciSched [SLINK] XhciDxe [DLINK1] DxeCore [OBJCOPY] DxeCore [CC] ComponentName [GENFW] DxeCore Building ... /Users/fusion71au/src/CloverBootloader/rEFIt_UEFI/refit.inf [X64] [CC] AutoGen [CC] IdeMode [SLINK] AtaAtapiPassThruDxe [DLINK1] DisplayEngine [OBJCOPY] DisplayEngine [GENFW] DisplayEngine Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Universal/PCD/Dxe/Pcd.inf [X64] [CC] AutoGen [CC] Pcd [CC] AcpiPatcher [CC] Service [SLINK] PcdDxe [CC] AmlGenerator [CC] BdsConnect [DLINK1] PcdDxe [OBJCOPY] PcdDxe [GENFW] PcdDxe Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Universal/WatchdogTimerDxe/WatchdogTimer.inf [X64] [DLINK1] XhciDxe [OBJCOPY] XhciDxe [GENFW] XhciDxe Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Universal/Metronome/Metronome.inf [X64] [CC] AutoGen [CC] WatchdogTimer [SLINK] WatchdogTimer [CC] AutoGen [CC] Metronome [CC] BootLog [DLINK1] WatchdogTimer [SLINK] Metronome [OBJCOPY] WatchdogTimer [GENFW] WatchdogTimer Building ... /Users/fusion71au/src/CloverBootloader/Drivers/OhciDxe/OhciDxe.inf [X64] [CC] AutoGen [DLINK1] Metronome [OBJCOPY] Metronome [GENFW] Metronome Building ... /Users/fusion71au/src/CloverBootloader/LegacyBios/Region2Dxe/LegacyRegion2Dxe.inf [X64] [CC] BootOptions [CC] ComponentName [CC] AutoGen [CC] LegacyRegion2 [CC] Ohci [SLINK] LegacyRegion2Dxe [CC] Console [CC] OhciDebug [CC] OhciReg [DLINK1] AtaAtapiPassThruDxe [OBJCOPY] AtaAtapiPassThruDxe [CC] DataHubCpu [GENFW] AtaAtapiPassThruDxe Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Universal/SecurityStubDxe/SecurityStubDxe.inf [X64] [CC] OhciSched [CC] AutoGen [CC] OhciUrb [CC] Edid [CC] Defer3rdPartyImageLoad [CC] UsbHcMem [SLINK] OhciDxe [CC] SecurityStub [DLINK1] LegacyRegion2Dxe [SLINK] SecurityStubDxe [OBJCOPY] LegacyRegion2Dxe [CC] Events [DLINK1] SecurityStubDxe [OBJCOPY] SecurityStubDxe [GENFW] SecurityStubDxe Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Bus/Pci/NvmExpressDxe/NvmExpressDxe.inf [X64] [GENFW] LegacyRegion2Dxe Building ... /Users/fusion71au/src/CloverBootloader/PcAtChipsetPkg/8254TimerDxe/8254Timer.inf [X64] [CC] AutoGen [CC] AutoGen [CC] Timer [CC] ComponentName [SLINK] Timer [DLINK1] Timer [CC] FixBiosDsdt [OBJCOPY] Timer [CC] NvmExpress [GENFW] Timer Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Core/RuntimeDxe/RuntimeDxe.inf [X64] [CC] AutoGen [CC] NvmExpressBlockIo [CC] Crc32 [CC] HdaCodecDump [CC] NvmExpressDiskInfo [CC] Runtime [SLINK] RuntimeDxe [CC] NvmExpressHci [CC] Hibernate [DLINK1] OhciDxe [OBJCOPY] OhciDxe [DLINK1] RuntimeDxe [OBJCOPY] RuntimeDxe [CC] NvmExpressPassthru [GENFW] OhciDxe Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Universal/Variable/RuntimeDxe/VariableRuntimeDxe.inf [X64] [SLINK] NvmExpressDxe [GENFW] RuntimeDxe Building ... /Users/fusion71au/src/CloverBootloader/CloverEFI/BiosVideo/BiosVideo.inf [X64] [CC] AutoGen [CC] AutoGen [CC] Measurement [CC] Injectors [CC] BiosVideoNew [CC] Reclaim [CC] LegacyBiosThunk [CC] ComponentName [CC] SpeculationBarrierDxe [CC] LegacyBiosThunk [SLINK] BiosVideo [CC] TcgMorLockDxe [CC] LegacyBoot [CC] VarCheck [CC] Net [CC] Variable [CC] VariableDxe [CC] Nvram [CC] VariableExLib [SLINK] VariableRuntimeDxe [CC] PlatformDriverOverride [DLINK1] NvmExpressDxe [OBJCOPY] NvmExpressDxe [CC] Pointer [GENFW] NvmExpressDxe Building ... /Users/fusion71au/src/CloverBootloader/Protocols/AppleKeyFeeder/AppleKeyFeeder.inf [X64] [CC] AppleKeyFeeder [DLINK1] BiosVideo [OBJCOPY] BiosVideo [CC] AppleKeyMapUtils [GENFW] BiosVideo Building ... /Users/fusion71au/src/CloverBootloader/Drivers/UsbKbDxe/UsbKbDxe.inf [X64] [CC] AutoGen [CC] AppleKey [CC] SimpleTextExProxy [CC] AutoGen [CC] SimpleTextProxy [SLINK] AppleKeyFeeder [CC] ComponentName [CC] EfiKey [DLINK1] AppleKeyFeeder [OBJCOPY] AppleKeyFeeder [GENFW] AppleKeyFeeder Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Bus/Usb/UsbMouseDxe/UsbMouseDxe.inf [X64] [DLINK1] VariableRuntimeDxe [CC] KeyBoard [OBJCOPY] VariableRuntimeDxe [CC] AutoGen [SLINK] UsbKbDxe [GENFW] VariableRuntimeDxe Building ... /Users/fusion71au/src/CloverBootloader/CloverEFI/OsxSmbiosGenDxe/SmbiosGen.inf [X64] [CC] ComponentName [CC] AutoGen [CC] MouseHid [CC] SmbiosGen [CC] UsbMouse [SLINK] SmbiosGenDxe [SLINK] UsbMouseDxe [CC] Settings [DLINK1] SmbiosGenDxe [OBJCOPY] SmbiosGenDxe [GENFW] SmbiosGenDxe Building ... /Users/fusion71au/src/CloverBootloader/CloverEFI/GraphicsConsoleDxe/GraphicsConsoleDxe.inf [X64] [DLINK1] UsbMouseDxe [OBJCOPY] UsbMouseDxe [CC] AutoGen [GENFW] UsbMouseDxe Building ... /Users/fusion71au/src/CloverBootloader/bdmesg_efi/bdmesg.inf [X64] [DLINK1] UsbKbDxe [OBJCOPY] UsbKbDxe [CC] StartupSound [CC] ComponentName [GENFW] UsbKbDxe Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Bus/Pci/UhciDxe/UhciDxe.inf [X64] [CC] AutoGen [CC] AutoGen [CC] GraphicsConsole [CC] bdmesg [SLINK] bdmesg [CC] ComponentName [CC] LaffStd [SLINK] GraphicsConsoleDxe [CC] StateGenerator [CC] Uhci [CC] UhciDebug [DLINK1] GraphicsConsoleDxe [OBJCOPY] GraphicsConsoleDxe [CC] ati [CC] UhciQueue [GENFW] GraphicsConsoleDxe Building ... /Users/fusion71au/src/CloverBootloader/CloverEFI/OsxAcpiTableDxe/AcpiTableDxe.inf [X64] [CC] UhciReg [CC] AcpiTable [CC] b64cdecode [CC] UhciSched [CC] AcpiTableProtocol [CC] AutoGen [CC] UsbHcMem [SLINK] AcpiTableDxe [SLINK] UhciDxe [CC] card_vlist [DLINK1] bdmesg [OBJCOPY] bdmesg [GENFW] bdmesg Building ... /Users/fusion71au/src/CloverBootloader/Drivers/Isa/Ps2MouseAbsolutePointerDxe/Ps2MouseAbsolutePointerDxe.inf [X64] [DLINK1] AcpiTableDxe [OBJCOPY] AcpiTableDxe [CC] AutoGen [CC] cpu [GENFW] AcpiTableDxe Building ... /Users/fusion71au/src/CloverBootloader/CloverEFI/PcatRealTimeClockRuntimeDxe/PcatRealTimeClockRuntimeDxe.inf [X64] [CC] CommPs2 [CC] AutoGen [CC] ComponentName [CC] PcRtc [CC] device_inject [CC] Ps2MouseAbsolutePointer [SLINK] Ps2MouseAbsolutePointerDxe [CC] PcRtcEntry [SLINK] PcRtc [CC] device_tree [DLINK1] UhciDxe [OBJCOPY] UhciDxe [DLINK1] Ps2MouseAbsolutePointerDxe [OBJCOPY] Ps2MouseAbsolutePointerDxe [CC] gma [GENFW] Ps2MouseAbsolutePointerDxe Building ... /Users/fusion71au/src/CloverBootloader/Drivers/Isa/IsaBusDxe/IsaBusDxe.inf [X64] [GENFW] UhciDxe [CC] AutoGen [CC] guid [CC] ComponentName [CC] IsaBus [DLINK1] PcRtc [OBJCOPY] PcRtc [CC] hda [GENFW] PcRtc [CC] IsaIo [SLINK] IsaBusDxe [CC] kernel_patcher [DLINK1] IsaBusDxe [OBJCOPY] IsaBusDxe [CC] kext_inject [GENFW] IsaBusDxe [CC] kext_patcher [CC] nvidia [CC] platformdata [CC] plist [CC] smbios [CC] sound [CC] spd [CC] string [CC] usbfix [CC] bootscreen [CC] common [CC] legacy [CC] loader [CC] lockedgraphics [CC] secureboot [CC] securehash [CC] securemenu [CC] securevars [CC] tool [DLINK1] Shell [OBJCOPY] Shell [GENFW] Shell [CC] BmLib [CC] FloatLib [CC] VectorGraphics [CC] egemb_font [CC] egemb_icons [CC] egemb_icons_dark [CC] image [CC] libscreen [CC] load_icns [CC] lodepng [CC] nanosvg [CC] nanosvgrast [CC] scroll_images [CC] text [CC] IO [CC] icns [CC] lib [CC] main [CC] menu [CC] screen [SLINK] CLOVER [DLINK1] CLOVER [OBJCOPY] CLOVER [GENFW] CLOVER Generating DUETEFIMAINFVX64 FV ######################################## ######################################## ############################# GUID cross reference file can be found at /Users/fusion71au/src/CloverBootloader/Build/Clover/RELEASE_GCC53/FV/Guid.xref FV Space Information DUETEFIMAINFVX64 [35%Full] 2752512 total, 981272 used, 1771240 free - Done - Build end time: 15:41:53, Sep.19 2019 Build total time: 00:02:14 Compressing DUETEFIMainFv.FV ... Encoding Compressing DxeCore.efi ... Encoding Compressing DxeIpl.efi ... Encoding Generate Loader Image ... Created /Users/fusion71au/src/CloverBootloader/Build/Clover/RELEASE_GCC53/FV/Efildr64 879+0 records in 879+0 records out 450048 bytes transferred in 0.005076 secs (88663134 bytes/sec) Copy CloverEFI: -> boot6 Changing byte at 0xa9 of boot6 to show 6 as init message: 1+0 records in 1+0 records out 1 bytes transferred in 0.000040 secs (25116 bytes/sec) -> BOOTX64.efi -> CLOVERX64.efi Copy Mandatory drivers: -> FSInject.efi -> XhciDxe.efi -> SMCHelper.efi -> AudioDxe.efi -> AppleImageCodec.efi -> AppleKeyAggregator.efi -> AppleUITheme.efi -> FirmwareVolume.efi -> ApfsDriverLoader.efi -> FSInject.efi -> DataHubDxe.efi -> SMCHelper.efi -> AudioDxe.efi -> AppleImageCodec.efi -> AppleUITheme.efi -> AppleKeyAggregator.efi -> FirmwareVolume.efi -> GrubEXFAT.efi -> GrubISO9660.efi -> GrubNTFS.efi -> GrubUDF.efi -> CsmVideoDxe.efi -> EnglishDxe.efi -> EmuVariableUefi.efi -> NvmExpressDxe.efi -> OsxFatBinaryDrv.efi -> PartitionDxe.efi -> Ps2MouseDxe.efi -> UsbKbDxe.efi -> UsbMouseDxe.efi -> ApfsDriverLoader.efi -> Fat.efi -> VBoxExt2.efi -> VBoxExt4.efi -> VBoxIso9600.efi -> VBoxHfs.efi -> AppleKeyFeeder.efi -> HashServiceFix.efi -> OsxAptioFixDrv.efi -> OsxLowMemFixDrv.efi -> OsxAptioFix3Drv.efi Copy Applications: -> bdmesg.efi -> Shell64U.efi Done! Generating BootSectors make: Nothing to be done for `all'. Done! TOOLCHAIN_DIR: /Users/fusion71au/src/opt/local NASM_PREFIX: /Users/fusion71au/src/opt/local/bin/ NASM_VER: 2.14.02 Building from: /Users/fusion71au/src/CloverBootloader Running edk2 build for CloverX64 using the command: build -D DISABLE_USB_SUPPORT -D NO_GRUB_DRIVERS_EMBEDDED --conf=/Users/fusion71au/src/CloverBootloader/Conf -D USE_BIOS_BLOCKIO -D USE_LOW_EBDA -p Clover.dsc -a X64 -b RELEASE -t GCC53 -n 5 Build environment: Darwin-16.7.0-x86_64-i386-64bit Build start time: 15:41:55, Sep.19 2019 WORKSPACE = /Users/fusion71au/src/CloverBootloader EDK_TOOLS_PATH = /Users/fusion71au/src/CloverBootloader/BaseTools CONF_PATH = /Users/fusion71au/src/CloverBootloader/Conf Processing meta-data .Architecture(s) = X64 Build target = RELEASE Toolchain = GCC53 Active Platform = /Users/fusion71au/src/CloverBootloader/Clover.dsc ........ done! Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/BaseCpuLib/BaseCpuLib.inf [X64] Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/UefiDriverEntryPoint/UefiDriverEntryPoint.inf [X64] Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/UefiLib/UefiLib.inf [X64] Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/UefiRuntimeServicesTableLib/UefiRuntimeServicesTableLib.inf [X64] Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/UefiDevicePathLib/UefiDevicePathLib.inf [X64] [CC] DriverEntryPoint [CC] UefiRuntimeServicesTableLib [SLINK] UefiDriverEntryPoint Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/UefiMemoryAllocationLib/UefiMemoryAllocationLib.inf [X64] [SLINK] UefiRuntimeServicesTableLib Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/BasePrintLib/BasePrintLib.inf [X64] [NASM] CpuFlushTlb [CC] Acpi [CC] PrintLib [CC] MemoryAllocationLib [SLINK] UefiMemoryAllocationLib Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/UefiBootServicesTableLib/UefiBootServicesTableLib.inf [X64] [CC] PrintLibInternal [NASM] CpuSleep [SLINK] BasePrintLib Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/BaseMemoryLib/BaseMemoryLib.inf [X64] [SLINK] BaseCpuLib Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/BaseLib/BaseLib.inf [X64] [CC] Console [CC] CompareMemWrapper [CC] UefiBootServicesTableLib [CC] ARShiftU64 [SLINK] UefiBootServicesTableLib Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/BaseDebugLibNull/BaseDebugLibNull.inf [X64] [CC] CopyMem [CC] BitField [CC] DevicePathFromText [CC] DebugLib [CC] CopyMemWrapper [SLINK] BaseDebugLibNull Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/BasePcdLibNull/BasePcdLibNull.inf [X64] [CC] CheckSum [CC] IsZeroBufferWrapper [CC] ChkStkGcc [CC] MemLibGeneric [CC] PcdLib [SLINK] BasePcdLibNull Building ... /Users/fusion71au/src/CloverBootloader/Library/OsxBdsPlatformLib/PlatformBds.inf [X64] [CC] Cpu [CC] MemLibGuid [CC] UefiDriverModel [CC] CpuDeadLoop [CC] ScanMem16Wrapper [CC] DivS64x64Remainder [CC] ScanMem32Wrapper [CC] DivU64x32 [CC] ScanMem64Wrapper [CC] DevicePathToText [CC] DivU64x32Remainder [CC] ScanMem8Wrapper [CC] DivU64x64Remainder [CC] SetMem [CC] FilePaths [CC] SetMem16Wrapper [CC] UefiLib [CC] DevicePathUtilities [CC] BdsPlatform [CC] SetMem32Wrapper [CC] GetPowerOfTwo32 [CC] SetMem64Wrapper [CC] GetPowerOfTwo64 [CC] SetMemWrapper [CC] HighBitSet32 [CC] UefiDevicePathLib [SLINK] UefiDevicePathLib Building ... /Users/fusion71au/src/CloverBootloader/Library/GenericBdsLib/GenericBdsLib.inf [X64] [CC] ZeroMemWrapper [CC] HighBitSet64 [SLINK] BaseMemoryLib Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Library/DxeCapsuleLibNull/DxeCapsuleLibNull.inf [X64] [CC] UefiLibPrint [CC] LRotU32 [CC] LRotU64 [CC] PlatformData [CC] AutoGen [SLINK] DuetBds Building ... /Users/fusion71au/src/CloverBootloader/ShellPkg/Library/UefiShellDebug1CommandsLib/UefiShellDebug1CommandsLib.inf [X64] [CC] DxeCapsuleLibNull [CC] LShiftU64 [SLINK] DxeCapsuleLibNull Building ... /Users/fusion71au/src/CloverBootloader/ShellPkg/Library/UefiShellInstall1CommandsLib/UefiShellInstall1CommandsLib.inf [X64] [CC] LinkedList [CC] UefiNotTiano [CC] UefiShellInstall1CommandsLib [SLINK] UefiLib Building ... /Users/fusion71au/src/CloverBootloader/ShellPkg/Library/UefiShellDriver1CommandsLib/UefiShellDriver1CommandsLib.inf [X64] [SLINK] UefiShellInstall1CommandsLib Building ... /Users/fusion71au/src/CloverBootloader/ShellPkg/Library/UefiShellLevel3CommandsLib/UefiShellLevel3CommandsLib.inf [X64] [CC] LongJump [CC] LowBitSet32 [CC] LowBitSet64 [CC] Math64 [CC] Alias [CC] ModU64x32 [CC] AutoGen [CC] MultS64x64 [CC] MultU64x32 [CC] AutoGen [CC] MultU64x64 [CC] RRotU32 [CC] BdsBoot [CC] Connect [CC] RRotU64 [CC] RShiftU64 [CC] AutoGen [CC] Cls [CC] DevTree [CC] SafeString [CC] Echo [CC] SetJump [CC] Comp [CC] BdsConnect [CC] String [CC] GetMtc [CC] SwapBytes16 [CC] Devices [CC] SwapBytes32 [CC] SwapBytes64 [CC] Compress [CC] SwitchStack [CC] Help [CC] Unaligned [CC] BdsConsole [CC] Dblk [CC] Pause [CC] Dh [NASM] CpuId [CC] Dmem [CC] Touch [CC] Disconnect [NASM] CpuIdEx [CC] Type [CC] BdsMisc [CC] Drivers [CC] DmpStore [NASM] DisableCache [CC] UefiShellLevel3CommandsLib [CC] DevicePath [CC] Edit [CC] Ver [NASM] DisablePaging64 [SLINK] UefiShellLevel3CommandsLib Building ... /Users/fusion71au/src/CloverBootloader/ShellPkg/Library/UefiShellLevel1CommandsLib/UefiShellLevel1CommandsLib.inf [X64] [CC] String [CC] DrvCfg [SLINK] GenericBdsLib Building ... /Users/fusion71au/src/CloverBootloader/ShellPkg/Library/UefiShellLevel2CommandsLib/UefiShellLevel2CommandsLib.inf [X64] [NASM] EnableCache [CC] AutoGen [CC] Attrib [CC] DrvDiag [NASM] EnableDisableInterrupts [CC] Exit [CC] OpenInfo [CC] FileBuffer [CC] GccInline [CC] Reconnect [CC] For [NASM] Lfence [CC] AutoGen [CC] Goto [CC] MainTextEditor [NASM] LongJump [CC] UefiShellDriver1CommandsLib [CC] Non-existing [CC] Cd [CC] Misc [CC] Unload [NASM] RdRand [CC] If [SLINK] UefiShellDriver1CommandsLib Building ... /Users/fusion71au/src/CloverBootloader/ShellPkg/Library/UefiShellBcfgCommandLib/UefiShellBcfgCommandLib.inf [X64] [CC] Cp [CC] AutoGen [CC] EditInputBar [NASM] SetJump [CC] Shift [CC] Load [NASM] SwitchStack [CC] EditMenuBar [CC] Stall [CC] Ls [CC] UefiShellBcfgCommandLib [CC] UefiShellLevel1CommandsLib [CC] EditStatusBar [NASM] Thunk16 [SLINK] UefiShellLevel1CommandsLib Building ... /Users/fusion71au/src/CloverBootloader/ShellPkg/Library/UefiShellCommandLib/UefiShellCommandLib.inf [X64] [CC] Map [SLINK] UefiShellBcfgCommandLib Building ... /Users/fusion71au/src/CloverBootloader/ShellPkg/Library/UefiHandleParsingLib/UefiHandleParsingLib.inf [X64] [NASM] WriteTr [CC] EditTitleBar [CC] AutoGen [CC] MkDir [CC] X86DisablePaging32 [CC] X86DisablePaging64 [CC] X86EnablePaging32 [CC] X86EnablePaging64 [CC] EfiCompress [CC] X86FxRestore [CC] ConsistMapping [CC] Mv [CC] X86FxSave [CC] X86GetInterruptState [CC] X86Msr [CC] EfiDecompress [CC] Parse [CC] X86PatchInstruction [CC] X86RdRand [CC] UefiShellCommandLib [CC] X86ReadGdtr [CC] Reset [SLINK] UefiShellCommandLib Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Library/UefiHiiServicesLib/UefiHiiServicesLib.inf [X64] [CC] X86ReadIdtr [CC] X86SpeculationBarrier [CC] UefiHiiServicesLib [CC] X86Thunk [SLINK] UefiHiiServicesLib Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Library/CpuExceptionHandlerLibNull/CpuExceptionHandlerLibNull.inf [X64] [CC] BufferImage [CC] Rm [CC] X86WriteGdtr [CC] CpuExceptionHandlerLibNull [CC] X86WriteIdtr [SLINK] CpuExceptionHandlerLibNull Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Library/DebugAgentLibNull/DebugAgentLibNull.inf [X64] [SLINK] BaseLib Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/BaseUefiDecompressLib/BaseUefiDecompressLib.inf [X64] [CC] DebugAgentLibNull [CC] UefiHandleParsingLib [CC] Set [CC] Clipboard [SLINK] UefiHandleParsingLib Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/DxeCoreHobLib/DxeCoreHobLib.inf [X64] [SLINK] DebugAgentLibNull Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/DxeCoreEntryPoint/DxeCoreEntryPoint.inf [X64] [CC] BaseUefiDecompressLib [CC] HobLib [SLINK] BaseUefiDecompressLib Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Library/DxeCoreMemoryAllocationLib/DxeCoreMemoryAllocationLib.inf [X64] [CC] DxeCoreEntryPoint [SLINK] DxeCoreHobLib Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Library/CustomizedDisplayLib/CustomizedDisplayLib.inf [X64] [SLINK] DxeCoreEntryPoint Building ... /Users/fusion71au/src/CloverBootloader/Library/LzmaCustomDecompressLib/LzmaCustomDecompressLib.inf [X64] [CC] DiskImage [CC] DxeCoreMemoryProfileLibNull [CC] TimeDate [CC] GuidedSectionExtraction [CC] AutoGen [CC] MemoryAllocationLib [CC] LzmaDecompress [SLINK] DxeCoreMemoryAllocationLib Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/DxeExtractGuidedSectionLib/DxeExtractGuidedSectionLib.inf [X64] [CC] UefiShellLevel2CommandsLib [CC] FileImage [CC] DxeExtractGuidedSectionLib [SLINK] DxeExtractGuidedSectionLib Building ... /Users/fusion71au/src/CloverBootloader/Library/WaveLib/WaveLib.inf [X64] [CC] CustomizedDisplayLib [CC] Vol [CC] LzFind [SLINK] UefiShellLevel2CommandsLib Building ... /Users/fusion71au/src/CloverBootloader/NetworkPkg/Library/DxeNetLib/DxeNetLib.inf [X64] [CC] HexEdit [CC] WaveLib [SLINK] WaveLib Building ... /Users/fusion71au/src/CloverBootloader/Library/OpensslLib/OpensslLibNull.inf [X64] [CC] CustomizedDisplayLibInternal [SLINK] CustomizedDisplayLib Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/UefiMemoryLib/UefiMemoryLib.inf [X64] [CC] LzmaDec [CC] OpensslLibNull [SLINK] LzmaDecompressLib Building ... /Users/fusion71au/src/CloverBootloader/ShellPkg/Library/UefiShellNetwork2CommandsLib/UefiShellNetwork2CommandsLib.inf [X64] [SLINK] OpensslLib Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Library/DxeSecurityManagementLib/DxeSecurityManagementLib.inf [X64] [CC] MainHexEditor [CC] AutoGen [CC] DxeNetLib [CC] DxeSecurityManagementLib [SLINK] DxeSecurityManagementLib Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/BaseCacheMaintenanceLib/BaseCacheMaintenanceLib.inf [X64] [CC] MemImage [CC] X86Cache [SLINK] BaseCacheMaintenanceLib Building ... /Users/fusion71au/src/CloverBootloader/Library/VBoxPeCoffLib/VBoxPeCoffLib.inf [X64] [CC] NetBuffer [CC] Ifconfig6 [SLINK] DxeNetLib Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/BasePeCoffExtraActionLibNull/BasePeCoffExtraActionLibNull.inf [X64] [CC] Misc [CC] BasePeCoff [CC] PeCoffExtraActionLib [SLINK] PeCoffExtraActionLibNull Building ... /Users/fusion71au/src/CloverBootloader/ShellPkg/Library/UefiShellNetwork1CommandsLib/UefiShellNetwork1CommandsLib.inf [X64] [CC] PeCoffLoaderEx [SLINK] VBoxPeCoffLib Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Library/VarCheckLib/VarCheckLib.inf [X64] [CC] Ping6 [CC] AutoGen [CC] LoadPciRom [CC] UefiShellNetwork2CommandsLib [SLINK] UefiShellNetwork2CommandsLib Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Library/AuthVariableLibNull/AuthVariableLibNull.inf [X64] [CC] MemMap [CC] Ifconfig [CC] AuthVariableLibNull [SLINK] AuthVariableLibNull Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Library/TpmMeasurementLibNull/TpmMeasurementLibNull.inf [X64] [CC] Mm [CC] TpmMeasurementLibNull [SLINK] TpmMeasurementLibNull Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/BaseSynchronizationLib/BaseSynchronizationLib.inf [X64] [CC] Ping [CC] InternalGetSpinLockProperties [CC] Mode [CC] SynchronizationGcc [CC] GccInline [CC] UefiShellNetwork1CommandsLib [SLINK] BaseSynchronizationLib Building ... /Users/fusion71au/src/CloverBootloader/Library/VideoBiosPatchLib/VideoBiosPatchLib.inf [X64] [SLINK] UefiShellNetwork1CommandsLib Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/UefiUsbLib/UefiUsbLib.inf [X64] [CC] VarCheckLib [CC] Hid [CC] 915resolution [SLINK] VarCheckLib Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Library/UefiBootManagerLib/UefiBootManagerLib.inf [X64] [CC] CompareMemWrapper [CC] UsbDxeLib [CC] VideoBiosPatchLib [SLINK] UefiUsbLib Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/BasePerformanceLibNull/BasePerformanceLibNull.inf [X64] [CC] CopyMemWrapper [CC] PerformanceLib [SLINK] BasePerformanceLibNull Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/BasePeCoffGetEntryPointLib/BasePeCoffGetEntryPointLib.inf [X64] [CC] edid [SLINK] VideoBiosPatchLib Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/DxeServicesTableLib/DxeServicesTableLib.inf [X64] [CC] Pci [CC] IsZeroBufferWrapper [CC] PeCoffGetEntryPoint [SLINK] BasePeCoffGetEntryPointLib Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/DxeServicesLib/DxeServicesLib.inf [X64] [CC] MemLib [CC] DxeServicesTableLib [SLINK] DxeServicesTableLib Building ... /Users/fusion71au/src/CloverBootloader/Library/MemLogLibDefault/MemLogLibDefault.inf [X64] [CC] SerMode [CC] MemLibGeneric [CC] BmBoot [CC] MemLibGuid [CC] MemLogLib [CC] DxeServicesLib [SLINK] MemLogLibDefault Building ... /Users/fusion71au/src/CloverBootloader/ShellPkg/Library/UefiShellLib/UefiShellLib.inf [X64] [CC] ScanMem16Wrapper [CC] SetSize [CC] Allocate [SLINK] DxeServicesLib Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/UefiApplicationEntryPoint/UefiApplicationEntryPoint.inf [X64] [CC] ScanMem32Wrapper [CC] ScanMem64Wrapper [CC] ApplicationEntryPoint [CC] SetVar [SLINK] UefiApplicationEntryPoint [CC] BmBootDescription Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/BasePciLibCf8/BasePciLibCf8.inf [X64] [CC] ScanMem8Wrapper [CC] SetMem16Wrapper [CC] EventLogInfo [CC] BmConnect [CC] UefiShellLib [SLINK] UefiShellLib Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/UefiFileHandleLib/UefiFileHandleLib.inf [X64] [CC] SetMem32Wrapper [CC] SetMem64Wrapper [CC] LibSmbiosView [CC] BmConsole [CC] UefiFileHandleLib [SLINK] UefiFileHandleLib Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Library/UefiHiiLib/UefiHiiLib.inf [X64] [CC] SetMemWrapper [CC] ZeroMemWrapper [SLINK] UefiMemoryLib Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Library/UefiSortLib/UefiSortLib.inf [X64] [CC] HiiLanguage [CC] BmDriverHealth [CC] UefiSortLib [SLINK] UefiSortLib Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/BasePciCf8Lib/BasePciCf8Lib.inf [X64] [CC] PciLib [SLINK] BasePciLibCf8 Building ... /Users/fusion71au/src/CloverBootloader/Library/UefiHiiServicesLib/UefiHiiServicesLib.inf [X64] [CC] PciCf8Lib [CC] BmHotkey [SLINK] BasePciCf8Lib Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/DxePcdLib/DxePcdLib.inf [X64] [CC] PrintInfo [CC] UefiHiiServicesLib [SLINK] UefiHiiServicesLib Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/BaseReportStatusCodeLibNull/BaseReportStatusCodeLibNull.inf [X64] [CC] HiiLib [CC] DxePcdLib [CC] BaseReportStatusCodeLib [SLINK] DxePcdLib Building ... /Users/fusion71au/src/CloverBootloader/Library/DuetTimerLib/DuetTimerLib.inf [X64] [SLINK] BaseReportStatusCodeLibNull Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/UefiRuntimeLib/UefiRuntimeLib.inf [X64] [CC] HiiString [CC] BmLoadOption [SLINK] UefiHiiLib Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/BaseIoLibIntrinsic/BaseIoLibIntrinsic.inf [X64] [CC] RuntimeLib [CC] IoHighLevel [CC] X86TimerLib [SLINK] UefiRuntimeLib Building ... /Users/fusion71au/src/CloverBootloader/MdePkg/Library/DxeHobLib/DxeHobLib.inf [X64] [SLINK] DuetTimerLib Building ... /Users/fusion71au/src/CloverBootloader/CloverEFI/BiosKeyboard/KeyboardDxe.inf [X64] [CC] IoLib [CC] IoLibGcc [CC] QueryTable [CC] IoLibMmioBuffer [CC] BmMisc [SLINK] UefiBootManagerLib Building ... /Users/fusion71au/src/CloverBootloader/Protocols/AppleKeyAggregator/AppleKeyAggregator.inf [X64] [CC] HobLib [SLINK] DxeHobLib Building ... /Users/fusion71au/src/CloverBootloader/CloverEFI/CpuDxe/Cpu.inf [X64] [CC] AppleKey [NASM] IoFifo [SLINK] BaseIoLibIntrinsic Building ... /Users/fusion71au/src/CloverBootloader/FileSystems/VBoxFsDxe/VBoxExt2.inf [X64] [CC] AutoGen [CC] AppleKeyAggregator [CC] SmbiosView [CC] AutoGen [CC] AutoGen [CC] AutoGen [SLINK] AppleKeyAggregator [CC] Cpu [CC] UefiShellDebug1CommandsLib [SLINK] UefiShellDebug1CommandsLib Building ... /Users/fusion71au/src/CloverBootloader/PcAtChipsetPkg/IsaAcpiDxe/IsaAcpi.inf [X64] [CC] BiosKeyboard [CC] AutoGen [CC] fsw_core [NASM] CpuInterrupt [SLINK] Cpu [CC] ComponentName [CC] ComponentName [DLINK1] AppleKeyAggregator [OBJCOPY] AppleKeyAggregator [GENFW] AppleKeyAggregator Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Universal/CapsuleRuntimeDxe/CapsuleRuntimeDxe.inf [X64] [CC] fsw_efi [CC] IsaAcpi [CC] LegacyBiosThunk [CC] AutoGen [SLINK] KeyboardDxe [CC] fsw_efi_lib [CC] CapsuleCache [CC] PcatIsaAcpi [SLINK] IsaAcpi [CC] CapsuleReset [CC] fsw_ext2 [CC] CapsuleService [CC] fsw_lib [DLINK1] IsaAcpi [OBJCOPY] IsaAcpi [CC] SaveLongModeContext [SLINK] VBoxExt2 [SLINK] CapsuleRuntimeDxe [GENFW] IsaAcpi Building ... /Users/fusion71au/src/CloverBootloader/Protocols/OsxFatBinaryDrv/OsxFatBinaryDrv.inf [X64] [DLINK1] Cpu [OBJCOPY] Cpu [GENFW] Cpu Building ... /Users/fusion71au/src/CloverBootloader/OsxAptioFixDrv/OsxAptioFixDrv.inf [X64] [CC] AutoGen [DLINK1] KeyboardDxe [OBJCOPY] KeyboardDxe [CC] AutoGen [GENFW] KeyboardDxe Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Universal/Console/ConSplitterDxe/ConSplitterDxe.inf [X64] [CC] OsxFatBinaryDrv [DLINK1] CapsuleRuntimeDxe [SLINK] OsxFatBinaryDrv [OBJCOPY] CapsuleRuntimeDxe [GENFW] CapsuleRuntimeDxe Building ... /Users/fusion71au/src/CloverBootloader/FileSystems/FatPkg/EnhancedFatDxe/Fat.inf [X64] [CC] BootArgs [CC] AutoGen [CC] AutoGen [CC] ComponentName [CC] BootFixes [DLINK1] OsxFatBinaryDrv [OBJCOPY] OsxFatBinaryDrv [CC] ComponentName [CC] DecodedKernelCheck [GENFW] OsxFatBinaryDrv Building ... /Users/fusion71au/src/CloverBootloader/FileSystems/GrubFS/src/ISO9660.inf [X64] [CC] Data [CC] AutoGen [CC] device_tree [CC] Delete [CC] driver [CC] Lib [CC] DirectoryCache [CC] ConSplitter [CC] Mach-O [CC] file [CC] NVRAMDebug [CC] ConSplitterGraphics [CC] DirectoryManage [SLINK] ConSplitterDxe [CC] grub [CC] OsxAptioFixDrv [CC] DiskCache [CC] fshelp [CC] VMem [CC] Fat [CC] iso9660 [CC] FileName [NASM] AsmFuncsX64 [SLINK] OsxAptioFixDrv [CC] device [CC] FileSpace [DLINK1] VBoxExt2 [CC] err [OBJCOPY] VBoxExt2 [CC] Flush [GENFW] VBoxExt2 Building ... /Users/fusion71au/src/CloverBootloader/Drivers/Isa/Ps2MouseDxe/Ps2MouseDxe.inf [X64] [CC] list [CC] Hash [CC] AutoGen [CC] misc [CC] Info [CC] CommPs2 [CC] grub_driver [CC] Init [CC] ComponentName [CC] Misc [CC] grub_file [CC] Ps2Mouse [SLINK] Ps2MouseDxe [CC] logging [CC] Open [CC] OpenVolume [CC] missing [CC] path [CC] ReadWrite [CC] utf8 [CC] UnicodeCollation [DLINK1] Ps2MouseDxe [SLINK] Fat [SLINK] GrubISO9660 [OBJCOPY] Ps2MouseDxe [DLINK1] OsxAptioFixDrv [GENFW] Ps2MouseDxe Building ... /Users/fusion71au/src/CloverBootloader/Protocols/AppleUITheme/AppleUITheme.inf [X64] [OBJCOPY] OsxAptioFixDrv [DLINK1] ConSplitterDxe [OBJCOPY] ConSplitterDxe [GENFW] OsxAptioFixDrv Building ... /Users/fusion71au/src/CloverBootloader/FileSystems/VBoxFsDxe/VBoxIso9660.inf [X64] [GENFW] ConSplitterDxe Building ... /Users/fusion71au/src/CloverBootloader/FileSystems/GrubFS/src/UDF.inf [X64] [CC] AutoGen [CC] AppleUITheme [CC] AutoGen [CC] AutoGen [SLINK] AppleUITheme [CC] fsw_core [CC] driver [DLINK1] AppleUITheme [OBJCOPY] AppleUITheme [CC] fsw_efi [CC] file [GENFW] AppleUITheme Building ... /Users/fusion71au/src/CloverBootloader/OsxLowMemFixDrv/OsxLowMemFixDrv.inf [X64] [CC] fsw_efi_lib [CC] AutoGen [CC] grub [CC] fsw_iso9660 [CC] fshelp [CC] Lib [CC] OsxLowMemFixDrv [CC] fsw_lib [SLINK] OsxLowMemFixDrv [SLINK] VBoxIso9600 [CC] udf [CC] device [DLINK1] OsxLowMemFixDrv [OBJCOPY] OsxLowMemFixDrv [GENFW] OsxLowMemFixDrv Building ... /Users/fusion71au/src/CloverBootloader/Protocols/AppleImageCodec/AppleImageCodec.inf [X64] [CC] err [CC] list [CC] AppleImageCodec [CC] AutoGen [CC] misc [CC] load_bmp [CC] grub_driver [CC] load_icns [DLINK1] VBoxIso9600 [OBJCOPY] VBoxIso9600 [GENFW] VBoxIso9600 Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Universal/SetupBrowserDxe/SetupBrowserDxe.inf [X64] [CC] grub_file [DLINK1] GrubISO9660 [OBJCOPY] GrubISO9660 [CC] AutoGen [CC] picopng [SLINK] AppleImageCodec [DLINK1] Fat [OBJCOPY] Fat [CC] Expression [GENFW] Fat Building ... /Users/fusion71au/src/CloverBootloader/Drivers/Isa/IsaBusDxe/IsaBusDxe.inf [X64] [CC] AutoGen [CC] logging [CC] IfrParse [CC] ComponentName [CC] missing [GENFW] GrubISO9660 Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Bus/Pci/EhciDxe/EhciDxe.inf [X64] [CC] IsaBus [CC] path [CC] AutoGen [CC] Presentation [CC] utf8 [CC] ComponentName [SLINK] GrubUDF [CC] IsaIo [SLINK] IsaBusDxe [CC] Ehci [CC] EhciDebug [CC] Setup [CC] EhciReg [SLINK] SetupBrowser [DLINK1] AppleImageCodec [OBJCOPY] AppleImageCodec [DLINK1] IsaBusDxe [OBJCOPY] IsaBusDxe [GENFW] AppleImageCodec Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Universal/DisplayEngineDxe/DisplayEngineDxe.inf [X64] [GENFW] IsaBusDxe Building ... /Users/fusion71au/src/CloverBootloader/FileSystems/ApfsDriverLoader/ApfsDriverLoader.inf [X64] [CC] EhciSched [CC] AutoGen [CC] EhciUrb [CC] ApfsDriverLoader [CC] AutoGen [CC] UsbHcMem [SLINK] EhciDxe [CC] EfiComponentName [SLINK] ApfsDriverLoader [CC] FormDisplay [CC] InputHandler [CC] Popup [DLINK1] ApfsDriverLoader [OBJCOPY] ApfsDriverLoader [CC] ProcessOptions [GENFW] ApfsDriverLoader Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Universal/MemoryTest/NullMemoryTestDxe/NullMemoryTestDxe.inf [X64] [SLINK] DisplayEngine [CC] AutoGen [DLINK1] EhciDxe [OBJCOPY] EhciDxe [GENFW] EhciDxe Building ... /Users/fusion71au/src/CloverBootloader/FileSystems/VBoxFsDxe/VBoxExt4.inf [X64] [CC] AutoGen [CC] NullMemoryTest [SLINK] NullMemoryTestDxe [CC] fsw_core [DLINK1] GrubUDF [OBJCOPY] GrubUDF [DLINK1] NullMemoryTestDxe [OBJCOPY] NullMemoryTestDxe [GENFW] GrubUDF Building ... /Users/fusion71au/src/CloverBootloader/FileSystems/GrubFS/src/NTFS.inf [X64] [CC] fsw_efi [GENFW] NullMemoryTestDxe Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Universal/EbcDxe/EbcDxe.inf [X64] [CC] AutoGen [CC] fsw_efi_lib [CC] AutoGen [CC] driver [CC] EbcDebuggerHook [CC] fsw_ext4 [CC] file [CC] fsw_lib [SLINK] VBoxExt4 [CC] EbcExecute [CC] grub [CC] EbcInt [CC] fshelp [NASM] EbcLowLevel [CC] ntfs [CC] EbcSupport [SLINK] EbcDxe [CC] ntfscomp [CC] device [CC] err [CC] list [CC] misc [CC] grub_driver [DLINK1] VBoxExt4 [CC] grub_file [OBJCOPY] VBoxExt4 [GENFW] VBoxExt4 Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Universal/HiiDatabaseDxe/HiiDatabaseDxe.inf [X64] [CC] logging [CC] AutoGen [CC] missing [DLINK1] EbcDxe [OBJCOPY] EbcDxe [CC] path [GENFW] EbcDxe Building ... /Users/fusion71au/src/CloverBootloader/FileSystems/VBoxFsDxe/VBoxReiserFS.inf [X64] [CC] AutoGen [CC] utf8 [CC] ConfigKeywordHandler [SLINK] GrubNTFS [CC] fsw_core [CC] fsw_efi [CC] ConfigRouting [CC] fsw_efi_lib [DLINK1] DisplayEngine [OBJCOPY] DisplayEngine [CC] fsw_lib [GENFW] DisplayEngine Building ... /Users/fusion71au/src/CloverBootloader/Protocols/DriverOverride/DriverOverride.inf [X64] [CC] Database [CC] fsw_reiserfs [CC] AutoGen [SLINK] VBoxReiserFS [DLINK1] SetupBrowser [OBJCOPY] SetupBrowser [CC] DriverOverride [GENFW] SetupBrowser Building ... /Users/fusion71au/src/CloverBootloader/CloverEFI/OsxEfiLdr/EfiLdr.inf [X64] [SLINK] DriverOverride [CC] AutoGen [DLINK1] DriverOverride [OBJCOPY] DriverOverride [CC] Debug [CC] Font [GENFW] DriverOverride Building ... /Users/fusion71au/src/CloverBootloader/Protocols/HashServiceFix/HashServiceFix.inf [X64] [CC] EfiLoader [CC] HiiDatabaseEntry [CC] AutoGen [CC] PeLoader [CC] HashServiceFix [CC] Support [SLINK] EfiLoader [CC] Image [CC] sha1 [SLINK] HashServiceFix [CC] ImageEx [CC] String [SLINK] HiiDatabase [DLINK1] GrubNTFS [OBJCOPY] GrubNTFS [GENFW] GrubNTFS Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Universal/SmbiosDxe/SmbiosDxe.inf [X64] [CC] AutoGen [DLINK1] HashServiceFix [OBJCOPY] HashServiceFix [GENFW] HashServiceFix Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Universal/WatchdogTimerDxe/WatchdogTimer.inf [X64] [DLINK1] VBoxReiserFS [OBJCOPY] VBoxReiserFS [CC] SmbiosDxe [GENFW] VBoxReiserFS Building ... /Users/fusion71au/src/CloverBootloader/Drivers/PartitionDxe/PartitionDxe.inf [X64] [SLINK] SmbiosDxe [CC] Apple [DLINK1] EfiLoader [OBJCOPY] EfiLoader [CC] AutoGen [GENFW] EfiLoader Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Universal/Disk/DiskIoDxe/DiskIoDxe.inf [X64] [CC] AutoGen [DLINK1] SmbiosDxe [OBJCOPY] SmbiosDxe [CC] ComponentName [GENFW] SmbiosDxe Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Bus/Pci/NvmExpressDxe/NvmExpressDxe.inf [X64] [CC] AutoGen [CC] DiskIo [CC] AutoGen [SLINK] DiskIoDxe [CC] WatchdogTimer [SLINK] WatchdogTimer [CC] ComponentName [DLINK1] WatchdogTimer [OBJCOPY] WatchdogTimer [CC] ComponentName [CC] NvmExpress [GENFW] WatchdogTimer Building ... /Users/fusion71au/src/CloverBootloader/Protocols/DataHubDxe/DataHubDxe.inf [X64] [CC] ElTorito [CC] AutoGen [CC] NvmExpressBlockIo [CC] Gpt [CC] DataHub [SLINK] DataHubDxe [CC] NvmExpressDiskInfo [CC] Mbr [CC] Partition [CC] NvmExpressHci [SLINK] PartitionDxe [DLINK1] DataHubDxe [OBJCOPY] DataHubDxe [GENFW] DataHubDxe Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Core/RuntimeDxe/RuntimeDxe.inf [X64] [CC] NvmExpressPassthru [SLINK] NvmExpressDxe [CC] AutoGen [CC] Crc32 [DLINK1] DiskIoDxe [OBJCOPY] DiskIoDxe [CC] Runtime [SLINK] RuntimeDxe [GENFW] DiskIoDxe Building ... /Users/fusion71au/src/CloverBootloader/FileSystems/GrubFS/src/HFSPLUS.inf [X64] [CC] AutoGen [DLINK1] RuntimeDxe [OBJCOPY] RuntimeDxe [DLINK1] PartitionDxe [CC] driver [OBJCOPY] PartitionDxe [GENFW] RuntimeDxe Building ... /Users/fusion71au/src/CloverBootloader/FileSystems/GrubFS/src/EXFAT.inf [X64] [GENFW] PartitionDxe Building ... /Users/fusion71au/src/CloverBootloader/Protocols/FirmwareVolume/FirmwareVolume.inf [X64] [CC] AutoGen [CC] file [CC] AutoGen [CC] driver [CC] grub [CC] FirmwareVolume [SLINK] FirmwareVolume [CC] fshelp [CC] file [DLINK1] FirmwareVolume [OBJCOPY] FirmwareVolume [CC] grub [CC] hfsplus [GENFW] FirmwareVolume Building ... /Users/fusion71au/src/CloverBootloader/Drivers/UsbKbDxe/UsbKbDxe.inf [X64] [CC] hfspluscomp [CC] exfat [CC] AppleKey [CC] fshelp [CC] gzio [CC] AutoGen [CC] device [CC] device [CC] ComponentName [CC] err [CC] err [CC] EfiKey [CC] list [CC] list [CC] misc [CC] misc [DLINK1] NvmExpressDxe [OBJCOPY] NvmExpressDxe [CC] grub_driver [CC] KeyBoard [CC] grub_driver [GENFW] NvmExpressDxe Building ... /Users/fusion71au/src/CloverBootloader/Protocols/DumpUefiCalls/DumpUefiCalls.inf [X64] [SLINK] UsbKbDxe [CC] grub_file [CC] grub_file [CC] logging [CC] logging [CC] AppleProtocols [CC] AutoGen [CC] missing [CC] missing [CC] path [CC] path [CC] BootServices [CC] utf8 [SLINK] GrubHFSPLUS [CC] DataHub [CC] DumpUefiCalls [CC] FileLib [CC] Fs [DLINK1] UsbKbDxe [OBJCOPY] UsbKbDxe [DLINK1] HiiDatabase [OBJCOPY] HiiDatabase [CC] utf8 [GENFW] HiiDatabase Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Bus/Usb/UsbMouseDxe/UsbMouseDxe.inf [X64] [SLINK] GrubEXFAT [CC] Lib [CC] AutoGen [CC] Log [CC] ComponentName [CC] MemLog [CC] MouseHid [CC] RuntimeServices [SLINK] DumpUefiCalls [GENFW] UsbKbDxe Building ... /Users/fusion71au/src/CloverBootloader/CloverEFI/GraphicsConsoleDxe/GraphicsConsoleDxe.inf [X64] [CC] UsbMouse [SLINK] UsbMouseDxe [CC] AutoGen [CC] ComponentName [CC] GraphicsConsole [CC] LaffStd [SLINK] GraphicsConsoleDxe [DLINK1] GrubHFSPLUS [OBJCOPY] GrubHFSPLUS [GENFW] GrubHFSPLUS Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Universal/MonotonicCounterRuntimeDxe/MonotonicCounterRuntimeDxe.inf [X64] [DLINK1] UsbMouseDxe [OBJCOPY] UsbMouseDxe [GENFW] UsbMouseDxe Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Universal/DevicePathDxe/DevicePathDxe.inf [X64] [CC] AutoGen [CC] MonotonicCounter [CC] AutoGen [SLINK] MonotonicCounterRuntimeDxe [CC] DevicePath [SLINK] DevicePathDxe [DLINK1] GraphicsConsoleDxe [OBJCOPY] GraphicsConsoleDxe [DLINK1] MonotonicCounterRuntimeDxe [OBJCOPY] MonotonicCounterRuntimeDxe [GENFW] GraphicsConsoleDxe Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Bus/Pci/UhciDxe/UhciDxe.inf [X64] [GENFW] MonotonicCounterRuntimeDxe Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Universal/Disk/UnicodeCollation/EnglishDxe/EnglishDxe.inf [X64] [CC] AutoGen [CC] AutoGen [DLINK1] GrubEXFAT [OBJCOPY] GrubEXFAT [CC] UnicodeCollationEng [SLINK] EnglishDxe [GENFW] GrubEXFAT Building ... /Users/fusion71au/src/CloverBootloader/Drivers/Isa/Ps2MouseAbsolutePointerDxe/Ps2MouseAbsolutePointerDxe.inf [X64] [CC] ComponentName [CC] AutoGen [DLINK1] EnglishDxe [OBJCOPY] EnglishDxe [CC] Uhci [GENFW] EnglishDxe Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Bus/Usb/UsbMassStorageDxe/UsbMassStorageDxe.inf [X64] [CC] AutoGen [CC] CommPs2 [CC] UhciDebug [CC] ComponentName [CC] ComponentName [CC] UhciQueue [DLINK1] DumpUefiCalls [CC] UsbMassBoot [CC] Ps2MouseAbsolutePointer [OBJCOPY] DumpUefiCalls [SLINK] Ps2MouseAbsolutePointerDxe [GENFW] DumpUefiCalls Building ... /Users/fusion71au/src/CloverBootloader/Protocols/MsgLog/MsgLog.inf [X64] [CC] UhciReg [CC] AutoGen [CC] UsbMassBot [CC] MsgLog [SLINK] MsgLog [CC] UsbMassCbi [CC] UhciSched [DLINK1] MsgLog [OBJCOPY] MsgLog [GENFW] MsgLog Building ... /Users/fusion71au/src/CloverBootloader/OsxAptioFixDrv/OsxAptioFix3Drv.inf [X64] [CC] UsbMassDiskInfo [CC] AutoGen [CC] UsbHcMem [CC] BootArgs [SLINK] UhciDxe [CC] UsbMassImpl [SLINK] UsbMassStorageDxe [CC] BootFixes3 [DLINK1] Ps2MouseAbsolutePointerDxe [OBJCOPY] Ps2MouseAbsolutePointerDxe [CC] DecodedKernelCheck [GENFW] Ps2MouseAbsolutePointerDxe Building ... /Users/fusion71au/src/CloverBootloader/CloverEFI/PciRootBridgeDxe/PciRootBridge.inf [X64] [CC] device_tree [CC] AutoGen [CC] DeviceIo [CC] Lib [CC] Mach-O [CC] PcatIo [CC] NVRAMDebug [CC] PcatPciRootBridge [CC] OsxAptioFix3Drv [CC] PcatPciRootBridgeDevicePath [CC] VMem [DLINK1] UsbMassStorageDxe [CC] PcatPciRootBridgeIo [OBJCOPY] UsbMassStorageDxe [SLINK] PcatPciRootBridge [GENFW] UsbMassStorageDxe Building ... /Users/fusion71au/src/CloverBootloader/CloverEFI/OsxPciBusNoEnumerationDxe/PciBusNoEnumeration.inf [X64] [NASM] AsmFuncsX64 [CC] AutoGen [DLINK1] UhciDxe [NASM] RTShims [OBJCOPY] UhciDxe [CC] ComponentName [SLINK] OsxAptioFix3Drv [DLINK1] DevicePathDxe [GENFW] UhciDxe Building ... /Users/fusion71au/src/CloverBootloader/CloverEFI/OsxBdsDxe/BdsDxe.inf [X64] [OBJCOPY] DevicePathDxe [GENFW] DevicePathDxe Building ... /Users/fusion71au/src/CloverBootloader/CloverEFI/OsxDxeIpl/DxeIpl.inf [X64] [CC] PciBus [CC] AutoGen [DLINK1] PcatPciRootBridge [OBJCOPY] PcatPciRootBridge [GENFW] PcatPciRootBridge Building ... /Users/fusion71au/src/CloverBootloader/CloverEFI/UefiCpuPkg/CpuIo2Dxe/CpuIo2Dxe.inf [X64] [CC] AutoGen [CC] Debug [CC] AutoGen [CC] PciCommand [CC] CpuIo2Dxe [CC] DxeInit [SLINK] CpuIo2Dxe [CC] PciDeviceSupport [CC] BdsEntry [DLINK1] CpuIo2Dxe [VFR] BdsDxe [CC] HobGeneration [OBJCOPY] CpuIo2Dxe [CC] PciDriverOverride [GENFW] CpuIo2Dxe Building ... /Users/fusion71au/src/CloverBootloader/Protocols/SMCHelper/SMCHelper.inf [X64] [CC] Bm [CC] AutoGen [CC] LegacyTable [CC] PciEnumerator [CC] SMCHelper [CC] EnterDxeCore [CC] BBSsupport [SLINK] SMCHelper [CC] PciEnumeratorSupport [CC] Paging [SLINK] DxeIpl [DLINK1] SMCHelper [OBJCOPY] SMCHelper [CC] BmLib [GENFW] SMCHelper Building ... /Users/fusion71au/src/CloverBootloader/FSInject/FSInject.inf [X64] [CC] PciIo [CC] AutoGen [DLINK1] DxeIpl [OBJCOPY] DxeIpl [CC] PciOptionRomSupport [GENFW] DxeIpl Building ... /Users/fusion71au/src/CloverBootloader/LegacyBios/VideoDxe/VideoDxe.inf [X64] [CC] PciPowerManagement [CC] AutoGen [DLINK1] OsxAptioFix3Drv [OBJCOPY] OsxAptioFix3Drv [CC] BootMaint [CC] FSInject [GENFW] OsxAptioFix3Drv Building ... /Users/fusion71au/src/CloverBootloader/Drivers/Isa/Ps2KeyboardDxe/Ps2keyboardDxe.inf [X64] [CC] PciRomTable [SLINK] PciBusNoEnumerationDxe [CC] Test [SLINK] FSInject [CC] AutoGen [CC] ComponentName [CC] BiosVideo [CC] BootOption [CC] ComponentName [CC] Ps2KbdCtrller [SLINK] CsmVideoDxe [CC] Data [CC] Ps2KbdTextIn [CC] FileExplorer [CC] Ps2Keyboard [SLINK] Ps2KeyboardDxe [CC] UpdatePage [DLINK1] PciBusNoEnumerationDxe [OBJCOPY] PciBusNoEnumerationDxe [GENFW] PciBusNoEnumerationDxe Building ... /Users/fusion71au/src/CloverBootloader/Protocols/EmuVariableUefi/EmuVariableRuntimeDxe.inf [X64] [CC] Variable [VFR] BdsDxe [CC] AutoGen [CC] BootManagerVfr [DLINK1] FSInject [OBJCOPY] FSInject [CC] BootManager [CC] EmuVariable [CC] InitVariable [SLINK] EmuVariableUefi [CC] Capsules [VFR] BdsDxe [CC] DeviceManagerVfr [DLINK1] Ps2KeyboardDxe [OBJCOPY] Ps2KeyboardDxe [GENFW] Ps2KeyboardDxe Building ... /Users/fusion71au/src/CloverBootloader/Drivers/AudioDxe/AudioDxe.inf [X64] [GENFW] FSInject Building ... /Users/fusion71au/src/CloverBootloader/FileSystems/VBoxFsDxe/VBoxHfs.inf [X64] [CC] AutoGen [CC] AudioDxe [CC] DeviceManager [VFR] BdsDxe [CC] AutoGen [CC] DriverHealthVfr [VFR] BdsDxe [CC] fsw_core [DLINK1] CsmVideoDxe [OBJCOPY] CsmVideoDxe [CC] FE [GENFW] CsmVideoDxe Building ... /Users/fusion71au/src/CloverBootloader/ShellPkg/Application/Shell/Shell.inf [X64] [CC] HdaCodec [CC] fsw_efi [CC] HdaCodecAudioIo [CC] AutoGen [CC] fsw_efi_lib [CC] HdaCodecComponentName [CC] FrontPage [VFR] BdsDxe [CC] HdaCodecInfo [CC] ConsoleLogger [CC] FrontPageVfr [CC] ConsoleWrappers [CC] fsw_hfs [CC] HdaController [CC] HdaControllerComponentName [CC] Hotkey [CC] fsw_lib [SLINK] VBoxHfs [CC] HdaControllerHdaIo [CC] FileHandleWrappers [CC] HwErrRecSupport [CC] HdaControllerInfo [DLINK1] EmuVariableUefi [OBJCOPY] EmuVariableUefi [CC] Language [CC] Shell [GENFW] EmuVariableUefi Building ... /Users/fusion71au/src/CloverBootloader/CloverEFI/OsxDxeCore/DxeMain.inf [X64] [CC] AutoGen [CC] HdaControllerMem [CC] ShellEnvVar [CC] MemoryTest [CC] HdaModels [SLINK] AudioDxe [CC] Dependency [CC] String [CC] ShellManParser [SLINK] BdsDxe [CC] Dispatcher [CC] DxeMain [CC] DxeProtocolNotify [CC] ShellParametersProtocol [CC] Event [CC] Timer [CC] ShellProtocol [SLINK] Shell [CC] Tpl [CC] Ffs [CC] FwVol [CC] FwVolAttrib [CC] FwVolRead [DLINK1] AudioDxe [OBJCOPY] AudioDxe [GENFW] AudioDxe Building ... /Users/fusion71au/src/CloverBootloader/LegacyBios/BlockIoDxe/BlockIoDxe.inf [X64] [CC] FwVolWrite [CC] AutoGen [CC] FwVolBlock [CC] BiosBlkIo [CC] BiosInt13 [CC] Gcd [DLINK1] VBoxHfs [CC] ComponentName [OBJCOPY] VBoxHfs [GENFW] VBoxHfs Building ... /Users/fusion71au/src/CloverBootloader/Drivers/UsbBusDxe/UsbBusDxe.inf [X64] [CC] DriverSupport [CC] LegacyBiosThunk [SLINK] BiosBlockIoDxe [CC] AutoGen [CC] ComponentName [CC] Handle [CC] UsbBus [CC] Locate [CC] UsbDesc [CC] Notify [CC] UsbEnumer [CC] Image [CC] UsbHub [CC] Library [CC] MemData [DLINK1] BiosBlockIoDxe [OBJCOPY] BiosBlockIoDxe [GENFW] BiosBlockIoDxe Building ... /Users/fusion71au/src/CloverBootloader/PcAtChipsetPkg/8259InterruptControllerDxe/8259.inf [X64] [CC] Page [CC] 8259 [CC] AutoGen [SLINK] Legacy8259 [CC] Pool [CC] UsbUtility [SLINK] UsbBusDxe [DLINK1] Legacy8259 [OBJCOPY] Legacy8259 [CC] DebugImageInfo [GENFW] Legacy8259 Building ... /Users/fusion71au/src/CloverBootloader/CloverEFI/AcpiReset/Reset.inf [X64] [CC] AutoGen [CC] InstallConfigurationTable [CC] Reset [SLINK] AcpiReset [CC] SetWatchdogTimer [DLINK1] AcpiReset [OBJCOPY] AcpiReset [CC] Stall [GENFW] AcpiReset Building ... /Users/fusion71au/src/CloverBootloader/Drivers/XhciDxe/XhciDxe.inf [X64] [CC] AutoGen [CC] CoreSectionExtraction [SLINK] DxeCore [CC] ComponentName [CC] UsbHcMem [CC] Xhci [CC] XhciReg [DLINK1] UsbBusDxe [OBJCOPY] UsbBusDxe [GENFW] UsbBusDxe Building ... /Users/fusion71au/src/CloverBootloader/rEFIt_UEFI/refit.inf [X64] [CC] XhciSched [SLINK] XhciDxe [CC] AutoGen [CC] AcpiPatcher [CC] AmlGenerator [CC] BdsConnect [DLINK1] DxeCore [OBJCOPY] DxeCore [GENFW] DxeCore Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Universal/PCD/Dxe/Pcd.inf [X64] [CC] AutoGen [CC] BootLog [CC] Pcd [CC] Service [SLINK] PcdDxe [CC] BootOptions [DLINK1] BdsDxe [OBJCOPY] BdsDxe [GENFW] BdsDxe Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Universal/Metronome/Metronome.inf [X64] [DLINK1] XhciDxe [OBJCOPY] XhciDxe [CC] AutoGen [GENFW] XhciDxe Building ... /Users/fusion71au/src/CloverBootloader/Drivers/OhciDxe/OhciDxe.inf [X64] [CC] Metronome [SLINK] Metronome [CC] AutoGen [DLINK1] Metronome [OBJCOPY] Metronome [CC] ComponentName [GENFW] Metronome Building ... /Users/fusion71au/src/CloverBootloader/LegacyBios/Region2Dxe/LegacyRegion2Dxe.inf [X64] [CC] AutoGen [CC] LegacyRegion2 [SLINK] LegacyRegion2Dxe [CC] Ohci [CC] Console [DLINK1] PcdDxe [CC] OhciDebug [OBJCOPY] PcdDxe [GENFW] PcdDxe Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Universal/SecurityStubDxe/SecurityStubDxe.inf [X64] [CC] AutoGen [CC] OhciReg [CC] Defer3rdPartyImageLoad [CC] DataHubCpu [CC] OhciSched [CC] SecurityStub [SLINK] SecurityStubDxe [CC] OhciUrb [CC] Edid [CC] UsbHcMem [DLINK1] LegacyRegion2Dxe [SLINK] OhciDxe [OBJCOPY] LegacyRegion2Dxe [GENFW] LegacyRegion2Dxe Building ... /Users/fusion71au/src/CloverBootloader/PcAtChipsetPkg/8254TimerDxe/8254Timer.inf [X64] [DLINK1] SecurityStubDxe [OBJCOPY] SecurityStubDxe [GENFW] SecurityStubDxe Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Universal/Variable/RuntimeDxe/VariableRuntimeDxe.inf [X64] [CC] AutoGen [CC] Events [CC] Timer [CC] AutoGen [SLINK] Timer [CC] Measurement [DLINK1] Timer [OBJCOPY] Timer [GENFW] Timer Building ... /Users/fusion71au/src/CloverBootloader/CloverEFI/BiosVideo/BiosVideo.inf [X64] [CC] Reclaim [CC] AutoGen [CC] SpeculationBarrierDxe [CC] TcgMorLockDxe [CC] BiosVideoNew [CC] FixBiosDsdt [CC] ComponentName [CC] LegacyBiosThunk [SLINK] BiosVideo [CC] HdaCodecDump [DLINK1] OhciDxe [OBJCOPY] OhciDxe [GENFW] OhciDxe Building ... /Users/fusion71au/src/CloverBootloader/Protocols/AppleKeyFeeder/AppleKeyFeeder.inf [X64] [CC] VarCheck [CC] Hibernate [CC] AppleKeyFeeder [CC] AppleKeyMapUtils [CC] Injectors [CC] AutoGen [CC] Variable [CC] SimpleTextExProxy [CC] LegacyBiosThunk [DLINK1] BiosVideo [OBJCOPY] BiosVideo [CC] SimpleTextProxy [SLINK] AppleKeyFeeder [CC] LegacyBoot [DLINK1] AppleKeyFeeder [OBJCOPY] AppleKeyFeeder [GENFW] AppleKeyFeeder Building ... /Users/fusion71au/src/CloverBootloader/CloverEFI/OsxSmbiosGenDxe/SmbiosGen.inf [X64] [GENFW] BiosVideo Building ... /Users/fusion71au/src/CloverBootloader/MdeModulePkg/Universal/Console/ConPlatformDxe/ConPlatformDxe.inf [X64] [CC] VariableDxe [CC] AutoGen [CC] AutoGen [CC] Net [CC] VariableExLib [SLINK] VariableRuntimeDxe [CC] ComponentName [CC] SmbiosGen [SLINK] SmbiosGenDxe [CC] ConPlatform [SLINK] ConPlatformDxe [CC] Nvram [DLINK1] SmbiosGenDxe [OBJCOPY] SmbiosGenDxe [GENFW] SmbiosGenDxe Building ... /Users/fusion71au/src/CloverBootloader/bdmesg_efi/bdmesg.inf [X64] [CC] AutoGen [CC] PlatformDriverOverride [CC] bdmesg [DLINK1] ConPlatformDxe [SLINK] bdmesg [OBJCOPY] ConPlatformDxe [GENFW] ConPlatformDxe Building ... /Users/fusion71au/src/CloverBootloader/CloverEFI/OsxAcpiTableDxe/AcpiTableDxe.inf [X64] [CC] AcpiTable [CC] AcpiTableProtocol [CC] AutoGen [SLINK] AcpiTableDxe [CC] Pointer [DLINK1] AcpiTableDxe [OBJCOPY] AcpiTableDxe [GENFW] AcpiTableDxe Building ... /Users/fusion71au/src/CloverBootloader/CloverEFI/PcatRealTimeClockRuntimeDxe/PcatRealTimeClockRuntimeDxe.inf [X64] [DLINK1] VariableRuntimeDxe [OBJCOPY] VariableRuntimeDxe [GENFW] VariableRuntimeDxe [DLINK1] bdmesg [CC] AutoGen [OBJCOPY] bdmesg [GENFW] bdmesg [CC] PcRtc [CC] PcRtcEntry [SLINK] PcRtc [CC] Settings [CC] StartupSound [DLINK1] PcRtc [OBJCOPY] PcRtc [GENFW] PcRtc [CC] StateGenerator [CC] ati [CC] b64cdecode [CC] card_vlist [CC] cpu [CC] device_inject [CC] device_tree [CC] gma [CC] guid [CC] hda [CC] kernel_patcher [CC] kext_inject [CC] kext_patcher [CC] nvidia [CC] platformdata [CC] plist [CC] smbios [CC] sound [CC] spd [CC] string [CC] usbfix [CC] bootscreen [CC] common [CC] legacy [CC] loader [CC] lockedgraphics [CC] secureboot [CC] securehash [CC] securemenu [CC] securevars [CC] tool [CC] BmLib [DLINK1] Shell [OBJCOPY] Shell [GENFW] Shell [CC] FloatLib [CC] VectorGraphics [CC] egemb_font [CC] egemb_icons [CC] egemb_icons_dark [CC] image [CC] libscreen [CC] load_icns [CC] lodepng [CC] nanosvg [CC] nanosvgrast [CC] scroll_images [CC] text [CC] IO [CC] icns [CC] lib [CC] main [CC] menu [CC] screen [SLINK] CLOVER [DLINK1] CLOVER [OBJCOPY] CLOVER [GENFW] CLOVER Generating DUETEFIMAINFVX64 FV ######################################## ######################################## ####### GUID cross reference file can be found at /Users/fusion71au/src/CloverBootloader/Build/Clover/RELEASE_GCC53/FV/Guid.xref FV Space Information DUETEFIMAINFVX64 [27%Full] 2752512 total, 769336 used, 1983176 free - Done - Build end time: 15:44:05, Sep.19 2019 Build total time: 00:02:10 Compressing DUETEFIMainFv.FV ... Encoding Compressing DxeCore.efi ... Encoding Compressing DxeIpl.efi ... Encoding Generate Loader Image ... Created /Users/fusion71au/src/CloverBootloader/Build/Clover/RELEASE_GCC53/FV/Efildr64 879+0 records in 879+0 records out 450048 bytes transferred in 0.006047 secs (74424876 bytes/sec) Copy CloverEFI: -> boot7 Changing byte at 0xa9 of boot7 to show 7 as init message: 1+0 records in 1+0 records out 1 bytes transferred in 0.000038 secs (26379 bytes/sec) -> BOOTX64.efi -> CLOVERX64.efi Copy Mandatory drivers: -> FSInject.efi -> XhciDxe.efi -> SMCHelper.efi -> AudioDxe.efi -> AppleImageCodec.efi -> AppleKeyAggregator.efi -> AppleUITheme.efi -> FirmwareVolume.efi -> ApfsDriverLoader.efi -> FSInject.efi -> DataHubDxe.efi -> SMCHelper.efi -> AudioDxe.efi -> AppleImageCodec.efi -> AppleUITheme.efi -> AppleKeyAggregator.efi -> FirmwareVolume.efi -> GrubEXFAT.efi -> GrubISO9660.efi -> GrubNTFS.efi -> GrubUDF.efi -> CsmVideoDxe.efi -> EnglishDxe.efi -> EmuVariableUefi.efi -> NvmExpressDxe.efi -> OsxFatBinaryDrv.efi -> PartitionDxe.efi -> Ps2MouseDxe.efi -> UsbKbDxe.efi -> UsbMouseDxe.efi -> ApfsDriverLoader.efi -> Fat.efi -> VBoxExt2.efi -> VBoxExt4.efi -> VBoxIso9600.efi -> VBoxHfs.efi -> AppleKeyFeeder.efi -> HashServiceFix.efi -> OsxAptioFixDrv.efi -> OsxLowMemFixDrv.efi -> OsxAptioFix3Drv.efi Copy Applications: -> bdmesg.efi -> Shell64U.efi Done! Generating BootSectors make: Nothing to be done for `all'. Done! [BUILD PKG] [CHECK XCODE] ========= Translating Resources ======== /Users/fusion71au/src/CloverBootloader/CloverPackage/package/../../../opt/local Updating 'en' strings file for CloverUpdater... done Updating 'en' strings file for Clover Preference Panel... done Updating strings file for Clover Preference Panel... done Updating 'en' strings file for CloverUpdater... done Generating de interface... done Generating es interface... done Generating fr interface... done Generating hr interface... done Generating id interface... done Generating it interface... done Generating ja interface... done Generating ko interface... done Generating lv interface... done Generating nl interface... done Generating pl interface... done Generating pt-BR interface... done Generating pt interface... done Generating ro interface... done Generating ru interface... done Generating tr interface... done Generating uk interface... done Generating uk_UA interface... done Generating vi interface... done Generating zh_CN interface... done Generating zh_TW interface... done Building CloverUpdater application... [XCODE] Updating 'en' strings file for Clover Preference Panel... done Generating de interface... done Generating es interface... done Generating fr interface... done Generating hr interface... done Generating id interface... done Generating it interface... done Generating ja interface... done Generating ko interface... done Generating lv interface... done Generating nl interface... done Generating pl interface... done Generating pt-BR interface... done Generating pt interface... done Generating ro interface... done Generating ru interface... done Generating tr interface... done Generating uk interface... done Generating uk_UA interface... done Generating vi interface... done Generating zh_CN interface... done Generating zh_TW interface... done Updating strings file for Clover Preference Panel... done Check de strings... done Check en strings... done Check es strings... done Check fr strings... done Check hr strings... done Check id strings... done Check it strings... done Check ja strings... done Check ko strings... done Check lv strings... done Check nl strings... done Check pl strings... done Check pt-BR strings... done Check pt strings... done Check ro strings... done Check ru strings... done Check tr strings... done Check uk strings... done Check uk_UA strings... done Check vi strings... done Check zh_CN strings... done Check zh_TW strings... done Building CloverPrefpane preference... [XCODE] ================= Making all in boot1-install ================= [XCODE] boot1-install ================= Making all in partutil ================= [XCODE] partutil ================= Making all in bdmesg ================= [XCODE] bdmesg ================= Making all in clover-genconfig ================= [XCODE] clover-genconfig ================= Making all in espfinder ================= [XCODE] espfinder ------------------------------- Building Clover Install Package ------------------------------- ====================== Preinstall ====================== [BUILD] Pre ===================== Installation ===================== [BUILD] UEFI.only ================== Target ESP ========================== [BUILD] Target.ESP =================== BiosBoot =========================== [BUILD] BiosBoot ===================== Utils ============================ [BUILD] Utils ===================== EFI folder ======================= [BUILD] EFIFolder ===================== off drivers ====================== [BUILD] off ===================== BootLoaders ====================== [BUILD] AltBoot [BUILD] bootNo [BUILD] boot0af [BUILD] boot0ss ====================== CloverEFI ======================= [BUILD] cloverEFI.64.sata [BUILD] cloverEFI.64.blockio ================= drivers64 mandatory ================== [BUILD] AudioDxe [BUILD] FSInject [BUILD] SMCHelper [BUILD] XhciDxe ===================== drivers64 ======================== =============== drivers64 FileSystem =================== [BUILD] ApfsDriverLoader [BUILD] GrubEXFAT [BUILD] GrubISO9660 [BUILD] GrubNTFS [BUILD] GrubUDF =============== drivers64 FileVault2 =================== [BUILD] AppleImageCodec [BUILD] AppleKeyAggregator [BUILD] AppleUITheme [BUILD] FirmwareVolume =============== drivers64 UEFI mandatory =============== [BUILD] AudioDxe.UEFI [BUILD] DataHubDxe.UEFI [BUILD] FSInject.UEFI [BUILD] SMCHelper.UEFI =================== drivers64 UEFI ===================== ============= drivers64 UEFI HID ======================== [BUILD] Ps2MouseDxe.UEFI [BUILD] UsbKbDxe.UEFI [BUILD] UsbMouseDxe.UEFI ============= drivers64 UEFI FileSystem ================= [BUILD] ApfsDriverLoader.UEFI [BUILD] Fat.UEFI [BUILD] VBoxExt2.UEFI [BUILD] VBoxExt4.UEFI [BUILD] VBoxHfs.UEFI [BUILD] VBoxIso9600.UEFI ============= drivers64 UEFI MemoryFix ================= [BUILD] OsxAptioFix3Drv.UEFI [BUILD] OsxAptioFixDrv.UEFI [BUILD] OsxLowMemFixDrv.UEFI ============= drivers64 UEFI FileVault2 ================ [BUILD] AppleImageCodec.UEFI [BUILD] AppleKeyAggregator.UEFI [BUILD] AppleKeyFeeder.UEFI [BUILD] AppleUITheme.UEFI [BUILD] FirmwareVolume.UEFI [BUILD] HashServiceFix.UEFI ============= drivers64 UEFI Other ====================== [BUILD] CsmVideoDxe.UEFI [BUILD] EmuVariableUefi.UEFI [BUILD] EnglishDxe.UEFI [BUILD] NvmExpressDxe.UEFI [BUILD] OsxFatBinaryDrv.UEFI [BUILD] PartitionDxe.UEFI ===================== RC Scripts ======================= [BUILD] rc.scripts.on.target [BUILD] rc.scripts.on.all.volumes [BUILD] rc.scripts.core ================= Optional RC Scripts ================== [BUILD] disable_sleep_proxy_client ======================== Themes ======================== [BUILD] BGM [BUILD] cesium [BUILD] Clovy [BUILD] CloverThemeManager ==================== Clover Prefpane =================== [BUILD] CloverPrefpane ================= Post ================= [BUILD] Post -------------------------- Building process complete! -------------------------- Build info. =========== Package name: Clover_v2.5k_r5084.pkg MD5: 7f3743c0d6dee1613e0a293b5afaf954 Version: v2.5k Stage: v2.5k Date/Time: 2019-09-19 15:41:55 Built by: fusion71au Copyright 2012-2019 adding: Clover_v2.5k_r5084.pkg (deflated 1%) adding: Clover_v2.5k_r5084.pkg.md5 (stored 0%) total 38264 drwxr-xr-x 9 fusion71au staff 306 Sep 19 15:45 . drwxr-xr-x 14 fusion71au staff 476 Sep 19 15:45 .. -rw-r--r--@ 1 fusion71au staff 9597316 Sep 19 15:45 Clover_v2.5k_r5084.pkg -rw-r--r-- 1 fusion71au staff 68 Sep 19 15:45 Clover_v2.5k_r5084.pkg.md5 -rw-r--r-- 1 fusion71au staff 9531041 Sep 19 15:45 Clover_v2.5k_r5084.zip drwxr-xr-x 3 fusion71au staff 102 Sep 19 15:44 Resources drwxr-xr-x 7 fusion71au staff 238 Sep 19 15:44 build drwxr-xr-x 3 fusion71au staff 102 Sep 19 15:45 package drwxr-xr-x 7 fusion71au staff 238 Sep 19 15:44 utils [BUILD ISO] ================= Making all in boot1-install ================= make[2]: Nothing to be done for `all'. ================= Making all in partutil ================= make[2]: Nothing to be done for `all'. ================= Making all in bdmesg ================= make[2]: Nothing to be done for `all'. ================= Making all in clover-genconfig ================= make[2]: Nothing to be done for `all'. ================= Making all in espfinder ================= make[2]: Nothing to be done for `all'. ====================== Creating cdboot ===================== Update cdboot with boot file size info ======================= Creating ISO ======================= [RM] /Users/fusion71au/src/CloverBootloader/CloverPackage/sym/CloverCD [MKDIR] /Users/fusion71au/src/CloverBootloader/CloverPackage/sym/CloverCD/usr/standalone/i386 [MKDIR] /Users/fusion71au/src/CloverBootloader/CloverPackage/sym/CloverCD/EFI/BOOT [MKDIR] /Users/fusion71au/src/CloverBootloader/CloverPackage/sym/CloverCD/EFI/CLOVER/themes/ [MKDIR] /Users/fusion71au/src/CloverBootloader/CloverPackage/sym/CloverCD/usr/bin [MKDIR] /Users/fusion71au/src/CloverBootloader/CloverPackage/sym/CloverCD/usr/local/bin [MKDIR] /Users/fusion71au/src/CloverBootloader/CloverPackage/sym/CloverCD/Library/Application Support/Clover [MKDIR] /Users/fusion71au/src/CloverBootloader/CloverPackage/sym/CloverCD/Library/PreferencePanes [CP] cdboot [CP] embedded [CP] BOOTX64 [CP] CLOVERX64 [CP] drivers/BIOS [CP] drivers/UEFI [CP] kexts and OEM [CP] tools [CP] doc [CP] drivers-off [CP] boot [HDIUTIL] /Users/fusion71au/src/CloverBootloader/CloverPackage/sym/Clover-v2.5k-5084-X64.iso [TAR] CloverISO-5084 a . a ./Clover-v2.5k-5084-X64.iso [LZMA] CloverISO-5084 total 43072 drwxr-xr-x 13 fusion71au staff 442 Sep 19 15:45 . drwxr-xr-x 14 fusion71au staff 476 Sep 19 15:45 .. drwxr-xr-x 5 fusion71au staff 170 Sep 19 15:45 CloverCD drwxr-xr-x 3 fusion71au staff 102 Sep 19 15:45 CloverISO-5084 -rw-r--r-- 1 fusion71au staff 2459801 Sep 19 15:45 CloverISO-5084.tar.lzma -rw-r--r--@ 1 fusion71au staff 9597316 Sep 19 15:45 Clover_v2.5k_r5084.pkg -rw-r--r-- 1 fusion71au staff 68 Sep 19 15:45 Clover_v2.5k_r5084.pkg.md5 -rw-r--r-- 1 fusion71au staff 9531041 Sep 19 15:45 Clover_v2.5k_r5084.zip drwxr-xr-x 3 fusion71au staff 102 Sep 19 15:44 Resources drwxr-xr-x 7 fusion71au staff 238 Sep 19 15:44 build drwxr-xr-x 3 fusion71au staff 102 Sep 19 15:45 i386 drwxr-xr-x 3 fusion71au staff 102 Sep 19 15:45 package drwxr-xr-x 7 fusion71au staff 238 Sep 19 15:44 utils ------------------------------------------------------------------------ buildme, Clover v2.5k r5084 (SHA: 80c5b67d) TOOLCHAIN: GCC53 (override example: './buildme GCC53') 1) build Clover 2) make pkg 3) make iso 4) build all 5) test build (no autogen, no boot files) 6) status 7) update Clover 8) update Clover (reset changes) 9) show diff 10) open drivers directory 11) clean BaseTools 12) quit Please enter your choice: 12 fusion71aus-iMac:CloverBootloader fusion71au$ and boot log indicating successful boot... 0:100 0:100 MemLog inited, TSC freq: 2664770632 0:100 0:000 CPU was calibrated with ACPI PM Timer 0:100 0:000 LegacyRegion2: Chipset/proc: 0xD1318086 0:100 0:000 Core i7 processors (PAM 0x40-0x47) 0:100 0:000 Test PAM1=(0x41=11, 0x5a=00, 0x81=0D, 0x91=21) at chipset D1318086 0:100 0:000 , Install = Success 0:112 0:012 BiosVideoDriverBindingStart! 0:112 0:000 BiosVideoCheckForVbe 0:112 0:000 EdidOverride not found 0:145 0:033 Edid1+ 0:145 0:000 found Detail Timing 1920x1200 0:155 0:010 0 1152x864 attr=BB - ok, edid+, working, highest, pref=0 0:156 0:000 1 1280x960 attr=BB - ok, edid- 0:156 0:000 2 640x480 attr=BB - ok, edid+, 640x480, working 0:157 0:000 3 800x600 attr=BB - ok, edid+, 800x600, working 0:157 0:000 4 1024x768 attr=BB - ok, edid+, 1024x768, working 0:157 0:000 5 1280x1024 attr=BB - ok, edid+, working, highest, pref=5 0:159 0:001 6 1400x1050 attr=BB - ok, edid- 0:161 0:001 7 1600x1200 attr=BB - ok, edid+, working, highest, pref=7 0:167 0:005 BV new mode: 7 1600x1200 0:424 0:257 SetMode pref 7 (7) = Success 0:698 0:274 Found supported controller for BiosBlockIO class=010601 0:699 0:000 Int13Extensions: INT 13 41 DL=80 : CF=0 BX=AA55 CX=0005 0:699 0:000 GetDriveParameters: INT 13 48 DL=80 : CF=0 AH=00 0:699 0:000 BlockSize = 512 LastBlock = 1953525167 0:699 0:000 Int13Extensions: INT 13 41 DL=81 : CF=0 BX=AA55 CX=0005 0:699 0:000 GetDriveParameters: INT 13 48 DL=81 : CF=0 AH=00 0:699 0:000 BlockSize = 512 LastBlock = 234441647 0:699 0:000 Int13Extensions: INT 13 41 DL=82 : CF=0 BX=AA55 CX=0005 0:699 0:000 GetDriveParameters: INT 13 48 DL=82 : CF=0 AH=00 0:699 0:000 BlockSize = 512 LastBlock = -387938129 1:488 0:788 1:488 0:000 Now is 19.9.2019, 5:52:14 (GMT) 1:488 0:000 Starting Clover revision: 5084 (master, commit 80c5b67d) on CLOVER EFI 1:488 0:000 Build with: [Args: -mc --no-usb -D NO_GRUB_DRIVERS_EMBEDDED -t GCC53 | -D DISABLE_USB_SUPPORT -D NO_GRUB_DRIVERS_EMBEDDED --conf=/Users/fusion71au/src/CloverBootloader/Conf -D USE_BIOS_BLOCKIO -D USE_LOW_EBDA -a X64 -b RELEASE -t GCC53 -n 5 | OS: 10.12.6] 1:488 0:000 SelfDevicePath=PcieRoot(0x0)\Pci(0x1C,0x0)\Pci(0x0,0x0)\VenHw(CF31FAC5-C24E-11D2-85F3-00A0C93EC93B,80)\HD(1,GPT,CA758946-F689-4CA4-A41D-5691687EB164,0x28,0x64000) @DDD5F698 1:488 0:000 SelfDirPath = \EFI\CLOVER 1:488 0:000 SimpleTextEx Status=Success 1:488 0:000 === [ Get Smbios ] ======================================== 1:488 0:000 Type 16 Index = 0 1:488 0:000 Total Memory Slots Count = 4 1:488 0:000 Type 17 Index = 0 1:488 0:000 SmbiosTable.Type17->Speed = 1333MHz 1:488 0:000 SmbiosTable.Type17->Size = 2048MB 1:488 0:000 SmbiosTable.Type17->Bank/Device = Bank0/1 A0 1:488 0:000 SmbiosTable.Type17->Vendor = 1:488 0:000 SmbiosTable.Type17->SerialNumber = 1:488 0:000 SmbiosTable.Type17->PartNumber = 1:488 0:000 Type 17 Index = 1 1:488 0:000 SmbiosTable.Type17->Speed = 1333MHz 1:488 0:000 SmbiosTable.Type17->Size = 4096MB 1:488 0:000 SmbiosTable.Type17->Bank/Device = Bank2/3 A1 1:488 0:000 SmbiosTable.Type17->Vendor = 1:488 0:000 SmbiosTable.Type17->SerialNumber = 1:488 0:000 SmbiosTable.Type17->PartNumber = 1:488 0:000 Type 17 Index = 2 1:488 0:000 SmbiosTable.Type17->Speed = 1333MHz 1:488 0:000 SmbiosTable.Type17->Size = 2048MB 1:488 0:000 SmbiosTable.Type17->Bank/Device = Bank4/5 A2 1:488 0:000 SmbiosTable.Type17->Vendor = 1:488 0:000 SmbiosTable.Type17->SerialNumber = 1:488 0:000 SmbiosTable.Type17->PartNumber = 1:488 0:000 Type 17 Index = 3 1:488 0:000 Ignoring insane frequency value 0MHz 1:488 0:000 SmbiosTable.Type17->Speed = 0MHz 1:488 0:000 SmbiosTable.Type17->Size = 0MB 1:488 0:000 SmbiosTable.Type17->Bank/Device = Bank6/7 A3 1:488 0:000 SmbiosTable.Type17->Vendor = <null string> 1:488 0:000 SmbiosTable.Type17->SerialNumber = <null string> 1:488 0:000 SmbiosTable.Type17->PartNumber = <null string> 1:488 0:000 Boot status=0 1:488 0:000 Running on: 'P55A-UD3' with board 'P55A-UD3' 1:488 0:000 === [ GetCPUProperties ] ================================== 1:488 0:000 CPU Vendor = 756E6547 Model=106E5 1:488 0:000 The CPU supported SSE4.1 1:488 0:000 BrandString = Intel(R) Core(TM) i5 CPU 750 @ 2.67GHz 1:488 0:000 The CPU supported turbo 1:488 0:000 MSR 0x35 40004 1:488 0:000 FSBFrequency = 140 MHz, DMI FSBFrequency = 133 MHz, Corrected FSBFrequency = 133 MHz 1:488 0:000 MaxDiv/MinDiv: 20.0/9 1:488 0:000 Turbo: 21/21/24/24 1:488 0:000 Features: 0xBFEBFBFF 1:488 0:000 Threads: 4 1:488 0:000 Cores: 4 1:488 0:000 FSB: 133 MHz 1:488 0:000 CPU: 2800 MHz 1:488 0:000 TSC: 2800 MHz 1:488 0:000 PIS: 533 MHz 1:488 0:000 ExternalClock: 133 MHz 1:488 0:000 === [ GetDevices ] ======================================== 1:488 0:000 GOP found at: PcieRoot(0x0)/Pci(0x3,0x0)/Pci(0x0,0x0)/AcpiAdr(0x80010100) 1:488 0:000 PCI (00|00:00.00) : 8086 D131 class=060000 1:488 0:000 PCI (00|00:03.00) : 8086 D138 class=060400 1:488 0:000 PCI (00|01:00.00) : 1002 68B8 class=030000 1:488 0:000 - GOP: Provided by device 1:488 0:000 - GFX: Model=ATI Radeon HD 5770 Series (ATI/AMD) 1:488 0:000 PCI (00|01:00.01) : 1002 AA58 class=040300 1:488 0:000 - HDMI Audio: 1:488 0:000 PCI (00|00:08.00) : 8086 D155 class=088000 1:488 0:000 PCI (00|00:08.01) : 8086 D156 class=088000 1:488 0:000 PCI (00|00:08.02) : 8086 D157 class=088000 1:488 0:000 PCI (00|00:08.03) : 8086 D158 class=088000 1:488 0:000 PCI (00|00:10.00) : 8086 D150 class=088000 1:488 0:000 PCI (00|00:10.01) : 8086 D151 class=088000 1:488 0:000 PCI (00|00:1A.00) : 8086 3B3B class=0C0300 1:488 0:000 PCI (00|00:1A.01) : 8086 3B3E class=0C0300 1:488 0:000 PCI (00|00:1A.02) : 8086 3B3F class=0C0300 1:488 0:000 PCI (00|00:1A.07) : 8086 3B3C class=0C0320 1:488 0:000 PCI (00|00:1B.00) : 8086 3B56 class=040300 1:488 0:000 PCI (00|00:1C.00) : 8086 3B42 class=060400 1:488 0:000 PCI (00|02:00.00) : 1B4B 9128 class=010601 1:488 0:000 PCI (00|00:1C.01) : 8086 3B44 class=060400 1:488 0:000 PCI (00|03:00.00) : 10EC 8168 class=020000 1:488 0:000 - LAN: 0 Vendor=Realtek 1:488 0:000 PCI (00|00:1C.02) : 8086 3B46 class=060400 1:488 0:000 PCI (00|04:00.00) : 1033 0194 class=0C0330 1:488 0:000 PCI (00|00:1C.03) : 8086 3B48 class=060400 1:488 0:000 PCI (00|05:00.00) : 168C 002E class=028000 1:488 0:000 - WIFI: Vendor=Atheros 1:488 0:000 PCI (00|00:1D.00) : 8086 3B36 class=0C0300 1:488 0:000 PCI (00|00:1D.01) : 8086 3B37 class=0C0300 1:488 0:000 PCI (00|00:1D.02) : 8086 3B38 class=0C0300 1:488 0:000 PCI (00|00:1D.03) : 8086 3B39 class=0C0300 1:488 0:000 PCI (00|00:1D.07) : 8086 3B34 class=0C0320 1:488 0:000 PCI (00|00:1E.00) : 8086 244E class=060401 1:488 0:000 PCI (00|06:05.00) : 1283 8213 class=010185 1:488 0:000 PCI (00|00:1F.00) : 8086 3B02 class=060100 1:489 0:000 PCI (00|00:1F.02) : 8086 3B22 class=010601 1:489 0:000 PCI (00|00:1F.03) : 8086 3B30 class=0C0500 1:489 0:000 PCI (00|3F:00.00) : 8086 2C51 class=060000 1:489 0:000 PCI (00|3F:00.01) : 8086 2C81 class=060000 1:489 0:000 PCI (00|3F:02.00) : 8086 2C90 class=060000 1:489 0:000 PCI (00|3F:02.01) : 8086 2C91 class=060000 1:489 0:000 PCI (00|3F:03.00) : 8086 2C98 class=060000 1:489 0:000 PCI (00|3F:03.01) : 8086 2C99 class=060000 1:489 0:000 PCI (00|3F:03.04) : 8086 2C9C class=060000 1:489 0:000 PCI (00|3F:04.00) : 8086 2CA0 class=060000 1:489 0:000 PCI (00|3F:04.01) : 8086 2CA1 class=060000 1:489 0:000 PCI (00|3F:04.02) : 8086 2CA2 class=060000 1:489 0:000 PCI (00|3F:04.03) : 8086 2CA3 class=060000 1:489 0:000 PCI (00|3F:05.00) : 8086 2CA8 class=060000 1:489 0:000 PCI (00|3F:05.01) : 8086 2CA9 class=060000 1:489 0:000 PCI (00|3F:05.02) : 8086 2CAA class=060000 1:489 0:000 PCI (00|3F:05.03) : 8086 2CAB class=060000 1:489 0:000 === [ GetDefaultSettings ] ================================ 1:489 0:000 Clover load options size = 0 bytes 1:521 0:032 EFI\CLOVER\config.plist loaded: Success 1:526 0:005 === [ GetListOfThemes ] =================================== 1:531 0:004 - [00]: Mojave 1:537 0:005 - [01]: BGM 1:548 0:010 - [02]: embedded 1:567 0:019 - [02]: random 1:575 0:007 === [ Found config plists ] =============================== 1:575 0:000 - config_orig.plist 1:575 0:000 - configMP5,1.plist 1:575 0:000 - config.plist 1:575 0:000 === [ GetEarlyUserSettings ] ============================== 1:575 0:000 timeout set to 3 1:575 0:000 Custom boot CUSTOM_BOOT_DISABLED (0x0) 1:575 0:000 KextsToPatch: 4 requested 1:575 0:000 - [00]: com.apple.driver.AppleRTC (AppleRTC for 10.14.4) :: MatchOS: 10.14.x :: BinPatch :: data len: 4 1:575 0:000 - [01]: AppleAHCIPort (External icons patch) :: BinPatch :: data len: 8 1:575 0:000 - [02]: AppleAHCIPort (ALPM IO Error AppleAHCIPort) :: BinPatch :: data len: 4 1:575 0:000 - [03]: IOAHCIBlockStorage (TRIM Enabler) :: BinPatch :: data len: 11 1:575 0:000 Default theme: Mojave 1:575 0:000 Hiding entries with string bootmgr.efi 1:575 0:000 === [ LoadDrivers ] ======================================= 1:575 0:000 Loading ApfsDriverLoader.efi status=Success 1:583 0:007 - driver needs connecting 1:583 0:000 Loading FSInject.efi status=Success 1:583 0:000 Loading GrubUDF.efi status=Success 1:584 0:001 - driver needs connecting 1:584 0:000 Loading XhciDxe.efi status=Success 1:586 0:001 - driver needs connecting 1:586 0:000 Loading VBoxIso9600.efi status=Success 1:586 0:000 - driver needs connecting 1:586 0:000 Loading SMCHelper.efi status=Success 1:586 0:000 Video bios patch requested or CustomEDID - forcing video reconnect 1:586 0:000 5 drivers needs connecting ... 1:586 0:000 PlatformDriverOverrideProtocol->GetDriver overriden 1:586 0:000 EdidActive: size=128 found 1:586 0:000 APFS driver loaded 1:586 0:000 Video driver loaded: disconnect Success 1:764 0:177 VideoBiosPatchNativeFromEdid: 1:764 0:000 Bios: ATI, MasterDataTables: 0xCA758, std_vesa: 0xCA79C, ati_mode_table: 0xCA7A0, mode_table_size: 0x1F8 BT_ATI_2 1:764 0:000 VideoBiosPatchInit(LegacyRegion = Not Found, LegacyRegion2 = Success) = Success 1:764 0:000 VideoBiosUnlock: unlocked 1:764 0:000 Patching: BT_ATI_2 1:764 0:000 Parse Edid: descriptor block 0 is timing descriptor (h_active: 1920, v_active: 1200, h_sync_offset: 48, h_sync_width: 32, h_blanking: 160, v_blanking: 35, pixel_clock: 15400, v_sync_offset: 3, v_sync_width: 6) 1:764 0:000 mode 0 (320x200) patched to 1920x1200 1:764 0:000 VideoBiosLock: Success 1:779 0:014 BiosVideoDriverBindingStart! 1:779 0:000 BiosVideoCheckForVbe 1:779 0:000 EdidOverride not found 1:812 0:033 Edid1+ 1:812 0:000 found Detail Timing 1920x1200 1:818 0:006 0 1920x1200 attr=BB - ok, edid+, working, highest, pref=0 1:823 0:004 1 1152x864 attr=BB - ok, edid+, working 1:824 0:000 2 1280x960 attr=BB - ok, edid- 1:824 0:000 3 640x480 attr=BB - ok, edid+, 640x480, working 1:824 0:000 4 800x600 attr=BB - ok, edid+, 800x600, working 1:825 0:000 5 1024x768 attr=BB - ok, edid+, 1024x768, working 1:825 0:000 6 1280x1024 attr=BB - ok, edid+, working 1:827 0:001 7 1400x1050 attr=BB - ok, edid- 1:829 0:001 8 1600x1200 attr=BB - ok, edid+, working 1:834 0:005 BV new mode: 0 1920x1200 2:098 0:263 SetMode pref 0 (0) = Success 2:978 0:879 === [ InitScreen ] ======================================== 2:978 0:000 Console modes reported: 4, available modes: 2:978 0:000 - [01]: 80x25 2:978 0:000 - [02]: 80x50 2:978 0:000 - [03]: 100x31 2:978 0:000 - [04]: 240x63 (current mode) 2:978 0:000 SetScreenResolution: 1920x1080 - not found! 2:978 0:000 SetScreenResolution: 1920x1200 - already set 2:978 0:000 reinit: self device path=PcieRoot(0x0)\Pci(0x1C,0x0)\Pci(0x0,0x0)\VenHw(CF31FAC5-C24E-11D2-85F3-00A0C93EC93B,80)\HD(1,GPT,CA758946-F689-4CA4-A41D-5691687EB164,0x28,0x64000) 2:979 0:000 Using embedded font: Success 2:981 0:002 === [ GetMacAddress ] ===================================== 2:981 0:000 === [ ScanSPD ] =========================================== 2:982 0:000 Scanning SMBus [8086:3B30], mmio: 0xFBFFC004, ioport: 0x500, hostc: 0x1 3:001 0:018 Slot: 0 Type 24 2048MB 1333MHz Vendor=Kingston PartNo=99U5458-001.A00LF SerialNo=0704020800070002 3:020 0:019 Slot: 1 Type 24 4096MB 1600MHz Vendor=SK Hynix PartNo=HMT351U6CFR8C-PBN0 SerialNo=0005060606020A05 3:039 0:018 Slot: 2 Type 24 2048MB 1333MHz Vendor=Kingston PartNo=99U5458-001.A00LF SerialNo=070A02080F040001 3:040 0:000 === [ GetAcpiTablesList ] ================================= 3:045 0:005 Get Acpi Tables List from RSDT: 3:045 0:000 - [00]: FACP GBTUACPI len=116 3:045 0:000 - [01]: HPET GBTUACPI len=56 3:045 0:000 - [02]: MCFG GBTUACPI len=60 3:045 0:000 - [03]: EUDS len=1376 3:045 0:000 - [04]: TAMG GBT B0 len=2610 3:045 0:000 - [05]: APIC GBTUACPI len=188 3:045 0:000 - [06]: SLIC SLIC-MPC len=374 3:045 0:000 - [07]: SSDT PPM RCM len=7220 3:045 0:000 Calibrated TSC Frequency = 2664770632 = 2664MHz 3:046 0:000 === [ GetUserSettings ] =================================== 3:046 0:000 USB FixOwnership: yes 3:046 0:000 Dropping 3 tables: 3:046 0:000 - [00]: Drop table signature="DMAR" (52414D44) 3:046 0:000 - set table: 52414D44, 0 to drop: no 3:046 0:000 - [01]: Drop table signature="SSDT" (54445353) table-id="CpuPm" (0000006D50757043) 3:046 0:000 - set table: 54445353, 6D50757043 to drop: no 3:046 0:000 - [02]: Drop table signature="SSDT" (54445353) table-id="Cpu0Ist" (0074734930757043) 3:046 0:000 - set table: 54445353, 74734930757043 to drop: no 3:046 0:000 - final DSDT Fix mask=1B6EF1DF 3:046 0:000 Using ProductName from config: iMac11,3 3:046 0:000 BiosVersion: not set, Using BiosVersion from clover 3:046 0:000 BiosVersion: IM112.88Z.F000.B00.1906132310 3:046 0:000 BiosReleaseDate: 06/13/19 3:046 0:000 Using EfiVersion from clover: 99.0.0.0.0 3:046 0:000 Using FirmwareFeatures from clover: 0xE00DE137 3:046 0:000 Using FirmwareFeaturesMask from clover: 0xFF1FFF3F 3:046 0:000 PlatformFeature will not set in SMBIOS 3:046 0:000 Board-ID set from config as Mac-F2238BAE 3:046 0:000 BoardType: 0xA 3:046 0:000 ChassisType: 0xD 3:046 0:000 Converted CustomUUID 9ecdd6b2-3d1a-8450-8a9a-130759752ccf 3:047 0:001 === [ Found DSDT tables ] ================================= 3:110 0:062 === [ ScanVolumes ] ======================================= 3:110 0:000 Found 21 volumes with blockIO 3:110 0:000 - [00]: Volume: PcieRoot(0x0)\Pci(0x1C,0x0)\Pci(0x0,0x0)\VenHw(CF31FAC5-C24E-11D2-85F3-00A0C93EC93B,80) 3:110 0:000 Result of bootcode detection: bootable unknown (legacy) 3:110 0:000 - [01]: Volume: PcieRoot(0x0)\Pci(0x1C,0x0)\Pci(0x0,0x0)\VenHw(CF31FAC5-C24E-11D2-85F3-00A0C93EC93B,81) 3:112 0:002 Result of bootcode detection: bootable unknown (legacy) 3:112 0:000 - [02]: Volume: PcieRoot(0x0)\Pci(0x1C,0x0)\Pci(0x0,0x0)\VenHw(CF31FAC5-C24E-11D2-85F3-00A0C93EC93B,82) 3:113 0:000 Result of bootcode detection: bootable unknown (legacy) 3:113 0:000 - [03]: Volume: PcieRoot(0x0)\Pci(0x1C,0x0)\Pci(0x0,0x0)\VenHw(CF31FAC5-C24E-11D2-85F3-00A0C93EC93B,80)\HD(1,GPT,CA758946-F689-4CA4-A41D-5691687EB164,0x28,0x64000) 3:114 0:000 Result of bootcode detection: bootable unknown (legacy) 3:114 0:000 This is SelfVolume !! 3:114 0:000 - [04]: Volume: PcieRoot(0x0)\Pci(0x1C,0x0)\Pci(0x0,0x0)\VenHw(CF31FAC5-C24E-11D2-85F3-00A0C93EC93B,80)\HD(2,GPT,9E8D2BED-5C14-4FD4-8838-B98B0B44CFA8,0x64800,0x40000) 3:115 0:000 - [05]: Volume: PcieRoot(0x0)\Pci(0x1C,0x0)\Pci(0x0,0x0)\VenHw(CF31FAC5-C24E-11D2-85F3-00A0C93EC93B,80)\HD(3,GPT,0238DAD8-4164-43D9-8C22-61820A83BB57,0xA4800,0x775CCA8) 3:115 0:000 Result of bootcode detection: bootable Windows (vista,win) 3:115 0:000 - [06]: Volume: PcieRoot(0x0)\Pci(0x1C,0x0)\Pci(0x0,0x0)\VenHw(CF31FAC5-C24E-11D2-85F3-00A0C93EC93B,80)\HD(4,GPT,C48553BB-D573-4FA4-B219-EE393160AACB,0x7801800,0xE2000) 3:116 0:000 Result of bootcode detection: bootable Windows (vista,win) 3:116 0:000 - [07]: Volume: PcieRoot(0x0)\Pci(0x1C,0x0)\Pci(0x0,0x0)\VenHw(CF31FAC5-C24E-11D2-85F3-00A0C93EC93B,80)\HD(5,GPT,1860AF5E-C6DC-42E9-9C78-0824BE4F004E,0x78E4028,0x5F2227D8) 3:117 0:000 Result of bootcode detection: bootable Windows (vista,win) 3:117 0:000 - [08]: Volume: PcieRoot(0x0)\Pci(0x1C,0x0)\Pci(0x0,0x0)\VenHw(CF31FAC5-C24E-11D2-85F3-00A0C93EC93B,80)\HD(6,GPT,44BAB29B-EAC3-419F-B015-D000CD90D96F,0x66B06800,0x76C98E0) 3:118 0:000 - [09]: Volume: PcieRoot(0x0)\Pci(0x1C,0x0)\Pci(0x0,0x0)\VenHw(CF31FAC5-C24E-11D2-85F3-00A0C93EC93B,80)\HD(7,GPT,B60D3610-87F8-4CE4-8E85-CC815BE9F38D,0x6E1D00E0,0x135F20) 3:118 0:000 - [10]: Volume: PcieRoot(0x0)\Pci(0x1C,0x0)\Pci(0x0,0x0)\VenHw(CF31FAC5-C24E-11D2-85F3-00A0C93EC93B,80)\HD(8,GPT,DA497F89-9897-47B3-B9C5-A61274536543,0x6E306000,0x8FE000) 3:119 0:000 - [11]: Volume: PcieRoot(0x0)\Pci(0x1C,0x0)\Pci(0x0,0x0)\VenHw(CF31FAC5-C24E-11D2-85F3-00A0C93EC93B,80)\HD(9,GPT,DAB6ABFD-62C2-41EE-918D-78F6F08C93E9,0x6EC04000,0x5AC2D82) 3:120 0:000 - [12]: Volume: PcieRoot(0x0)\Pci(0x1C,0x0)\Pci(0x0,0x0)\VenHw(CF31FAC5-C24E-11D2-85F3-00A0C93EC93B,81)\HD(1,MBR,0x50CFED9B,0x800,0x32000) 3:121 0:000 Result of bootcode detection: bootable unknown (legacy) 3:123 0:002 - [13]: Volume: PcieRoot(0x0)\Pci(0x1C,0x0)\Pci(0x0,0x0)\VenHw(CF31FAC5-C24E-11D2-85F3-00A0C93EC93B,81)\HD(2,MBR,0x50CFED9B,0x32800,0xDF61000) 3:124 0:000 Result of bootcode detection: bootable Windows (vista,win) 3:124 0:000 - [14]: Volume: PcieRoot(0x0)\Pci(0x1C,0x0)\Pci(0x0,0x0)\VenHw(CF31FAC5-C24E-11D2-85F3-00A0C93EC93B,82)\HD(1,GPT,1B386756-0922-4B96-BD59-1FC3B79E189E,0x800,0x64000) 3:124 0:000 Result of bootcode detection: bootable unknown (legacy) 3:155 0:030 - [15]: Volume: PcieRoot(0x0)\Pci(0x1C,0x0)\Pci(0x0,0x0)\VenHw(CF31FAC5-C24E-11D2-85F3-00A0C93EC93B,82)\HD(2,GPT,55225B2F-270E-453A-88B9-E12C5D9F6F12,0x64800,0xC99A3800) 3:156 0:000 Result of bootcode detection: bootable Windows (vista,win) 3:156 0:000 - [16]: Volume: PcieRoot(0x0)\Pci(0x1C,0x0)\Pci(0x0,0x0)\VenHw(CF31FAC5-C24E-11D2-85F3-00A0C93EC93B,82)\HD(3,GPT,1FE507E9-E82B-43BF-8A8C-2249DFF67874,0xC9A08000,0xF8C68E0) 3:157 0:000 - [17]: Volume: PcieRoot(0x0)\Pci(0x1C,0x0)\Pci(0x0,0x0)\VenHw(CF31FAC5-C24E-11D2-85F3-00A0C93EC93B,82)\HD(4,GPT,06C99874-BE94-4641-9935-2BDC5778B0E9,0xD92CE8E0,0x135F20) 3:157 0:000 - [18]: Volume: PcieRoot(0x0)\Pci(0x1C,0x0)\Pci(0x0,0x0)\VenHw(CF31FAC5-C24E-11D2-85F3-00A0C93EC93B,82)\HD(5,GPT,A75A0F00-1C9A-40A7-9CC9-25EFEB5BA8D4,0xD9404800,0x40000) 3:158 0:000 Result of bootcode detection: bootable unknown (legacy) 3:158 0:000 - [19]: Volume: PcieRoot(0x0)\Pci(0x1C,0x0)\Pci(0x0,0x0)\VenHw(CF31FAC5-C24E-11D2-85F3-00A0C93EC93B,82)\HD(6,GPT,696E551C-EF37-4132-8ADD-F7E3932173C4,0xD9444800,0xF8DBF83) 3:159 0:000 Result of bootcode detection: bootable Windows (vista,win) 3:159 0:000 - [20]: Volume: PcieRoot(0x0)\Pci(0x1C,0x0)\Pci(0x0,0x0)\VenHw(CF31FAC5-C24E-11D2-85F3-00A0C93EC93B,82)\HD(7,GPT,AAD1C4CA-E8FB-4E42-B78F-9E6F547040BA,0xE8D20800,0xE7000) 3:159 0:000 Result of bootcode detection: bootable Windows (vista,win) 3:250 0:090 Loading nvram.plist from Vol 'EFI' - loaded, size=2315 3:274 0:023 === [ PutNvramPlistToRtVars ] ============================= 3:274 0:000 Adding Key: EFILoginHiDPI: Size = 4, Data: 00 00 00 00 3:274 0:000 Adding Key: LocationServicesEnabled: Size = 1, Data: 01 3:274 0:000 Adding Key: SystemAudioVolume: Size = 1, Data: 17 3:274 0:000 Adding Key: SystemAudioVolumeDB: Size = 1, Data: F4 3:274 0:000 Adding Key: boot-args: String: Size = 78, Val = '-v arch=x86_64 -no_compat_check -nehalem_error_disable -lilubetaall keepsyms=1' 3:274 0:000 Adding Key: csr-active-config: Size = 4, Data: 77 02 00 00 3:274 0:000 Adding Key: efi-boot-device: Size = 216, Data: 3C 61 72 72 61 79 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 49 4F 4D 61 74 63 68 3C 2F 6B 65 79 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 49 4F 50 72 6F 76 69 64 65 72 43 6C 61 73 73 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 49 4F 4D 65 64 69 61 3C 2F 73 74 72 69 6E 67 3E 3C 6B 65 79 3E 49 4F 50 72 6F 70 65 72 74 79 4D 61 74 63 68 3C 2F 6B 65 79 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 55 55 49 44 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 31 46 45 35 30 37 45 39 2D 45 38 32 42 2D 34 33 42 46 2D 38 41 38 43 2D 32 32 34 39 44 46 46 36 37 38 37 34 3C 2F 73 74 72 69 6E 67 3E 3C 2F 64 69 63 74 3E 3C 2F 64 69 63 74 3E 3C 2F 64 69 63 74 3E 3C 2F 61 72 72 61 79 3E 3:274 0:000 Adding Key: efi-boot-device-data: Size = 74, Data: 02 01 0C 00 D0 41 08 0A 00 00 00 00 01 01 06 00 02 1F 03 12 0A 00 01 00 00 00 00 00 04 01 2A 00 03 00 00 00 00 80 A0 C9 00 00 00 00 E0 68 8C 0F 00 00 00 00 E9 07 E5 1F 2B E8 BF 43 8A 8C 22 49 DF F6 78 74 02 02 7F FF 04 00 3:274 0:000 Adding Key: fakesmc-key-#KEY-ui32: Size = 4, Data: 00 00 00 00 3:274 0:000 Adding Key: fakesmc-key-$Adr-ui32: Size = 4, Data: 00 00 03 00 3:274 0:000 Adding Key: fakesmc-key-$Num-ui8: Size = 1, Data: 01 3:274 0:000 Adding Key: fakesmc-key-BATP-flag: Size = 1, Data: 00 3:274 0:000 Adding Key: fakesmc-key-BEMB-flag: Size = 1, Data: 00 3:274 0:000 Adding Key: fakesmc-key-BNum-ui8: Size = 1, Data: 00 3:274 0:000 Adding Key: fakesmc-key-EPCI-ui32: Size = 4, Data: 02 C0 07 00 3:274 0:000 Adding Key: fakesmc-key-MSAc-ui16: Size = 2, Data: 00 00 3:274 0:000 Adding Key: fakesmc-key-MSFW-ui8: Size = 2, Data: 01 00 3:274 0:000 Adding Key: fakesmc-key-MSPS-ui16: Size = 2, Data: 00 03 3:274 0:000 Adding Key: fakesmc-key-MSTc-ui8: Size = 1, Data: 00 3:274 0:000 Adding Key: fakesmc-key-MSWr-ui8: Size = 1, Data: 00 3:274 0:000 Adding Key: fakesmc-key-RBr -ch8*: Size = 8, Data: 6B 35 00 00 00 00 00 00 3:274 0:000 Adding Key: fakesmc-key-REV -ch8*: Size = 6, Data: 01 39 0F 00 00 11 3:274 0:000 Adding Key: fakesmc-key-RMde-char: Size = 1, Data: 41 3:274 0:000 Adding Key: fakesmc-key-RPlt-ch8*: Size = 8, Data: 6B 35 00 00 00 00 00 00 3:274 0:000 Adding Key: flagstate: Size = 32, Data: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 3:274 0:000 Adding Key: fmm-computer-name: Size = 7, Data: 4D 61 63 20 50 72 6F 3:274 0:000 Adding Key: nvda_drv: Size = 2, Data: 31 00 3:274 0:000 Adding Key: prev-lang:kbd: Size = 7, Data: 65 6E 2D 55 53 3A 30 3:274 0:000 Adding Key: security-mode: String: Size = 4, Val = 'none' 3:274 0:000 No AudioIoProtocols, status=Not Found 3:274 0:000 === [ InitTheme ] ========================================= 3:274 0:000 use night theme 3:276 0:001 Using theme 'Mojave' (EFI\CLOVER\themes\Mojave) 3:276 0:000 OS main and drive as badge 3:276 0:000 Warning! Character width 11 should be even! 3:276 0:000 file sound read: sound_night.wav Not Found 3:276 0:000 file sound read: sound.wav Not Found 3:279 0:002 Loading font from ThemeDir: Success 3:279 0:000 theme inited 3:279 0:000 Chosen theme Mojave 3:279 0:000 found boot-args in NVRAM:-v arch=x86_64 -no_compat_check -nehalem_error_disable -lilubetaall keepsyms=1, size=78 3:279 0:000 ...found arg:-v 3:279 0:000 ...adding arg:-v 3:279 0:000 ...found arg:arch=x86_64 3:279 0:000 ...adding arg:arch=x86_64 3:279 0:000 ...found arg:-no_compat_check 3:279 0:000 ...adding arg:-no_compat_check 3:279 0:000 ...found arg:-nehalem_error_disable 3:279 0:000 ...adding arg:-nehalem_error_disable 3:279 0:000 ...found arg:-lilubetaall 3:279 0:000 ...adding arg:-lilubetaall 3:279 0:000 ...found arg:keepsyms=1 3:279 0:000 ...adding arg:keepsyms=1 3:279 0:000 after NVRAM boot-args=dart=0 no_compat_check -v arch=x86_64 -no_compat_check -nehalem_error_disable -lilubetaall keepsyms=1 3:279 0:000 === [ Dump SMC keys from NVRAM ] ========================== 3:279 0:000 found AppleSMC protocol 3:279 0:000 Registered 16 SMC keys 3:279 0:000 === [ AddCustomEntries ] ================================== 3:279 0:000 Custom entry 0 skipped because it is hidden. 3:279 0:000 === [ ScanLoader ] ======================================== 3:279 0:000 - [03]: 'EFI' 3:379 0:099 AddLoaderEntry for Volume Name=EFI 3:379 0:000 Not match custom entry 0: Type: not match 3:419 0:040 AddLoaderEntry for Volume Name=EFI 3:419 0:000 Not match custom entry 0: Type: not match 3:465 0:046 AddLoaderEntry for Volume Name=EFI 3:465 0:000 skipped because entry is hidden 3:465 0:000 - [08]: 'macOS' 3:521 0:055 AddLoaderEntry for Volume Name=macOS 3:521 0:000 Not match custom entry 0: Type: not match 3:543 0:021 Check if volume Is Hibernated: 3:543 0:000 Check sleep image 'by signature': 3:609 0:066 read prefs \Library\Preferences\com.apple.PowerManagement.plist status=Success 3:609 0:000 using default sleep image name = \private\var\vm\sleepimage 3:633 0:024 sleepimage not found -> Not Found 3:633 0:000 hibernated: no - sign 3:660 0:027 - [09]: 'Recovery HD' 3:661 0:000 AddLoaderEntry for Volume Name=Recovery HD 3:661 0:000 Skipped because matching custom entry 0! 3:686 0:024 - [12]: 'SYSTEM' 3:692 0:005 AddLoaderEntry for Volume Name=SYSTEM 3:692 0:000 Not match custom entry 0: Type: not match 3:720 0:028 AddLoaderEntry for Volume Name=SYSTEM 3:720 0:000 skipped because entry is hidden 3:720 0:000 - [14]: 'EFI' 3:742 0:021 AddLoaderEntry for Volume Name=EFI 3:742 0:000 Not match custom entry 0: Type: not match 3:794 0:052 AddLoaderEntry for Volume Name=EFI 3:794 0:000 skipped because entry is hidden 3:794 0:000 - [16]: 'Macintosh HD' 3:893 0:098 AddLoaderEntry for Volume Name=Macintosh HD 3:893 0:000 Not match custom entry 0: Type: not match 3:916 0:023 Check if volume Is Hibernated: 3:916 0:000 Check sleep image 'by signature': 3:968 0:052 read prefs \Library\Preferences\com.apple.PowerManagement.plist status=Success 3:968 0:000 using default sleep image name = \private\var\vm\sleepimage 4:002 0:034 sleepimage not found -> Not Found 4:002 0:000 hibernated: no - sign 4:028 0:025 - [17]: 'Recovery HD' 4:036 0:008 AddLoaderEntry for Volume Name=Recovery HD 4:036 0:000 Skipped because matching custom entry 0! 4:061 0:024 === [ AddCustomTool ] ===================================== 4:061 0:000 found tool \EFI\CLOVER\tools\Shell64U.efi 4:061 0:000 Checking EFI partition Volume 3 for Clover 4:061 0:000 Found Clover 4:090 0:029 === [ GetEfiBootDeviceFromNvram ] ========================= 4:090 0:000 - efi-boot-device-data: PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x0,0x0)\HD(3,GPT,1FE507E9-E82B-43BF-8A8C-2249DFF67874,0xC9A08000,0xF8C68E0) 4:090 0:000 - Volume: 'PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x0,0x0)\HD(3,GPT,1FE507E9-E82B-43BF-8A8C-2249DFF67874,0xC9A08000,0xF8C68E0)' 4:090 0:000 - LoaderPath: '<null string>' 4:090 0:000 - Guid = 1FE507E9-E82B-43BF-8A8C-2249DFF67874 4:090 0:000 === [ FindStartupDiskVolume ] ============================= 4:090 0:000 - Volume: partition = PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x0,0x0)\HD(3,GPT,1FE507E9-E82B-43BF-8A8C-2249DFF67874,0xC9A08000,0xF8C68E0) 4:090 0:000 - searching for that partition 4:090 0:000 - [!] not found 4:090 0:000 - searching again, but comparing Media dev path nodes 4:090 0:000 - found entry 5. 'Boot macOS from Macintosh HD', Volume 'Macintosh HD' 4:090 0:000 Boot redirected to Entry 5. 'Boot macOS from Macintosh HD' 4:090 0:000 DefaultIndex=5 and MainMenu.EntryCount=12 4:840 0:749 GUI ready 11:442 6:601 exit from MainMenu 1 11:442 0:000 ParseBootOption: invalid input params 11:442 0:000 BootVariable of the entry is empty 11:442 0:000 === [ StartLoader ] ======================================= 11:442 0:000 Finally: ExternalClock=134MHz BusSpeed=133239kHz CPUFreq=2665MHz PIS: hw.busfrequency=536000000Hz 11:442 0:000 Loading boot.efi status=Success 11:884 0:442 GetOSVersion: 10.12.6 (16G2128) 11:884 0:000 CSR_CFG: CSR_ALLOW_UNTRUSTED_KEXTS | CSR_ALLOW_UNRESTRICTED_FS | CSR_ALLOW_TASK_FOR_PID | CSR_ALLOW_UNRESTRICTED_DTRACE | CSR_ALLOW_UNRESTRICTED_NVRAM 11:884 0:000 Filtering KextPatches: 11:884 0:000 - [00]: com.apple.driver.AppleRTC (AppleRTC for 10.14.4) :: BinPatch :: [OS: 10.12.6 | MatchOS: 10.14.x | MatchBuild: All] ==> not allowed 11:884 0:000 - [01]: AppleAHCIPort (External icons patch) :: BinPatch :: [OS: 10.12.6 | MatchOS: All | MatchBuild: All] ==> allowed 11:884 0:000 - [02]: AppleAHCIPort (ALPM IO Error AppleAHCIPort) :: BinPatch :: [OS: 10.12.6 | MatchOS: All | MatchBuild: All] ==> allowed 11:884 0:000 - [03]: IOAHCIBlockStorage (TRIM Enabler) :: BinPatch :: [OS: 10.12.6 | MatchOS: All | MatchBuild: All] ==> allowed 11:884 0:000 Will not patch boot.efi 11:884 0:000 === [ PatchSmbios ] ======================================= 11:884 0:000 insert table 9 for dev 0:0 11:884 0:000 insert table 9 for dev 0:1 11:884 0:000 insert table 9 for dev 0:0 11:884 0:000 insert table 9 for dev 0:0 11:884 0:000 Channels: 2 11:884 0:000 Interleave: 0 2 1 3 4 6 5 7 8 10 9 11 12 14 13 15 16 18 17 19 20 22 21 23 11:884 0:000 SMBIOS Type 17 Index = 0 => 0 0: 11:884 0:000 BANK 0 DIMM0 1333MHz 2048MB 11:884 0:000 SMBIOS Type 17 Index = 1 => 2 2: 11:884 0:000 BANK 1 DIMM0 1333MHz 2048MB 11:884 0:000 SMBIOS Type 17 Index = 2 => 1 1: 11:884 0:000 BANK 0 DIMM1 1600MHz 4096MB 11:884 0:000 SMBIOS Type 17 Index = 3 => 3 3: 11:884 0:000 BANK 1 DIMM1 EMPTY 11:884 0:000 mTotalSystemMemory = 8192 11:884 0:000 NumberOfMemoryDevices = 4 11:884 0:000 Type20[0]->End = 0x1FFFFF, Type17[0] = 0x800 11:884 0:000 Type20[1]->End = 0x5FFFFF, Type17[2] = 0x2800 11:884 0:000 Type20[3]->End = 0x0, Type17[1] = 0x3800 11:884 0:000 === [ PatchACPI ] ========================================= 11:885 0:000 Xsdt is not found! Creating new one 11:885 0:000 RsdPointer is Acpi 1.0 - creating new one Acpi 2.0 11:885 0:000 RsdPointer Acpi 2.0 installed 11:885 0:000 RSDT entries = 8 11:885 0:000 Xsdt reallocation done 11:885 0:000 old FADT length=74 11:885 0:000 SignatureFixup: 0x0 -> 0x0 11:885 0:000 Found OperationRegion(SMOD, SystemMemory, FF840, ...) 11:885 0:000 Found OperationRegion(LBOC, SystemMemory, FF820, ...) 11:885 0:000 Found OperationRegion(RCRB, SystemMemory, FED1C000, ...) 11:885 0:000 Found OperationRegion(ELKM, SystemMemory, FFFEA, ...) 11:885 0:000 Found OperationRegion(EXTM, SystemMemory, FF830, ...) 11:885 0:000 Found OperationRegion(INFO, SystemMemory, FF840, ...) 11:917 0:032 Apply DsdtFixMask=0x1B6EF1DF 11:917 0:000 drop _DSM mask=0x0000 11:917 0:000 === [ FixBiosDsdt ] ======================================= 11:917 0:000 0 replacements 11:917 0:000 found RTC Length not match, Maybe will cause CMOS reset, will patch it. 11:917 0:000 found RTC had IRQNoFlag will move -3 bytes 11:918 0:000 found PIC had IRQNoFlag will move -3 bytes 11:918 0:000 Start HPET Fix 11:918 0:000 Start Display0 Fix 11:918 0:000 add device PEG0 11:918 0:000 add device GFX0 11:918 0:000 Creating Method(_DSM) for 1002 card 11:918 0:000 patch Display #0 of Vendor=0x1002 11:918 0:000 patch LAN0 in DSDT 11:918 0:000 Name AZAL present at 0x624, renaming to HDEF 11:918 0:000 Name AZAL present at 0x3B91, renaming to HDEF 11:918 0:000 Start Add IMEI 11:920 0:001 deleting device CRT_ 11:920 0:000 deleting device DVI_ 11:920 0:000 deleting device SPKR 11:920 0:000 deleting device ECP_ 11:920 0:000 deleting device LPT_ 11:920 0:000 deleting device FDC0 11:920 0:000 deleting device ECP1 11:921 0:000 deleting device LPT1 11:921 0:000 Name _OSI present at 0x1FE6, renaming to OOSI 11:921 0:000 Name _OSI present at 0x1FF2, renaming to OOSI 11:921 0:000 Name _OSI present at 0x201D, renaming to OOSI 11:921 0:000 Name _OSI present at 0x2032, renaming to OOSI 11:921 0:000 Name _OSI present at 0x2069, renaming to OOSI 11:921 0:000 Name _OSI present at 0x2071, renaming to OOSI 11:921 0:000 Name _OSI present at 0x2086, renaming to OOSI 11:922 0:000 PreCleanup XSDT: count=8, length=100 11:922 0:000 PreCleanup XSDT, corrected XSDT: count=8, length=100 11:922 0:000 === [ ACPIDropTables ] ==================================== 11:922 0:000 0 replacements 11:922 0:000 ApicCPUNum=4 11:922 0:000 Maximum control=0x14 11:922 0:000 Turbo control=0x18 11:922 0:000 P-States: min 0x9, max 0x18 11:922 0:000 SSDT with CPU P-States generated successfully 11:922 0:000 SSDT with CPU C-States generated successfully 11:922 0:000 Cleanup XSDT: count=10, length=116 11:922 0:000 corrected XSDT count=10, length=116 11:922 0:000 === [ RestSetup macOS ] =================================== 11:922 0:000 EdidDiscovered size=128 11:922 0:000 --- Discovered EDID Table size:128 11:922 0:000 000 | 00 FF FF FF FF FF FF 00 10 AC 11:922 0:000 010 | 2B A0 53 57 31 31 09 12 01 04 11:922 0:000 020 | A5 34 20 78 22 B3 25 AC 51 30 11:922 0:000 030 | B4 26 10 50 54 A5 4B 00 81 80 11:922 0:000 040 | A9 40 71 4F 01 01 01 01 01 01 11:922 0:000 050 | 01 01 01 01 28 3C 80 A0 70 B0 11:922 0:000 060 | 23 40 30 20 36 00 07 40 21 00 11:922 0:000 070 | 00 1A 00 00 00 FF 00 44 50 30 11:922 0:000 080 | 32 39 38 32 4F 31 31 57 53 0A 11:922 0:000 090 | 00 00 00 FC 00 44 45 4C 4C 20 11:922 0:000 100 | 32 34 30 38 57 46 50 0A 00 00 11:922 0:000 110 | 00 FD 00 38 4C 1E 53 11 01 0A 11:922 0:000 120 | 20 20 20 20 20 20 00 AD 11:922 0:000 Framebuffer @0xE0000000 MMIO @0xFBBC0000 I/O Port @0x0000EE00 ROM Addr @0x00000000 11:922 0:000 PCI region 1 = 0x00000000, region3 = 0x00000000, region5 = 0x00000000 11:922 0:000 BIOS_0_SCRATCH=0x00000004, 1=0x000000FF, 2=0x00000000, 3=0x00000000, 4=0x00000000, 5=0x00000000, 6=0x00000000 11:922 0:000 RADEON_CRTC2_GEN_CNTL == 0x00000000 11:922 0:000 card posted because CONFIG_MEMSIZE=0x400 11:922 0:000 ATI card POSTed, 11:922 0:000 Set VRAM for Juniper =1024Mb 11:922 0:000 ATI: get_vram_size returned 0x40000000 11:922 0:000 Users config name Vervet 11:922 0:000 use N ports setting from config.plist: 4 11:922 0:000 (AtiPorts) Nr of ports set to: 4 11:922 0:000 ATI Juniper ATI Radeon HD 5770 Series 1024MB (Vervet) [1002:68B8] (subsys [1682:2991]):: PcieRoot(0x0)\Pci(0x3,0x0)\Pci(0x0,0x0) 11:922 0:000 setting specified layout-id=1 (0x1) 11:923 0:000 stringlength = 7108 11:923 0:000 CurrentMode: Width=1920 Height=1200 11:923 0:000 Beginning FSInjection FSInjectionInstall ... - Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: DDD50E98 FSInjectionInstall ... - Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: DDD50E98 11:925 0:001 Use origin smbios table type 1 guid. 11:925 0:000 Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\Other 11:925 0:000 Extra kext: EFI\CLOVER\kexts\Other\RealtekRTL8111.kext (v.1.2.3) 11:937 0:011 Extra kext: EFI\CLOVER\kexts\Other\FakeSMC.kext (v.1765) 11:945 0:007 |-- PlugIn kext: EFI\CLOVER\kexts\Other\FakeSMC.kext\Contents\PlugIns\FakeSMC_LPCSensors.kext (v.1765) 12:000 0:054 |-- PlugIn kext: EFI\CLOVER\kexts\Other\FakeSMC.kext\Contents\PlugIns\FakeSMC_GPUSensors.kext (v.1765) 12:004 0:004 |-- PlugIn kext: EFI\CLOVER\kexts\Other\FakeSMC.kext\Contents\PlugIns\FakeSMC_CPUSensors.kext (v.1765) 12:006 0:001 Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10.12 12:007 0:001 Custom boot screen not used because entry has unset use graphics Clover_v2.5k_r5084_80c5b67d.zip PS Need your Clover debug log & build log to see what is causing your red screen Edited September 19, 2019 by fusion71au Answer extra question from @ellaosx 1 Link to comment Share on other sites More sharing options...
LockDown Posted September 19, 2019 Share Posted September 19, 2019 1 hour ago, fusion71au said: With SF commit r5089, I needed to reapply Patches_for_EDK2 to get good build... cd ~/src/edk2/BaseTools make clean cd .. source edksetup.sh cp -R Clover/Patches_for_EDK2/* ./ ./ebuild.sh -fr -D NO_GRUB_DRIVERS_EMBEDDED Before I reapplied the patches, I also saw red screen on legacy boot. What about in github? as a note, the red screen happens AFTER the clover gui. Link to comment Share on other sites More sharing options...
Matgen84 Posted September 19, 2019 Share Posted September 19, 2019 1 hour ago, ellaosx said: What about in github? as a note, the red screen happens AFTER the clover gui. No red screen with GitHub repo: yesterday, I build r5084 latest commit 80c5b67. Clover is installed UEFI/ESP on my rig. 1 Link to comment Share on other sites More sharing options...
LockDown Posted September 19, 2019 Share Posted September 19, 2019 3 hours ago, Matgen84 said: No red screen with GitHub repo: yesterday, I build r5084 latest commit 80c5b67. Clover is installed UEFI/ESP on my rig. what is your ./ebuild flag? Link to comment Share on other sites More sharing options...
Matgen84 Posted September 19, 2019 Share Posted September 19, 2019 41 minutes ago, ellaosx said: what is your ./ebuild flag? In my personal script, I use basic flag with XCODE8 toolchain: ./ebuild.sh -fr Take a look also in Buildme script (Clover Repo) Link to comment Share on other sites More sharing options...
ori Posted September 19, 2019 Share Posted September 19, 2019 (edited) Z390 doesn't boot with 2x32GB memories. After entering the memory, it moves. Edited September 19, 2019 by ori 1 Link to comment Share on other sites More sharing options...
Matgen84 Posted September 19, 2019 Share Posted September 19, 2019 34 minutes ago, ori said: Z390 doesn't boot with 2x32GB memories. After entering the memory, it moves. Do you try to remove 32GB from SMBIOS? And select XMP Profile 1 or 2 instead in Clover settings. What Z390 mobo? On Z390 Gigabyte, I have select XMP Profile 1 in BIOS, for 3000MHZ frequency Link to comment Share on other sites More sharing options...

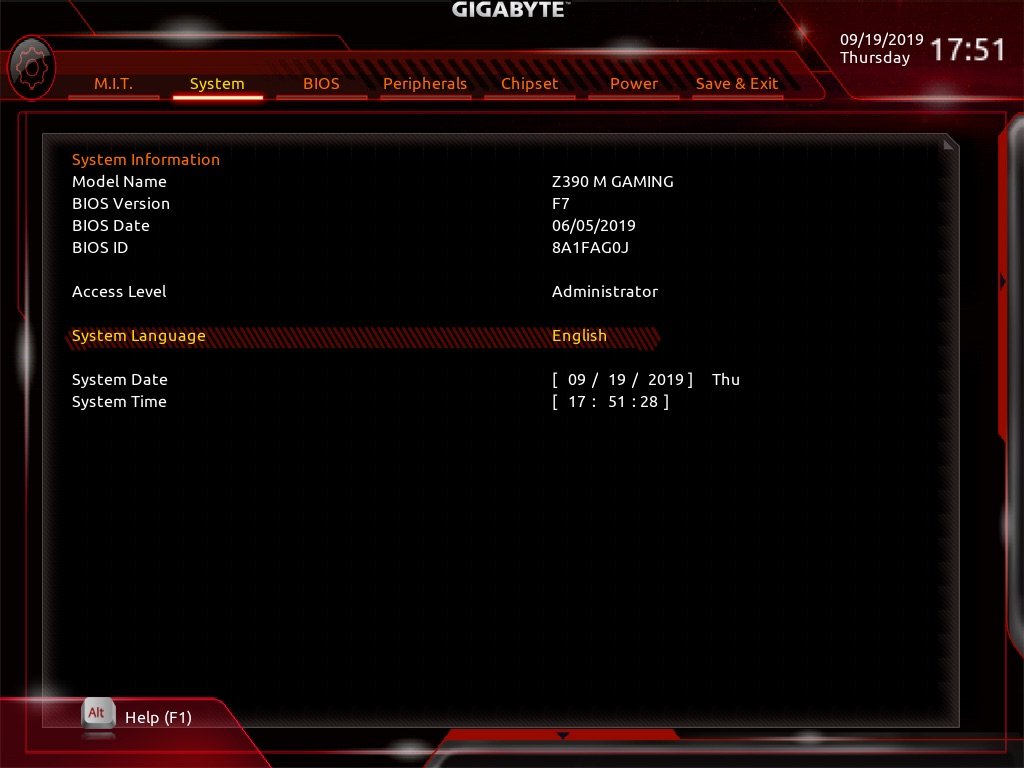

ori Posted September 19, 2019 Share Posted September 19, 2019 Gigabyte Z390 M Gamming BIOS: XMP Profil1 3000MHz Clover: 1 Link to comment Share on other sites More sharing options...
ori Posted September 19, 2019 Share Posted September 19, 2019 (edited) Still not starting. Edited September 19, 2019 by ori 1 Link to comment Share on other sites More sharing options...
Matgen84 Posted September 19, 2019 Share Posted September 19, 2019 (edited) 4 hours ago, ori said: Still not starting. What macOS? Could you post your EFI Folder. Please. Edit: put the XMP to profile 1 and set the trust variable to true in clover and rebooted. If you already have the OsxAptioFix2Drv-free2000.efi or AptioMemoryDix installed "and you should also add "slide=0" to the Boot arguments in Clover. Edited September 19, 2019 by Matgen84 Link to comment Share on other sites More sharing options...
arsradu Posted September 19, 2019 Share Posted September 19, 2019 (edited) 5 hours ago, ori said: Gigabyte Z390 M Gamming BIOS: XMP Profil1 3000MHz Clover: What RAM is that? Have you tried lowering the frequency to something like 2666MHz? Also, have you tried booting with a single memory stick? Also, what's the CPU on this system and which SMBIOS profile are you currently using for it? Also, something else that's not really clear to me... If this is 2 sticks of 32GB each, why did you add your RAM as 4x16GB in config? Could you, please, add all your hardware information to your signature? It would make things a looot easier. I gotta tell you, at this point, this looks more like a hardware issue rather than a software/Clover issue. Edited September 19, 2019 by arsradu Link to comment Share on other sites More sharing options...
Slice Posted September 19, 2019 Share Posted September 19, 2019 About github version numeration Dell:CloverHackyColor sergey$ git describe head --tags 5084-8-g862ce3cc Dell:CloverHackyColor sergey$ 5084 - is the last sync sources with sf.net 8 - a number of commits on github over the revision. So logically it will be 5084+8 but sf.net as well as github has intermediate commits not influencing on binaries. g862ce3cc - last commit id 1 Link to comment Share on other sites More sharing options...
Matgen84 Posted September 19, 2019 Share Posted September 19, 2019 (edited) 1 hour ago, Slice said: About github version numeration Dell:CloverHackyColor sergey$ git describe head --tags 5084-8-g862ce3cc Dell:CloverHackyColor sergey$ 5084 - is the last sync sources with sf.net 8 - a number of commits on github over the revision. So logically it will be 5084+8 but sf.net as well as github has intermediate commits not influencing on binaries. g862ce3cc - last commit id Thanks for your explanations I understand what it is. But the compilation made and the pkg realized, it appears only the revision on the installer: for example, Clover v2.5 r5084. We do not know which commits are included since the release. Since intermediate numbering is not possible as on SF (and possible on GitHub before r5084, pre-release r5081), we could display its info (commits id) in version line into "Read Info" like FakeSmc Rehabman Edited September 19, 2019 by Matgen84 Link to comment Share on other sites More sharing options...

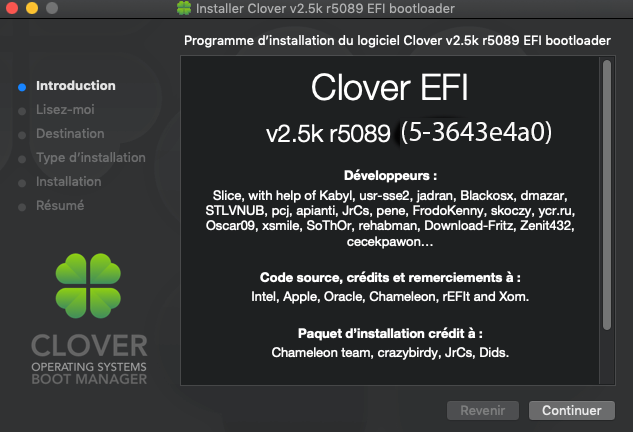

Slice Posted September 19, 2019 Share Posted September 19, 2019 I will think how to implement long version string into package and maybe into About Clover. 1 Link to comment Share on other sites More sharing options...
ori Posted September 19, 2019 Share Posted September 19, 2019 (edited) 2 hours ago, arsradu said: What RAM is that? Have you tried lowering the frequency to something like 2666MHz? Also, have you tried booting with a single memory stick? Also, what's the CPU on this system and which SMBIOS profile are you currently using for it? Also, something else that's not really clear to me... If this is 2 sticks of 32GB each, why did you add your RAM as 4x16GB in config? Could you, please, add all your hardware information to your signature? It would make things a looot easier. I gotta tell you, at this point, this looks more like a hardware issue rather than a software/Clover issue. RAM is marked in the picture ( Corsair CMK64GX4M2D3000C16 64 GB (2x 32 GB) 3000 MHz CL16-20-20-38 1.35 V). I also tried Corsair CMK64GX4M2A2666C16 64 GB (2x 32 GB) 2666 MHz and it was the same. I lowered it even to the lowest values. I disabled XMP in the BIOS. And it did nothing. I tried with one memory and it didn't start either. It wasn't until somewhere on the forum that I found an entry that someone made a post under SMbios 4x16GB and it went. I don't understand why, but it works with this post. The processor is i7 9700K. SMbios iMac 19.1. Gigabyte Z390 M Gamming motherboard. I can also check the Z90 Aorus Pro, but I doubt anything will change. Interesting that on Open Core enters MacOS. Works well with Windows. It looks like Clover's problem to me. Because I saw more such posts in the forums. This happens on different motherboards. Clover once had a similar problem with memories in the Asus Z370, where it only saw 2 out of 4 RAM and had to be added manually. Edited September 19, 2019 by Slice dont link to tonymac Link to comment Share on other sites More sharing options...
Matgen84 Posted September 19, 2019 Share Posted September 19, 2019 38 minutes ago, Slice said: I will think how to implement long version string into package and maybe into About Clover. Thanks a lot Both would be great Link to comment Share on other sites More sharing options...
arsradu Posted September 19, 2019 Share Posted September 19, 2019 (edited) 25 minutes ago, ori said: RAM is marked in the picture ( Corsair CMK64GX4M2D3000C16 64 GB (2x 32 GB) 3000 MHz CL16-20-20-38 1.35 V). I also tried Corsair CMK64GX4M2A2666C16 64 GB (2x 32 GB) 2666 MHz and it was the same. I lowered it even to the lowest values. I disabled XMP in the BIOS. And it did nothing. I tried with one memory and it didn't start either. It wasn't until somewhere on the forum that I found an entry that someone made a post under SMbios 4x16GB and it went. I don't understand why, but it works with this post. The processor is i7 9700K. SMbios iMac 19.1. Gigabyte Z390 M Gamming motherboard. I can also check the Z90 Aorus Pro, but I doubt anything will change. Interesting that on Open Core enters MacOS. Works well with Windows. It looks like Clover's problem to me. Because I saw more such posts in the forums. This happens on different motherboards. Clover once had a similar problem with memories in the Asus Z370, where it only saw 2 out of 4 RAM and had to be added manually. Thank you for the detailed information! That's a lot better. And also, sorry for not realizing the RAM model was actually in your screenshot. My bad. Well, if it works with Windows, if it works with OC (with what I'm guessing is the same SMBIOS)...then yeah....I guess it could be Clover issue. You don't happen to have one 16GB stick laying around, do you? I would be curious to see what happens in that case. Maybe it works with 64GB actually paired in 4x16GB sticks but not with 2x32GB sticks? I don't see why (although Clover issue could be a possibility), but it would still be an interesting result, in my opinion. Edited September 19, 2019 by arsradu Link to comment Share on other sites More sharing options...
Matgen84 Posted September 19, 2019 Share Posted September 19, 2019 (edited) 26 minutes ago, ori said: RAM is marked in the picture ( Corsair CMK64GX4M2D3000C16 64 GB (2x 32 GB) 3000 MHz CL16-20-20-38 1.35 V). I also tried Corsair CMK64GX4M2A2666C16 64 GB (2x 32 GB) 2666 MHz and it was the same. I lowered it even to the lowest values. I disabled XMP in the BIOS. And it did nothing. I tried with one memory and it didn't start either. It wasn't until somewhere on the forum that I found an entry that someone made a post under SMbios 4x16GB and it went. I don't understand why, but it works with this post. The processor is i7 9700K. SMbios iMac 19.1. Gigabyte Z390 M Gamming motherboard. I can also check the Z90 Aorus Pro, but I doubt anything will change. Interesting that on Open Core enters MacOS. Works well with Windows. It looks like Clover's problem to me. Because I saw more such posts in the forums. This happens on different motherboards. Clover once had a similar problem with memories in the Asus Z370, where it only saw 2 out of 4 RAM and had to be added manually. Some users on a banned forum succeed to install Clover + 64GB Ram. Could you post your EFI Folder? You can open a ticket in SourceForge, if you believe Clover's problem @arsradu and me ask you to put complete signature. Please Edited September 19, 2019 by Matgen84 Link to comment Share on other sites More sharing options...
Florin9doi Posted September 19, 2019 Share Posted September 19, 2019 (edited) A ticket is already open: https://sourceforge.net/p/cloverefiboot/tickets/595/ Edited September 19, 2019 by Florin9doi 2 Link to comment Share on other sites More sharing options...
ori Posted September 19, 2019 Share Posted September 19, 2019 14 minutes ago, Matgen84 said: Some users on a banned forum succeed to install Clover + 64GB Ram. Could you post your EFI Folder? You can open a ticket in SourceForge, if you believe Clover's problem @arsradu and me ask you to put complete signature. Please I understand that other forums are blocked here, but I found only one example in this forum. Google has shown more. I tried 2x16GB, 4x16GB and no problem. I have 128GB of RAM on X299 and no problem with Clover. It seems to me an allocation error when configuring the Z390 and 32GB of RAM. 1 Link to comment Share on other sites More sharing options...
Matgen84 Posted September 19, 2019 Share Posted September 19, 2019 (edited) 16 minutes ago, Florin9doi said: A ticket is already open: https://sourceforge.net/p/cloverefiboot/tickets/595/ There is a interesting answer 9 minutes ago, ori said: I understand that other forums are blocked here, but I found only one example in this forum. Google has shown more. I tried 2x16GB, 4x16GB and no problem. I have 128GB of RAM on X299 and no problem with Clover. It seems to me an allocation error when configuring the Z390 and 32GB of RAM. What AptioFix did you use? Try to use Free2000 version. EDIT: What BIOS for your Z390 M Gaming? Edited September 19, 2019 by Matgen84 Link to comment Share on other sites More sharing options...
ori Posted September 19, 2019 Share Posted September 19, 2019 4 minutes ago, Matgen84 said: There is a interesting answer What AptioFix did you use? Try to use Free2000 version. I tried AptioMemoryFix.efi and OsxAptioFix2Drv-free2000.efi. At Clover he always stays in the same place. On Open Core I have OsxAptioFix2Drv-free2000.efi 1 Link to comment Share on other sites More sharing options...

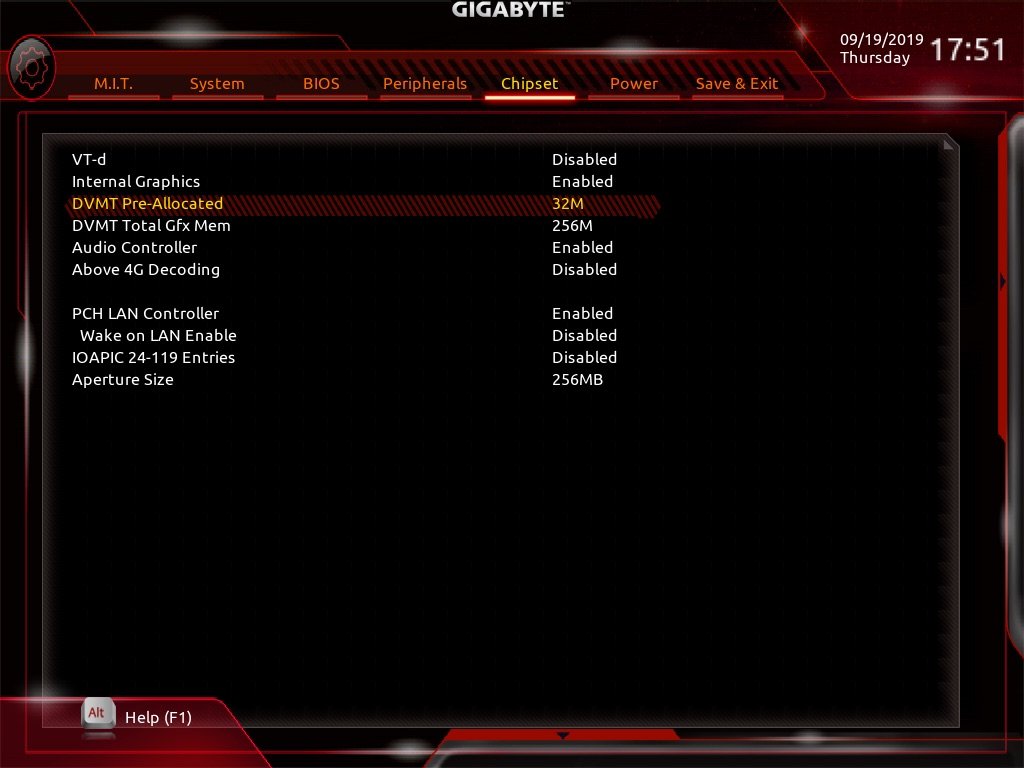

Matgen84 Posted September 19, 2019 Share Posted September 19, 2019 5 minutes ago, ori said: I tried AptioMemoryFix.efi and OsxAptioFix2Drv-free2000.efi. At Clover he always stays in the same place. On Open Core I have OsxAptioFix2Drv-free2000.efi What BIOS version? Set DVMT Pre-Allocated to 32M. This single change enabled the use of the standard driver OsxAptioFix3Drv.efi Link to comment Share on other sites More sharing options...
