Slice
Slice
Posted
Posted

I ran into a problem with my keyboard using clover. (clover kill's my keyboard till i replug it, even rebooting doesn't help)



Now im trying to compile clover by myself with DISABLE_USB_SUPPORT defined, but i don't exactly know how.

I did a compile with clovergrowerpro and it succeeded, but i dont know how/where to define the variable.



(btw im only java developer, i hardly know whats going on there in this scripts called by clovergrowerpro :/)

I am not using CGP and can't help you there.

I make the follow in terminal

$ ./ebuild.sh -D DISABLE_USB_SUPPORT
  • Like 1
Link to comment
Share on other sites
Slice
Slice
Posted
Posted

Thank you this helped me! :-)

My keyboard is now working just fine, but can you tell me what this parameter does exactly?

If defined then the procedure will not be called

EFI_STATUS
DisableUsbLegacySupport(
  void
  )
/*++

Routine Description:
  Disable the USB legacy Support in all Ehci and Uhci.
  This function assume all PciIo handles have been created in system.

Arguments:
  None

Returns:
  EFI_SUCCESS
  EFI_NOT_FOUND
--*/
  • Like 1
Link to comment
Share on other sites
kosakgroove
kosakgroove
Posted
Posted

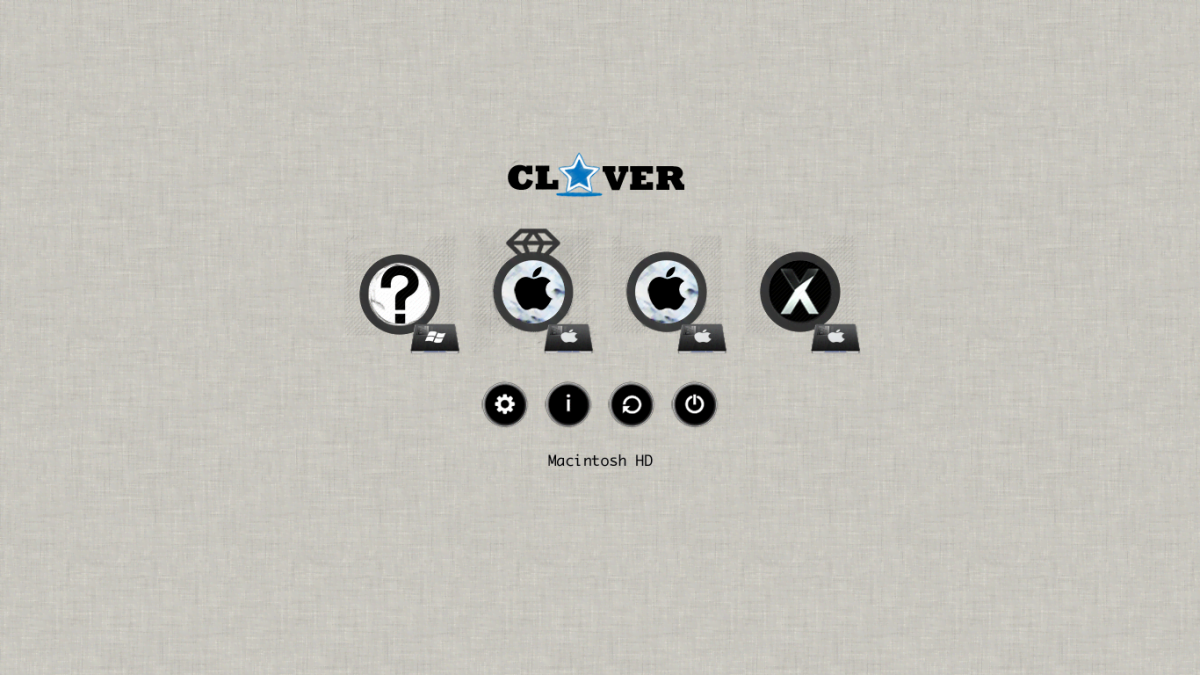

Hi guys! Could you help me setting up a custom entry setup for my partitions in one hard drive of the laptop?

I only want this because I would like to use a different config plist in my Mavericks partition than the one i use for my other two El Capitan partitions. I also have Windows installed. Here's my boot.log:

0:100  0:100  MemLog inited, TSC freq: 2593998163
0:100  0:000
0:100  0:000  Now is 16.2.2016,  18:35:3 (GMT+2047)
0:100  0:000  Starting Clover rev 3346 on American Megatrends EFI
0:100  0:000  SelfDevicePath=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,98B0D4EA-A03B-472B-9650-B75ACAC2AE2E,0x28,0x64000) @AB3DAC98
0:100  0:000  SelfDirPath = EFI\CLOVER
0:100  0:000  Total Memory Slots Count = 4
0:100  0:000  Type 17 Index = 0
0:100  0:000  SmbiosTable.Type17->Speed = 1600MHz
0:100  0:000  SmbiosTable.Type17->Size = 4096MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 0 ChannelA-DIMM0
0:100  0:000  Type 17 Index = 1
0:100  0:000  Ignoring insane frequency value 0MHz
0:100  0:000  SmbiosTable.Type17->Speed = 0MHz
0:100  0:000  SmbiosTable.Type17->Size = 0MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 1 ChannelA-DIMM1
0:100  0:000  Type 17 Index = 2
0:100  0:000  SmbiosTable.Type17->Speed = 1600MHz
0:100  0:000  SmbiosTable.Type17->Size = 4096MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 2 ChannelB-DIMM0
0:100  0:000  Type 17 Index = 3
0:100  0:000  Ignoring insane frequency value 0MHz
0:100  0:000  SmbiosTable.Type17->Speed = 0MHz
0:100  0:000  SmbiosTable.Type17->Size = 0MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 3 ChannelB-DIMM1
0:100  0:000  Boot status=0
0:100  0:000  Clover revision: 3346  running on X550LD
0:100  0:000  ... with board X550LD
0:100  0:000  CPU Vendor = 756E6547 Model=40651
0:100  0:000  The CPU supported turbo
0:100  0:000  BrandString = Intel(R) Core(TM) i7-4510U CPU @ 2.00GHz
0:100  0:000  MSR 0xE2 before patch 1E008408
0:100  0:000  MSR 0xE2 is locked, PM patches will be turned on
0:100  0:000  MSR 0xE4              00051814
0:100  0:000  MSR 0xCE              0008083D_F3011A00
0:100  0:000  non-usable FLEX_RATIO = 10000
0:100  0:000  corrected FLEX_RATIO = 0
0:100  0:000  MSR 0x1B0             00000000
0:100  0:000  FSBFrequency=76MHz DMIvalue=100000kHz
0:100  0:000  Corrected FSBFrequency=100MHz
0:100  0:000  Vendor/Model/Stepping: 0x756E6547/0x45/0x1
0:100  0:000  Family/ExtFamily: 0x6/0x0
0:100  0:000  MaxDiv/MinDiv: 26.0/8
0:100  0:000  Turbo: 28/28/28/31
0:100  0:000  Features: 0xBFEBFBFF
0:100  0:000  Threads: 4
0:100  0:000  Cores: 2
0:100  0:000  FSB: 100 MHz
0:100  0:000  CPU: 2000 MHz
0:100  0:000  TSC: 2000 MHz
0:100  0:000  PIS: 400 MHz
0:100  0:000  PCI (00|00:00.00) : 8086 0A04 class=060000
0:100  0:000  PCI (00|00:02.00) : 8086 0A16 class=030000
0:100  0:000  Found GFX model=Intel HD Graphics 4400
0:100  0:000  PCI (00|00:03.00) : 8086 0A0C class=040300
0:100  0:000  PCI (00|00:04.00) : 8086 0A03 class=118000
0:100  0:000  PCI (00|00:14.00) : 8086 9C31 class=0C0330
0:100  0:000  PCI (00|00:16.00) : 8086 9C3A class=078000
0:100  0:000  PCI (00|00:16.01) : FFFF FFFF class=FFFFFF
0:100  0:000  PCI (00|00:1B.00) : 8086 9C20 class=040300
0:100  0:000  PCI (00|00:1C.00) : 8086 9C10 class=060400
0:100  0:000  PCI (00|00:1C.02) : 8086 9C14 class=060400
0:100  0:000  PCI (00|02:00.00) : 10EC 5287 class=FF0000
0:100  0:000  PCI (00|02:00.01) : 10EC 8168 class=020000
0:100  0:000  LAN 0, Vendor=10EC, MMIO=E000
0:100  0:000  PCI (00|00:1C.03) : 8086 9C16 class=060400
0:100  0:000  PCI (00|03:00.00) : 14E4 43B1 class=028000
0:100  0:000  PCI (00|00:1C.04) : 8086 9C18 class=060400
0:100  0:000  PCI (00|04:00.00) : 10DE 1140 class=030200
0:100  0:000  PCI (00|00:1D.00) : 8086 9C26 class=0C0320
0:100  0:000  PCI (00|00:1F.00) : 8086 9C43 class=060100
0:100  0:000  PCI (00|00:1F.02) : 8086 9C03 class=010601
0:100  0:000  PCI (00|00:1F.03) : 8086 9C22 class=0C0500
0:100  0:000  PCI (00|00:1F.06) : 8086 9C24 class=118000
0:100  0:000  Clover load options size = 0 bytes
0:126  0:026  Using OEM config.plist at path: EFI\CLOVER\config.plist
0:126  0:000  EFI\CLOVER\config.plist loaded: Success
0:128  0:001  Found theme directory: GalaxyCamp
0:138  0:009  Found theme directory: DARK
0:156  0:018  Loading early settings
0:156  0:000  timeout set to 3
0:156  0:000  Custom boot CUSTOM_BOOT_DISABLED (0x0)
0:156  0:000  KextsToPatch: 6 requested
0:156  0:000  KextsToPatch 0: IOGraphicsFamily (logo glitch) Kext bin patch, data len: 5
0:156  0:000  KextsToPatch 1: IOBluetoothFamily (Handoff) Kext bin patch, data len: 8
0:156  0:000  KextsToPatch 2: AppleIntelFramebufferAzul (HDMI try 1) Kext bin patch, data len: 12
0:156  0:000  KextsToPatch 3: AirPortBrcm4360 (10.11-BCM94352-Airport-Extreme) Kext bin patch, data len: 6
0:156  0:000  KextsToPatch 4: AirPortBrcm4360 (10.11-BCM94352-5GHz-US-FCC-dv) Kext bin patch, data len: 7
0:156  0:000  KextsToPatch 5: AppleIntelFramebufferAzul (9mb cursor byte) Kext bin patch, data len: 20
0:156  0:000  Default theme: dark
0:156  0:000  LoadDrivers() start
0:157  0:001  Loading DataHubDxe-64.efi  status=Success
0:163  0:006  Loading FSInject-64.efi  status=Success
0:164  0:000  Loading OsxAptioFix2Drv-64.efi  status=Success
0:165  0:000  Loading OsxFatBinaryDrv-64.efi  status=Success
0:165  0:000  Loading PartitionDxe-64.efi  status=Success
0:166  0:001   - driver needs connecting
0:166  0:000  Loading NTFS.EFI  status=Success
0:176  0:009   - driver needs connecting
0:176  0:000  Loading HFSPlus.efi  status=Success
0:183  0:006   - driver needs connecting
0:183  0:000  3 drivers needs connecting ...
0:183  0:000  PlatformDriverOverrideProtocol not found. Installing ... Success
0:183  0:000  Partition driver loaded:
0:183  0:000  HFS+ driver loaded
0:183  0:000  Searching for invalid DiskIo BY_DRIVER connects: not found, all ok
2:084  1:901  LoadDrivers() end
2:084  0:000  Dump SMC keys from NVRAM:
2:087  0:002  SetScreenResolution: 1366x768 - already set
2:087  0:000  Console modes reported: 4, available modes:
2:087  0:000    Mode 1: 80x25
2:087  0:000    Mode 3: 100x31
2:087  0:000    Mode 4: 170x40 (current mode)
2:087  0:000  SetScreenResolution: 1366x768 - already set
2:087  0:000  reinit: self device path=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,98B0D4EA-A03B-472B-9650-B75ACAC2AE2E,0x28,0x64000)
2:087  0:000  ScanSPD() start
2:088  0:000  SMBus CmdReg: 0x3
2:088  0:000  Scanning SMBus [8086:9C22], mmio: 0xF7C21004, ioport: 0xF040, hostc: 0x11
2:088  0:000  Slots to scan [8]...
2:111  0:023  SPD[2]: Type 11 @0x52
2:120  0:008  DDR speed 1600MHz
2:120  0:000  Slot: 2 Type 24 4096MB 1600MHz Vendor=Samsung PartNo=M471B5173QH0-YK0 SerialNo=020206070A080807
2:143  0:023  ScanSPD() end
2:143  0:000  Get Acpi Tables List from RSDT:
2:143  0:000   Found table: FACP  Notebook len=268
2:143  0:000   Found table: APIC  Notebook len=114
2:143  0:000   Found table: FPDT  Notebook len=68
2:143  0:000   Found table: ECDT  Notebook len=193
2:143  0:000   Found table: LPIT  Notebook len=92
2:143  0:000   Found table: SSDT  zpoddult len=372
2:143  0:000   Found table: SSDT  Cpu0Ist len=1337
2:143  0:000   Found table: SSDT  CpuPm len=2776
2:143  0:000   Found table: SSDT  Cpu0Tst len=734
2:143  0:000   Found table: SSDT  ApTst len=840
2:143  0:000   Found table: MCFG  Notebook len=60
2:143  0:000   Found table: SSDT  DptfTabl len=12407
2:143  0:000   Found table: HPET  Notebook len=56
2:143  0:000   Found table: SSDT  SataTabl len=664
2:143  0:000   Found table: SSDT  SaSsdt  len=16103
2:143  0:000   Found table: SSDT  SgPch len=3135
2:143  0:000   Found table: BGRT  Notebook len=56
2:143  0:000   Found table: SSDT  OptTabl len=5182
2:143  0:000   Found table: MSDM  Notebook len=85
2:143  0:000  Calibrated TSC frequency =2593998163 =2593MHz
2:143  0:000  Loading main settings
2:143  0:000  USB FixOwnership: true
2:143  0:000  Config set Fixes will override FixMask mask!
2:143  0:000     final mask=90000004
2:143  0:000  Config set ChassisType=0x8
2:143  0:000  found 14 volumes with blockIO
2:143  0:000   0. Volume:
2:143  0:000    PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)
2:168  0:025    Result of bootcode detection: bootable unknown (legacy)
2:168  0:000   1. Volume:
2:168  0:000    PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,98B0D4EA-A03B-472B-9650-B75ACAC2AE2E,0x28,0x64000)
2:169  0:000    Result of bootcode detection: bootable Clover (clover)
2:183  0:014    This is SelfVolume !!
2:183  0:000   2. Volume:
2:183  0:000    PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,E776168A-64CD-4CE2-BE83-1AE8EE7E7BF8,0x64028,0x28B7D8)
2:189  0:006   3. Volume:
2:189  0:000    PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,C0E110AF-55BE-4C84-B458-EF48DA886BDF,0x32F800,0x8000)
2:200  0:011   4. Volume:
2:200  0:000    PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(4,GPT,6D0AF0D7-FA1F-402A-8174-ABB19C0EBD7B,0x36F440,0x593544A0)
2:212  0:012   5. Volume:
2:212  0:000    PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(5,GPT,E6D7DE27-7AEF-4B4F-8354-FFD04F7D72AC,0x596C38E0,0x135F20)
2:239  0:026   6. Volume:
2:239  0:000    PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(6,GPT,24AAB6FC-AFC0-4BE6-BBF2-9D04F7A5F6A4,0x597F9800,0x441C000)
2:246  0:007   7. Volume:
2:246  0:000    PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(7,GPT,4813AE51-74B1-4383-A7D9-47A9138D7CC6,0x5DC15800,0x452C800)
2:255  0:009    Result of bootcode detection: bootable Windows (vista,win)
2:255  0:000   8. Volume:
2:255  0:000    PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(8,GPT,577A57C5-8E65-4EBE-9DEC-BBD1BFFDFDA4,0x621428E0,0x135F20)
2:271  0:015   9. Volume:
2:271  0:000    PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(9,GPT,BC0BF5B6-3134-476F-A154-6817F222B857,0x62278800,0x1248E000)
2:282  0:011    Result of bootcode detection: bootable Windows (vista,win)
2:282  0:000  10. Volume:
2:282  0:000    PciRoot(0x0)\Pci(0x1D,0x0)\USB(0x1,0x0)\USB(0x2,0x0)
2:283  0:000    USB volume
2:283  0:000    USB volume
2:283  0:000  11. Volume:
2:283  0:000    PciRoot(0x0)\Pci(0x1D,0x0)\USB(0x1,0x0)\USB(0x2,0x0)\HD(1,GPT,8DF1863D-9CD1-44F9-8D51-6C06F7667A0E,0x28,0x64000)
2:284  0:001    Result of bootcode detection: bootable unknown (legacy)
2:284  0:000    USB volume
2:284  0:000    USB volume
2:412  0:127  12. Volume:
2:412  0:000    PciRoot(0x0)\Pci(0x1D,0x0)\USB(0x1,0x0)\USB(0x2,0x0)\HD(2,GPT,20E0BBE1-BB60-48A1-9594-C4ECBCE7BCE6,0x64028,0x1CB5FB0)
2:413  0:001    USB volume
2:413  0:000    USB volume
2:413  0:000  13. Volume:
2:413  0:000    PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)
2:413  0:000    found optical drive
2:435  0:021  Using theme 'dark' (EFI\CLOVER\themes\dark)
2:435  0:000  theme dark defined in NVRAM found and theme.plist parsed
2:435  0:000  OS main and drive as badge
2:446  0:011  Choosing theme dark
2:446  0:000  Custom entries start
2:446  0:000  Custom entries finish
2:446  0:000  Scanning loaders...
2:446  0:000   0: 'Whole Disc Boot' no file system
2:446  0:000   1: 'EFI'
2:464  0:017      AddLoaderEntry for Volume Name=EFI
2:502  0:038   2: 'Clover'
2:520  0:018   3: 'Legacy HD3' no file system
2:521  0:000   4: 'Macintosh HD'
2:561  0:040      AddLoaderEntry for Volume Name=Macintosh HD
2:579  0:017      Check if volume Is Hibernated:
2:579  0:000      Check sleep image 'by signature':
2:659  0:080      read prefs \Library\Preferences\SystemConfiguration\com.apple.PowerManagement.plist status=Success
2:659  0:000      SleepImage name from pref: ImageVolume = 'Macintosh HD', ImageName = '\private\var\vm\sleepimage'
2:679  0:019      Reading first 512 bytes of sleepimage ...
2:679  0:000      Reading completed -> Success
2:679  0:000       sleepimage offset could not be acquired
2:679  0:000       hibernated: no - sign
2:700  0:021   5: 'Recovery HD'
2:723  0:023      AddLoaderEntry for Volume Name=Recovery HD
2:760  0:036   6: 'Mavericks'
2:778  0:017      AddLoaderEntry for Volume Name=Mavericks
2:803  0:025      Check if volume Is Hibernated:
2:803  0:000      Check sleep image 'by signature':
2:843  0:039      read prefs \Library\Preferences\SystemConfiguration\com.apple.PowerManagement.plist status=Not Found
2:843  0:000      using default sleep image name = \private\var\vm\sleepimage
2:865  0:021      Reading first 512 bytes of sleepimage ...
2:879  0:014   OurBlockIoRead: Lba=5ABB9848, Offset=B577309000 (BlockSize=512)
2:879  0:000   sig lion: 0
2:879  0:000   sig snow: 0
2:879  0:000   no valid sleep image offset was found
2:879  0:000      Reading completed -> Success
2:879  0:000       sleepimage offset could not be acquired
2:879  0:000       hibernated: no - sign
2:915  0:035   7: 'Extend'
2:955  0:039   8: 'Recovery HD'
2:970  0:015      AddLoaderEntry for Volume Name=Recovery HD
2:997  0:027   9: ''
3:036  0:038  10: 'Whole Disc Boot' no file system
3:036  0:000  11: 'EFI'
3:056  0:020  12: 'OS X Base System'
3:059  0:003      AddLoaderEntry for Volume Name=OS X Base System
3:065  0:005      Check if volume Is Hibernated:
3:065  0:000      Check sleep image 'by signature':
3:072  0:006      read prefs \Library\Preferences\SystemConfiguration\com.apple.PowerManagement.plist status=Not Found
3:072  0:000      using default sleep image name = \private\var\vm\sleepimage
3:078  0:006      sleepimage not found -> Not Found
3:078  0:000       hibernated: no - sign
3:100  0:021  13: 'Whole Disc Boot' no file system
3:100  0:000  Custom legacy start
3:100  0:000  Custom legacy end
3:100  0:000  Custom tool start
3:100  0:000  Custom tool end
3:126  0:025  found tool \EFI\CLOVER\tools\Shell64U.efi
3:126  0:000  Checking EFI partition Volume 1 for Clover
3:126  0:000   Found Clover
3:140  0:014  Checking EFI partition Volume 11 for Clover
3:152  0:011   Found Clover
3:155  0:003  GetEfiBootDeviceFromNvram:
3:155  0:000   efi-boot-device-data: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(6,GPT,24AAB6FC-AFC0-4BE6-BBF2-9D04F7A5F6A4,0x597F9800,0x441C000)
3:155  0:000   Volume: 'PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(6,GPT,24AAB6FC-AFC0-4BE6-BBF2-9D04F7A5F6A4,0x597F9800,0x441C000)'
3:155  0:000   LoaderPath: '<null string>'
3:155  0:000   Guid = 24AAB6FC-AFC0-4BE6-BBF2-9D04F7A5F6A4
3:155  0:000   volume: partition = PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(6,GPT,24AAB6FC-AFC0-4BE6-BBF2-9D04F7A5F6A4,0x597F9800,0x441C000)
3:155  0:000   searching for that partition
3:155  0:000    found entry 3. 'Boot Mac OS X from Mavericks', Volume 'Mavericks'
3:155  0:000  Boot redirected to Entry 3. 'Boot Mac OS X from Mavericks'
3:155  0:000  DefaultIndex=3 and MainMenu.EntryCount=13
3:155  0:000  Use anime=dark_logo frames=5
3:499  0:344  GUI ready
14:232  10:732  BootOption of the entry is empty
14:232  0:000  StartLoader() start
14:232  0:000  Entry->Settings: <null string>
14:232  0:000  Finally: Bus=99769kHz CPU=2594MHz
14:232  0:000  Kernel and Kext Patches at 97CD64B0:
14:232  0:000  	Allowed: y
14:232  0:000  	Debug: n
14:232  0:000  	KernelCpu: n
14:232  0:000  	Lapic: n
14:232  0:000  	Haswell-E: n
14:232  0:000  	AICPUPM: n
14:232  0:000  	AppleRTC: y
14:232  0:000  	KernelPm: y
14:232  0:000  	FakeCPUID: 0x0
14:232  0:000  	ATIController: null
14:232  0:000  	ATIDataLength: 0
14:232  0:000  	0 Kexts to load
14:232  0:000  	6 Kexts to patch
14:232  0:000  	  KextPatch[0]: 5 bytes, IOGraphicsFamily
14:232  0:000  	  KextPatch[1]: 8 bytes, IOBluetoothFamily
14:232  0:000  	  KextPatch[2]: 12 bytes, AppleIntelFramebufferAzul
14:232  0:000  	  KextPatch[3]: 6 bytes, AirPortBrcm4360
14:232  0:000  	  KextPatch[4]: 7 bytes, AirPortBrcm4360
14:232  0:000  	  KextPatch[5]: 20 bytes, AppleIntelFramebufferAzul
14:232  0:000  Loading boot.efi  status=Success
15:134  0:902  GetOSVersion: : 10.11.3
15:134  0:000  insert table 9 for dev 0:1
15:134  0:000  insert table 9 for dev 0:0
15:135  0:000  Trusting SMBIOS...
15:135  0:000  Channels: 1
15:135  0:000  Interleave: 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
15:135  0:000   partNum unknown
15:135  0:000  SMBIOS Type 17 Index = 0 => 0 0:
15:135  0:000  BANK0 DIMM0 1600MHz 4096MB
15:135  0:000  mTotalSystemMemory = 4096
15:135  0:000  SMBIOS Type 17 Index = 1 => 1 1:
15:135  0:000  BANK0 DIMM1 EMPTY
15:135  0:000   partNum=M471B5173QH0-YK0
15:135  0:000  SMBIOS Type 17 Index = 2 => 2 2:
15:135  0:000  BANK0 DIMM2 1600MHz 4096MB
15:135  0:000  mTotalSystemMemory = 8192
15:135  0:000  NumberOfMemoryDevices = 3
15:135  0:000  Type20[0]->End = 0x3FFFFF, Type17[0] = 0x1000
15:135  0:000  Type20[1]->End = 0x7FFFFF, Type17[2] = 0x3000
15:135  0:000  Table 131 is present, CPUType=31
15:135  0:000  Change to: 705
15:135  0:000  RSDT 0xADE19028
15:135  0:000  FADT from RSDT: 0xADE19160
15:135  0:000  XSDT 0xADE19098
15:135  0:000  FADT from XSDT: 0xADE2F240
15:135  0:000  Xsdt reallocation done
15:135  0:000  old FADT length=10C
15:135  0:000  Found OperationRegion(GNVS, SystemMemory, AEA9FC18, ...)
15:135  0:000  Found OperationRegion(MCHT, SystemMemory, FED10000, ...)
15:135  0:000  Found OperationRegion(RCRB, SystemMemory, FED1C000, ...)
15:135  0:000  Unable to determine address for OperationRegion(XHCP, SystemMemory, ...) skipping
15:135  0:000  Found OperationRegion(MCA1, SystemMemory, F7FE0000, ...)
15:135  0:000  Found OperationRegion(MCA1, SystemMemory, F7FE0000, ...)
15:135  0:000  Unable to determine address for OperationRegion(SDCH, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(DMB1, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(ICB1, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(ICB1, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(ICB1, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(ICB1, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(ICB1, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(ICB1, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(ICB1, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(ICB1, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(ICB1, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(ICB1, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(ICB1, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(ICB1, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(ICB1, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(ICB1, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(MBAR, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(RAMW, SystemMemory, ...) skipping
15:135  0:000  Found OperationRegion(DBGM, SystemMemory, D0000, ...)
15:135  0:000  Unable to determine address for OperationRegion(VMEM, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(VMEM, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(PARM, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(FGVR, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(FM30, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(F300, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(FEC1, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(FEC2, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(FM1X, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(F100, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(F101, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(F110, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(F111, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(F112, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(F113, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(F114, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(F120, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(F121, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(F122, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(F130, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(F131, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(F132, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(F133, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(F134, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(F135, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(F136, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(F137, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(F140, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(F141, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(F142, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(F150, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(F151, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(F152, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(F153, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(F154, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(F160, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(F161, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(F170, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(F171, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(F172, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(F173, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(F174, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(F180, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(F181, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(F182, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(F183, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(F190, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(F192, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(FM1F, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(FMAD, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(FM42, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(F421, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(F422, SystemMemory, ...) skipping
15:135  0:000  Unable to determine address for OperationRegion(F423, SystemMemory, ...) skipping
15:136  0:000  Unable to determine address for OperationRegion(ECAD, SystemMemory, ...) skipping
15:136  0:000  Unable to determine address for OperationRegion(PCFG, SystemMemory, ...) skipping
15:136  0:000  Unable to determine address for OperationRegion(PCFG, SystemMemory, ...) skipping
15:136  0:000  Unable to determine address for OperationRegion(PCFG, SystemMemory, ...) skipping
15:136  0:000  Unable to determine address for OperationRegion(PCFG, SystemMemory, ...) skipping
15:136  0:000  Unable to determine address for OperationRegion(PCFG, SystemMemory, ...) skipping
15:136  0:000  Unable to determine address for OperationRegion(PCFG, SystemMemory, ...) skipping
15:136  0:000  Unable to determine address for OperationRegion(PCFG, SystemMemory, ...) skipping
15:136  0:000  Found OperationRegion(RCBA, SystemMemory, FED1C000, ...)
15:164  0:028  DSDT found in Clover volume OEM folder: EFI\CLOVER\ACPI\patched\DSDT.aml
15:174  0:010  Apply DsdtFixMask=0x90000004 new way
15:174  0:000     drop _DSM mask=0x0000
15:174  0:000  ========= Auto patch DSDT Starting ========
15:174  0:000  VideoCard devID=0xA168086
15:174  0:000  DisplayADR1[0] = 0x20000, DisplayADR2[0] = 0xFFFE
15:175  0:000  USBADR[0] = 0x140000 and PCIe = 0xFFFE
15:175  0:000  Found Airport BCM at 0x1C0003, 0x0
15:175  0:000  USBADR[1] = 0x1D0000 and PCIe = 0xFFFE
15:175  0:000  first CPU found at A798 offset A79C
15:175  0:000  score candidate at A794
15:175  0:000  score inserted in acpi_cpu_score _PR_
15:175  0:000  Found ACPI CPU: CPU0 And CPU1 And CPU2 And CPU3 And CPU4 And CPU5 And CPU6 And CPU7
  within the score: _PR_
15:175  0:000  Found PCIROOTUID = 0
15:175  0:000    indirect name=SRCB
15:176  0:000    indirect name=SRMB
15:176  0:000    indirect name=SRMB
15:176  0:000  Start SHUTDOWN Fix len=16672
15:176  0:000  ========= Auto patch DSDT Finished ========
15:176  0:000  Drop tables from Xsdt, SIGN=SSDT TableID= Length=0
15:176  0:000   Xsdt has tables count=19
15:176  0:000   Table: SSDT  zpoddult  372 dropped
15:176  0:000   Table: SSDT  Cpu0Ist  1337 dropped
15:176  0:000   Table: SSDT  CpuPm  2776 dropped
15:176  0:000   Table: SSDT  Cpu0Tst  734 dropped
15:176  0:000   Table: SSDT  ApTst  840 dropped
15:176  0:000   Table: SSDT  DptfTabl  12407 dropped
15:176  0:000   Table: SSDT  SataTabl  664 dropped
15:176  0:000   Table: SSDT  SaSsdt   16103 dropped
15:176  0:000   Table: SSDT  SgPch  3135 dropped
15:176  0:000   Table: SSDT  OptTabl  5182 dropped
15:176  0:000  corrected XSDT length=108
15:176  0:000  Inserting table[0]:SSDT.aml from EFI\CLOVER\ACPI\patched ... Success
15:176  0:000  Inserting table[1]:SSDT-0.aml from EFI\CLOVER\ACPI\patched ... Success
15:177  0:000  Inserting table[2]:SSDT-1.aml from EFI\CLOVER\ACPI\patched ... Success
15:178  0:000  Inserting table[3]:SSDT-2.aml from EFI\CLOVER\ACPI\patched ... Success
15:178  0:000  Inserting table[4]:SSDT-6.aml from EFI\CLOVER\ACPI\patched ... Success
15:179  0:000  Inserting table[5]:SSDT-7.aml from EFI\CLOVER\ACPI\patched ... Success
15:179  0:000  Inserting table[6]:SSDT-8.aml from EFI\CLOVER\ACPI\patched ... Success
15:180  0:000  Inserting table[7]:SSDT-9.aml from EFI\CLOVER\ACPI\patched ... Success
15:180  0:000  Inserting table[8]:SSDT-10.aml from EFI\CLOVER\ACPI\patched ... Success
15:193  0:013  Inserting table[9]:SSDT-11.aml from EFI\CLOVER\ACPI\patched ... Success
15:194  0:000  Inserting table[10]:SSDT-12.aml from EFI\CLOVER\ACPI\patched ... Success
15:194  0:000   CPUBase=0 and ApicCPUBase=1 ApicCPUNum=4
15:194  0:000  EdidDiscovered size=128
15:194  0:000  00 | 00 FF FF FF FF FF FF 00 0D AE AB 15 00 00 00 00
15:194  0:000  16 | 30 17 01 03 80 22 13 78 0A E5 65 92 58 57 98 29
15:194  0:000  32 | 1D 50 54 00 00 00 01 01 01 01 01 01 01 01 01 01
15:194  0:000  48 | 01 01 01 01 01 01 79 1D 56 C2 50 00 26 30 1F 41
15:194  0:000  64 | 4C 00 58 C1 10 00 00 18 00 00 00 FE 00 4E 31 35
15:194  0:000  80 | 36 42 47 45 2D 4C 34 31 0A 20 00 00 00 FE 00 43
15:194  0:000  96 | 4D 4E 0A 20 20 20 20 20 20 20 20 20 00 00 00 FE
15:194  0:000  112 | 00 4E 31 35 36 42 47 45 2D 4C 34 31 0A 20 00 29
15:194  0:000  Intel Intel HD Graphics 4400 [8086:0A16] :: PciRoot(0x0)\Pci(0x2,0x0)
15:194  0:000  Intel GFX revision  =0xB
15:194  0:000  USB Controller [8086:9C31] :: PciRoot(0x0)\Pci(0x14,0x0)
15:195  0:000  LAN Controller [10EC:8168] :: PciRoot(0x0)\Pci(0x1C,0x2)\Pci(0x0,0x1)
15:195  0:000  USB Controller [8086:9C26] :: PciRoot(0x0)\Pci(0x1D,0x0)
15:195  0:000   RCBA access disabled; trying to enable
15:195  0:000  stringlength = 2538
15:195  0:000  CurrentMode: Width=1366 Height=768
15:195  0:000  Beginning FSInjection
15:195  0:000  skipping kext injection (not requested)
15:198  0:002  MSR 0x1B0   set to        00000000
15:198  0:000  SetStartupDiskVolume:
15:198  0:000    * Volume: 'Macintosh HD'
15:198  0:000    * LoaderPath: '<null string>'
15:198  0:000    * DevPath: Macintosh HD
15:198  0:000    * GUID = 6D0AF0D7-FA1F-402A-8174-ABB19C0EBD7B
15:199  0:001    * efi-boot-device: <array><dict><key>IOMatch</key><dict><key>IOProviderClass</key><string>IOMedia</string><key>IOPropertyMatch</key><dict><key>UUID</key><string>6D0AF0D7-FA1F-402A-8174-ABB19C0EBD7B</string></dict></dict></dict></array>
15:201  0:002  Custom boot is disabled
15:202  0:000  Closing log

Could anyone help me by making a config plist with all the entries? Please

And then explain how to use different config plist on different installs??


I have tried to do it myself but I get no entries in Clover when I activate my Custom ones...

Link to comment
Share on other sites
Typhoon_Master
Typhoon_Master
Posted
Posted

ok, i have a problem that my self build clover pkgs are not able to boot osx.

when i select it it only appears a black screen forever - no message. Although booting windows from clover works.



interesting thing here is that the official pkgs actualy are doing fine. (same revision checked out)

do someone know why this could happen, or how the official pkgs are built? (parameters of ebuild.sh etc.)



i build mine with:

./ebuild.sh -gcc49 -release -D USE_APPLE_HFSPLUS_DRIVER --x64

thank you in advance

Link to comment
Share on other sites
arsradu
arsradu
Posted
Posted

@Slice

EDK2 v18686 is good for compiling?

Yes, it's ok.

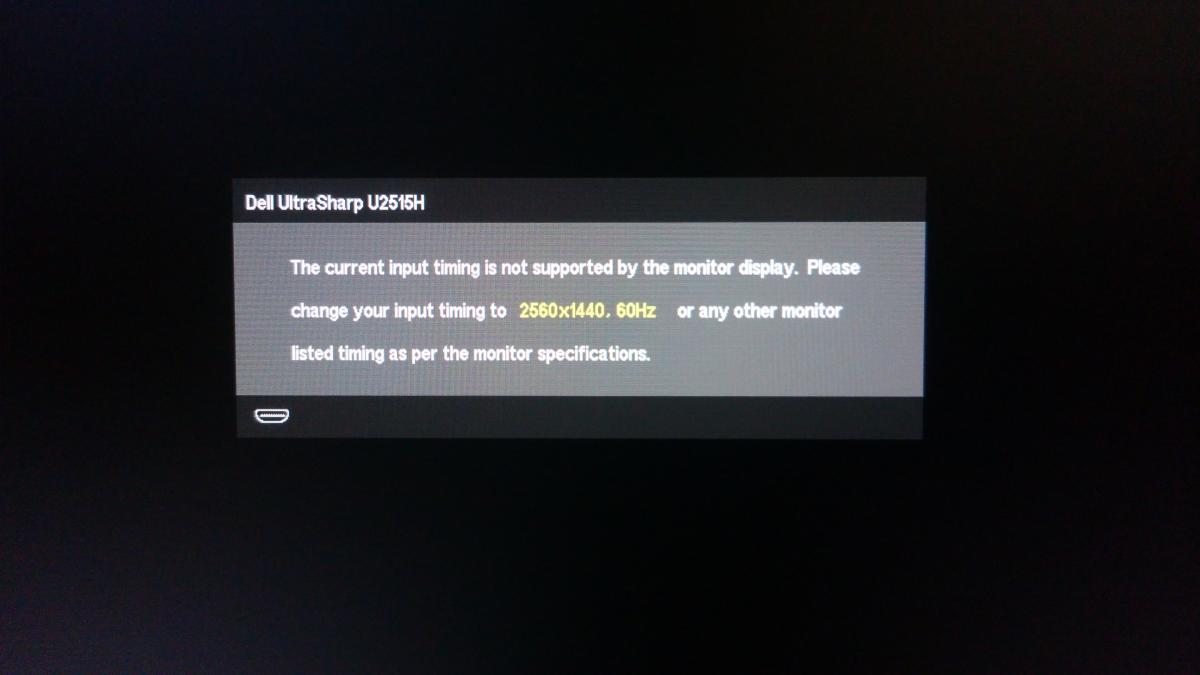

Guys, I'm having issues with my new monitor (Dell U2515H). Yesterday I couldn't get the system to post with the monitor connected (now I know why, but still it doesn't make any sense). It would just display an error (see below) and after a while, it would go straight into Windows 10 (installed in UEFI mode). You'll see why this is important.






Also, I can't make the Clover GUI to be displayed in native resolution 2560x1440. It's just stretched and ugly and I don't have a second stage logo anymore (the loading bar is there, centered, at native resolution, but the logo is not.



Anyway, so two things:

1. after a few hours of pulling my hair, not knowing why the hell do I get the error above, after a 30 minutes call with Dell customer support, I decided to try a new BIOS (although, in the past, I had issues with that version, that's why I reverted to the current one). But I thought, just for the kicks, that I should try and see if at least that fixes the error I get on boot-up. And...it did, but it didn't. :)) While I was now able to select the boot options, enter BIOS and stuff like that, the problem was not the BIOS itself, but a specific BIOS setting: CSM disabled. With that disabled, I get that error, and after a few seconds, it goes straight into Windows.



Why does this happen? Anyone else having this issue? Is it because of the resolution? Is it because of a bug in the BIOS (same option, previous 1440x900 monitor, everything ok, with the same setting). I don't get it...



Between yesterday and today, two things have changed (hardware-wise): the monitor itself (with its increased resolution) and the port I'm connected to (before it was VGA, now it's HDMI).



So...what is the connection between CSM and this setup? Why did it work with the previous monitor, connected via VGA, but it doesn't work with this one?



And 2. How do I fix my Clover GUI resolution (maybe second stage boot logo, as well?). I did the trick with setting the boot-display at the 3rd port (@C) according to my ioreg, adding PatchVBios (since now CSM is enabled :( ) and Injected EDID (using Clover's Inject EDID option).



Unfortunately the only thing I accomplished with this was a now centered and full resolution loading bar for the second stage. Which is better than nothing, sure. But Clover first stage boot is stretched and low res. No idea why.

Link to comment
Share on other sites
arsradu
arsradu
Posted
Posted

If CSM is enabled you can get a screen with black border.

To have real full screen you have to:

- CSM is disabled

- VideoCard has UEFI VideoBIOS.

Yep, I know that. This is how it was until yesterday.

Video card has UEFI bios. And CSM was disabled since all my operating systems are now using UEFI boot.



Still, with only the monitor changed (and the port, of course), I get that error upon booting when CSM is disabled. After a while, it automatically boots into Windows. Can't even go into BIOS to re-enable that {censored}. Not that I would really want to do it.

Link to comment
Share on other sites
arsradu
arsradu
Posted
Posted

@arsradu your patch vbios still applied?



** also remove csmvideodxe

I tried with and without the Patch VBios...



In theory, I shouldn't need that. Since the video card is already using a UEFI BIOS. But to take advantage of that, I need to disable the freaking CSM... Which I can't. This might be a motherboard/UEFI issue...



I tried with and without csmvideodxe. And unfortunately same result... But I will try again tonight when I get home.



Thanks for your feedback. :)



I guess everyone else is using other motherboards (which support higher resolutions) or maybe they are not using CSM disabled or...maybe not using 2K monitors (which I find it hard to believe since they're not so "new" anymore and they became more and more affordable nowadays). But who knows...



Update:



Nope...No difference with Patch VBios...

Link to comment
Share on other sites
Slice
Slice
Posted
Posted

@Sergey

Hey friend listen me please , true is this news that I read on the net?



Currently, Clover does not support inject AAPL, ig-platform-id for Broadwell's integrated graphics  :rolleyes:  :rolleyes:

Automatic - no, custom - supported.

	<key>Graphics</key>
	<dict>
		<key>ig-platform-id</key>
		<string>0x16160000</string>
	</dict>
  • Like 3
Link to comment
Share on other sites
Micky1979
Micky1979
Posted
Posted

All bw ig

0x16060000 Desktop
0x160e0000 Desktop
0x16160000 Desktop
0x161e0000 mobile
0x16260000 mobile
0x162b0000 mobile
0x16220000 Desktop
0x16e00001 Desktop
0x016e1001 mobile
0x16060002 Desktop
0x16160002 Desktop
0x16260002 mobile
0x16220002 Desktop
0x162b0002 mobile
0x16120003 Desktop
0x162b0004 mobile
0x16260004 mobile
0x16260005 mobile
0x16260006 mobile
0x16220007 Desktop
  • Like 2
Link to comment
Share on other sites
magnifico
magnifico
Posted
Posted



All bw ig

0x16060000 Desktop
0x160e0000 Desktop
0x16160000 Desktop
0x161e0000 mobile
0x16260000 mobile
0x162b0000 mobile
0x16220000 Desktop
0x16e00001 Desktop
0x016e1001 mobile
0x16060002 Desktop
0x16160002 Desktop
0x16260002 mobile
0x16220002 Desktop
0x162b0002 mobile
0x16120003 Desktop
0x162b0004 mobile
0x16260004 mobile
0x16260005 mobile
0x16260006 mobile
0x16220007 Desktop

mythical  B)

  • Like 1
Link to comment
Share on other sites
 Share
Go to topic listing
×
×
  • Create New...
