tluck Posted March 16, 2016 Share Posted March 16, 2016 well, if one has multiple disks with EFI partitions "diskutil mount EFI" is not deterministic. however - one can select the 0 disk and EFI partition (1) by: diskutil mount disk0s1 Link to comment Share on other sites More sharing options...
Slice Posted March 16, 2016 Share Posted March 16, 2016 Clover started from EFI partition and the system knows it. Link to comment Share on other sites More sharing options...
magnifico Posted March 16, 2016 Share Posted March 16, 2016 diskutil mount EFI iMac:~ slice$ diskutil mount EFI Volume EFI on EFI mounted iMac:~ slice$ mhmm on my open only EFI windows 10 and not ESP of Yosemite Link to comment Share on other sites More sharing options...
Slice Posted March 16, 2016 Share Posted March 16, 2016 Partition names? Link to comment Share on other sites More sharing options...
RehabMan Posted March 16, 2016 Share Posted March 16, 2016 diskutil mount EFI with multiple GPT disks likely depends on disk order, which is not deterministic. It is possible to use the Clover bootlog to determinme EFI boot partition GUID, and then map that back to bsd partition identifier. 1 Link to comment Share on other sites More sharing options...
Slice Posted March 16, 2016 Share Posted March 16, 2016 This is my story, no theory. No! This is ElCapitan 10.11.4 15E64a This command works fast and correct when I reboot from Maverics to ElCapitan located on different HDD. But I have one EFI partition on first HDD. And I don't know if it be disk0 or disk1. diskutil knows this better then me diskutil mount EFI fine in both cases Link to comment Share on other sites More sharing options...
jminrod Posted March 16, 2016 Share Posted March 16, 2016 Can you explain what GPT is? I started last night to make a new bootable thumbdrive and was installing the new Pandora III. I read about the GPT and GPT+ but couldn't find anything when I searched only the initials, no definition. Link to comment Share on other sites More sharing options...

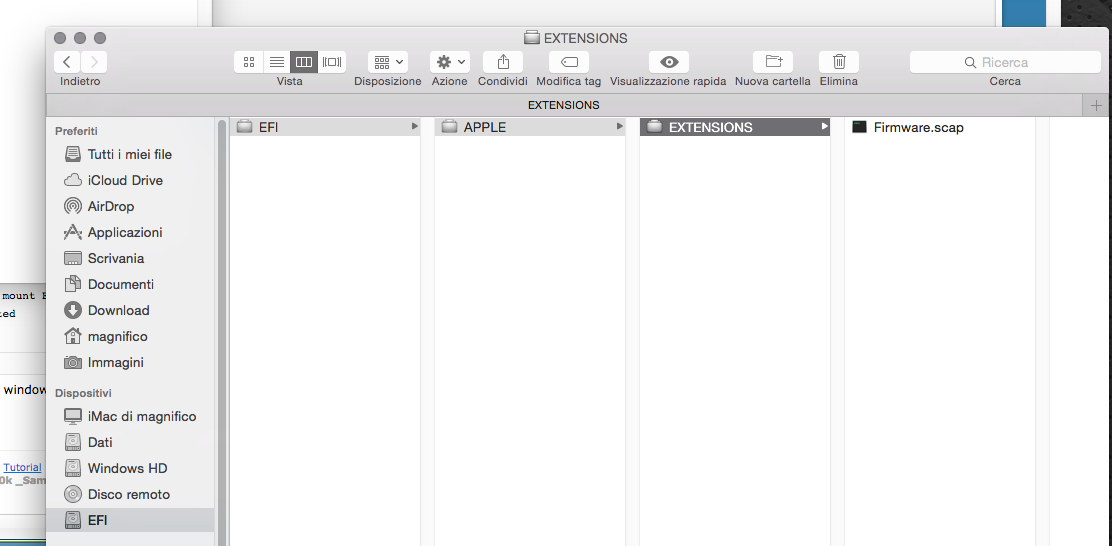

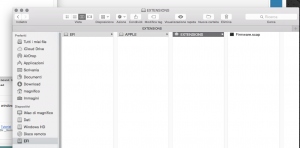

magnifico Posted March 16, 2016 Share Posted March 16, 2016 Partition names? sorry my wrong Open EFI Apple diskutil mount EFI with multiple GPT disks likely depends on disk order, which is not deterministic. It is possible to use the Clover bootlog to determinme EFI boot partition GUID, and then map that back to bsd partition identifier. how do it Reab Link to comment Share on other sites More sharing options...
Micky1979 Posted March 16, 2016 Share Posted March 16, 2016 This is my story, no theory. Sorry , I was writing because just today I'm playing with Pandora to have retro-compatibility (10.7/10.8) and I'm adding missing libraries to run my app in older OSX (ie the ability to mount any ESP(s) in the system using only code like actually does very well in 10.9+). The command posted by you also work in 10.9 due to the new LibSystem so that Diskarbitration (.h) can treat the ESP in a better way (like the ability to get the filesystem type otherwise missing is older OSes). Agreed that in EC is even better as in fact is, but to the end is only a call to mount(). Link to comment Share on other sites More sharing options...
tluck Posted March 16, 2016 Share Posted March 16, 2016 @jminrod. Google guid partition table. Wikipedia can answer your question. Link to comment Share on other sites More sharing options...
jminrod Posted March 16, 2016 Share Posted March 16, 2016 Will do Thanks tluck Link to comment Share on other sites More sharing options...
RehabMan Posted March 16, 2016 Share Posted March 16, 2016 This is my story, no theory. I just tested the theory... Procedure: - created GPT Clover USB (Clover to ESP) - Clover is also installed to SSD (Clover on ESP) - so we have two devices with an ESP (named EFI, as listed in diskutil list) - boot UEFI via USB - execute 'diskutil mount EFI' Result: disk0s1 mounted at /Volumes/EFI (disk0s1 is ESP on SSD, not USB) Conclusion: OS X has no special knowledge of booting from EFI, and 'diskutil mount EFI' simply mounts the first EFI found, which may or may not be the EFI you booted Clover from. If you really want to mount the ESP associated with Clover, you must look in ioreg for the Clover bootlog, parse out SelfDevicePath GUID, map the GUID to a bsd identifier, then mount the resulting partition by bsd identifier. 'diskutil mount EFI' cannot be guaranteed to mount the Clover boot ESP. 2 Link to comment Share on other sites More sharing options...
RehabMan Posted March 16, 2016 Share Posted March 16, 2016 If you really want to mount the ESP associated with Clover, you must look in ioreg for the Clover bootlog, parse out SelfDevicePath GUID, map the GUID to a bsd identifier, then mount the resulting partition by bsd identifier. In case anyone is interested, here is a script that outputs bsdname of the Clover boot ESP... #!/bin/bash ioreg -p IODeviceTree -n platform -r -a >/tmp/org_rehabman_platform.plist /usr/libexec/plistbuddy -c "Print 0:boot-log" /tmp/org_rehabman_platform.plist >/tmp/org_rehabman_bootlog.txt SELFGUID=$([[ "$(grep SelfDevicePath /tmp/org_rehabman_bootlog.txt)" =~ (GPT|MBR),(.*-[0-9A-F]*) ]] && echo ${BASH_REMATCH[2]}) #echo $SELFGUID diskutil info -plist $SELFGUID >/tmp/org_rehabman_bootefi.plist DEVNODE=`/usr/libexec/plistbuddy -c "Print DeviceNode" /tmp/org_rehabman_bootefi.plist` echo $DEVNODE Save it as bootefi.sh, 'chmod +x bootefi.sh', run as './bootefi.sh' in Terminal. eg. - copy script text above to clipboard - then, in Terminal: pbpaste >bootefi.sh chmod +x bootefi.sh ./bootefi.sh Note: Tested on recent versions of OS X. For others, you may need to use a newer ioreg than that which is distributed. Or you can use bdmesg. 4 Link to comment Share on other sites More sharing options...
Multisaft Posted March 19, 2016 Share Posted March 19, 2016 Hi Guys, I'm back with another problem regarding my x58 ASUS P6T-SE Yosemite Clover installation. I've bought a new mechanical keyboard as my Apple Bluetooth Keyboard is at the end of its life after around 5 years of usage. What is the problem with the new mechanical keyboard? In detail, first of, its a V60 Matias Mini Keyboard with DIP Switches, where you can change the layout to OS X mode. But the Keyboard does make douplee (like the eeee or iii is quitee common) key recognition. that is massivly frustrating as the keyboard is getting useleess for its main purpose, long typing periods. can someone help me with analysing my /system.log as it is spammed by so many different problems (in addition i still have some sound problems) that i dont see the problem. I'm watching the live log posts within the terminal. any idears? is thee HID driver deefeekt? i think the problem happens when i am typing to fast, this sentence is written really slow (1sec for each letter). I'm using this http://www.insanelymac.com/forum/files/file/150-patched-appleusbxhci/?st=40#commentsStartas thee usbxhci fix. clover config.plist: <dict> <key>Comment</key> <string>Patch MSI or pin interrupts 1</string> <key>Find</key> <data> gUkIAABAAA== </data> <key>Name</key> <string>AppleUSBXHCI</string> <key>Replace</key> <data> gUkIAAAAAA== </data> </dict> <dict> <key>Comment</key> <string>Patch MSI or pin interrupts 2</string> <key>Find</key> <data> QcdHCAAAQAA= </data> <key>Name</key> <string>AppleUSBXHCI</string> <key>Replace</key> <data> QcdHCAAAAAA= </data> </dict> <dict> <key>Comment</key> <string>Disable sleep code</string> <key>Find</key> <data> xoDIAAAAAQ== </data> <key>Name</key> <string>AppleUSBXHCI</string> <key>Replace</key> <data> xoDIAAAAAA== </data> </dict> <dict> <key>Comment</key> <string>Enable PCI power management</string> <key>Find</key> <data> dU1Ii7voAQAA </data> <key>Name</key> <string>AppleUSBXHCI</string> <key>Replace</key> <data> 601Ii7voAQAA </data> </dict> <dict> <key>Comment</key> <string>Yosemite - Disable check for XHCI 1.0</string> <key>Find</key> <data> QbzHAgDgPQABAAA= </data> <key>Name</key> <string>AppleUSBXHCI</string> <key>Replace</key> <data> QbzHAgDgPQAAAAA= </data> </dict> <dict> <key>Comment</key> <string>Yosemite - Disable check for Intel & Fresco USB3.0</string> <key>Find</key> <data> 9oDUAAAAgHU0 </data> <key>Name</key> <string>AppleUSBXHCI</string> <key>Replace</key> <data> 9oDUAAAAgOs0 </data> </dict> <dict> <key>Comment</key> <string>Mavericks - Disable check for XHCI 1.0</string> <key>Find</key> <data> Zj0AAQ== </data> <key>Name</key> <string>AppleUSBXHCI</string> <key>Replace</key> <data> Zj0AAA== </data> </dict> <dict> <key>Comment</key> <string>Mavericks - Disable check for Intel & Fresco USB3.0</string> <key>Find</key> <data> 9oDUAAAAgHU6 </data> <key>Name</key> <string>AppleUSBXHCI</string> <key>Replace</key> <data> 9oDUAAAAgOs6 </data> </dict> do I still need to use these two keext in 10.10 efi folder: AppleUSBXHCI.kext and AppleUSBXHCIEnabler.kext Link to comment Share on other sites More sharing options...
vusun123 Posted March 20, 2016 Share Posted March 20, 2016 Hi Guys, I'm back with another problem regarding my x58 ASUS P6T-SE Yosemite Clover installation. I've bought a new mechanical keyboard as my Apple Bluetooth Keyboard is at the end of its life after around 5 years of usage. What is the problem with the new mechanical keyboard? In detail, first of, its a V60 Matias Mini Keyboard with DIP Switches, where you can change the layout to OS X mode. But the Keyboard does make douplee (like the eeee or iii is quitee common) key recognition. that is massivly frustrating as the keyboard is getting useleess for its main purpose, long typing periods. can someone help me with analysing my /system.log as it is spammed by so many different problems (in addition i still have some sound problems) that i dont see the problem. I'm watching the live log posts within the terminal. any idears? is thee HID driver deefeekt? i think the problem happens when i am typing to fast, this sentence is written really slow (1sec for each letter). I'm using this http://www.insanelymac.com/forum/files/file/150-patched-appleusbxhci/?st=40#commentsStartas thee usbxhci fix. clover config.plist: <dict> <key>Comment</key> <string>Patch MSI or pin interrupts 1</string> <key>Find</key> <data> gUkIAABAAA== </data> <key>Name</key> <string>AppleUSBXHCI</string> <key>Replace</key> <data> gUkIAAAAAA== </data> </dict> <dict> <key>Comment</key> <string>Patch MSI or pin interrupts 2</string> <key>Find</key> <data> QcdHCAAAQAA= </data> <key>Name</key> <string>AppleUSBXHCI</string> <key>Replace</key> <data> QcdHCAAAAAA= </data> </dict> <dict> <key>Comment</key> <string>Disable sleep code</string> <key>Find</key> <data> xoDIAAAAAQ== </data> <key>Name</key> <string>AppleUSBXHCI</string> <key>Replace</key> <data> xoDIAAAAAA== </data> </dict> <dict> <key>Comment</key> <string>Enable PCI power management</string> <key>Find</key> <data> dU1Ii7voAQAA </data> <key>Name</key> <string>AppleUSBXHCI</string> <key>Replace</key> <data> 601Ii7voAQAA </data> </dict> <dict> <key>Comment</key> <string>Yosemite - Disable check for XHCI 1.0</string> <key>Find</key> <data> QbzHAgDgPQABAAA= </data> <key>Name</key> <string>AppleUSBXHCI</string> <key>Replace</key> <data> QbzHAgDgPQAAAAA= </data> </dict> <dict> <key>Comment</key> <string>Yosemite - Disable check for Intel & Fresco USB3.0</string> <key>Find</key> <data> 9oDUAAAAgHU0 </data> <key>Name</key> <string>AppleUSBXHCI</string> <key>Replace</key> <data> 9oDUAAAAgOs0 </data> </dict> <dict> <key>Comment</key> <string>Mavericks - Disable check for XHCI 1.0</string> <key>Find</key> <data> Zj0AAQ== </data> <key>Name</key> <string>AppleUSBXHCI</string> <key>Replace</key> <data> Zj0AAA== </data> </dict> <dict> <key>Comment</key> <string>Mavericks - Disable check for Intel & Fresco USB3.0</string> <key>Find</key> <data> 9oDUAAAAgHU6 </data> <key>Name</key> <string>AppleUSBXHCI</string> <key>Replace</key> <data> 9oDUAAAAgOs6 </data> </dict> do I still need to use these two keext in 10.10 efi folder: AppleUSBXHCI.kext and AppleUSBXHCIEnabler.kext Some keyboards act weird in OS X. I had an Ozone Strike Battle for a day, then immediately send it back due to it typing wrong characters ( e.g when I press numpad 1, it returns \ ) Link to comment Share on other sites More sharing options...
Multisaft Posted March 20, 2016 Share Posted March 20, 2016 Some keyboards act weird in OS X. I had an Ozone Strike Battle for a day, then immediately send it back due to it typing wrong characters ( e.g when I press numpad 1, it returns \ ) hi vusun, the matias mini keyboard is well known for its os x support. dunno it that is really the keyboard. i will test it on another original mac next week when I'm at my dads office. does there exists a usb keyboard test software or something like that? Link to comment Share on other sites More sharing options...
Slice Posted March 20, 2016 Share Posted March 20, 2016 hi vusun, the matias mini keyboard is well known for its os x support. dunno it that is really the keyboard. i will test it on another original mac next week when I'm at my dads office. does there exists a usb keyboard test software or something like that? Open TextEdit and type here. It will be the best test. Link to comment Share on other sites More sharing options...
Multisaft Posted March 20, 2016 Share Posted March 20, 2016 Hi slice, I've used different types of sofftwaree to test the keyboard. In textedit as well as word, sublime text 2 or other coding tools, it is everywhere the same problem. I beliefe that e and i are making the most problems. as well as that the beehaviour is strange. someetimees its not preseent für 1-2 minutees, somtimees likee acctually it is preeseent the whole tiime. maybe within chromee its eveen worth. at the same time my kerneel log is spammed with theee following information in thee timee im typing this. this sucks so {censored} big time. Mar 20 17:53:15 Felixs-Mac-Pro kernel[0]: Sound assertion in AppleHDAWidget at line 2215 Mar 20 17:53:23 --- last message repeated 3 times --- Mar 20 17:53:23 Felixs-Mac-Pro.local SpotlightNetHelper[382]: [SLSUGGESTIONS] Location managed failed with error Error Domain=kCLErrorDomain Code=0 "Der Vorgang konnte nicht abgeschlossen werden. (kCLErrorDomain-Fehler 0.)" Mar 20 17:53:26 Felixs-Mac-Pro com.apple.xpc.launchd[1] (com.apple.imfoundation.IMRemoteURLConnectionAgent): The _DirtyJetsamMemoryLimit key is not available on this platform. Mar 20 17:53:30 Felixs-Mac-Pro.local pkd[351]: enabling pid=2247 for plug-in com.google.GoogleDrive.FinderSyncAPIExtension(1) A1CD3C60-1FA4-4DDA-B555-84BD54ADA2A4 /Applications/Google Drive.app/Contents/PlugIns/FinderSyncAPIExtension.appex Mar 20 17:53:30 Felixs-Mac-Pro com.apple.appkit.xpc.openAndSavePanelService[2247]: assertion failed: 14F1605: libxpc.dylib + 62447 [5C829202-962E-3744-8B50-00D38CC88E84]: 0x89 Mar 20 17:53:30 Felixs-Mac-Pro.local pkd[351]: enabling pid=2247 for plug-in com.getdropbox.dropbox.garcon(1.18) 3C7A7D89-95C8-486D-B5E3-3A45E170025C /Applications/Dropbox.app/Contents/PlugIns/garcon.appex Mar 20 17:53:30 Felixs-Mac-Pro.local taskgated[108]: no application identifier provided, can't use provisioning profiles [pid=2251] Mar 20 17:53:30 Felixs-Mac-Pro.local taskgated[108]: no application identifier provided, can't use provisioning profiles [pid=2252] Mar 20 17:53:30 Felixs-Mac-Pro.local FinderSyncAPIExtension[2251]: Loading Google Drive Finder extension Mar 20 17:53:30 Felixs-Mac-Pro.local FinderSyncAPIExtension[2251]: The Finder version 1.0 is not supported by Google Drive! Mar 20 17:53:30 Felixs-Mac-Pro.local garcon[2252]: Failed to connect (colorGridView) outlet from (NSApplication) to (NSColorPickerGridView): missing setter or instance variable Mar 20 17:53:30 Felixs-Mac-Pro.local FinderSyncAPIExtension[2251]: Failed to connect (colorGridView) outlet from (NSApplication) to (NSColorPickerGridView): missing setter or instance variable Mar 20 17:53:30 Felixs-Mac-Pro.local garcon[2252]: Failed to connect (view) outlet from (NSApplication) to (NSColorPickerGridView): missing setter or instance variable Mar 20 17:53:30 Felixs-Mac-Pro.local FinderSyncAPIExtension[2251]: Failed to connect (view) outlet from (NSApplication) to (NSColorPickerGridView): missing setter or instance variable Mar 20 17:53:30 Felixs-Mac-Pro kernel[0]: Sandbox: appleeventsd(58) deny file-read-metadata /Library Mar 20 17:53:30 --- last message repeated 40 times --- Mar 20 17:53:30 Felixs-Mac-Pro kernel[0]: Sandbox: appleeventsd(58) deny file-read-metadata /LibrarSy Mar 20 17:53:30 Felixs-Mac-Pro kernel[0]: andbox: appleeventsd(58) deny mach-lookup com.apple.ocspd Mar 20 17:53:30 Felixs-Mac-Pro kernel[0]: Sandbox: appleeventsd(58) deny mach-lookup com.apple.ocspd Mar 20 17:53:30 --- last message repeated 12 times --- Mar 20 17:53:30 Felixs-Mac-Pro.local FinderSyncAPIExtension[2251]: Pipe path is a symbolic link, connecting to target. Mar 20 17:53:30 Felixs-Mac-Pro.local FinderSyncAPIExtension[2251]: /Users/Felix/Library/Application Support/Google/Drive/GoogleDriveIpcPipe is a symbolic link to /Users/Felix/Library/Group Containers/google_drive/tmppbXnes, connecting to link target. Mar 20 17:53:30 Felixs-Mac-Pro.local garcon[2252]: Connecting to Dropbox on 'com.getdropbox.dropbox.garcon.cafe_501' Mar 20 17:53:30 Felixs-Mac-Pro.local garcon[2252]: Connected to Dropbox on 'com.getdropbox.dropbox.garcon.cafe_501'. Mar 20 17:53:30 Felixs-Mac-Pro.local garcon[2252]: Garcon is ready (1 alive). Mar 20 17:53:30 Felixs-Mac-Pro.local garcon[2252]: Invalidating watch set. Mar 20 17:53:30 Felixs-Mac-Pro.local garcon[2252]: Watch set is now: {( file:///Volumes/Data/Dropbox%20Felix/Dropbox/ )}. Mar 20 17:54:05 Felixs-Mac-Pro kernel[0]: Sound assertion in AppleHDAWidget at line 2215 Mar 20 17:54:08 --- last message repeated 3 times --- Mar 20 17:54:08 Felixs-Mac-Pro.local garcon[2252]: Garcon destroyed (0 alive). Mar 20 17:54:55 Felixs-Mac-Pro kernel[0]: Sound assertion in AppleHDAWidget at line 2215 Mar 20 17:55:25 --- last message repeated 3 times --- Mar 20 17:55:45 Felixs-Mac-Pro kernel[0]: Sound assertion in AppleHDAWidget at line 2215 Mar 20 17:55:45 Felixs-Mac-Pro kernel[0]: Sound assertion in AppleHDAWidget at line 2215 Mar 20 17:56:15 --- last message repeated 2 times --- Mar 20 17:56:35 Felixs-Mac-Pro kernel[0]: Sound assertion in AppleHDAWidget at line 2215 Mar 20 17:56:35 Felixs-Mac-Pro kernel[0]: Sound assertion in AppleHDAWidget at line 2215 Mar 20 17:57:05 --- last message repeated 2 times --- Mar 20 17:57:25 Felixs-Mac-Pro kernel[0]: Sound assertion in AppleHDAWidget at line 2215 Mar 20 17:57:25 Felixs-Mac-Pro kernel[0]: Sound assertion in AppleHDAWidget at line 2215 Link to comment Share on other sites More sharing options...
Slice Posted March 20, 2016 Share Posted March 20, 2016 I see AppleHDA problem here, no more. Link to comment Share on other sites More sharing options...
liujianwei Posted March 20, 2016 Share Posted March 20, 2016 When boot Clover,CLOVERX64.efi can see El Capitan installed SSD,El Capitan installer USB,Recovery HD,but doesn't see my backup HDD.So it should search some file to identify a partition.For example CLOVERX64.efi see El Capitan installed SSD by search /System/Library/CoreServices/boot.efi.What's the file it searched when it see El Capitan installer USB and Recovery HD.Sorry for my bad english and stupid question,just curious.https://clover-wiki.zetam.org/Configuration/CPUchange Frequency MHz to 3,200,Bus Speed kHz 400,000this help my Intel Core 2 Q9650 Overclock 400 MHz x 8 Clover boot El Capitan stable without VID changed,without it Clover boot El Capitan run apps lag.I wonder why Chameleon doesn't need to set it manually but Clover need because Clover read it from DMI?don't need change Frequency MHz to 3,600,Bus Speed kHz 400,000this help my Intel Core 2 Q9650 Overclock 400 MHz x 9 Clover boot El Capitan stable without VID changed,this time El Capitan boot successful.I wonder before today I can't boot El Capitan without VID changed on 400 MHz x 9,why this happened,maybe there is some difference between fixhpet?But I still don't know how to change 800 MHz DDR2 SDRAM to 960 MHz DDR2 SDRAM that acturely run on BIOS.Here is my BIOS settingsThermal Management Control:EnablePPM(EIST) Mode:EnableLimit CPUID MaxVal:DisableC1E Function:AutoExecute Disable Bit:EnableVirtualization Technology:EnableCore Multi-Processing:EnableVoltage SettingCPU VID Special Add:AutoDRAM Voltage Control:2.100VSB Core/CPU PLL Voltage:1.55VNB Core Voltage:1.2200VCPU VTT Voltage:1.24VVcore Droop Control:EnableClockgen Voltage Control:3.45VCPU GTL 0/2 REF Volt:0.67XCPU GTL 1/3 REF Volt:0.67XNorth Bridge GTL REF Volt:0.67XFSB Vref:AutoGenie BIOS SettingCPU Clock Amplitude:800mvCPU CLock Ratio:9xCPU Clock:400 MHzTarget CPU Clock:3600 MHzDRAM Speed:AutoTarget DRAM Speed:DDR2 960DRAM TimingEnhance Data Transmitting:AutoEnhance Addressing:AutoT2 Dispatch:DisableFlex Memory Mode:AutoCAS Latency Time (tCL):AutoRAS# to CAS# Delay (tRCD):AutoRAS# Precharge (tRP):AutoPrecharge Delay (tRAS):AutoAll Precharge to ACT:AutoREF to ACT Delay (tRFC):AutoPerformance LVL(Read delay):AutoRead delay phase adjust:Press To EnterWrite to PRE Delay(tWR):AutoRank Write to Read(tWRT):AutoACT to ACT Delay(tRRD):AutoRead To Write delay(tRDWR):AutoRanks Write to Write(tWRWR):AutoRanks Write To Read(tWRRD):AutoRead CAS# Precharge(tRTP):AutoAll PRE to Refresh:Auto Link to comment Share on other sites More sharing options...
Slice Posted March 21, 2016 Share Posted March 21, 2016 Set bus clock to 399MHz to see the difference. 1 Link to comment Share on other sites More sharing options...
liujianwei Posted March 21, 2016 Share Posted March 21, 2016 Set bus clock to 399MHz to see the difference. thanks for your reply,after complete test I found this HPET patch http://www.insanelymac.com/forum/topic/223205-dsdt-editor-and-patcher/ is bad which I have use for years.Where does Clover HPET patch come from that seems like work?Here is my computer 399 MHz x 9,I will let you know if it is stable for two days. Thermal Management Control:Enable PPM(EIST) Mode:Enable Limit CPUID MaxVal:Disable C1E Function:Auto Execute Disable Bit:Enable Virtualization Technology:Enable Core Multi-Processing:Enable Voltage Setting CPU VID Special Add:Auto DRAM Voltage Control:2.100V SB Core/CPU PLL Voltage:1.55V NB Core Voltage:1.2200V CPU VTT Voltage:1.24V Vcore Droop Control:Enable Clockgen Voltage Control:3.45V CPU GTL 0/2 REF Volt:0.67X CPU GTL 1/3 REF Volt:0.67X North Bridge GTL REF Volt:0.67X FSB Vref:Auto Genie BIOS Setting CPU Clock Amplitude:800mv CPU CLock Ratio:9x CPU Clock:399 MHz Target CPU Clock:3591 MHz DRAM Speed:Auto Target DRAM Speed:DDR2 951 DRAM Timing Enhance Data Transmitting:Auto Enhance Addressing:Auto T2 Dispatch:Disable Flex Memory Mode:Auto CAS Latency Time (tCL):Auto RAS# to CAS# Delay (tRCD):Auto RAS# Precharge (tRP):Auto Precharge Delay (tRAS):Auto All Precharge to ACT:Auto REF to ACT Delay (tRFC):Auto Performance LVL(Read delay):Auto Read delay phase adjust:Press To Enter Write to PRE Delay(tWR):Auto Rank Write to Read(tWRT):Auto ACT to ACT Delay(tRRD):Auto Read To Write delay(tRDWR):Auto Ranks Write to Write(tWRWR):Auto Ranks Write To Read(tWRRD):Auto Read CAS# Precharge(tRTP):Auto All PRE to Refresh:Auto Link to comment Share on other sites More sharing options...
Slice Posted March 21, 2016 Share Posted March 21, 2016 Hi all, as noted here #288 ElCapitan probably uses new value in SMBIOS "platform-feature". I don't know what is it so I propose someone test it and found any difference with or without. <key>SMBIOS</key> <dict> <key>PlatformFeature</key> <integer>3</integer> You may see the value "platform-feature" in real Mac ioreg in the root iMac13,2 = 1 iMac17,1 = 0 MacPro6,1 = 4 .... CLOVERX64.efi-3366.zip There is also Clover Menu setting in SMBIOS section to test it once. Link to comment Share on other sites More sharing options...
Multisaft Posted March 21, 2016 Share Posted March 21, 2016 I see AppleHDA problem here, no more. is it possible that such a problem resolve in keyboard issues? any idea how to fix the hda problem? or where to ask? Link to comment Share on other sites More sharing options...
the_gael Posted March 21, 2016 Share Posted March 21, 2016 I have built a hack with an old motherboard I had H61-S2V-B3 Rev1.0 and have come across an issue I have not seen before. Up until now I have only used Clover with UEFI board and this is the first time I have used Legacy so I may have made a basic error. My problem is that when I go to NVRam Variables in the Clover prefs pane and select my EFI partition at "Force mount selected ESP at startup" it will not work it changes back to No each time. The same is true with "Save NVRAM contents to disk". I installed using Clover_v2.3k_3354 and Installed using selections ESP, Install boot0af in MBR,CloverEFI 64-bits SATA & Installed Clover preference Pane Have attached config in a text file Can someone suggest what I am doing wrong? This has always worked for me on UEFI installs. config.rtf Link to comment Share on other sites More sharing options...
