Clover General discussion

Matgen84 · September 29, 2023

@Slice

How to disable HWTarget for SMBIOS iMac20,1, please equivalent to SecurebootModel=Disabled). I believe you can solve the issue with Clover, kexts and blocked necessary for OCLP on Sonoma.

Thanks.

mariosun · September 29, 2023

45 minutes ago, Matgen84 said:

@Slice

How to disable HWTarget for SMBIOS iMac20,1, please equivalent to SecurebootModel=Disabled). I believe you can solve the issue with Clover, kexts and blocked necessary for OCLP on Sonoma.

Thanks.

do you mean this?

linked also to this commented parameter in my case?

Edited September 29, 2023 by mariosun

Matgen84 · September 29, 2023

14 minutes ago, mariosun said:

do you mean this?

linked also to this commented parameter in my case?

I means HWTarget=J185AP for SMBIOS iMac20,1 (Securebootmodel=j185 in my OC config.plist). Because I don't know if comment the key is enough !
ProtectSecureBoot=False for Clover and Opencore config.plist file.

mariosun · September 29, 2023

@Matgen84could you check in your misc/log if you have this line or similar one?

7:791  0:001  OC: Loading Apple Secure Boot with Disabled (level 0)

thank you

Matgen84 · September 29, 2023

1 hour ago, mariosun said:
@Matgen84could you check in your misc/log if you have this line or similar one?
7:791  0:001  OC: Loading Apple Secure Boot with Disabled (level 0)
thank you

@mariosun I'm not at home. So I can't verify a new log file.

Previous Clover debug log : with ProtectSecureboot=False and HWTarget=j185AP

131:328  0:024  OC: Loading Apple Secure Boot with Disabled (level 0)

Thank you.

Edited September 29, 2023 by Matgen84

datafeedexpert · October 5, 2023

@Slicenew AirportBrcmFixup 2.1.8 not injecting with Clover5155 is there any trick to do so with Ventura 13.6 (22G120)

I followed the below steps as per https://github.com/acidanthera/AirportBrcmFixup

Installation types

Clover Airport Fix + AirportBrcmFixup
Clover Airport Fix + AddProperties(fake device-id) + AirportBrcmFixup (preferable)
Clover Airport Fix + AirportBrcmFixup + FakePCIID + FakePCIID_Broadcom_WiFi.kext
AirportBrcmFixup + FakePCIID + FakePCIID_Broadcom_WiFi.kext

Solution Found on : https://applelife.ru/threads/airportbrcmfixup-lilu-plagin-s-naborom-patchej-dlja-wi-fi-kart-broadcom.2355103/page-16#post-751173
Edit : Get the KexttoPatch From Applelife.ru

Find:     776F776C5F7465737400776F776C00
Replace:  000000000000000000000000000000
Name:     com.apple.driver.AirPort.BrcmNIC

Find:     776F776C5F7465737400776F776C00
Replace:  000000000000000000000000000000
Name:     com.apple.driver.AirPort.BrcmNIC-MFG

Find:     776F776C5F7465737400776F776C00
Replace:  000000000000000000000000000000
Name:     com.apple.driver.AirPort.Brcm4360

Edited October 5, 2023 by datafeedexpert
Solution Found

Matgen84 · October 6, 2023

@datafeedexpert Thanks a lot. Can you post prebootlog.

Perhaps, I mistaken. Since macOS 11+, AirPortBrcm4360 has been completely removed. Only AirPortBrcmNIC is used. So either delete the 4360 plugin in AirportBrcmFixUp, or set a boot-args brcm-drivers=2. However, I haven't tested version 2.1.8 on Ventura, because I don't have Ventura installed on my hard disks.

datafeedexpert · October 6, 2023

11 minutes ago, Matgen84 said:

@datafeedexpert Thanks a lot. Can you post prebootlog.

Perhaps, I mistaken. Since macOS 11+, AirPortBrcm4360 has been completely removed. Only AirPortBrcmNIC is used. So either delete the 4360 plugin in AirportBrcmFixUp, or set a boot-args brcm-drivers=2. However, I haven't tested version 2.1.8 on Ventura, because I don't have Ventura installed on my hard disks.

preboot.logHere it is

Matgen84 · October 6, 2023

20 minutes ago, datafeedexpert said:

preboot.logHere it is

AirportBrcmFixup.kext (v.2.1.9) seems to in Off directory: no injection possible. Move to Other directory. If you kept all the plugins inside AirportBrcmFixup.kext: add brcm-drivers=2 to you boot-args. To point AirPortBrcmNIC. T's suitable to keep only AirPortBrcmNIC, no boot-args needed.

28:460  0:000  Disabled kext: Off\AirportBrcmFixup.kext (v.2.1.9)

In my opinion, if you have only one macOS version on your system: it's better to put all yours kexts in Other folder.

Edited October 6, 2023 by Matgen84

datafeedexpert · October 6, 2023

9 minutes ago, Matgen84 said:
AirportBrcmFixup.kext (v.2.1.9) seems to in Off directory: no injection possible. Move to Other directory. If you kept all the plugins inside AirportBrcmFixup.kext: add brcm-drivers=2 to you boot-args. To point AirPortBrcmNIC. T's suitable to keep only AirPortBrcmNIC, no boot-args needed.
28:460  0:000  Disabled kext: Off\AirportBrcmFixup.kext (v.2.1.9)
In my opinion, if you have only one macOS version on your system: it's better to put all yours kexts in Other folder.

I have a multiple macOS like Catalina , Bigsur, Monterey, Ventura {Windows11 23H2}, Right now moved AirportBrcmFixup.kext to off Folder Because i am using only KexttoPatch Option , Even i dont need brcm-drivers=2 bootarg , i checked Wifi/Bluetooth for all macOS and thats working perfectly...

cankiulascmnfye · October 7, 2023

@datafeedexpert AirportBrcmFixup contains 2 kexts as plugins, AirPortBrcm4360_Injector an AirPortBrcmNIC_Injector. In OpenCore you can disable them individually, but when using Clover you should delete AirPortBrcm4360_Injector since it is not compatible past macOS Catalina.

And like Matgen84 said: if you have only one version of macOS installed, all required kext should be placed in the "Other" folder.

datafeedexpert · October 7, 2023

4 hours ago, cankiulascmnfye said:

@datafeedexpert AirportBrcmFixup contains 2 kexts as plugins, AirPortBrcm4360_Injector an AirPortBrcmNIC_Injector. In OpenCore you can disable them individually, but when using Clover you should delete AirPortBrcm4360_Injector since it is not compatible past macOS Catalina.

And like Matgen84 said: if you have only one version of macOS installed, all required kext should be placed in the "Other" folder.

@cankiulascmnfyeThat i understand perfectly i tried using AirPortBrcmNIC_Injector alone & AirPortBrcmFixup / AirPortBrcmNIC_Injector but Ventura / Monterey cant activate Wifi, I reset / Clear NVRAM after Each & every reboot / Config.plist changes, BTW After that i completely removed AirportBrcmFixup & it's Plugin & used only KexttoPatch Find - Replace Values only & the Wifi works Perfectly even these Find / Replace value works with OC / Clover Both,

cankiulascmnfye · October 7, 2023

2 hours ago, datafeedexpert said:

@cankiulascmnfyeThat i understand perfectly i tried using AirPortBrcmNIC_Injector alone & AirPortBrcmFixup / AirPortBrcmNIC_Injector but Ventura / Monterey cant activate Wifi, I reset / Clear NVRAM after Each & every reboot / Config.plist changes, BTW After that i completely removed AirportBrcmFixup & it's Plugin & used only KexttoPatch Find - Replace Values only & the Wifi works Perfectly even these Find / Replace value works with OC / Clover Both,

Which machine are you referring to and what Wifi Card does it have?

Edited October 7, 2023 by cankiulascmnfye

datafeedexpert · October 7, 2023

2 hours ago, cankiulascmnfye said:

Which machine are you referring to and what Wifi Card does it have?

HP 600 G1 DM Haswell HD4600 BCM4360NG M.2

LockDown · October 20, 2023

Hi

May i know what is nvram2 differ from vanilla?

Can i use it on other previouses macOS or even OS X?

Slice · October 20, 2023

3 hours ago, LockDown said:

Hi

May i know what is nvram2 differ from vanilla?

Can i use it on other previouses macOS or even OS X?

Yes, you can.

nvram2 = nvram + additional functions. Some differences in output format.

LockDown · October 20, 2023

@Slice is it true that legacy can't boot without openruntime.efi?

My Desktop3, won't without it

Slice · October 20, 2023

8 minutes ago, LockDown said:

@Slice is it true that legacy can't boot without openruntime.efi?

My Desktop3, won't without it

With old Clover can. But now Clover included Opencore and I don't know if it will not work without openruntime.

LockDown · October 23, 2023

Hi @Slice

One more thing about nvram2 on my Desktop3 legacy boot...

nvram.plist in EFI is always ZERO byts. Its like clover is not saving during shutdown process. Log says that nvram2 is not found

I checked the new 80.save_nvram_plist.local and noticed that in line 47, it was changed from nvram to nvram2.

Im sure i have nvram2 in /usr/local/bin & the path is working, because if i execute nvram2 in terminal, it works

So what i did is, changed $(nvram2 -x -p) to $(/usr/local/bin/nvram2 -x -p) in line 47. And now everything works

Maybe /usr/local/bin PATH is not working during shutdown process?

Edited October 23, 2023 by LockDown

Slice · October 23, 2023

@LockDown,

It's new for me. May be you are right and nvram2 should be placed in more system folder like /usb/bin. This is a place for testing.

chris1111 · October 25, 2023

On 10/23/2023 at 2:52 AM, Slice said:

@LockDown,

It's new for me. May be you are right and nvram2 should be placed in more system folder like /usb/bin. This is a place for testing.

You can not put nvram 2 in /usr/bin in the new macOS System since BigSur 11

For doing this you need a SnapShot Disk

LockDown · October 26, 2023

1 hour ago, chris1111 said:

You can not put nvram 2 in /usr/bin in the new macOS System since BigSur 11

For doing this you need a SnapShot Disk

best to just edit 80.save_nvram_plist.local and change line 47. No need for snapshot

Slice · October 26, 2023

6 hours ago, LockDown said:

best to just edit 80.save_nvram_plist.local and change line 47. No need for snapshot

Thanks!

https://github.com/CloverHackyColor/CloverBootloader/commit/164c956e0cf496a408572fb1ca6f57202bba8739

naiclub · October 30, 2023

On 10/26/2023 at 1:52 PM, Slice said:

Thanks!

https://github.com/CloverHackyColor/CloverBootloader/commit/164c956e0cf496a408572fb1ca6f57202bba8739

hello I'd like you to take a look at this.

Spoiler

Please enter your choice: 7

[CHECK XCODE]

WORKSPACE: /Users/baby/CloverBootloader

EDK_TOOLS_PATH: /Users/baby/CloverBootloader/BaseTools

CONF_PATH: /Users/baby/CloverBootloader/Conf

Copying $EDK_TOOLS_PATH/Conf/build_rule.template

to /Users/baby/CloverBootloader/Conf/build_rule.txt

Copying $EDK_TOOLS_PATH/Conf/tools_def.template

to /Users/baby/CloverBootloader/Conf/tools_def.txt

Copying $EDK_TOOLS_PATH/Conf/target.template

to /Users/baby/CloverBootloader/Conf/target.txt

[BUILD CLOVER]

TOOLCHAIN_DIR: /Users/baby/CloverBootloader/toolchain

MTOC_PREFIX: /Users/baby/CloverBootloader/toolchain/bin/

NASM_PREFIX: /Users/baby/CloverBootloader/toolchain/bin/

NASM_VER: 2.16.01

Initializing workspace

recreate Conf folder

WORKSPACE: /Users/baby/CloverBootloader

EDK_TOOLS_PATH: /Users/baby/CloverBootloader/BaseTools

CONF_PATH: /Users/baby/CloverBootloader/Conf

Copying $EDK_TOOLS_PATH/Conf/build_rule.template

to /Users/baby/CloverBootloader/Conf/build_rule.txt

Copying $EDK_TOOLS_PATH/Conf/tools_def.template

to /Users/baby/CloverBootloader/Conf/tools_def.txt

Copying $EDK_TOOLS_PATH/Conf/target.template

to /Users/baby/CloverBootloader/Conf/target.txt

Running edk2 build for CloverX64 using the command:

build --cmd-len=50000 -D NO_GRUB_DRIVERS_EMBEDDED -D LESS_DEBUG --conf=/Users/baby/CloverBootloader/Conf -D USE_LOW_EBDA -p Clover.dsc -a X64 -b RELEASE -t XCODE15 -n 5

Build environment: macOS-14.2-x86_64-i386-64bit

Build start time: 12:41:42, Oct.30 2023

tools_def.txt parser: : warning: Line 2903: not correct assignment statement, skipped

WORKSPACE = /Users/baby/CloverBootloader

EDK_TOOLS_PATH = /Users/baby/CloverBootloader/BaseTools

CONF_PATH = /Users/baby/CloverBootloader/Conf

PYTHON_COMMAND = python3

Processing meta-data .

Architecture(s) = X64

Build target = RELEASE

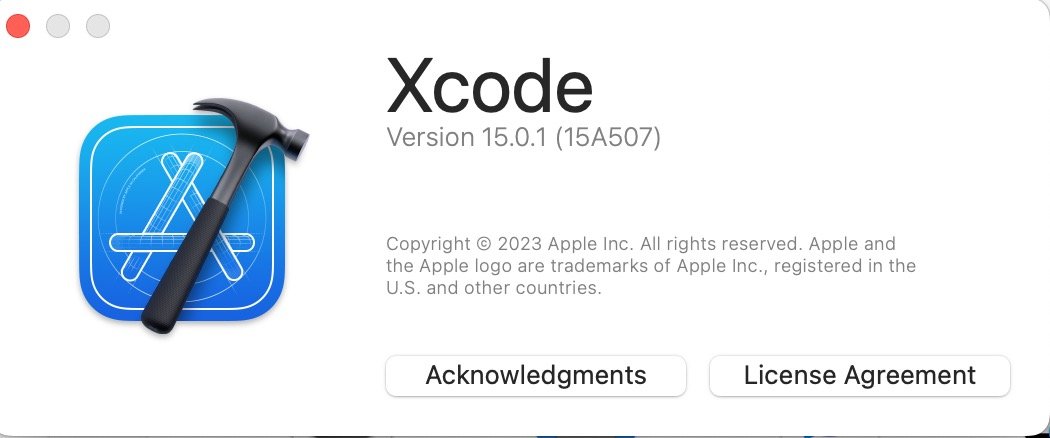

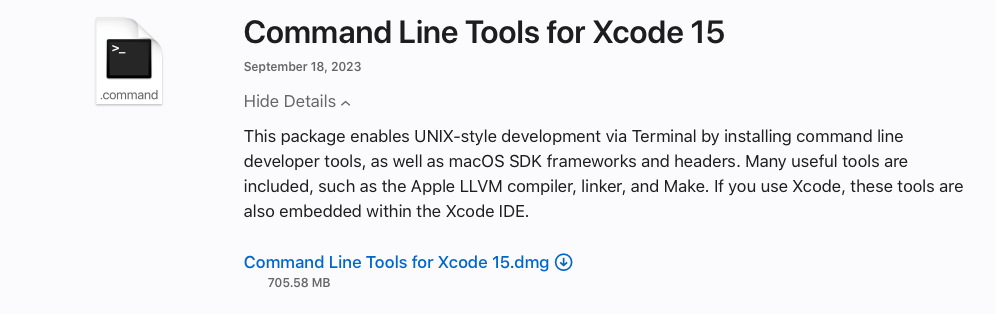

Toolchain = XCODE15

Active Platform = /Users/baby/CloverBootloader/Clover.dsc

..... done!

[CC] MemLogLib

make: Nothing to be done for `tbuild'.

[CC] Acpi

make: Nothing to be done for `tbuild'.

[CC] IoHighLevel

make: Nothing to be done for `tbuild'.

[CC] ARShiftU64

make: Nothing to be done for `tbuild'.

[CC] CompareMemWrapper

[CC] BitField

[CC] IoLib

[CC] CopyMem

[CC] Console

[CC] printf_lite

[CC] IoLibGcc

[CC] CheckSum

[CC] CopyMemWrapper

[CC] IoLibMmioBuffer

[CC] UefiDriverModel

[CC] IsZeroBufferWrapper

[SLINK] MemLogLibDefault

[CC] ChkStkGcc

[CC] MemLibGeneric

[NASM] IoFifo

[CC] Cpu

[CC] MemLibGuid

[CC] UefiLib

[CC] CpuDeadLoop

[CC] ScanMem16Wrapper

[CC] DivS64x64Remainder

[SLINK] BaseIoLibIntrinsic

[CC] ScanMem32Wrapper

[CC] DivU64x32

[CC] UefiLibPrint

[CC] ScanMem64Wrapper

[CC] DivU64x32Remainder

[CC] ScanMem8Wrapper

[CC] UefiNotTiano

[CC] DivU64x64Remainder

[CC] SetMem

[CC] FilePaths

[SLINK] UefiLib

[CC] SetMem16Wrapper

[CC] GetPowerOfTwo32

[CC] SetMem32Wrapper

[CC] GetPowerOfTwo64

[CC] SetMem64Wrapper

[CC] HighBitSet32

[CC] SetMemWrapper

[CC] HighBitSet64

[CC] ZeroMemWrapper

[CC] LRotU32

[SLINK] BaseMemoryLib

[CC] LRotU64

[CC] LShiftU64

[CC] LinkedList

[CC] LongJump

[CC] LowBitSet32

[CC] LowBitSet64

[CC] Math64

[CC] ModU64x32

[CC] MultS64x64

make: Nothing to be done for `tbuild'.

[CC] MultU64x32

[CC] AutoGen

[CC] DxeMpLib

[CC] MultU64x64

[CC] BdsBoot

[CC] CustomizedDisplayLib

[CC] RRotU32

[CC] RRotU64

[CC] Microcode

[CC] CustomizedDisplayLibInternal

[CC] RShiftU64

[CC] MpLib

[CC] SafeString

[SLINK] CustomizedDisplayLib

make: Nothing to be done for `tbuild'.

[CC] DebugHelp

make: Nothing to be done for `tbuild'.

[CC] BdsConnect

[CC] SetJump

make: Nothing to be done for `tbuild'.

[CC] OpenCoreAcpi

[CC] DebugPrint

[CC] String

[NASM] MpFuncs

[CC] OcAppleLog

[CC] BdsConsole

[CC] OpenCoreDevProps

[CC] SwapBytes16

[CC] OcLog

[CC] SwapBytes32

[CC] OpenCoreKernel

[SLINK] OcDebugLogLib

[CC] SwapBytes64

[CC] BdsMisc

[SLINK] DxeMpInitLib

[CC] AcpiDump

[CC] AppleKeyMap

[CC] SwitchStack

[CC] Unaligned

[CC] AcpiParser

[CC] EventQueue

[CC] OpenCoreKernelPatch

[NASM] CpuId

[CC] DevicePath

[CC] KeyHandler

[CC] String

[CC] OpenCoreMisc

[NASM] CpuIdEx

[SLINK] GenericBdsLib

[CC] OcAppleEventLib

[CC] AIK

[CC] OcAcpiLib

[CC] PointerHandler

[CC] OpenCoreNvram

[CC] AIKData

[NASM] DisableCache

[CC] AIKMap

[SLINK] OcAppleEventLib

[CC] OpenCorePlatform

[CC] AIKShim

[CC] OcAppleImg4Lib

[SLINK] OcAcpiLib

make: Nothing to be done for `tbuild'.

[CC] AIKSource

make: Nothing to be done for `tbuild'.

[CC] DER_CertCrl

[NASM] DisablePaging64

make: Nothing to be done for `tbuild'.

[CC] CxxSymbols

[CC] DER_Decode

[CC] AIKTarget

[CC] Fat

[CC] DER_Digest

[CC] AIKTranslate

[CC] OpenCoreUefi

[CC] DER_Keys

[CC] Header

[CC] AIM

[CC] oids

[NASM] EnableCache

[CC] DER_Img4Manifest

[CC] Macho32

[CC] AIT

[CC] Img4oids

[CC] OpenCoreUefiAudio

[SLINK] OcInputLib

[NASM] EnableDisableInterrupts

[SLINK] OcAppleImg4Lib

[CC] OcAppleDiskImageBlockIo

[CC] AsciiStringBuffer

[CC] OpenCoreUefiInOut

[CC] OcAppleDiskImageLib

[CC] FlexArray

[CC] Macho64

[CC] OcAppleDiskImageLibInternal

[CC] FlexString

[CC] GccInline

[CC] OpenCoreVault

[SLINK] OcFlexArrayLib

[SLINK] OcAppleDiskImageLib

[NASM] Lfence

make: Nothing to be done for `tbuild'.

[CC] ConsoleControl

make: Nothing to be done for `tbuild'.

[SLINK] OcMainLib

[CC] BlitBufferToVideo

make: Nothing to be done for `tbuild'.

[CC] Aes

[CC] ConsoleGop

[CC] Relocations

[CC] BlitVideoToBuffer

[CC] Symbols

[NASM] LongJump

[CC] Eg2Info

[SLINK] OcMachoLib

[CC] OcBlitLib

[CC] FramebufferInfo

make: Nothing to be done for `tbuild'.

[CC] BigNumMontgomery

[CC] LegacyRegionLock

[CC] GopPassThrough

[SLINK] OcBlitLib

[CC] LegacyRegionUnLock

make: Nothing to be done for `tbuild'.

[CC] BigNumPrimitives

[CC] Non-existing

make: Nothing to be done for `tbuild'.

[CC] AutoGen

[NASM] RdRand

[CC] OcConsoleLib

[CC] MemoryAlloc

[CC] Ifconfig

/Users/baby/CloverBootloader/OpenCorePkg/Library/OcMemoryLib/MemoryAlloc.c:39:36: error: expected ';' at end of declaration

UINTN MapKey = 0

^

;

1 error generated.

make: *** [/Users/baby/CloverBootloader/Build/Clover/RELEASE_XCODE15/X64/OpenCorePkg/Library/OcMemoryLib/OcMemoryLib/OUTPUT/MemoryAlloc.obj] Error 1

build.py...

: error 7000: Failed to execute command

make tbuild [/Users/baby/CloverBootloader/Build/Clover/RELEASE_XCODE15/X64/OpenCorePkg/Library/OcMemoryLib/OcMemoryLib]

build.py...

: error F002: Failed to build module

/Users/baby/CloverBootloader/OpenCorePkg/Library/OcMemoryLib/OcMemoryLib.inf [X64, XCODE15, RELEASE]

- Failed -

Build end time: 12:42:01, Oct.30 2023

Build total time: 00:00:20

baby@iMac CloverBootloader %

Slice · October 30, 2023

OK, thank for the note

expected ';' at end of declaration

I can fix at evening.

Clover General discussion

Recommended Posts

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Installation types

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites
