Clover General discussion

matxpa · December 8, 2023

1 hour ago, Slice said:

Can you upload here some of working build for our tests?

Hi

Here's what you want and what you need (BOOTX64.efi (and CLOVERX64.efi) after renaming the below efi components) of :

r5157_a9b0654 (20231112-03h48) --> Wifi BCM 4360 works CloverX64_r5157_20231112-03h48_a9b0654_XCODE15_RELEASE_master_local.efi

r5157_1914496 (20231116-19h14) --> Wifi BCM 4360 works CloverX64_r5157_20231116-19h14_1914496 _XCODE15_RELEASE_master_local..efi

r5157_bdb7a95 (20231116-22h10) --> Wifi BCM 4360 works CloverX64_r5157_20231116-22h10_bdb7a95_XCODE15_RELEASE_master_local.efi

What else ...

ACPI/DSDT/Fixes : FixAirport=TRUE

Devices/FakeID : WIFI=0x43a014e4

KernelAndKextPatches : BlockSkywalk = TRUE

RtVariables : CsrActiveConfig=0x803 (just F.Y.I)

kexts/14 : AMFIPass.kext, IOSkywalkFamily.kext, IO80211FamilyLegacy.kext and RestrictEvents.kext) --> latest OC or OCLP releases

kexts/Other : (Std kexts) ALC LILU WEG SMC(Virtual and specifics Asus X75VB kexts for RJ45, WebCam, KBD & PAD) --> latest OC or others Dev. releases

NB in KernelAndKextPatches/KextsToPatch

I don't need (Disabled=YES) the patch from www.applelife.ru (Broadcom 94360 activation AirPort.BrcmNIC)

Regards

Edited December 8, 2023 by matxpa
latest kexts releases

Slice · December 8, 2023

20 minutes ago, cankiulascmnfye said:

Well, I've notice that recently manual updating required todelete the whole EFI forlder and rebuilding it (put back kexts, config)

So far I provided:

Issue report (incl. Bootlog) here: https://github.com/CloverHackyColor/CloverBootloader/issues/651

Last working Clover folder here: https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/?do=findComment&comment=2814338

Also: we've established that BlockSkywalk most definitely stopped working after November 16th.

>> I think it's time that those who can start having a look at the source code.

As well your Clover is not working for me too. Same hang after BootKernelExtensions.kc as with many other versions if BlockSkywalk = true.

So the problem is not with the Clover version.

Slice · December 8, 2023

31 minutes ago, matxpa said:

@Slice

Hi

Here's what you want and what you need (BOOTX64.efi (and CLOVERX64.efi) after renaming the below efi components) of :

r5157_a9b0654 (20231112-03h48) --> Wifi BCM 4360 works   CloverX64_r5157_20231112-03h48_a9b0654_XCODE15_RELEASE_master_local.efi

r5157_1914496 (20231116-19h14) --> Wifi BCM 4360 works   CloverX64_r5157_20231116-19h14_1914496 _XCODE15_RELEASE_master_local..efi

r5157_bdb7a95 (20231116-22h10) --> Wifi BCM 4360 works   CloverX64_r5157_20231116-22h10_bdb7a95_XCODE15_RELEASE_master_local.efi

What else ...

ACPI/DSDT/Fixes : FixAirport=TRUE

Devices/FakeID : WIFI=0x43a014e4

  KernelAndKextPatches : BlockSkywalk = TRUE

RtVariables : CsrActiveConfig=0x803 (just F.Y.I)

kexts/14 : AMFIPass.kext, IOSkywalkFamily.kext, IO80211FamilyLegacy.kext and RestrictEvents.kext) --> latest OC or OCLP releases

kexts/Other : (Std kexts) ALC LILU WEG SMC(Virtual and specifics Asus X75VB kexts for RJ45, WebCam, KBD & PAD) --> latest OC or others Dev. releases

NB in KernelAndKextPatches/KextsToPatch

I don't need (Disabled=YES) the patch from www.applelife.ru (Broadcom 94360 activation AirPort.BrcmNIC)

Regards

Same result. It never worked for my hardware.

36 minutes ago, matxpa said:

@Slice

Hi

Here's what you want and what you need (BOOTX64.efi (and CLOVERX64.efi) after renaming the below efi components) of :

r5157_a9b0654 (20231112-03h48) --> Wifi BCM 4360 works   CloverX64_r5157_20231112-03h48_a9b0654_XCODE15_RELEASE_master_local.efi

r5157_1914496 (20231116-19h14) --> Wifi BCM 4360 works   CloverX64_r5157_20231116-19h14_1914496 _XCODE15_RELEASE_master_local..efi

r5157_bdb7a95 (20231116-22h10) --> Wifi BCM 4360 works   CloverX64_r5157_20231116-22h10_bdb7a95_XCODE15_RELEASE_master_local.efi

What else ...

ACPI/DSDT/Fixes : FixAirport=TRUE

Devices/FakeID : WIFI=0x43a014e4

  KernelAndKextPatches : BlockSkywalk = TRUE

RtVariables : CsrActiveConfig=0x803 (just F.Y.I)

kexts/14 : AMFIPass.kext, IOSkywalkFamily.kext, IO80211FamilyLegacy.kext and RestrictEvents.kext) --> latest OC or OCLP releases

kexts/Other : (Std kexts) ALC LILU WEG SMC(Virtual and specifics Asus X75VB kexts for RJ45, WebCam, KBD & PAD) --> latest OC or others Dev. releases

NB in KernelAndKextPatches/KextsToPatch

I don't need (Disabled=YES) the patch from www.applelife.ru (Broadcom 94360 activation AirPort.BrcmNIC)

Regards

Did you test on other computer?

matxpa · December 8, 2023

1 hour ago, Slice said:

Same result. It never worked for my hardware.

Did you test on other computer?

No I didn't coz on my Laptops Tinkpad T550 and T450 Wifi card is an Intel (AirportItlwm.kext) and on my Desktop Z270 Wifi is an USB Stick with a Realtek chip and Chris1111's Wireless USB Adapter.

And with (your latest commit) r5157_0eac408 (20231208-19h20) XCODE15 RELEASE boot hang after BootKernelExtensions.kc as all the commits after r5157_bdb7a95 (20231116-22h10) do.

But it's not significant, the two last commits don't concern bootloader code

Edited December 8, 2023 by matxpa
comment after test with r5157_0eac408 new build

cankiulascmnfye · December 8, 2023

1 hour ago, Slice said:

So the problem is not with the Clover version.

Your "modus operandi" leaves me baffled. I don't know whose problem it is but it's definetly no longer mine…

jsl2000 · December 9, 2023

6 hours ago, matxpa said:

@Slice

Hi

Here's what you want and what you need (BOOTX64.efi (and CLOVERX64.efi) after renaming the below efi components) of :

r5157_a9b0654 (20231112-03h48) --> Wifi BCM 4360 works   CloverX64_r5157_20231112-03h48_a9b0654_XCODE15_RELEASE_master_local.efi

r5157_1914496 (20231116-19h14) --> Wifi BCM 4360 works   CloverX64_r5157_20231116-19h14_1914496 _XCODE15_RELEASE_master_local..efi

r5157_bdb7a95 (20231116-22h10) --> Wifi BCM 4360 works   CloverX64_r5157_20231116-22h10_bdb7a95_XCODE15_RELEASE_master_local.efi

What else ...

ACPI/DSDT/Fixes : FixAirport=TRUE

Devices/FakeID : WIFI=0x43a014e4

  KernelAndKextPatches : BlockSkywalk = TRUE

RtVariables : CsrActiveConfig=0x803 (just F.Y.I)

kexts/14 : AMFIPass.kext, IOSkywalkFamily.kext, IO80211FamilyLegacy.kext and RestrictEvents.kext) --> latest OC or OCLP releases

kexts/Other : (Std kexts) ALC LILU WEG SMC(Virtual and specifics Asus X75VB kexts for RJ45, WebCam, KBD & PAD) --> latest OC or others Dev. releases

NB in KernelAndKextPatches/KextsToPatch

I don't need (Disabled=YES) the patch from www.applelife.ru (Broadcom 94360 activation AirPort.BrcmNIC)

Regards

Thanks, but replaced with your BOOTX64.efi & CLOVERX64.efi as well as your settings my Z690 hackintosh still got the same hang in early boot of Clover 5157 as before.

One more question did your CPU in X75 have AVX2 instruction codes because ordinary Ivy Bridge's CPU need more to boot Ventura & Sonoma in my case ?

Edited December 9, 2023 by jsl2000

Slice · December 9, 2023

11 hours ago, cankiulascmnfye said:

Your "modus operandi" leaves me baffled. I don't know whose problem it is but it's definetly no longer mine…

You are right and thank you for the investigation. There are two questions:

1. Why Clover before 16 November works for you and later not? While opencore always work. There is definitely mistake in 32fbf76 commit.

2. Why your working Clover is not working for me and some other users? Hardware dependency?

I see no how these two questions are connected.

miliuco · December 9, 2023

@matxpa

Tried your settings, no success. I can't boot Clover with BlockSkywalk.

Not clear why. I can say same words as @Slice in the above post.

Slice · December 9, 2023

Even latest Clover works with BlockSkywalk in QEMU.

MakAsrock · December 9, 2023

macOS 13.6.1 (22G313)
Xcode 14.3.1
Build version 14E300c
Apple clang version 14.0.3 (clang-1403.0.22.14.1)
Target: x86_64-apple-darwin22.6.0
Clover revision: 5156 (master, commit 0eac4088b)
2023-12-08 19:20:23 +0300
0eac4088b1c34cf84d2d7ad29d6cbd95a8d5755b
"Args: -D NO_GRUB_DRIVERS_EMBEDDED -D LESS_DEBUG -t GCC131 | --cmd-len=50000 -D NO_GRUB_DRIVERS_EMBEDDED -D LESS_DEBUG --conf=/Users/YitzhakB/src/CloverBootloader/Conf -D USE_LOW_EBDA -a X64 -b RELEASE -t GCC131 -n 21 | OS: 13.6.1"
build all and complete fine.

Bat on macOS 14.1.2 (23B92)
xcodebuild -version
Xcode 15.0
Build version 15A240d
Clover r5156 (SHA: 0eac4088b)
TOOLCHAIN: GCC131
Python 3.9.6
build.py...
: error 7000: Failed to execute command
make tbuild [/Users/yitzhakbronstein/src/CloverBootloader/Build/Clover/RELEASE_GCC131/X64/rEFIt_UEFI/refit]

build.py...
: error F002: Failed to build module
/Users/yitzhakbronstein/src/CloverBootloader/rEFIt_UEFI/refit.inf [X64, GCC131, RELEASE]

- Failed -
Build end time: 13:00:58, Dec.09 2023
Build total time: 00:01:06

Saving session...
...copying shared history...
...saving history...truncating history files...
...completed.
Deleting expired sessions...none found.

And not works with BlockSkywalk. Boot hang after BootKernelExtensions.kc.

Edited December 9, 2023 by MakAsus

jsl2000 · December 9, 2023

On 12/9/2023 at 8:37 AM, jsl2000 said:

Thanks, but replaced with your BOOTX64.efi & CLOVERX64.efi as well as your settings my Z690 hackintosh still got the same hang in early boot of Clover 5157 as before.

One more question did your CPU in X75 have AVX2 instruction codes because ordinary Ivy Bridge's CPU need more to boot Ventura & Sonoma in my case ?

It's very strange that Clover 5156 specific version can boot Sonoma 14.2 in my B85M-G hackintosh with BlockSkywalk enabled and WiFiBCM4352 working too after applied OCLP 1.3.0n.

I'm very glad to confirm that this Clover 5156 version also worked in my Z97 hackintosh too !

Unfortunately it still got hang in early boot in my Z690, Z490, X299 & Z370 hackintoshs as well as Haswell laptop if BlockSkywalk was enabled.

In my FX-6300 hackintosh it got red screen panic if BlockSkywalk quirk was enabled.

Edited December 12, 2023 by jsl2000

cankiulascmnfye · December 9, 2023

4 hours ago, Slice said:

You are right and thank you for the investigation. There are two questions:

1. Why Clover before 16 November works for you and later not? While opencore always work. There is definitely mistake in 32fbf76 commit.

2. Why your working Clover is not working for me and some other users? Hardware dependency?

I see no how these two questions are connected.

To 1: I am a user, not a developer. I can't answer that. I can only tell you my experiences: my system boots with BootSkywalk enabled up to Clover r5156 commit bdb7a95d9. And this is the case for most uses who need BlockSkywalk: it works up to November 16th (for some) but definitely for nobody after November 16th.

To 2: The Clover folder I uploaded uses the build from your repo, as compiled by the workflow in its "ACTION" section. It didn't compile it. The only Hardware aspects where I see a possible difference is that my machine uses an unlocked BIOS (1vyRain) which has CFG-Lock disabled and the Wifi whitelist removed so 3rd Part Wifi/BT cards by Broadcom e.g. can be used.

Slice · December 9, 2023

@jsl2000

Thanks for the confirmation. I also see that my proposition about toolset is wrong. This Clover compiled by gcc131 and OK.

matxpa · December 9, 2023

6 hours ago, Slice said:

@jsl2000

Thanks for the confirmation. I also see that my proposition about toolset is wrong. This Clover compiled by gcc131 and OK.

Hi

and with Xcode15 too, if I remember (glad to see that jsl2000 trust it now)

Slice could you add a DBG Msg in /.../CloverBootloader/rEFIt_UEFI/refit/main.cpp line 1258 like the lines below

if (gSettings.KernelAndKextPatches.BlockSkywalk) {
DBG("\t\t--> At Src code line (if) of /.../CloverBootloader/rEFIt_UEFI/refit/main.cpp boolean BlockSkywalk value below is\n"); // to be sur where DBG MSG comes from
DBG("\t\t----> KernelAndKextPatches.BlockSkywalk was set to %s\n", gSettings.KernelAndKextPatches.BlockSkywalk ? "TRUE" : "FALSE");

...

}else{

DBG("\t\t--> At Src code line (else) of /.../CloverBootloader/rEFIt_UEFI/refit/main.cpp boolean BlockSkywalk value below is\n"); // to be sur where DBG MSG comes from
DBG("\t\t---> KernelAndKextPatches.BlockSkywalk was set to %s\n", gSettings.KernelAndKextPatches.BlockSkywalk ? "TRUE" : "FALSE");
}

with commit 0eac408 (last one) Boot Log extracted lines with BlockSkywalk set to FALSE and kexts/14 IOSkywalkFamily.kext Disabled otherwise boot hang immed.

0:157 0:044 === [ Starting Clover ] =========================
0:157 0:000 Now is 09.12.2023, 16:26:12 (GMT)
0:157 0:000 Starting Clover revision: 5157 (HEAD, commit 0eac4088b) on American Megatrends EFI
0:157 0:000 Build id: 20231208192023-0eac408-dirty
0:157 0:000 Build with: [Args: -D NO_GRUB_DRIVERS_EMBEDDED -D LESS_DEBUG -t XCODE15 | --cmd-len=50000 -D NO_GRUB_DRIVERS_EMBEDDED -D LESS_DEBUG --conf=/Users/meunier/CloverBootloader/Conf -D USE_LOW_EBDA -a X64 -b RELEASE -t XCODE15 -n 5 | OS: 14.1.2]
...

27:312 0:000 Bridge kext to OC : Path=AirPortBrcmNIC.kext
27:312 0:000 info plist path: Kexts\14\IO80211FamilyLegacy.kext\Contents\PlugIns\AirPortBrcmNIC.kext\Contents\Info.plist
27:312 0:000 InfoPlistPath=Kexts\14\IO80211FamilyLegacy.kext\Contents\PlugIns\AirPortBrcmNIC.kext\Contents\Info.plist
27:316 0:004 assign executable as 'Contents\MacOS\AirPortBrcmNIC'
27:316 0:000 --> At Src code line Num 1278 (else) of /.../CloverBootloader/rEFIt_UEFI/refit/main.cpp boolean BlockSkywalk value below is
27:316 0:000 ---> KernelAndKextPatches.BlockSkywalk was set to FALSE
27:321 0:005 Start 'OpenRuntime.efi' : Status Success
27:321 0:000 OC: OcMiscEarlyInit...
27:321 0:000 OC: OpenCore REL-102-2023-12-09 is loading in Optional mode (0/0)...
27:321 0:000 OC: OcMiscMiddleInit...
...

And then revert repo content to bdb7a95 commit

git checkout bdb7a95
git reset --hard bdb7a95

modify ~/CloverBootloader/rEFIt_UEFI/refit/main.cpp line at 1197 (r5157 (bdb7a95) November 12 20h.. commit)

Boot Log extracted lines with BlockSkywalk set to TRUE and kexts/14 IOSkywalkFamily.kext

0:157 0:044 === [ Starting Clover ] =========================
0:157 0:000 Now is 09.12.2023, 16:44:57 (GMT)
0:157 0:000 Starting Clover revision: 5157 (branch-2, commit bdb7a95d9) on American Megatrends EFI
0:157 0:000 Build id: 20231116221031-bdb7a95-dirty
0:157 0:000 Build with: [Args: -D NO_GRUB_DRIVERS_EMBEDDED -D LESS_DEBUG -t XCODE15 | --cmd-len=50000 -D NO_GRUB_DRIVERS_EMBEDDED -D LESS_DEBUG --conf=/Users/meunier/CloverBootloader/Conf -D USE_LOW_EBDA -a X64 -b RELEASE -t XCODE15 -n 5 | OS: 14.1.2]
...

9:391 0:000 AddKextsInArray from 14
9:391 0:000 ->Extra kext: 14\CryptexFixup.kext (v.1.0.3)
9:391 0:000 ->Extra kext: 14\AMFIPass.kext (v.1.4.0)
9:391 0:000 ->Extra kext: 14\IOSkywalkFamily.kext (v.1.0)
9:391 0:000 ->Extra kext: 14\RestrictEvents.kext (v.1.1.4)
9:391 0:000 ->Extra kext: 14\BlueToolFixup.kext (v.2.6.9)
9:391 0:000 ->Extra kext: 14\IO80211FamilyLegacy.kext (v.1200.12.2b1)
9:391 0:000 |-- PlugIn kext: 14\IO80211FamilyLegacy.kext\Contents\PlugIns\AirPortBrcmNIC.kext (v.1400.1.1)
...

9:400 0:000 Bridge kext to OC : Path=IOSkywalkFamily.kext
9:400 0:000 info plist path: Kexts\14\IOSkywalkFamily.kext\Contents\Info.plist
9:400 0:000 InfoPlistPath=Kexts\14\IOSkywalkFamily.kext\Contents\Info.plist
9:405 0:004 assign executable as 'Contents\MacOS\IOSkywalkFamily'
...

9:519 0:000 Bridge kext to OC : Path=AirPortBrcmNIC.kext
9:519 0:000 info plist path: Kexts\14\IO80211FamilyLegacy.kext\Contents\PlugIns\AirPortBrcmNIC.kext\Contents\Info.plist
9:519 0:000 InfoPlistPath=Kexts\14\IO80211FamilyLegacy.kext\Contents\PlugIns\AirPortBrcmNIC.kext\Contents\Info.plist
9:523 0:003 assign executable as 'Contents\MacOS\AirPortBrcmNIC'
9:523 0:000 --> At Src code line Num 1197 (if) of /.../CloverBootloader/rEFIt_UEFI/refit/main.cpp boolean BlockSkywalk value below is
9:523 0:000 ----> KernelAndKextPatches.BlockSkywalk was set to TRUE
9:528 0:005 Start 'OpenRuntime.efi' : Status Success
9:528 0:000 OC: OcMiscEarlyInit...
9:528 0:000 OC: OpenCore REL-102-2023-12-09 is loading in Optional mode (0/0)...
9:528 0:000 OC: OcMiscMiddleInit...
...

Regards

Edited December 9, 2023 by matxpa

cankiulascmnfye · December 10, 2023

@matxpa If you can provide a compiled build of your merged version, I could test it on my machine.

datafeedexpert · December 10, 2023

On 12/8/2023 at 11:35 PM, matxpa said:

@Slice

Hi

Here's what you want and what you need (BOOTX64.efi (and CLOVERX64.efi) after renaming the below efi components) of :

r5157_a9b0654 (20231112-03h48) --> Wifi BCM 4360 works   CloverX64_r5157_20231112-03h48_a9b0654_XCODE15_RELEASE_master_local.efi

r5157_1914496 (20231116-19h14) --> Wifi BCM 4360 works   CloverX64_r5157_20231116-19h14_1914496 _XCODE15_RELEASE_master_local..efi

r5157_bdb7a95 (20231116-22h10) --> Wifi BCM 4360 works   CloverX64_r5157_20231116-22h10_bdb7a95_XCODE15_RELEASE_master_local.efi

What else ...

ACPI/DSDT/Fixes : FixAirport=TRUE

Devices/FakeID : WIFI=0x43a014e4

  KernelAndKextPatches : BlockSkywalk = TRUE

RtVariables : CsrActiveConfig=0x803 (just F.Y.I)

kexts/14 : AMFIPass.kext, IOSkywalkFamily.kext, IO80211FamilyLegacy.kext and RestrictEvents.kext) --> latest OC or OCLP releases

kexts/Other : (Std kexts) ALC LILU WEG SMC(Virtual and specifics Asus X75VB kexts for RJ45, WebCam, KBD & PAD) --> latest OC or others Dev. releases

NB in KernelAndKextPatches/KextsToPatch

I don't need (Disabled=YES) the patch from www.applelife.ru (Broadcom 94360 activation AirPort.BrcmNIC)

Regards

@matxpa i followed these step but still i unable to boot sonoma , there is early KP , while sonoma boot if i moved IOS family kexts from 14 folder or False = Blockskywalk

matxpa · December 10, 2023

Just now, cankiulascmnfye said:

@matxpa If you can provide a compiled build of your merged version, I could test it on my machine.

Hi

r5156_bdb7a95 with BlockSkywalk set to TRUE and kexts/14 IOSkywalkFamily.kext --> BCM4360 (0x43a014e4) work fine

Clover X64 r5156_bdb7a95 (20231116-22h10) XCODE15 RELEASE --> CloverX64_r5156_20231116-22h10_bdb7a95_XCODE15_RELEASE_master_local.efi

r5156_0eac408 with BlockSkywalk set to FALSE and kexts/14 IOSkywalkFamily.kext Disabled (in block kexts in Clover submenu before booting on Sonoma (SSD or HD) Device--> BCM4360 cant' work),

if BlockSkywalk stay TRUE and IOSkywalkFamily.kext stay Enabled --> boot hangs (after +/- 10 debug lines in verbose mode)

Clover X64 r5156_0eac408 (20231208-19h20) XCODE15 RELEASE --> CloverX64_r5156_20231208-19h20_0eac408_XCODE15_RELEASE_master_local.efi

You have to rename those '.efi' to BOOTX64.efi and CLOVERX64.efi (but you know that)

Regards

matxpa · December 10, 2023

33 minutes ago, datafeedexpert said:

@matxpa i followed these step but still i unable to boot sonoma , there is early KP , while sonoma boot if i moved IOS family kexts from 14 folder or False = Blockskywalk

Hi

If you use a Clover build with a9b0654 commit to bdb7a95 commit, it could (fingers crossed) work with BlockSkywalk set to TRUE and kexts/(14 or Other) IOSkywalkFamily.kext (and IO80211FamilyLegacy.kext)

but it depends of (what Bios ? SMBios ? config content (DSDT/SSDT patches, KestToLoad patches, quirks, devices list and/or content ?), so it works on some Hardware, not on all (it's not necessary a Hard pbm)

If you use a Clover build with commit 32fbf76 commit (you can't with this commit Clover build fails) to the last one bd45a8c with BlockSkywalk set to TRUE and kexts/(14 or Other) IOSkywalkFamily.kext (and IO80211FamilyLegacy.kext) boot hangs (after +/- 10 debug lines in verbose mode), and with BlockSkywalk set to FALSE and kexts/(14 or Other) IOSkywalkFamily.kext deactivated --> Sonoma boot (without BCM Wifi)

So since commit 32fbf76 apple.Skywalk kext blocking as OC does can't be no more done with Clover. (boot stuck with a page allocation pbm)

last lines of a PreBoot Log when Sonoma Clover boot hang

...

31:691 0:000 OCABC: Patching safe mode sur-2 at off ACF4
31:691 0:000 OCABC: AllocPages 2 0xC684C000 (512) - Success
31:692 0:000 OCABC: AllocPages 2 0xC684B000 (1) - Success
31:692 0:000 OC: Supported boot capabilities 4
31:693 0:001 OCABC: AllocPages 1 0xC67F4000 (1) - Success
31:694 0:001 OC: Opening file System\Library\Kernels\kernel with 1 mode gave - Not Found
31:694 0:000 OC: Opening file \1B929771-57FB-4FA4-8BC6-DE76BF06BAD1 with 1 mode gave - Success
31:694 0:000 OC: Opening file \1B929771-57FB-4FA4-8BC6-DE76BF06BAD1\System\Library\CoreServices\com.apple.Boot.plist with 1 mode gave - Not Found
31:697 0:002 OC: Opening file Library\Preferences\SystemConfiguration\com.apple.Boot.plist with 1 mode gave - Success
31:698 0:001 OCABC: AllocPages 2 0xFB00000 (71015) - Not Found
31:730 0:031 RestoreConfig called Param1=2
41:757 10:026 OCB: InternalEfiExit C78E2E18 - Aborted / Unsupported
41:757 0:000 StartImage failed : Aborted

Regards

Edited December 10, 2023 by matxpa

cankiulascmnfye · December 10, 2023

2 hours ago, matxpa said:

Hi

r5156_bdb7a95 with BlockSkywalk set to TRUE and kexts/14 IOSkywalkFamily.kext --> BCM4360 (0x43a014e4) work fine

Clover X64 r5156_bdb7a95 (20231116-22h10) XCODE15 RELEASE --> CloverX64_r5156_20231116-22h10_bdb7a95_XCODE15_RELEASE_master_local.efi

r5156_0eac408 with BlockSkywalk set to FALSE and kexts/14 IOSkywalkFamily.kext Disabled (in block kexts in Clover submenu before booting on Sonoma (SSD or HD) Device--> BCM4360 cant' work),

if BlockSkywalk stay TRUE and IOSkywalkFamily.kext stay Enabled --> boot hangs (after +/- 10 debug lines in verbose mode)

Clover X64 r5156_0eac408 (20231208-19h20) XCODE15 RELEASE --> CloverX64_r5156_20231208-19h20_0eac408_XCODE15_RELEASE_master_local.efi

You have to rename those '.efi' to BOOTX64.efi and CLOVERX64.efi (but you know that)

Regards

Thank you very much!

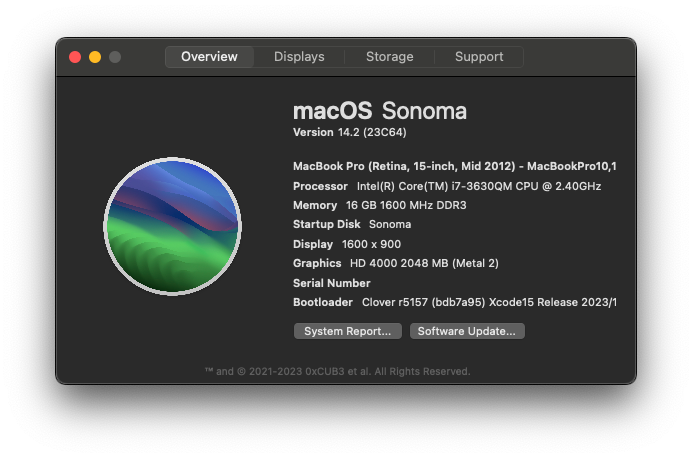

I tested Clover X64 r5156_bdb7a95 (it's detected a r5157, btw) and it boots! Wi-Fi and BT are workig (BCM4352). Awesome 😍


Edited December 10, 2023 by cankiulascmnfye

miliuco · December 10, 2023

@matxpa

To add debug info, is it in this way?

    if (gSettings.KernelAndKextPatches.BlockSkywalk) {

    	// to be sur where DBG MSG comes from
        DBG("\t\t--> At Src code line (if) of /.../CloverBootloader/rEFIt_UEFI/refit/main.cpp boolean BlockSkywalk value below is\n");
        DBG("\t\t----> KernelAndKextPatches.BlockSkywalk was set to %s\n", gSettings.KernelAndKextPatches.BlockSkywalk ? "TRUE" : "FALSE");

        mOpenCoreConfiguration.Kernel.Block.Count = 1;
        mOpenCoreConfiguration.Kernel.Block.AllocCount = 1;
        mOpenCoreConfiguration.Kernel.Block.ValueSize = sizeof(__typeof_am__(**mOpenCoreConfiguration.Kernel.Block.Values));
        valuesSize = mOpenCoreConfiguration.Kernel.Block.AllocCount*sizeof(*mOpenCoreConfiguration.Kernel.Block.Values);
        mOpenCoreConfiguration.Kernel.Block.Values = (OC_KERNEL_BLOCK_ENTRY**)malloc(valuesSize);

        // to be sur where DBG MSG comes from
    	DBG("\t\t--> At Src code line (else) of /.../CloverBootloader/rEFIt_UEFI/refit/main.cpp boolean BlockSkywalk value below is\n");
        DBG("\t\t---> KernelAndKextPatches.BlockSkywalk was set to %s\n", gSettings.KernelAndKextPatches.BlockSkywalk ? "TRUE" : "FALSE");

matxpa · December 10, 2023

27 minutes ago, miliuco said:

@matxpa

To add debug info, is it in this way?

    if (gSettings.KernelAndKextPatches.BlockSkywalk) {

    	// to be sur where DBG MSG comes from
        DBG("\t\t--> At Src code line (if) of /.../CloverBootloader/rEFIt_UEFI/refit/main.cpp boolean BlockSkywalk value below is\n");
        DBG("\t\t----> KernelAndKextPatches.BlockSkywalk was set to %s\n", gSettings.KernelAndKextPatches.BlockSkywalk ? "TRUE" : "FALSE");

        mOpenCoreConfiguration.Kernel.Block.Count = 1;
        mOpenCoreConfiguration.Kernel.Block.AllocCount = 1;
        mOpenCoreConfiguration.Kernel.Block.ValueSize = sizeof(__typeof_am__(**mOpenCoreConfiguration.Kernel.Block.Values));
        valuesSize = mOpenCoreConfiguration.Kernel.Block.AllocCount*sizeof(*mOpenCoreConfiguration.Kernel.Block.Values);
        mOpenCoreConfiguration.Kernel.Block.Values = (OC_KERNEL_BLOCK_ENTRY**)malloc(valuesSize);

        // to be sur where DBG MSG comes from
    	DBG("\t\t--> At Src code line (else) of /.../CloverBootloader/rEFIt_UEFI/refit/main.cpp boolean BlockSkywalk value below is\n");
        DBG("\t\t---> KernelAndKextPatches.BlockSkywalk was set to %s\n", gSettings.KernelAndKextPatches.BlockSkywalk ? "TRUE" : "FALSE");

Hi

if (gSettings.KernelAndKextPatches.BlockSkywalk) {
DBG("\t\t--> At Src code line Num 1197 (if) of /.../CloverBootloader/rEFIt_UEFI/refit/main.cpp boolean BlockSkywalk value below is\n"); // to be sur where DBG MSG comes from
DBG("\t\t----> KernelAndKextPatches.BlockSkywalk was set to %s\n", gSettings.KernelAndKextPatches.BlockSkywalk ? "TRUE" : "FALSE");
mOpenCoreConfiguration.Kernel.Block.Count = 1;
mOpenCoreConfiguration.Kernel.Block.AllocCount = 1;
mOpenCoreConfiguration.Kernel.Block.ValueSize = sizeof(__typeof_am__(**mOpenCoreConfiguration.Kernel.Block.Values));
valuesSize = mOpenCoreConfiguration.Kernel.Block.AllocCount*sizeof(*mOpenCoreConfiguration.Kernel.Block.Values);
mOpenCoreConfiguration.Kernel.Block.Values = (OC_KERNEL_BLOCK_ENTRY**)malloc(valuesSize);

memset(mOpenCoreConfiguration.Kernel.Block.Values, 0, valuesSize);

mOpenCoreConfiguration.Kernel.Block.Values[0] = (__typeof_am__(*mOpenCoreConfiguration.Kernel.Block.Values))malloc(mOpenCoreConfiguration.Kernel.Block.ValueSize);
memset(mOpenCoreConfiguration.Kernel.Block.Values[0], 0, mOpenCoreConfiguration.Kernel.Block.ValueSize);
mOpenCoreConfiguration.Kernel.Block.Values[0]->Enabled = 1;
OC_STRING_ASSIGN(mOpenCoreConfiguration.Kernel.Block.Values[0]->Arch, OC_BLOB_GET(&mOpenCoreConfiguration.Kernel.Scheme.KernelArch));
OC_STRING_ASSIGN(mOpenCoreConfiguration.Kernel.Block.Values[0]->Comment, "");
OC_STRING_ASSIGN(mOpenCoreConfiguration.Kernel.Block.Values[0]->MaxKernel, "");
OC_STRING_ASSIGN(mOpenCoreConfiguration.Kernel.Block.Values[0]->MinKernel, "23");
OC_STRING_ASSIGN(mOpenCoreConfiguration.Kernel.Block.Values[0]->Identifier, "com.apple.iokit.IOSkywalkFamily");
OC_STRING_ASSIGN(mOpenCoreConfiguration.Kernel.Block.Values[0]->Strategy, "Exclude");
}else{
DBG("\t\t--> At Src code line Num 1217 (else) of /.../CloverBootloader/rEFIt_UEFI/refit/main.cpp boolean BlockSkywalk value below is\n"); // to be sur where DBG MSG comes from
DBG("\t\t---> KernelAndKextPatches.BlockSkywalk was set to %s\n", gSettings.KernelAndKextPatches.BlockSkywalk ? "TRUE" : "FALSE");
}

The 'else' step was added, the first message of twos (below if and else) to be certain that the content of the boolean BlockSkywalk in the second one is correct and what really your choice in config or modified in Clover SubMenu.

Change (or remove) the values of Src code line Num in first message (1197 and 1217) went from "main.ccp" of bdb7a95 commit Clover Repo content.

Regards

Edited December 10, 2023 by matxpa

matxpa · December 10, 2023

2 hours ago, cankiulascmnfye said:

Thank you very much!

I tested Clover X64 r5156_bdb7a95 (it's detected a r5157, btw) and it boots! Wi-Fi and BT are workig (BCM4352). Awesome 😍

Hi

r5157 yes coz' Slice's r5156 had been released and published so new commits are (a beta) r5157 one.

Cosmetic modifications in buildme, ebuild.sh, REFIT_MAINMENU_SCREEN.cpp, CloverVersion.cpp and CloverVersion.h and main.cpp (and tools_def.template to trap build errors on Xcode8,14 and 15)

Regards

Edited December 10, 2023 by matxpa

cankiulascmnfye · December 10, 2023

@matxpa Okay. So are you going to create a pull request so that your fix will be integrated into the main branch?

Edited December 10, 2023 by cankiulascmnfye

Slice · December 11, 2023

10 hours ago, matxpa said:

Hi

if (gSettings.KernelAndKextPatches.BlockSkywalk) {
   DBG("\t\t--> At Src code line Num 1197 (if) of /.../CloverBootloader/rEFIt_UEFI/refit/main.cpp boolean BlockSkywalk value below is\n"); // to be sur where DBG MSG comes from
DBG("\t\t----> KernelAndKextPatches.BlockSkywalk was set to %s\n", gSettings.KernelAndKextPatches.BlockSkywalk ? "TRUE" : "FALSE");
mOpenCoreConfiguration.Kernel.Block.Count = 1;
mOpenCoreConfiguration.Kernel.Block.AllocCount = 1;
mOpenCoreConfiguration.Kernel.Block.ValueSize = sizeof(__typeof_am__(**mOpenCoreConfiguration.Kernel.Block.Values));
valuesSize = mOpenCoreConfiguration.Kernel.Block.AllocCount*sizeof(*mOpenCoreConfiguration.Kernel.Block.Values);
mOpenCoreConfiguration.Kernel.Block.Values = (OC_KERNEL_BLOCK_ENTRY**)malloc(valuesSize);

memset(mOpenCoreConfiguration.Kernel.Block.Values, 0, valuesSize);

mOpenCoreConfiguration.Kernel.Block.Values[0] = (__typeof_am__(*mOpenCoreConfiguration.Kernel.Block.Values))malloc(mOpenCoreConfiguration.Kernel.Block.ValueSize);
memset(mOpenCoreConfiguration.Kernel.Block.Values[0], 0, mOpenCoreConfiguration.Kernel.Block.ValueSize);
mOpenCoreConfiguration.Kernel.Block.Values[0]->Enabled = 1;
OC_STRING_ASSIGN(mOpenCoreConfiguration.Kernel.Block.Values[0]->Arch, OC_BLOB_GET(&mOpenCoreConfiguration.Kernel.Scheme.KernelArch));
OC_STRING_ASSIGN(mOpenCoreConfiguration.Kernel.Block.Values[0]->Comment, "");
OC_STRING_ASSIGN(mOpenCoreConfiguration.Kernel.Block.Values[0]->MaxKernel, "");
OC_STRING_ASSIGN(mOpenCoreConfiguration.Kernel.Block.Values[0]->MinKernel, "23");
OC_STRING_ASSIGN(mOpenCoreConfiguration.Kernel.Block.Values[0]->Identifier, "com.apple.iokit.IOSkywalkFamily");
OC_STRING_ASSIGN(mOpenCoreConfiguration.Kernel.Block.Values[0]->Strategy, "Exclude");
}else{
   DBG("\t\t--> At Src code line Num 1217 (else) of /.../CloverBootloader/rEFIt_UEFI/refit/main.cpp boolean BlockSkywalk value below is\n"); // to be sur where DBG MSG comes from
   DBG("\t\t---> KernelAndKextPatches.BlockSkywalk was set to %s\n", gSettings.KernelAndKextPatches.BlockSkywalk ? "TRUE" : "FALSE");
}

The 'else' step was added, the first message of twos (below if and else) to be certain that the content of the boolean BlockSkywalk in the second one is correct and what really your choice in config or modified in Clover SubMenu.

Change (or remove) the values of Src code line Num in first message (1197 and 1217) went from "main.ccp" of bdb7a95 commit Clover Repo content.

Regards

Did I understand correctly that it is not a fix? It is just a message in log.

matxpa · December 11, 2023

2 hours ago, Slice said:

Did I understand correctly that it is not a fix? It is just a message in log.

Hi Slice

Yes just a simple message to verify if this (inner if or outer aka. else) code lines are well executed.

Now we are certain that the test code lines are executed, but why correctly executed on a certain kind of Hard (or Soft) and not on others

And if you want to add that kind of message, only one could be added just before the 'if' just to get the value of boolean BlockSkywalk.

Regards

12 hours ago, cankiulascmnfye said:

@matxpa Okay. So are you going to create a pull request so that your fix will be integrated into the main branch?

Hi

Which fix, if you talk about the DBG message it's not a fix it's just to get a trace in the boot log.

Regards

Clover General discussion

Recommended Posts

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites
