AMD and Retail Snow Leopard 10.6.5 --> 10.6.8 Final[GUIDE]

Mohamed Khairy

By Mohamed Khairy,
in AMD CPUs

 Share
1,350 posts in this topic

Recommended Posts

tsj5j
tsj5j
Posted
Posted

Thanks, the permission fix helped me install OSX.

I have some problems with your guide after that though.



>> after Setup boot loader put your boot.plist that contian flag busratio=16 on extra it is very important to next step

Which boot.plist? The one in /Library/Preferences/SystemConfiguration/?



>> After thus setup legacy kernel it will add kernel name to boot.plist we added before and patch CPUID

The legacy kernel link is down, can you please reupload it?

Is patch CPUID done automatically by the legacy kernel setup or must it be done manually?



I tried to do everything without the legacy kernel and I got into a reboot loop :(

Link to comment
Share on other sites
Mohamed Khairy
Mohamed Khairy
Posted
  • Author
Posted
Thanks, the permission fix helped me install OSX.

I have some problems with your guide after that though.



>> after Setup boot loader put your boot.plist that contian flag busratio=16 on extra it is very important to next step

Which boot.plist? The one in /Library/Preferences/SystemConfiguration/?



>> After thus setup legacy kernel it will add kernel name to boot.plist we added before and patch CPUID

The legacy kernel link is down, can you please reupload it?

Is patch CPUID done automatically by the legacy kernel setup or must it be done manually?



I tried to do everything without the legacy kernel and I got into a reboot loop :(



try this kernel newest one but there are problem with quicktime will crashes

http://osx86.net/f36/legacy-kernel-10-4-0-updated-t6578/

Link to comment
Share on other sites
eugenwick
eugenwick
Posted
Posted

dont know what iam doing wrong.

ive got a phenom II x4 955BE on a m4a78t-e with a ati 4890 and cant start the installer.

nothing appears. every time system hangs with different errors :(



any boot options i should use?



//edit

i use the first way and the system hangs after:

mbinit: done (64 MB memory set for mbuf pool)



//edit 2

after disabling some acpi stuff ive got a different error message.

must do a picture with cam



what bios version should i prefer?

Link to comment
Share on other sites
tsj5j
tsj5j
Posted
Posted

Hi,



The legacy kernel works but has problems.



If I don't use any kernel options, I get the error in the image: http://i56.tinypic.com/jagfah.jpg, and a restart loop.

If I use the kernel option "maxmem=4096", everything works 100% but I have only 4GB of RAM (my PC has 8GB).

If I use the kernel option "-force64", I can boot with 8GB RAM but alot of programs (Flash, Quicktime, Itunes, etc.) don't work.



Any solutions?

Link to comment
Share on other sites
tsj5j
tsj5j
Posted
Posted

Thanks alot, that fixed my problem with -force64! :)



Last question, my OSX install is not detecting other hard drives (I'm using MBR btw), it only detects it's own drive (which contains 2 HFS+ partitions), and doesn't detect the other two NTFS drives.

I tried checking /dev, and only rdisk0 (OSX) and rdisk1 (USB) is present.



Any help? I'm running on AHCI for all my drives.

Link to comment
Share on other sites
Mohamed Khairy
Mohamed Khairy
Posted
  • Author
Posted
Thanks alot, that fixed my problem with -force64! :(



Last question, my OSX install is not detecting other hard drives (I'm using MBR btw), it only detects it's own drive (which contains 2 HFS+ partitions), and doesn't detect the other two NTFS drives.

I tried checking /dev, and only rdisk0 (OSX) and rdisk1 (USB) is present.



Any help? I'm running on AHCI for all my drives.



nearly you run your mac on safe mode -x

i linked above updated kernel work on 64bit if you readed it

Link to comment
Share on other sites
tsj5j
tsj5j
Posted
Posted

Download the sysenter patcher and extract it.

You should find a <something>.sh in there.



Open up terminal, and change to that folder.

Enter sudo <something>.sh and type in your password.



The patcher should inform you 2 of 4 files were patched.

Restart the computer and use the boot flag -force64 and you'll boot with your full amount of RAM with apps working.

Caveat: Quicktime crashes when playing h264.

Link to comment
Share on other sites
cbgugu
cbgugu
Posted
Posted
yes you can







it is from ide kext is un stable will replace it but better to use sata dvd

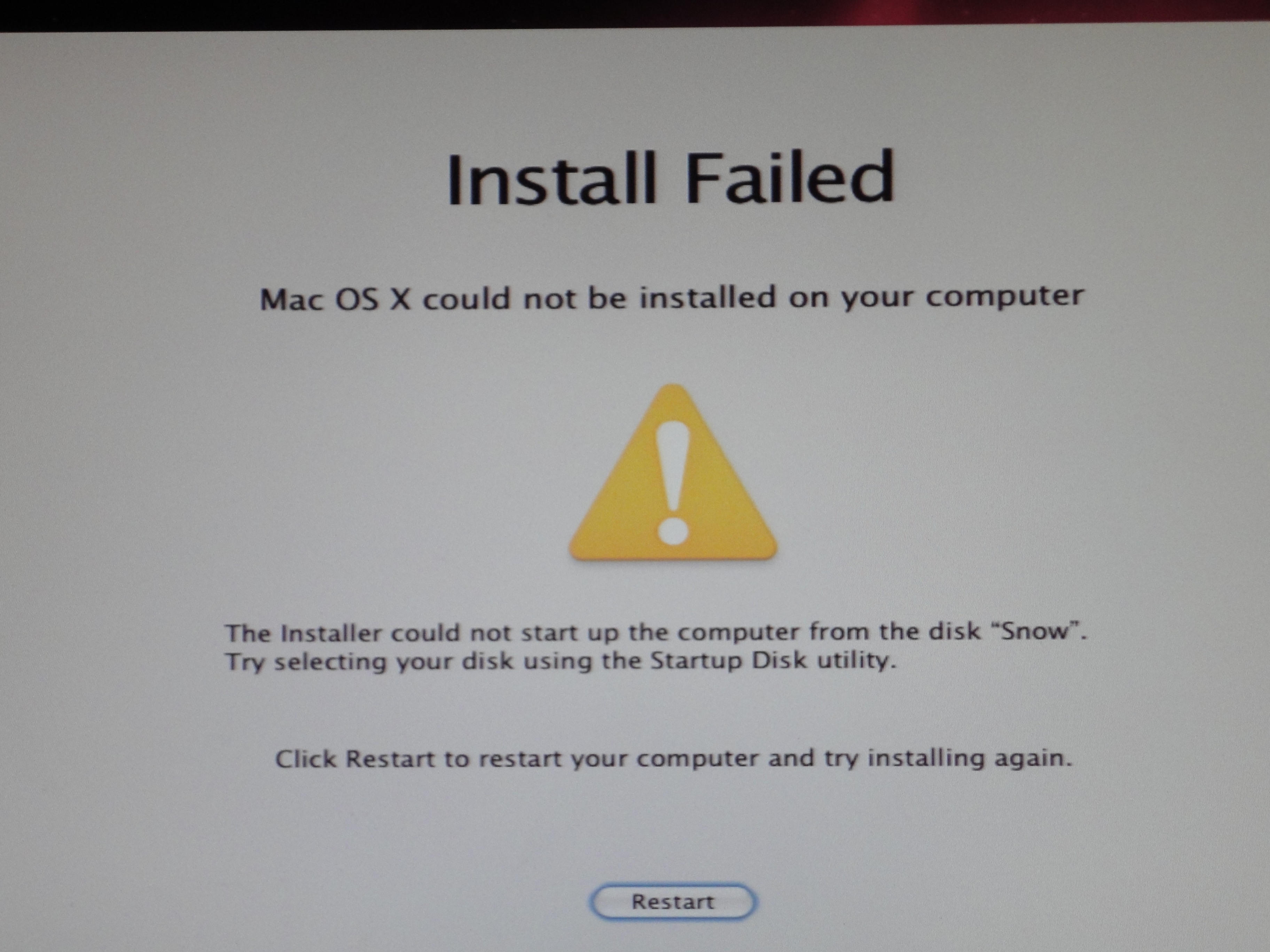

I just got me a sata dvd drive and it is still a no go ;) toward the end of the Snow leopard install i get the following message. I use SL retail disk 10.6.3 could that be the problem?


Link to comment
Share on other sites
tsj5j
tsj5j
Posted
Posted
I just got me a sata dvd drive and it is still a no go ;) toward the end of the Snow leopard install i get the following message. I use SL retail disk 10.6.3 could that be the problem?



This is perfectly normal.

Since the kernel is modded, the installer will throw this error at the very end.



Just reboot and continue on with the tutorial.



nearly you run your mac on safe mode -x

i linked above updated kernel work on 64bit if you readed it



I tried the legacy kernel, and OSX didn't detect my HDD #2 and HDD #3.

I had to turn off AHCI and change it to IDE for it to detect my HDD #2.



When I use the legacy kernel, Quicktime crashes when I play h.264 videos.

Any solution? Valve/Source games use Quicktime to play in-game videos and as a result the games crash.

Link to comment
Share on other sites
St1ll
St1ll
Posted
Posted
Download the sysenter patcher and extract it.

You should find a <something>.sh in there.



Open up terminal, and change to that folder.

Enter sudo <something>.sh and type in your password.



The patcher should inform you 2 of 4 files were patched.

Restart the computer and use the boot flag -force64 and you'll boot with your full amount of RAM with apps working.

Caveat: Quicktime crashes when playing h264.





Thx a lot. I'll give a try.

Link to comment
Share on other sites
St1ll
St1ll
Posted
Posted

Ok guys, I was (finally) able to install the update and thanks to the patch it looks like that 32bit programs run also in 64 bit mode.



BUT I have a brand new problem...iTunes doesn't load up anymore. It just does not start (neither in 32bit mode)...no crash/errors at all.



Any thoughts??



Now I have anv 10.4 kernel (the last one)

Chameleon 2.0 rc 3

Link to comment
Share on other sites
Mohamed Khairy
Mohamed Khairy
Posted
  • Author
Posted
I just got me a sata dvd drive and it is still a no go :( toward the end of the Snow leopard install i get the following message. I use SL retail disk 10.6.3 could that be the problem?



if it fail at the end of setup like .5 cm before end it is normal it is due to legacy kernel

new kernel with fly patching fixed it

i will release new boot cd and tools :D



This is perfectly normal.

Since the kernel is modded, the installer will throw this error at the very end.



Just reboot and continue on with the tutorial.







I tried the legacy kernel, and OSX didn't detect my HDD #2 and HDD #3.

I had to turn off AHCI and change it to IDE for it to detect my HDD #2.



When I use the legacy kernel, Quicktime crashes when I play h.264 videos.

Any solution? Valve/Source games use Quicktime to play in-game videos and as a result the games crash.



what is your motherboard name



and for quick time there are no solution till now for this new kernel

so wait it will be fixed nearly

you can use legacy_kernel1.4 pkg it nearly make quicktime work but it isn't contain fly patching kernel ;)



Ok guys, I was (finally) able to install the update and thanks to the patch it looks like that 32bit programs run also in 64 bit mode.



BUT I have a brand new problem...iTunes doesn't load up anymore. It just does not start (neither in 32bit mode)...no crash/errors at all.



Any thoughts??



Now I have anv 10.4 kernel (the last one)

Chameleon 2.0 rc 3



if you use latest kernel in this page

http://osx86.co/f36/legacy-kernel-10-4-0-updated-t6578/



copy this two files amd ins patcher from link below to /usr/bin

http://rapidshare.com/files/419965215/amd_...her_V2.zip.html



then run terminal

and type this commands



sudo -s
amd_insn_patcher /usr/lib/libSystem.B.dylib /usr/lib/libSystem.B.dylib.patched
cp /usr/lib/libSystem.B.dylib.patched /usr/lib/libSystem.B.dylib

amd_insn_patcher /usr/lib/dyld /usr/lib/dyld.patched
cp /usr/lib/dyld.patched /usr/lib/dyld

amd_insn_patcher /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/CarbonCore.framework/Versions/A/CarbonCore /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/CarbonCore.framework/Versions/A/CarbonCore.patched
cp /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/CarbonCore.framework/Versions/A/CarbonCore.patched /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/CarbonCore.framework/Versions/A/CarbonCore

amd_insn_patcher /System/Library/QuickTime/QuickTimeComponents.component/Contents/MacOS/QuickTimeComponents /System/Library/QuickTime/QuickTimeComponents.component/Contents/MacOS/QuickTimeComponents.patched
cp /System/Library/QuickTime/QuickTimeComponents.component/Contents/MacOS/QuickTimeComponents.patched /System/Library/QuickTime/QuickTimeComponents.component/Contents/MacOS/QuickTimeComponents

amd_insn_patcher /System/Library/QuickTime/AppleProResDecoder.component/Contents/MacOS/AppleProResDecoder /System/Library/QuickTime/AppleProResDecoder.component/Contents/MacOS/AppleProResDecoder.patched
cp /System/Library/QuickTime/AppleProResDecoder.component/Contents/MacOS/AppleProResDecoder.patched /System/Library/QuickTime/AppleProResDecoder.component/Contents/MacOS/AppleProResDecoder

Link to comment
Share on other sites
Mohamed Khairy
Mohamed Khairy
Posted
  • Author
Posted

UPDATED BootCD



contain chameleon rc5 rev 547

updated legacy kernel with fly patching now there are no failed messages :(

fakesmc with temp fans speed sensation rev405

appeatiata plus applenforceata

i enabled graphics injection so some people may get black screen please report ;)

here will be bootcds available when there are any new staff will add them in new bootcd :D

Link to comment
Share on other sites
ted2486
ted2486
Posted
Posted
First

supported cards

	{ 0x100268F9,  "ATI Radeon HD 5400"} ,
 { 0x100268D9,  "ATI Radeon HD 5500"} ,
 { 0x100268DA,  "ATI Radeon HD 5500"} ,
 { 0x100268D8,  "ATI Radeon HD 5670"} ,
 { 0x100268BE,  "ATI Radeon HD 5750"} ,
 { 0x100268B8,  "ATI Radeon HD 5770"} ,
 { 0x10026899,  "ATI Radeon HD 5850"} ,
 { 0x1002689E,  "ATI Radeon HD 5830"} ,
 { 0x10026898,  "ATI Radeon HD 5870"} ,
 { 0x1002689C,  "ATI Radeon HD 5970"}



see ID not name of card :P

known working card hd5700 hd5800 hd5900 hd5670









second

How to make them work

1- do new install 10.6 or 10.6.3

2- update to 10.6.4

3- install latest chameleon pkg from here

4-replace boot file on root by one of my boot files

5- add to boot.plist this two keys

	<key>GraphicsEnabler</key>
 <string>Yes</string>
 <key>UseAtiROM</key>
 <string>Yes</string>

6- extract your gfx bios by gpuz under windows

7-paste this bios on extra folder after naming it to 1002_xxxx.rom replace xxxx with your device id

8- restart

9-install GFX update 1.0

10- hope it works good for you :)





Third

how to test boot file

i made 30 boot file with all 30 ATi frambuffer

this because some cards dont work with know frambuffer that it make to work

like

ati 5770 works good on vervet

vapor x of 5770 work only with baboon :)



so if you know which frambuffer works with you just choose it

if you don't know just try 30 boot file :D



i need feedback for working frambuffer with you ATi hd5000



in future i will try to make frambuffer can be added on boot.plist or as kernel flag

so it will be only one boot file and you can specify your frambuffer on boot plist



if cant do it will make 30 boot file with final chameleon rc5 to all ati cards



it is based on chameleon rc5 rev516 trunk 513

now time for download

Boot.zip



and this source code of injector

ati.c.txt









well i found this topic of the hd 5770 i understand almost all of it except the injector part what am i supposed to with and this source code of injector

ati.c.txt

do i need to paste it somewhere or?





greetz ted

Link to comment
Share on other sites
Mohamed Khairy
Mohamed Khairy
Posted
  • Author
Posted
well i found this topic of the hd 5770 i understand almost all of it except the injector part what am i supposed to with and this source code of injector

ati.c.txt

do i need to paste it somewhere or?





greetz ted





first setup snowleopard then follow this topic



ati.c isnt for use it is just show the code of injector i did it



just use boot file vervet one :)

Link to comment
Share on other sites
St1ll
St1ll
Posted
Posted
if you use latest kernel in this page

http://osx86.co/f36/legacy-kernel-10-4-0-updated-t6578/



copy this two files amd ins patcher from link below to /usr/bin

http://rapidshare.com/files/419965215/amd_...her_V2.zip.html



then run terminal

and type this commands



sudo -s
amd_insn_patcher /usr/lib/libSystem.B.dylib /usr/lib/libSystem.B.dylib.patched
cp /usr/lib/libSystem.B.dylib.patched /usr/lib/libSystem.B.dylib

amd_insn_patcher /usr/lib/dyld /usr/lib/dyld.patched
cp /usr/lib/dyld.patched /usr/lib/dyld

amd_insn_patcher /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/CarbonCore.framework/Versions/A/CarbonCore /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/CarbonCore.framework/Versions/A/CarbonCore.patched
cp /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/CarbonCore.framework/Versions/A/CarbonCore.patched /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/CarbonCore.framework/Versions/A/CarbonCore

amd_insn_patcher /System/Library/QuickTime/QuickTimeComponents.component/Contents/MacOS/QuickTimeComponents /System/Library/QuickTime/QuickTimeComponents.component/Contents/MacOS/QuickTimeComponents.patched
cp /System/Library/QuickTime/QuickTimeComponents.component/Contents/MacOS/QuickTimeComponents.patched /System/Library/QuickTime/QuickTimeComponents.component/Contents/MacOS/QuickTimeComponents

amd_insn_patcher /System/Library/QuickTime/AppleProResDecoder.component/Contents/MacOS/AppleProResDecoder /System/Library/QuickTime/AppleProResDecoder.component/Contents/MacOS/AppleProResDecoder.patched
cp /System/Library/QuickTime/AppleProResDecoder.component/Contents/MacOS/AppleProResDecoder.patched /System/Library/QuickTime/AppleProResDecoder.component/Contents/MacOS/AppleProResDecoder



Thanks a lot, but it didn't work. The problem concerns only iTunes...it still doesn't load up!



What else can I try to do?



Thanks again!!

Link to comment
Share on other sites
 Share
Go to topic listing
×
×
  • Create New...
