ATI HD 5770

ralfhome

By ralfhome,
in ATi

 Share
1,160 posts in this topic

Recommended Posts

sch8mid
sch8mid
Posted
Posted
EDIT - scrub it - really can't be this bothered for some low quality audio.

ordering - http://www.esi-audio.com/products/maya44e/

also considered http://www.audiophileproducts.com/usb-audio bit less ugly than your DAC sch8mid :)

D



I know , I know... with the RME I have probably the ugliest looking DAC in the world



its hidden behind my rig , so that nobodies eyes are hurt severely



but its a the same time one of the best sounding DAC in the world



and i am pretty sure .. even after I spent a long afternoon at daniel weiss place



in my swiss neighbourhood.



http://www.weiss-highend.ch/pressreleases.html





I would strongly suggest to consider this one (its better than your dacs above) :



http://www.itemaudio.co.uk/kingrex_ud01_se.html





absolutely following the english tradition of manufacturing good audio stuff



AND for the first time in english history and very unusual paired with a phantastic italian design !!! :-)

Link to comment
Share on other sites
pest1310
pest1310
Posted
Posted

Any Confirmations on any ati/xfx/sapphire 5870 ref.model runnin 64bit kernal? i will be putting my sys. together tomorrow using [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url]-ATI-5xxx-3.iso.

I read i can rip the rom from GPU-Z (Windows program) with my xfx 5870 card installed.

Is this the same or similar as this Guide?

http://www.tonymacx86.com/viewtopic.php?f=3&t=5779

Thanks for any help-Joey

gigabyte x58ud5 rev.2

980x

xfx 5870

Link to comment
Share on other sites
toleda
toleda
Posted
Posted
@FormerlyKnownAs



Could you try the following code? I would like to know whether you still get HDMI audio or not. For now I have known only you can get HDMI audio via ATI graphic card. Also I would to know from other people who are using XFX HD5770 whether & how they would get HDMI audio too.



Device (GFX0)
{
Name (_ADR, Zero)
Method (_DSM, 4, NotSerialized)
{
Store (Package (0x02)
{
"hda-gfx",
Buffer (0x0A)
{
"onboard-1"
}
}, Local0)
DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
Return (Local0)
}
}

Device (HDAU)
{
Name (_ADR, One)
Method (_DSM, 4, NotSerialized)
{
Store (Package (0x02)
{
"hda-gfx",
Buffer (0x0A)
{
"onboard-1"
}
}, Local0)
DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
Return (Local0)
}
}



This method is working find on GT220&240.



Thank you for your time.



tmongkol





tmonkgol, added this exact code to my GA-H55n-USB3 DSDT and got HDMI audio working with the GT 240 previously. Just replaced the GT 240 with a Sapphire Vapor-X HD5870 OC. HDMI audio is working perfectly with the HD 5870. You should note that I use the same DSDT regardless of the graphics card installed on this system. By the way, the key to successfully booting the HD 5870 is Kabyl's booter.

Link to comment
Share on other sites
FKA
FKA
Posted
Posted
hi

i'd like to test with my Gigabyte hd 5870.



here are vga info:



Model:

Gigabyte HD 5870 - GV-R587D5-1GB-B



1002-6898



pci vendor id: 1002

Devide Id: 6898

rlease date: Sep 23 2009



do you think can work?

any tips?

thx :)



You mean test as in bench or as in get the thing working?

See Kablys booter here. its still beta but should work for you.



D

D

Link to comment
Share on other sites
blackwalker
blackwalker
Posted
Posted
You mean test as in bench or as in get the thing working?

See Kablys booter here. its still beta but should work for you.



D

D



i mean get my hd 5870 working



i alrady tested Kablys booter and its ok, but with cinebench and my I7 920 @3.2

i got only 33 fps, thats low for my configuration.



I mean, i say thx 1 milion of time to Kablys :) ,

but i'd like to get better performance!



i read some pages in this thread and i see a lot of you are getting good fps with cinebench,

so wondering if this can work also for me.



thx :)

Link to comment
Share on other sites
FKA
FKA
Posted
Posted
ok i'll do thx!



just curious if someone with 5870 got better fps results in cinebench

using this guide!



i forgot...

where is the guide :) ?

here?:

http://www.insanelymac.com/forum/index.php?showtopic=231756



I don't think your score is that bad. Not much different to Sch8mid's results with a similar rig!

Have you tried with different frambuffers?



D

Link to comment
Share on other sites
blackwalker
blackwalker
Posted
Posted
I don't think your score is that bad. Not much different to Sch8mid's results with a similar rig!

Have you tried with different frambuffers?



D



no i didnt!

i read about it but i dont remember how to change it..

i'll check and test



anyway "I don't think your score is that bad"...no?

i see the score with some 5770 and looks like i have a "Ferrari" with a "Fiat 500 " motor! :o

Link to comment
Share on other sites
blackwalker
blackwalker
Posted
Posted
no i didnt!

i read about it but i dont remember how to change it..

i'll check and test



anyway "I don't think your score is that bad"...no?

i see the score with some 5770 and looks like i have a "Ferrari" with a "Fiat 500 " motor! :(





done with no luck!

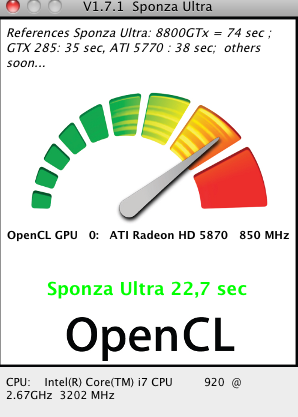

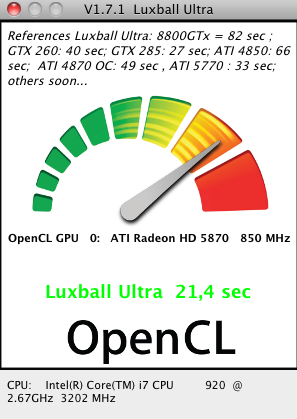

here are some screenshots of benchmarks:



Link to comment
Share on other sites
01A
01A
Posted
Posted

Hi,



I'm having persistent problems trying to get my 5770 working on my SL install,

ever since I bought it a few weeks ago. Each time formatting and starting over.



I've been following this thread and a few others.

Seems every time I manage to get 1 issue sorted. Another one comes up!

:P



Below are the details of my system and the steps i've tried.



I'd greatly appreciate any help with getting it to work. :P

Thanks in advance.



* All hardware installs and functions without error in Windows 7



ASUS Striker Extreme (nForce 680i Chipset) <----- All working In 64-Bit

Intel Core 2 Duo E8200 2.66 Ghz <----- Working on vanilla kernel

SATA HDD - Dual Boot Windows 7 & OSX 10.6.4 <----- Booting fine with latest Chameleon

Sapphire ATi Radeon HD 5770 1Gb (Vapro-X) :rolleyes: ( :P )



iATKOS S3 v2 Install

Minimal install with nForce Chipset & nForce Ethernet



I boot in 32 bit mode initially to install the updated AppleNForceATA.kext

then I follow guide as Mohammed posted.



Install 10.6.4 Update. No Reboot.



Install latest chameleon base with Pref. Pane



Replace boot file with one attached on pg 34 (rev513)

* I've also tried the original boot files on Post #1 (Vervet, Uakari, Baboon)

Baboon being the 1 others have been successfully using with Vapor-X



Copy Grfx ROM file to /Extra (Both 1 from 5770.zip prev post and 1 exported from my own card in windows)



REBOOT - OK



Upon restarting I get a higher resolution both in Chameleon & OSX.



Check System Info -> Extensions. Everything running in 64-Bit OK.





Install GFX Update 1.0 and here is where I hit problems.

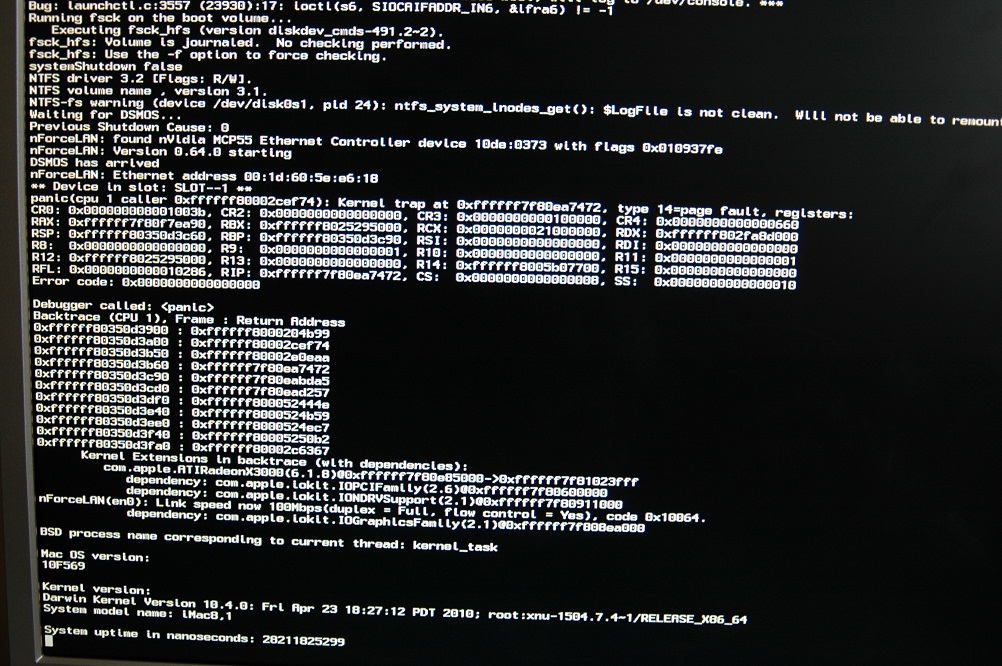

Sometimes the installer will cause a kernel panic just at the very end of the install.

Or if I reboot I get a kernel panic with ATIRadeonX3000.kext <------- See Attached pics







I've gone through this process several times. Checked ATI3000 & 5000 kexts, making sure my

device id is listed (Which it is 0x100268B8). Even moving my ID to the beginning of both plists. Still Same.



Tried booting with flags "atifb=vervet", "atifb=uakari", and "atifb=baboon". Still same Kernel Panic.



Booted from install CD and repaired all permissions. Same.



Tried deleting ATIRadeonX3000.kext causing the KP, and rebooting.

No KP but system hangs on normal console output





Any suggestions?

I'm sure I'm doing something wrong, but I cant see it.



Thanks



01A







@scotthooker



1- setup 10.6.3 or 10.6



2- update to 10 10.6.4



3-setup chameleon latest installer from here



4-replace boot file with file i uploaded in page 34



5-add to boot.plist graphicsenabler and use ati.rom use chameleon perf that will be installed with installer it willl be easy to add two keys using it



5-put rom i linked above (hd5770) on extra



6- restart



7-install GFX update 1.0 from apple



8- restart now it must work

Link to comment
Share on other sites
sch8mid
sch8mid
Posted
Posted
Hi! I'm a cartri's bios user on an EP45-UD3P and I bought a HD5770 tonight... Popped it in my hackintosh and it booted without the need of anything else... BUT, I only get scores of 22 fps in cinebench and about 55seconds in smallluxGPU... Any idea why??



Thanks!!



cartri bios 0.8 (I suppose you use 0.8) and the cartri/cham BL uses an ATI 4xxx framebuffer (Motmot) , Hd 5770 needs Vervet and the corresponding 5xxx framebuffer.

Link to comment
Share on other sites
sch8mid
sch8mid
Posted
Posted
thx for your answer but...

sorry but i miss the point... :(

what you mean?



that i'm ok with my cinebench and OpenCL results or what?

that i have to edit smbios file from imac11,3 to Macpro4,1?

(PS: i dont have any smbios!!!!!)



yepp..try to use a 4.1 smbios list

and your Cinebench results are not overwhelming but normal

concerning apple/atis current weak OpenGl driver implementation

opencl results are quite good

Link to comment
Share on other sites
IMHERETOSTAY
IMHERETOSTAY
Posted
Posted
cartri bios 0.8 (I suppose you use 0.8) and the cartri/cham BL uses an ATI 4xxx framebuffer (Motmot) , Hd 5770 needs Vervet and the corresponding 5xxx framebuffer.





I installed Kabyl's boot file, modified my ATIRadeonX3000 and ATIController5000 kext info.plist in text edit by adding my device id 0x100268B8



but when I reboot, Car is not recognized... Only a generic GPU and no QE/Qi... Anybody can help me?? What did I do wrong?

Link to comment
Share on other sites
IMHERETOSTAY
IMHERETOSTAY
Posted
Posted

i did... what am i doing wrong??



I mean, by changing to kabyl's loader, I should already be on Vervet no??? So it should work??



Come on, anybody can help??



Please!



15$ Paypal to the one who helps me use a 27" cinema display with my card... So i need it to work! thanks!

Link to comment
Share on other sites
sch8mid
sch8mid
Posted
Posted
i did... what am i doing wrong??



I mean, by changing to kabyl's loader, I should already be on Vervet no??? So it should work??



Come on, anybody can help??



Please!



15$ Paypal to the one who helps me use a 27" cinema display with my card... So i need it to work! thanks!



try



a.Flash original Gigabyte Bios

b. install new Cham BL (not Cartris)

c. use kabyl loader



use terminal for Bl installation ( seach for FKAs instructions )

Link to comment
Share on other sites
Mohamed Khairy
Mohamed Khairy
Posted
Posted
Hi,



I'm having persistent problems trying to get my 5770 working on my SL install,

ever since I bought it a few weeks ago. Each time formatting and starting over.



I've been following this thread and a few others.

Seems every time I manage to get 1 issue sorted. Another one comes up!

:wacko:



Below are the details of my system and the steps i've tried.



I'd greatly appreciate any help with getting it to work. :)

Thanks in advance.



* All hardware installs and functions without error in Windows 7



ASUS Striker Extreme (nForce 680i Chipset) <----- All working In 64-Bit

Intel Core 2 Duo E8200 2.66 Ghz <----- Working on vanilla kernel

SATA HDD - Dual Boot Windows 7 & OSX 10.6.4 <----- Booting fine with latest Chameleon

Sapphire ATi Radeon HD 5770 1Gb (Vapro-X) :) ( :P )



iATKOS S3 v2 Install

Minimal install with nForce Chipset & nForce Ethernet



I boot in 32 bit mode initially to install the updated AppleNForceATA.kext

then I follow guide as Mohammed posted.



Install 10.6.4 Update. No Reboot.



Install latest chameleon base with Pref. Pane



Replace boot file with one attached on pg 34 (rev513)

* I've also tried the original boot files on Post #1 (Vervet, Uakari, Baboon)

Baboon being the 1 others have been successfully using with Vapor-X



Copy Grfx ROM file to /Extra (Both 1 from 5770.zip prev post and 1 exported from my own card in windows)



REBOOT - OK



Upon restarting I get a higher resolution both in Chameleon & OSX.



Check System Info -> Extensions. Everything running in 64-Bit OK.





Install GFX Update 1.0 and here is where I hit problems.





Sometimes the installer will cause a kernel panic just at the very end of the install.

Or if I reboot I get a kernel panic with ATIRadeonX3000.kext <------- See Attached pics







I've gone through this process several times. Checked ATI3000 & 5000 kexts, making sure my

device id is listed (Which it is 0x100268B8). Even moving my ID to the beginning of both plists. Still Same.



Tried booting with flags "atifb=vervet", "atifb=uakari", and "atifb=baboon". Still same Kernel Panic.



Booted from install CD and repaired all permissions. Same.



Tried deleting ATIRadeonX3000.kext causing the KP, and rebooting.

No KP but system hangs on normal console output





Any suggestions?

I'm sure I'm doing something wrong, but I cant see it.



Thanks



01A



use kabyl boot file and try all frambuffer till get it work

Link to comment
Share on other sites
