omann Posted November 6, 2008 Share Posted November 6, 2008 I've put it right in the first slot (primary), on the badaxe it's a PCIEx16 (electrical x16 or x8) This is what my EFI-string looks like: 6e0200000100000001000000620200000d00000002010c00d041030a000000000101060000010101 60000007fff04000e0000004e00560050004d0000002000000001000000000000000000000000000 00000000000000000000000000220000005600520041004d002c0074006f00740061006c00730069 07a006500000008000000000000201c0000006400650076006900630065005f00740079007000650 00000f0000004e5644412c506172656e740e0000006e0061006d00650000000b000000646973706c 17922000000400030002c006400650076006900630065005f00740079007000650000000b0000006 6973706c617922000000400031002c006400650076006900630065005f0074007900700065000000 b000000646973706c6179100000006d006f00640065006c0000001b0000006e56696469612047654 6f72636520393830302047545820000000400031002c0063006f006d00700061007400690062006c 0650000000e0000004e5644412c4e564d616314000000400030002c006e0061006d0065000000120 00004e5644412c446973706c61792d4114000000400031002c006e0061006d006500000012000000 e5644412c446973706c61792d4220000000400030002c0063006f006d00700061007400690062006 00650000000e0000004e5644412c4e564d6163100000004e00560043004100500000001800000004 00000000003000c00000000000007000000001e00000072006f006d002d007200650076006900730 69006f006e0000002f0000006e5669646961204765466f726365203938303020475458204f70656e 74c20456e67696e65205b4546495d Link to comment Share on other sites More sharing options...
~)PhI~ Posted November 6, 2008 Share Posted November 6, 2008 I've put it right in the first slot (primary), on the badaxe it's a PCIEx16 (electrical x16 or x8) This is what my EFI-string looks like: ..... Yeah guess I'm just out of luck with the 9800GX2 on the first slot. My EFI strings work properly, but I still can't install the Nvidia 9series v2 drivers or else I get the hang at black screen (cursor shows, then freezes...) Link to comment Share on other sites More sharing options...
Assa55in Posted November 7, 2008 Share Posted November 7, 2008 I have a 9800m GT and i can not get the QE to be supported Setup looks like this Chipset Model: Unknown NVIDIA Card Type: Display Bus: PCIe PCIe Lane Width: x16 VRAM (Total): 320 MB Vendor: NVIDIA (0x10de) Device ID: 0x060b Revision ID: 0x00a2 ROM Revision: NVdarwin 1.2.4 Displays: Color LCD: Display Type: LCD Resolution: 1920 x 1200 Depth: 32-bit Color Core Image: Software Main Display: Yes Mirror: Off Online: Yes Quartz Extreme: Not Supported QuartzGL: Supported Display Connector: Status: No display connected any help would be great Link to comment Share on other sites More sharing options...
Denicio Posted November 7, 2008 Share Posted November 7, 2008 I have a 9800m GT and i can not get the QE to be supported Setup looks like this Chipset Model: Unknown NVIDIA Card Type: Display Bus: PCIe PCIe Lane Width: x16 VRAM (Total): 320 MB Vendor: NVIDIA (0x10de) Device ID: 0x060b Revision ID: 0x00a2 ROM Revision: NVdarwin 1.2.4 Displays: Color LCD: Display Type: LCD Resolution: 1920 x 1200 Depth: 32-bit Color Core Image: Software Main Display: Yes Mirror: Off Online: Yes Quartz Extreme: Not Supported QuartzGL: Supported Display Connector: Status: No display connected any help would be great I assume you need to read how to set your EFi strings, have you been through this step? Read throughout this page and you will find the answer. Link to comment Share on other sites More sharing options...
klimo Posted November 7, 2008 Share Posted November 7, 2008 hello just to thanx a lot aquamac and xdarwin i just bought an acer aspire 8930G with a geforce 9700M (064A10de) and it works with qe/ci using aquamac geforce 9000 installer and nvdarwin 1.2.4 kext no need to use efi strings or info.plist editing i started with a idebian 10.5.5 install need to find solution for sound and eventually network (but i doubt) cheers .klimo. Link to comment Share on other sites More sharing options...
Assa55in Posted November 7, 2008 Share Posted November 7, 2008 I have set my efi strings still nothing tho anyhelp here is my new setup Chipset Model: NVIDIA GeForce 9800 GTX DDL Type: Display Bus: PCIe PCIe Lane Width: x16 VRAM (Total): 512 MB Vendor: NVIDIA (0x10de) Device ID: 0x060b Revision ID: 0x00a2 ROM Revision: 3172a Displays: Color LCD: Display Type: LCD Resolution: 1920 x 1200 Depth: 32-bit Color Core Image: Software Main Display: Yes Mirror: Off Online: Yes Quartz Extreme: Not Supported QuartzGL: Supported Display Connector: Status: No display connected Link to comment Share on other sites More sharing options...

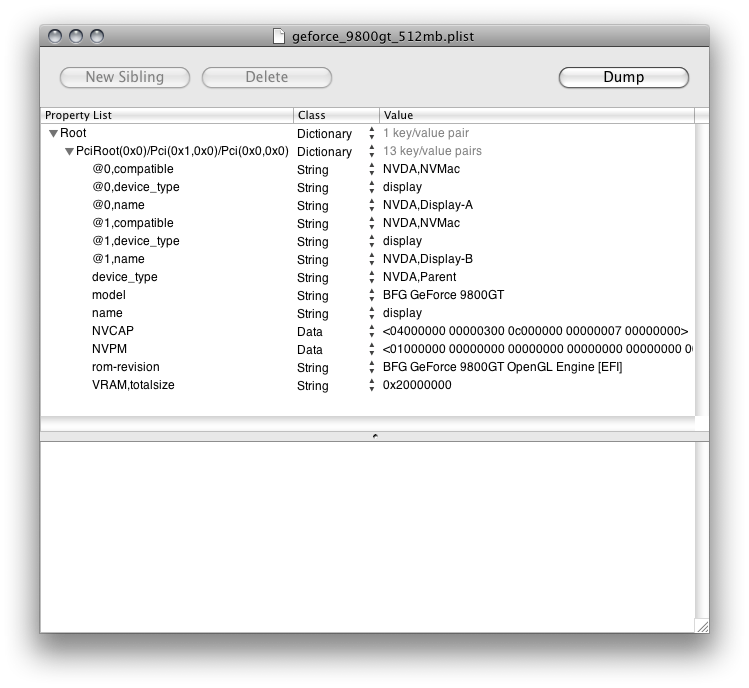

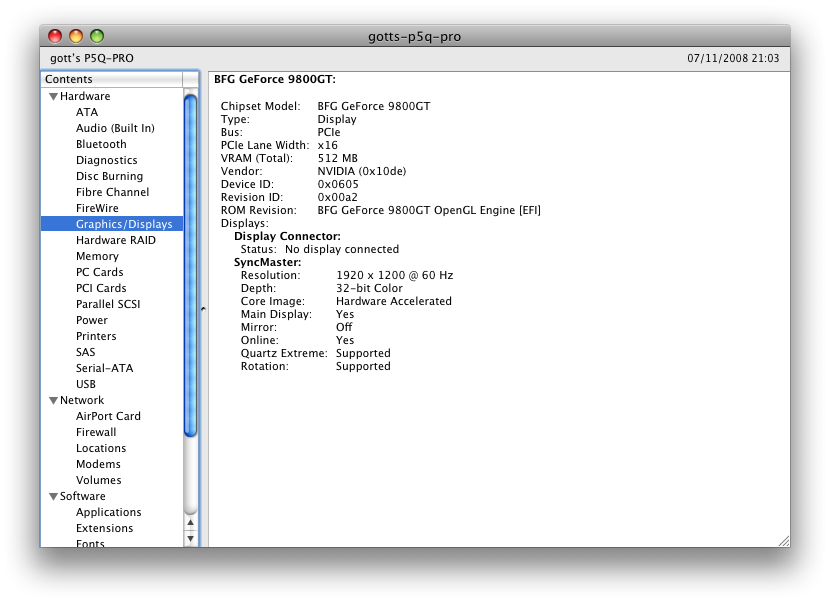

nfinity_ Posted November 7, 2008 Share Posted November 7, 2008 Great work! I got my 9800GT / 512MB working. EFi-StriNG: 640200000100000001000000580200000d00000002010c00d041030a000000000101060000010101 60000007fff04000e0000004e00560050004d0000002000000001000000000000000000000000000 00000000000000000000000000220000005600520041004d002c0074006f00740061006c00730069 07a006500000008000000000000201c0000006400650076006900630065005f00740079007000650 00000f0000004e5644412c506172656e740e0000006e0061006d00650000000b000000646973706c 17922000000400030002c006400650076006900630065005f00740079007000650000000b0000006 6973706c617922000000400031002c006400650076006900630065005f0074007900700065000000 b000000646973706c6179100000006d006f00640065006c00000016000000424647204765466f726 652039383030475420000000400031002c0063006f006d00700061007400690062006c0065000000 e0000004e5644412c4e564d616314000000400030002c006e0061006d0065000000120000004e564 412c446973706c61792d4114000000400031002c006e0061006d0065000000120000004e5644412c 46973706c61792d4220000000400030002c0063006f006d00700061007400690062006c006500000 0e0000004e5644412c4e564d6163100000004e005600430041005000000018000000040000000000 3000c00000000000007000000001e00000072006f006d002d007200650076006900730069006f006 0000002a000000424647204765466f72636520393830304754204f70656e474c20456e67696e6520 b4546495d have fun (wasnt able to attach .plist file) ... but shouldnt be needed anyways. Link to comment Share on other sites More sharing options...
vlad1966 Posted November 9, 2008 Share Posted November 9, 2008 I'm considering getting this 9800 GTX+ which has 1GB RAM: http://www.newegg.com/Product/Product.aspx...N82E16814125245 Would this work - considering there's 1GB RAM & not 512? Link to comment Share on other sites More sharing options...
aqua-mac Posted November 9, 2008 Author Share Posted November 9, 2008 Hm looks interesting. As long as it is G92 based you should be OK. It only has one 12v power input, not sure what that says about real power, but on the face of it, looks like a nice card. The 1 gig of ram is no problem on 9800 GTX/GTX+. Link to comment Share on other sites More sharing options...
amigliora Posted November 9, 2008 Share Posted November 9, 2008 Hola, Any idea on how to fix this? Thanks Hola, First of all thanks everybody and specially acqua for all the info and support. I installed a MSI NV 9400 GT and is working well, just have some weird behavior like that: When I'm restarting or starting my PC, it start to turn off the monitor a couple of times, then turn on again and works ok There is one application at least, didn't test all yet, DVD Player which gives me error 70012 all the time. I installed iAtkos 4i and then all the upgrades to 10.5.5 Then, install the Nvidia 9000 Series Driver 2 and then NVDarwin 1.2.3 this is my system profile Unknown NVIDIA Card: Chipset Model: Unknown NVIDIA Card Type: Display Bus: PCIe PCIe Lane Width: x16 VRAM (Total): 512 MB Vendor: NVIDIA (0x10de) Device ID: 0x0641 Revision ID: 0x00a1 ROM Revision: NVdarwin 1.2.3 Displays: Display Connector: Status: No display connected 8221A: Resolution: 1280 x 1024 @ 75 Hz Depth: 32-bit Color Core Image: Hardware Accelerated Main Display: Yes Mirror: Off Online: Yes Quartz Extreme: Supported QuartzGL: Supported Rotation: Supported Any help? Thanks Link to comment Share on other sites More sharing options...
aqua-mac Posted November 9, 2008 Author Share Posted November 9, 2008 Your monitor turning on & off is NVDarwin detecting your graphics/monitor. If you want to stop that happening, use GFX strings. But on/off at boot with nvinject/NVDarwin & your monitor is quite normal. Link to comment Share on other sites More sharing options...
vlad1966 Posted November 9, 2008 Share Posted November 9, 2008 Hm looks interesting. As long as it is G92 based you should be OK. It only has one 12v power input, not sure what that says about real power, but on the face of it, looks like a nice card. The 1 gig of ram is no problem on 9800 GTX/GTX+. Aren't all 9800 GTX / GTX+ cards using G92? Link to comment Share on other sites More sharing options...
aqua-mac Posted November 9, 2008 Author Share Posted November 9, 2008 As far as I know, I think it will be fine. Just has a non std layout. Link to comment Share on other sites More sharing options...
leo3949 Posted November 9, 2008 Share Posted November 9, 2008 HI everybody I would like to know how unistall this driver " NVIDIA 9000 SERIES DRIVER V2 " because with I whizz everything is not any more of QE then with nviject j that works thank. and sorry for my english Link to comment Share on other sites More sharing options...
amigliora Posted November 9, 2008 Share Posted November 9, 2008 Hola Aqua-mac Thanks for your replay, I guess I messed up in my installation, so I used NVDarwin. Please could you let me know where can I find the tutorial to use the GFX String? Thanks again Link to comment Share on other sites More sharing options...
aqua-mac Posted November 9, 2008 Author Share Posted November 9, 2008 GFX String Tutorial Leo3949, Did you use GFX Strings? Link to comment Share on other sites More sharing options...
Zakaryya Posted November 9, 2008 Share Posted November 9, 2008 I could use some help with a GeForce 9400 GT. Link to comment Share on other sites More sharing options...
leo3949 Posted November 9, 2008 Share Posted November 9, 2008 yes i did it but it's not work maybe i have a retail install? Link to comment Share on other sites More sharing options...
Elysium Posted November 10, 2008 Share Posted November 10, 2008 I have been attempting to get my notebook correctly working with the internal card (nvidia 9600M GS [256MB]) and have spent the past few days going through pretty much every bit of information I can muster; Device ID: 0648-10de (G96M) I am getting a resolution of only 1024x768 and I believe my card is seen as only having 32MB of VRAM total going by the stats listed within the "More Info.." of the About window listing. My default monitor display in normal Vista use is 1366x768. Installation of OS X 5.5 used iDeneb - but could originally only get to use the actual OSX by using "-x" (safemode) .. Installed aqua-mac's "Version 2 - NVIdIA 9 Series Drivers" Reboot - now no longer require to use "safe-mode" any more BUT still same resolution forced of 1024x768 but now with the strange glitch that dragging a window screws the contents up (scrolling is almost impossible as refreshing in-window is not working) .. Editing "/System/Library/Extensions/NVDANV50Hal.Kext (info.plist)" Making sure that the 0x0640 (nearest to my card) is updated to read 0x0648 Repair Permissions .. reboot.. same. Then tried OSX86Tools to create EFI string. 1) CLICK: Add EFI Strings/Boot Flag 2) CLICK: GFX Strings 3) CLICK: Custom GeForce 4) Enter: "nVidia GeForce 9600M GS" 5) SELECT: 256MB" VRAM 6) NVCAP: "04010101 0e000100 0e000000 0000010b 00000000" (first try) 6b)NVCAP: "04000000 00000100 0e000000 00000007 00000000" (alternative) 6c)NVCAP: "04000000 00000100 06000000 00000000 00000000" (alternative 3) ^^ LCD Notebook + VGA + HDMI connectors on notebook (above right?) 7) CLICK: Import String To Boot Editor 8) CLICK: Apply Changes to com.apple.Boot.plist 9) Repair Permissions 10) Reboot This time I get a blank screen and have to foce-shutdown the OS and manually enter shell on reboot and resolve com.apple.boot.plist so I can get back in. I am not too sure what else I can do .. and maybe am missing something glaringly obvious, so any help would be really appreciated. It's almost become an obession believing there is a way of getting it to work properly. Link to comment Share on other sites More sharing options...
Assa55in Posted November 10, 2008 Share Posted November 10, 2008 Ok finally got my card to work however I still am having problems. The resolution is not showing a refresh rate at my chipset name is I Can Has Model? Here is my system I Can Has Model?: Chipset Model: I Can Has Model? Type: Display Bus: PCIe PCIe Lane Width: x16 VRAM (Total): 256 MB Vendor: NVIDIA (0x10de) Device ID: 0x060b Revision ID: 0x00a2 Displays: Color LCD: Display Type: LCD Resolution: 1920 x 1200 Depth: 32-bit Color Core Image: Hardware Accelerated Main Display: Yes Mirror: Off Online: Yes Quartz Extreme: Supported QuartzGL: Supported Rotation: Supported Display Connector: Status: No display connected I have a 9800M gt with 512mb Link to comment Share on other sites More sharing options...
aqua-mac Posted November 10, 2008 Author Share Posted November 10, 2008 Assa55in, Did you use GFX strings or an injector such as nvinject/nvdarwin? Link to comment Share on other sites More sharing options...
Assa55in Posted November 10, 2008 Share Posted November 10, 2008 I used NVKUSH only thing that would get my card to have QE enabled Link to comment Share on other sites More sharing options...
aqua-mac Posted November 10, 2008 Author Share Posted November 10, 2008 That's why it is reporting 256 mb. Did you not try making your own GFX String. Instructions are here: http://aquamac.proboards106.com/index.cgi?...&thread=509 Link to comment Share on other sites More sharing options...
Assa55in Posted November 11, 2008 Share Posted November 11, 2008 Yes but that website is for a 9800 gtx i have the 9800m gt won' that mess up some of my settings and also why isn't there a refresh rate next to the resolution Link to comment Share on other sites More sharing options...
aqua-mac Posted November 11, 2008 Author Share Posted November 11, 2008 This will also work for any Graphics card, you need to select a download with the same amount of memory then change the part where the name of the card is. Follow the instructions and make the string. You do not set a refresh rate. Once everything is working correctly, that can be selected from displays in System preferences. Here I modded the plist for you, download it and follow the instructions at my website. gfxutil_512_MB_9800M_GT.zip Link to comment Share on other sites More sharing options...
