Lenovo ThinkPad T420 with UEFI Only

* * * * * 17 votes UEFI ThinkPad T420 Lenovo Clover

Best Answer tluck, 08 October 2013 - 02:47 PM

15-April-2015 Update

  • Updated to Clover r3200 - compiled to remove text before GUI
  • Switched to OsxApioFix2Drv-64.efi since it allows hibernation and works fine.
  • Switched to Mieze's modern Intel LAN Ethernet Kext (IntelMausiEthernet.kext v2.0.0d2) - replaces AppleIntelE1000e.kext - Thank you!!!

Other Tweaks over Last 6 months

  • Added ACID SMC key in FakeSMC.kext Info.plist for AC power support for T420 on Yosemite - custom install pkg included - see Utility folder.
  • Added universal time registry fix for dual boot with Windows for consistent time.
  • Tweaked _kext_install script to fix/recreate symbolic links for custom kexts.
  • Using VBoxHfs-64.efi instead of HFSPlus-64.efi
  • Added a DSDT for T420s vs T420 (provided by pokenguyen)
  • Consolidated kexts into Other folder vs 10.10, 10.9 since they are all the same.
  • ThinkPad Theme - minor tweaks to add Yosemite 2014.  This theme revised and committed to Clover source tree.
  • Tweaked config to actually use NVRAM boot drive selection on startup. (Can specify startup disk in System Prefs and restart will use it.)
  • Recompiled VoodooPS2Controller.kext with added Lenovo T420 sections for Keyboard/TouchPad/TrackPoint
  • Added Platforms.xml file for use with Docking Station (and No-Dock default) option in AppleHDA_20672.kext
  • New custom kexts AppleHDA_20672.kext (fixed since October 13) and BroadcomBluetooth_T420.kext are added. Huge thanks to vladichimescu for showing me this kext method.
  • All custom/extra kexts are OS version independent and go in /Systems/Library/Extensions
  • New Clover config.plist files for on-the-fly HDA kext patching. No need to replace any kexts after updates anymore.
  • Removed EmuVariableUefi-64.efi driver to use native NVRAM (vs /nvram.plist) - see note below on how to migrate.
  • Removed drop MCFG table from config.plist files. Use at your own discretion.
  • Added drop table DMAR so VT-d does not have to be disabled
  • Note: To make an Mavericks USB installer, just follow the Yosemite method

Lenovo T420 Clover Guide



Attached is a current zip file with a complete /EFI pack for the Lenovo T420 using Clover on OS X versions:

  • 10.10  Yosemite
  • 10.9    Mavericks

Why Clover vs Chameleon?

  • Native UEFI boot support for OS X and Windows on GUID/GPT disks.
  • Native Apple OS X Installers and App Store Updaters.
  • Supports Recovery HD for system recovery and iMessage, Find My Mac, etc.
  • Dynamic DSDT and Kext patching.

Caveat:

My system is a T420 with 1600x900 LCD and dedicated Intel HD 3000 Graphics Only.  This is a zip contains what is working for me on my specific model. The guide outlines the 2 phases: (1) how create a USB installer and install OSX, and (2) run OSX for your HD. If your HW is not similar as mine, the included DSDT and configuration files may need to be retrofitted to work for your system.  The models T420s, T420i as well as the T520 family may work as is or need some changes to the DSDT.



Highlights:

  • A current File Bundle for 10.9 or later is here in the zip file attached to the bottom of this post
    • Full Clover File set - config.plist + required custom kexts + custom DSDT
  • There are 2 configuration file sets:
    • for high-res LCD (1600x900)
    • for low-res LCD  (1366x768)
  • Non-maintained Mountain Lion Kext Bundles for 10.8.4 are in post #241 and 10.8.5 in post #397



INSTALLATION GUIDE



BIOS settings:

- Recommend update to BIOS v1.46

- Recommend reset to defaults. Most defaults settings will work but check settings these:

- Set Config / Serial ATA (SATA) / SATA = AHCI

- Set Security / Memory Protection / Execution Prevention = Enabled

- Disable Discrete Nvidia/Optimus (use integrated HD 3000 only - unless you really know what you are doing!)



Terms:

GPT = GUID Partition Table

MBR = Master Boot Record

ESP = EFI System Partition

The ESP is created automatically as the first (hidden) partition by the Disk Utility when the GPT option is selected for partitioning a disk.



Note: The custom DSDT is based off BIOS v1.46 (flashed with whitelist mod or original)



Part 1 - OS Installation



  1. Download and extract the zip file from this post to build a Clover-based USB installer. This same bundle will be installed later on HD for UEFI boot.
  2. Install OS X to a GPT formatted disk using the standard Install OSX .app downloaded from the Apple Store.
  • Copy Mavericks (10.9.x) and Yosemite (10.10.x) to USB installer
  1. Download latest Yosemite or Mavericks - they are free in the Apple App Store
  2. Partition an 8GB (or larger) USB formatted with GUID Partition Table
    - use the Partition Options... menu to change from MBR to GPT
    - Name the partition USB
    - Use format: Mac OS Extended (Journaled)

    Note: if you have a larger USB (say 16GB) you can split into 2 8GB partitions, so you can have 10.9 and 10.10 installers on the same USB key


  3. Run this command (if Mavericks, the replace word Yosemite with Mavericks):
    sudo /Applications/Install\ OS\ X\ Yosemite.app/Contents/Resources/createinstallmedia --volume /Volumes/USB --applicationpath /Applications/Install\ OS\ X\ Yosemite.app —nointeraction

  • Put Clover installation on USB
  1. manually mount the ESP of the USB and copy the entire EFI folder (from the zip) onto the USB ESP
    For example, assuming the USB is disk2:

    sudo mkdir /Volumes/ESP-USB
    sudo mount -t msdos /dev/disk2s1 /Volumes/ESP-USB
    sudo cp -a ~/Downloads/T420/EFI /Volumes/ESP-USB

    Note: run "diskutil list" on the command line to find your USB disk


  2. Setup configuration files to match your LCD resolution in /Volumes/ESP-USB/EFI/CLOVER:
    1. ​​​Rename ACPI.1600x900 to ACPI or rename ACPI.1366x768 to ACPI
    2. Rename config.1600x900.plist to config.plist or rename config.1366x768.plist to config.plist

  • Boot from USB and select Install OSX

  1. Install on your GPT disk - OSX partition.
  2. Wait about 30 minutes plus or minus.
  3. Follow these Notes and Tips:
  • When the installer screens shows:   "To pair a Bluetooth keyboard, turn it on and wait for your computer to connect to it.”

    Hit the Space Bar to get past this step.


  • When installer seems to hang at:  "About a second remaining”

    Don’t Panic, this "second" may take about 10 minutes or more to finish. Just wait for the installer to reboot the computer and continue the installation.The whole install process takes about 1 hour to complete.


  • On the first boot from the HD when asked:  "How Do You Connect?”

    Select: “My computer does not connect to the Internet”And set up the network later after installation the NIC driver kext.And your Intel WiFi will not work. Period.

TIP: Enable debug mode for Disk Utility to see all the partitions (such as hidden EFI). From the Terminal command line, run this:

defaults write com.apple.DiskUtility DUDebugMenuEnabled 1

Part 2 - Post OS Installation and Setup on HD

  1. Boot Clover from USB - but now select the newly installed disk/partition to start OS X.
    Note: This will boot up OS X with Clover injecting the custom kexts from the USB (for now).


  2. Install Clover on HD

    a ) Run the full Clover_v2k_rxxxx.pkg to install the related latest bits into the HD OS and ESP (usually partition 1) of disk0. Use the link to download the pkg from SourceForge.  You can do this step later on if you don't have way to get it before you are setup on the network. Select (check box) at least first 2 items! This picture shows a good set of overall options:
    [attachment=159590:clover-pkg-options.png]  After you close the pkg installer, then follow these step:

    b ) REPLACE the ESP (EFI folders) contents with the exact CLOVER folder as used in the setup on USB from steps above. If not still automatically mounted by the installer pkg, manually mount the ESP of your HD on say /Volumes/ESP. Then copy and replace the folders /Volume/ESP/EFI/CLOVER and BOOT from the USB installer you just built and used.

    Note: Yosemite likes to make a logical volume and this may confuse the Clover Installer looking for the ESP. So I recommend revert your root partition to a regular volume. Run:
    sudo diskutil corestorage revert /

  3. Install custom kexts on HD
    • Recommended: Use the folder with its config.plist with the custom dsdt.aml (as is) to start.  And install the custom kexts from the zip folder to the /System/Library/Extensions folder.

      Install these kexts from the zip folder EFI/CLOVER/kexts/Other by either method:
      - if you don't have a GUI, use the included shell script _kext-install-SLE.bash
      OR
      - if you have a GUI, then use the Kext Utility tool (from cvad included in Utilities folder).

      Note: If you choose to NOT install the custom kexts in the OS /S/L/E folder, then AppleHDA and BroadcomBluetooth kexts will not work properly. You can also install custom kexts in /Library/Extensions if you dont want to put them in /System/Library/Extensions


  4. Install (copy) the DisplayVendorID-* folders
    These are from the zip file and should be put in /System/Library/Display/Overrides
    Note: These provide alternate color correction and gamma curves as well as more screen sizes for just a few LCD models.


  5. Reboot - Boot Clover from HD vs USB.
    Hit the spacebar on your boot selection (OSX) to start up
     without kext caches to make sure it loads all the custom kexts just installed.


  6. Ethernet Device Install
    Note: This step is optional but usually needed after a fresh OS install.
    This loads the ethernet kext and resets network device order to have ethernet as en0 (may help with iMessage etc)
    Run this set of commands in a terminal window:

    sudo kextload /System/Library/Extensions/IntelMausiEthernet.kext
    sleep 10
    sudo rm       /Library/Preferences/SystemConfiguration/NetworkInterfaces.plist

  7. Create a custom SSDT (optional)
    Creates P and C states to match system CPU. Test against Clover generated SSDT PM tables - may be the same performance lately. (Long ago Clover had some issues here.)
    Run the custom ssdtPRgen-clover.command script in Zip Utilities folder. It should ask you if you want copy ssdt.aml to your ESP ACPI/patched folder, otherwise copy/move ssdt.aml to the same location as your custom dsdt.aml
    which is: /Volumes/ESP/EFI/CLOVER/ACPI/patched

    Note: it will copy iasl from the Utility folder to /usr/local/bin/iasl


  8. Reboot a final time to use the new SSDT table (and other changes from last 3 steps)



Known Issues and Random Tips:

  • The stock Intel WiFi will not work. There are options to replace and use modded bios.


  • Clover may present 2 options for main OS partition if using Logical Volume vs Standard Volume. Revert the logical volume as Yosemite likes to install now on the boot disk, so Clover will not get confused and present duplicate options. Just "revert" using:

    sudo diskutil corestorage revert /
  • Enable (turn on) Bluetooth so the green light is showing on the LCD bezel (do from Windows or Ubuntu).
    • Also make sure the side switch is set to green too!
  • When using external headphones or speakers, may need to plug and unplug 1 or 2 times for recognition.

  • E1000e ethernet hang: with the 2.5.4d and 3.x version of the Intel E1000e ethernet kext, I have seen some random problems. I rolled back to v2.4.14 and have not had issues lately. The issue occurs under heavy file copy/transfers and your ethernet stops working with a lot of log messages that only a reboot fixes.  (Now using IntelMausiEthernet.kext)

  • iMessage/Facetime may not register without overriding the Clover generated values with real ROM and MLB values from a real Apple Mac. Search thread for ROM to get more info.
    • Clover now (~r3050+) can possibly generate proper values and inject using RtVariables - use mac address -- see wiki for details.
  • With ACPIBacklight.kext installed, boot with lid open or LCD will be black when you open it.

  • After installing the kexts to /S/L/E, sometimes the symbolic link for the binary in AppleHDA_20672.kext and BroadcomBluetooth_T420.kext gets messed up. Fix by running this script:
  • cd /System/Library/Extensions/AppleHDA_20672.kext/Contents/MacOS
    sudo rm AppleHDA
    sudo ln -s /System/Library/Extensions/AppleHDA.kext/Contents/MacOS/AppleHDA

    cd /System/Library/Extensions/BroadcomBluetooth_T420.kext/Contents/MacOS
    sudo rm BroadcomBluetoothHostControllerUSBTransport
    sudo ln -s /System/Library/Extensions/IOBluetoothFamily.kext/Contents/PlugIns/BroadcomBluetoothHostControllerUSBTransport.kext/Contents/MacOS/BroadcomBluetoothHostControllerUSBTransport

    sudo touch /System/Library/Extensions
  • Hibernation - Use OsxAptioFix2Drv-64.efi instead of OsxAptioFixDrv-64.efi UEFI driver for restart from hibernation. Suggested settings if you don't want or use hibernation:
    sudo pmset -a hibernatemode 0
    rm /var/vm/sleepimage

if you want hibernation, then set hibernate mode to 7 (mode 7 is like mode 3 but without encryption)

sudo pmset -a hibernatemode 7

Note: Booting up from the hibernated image may have jumbled or blank LCD until you do a sleep/wake cycle to reset the LCD.



Notes on Custom Kexts



All the kexts listed below are contained in the zip file. The origin is listed below if you wish to download them as well. I recommend you use kext install tool to properly copy all kexts to the /S/L/E (/System/Library/Extensions) folder.

  • FakeSMC.kext (v6.x.xxxx) - Core hack mechanism. Using Kozlek's version + plugins + custom FakeSMC Info.plist
    A Custom package is included in the Utilities folder so you can install HWMonitor.app - it just selects these 2 Plugins Sensors: ACPI and CPU.
    • ​2 Custom SMC keys are added to Kozlec's standard FakeSMC - FNum (to find the Fan) and ACID (for AC power and eliminate powerd syslog messages every 30 seconds).
  • AppleIntelE1000e.kext (v2.4.14) - Ethernet (gigE) - can go in /System/Library/Extensions vs Plugins so OSX re-installations or patch updates will not delete it.
  • IntelMausiEthernet.kext (v2.0.0d2) - Mieze's Intel LAN kext that supports TSO, EEE and other features. Put this kext in /System/Library/Extensions and remove or disable AppleIntelE1000e.kext
  • VoodooPS2Controller.kext (v1.8.14) - T420 version of RehabMans's PS2 Keyboad/TouchPad/TrackPoint -  This version has extra T420 definitions in the Info.plist files.
    • Modified Info.plist(s) to add LENOVO T420 key and override settings.
    • ​TrackPad pressure FingerZ value set to 47 - up from default of 30  - change to suite your touch in VoodooPS2Controller.kext/Contents/PlugIns/VoodooPS2TrackPad.kext/Contents/Info.plist
    • Note: VoodooPS2Controller keyboard mappings have 3 or 4 finger swipe left/right to back/forward configured for Safari browser.
  • ACPIBatteryManager.kext (v1.55) - RehabMan's kext configured for v3 ACPI instructions to show/track battery info on menu bar
  • ACPIBacklight.kext (v2.0.3) - RehabMan's kext for smoother/enhanced LCD backlight (dimming) control. The fix is for a Yosemite quirk.
  • GenericUSBXHCI.kext (v1.2.8d9) - RehabMan's version. Use for some USB3 express cards, if your card is not natively supported by OS X.
  • IOAHCIBlockStorageInjector.kext -  configured to make just the DVD device appear internal so iDVD player works.
  • BroadcomBluetooth_T420.kext (v999.99) - adds ProductID 8575 to make BT work better (on/off capability). Keep original/modified BroadcomBluetooth plug-in and add this kext to /S/L/E.
  • AppleHDA_20672.kext (v999.99) Keep original/unmodified AppleHDA.kext and add this kext to /S/L/E for full audio support for CX20672 (same as CX20590). Note: requires matching DSDT sections for Conexant Codec and layoutID 12. and Kext Patch via Clover. Also has Manwe150's fix/additions for dock ports. Credit and thanks to vladichimescu.

    There are 2 files in AppleHDA_20672.kext/Contents/Resources
    Platforms.xml.zlib.dock
    and
    Platforms.xml.zlib.nodock

    The "dock" version adds the second audio output called "Headphones" and a second Input "Line In" - both of which are on the Docking Station itself.
    - IF you have a dock - then just replace the Platforms.xml.zlib file with Platforms.xml.zlib.dock
    - IF you DO NOT have a dock, then use the new kext as is! (and not be confused by the extra Input/Output options!!!)

​General Notes, Fixes, and Features

  • Clover configuration files (config.plist)
     a ) config.plist                   - (default) to use the custom DSDT and WITH extra Clover patching
     b ) config.nodsdt.plist    - this testing version - everything works except battery levels
                                                       - remove/rename DSDT.aml and use built-in/BIOS DSDT with Clover patching
  • Model is to set MacBookPro8,1 explicitly in config.plist. (needed to get proper DP/HDMI/DVI/VGA FrameBuffers)
  • Clover does dynamic patching on 3 Apple kexts:
    • Patches AppleIntelSNBGraphicsFB.kext - inserts buffers to fix LCD brightness max level - now its the same brightness before and after sleep. Thanks to Timewalker75a (again!) And patch replaces the 4th port/buffer (DVI on dock) with VGA on left side. The 4 ports after patch are: LCD, DisplayPort on side, DisplayPort on dock, VGA on side. If you need DVI on the dock - then you can either not do this! Or replace the 3rd port (DP) if you want the VGA.
    • Patches IOAHCIBlockStorage.kext for SSD TRIM on 3rd Party SSD
    • Patches AppleHDA.kext for audio codec Conexant 20672
  • Zip includes extra and custom kexts plus cVad's Kext Utility v2.5.7 for easy kext installation (or you can use manual script:  _kext-install-SLE.bash)
  • Optionally use ssdtPRgen-clover.command script so you can create your own SSDT P/C state tables
  • The High-res vs Low-res config.plist (and DSDT) are the essentially the same - difference is EDID and DualLink settings.
  • For 1600x900 an alternate working EDID is injected by Clover and is also in the 1600x900 version of the DSDT.
  • Added folder for Displays/Overrides - put these folders in /System/Library/Displays/Overrides
    • more natural color gamma curves and more screen size options
    • 2 sets of timings - 60 and 50 Hz option
  • Has a newer Thinkpad theme - for Mavericks and Yosemite Icons.
  • Special keys on laptop (without USB or Bluetooth keyboard):
    • The ScrLk and Pause keys change LCD brightness - which are F14 and  F15 (above F10 and F11).
    • Insert key is the CD/DVD eject.
    • The Blue ThinkVantage button toggles fan to highest speed.
    • The Alt key is the Mac Command key and Microsoft flag key is the Mac Option key.
    • Fn PgUp - still turns on the light!

DSDT Notes - Some of the DSDT tweaks (beyond manwe150's original version) are listed here:

  • DSDT includes source and binary
  • For 1600x900 LCD, the EDID override removes infamous HD 3000 glitches and buffer hangs or so-called artifacts.

  • Added MaxBeepBootVolume to DSDT to rid AppleHDA assertion on startup

  • Shutdown fixes in DSDT  _PTS and _WAK (thanks to TimeWalker75, RehabMan and Manwe150)

  • Change/fixes to reset LEDs for proper sleep/wake status

  • Battery fixes to use native/current ACPIPlatform.kext with Rehabman's ACPIBatteryManager.kext - no need to rollback or patch AppleACPIPlatform.kext anymore.

  • PNLF additions from RehabMan provide smoother/wider LCD backlight control with ACPIBacklight.kext

  • DSDT mods to KBD device - renamed to PS2K and added LENOVO OEM-ids for VoodooPS2Controller to use.
  • The PS2 Keyboard is identified as id LENOVO table-id T420 which will pickup the custom VoodooPS2Controller settings.

  • Included is a revised Pike's  SSDT generation script (sdtPRgen-clover.command) and a local copy of iasl. running the script will end with making a copy of ssdt.aml into proper ESP location when mounted.

EmuVariableUefi-64.efi migration to native NVRAM



1) Before updating if you are still using EmuVariable.efi, run this command see and then save current nvram values:

nvram -p
nvram -xp > ~/nvram.plist

2) Update the ESP with new Clover version (from zip or pkg) - uncheck EmuVariableUEFI-64 driver option.

3) Rename (or remove) EmuVariable driver the ESP so it will not be loaded on next boot, if there is one still in the Clover driver folder.

Note: manually mount ESP on /Volumes/EFI or /Volumes/ESP, if not already mounted and then run:

mv /Volumes/ESP/EFI/CLOVER/drivers64UEFI/EmuVariableUEFI-64.efi /Volumes/ESP/EFI/CLOVER/drivers64UEFI/EmuVariableUEFI-64.efi.NU

4) Reboot and restore previous nvram values and remove Clover NVRam variable. You should see some variables already in there.

nvram -p
sudo nvram -xf ~/nvram.plist
sudo nvram -d Clover.NVRamDisk

5) Reboot to boot run with final values!



Old issues - no longer happening.

These 4 problems listed below happened with earlier versions of Clover and OS X  but on 10.9.2 or later, and with the rewrite of Clover and OsxAptopFixdrv-64.efi, these UEFI/ESP issues are seem to be a thing of the past.

  1. putting to sleep can result in flashing/hung state

  2. built-in keyboard mute button can totally freeze system - works fine from software (i.e. apple bluetooth KB)

  3. shutdown may not go all the way to full power off (OS shuts down but at black screen with fans/lights on)

  4. built-in PS2 keyboard/trackpad may disappear after sleep/wake

Optional: Boot with Clover on MBR USB



One can still boot from the HD using UEFI. But one can also create a bootable MBR formatted USB with CloverEFI. This boot method may mitigate any random UEFI issues. The exact same EFI folder can be used. To make a bootable MBR USB:

  1. Format the stick as MBR (which is usually the default) with a single FAT32 partition named USB.
  2. Optionally copy the OSX installer to USB (same command for GUID USB above) but must be done before steps below!
  3. Then with Clover_v2k_rxxxx.pkg, install to the USB for "legacy CloverEFI" boot.  That is: Uncheck the top 2 items, and in Bootloader check the 2nd option to install boot0af.
  4. After the Clover pkg installer is finished and closed, then replace the EFI/CLOVER folder just like you did on the HD. the EFI/BOOT folder is not needed. Note: the HD ESP EFI folder and USB EFI folder should be exactly the same now.
  5. Then from the BIOS, set USB-HDD as top boot option (so you don't have manually boot from USB vs the HD)
Go to the full post


  • Please log in to reply
1731 replies to this topic

#1
Kogen Mantis

Kogen Mantis

    InsanelyMac Protégé

  • Donators
  • 98 posts
  • Gender:Male

Thanks to Clover EFI Bootloader I was able to achieve almost perfect HacBook Pro from my Lenovo T420

This guide is work in progress and I’ll try to update it as often as I can outdated! For more updated guide head to tluck's post #481 (thanks tluck for taking over)



Why UEFI Only?
Faster boot time, better hardware detection, native Mac OS X Installation process and Auto create Recovery HD, working iCloud and iMessage to name a few. But in general you will achieve almost perfect Macbook Pro clone that will most likely survive all future System updates.

Note: I’ll be focusing on Mountain Lion but I guess Lion would work equally good.

Lets start by preparing Mac OS X install media.
You will need:
- Working Mac OS X 10.6 or later (Hackintosh, Virtual machine or real Mac)
- 8GB+ USB pen-drive
- Legal copy of Mountain Lion install app
- and an app called Lion Disk Maker
- my custom Clover Package: Attached File  Clover_v2_r1625k0.pkg.zip   5.44MB   2012 downloads

Prepare Mountain Lion install media using Lion DiskMaker.


Making install media bootable on your ThinkPad
Run my custom Clover Package and change the install destination to the Mountain Lion install media you’ve just created using Lion DiskMaker. Generaly you don't have to worry about anything else it is all customized to work best on all ThinkPads.






Custom Clover 1229k0.png

Note (optional): At this point you can use another FAT32 formatted pen-drive to install Clover on to it. This pen-drive needs to be capable of storing at least 25MB+ of data.

System installation
Insert prepared OS X Mountain Lion Install Disk - 10.8 in your ThinkPad and set to boot in UEFI Only mode. And wait for the boot loader. You should be presented with screen like this:







Now start the installation process just like you would on a normal Mac. Partition your drive with GUID table and install.

Adding Extra drivers using myHack
You now should be running vanilla Mac OS X 10.8. Before you start upgrading and instaling software now is a good time to add missing drivers and install them in a clean and proper manner using myHack.
1. Download Extra Folder: Attached File  Extra.zip   1.75MB   1125 downloads
2. Download myHack and place it in your Application folder
3. Run myHack and choose myFix. When asked about Extra folder choose "Use My Own" and point to downloaded Extra folder from step 1. Reboot and check if everything is working fine. By everything, beside AppleACPIPlatform.kext ver 1.3.5, I mean Sound and Battery meter cause these are the only kexts that are in Extra/Extentions


Making your custom configuration using OEM folder
... under construction...

Booting Clover EFI Bootloader from system drive
It's time to get rid of the osx pen-drive you've been booting all the time and install my custom Clover to your main disk and boot directly from your hard drive EFI partition. This step is identical to the "Making install media bootable on your ThinkPad" but this time you will be using your main drive. Just make sure your disk drive is selected when installing.

Note: Now You can customize your installation. You have the choice to install Clover Preference Panel and Optional RC scripts.






Clover1625k0.png CloverPrefPane.png CloverPrefPane1.png CloverPrefPane2.png

Remove pen-drive and reboot. If all went well you should be booting from your hard drives EFI partition now. Good luck!

Software worth mentioning
Clover EFI bootloader (thread) - (source code) - (changelog) - (wiki)
CloverGrower (post) - (source code)
HWMonitor + HWSensors (thread) - (source code)
DSDT Editor (thread)
DarwinDumper (thread)
...

Thanks and credits
Slice, dmazar and all Clover thread members, joshhh and all T510 thread members, gothic860 and all W520 thread members, Manwe150 and all T420 thread members

.…. to be continued.

Update 2013-01-20: Flashed latest UEFI Bios version 1.43 + whitelist and started fresh DSDT patching

Update 2013-01-30: Uploaded new LenovoEFI_Pack_Beta2.zip (from now on I'll be attaching latest version to this thread). I've started using the EFI/OEM/4180A32 folder specific for my T420 model and added minimal config in the root that should work for everyone else (testers needed). My latest DSDT.aml in EFI/OEM/4180A32/ACPI/patched and updated ThinkPad theme is included.

Update 2013-05-15: Updated the post to reflect some changes and progress made in this topic. Using custom Clover r1625 that has all the stuff Lenovo UEFI user needs. This one is enabled to install to ESP by default with ThinkPad Theme and RC scripts and example EFI/CLOVER/OEM/4180A32 folder.


Edited by Kogen Mantis, 01 July 2014 - 04:08 PM.


#2
FireROR

FireROR

    InsanelyMac Protégé

  • Members
  • Pip
  • 23 posts
Does this support speedstep and sleep?

#3
Kogen Mantis

Kogen Mantis

    InsanelyMac Protégé

  • Donators
  • 98 posts
  • Gender:Male
Yes and Yes - but you need to patch USB for sleep to work.
dsdt.aml included in clover EFI/ACPI/patched/dsdt.aml does not have this patch. I'll add info about DSDT patching later.

#4
djm20

djm20

    InsanelyMac Protégé

  • Members
  • Pip
  • 29 posts
i have a dell xps 14 ultrabook and it has UEFI as well, do you know if this guide will work on my laptop?
my specs are

BIOS: A13
intel core i5 3317U
intel HD4000
4gb ram
500gb hdd
32 gb ssd
intel centrino wireless card(im assuming this wont work)
im running windows8 pro(legal copy) and i plan to dual boot with mountain lion and win8

#5
FireROR

FireROR

    InsanelyMac Protégé

  • Members
  • Pip
  • 23 posts
WIFI won't work for sure. You need to get one from ebay

#6
Kogen Mantis

Kogen Mantis

    InsanelyMac Protégé

  • Donators
  • 98 posts
  • Gender:Male

i have a dell xps 14 ultrabook and it has UEFI as well, do you know if this guide will work on my laptop?
my specs are

BIOS: A13
intel core i5 3317U
intel HD4000
4gb ram
500gb hdd
32 gb ssd
intel centrino wireless card(im assuming this wont work)
im running windows8 pro(legal copy) and i plan to dual boot with mountain lion and win8


Yes this guide will work but remember that I use kexts (drivers) specific for Lenovo ThinkPad's and as I mentioned before my DSDT.aml that will KP on your machine.
So in your case delete:

EFI/ACPI/patched/dsdt.aml
and try it out.



#7
FireROR

FireROR

    InsanelyMac Protégé

  • Members
  • Pip
  • 23 posts
I can't get my hardware monitor to work. Try to run it and I got KP.....

Did you use some special kext for the hardware monitor? The one I am using is from iAtkos ML2

#8
Kogen Mantis

Kogen Mantis

    InsanelyMac Protégé

  • Donators
  • 98 posts
  • Gender:Male

I can't get my hardware monitor to work. Try to run it and I got KP.....

Did you use some special kext for the hardware monitor? The one I am using is from iAtkos ML2

If by hardware monitor you mean HWMonitor.app than you just need the latest FakeSMC.kext and in our case CPUSensors.kext and ACPISensors.kext. You can find them in my "EFI/kexts/10.8" and the minimal readout should look more or less like this:
Posted Image

I'm guessing that KP is due to different version of FakeSMC being loaded from iAtkos .

#9
dmazar

dmazar

    InsanelyMac Sage

  • Coders
  • 277 posts
  • Gender:Male
Hey, nice customisation :)

#10
Kogen Mantis

Kogen Mantis

    InsanelyMac Protégé

  • Donators
  • 98 posts
  • Gender:Male

Hey, nice customisation :)

I'm glad you like it dmazar... any chance to put it in next clover installer release? :)

#11
dmazar

dmazar

    InsanelyMac Sage

  • Coders
  • 277 posts
  • Gender:Male
I do not know. You can propose it to Slice in Clover thread.

#12
Kogen Mantis

Kogen Mantis

    InsanelyMac Protégé

  • Donators
  • 98 posts
  • Gender:Male

Today I've made a display override for my HD+ Panel (1600x900) based on MacbookPro9,1(DisplayVendorID-610/DisplayProductID-9cc7) and named it Lenovo LCD.

The display profile default is warmer using this file and I have added some extra resolution choices in scaled mode.


Attached File  Lenovo LCD.png   77.48KB   137 downloads Attached File  Lenovo LCD Pref.png   105.9KB   119 downloads

Just unzip it and copy entire DisplayVendorID-30e4 folder to:

/System/Library/Displays/Overrides/

Attached Files



#13
Kogen Mantis

Kogen Mantis

    InsanelyMac Protégé

  • Donators
  • 98 posts
  • Gender:Male

Posted Image


Today I had the chance to test out the Display Port to Hdmi cable that I've ordered for 7$ from China (free shipping) and I'm happy to report that all is working great.

Posted Image

All testing done on my Samsung 40" FullHD LED TV. Full resolution support. Stable graphics with no artifacts that I keep on hearing here and there. Even done some OpenGL testing to see how much FPS can I get in case of gaming on the big screen. Mirroring works. The HDMI sound output works both in direct mode (sound in TV) and pass through to my Onkyo receiver.

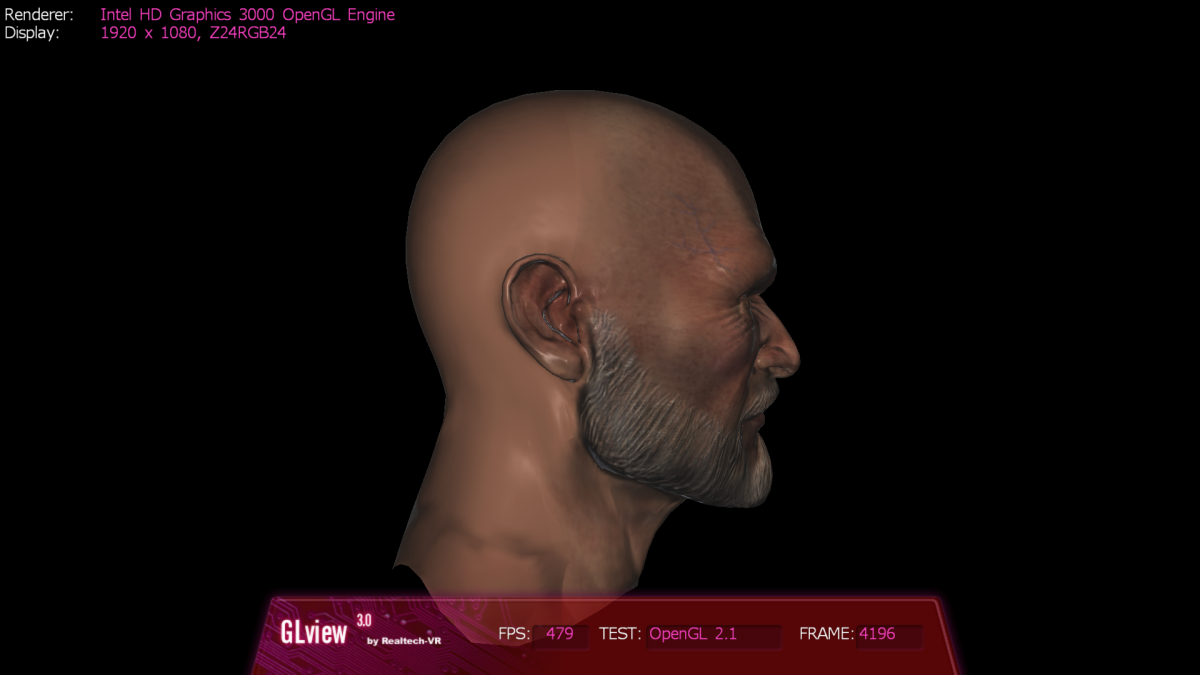

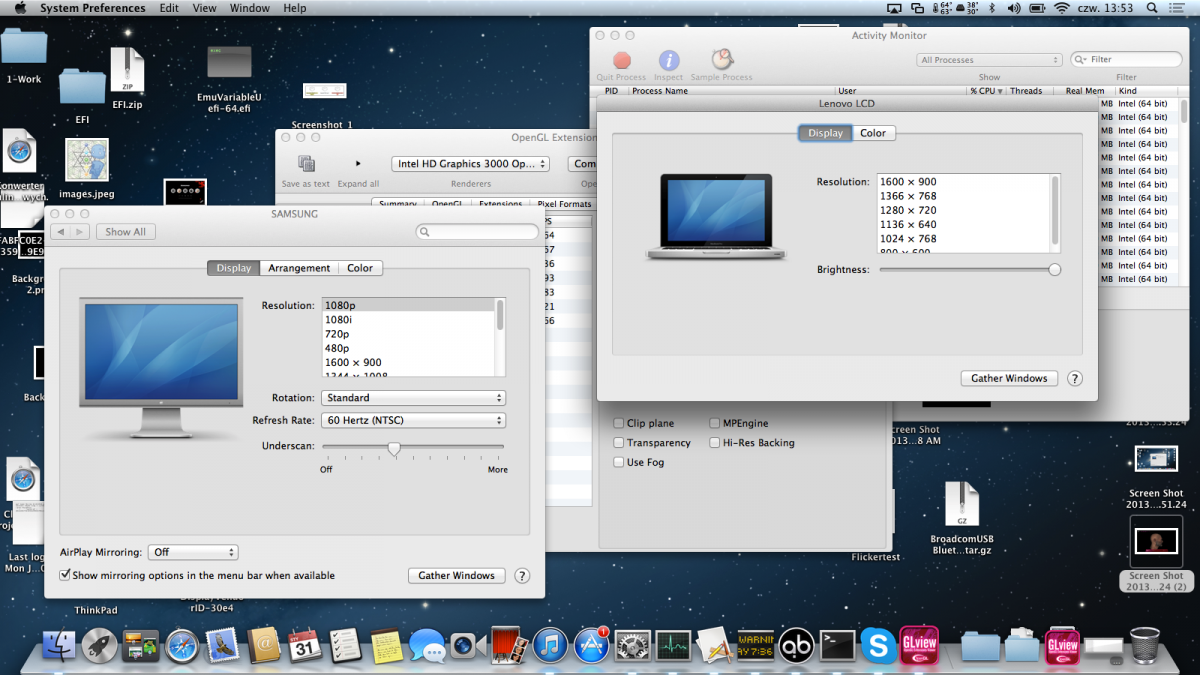

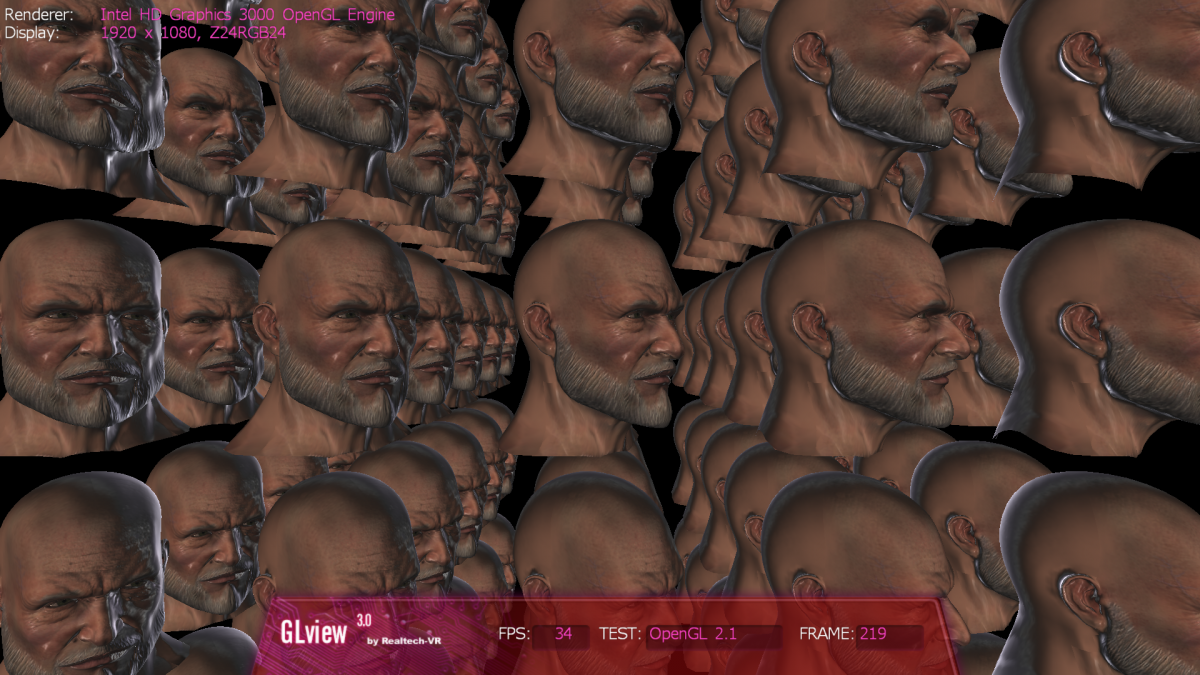

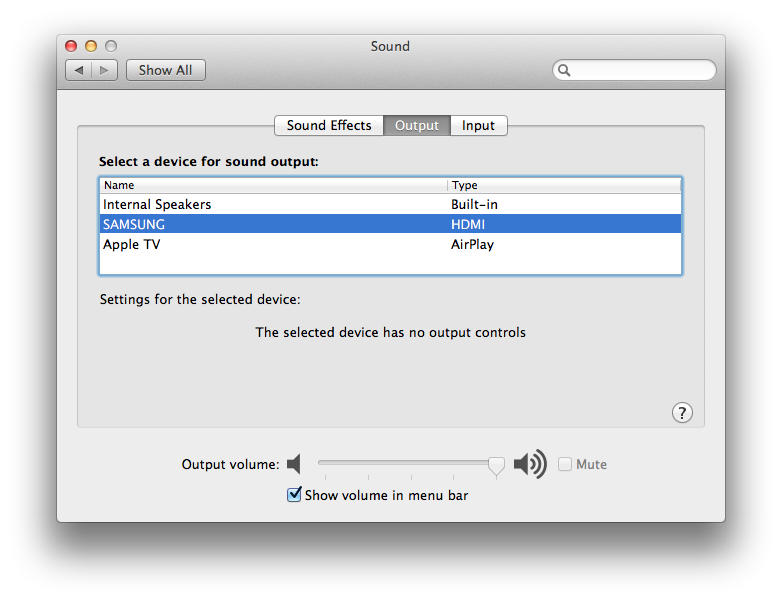

Here are some screenshots:

Attached File  Screen Shot 2013-01-31 at 13.53.15.png   562.19KB   127 downloadsAttached File  Screen Shot 2013-01-31 at 13.51.24 (2).png   272.02KB   116 downloadsAttached File  Screen Shot 2013-01-31 at 13.55.41 (2).png   1.13MB   103 downloadsAttached File  Screen Shot 2013-01-31 at 13.54.23.png   83.42KB   92 downloads



#14
distortionmusic

distortionmusic

    InsanelyMac Protégé

  • Members
  • Pip
  • 14 posts
  • Gender:Male
  • Location:Netherlands
Hey, it's maybe a little bit off-t, but I have a t420 wich I want to run on OSX. I've been in the hackintosh business for a few years, but since the new Sandy Bridge and further I admit I lost track of the scene a bit.

I have tried to install with the "OSX 10.8 bootable usb method", the one you need the raw file and a windows pc for,
I've tried the ##### method, also myHack etc etc.

With the bootable usb method I can boot in installation, but osinstall.mpkg failes to load, so there's no custom install option. When I install and reboot, I get stuck after the IOBluetooth succes message, which is the last one before loading graphics. This "freeze" happens while loading ##### etc too. I've tried using all different flags etc but no succes.

How did you manage to get your graphics working? Do you have two GPU's or just the Intel graphics?

My setup is:

T420
i5 2520m vPro
4gb ram
HD3000 graphics
1600x900 screen

and the standard stuff as bluetooth 3.0, wan etc.

Hope you have some tips for me ;)

Greetz

#15
Kogen Mantis

Kogen Mantis

    InsanelyMac Protégé

  • Donators
  • 98 posts
  • Gender:Male

Hey, it's maybe a little bit off-t, but I have a t420 wich I want to run on OSX. I've been in the hackintosh business for a few years, but since the new Sandy Bridge and further I admit I lost track of the scene a bit.

I have tried to install with the "OSX 10.8 bootable usb method", the one you need the raw file and a windows pc for,
I've tried the ##### method, also myHack etc etc.

With the bootable usb method I can boot in installation, but osinstall.mpkg failes to load, so there's no custom install option. When I install and reboot, I get stuck after the IOBluetooth succes message, which is the last one before loading graphics. This "freeze" happens while loading ##### etc too. I've tried using all different flags etc but no succes.

How did you manage to get your graphics working? Do you have two GPU's or just the Intel graphics?

My setup is:

T420
i5 2520m vPro
4gb ram
HD3000 graphics
1600x900 screen

and the standard stuff as bluetooth 3.0, wan etc.

Hope you have some tips for me ;)

Greetz

Try starting from step "Clover installation" - use another FAT32 formatted pen-drive and copy the EFI folder to it and try installing again in UEFI only mode. I won't support other methods.
Also instead of hardware specs I rather you tell my your ThinkPad serial number. Good luck

#16
distortionmusic

distortionmusic

    InsanelyMac Protégé

  • Members
  • Pip
  • 14 posts
  • Gender:Male
  • Location:Netherlands

Try starting from step "Clover installation" - use another FAT32 formatted pen-drive and copy the EFI folder to it and try installing again in UEFI only mode. I won't support other methods.
Also instead of hardware specs I rather you tell my your ThinkPad serial number. Good luck


My serial number is 4236Z9U.
Thanks for the fast reply, and also my compliments for the work you're doing!



NB: Tried to copy your files from EFI, didn't work OOB. What worked for me is to download latest Clover package installer (v2_rL971), install it to USB and then copy (and replace where needed) your files from "EFI" folder to the EFI folder on the USB. Now I can boot Clover, it's a start haha.


UPDATE: I have followed your guide, and now I can actually boot into the installer. Only issue is, my display does not work. I noticed that I got a black screen after booting (instead of hanging at bluetooth succes it goes on running to graphics), but when I clicked something my usb did go do something. So I figured my graphics were working now, only my internal LCD did not. I switched to external VGA as default boot screen in my UEFI bios, and that, in fact, works. I guess it tries to go 1600x900x32 on my 1280x1024 screen, but it's working.

Do you know what I have to change to make my LCD working, is it something in Clover or in my kexts?

#17
Kogen Mantis

Kogen Mantis

    InsanelyMac Protégé

  • Donators
  • 98 posts
  • Gender:Male

My serial number is 4236Z9U.
Thanks for the fast reply, and also my compliments for the work you're doing!



NB: Tried to copy your files from EFI, didn't work OOB. What worked for me is to download latest Clover package installer (v2_rL971), install it to USB and then copy (and replace where needed) your files from "EFI" folder to the EFI folder on the USB. Now I can boot Clover, it's a start haha.


UPDATE: I have followed your guide, and now I can actually boot into the installer. Only issue is, my display does not work. I noticed that I got a black screen after booting (instead of hanging at bluetooth succes it goes on running to graphics), but when I clicked something my usb did go do something. So I figured my graphics were working now, only my internal LCD did not. I switched to external VGA as default boot screen in my UEFI bios, and that, in fact, works. I guess it tries to go 1600x900x32 on my 1280x1024 screen, but it's working.

Do you know what I have to change to make my LCD working, is it something in Clover or in my kexts?

You have almost identical hardware specs to mine so I advice you to rename the 4180A32 folder inside EFI/OEM/ to 4236Z9U and report back.


BTW: Are you sure you have the correct UEFI booting settings in your ThinkPad Setup? (Startup > UEFI/Legacy Boot Priority [UEFI First])

#18
Kogen Mantis

Kogen Mantis

    InsanelyMac Protégé

  • Donators
  • 98 posts
  • Gender:Male

ThinkPad Setup


I still can't make up my mind regarding the best ThinkPad Setup configuration but it seem that some setting are essential for booting Mac OS X:

Essential:
Config > Serial ATA (SATA) > SATA Controller Mode Option [AHCI]
Security > Memory Protection > Execution Prevention [Enabled]

Security > Intel ® VT-d Feature [Disabled]

My other settings:
Security > Security Chip > Security Chip [Disabled]
Startup > UEFI/Legacy Boot [Both]
Startup > UEFI/Legacy Boot Priority [UEFI First]

Edited by Kogen Mantis, 18 February 2013 - 02:53 PM.


#19
distortionmusic

distortionmusic

    InsanelyMac Protégé

  • Members
  • Pip
  • 14 posts
  • Gender:Male
  • Location:Netherlands

You have almost identical hardware specs to mine so I advice you to rename the 4180A32 folder inside EFI/OEM/ to 4236Z9U and report back.

BTW: Are you sure you have the correct UEFI booting settings in your ThinkPad Setup? (Startup > UEFI/Legacy Boot Priority [UEFI First])


Yeah I have the system up and running now, from my internal screen with right resolution. Sound and ethernet work as well now.
Only issue, I get a KP after a few minutes.

panic(cpu 2 caller 0xffffff7f807ff1df): No HPETs available...CPU(s) configured incorrectly
Debugger called: <panic>
Backtrace (CPU2), Frame : Return Adress
and after that a lot of computer language, which probably is the adress of where it got stuck or something.


I'm going to try changing stuff in bios first, turning off hypertheading etc, maybe it works maybe not, I'll post updates.
I'm still running original UEFI/BIOS by the way, because I wasn't planning yet on changing my wireless card.

I think some things in your DSDT aren't the same after all, but the namechanging thing did work for the rest. Only problem now is that I do not have any knowledge of modifying DSDT's...

#20
Kogen Mantis

Kogen Mantis

    InsanelyMac Protégé

  • Donators
  • 98 posts
  • Gender:Male
I think there is my experimental DSDT.aml in the patched folder, try replacing it with the one I'm using right now.

Attached Files







Also tagged with one or more of these keywords: UEFI, ThinkPad, T420, Lenovo, Clover


0 user(s) are reading this topic

0 members, 0 guests, 0 anonymous users

© 2015 InsanelyMac  |   News  |   Forum  |   Downloads  |   OSx86 Wiki  |   Mac Netbook  |   PHP hosting by CatN  |   Designed by Ed Gain  |   Logo by irfan  |   Privacy Policy
