Gigabyte GA-965P-DS3 Leopard How-to (Updated 1/10)

412 posts in this topic

Recommended Posts

**1/10 Added a link to idividebyzero's 965P-S3 iatkos thread



iATKOS Install



Note: You may install pc-efi emulation from iATKOS disc. In order to install emulation, you MUST have a Core or Core 2 Duo processor. iATKOS is Intel processors only.



1. Boot up iATKOS disc



2. Open the utilities file menu and format the partition you would like to use as HFS Journaled



3. Open the utilities file menu and run the Darwin boot script. You must select the partition which you are installing OS X on. If the partition is disk0s3, then enter "1" for disk and "3" for partition. Lastly, select whether you are going to use pc-efi emulation and the vanilla kernel.



4. Select the partition you will use in the installer. Go to the installation options. Select any options you may need for other hardware. Make sure to select the vanilla kernel if you are installing vanilla kernel and using pc efi emulation. If you are running EFI, you should probably choose "EFI Emulation" and "AppleSMBios.kext Netkas"



5. Install (Should take about 20 minutes)



Please see this thread from idividebyzero. It is for the GA-965P-S3, a very similar board, which explains the installation of iATKOS in better detail:



http://forum.insanelymac.com/index.php?showtopic=80512







-----------------------------------------------------------------------------------------------------------



AIGHOST's How-to (Using ToH RC2 DVD)



Please see this thread: http://forum.insanelymac.com/index.php?s=&...st&p=526141



I managed to install Leo pre/post-patching the HDD itself. Using brazilmac postpatch (as a reference) and info from punkrockml13.

(with one interesting output about shutdown) - i'll write about it later.

Concern this info as a guide.

My system is only a reference, so where you have different setup (like hdd or folder placement - just edit it).

I'll update this post in a process of testing the method.



-------------------------------------------------------------------------------------------------------------



Lonewolf's Installation Guides (Using ToH RC2 DVD)



http://forum.insanelymac.com/index.php?s=&...st&p=530007



As A.I.Ghost and some one else on this thread, I tried many different ways of installing Leo on a DS3 mainboard: BrazilMac pre & post-patch, ToH, ToH + BrazilMac post-path, changing the position of the HD and the BIOS setup, using Kaliway CD, etc...

All of them finished always in the same way: an un-bootable Leo installation! Finally, I found 3 different solution. It could be that many of the problems I got were related to the Matrox HD, which is an 'old' SATA1...







--------------------------------------------------------------------------------------------------------------



These are manual fixes which are important to keep track of for the G965P-DS3



IDE Support:



In order to get IDE Support, AppleVIAATA.kext must be replaced with a copy with the correct device ids. The following is a copy of the AppleVIAATA.kext from the Brazilmac installation:



AppleVIAATA.kext.zip



Follow the video directions to see how to install a kext.



Sound:



The GA-965P-DS3 uses ALC sound. An easy installer has been created for it by skippyretard. Please use ALC883 for early revisions and ALC888 for rev. 2.0 and later:



ALC883Audio.mpkg.zip Rev. 1.0



ALC888Audio.mpkg.zip Rev. 2.0, 3.3





I believe SPDIF works after using these installers. Can someone please confirm? If it does not work, then this thread has the information that has traditionally made it work:



http://forum.insanelymac.com/index.php?showtopic=32859



Video:



This will depend upon your videocard. If you are running an ATI video card, you will probably have success with Natit. Download this kext:



Natit_ATIauto.kext.zip



Then follow these directions:



1. Unzip Natit_ATIauto.kext.zip to Natit.kext

2. Move Natit.kext into the Extensions folder located at System/Library/Extensions

3. Open the terminal located in /Applications/Utilities and run the following commands:



cd /System/Library/Extensions

sudo chown -R root:wheel Natit.kext

sudo chmod -R 755 Natit.kext

cd /System/Library

sudo rm -rf Extensions.mkext

sudo diskutil repairPermissions /



LAN: This is only for rev. 2.0, rev. 3.3, or any revision that uses Yukon controller 8056. For those that have 8053 (rev 1.0), LAN works without modification. This how-to was written by Royco. If you find it helpful, be sure to thank him! =)



Open the terminal from /Applications/Utilities and type the following:



sudo nano /System/Library/Extensions/IONetworkingFamily.kext/Contents/PlugIns/AppleYukon2.kext/Contents/Info.plist



(find and change: <key>Yukon-88E8053</key>)

(to: <key>Yukon-88E8056</key>) <-- change "53" to "56"



(find and change: <string>0x436211AB</string>)

(to: <string>0x436411AB</string>) <-- change "62" to "64"



(find and change: <string>Yukon Gigabit Adapter 88E8053 Singleport Copper$</string>)

(to: <string>Yukon Gigabit Adapter 88E8056 Singleport Copper$</string>) <-- change "53" to "56"



Ctrl O <--- Thats letter O

Enter

Ctrl X



sudo chown -R root:wheel /System/Library/Extensions/IONetworkingFamily.kext

sudo rm -rf /System/Library/Extensions.mkext

Reboot.



After rebooting your LAN might not be working yet and showing up as disconnected. Do the following.

- Go to System Preferences, Click on the network icon.

- On the left pane select your ethernet, on the right pane where it says "Configure" select "off".

- Click apply.

- Now back to "Configure" select "Using DHCP". Click apply.

- Your LAN should be working by now.



Leopard has Yukon2.kext, Tiger and other IoNetworkingFamily.kext pathces uses Yukon.kext. So make sure to make a note of than since installing such patches will break your LAN and would need kext editing again.

________________________________________________________________



Flat Image



For the Flat-image installation, please see Royco's thread at this address:



http://forum.insanelymac.com/index.php?showtopic=68934





-------------------------------------------------------------------------------------------



Brazilmac Original Method



This method has been archived into the following .rtf file:



Brazilmac.rtf



---------------------------------------------------------------------------------------------



TOH DVD with Brazilmac postpatch



Since iATKOS and Kalyway have released full install discs, the TOH DVD with Brazilmac postpatch has been archived in the following .rtf:



TOH__Brazilmac_postpatch_.rtf

Edited by Conroe Mac

Share this post


Link to post
Share on other sites
Advertisement

I <3 this motherboard too (Except the whole no IDE drive thing though) but unfortunately thanks to awful Australian broadband I don't have the bandwidth to spare at the moment for Leopard, damn it. ;)

Share this post


Link to post
Share on other sites

I created the patched leo image using brazilmac's method and when i boot from the dvd it loads for a while and after loading AppleVIAATA.kext it throws the following message and then freezes->

BSD root: disk1s3, major 14, minor 6



Keep in mind that i patched the dvd in my macbook, not the hackintosh pc.



Both my dvd-rom and hd are hooked on the j-micron controller on ide mode. This used to work on tiger JaS with ppf patch.

Share this post


Link to post
Share on other sites
I <3 this motherboard too (Except the whole no IDE drive thing though) but unfortunately thanks to awful Australian broadband I don't have the bandwidth to spare at the moment for Leopard, damn it. ;)
You should be able to do with this with the retail disc if you don't have the bandwidth to download the leopard disc. You'll need to create a .dmg image with the retail disc like the one available for download. The other files you need are less than 20 mb.
I'm downloadin brazilmac prepatched.. will this function with my p965 ds3 well or do I have to do something?
The prepatched disc is very similar and a later release than the patch I am describing. Both are based on the same methods. The prepatched should work just as well and get you about 95% there. Please let us know what kind of luck you have with the prepatched disc =).
I created the patched leo image using brazilmac's method and when i boot from the dvd it loads for a while and after loading AppleVIAATA.kext it throws the following message and then freezes->BSD root: disk1s3, major 14, minor 6Keep in mind that i patched the dvd in my macbook, not the hackintosh pc.Both my dvd-rom and hd are hooked on the j-micron controller on ide mode. This used to work on tiger JaS with ppf patch.
I used AHCI and the orange ports to get leopard working. I set AHCI to ON and Native Ports 0-3 to ON. If you didn't have any problems (errors) burning the dvd, then I would start there.
tested and working. Love this mainboard.
Great to hear that! How is your video? I am thinking of adding a section at the bottom to describe the reinstallation of natit.

Share this post


Link to post
Share on other sites
Im Lovin it!! LAN, Sound, Video working! Still working on Sleep.



Awesome. We have three good installations on this board so far and one that we're still working on. The sleep may be my fault because of the answer I put to the prompt during the prepatch. I put a note in the guide to have someone try to answer the prompt differently. I am not positive on that one. If you get sleep to work, let me know as it's not working for me right now either. If you solve it, I'll put it in the guide and give you credit =)

Share this post


Link to post
Share on other sites

Ok - I also have this board (not sure if you remember Conroe Mac, but I was quite active in the other 965P-DS3 thread) and I'm wondering what Leopard image you used? Was it the 6.62 GB one?

Share this post


Link to post
Share on other sites

Am I out of luck if I have an IDE optical drive?



Also, AHCI will break my XP install, is it possible to install Leopard without AHCI enabled?

Share this post


Link to post
Share on other sites

The image I used was APPLE.MAC.OSX.LEOPARD.V10.5.ISO-OSX. Any image should work though. Of course, I remember you Sabr. It's great to see you again. People come back out of the woodwork when it's time for leopard =)

Am I out of luck if I have an IDE optical drive? Also, AHCI will break my XP install, is it possible to install Leopard without AHCI enabled?
You could use the intel matrix drivers for XP or you could patch the installation dvd for IDE from the original IDE patch. I'm not sure exactly where you would get that though. It might be worth waiting for another DVD which should be out shortly.

Share this post


Link to post
Share on other sites
Great to hear that! How is your video? I am thinking of adding a section at the bottom to describe the reinstallation of natit.



I simply used that natit included with postpatch files. works good so far with 7900GS.



Only problem Im having is with network. I have DS3 rev 3.3 and I used same method like in tiger (edited kext like described here http://forum.insanelymac.com/index.php?sho...mp;#entry245032 only with smalled modifications. Nothing comlicated.)

Problem is that when I boot into Leo network is working ok. I have internet access and everything but after like 10 minutes of using internet it simply stops ALL traffic over network. Still working on a fix. If you guys have same prob with solution :( pls reply



Sound working out of the box.

Share this post


Link to post
Share on other sites
I simply used that natit included with postpatch files. works good so far with 7900GS.



Only problem Im having is with network. I have DS3 rev 3.3 and I used same method like in tiger (edited kext like described here http://forum.insanelymac.com/index.php?sho...mp;#entry245032 only with smalled modifications. Nothing comlicated.)

Problem is that when I boot into Leo network is working ok. I have internet access and everything but after like 10 minutes of using internet it simply stops ALL traffic over network. Still working on a fix. If you guys have same prob with solution :P pls reply



Sound working out of the box.



That is very strange. Does the rev. 3.3 have a different Yukon controller? I believe mine has the Marvell 8053 Gigabit LAN Controller and it has worked perfectly.



If we get everything working perfectly and I feel industrious, I might make a post-patch just for the DS3. Chances are that a DVD will come out soon though so I'll probably give that a shot first. That will go in the partition where my Tiger is now. I don't need to run two copies of OS X =)

Share this post


Link to post
Share on other sites
The image I used was APPLE.MAC.OSX.LEOPARD.V10.5.ISO-OSX. Any image should work though. Of course, I remember you Sabr. It's great to see you again. People come back out of the woodwork when it's time for leopard =)



Excellent - thanks Conroe Mac. :)

Share this post


Link to post
Share on other sites

I know we're not supposed to ask questions here so can someone please reply with a pm and I'll delete my post.



Does anyone have any idea as to how successful this method will be on a Intel i945G motherboard with a SSE3 processor and a GMA950 graphics card?



Is this totally the wrong method for me and is there something else I should be following instead?

Share this post


Link to post
Share on other sites
I know we're not supposed to ask questions here so can someone please reply with a pm and I'll delete my post.



Does anyone have any idea as to how successful this method will be on a Intel i945G motherboard with a SSE3 processor and a GMA950 graphics card?



Is this totally the wrong method for me and is there something else I should be following instead?



It's okay to ask questions, but this isn't very relevant to this thread which is for the GA-965P-DS3. My answer is that this process is likely to work if you have an SSE3 capable processor and hardware that worked well under Tiger. So far, this specific method has mostly been tested under P5W and GA-965P motherboards, but that doesn't mean it won't work for others. If you understand what kexts are necessary to make your specific hardware work, you should be able to put something together that works perfectly. If you don't know what those kexts are or how to install them, then I suggest you wait for a better installer in the form of a DVD release. This method is for getting Leopard running and I am hoping to refine it in this thread to getting leopard running perfect on the GA-965P-DS3.

Share this post


Link to post
Share on other sites
That is very strange. Does the rev. 3.3 have a different Yukon controller? I believe mine has the Marvell 8053 Gigabit LAN Controller and it has worked perfectly.



If we get everything working perfectly and I feel industrious, I might make a post-patch just for the DS3. Chances are that a DVD will come out soon though so I'll probably give that a shot first. That will go in the partition where my Tiger is now. I don't need to run two copies of OS X =)





The 3.3 Has a different Yukon Controller, 8056 i think. Because thats what I change on the yukon.kext. So for those with ver 3.3 boards having trouble with LAN even after editing Yukon2.kext, enter a static IP address instead of doing DHCP. Let it run for a while then switch back to DHCP, this solved my problem with my LAN showing as disconnected.

Share this post


Link to post
Share on other sites

I used to hang around the old thread as well, though I'm less likely to be remembered.



I'm running out of partitions, and have to decide whether to blow away my working Tiger install to make room for Leopard. According to this thread Leopard installs well on my mobo (a plus). The other question is: is it worth it? Eventually of course software will require it, but for now are there any major benefits? Of course I've read the reviews, but I'm interested in what the hackintosh guys say.

Share this post


Link to post
Share on other sites

Cliffton Beach

I ordered a new 500gb disk for leo. Its only $118, and you can get 250Gb for under $70.

Is hdd space really a problem?

Share this post


Link to post
Share on other sites

Upgrade from 10.4.8 Jas install works like a charm too.



This has the advantage of having the working devices like HD audio, LAN and video working right after the upgrade with no boot problems. Unfortunately, Sleep stopped working :D



Just install 10.4.8 or probably any other distribution, Install all necessary drivers to make it 100% working. When all is set, boot from the Leopard DVD you just made from the guide on the first post. Skip the part where you go to Disk utility and erase the drive( we want the 10.4.8 install there for it to be upgraded). Go select the Leopard drive where you installed 10.4.8 and customize to uncheck the printer drivers ,languages and anything you can uncheck. After the install patch it as described in the guide, this can now be done within the DVD itself ( see link on the first post for the original thread). After patching, boot from the Leopard disk and tada! You have a fully working 10.5 with drivers intact!



You may want to back up your files incase you are brave enough to do this on your current (the one you used to patch and create the Leopard dvd) Tiger install.

Share this post


Link to post
Share on other sites

I faied to install from DVD-RW using Brazilmac prepatched image.

Tried all port combinations and bios options. Reburnt disc thre times on minimal speed.



In verbose mode, after 2 mins booting I see one line repeating, something about read/write error.



Will try tomorrow with a simple DVD. Tiger didn't install from DVD-RW also, I had to use DVD, so this can be the problem, I guess.

Share this post


Link to post
Share on other sites

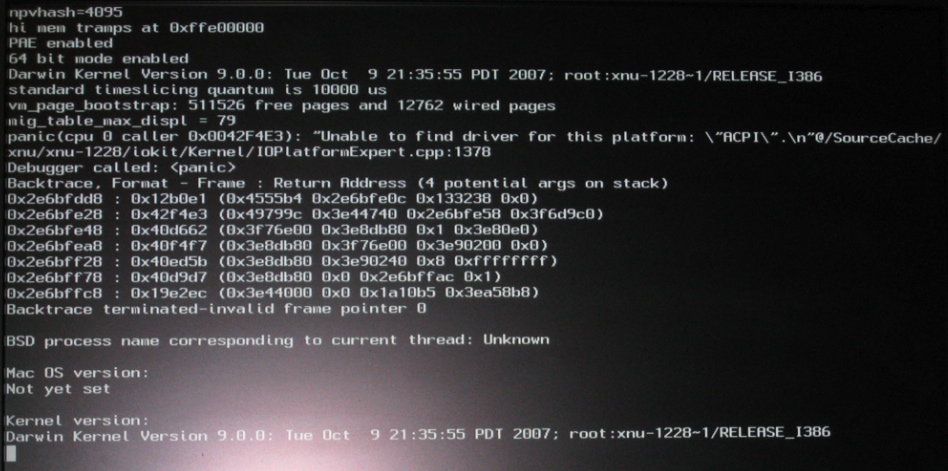

i have this board but am having issues simply BOOTING the install dvd



i had no problems patching the dvd, but when i go to boot off the install dvd, i get a kernel panic related to acpi. see attached pic. i'm running this hardware:



intel c2e x6800

gigabyte ga-965p-ds3 rev 3.3 bios f12

nvidia 7600gt

2 gb 1066 ram



i tried combos of bios settings, ahci, native sata, and hpet to see if that had anything to do with it, but it didnt help, same error. any suggestions?



thanks,

matt




Share this post


Link to post
Share on other sites
MB2696,



Try booting it off a USB DVD drive if you have one, That fixed a lot of booting problems for me.



the dvd drive doenst seem to be the problem...it loads a bunch of kexts but then panics

Share this post
