Intel Wireless driver

jalavoui · January 15, 2007

where is project's url in sf ?
is it http://sourceforge.net/projects/iwi2200/ ?

but i seem that cvs of this url is not updated.

and ipw_best_network and ipw_association work in my environment for my patch .

but this patch added sevaral ieee802211(of linux) ...

i will post this patch after cleaning up.

xkazu,

i don't know if you agree but if we keep the project going in this thread, other will help to go furter.

people that use iwi2100, iwi220 and iwi3945 will give lot of feedback and help to write the driver

jalavoui · January 15, 2007

following is log in linux and iwi2200_v4(+my editting version.)
'vantronix' is network name of my AP.

I seem that scanning is successed. but Firmware error alway occur after Assocation attempt....

firmware should be changed?

You might check the firmware loading, i run a test with ipw_associate_network and get the same firmware bug

Jan 15 11:32:30 Y2 kernel[0]: darwin_iwi2200: setPOWER 1, 0 0 0 0

you're using the IO80211.kext from 10.4.8 i've tested this framework and i found out that it crashes the driver. on the other hand the setPOWER and other routines are called by the driver. don't you think it will be better to use the 10.4.7

IO80211 family for now?

i'm trying to do some work with the ipw->rx queues. i'll post news soon

jalavoui · January 15, 2007

hopefully in future developement the 2915abg will be supported

poplars

as far as i know the 2915abg is part of the iwi2200.kext (see the linux project)

i see no reason for this not to work

can you post you console log?

jalavoui · January 15, 2007

can someone post an howto in using xcode and compile the iwixxxx.kext?

this project can go much faster if we have more people with the ability to compile the sources

please try to post full console logs (send as attached file)

i can't understand the log if it isn't complete

Picasosz · January 15, 2007

What am I doing wrong I get this error The system extension “/System/Library/Extensions/iwi3945.kext“ was installed improperly and cannot be used. Please try reinstalling it, or contact the product’s vendor for an update. I repaired permisions I deleted the extensions.kextcache and extensions.mkext I would appreciate any help you can offer.

MarcusAurelius · January 15, 2007

from terminal:

sudo -s

chmod -R 755 /System/Library/Extensions

chown -R root:wheel /System/Library/Extensions

touch /System/Library/Extensions

poplars · January 15, 2007

poplars

as far as i know the 2915abg is part of the iwi2200.kext (see the linux project)

i see no reason for this not to work

can you post you console log?

I don't have my card installed at the moment, I wanted wireless so I decided to put in an atheros card for the time being. I'll try it out when the driver reaches further developement.

djtrix · January 15, 2007

this is the first release of iwi2100.kext and iwi3945.kext

i'd like to help developing this cards drivers but i have the 2200BG card

the iwi2100, iwi2200 and iwi3945 have common code. i'd like to thank to all people who helped

can someone review the supported cards that will work with this drivers? (see info.plist)

AMAZING dude! I'll test out the iwi3945 driver / post some console logs in the next couple days, just gotta re-download osx. I totally gave up on it because I didn't have wireless support!

jacksont123 · January 15, 2007

AMAZING dude! I'll test out the iwi3945 driver / post some console logs in the next couple days, just gotta re-download osx. I totally gave up on it because I didn't have wireless support!

Hehe, same; I gave up because of no wireless support. It's time for us to reinstall OS X.

minimoa · January 15, 2007

Hi,

i've tried iwi3945.kext,

sudo -s

move iwi3945.kext to /System/Library/Extensions

chmod -R 755 /System/Library/Extensions/iwi3945.kext

chown -R root:wheel /System/Library/Extensions/iwi3945.kext

rm /System/Library/Extensions.mkext

rm /System/Library/Extensions.kextcache

kextcache -k /System/Library/Extensions/

reboot

this kext recognized my intel 3945 card as airport but no wireless acces point found. When i want to put my acces point manually, my computer freeze,i've 10.4.8 official kexts from the combo update and semthex's kernel.

Thanks jalavoui for your hard work, hope it work one day.

Edited January 15, 2007 by minimoa

homer007 · January 15, 2007

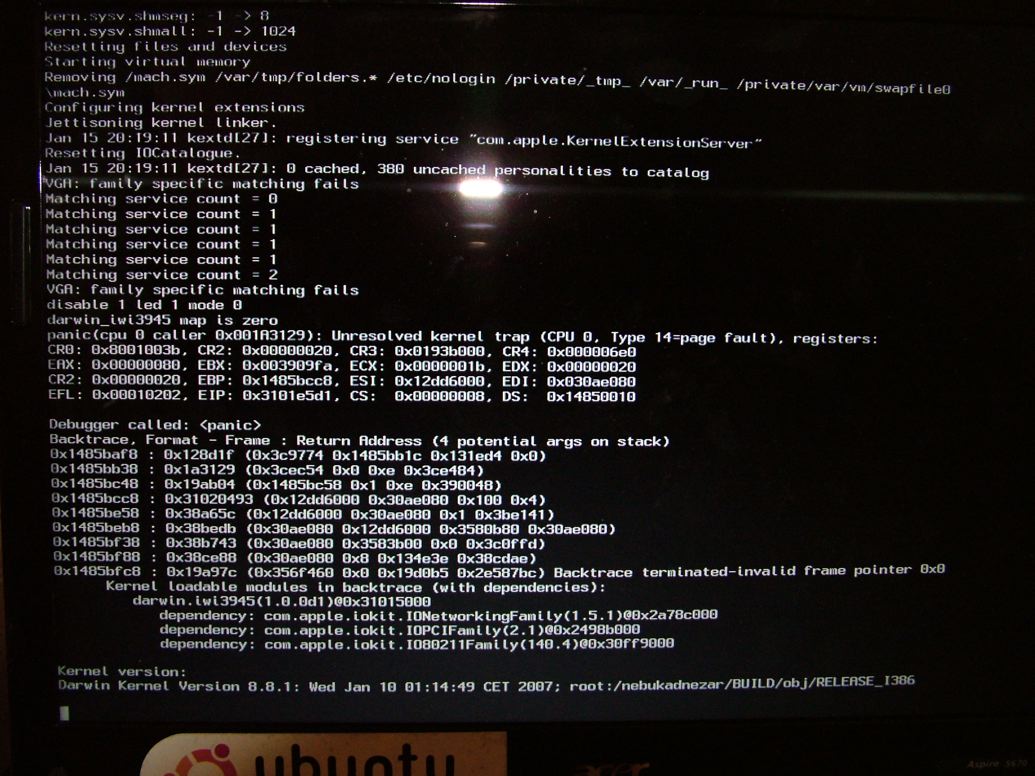

when i install intel 3945 kext i get a kernel panic!!!! does anyone have a clue why this happens??!!

Picasosz · January 15, 2007

Now I get the : You need to Restart Your Computer Hold Down the Power button for Several Seconds or Press the Restart Button. What Did I do Wrong

kevinosx · January 15, 2007

Intel 3945abg,

using 10.4.8 combo update from Mac with latest simthex kernel.

dropped kext in system/library/extensions, authenticated, repaired permissions.

Rebooted

typed the following from terminal:

sudo -s

chmod -R 755 /System/Library/Extensions

chown -R root:wheel /System/Library/Extensions

touch /System/Library/Extensions

everything appears to be there and working except that I can't see any wireless networks to join, it just has the base options to create one etc.

Wow, looking good though! great job!

EDIT: if I push "create network", or "turn airport off", nothing happens.

Here are some logs, a couple of errors in there!!

Jan 16 00:52:30 localhost kernel[0]: dataLinkLayerAttachComplete

Jan 16 00:52:30 localhost kernel[0]: getSTATUS_DEV

Jan 16 00:52:30 localhost launchd: Server 2f07 in bootstrap 1103 uid 0: "/usr/sbin/lookupd"[65]: exited abnormally: Hangup

Jan 16 00:52:30 localhost kernel[0]: ifnet_t en = 367c404

Jan 16 00:52:30 localhost kernel[0]: Radio disabled.

Jan 16 00:52:30 localhost kernel[0]: : Detected Intel PRO/Wireless 3945ABG Network Connection

Jan 16 00:52:30 localhost kernel[0]: Waiting for ipw3945d to request INIT.

Jan 16 00:52:30 localhost kernel[0]: getPOWER 343586712, 3663668 31 315557280 49830

Jan 16 00:52:30 localhost kernel[0]: getSSID <hidden> l:343586136

Jan 16 00:52:30 localhost kernel[0]: getCHANNEL c:0 f:0

Jan 16 00:52:30 localhost kernel[0]: getBSSID <hidden>

Jan 16 00:52:31 localhost kernel[0]: vmmon: Initializing module.

Jan 16 00:52:31 localhost kernel[0]: vmmon: Module initialized.

Jan 16 00:52:31 localhost kernel[0]: vmmon: Fast clock thread started.

Jan 16 00:52:31 localhost mDNSResponder: Adding browse domain local.

Jan 16 00:52:32 localhost configd[62]: Error: WirelessGetInfo2() = 88001003

Jan 16 00:52:32 localhost configd[62]: Error: getGlobalMACAddress failed.

Jan 16 00:52:32 localhost kernel[0]: setPOWER 1, 1 1 1 1

Jan 16 00:52:32 localhost diskarbitrationd[64]: disk0s2 ntfs 00000000-0000-0000-0000-000000000000 Untitled /Volumes/Untitled

Jan 16 00:52:32 localhost kernel[0]: power on

Jan 16 00:52:32 localhost kernel[0]: getCHANNEL c:0 f:0

Jan 16 00:52:32 localhost lookupd[97]: lookupd (version 369.6) starting - Tue Jan 16 00:52:32 2007

Jan 16 00:52:33 localhost kernel[0]: VID2: Not usable

Jan 16 00:52:33 localhost kernel[0]: IPW_INTA_BIT_RF_KILL_DONE

Jan 16 00:52:33 localhost kernel[0]: Press wireless button to turn interface on

Jan 16 00:52:33 kevin-porters-computer configd[62]: setting hostname to "kevin-porters-computer.local"

Jan 16 00:52:34 kevin-porters-computer loginwindow[90]: Login Window Started Security Agent

Jan 16 00:52:35 kevin-porters-computer diskarbitrationd[64]: disk0s3 msdos 00000000-0000-0000-0000-000000000000 SHARE HD /Volumes/SHARE HD

Jan 16 00:52:36 kevin-porters-computer kernel[0]: vmnet: Initializing module.

Jan 16 00:52:36 kevin-porters-computer launchd: Server 0 in bootstrap 1103 uid 0: "/usr/sbin/lookupd"[97]: exited abnormally: Hangup

Jan 16 00:52:36 kevin-porters-computer kernel[0]: vmnet: VMNet_Start allocated gOSMallocTag

Jan 16 00:52:36 kevin-porters-computer kernel[0]: vmnet: Module initialized.

Jan 16 00:52:36 kevin-porters-computer configd[62]: executing /System/Library/SystemConfiguration/Kicker.bundle/Contents/Resources/enable-network

Jan 16 00:52:36 kevin-porters-computer lookupd[121]: lookupd (version 369.6) starting - Tue Jan 16 00:52:36 2007

Jan 16 00:52:36 kevin-porters-computer configd[62]: posting notification com.apple.system.config.network_change

Jan 16 00:52:36 kevin-porters-computer kernel[0]: vmnet: VMNetConnect called

Jan 16 00:52:36 kevin-porters-computer kernel[0]: vmnet: VNetUserIf_Create created userIf at 0x3c08800

Jan 16 00:52:36 kevin-porters-computer kernel[0]: vmnet: VMNetConnect returning port 0x3c08800

Jan 16 00:52:36 kevin-porters-computer kernel[0]: vmnet: VMNetGetopt(0) called

Jan 16 00:52:36 kevin-porters-computer kernel[0]: vmnet: VMNetSetopt(3) called

Jan 16 00:52:36 kevin-porters-computer kernel[0]: vmnet: /dev/vmnet: hub 8 does not exist, allocating memory.

Jan 16 00:52:36 kevin-porters-computer kernel[0]: vmnet: VNetHubAlloc allocated hub 0x3725000 for hubNum 8

Jan 16 00:52:36 kevin-porters-computer kernel[0]: vmnet: VMNET_SO_BINDTOHUB: port: paddr 00:50:56:ea:64:64

Jan 16 00:52:36 kevin-porters-computer kernel[0]: vmnet: Hub 8

Jan 16 00:52:36 kevin-porters-computer kernel[0]: vmnet: Port 0

Jan 16 00:52:36 kevin-porters-computer kernel[0]: vmnet: VMNetSetopt(6) called

Jan 16 00:52:36 kevin-porters-computer kernel[0]: vmnet: VMNetSetopt(6) changing port flags to 0x243

Jan 16 00:52:36 kevin-porters-computer kernel[0]: vmnet: VMNetGetopt(4) called

Jan 16 00:52:36 kevin-porters-computer lookupd[122]: lookupd (version 369.6) starting - Tue Jan 16 00:52:36 2007

Jan 16 00:52:37 kevin-porters-computer configd[62]: target=enable-network: disabled

Jan 16 00:52:38 kevin-porters-computer kernel[0]: vmnet: VMNetConnect called

Jan 16 00:52:38 kevin-porters-computer kernel[0]: vmnet: VNetUserIf_Create created userIf at 0x3d61c00

Jan 16 00:52:38 kevin-porters-computer kernel[0]: vmnet: VMNetConnect returning port 0x3d61c00

Jan 16 00:52:38 kevin-porters-computer kernel[0]: vmnet: VMNetGetopt(0) called

Jan 16 00:52:38 kevin-porters-computer kernel[0]: vmnet: VMNetSetopt(3) called

Jan 16 00:52:38 kevin-porters-computer kernel[0]: vmnet: VMNET_SO_BINDTOHUB: port: paddr 00:50:56:e0:da:ac

Jan 16 00:52:38 kevin-porters-computer kernel[0]: vmnet: Hub 8

Jan 16 00:52:38 kevin-porters-computer kernel[0]: vmnet: Port 0

Jan 16 00:52:38 kevin-porters-computer kernel[0]: vmnet: Port 1

Jan 16 00:52:38 kevin-porters-computer kernel[0]: vmnet: VMNetSetopt(6) called

Jan 16 00:52:38 kevin-porters-computer kernel[0]: vmnet: VMNetSetopt(6) changing port flags to 0x43

Jan 16 00:52:38 kevin-porters-computer kernel[0]: vmnet: VMNetGetopt(4) called

Jan 16 00:52:39 kevin-porters-computer kernel[0]: vmnet: VMNetConnect called

Jan 16 00:52:39 kevin-porters-computer kernel[0]: vmnet: VNetUserIf_Create created userIf at 0x3d61100

Jan 16 00:52:39 kevin-porters-computer kernel[0]: vmnet: VMNetConnect returning port 0x3d61100

Jan 16 00:52:39 kevin-porters-computer kernel[0]: vmnet: VMNetGetopt(0) called

Jan 16 00:52:39 kevin-porters-computer kernel[0]: vmnet: VMNetSetopt(3) called

Jan 16 00:52:39 kevin-porters-computer kernel[0]: vmnet: /dev/vmnet: hub 0 does not exist, allocating memory.

Jan 16 00:52:39 kevin-porters-computer kernel[0]: vmnet: VNetHubAlloc allocated hub 0x3d9a800 for hubNum 0

Jan 16 00:52:39 kevin-porters-computer kernel[0]: vmnet: VMNET_SO_BINDTOHUB: port: paddr 00:50:56:fa:0e:e0

Jan 16 00:52:39 kevin-porters-computer kernel[0]: vmnet: Hub 0

Jan 16 00:52:39 kevin-porters-computer kernel[0]: vmnet: Port 0

Jan 16 00:52:39 kevin-porters-computer kernel[0]: vmnet: VMNetSetopt(8) called

Jan 16 00:52:39 kevin-porters-computer kernel[0]: vmnet: bridge-en0: got dev 0x3260c04

Jan 16 00:52:39 kevin-porters-computer kernel[0]: vmnet: bridge-en0: up

Jan 16 00:52:39 kevin-porters-computer kernel[0]: vmnet: bridge-en0: attached

Jan 16 00:52:39 kevin-porters-computer kernel[0]: vmnet: VNetUserIfFree freeing userIf at 0x3d61100

Jan 16 00:53:59 kevin-porters-computer kernel[0]: getCHANNEL c:0 f:0

Jan 16 00:54:07 kevin-porters-computer configd[62]: Error: WirelessGetInfo() = 88001003

Jan 16 00:54:46 kevin-porters-computer kernel[0]: getCHANNEL c:0 f:0

Jan 16 01:01:33 kevin-porters-computer kernel[0]: setPOWER 1, 0 0 0 0

Jan 16 01:01:33 kevin-porters-computer kernel[0]: power off ignored

Jan 16 01:01:36 kevin-porters-computer kernel[0]: setPOWER 1, 0 0 0 0

Jan 16 01:01:36 kevin-porters-computer kernel[0]: power off ignored

Jan 16 01:01:40 kevin-porters-computer kernel[0]: (91: coreservicesd)tfp: failed on 0:

Jan 16 01:01:41 kevin-porters-computer kernel[0]: setPOWER 1, 0 0 0 0

Jan 16 01:01:41 kevin-porters-computer kernel[0]: power off ignored

Edited January 16, 2007 by kevinosx

BaselineAce · January 16, 2007

Using the new 2100 driver...

Mac OS X Version 10.4.7 (Build 8J2135)
2007-01-15 21:33:59 -0500
2007-01-15 21:34:10.030 SystemUIServer[220] lang is:en
WirelessAttach: getInterfaceWithName failed
WirelessAttach: getInterfaceWithName failed
WirelessAttach: getInterfaceWithName failed
WirelessAttach: getInterfaceWithName failed
WirelessAttach: getInterfaceWithName failed
WirelessAttach: getInterfaceWithName failed
WirelessAttach: getInterfaceWithName failed
WirelessAttach: getInterfaceWithName failed
WirelessAttach: getInterfaceWithName failed
WirelessAttach: getInterfaceWithName failed
WirelessAttach: getInterfaceWithName failed
WirelessAttach: getInterfaceWithName failed
2007-01-15 21:34:46.238 Internet Connect[283] Error: Could not find network port: en1
2007-01-15 21:34:46.297 Internet Connect[283] Error: Could not find network port: en1
WirelessAttach: getInterfaceWithName failed
Jan 15 21:34:47 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:34:47 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:34:47 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:34:47 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:34:47 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:34:47 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:34:47 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:34:47 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:34:47 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
WirelessAttach: getInterfaceWithName failed
Jan 15 21:34:57 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:34:57 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:34:57 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:34:58 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:34:58 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:34:58 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:34:58 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:34:58 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:34:58 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
WirelessAttach: getInterfaceWithName failed
WirelessAttach: getInterfaceWithName failed
WirelessAttach: getInterfaceWithName failed
WirelessAttach: getInterfaceWithName failed
WirelessAttach: getInterfaceWithName failed
Jan 15 21:35:57 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:35:57 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:35:57 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:35:57 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:35:57 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:35:57 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:35:57 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:35:57 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:35:57 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
2007-01-15 21:36:09.515 Internet Connect[283] Error: Could not find network port: en1
WirelessAttach: getInterfaceWithName failed
Jan 15 21:36:10 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:36:10 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:36:10 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:36:10 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:36:10 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:36:10 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:36:10 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:36:10 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:36:10 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
WirelessAttach: getInterfaceWithName failed
WirelessAttach: getInterfaceWithName failed
WirelessAttach: getInterfaceWithName failed
WirelessAttach: getInterfaceWithName failed
WirelessAttach: getInterfaceWithName failed
WirelessAttach: getInterfaceWithName failed
WirelessAttach: getInterfaceWithName failed
Jan 15 21:36:22 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:36:22 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:36:22 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:36:22 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:36:22 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
WirelessAttach: getInterfaceWithName failed
WirelessAttach: getInterfaceWithName failed
Jan 15 21:36:22 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:36:22 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:36:22 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:36:22 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
2007-01-15 21:36:25.338 SystemUIServer[220] AirPortExtra: no card found, exiting
2007-01-15 21:36:25.338 SystemUIServer[220] failed to load Menu Extra: NSBundle </System/Library/CoreServices/Menu Extras/AirPort.menu> (loaded)
WirelessAttach: getInterfaceWithName failed
Jan 15 21:36:32 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:36:32 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:36:32 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:36:32 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:36:32 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:36:32 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:36:32 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:36:32 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:36:32 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:36:33 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:36:33 lance-computer configd[60]: WirelessAirPortDeviceNameCopy(): no AirPort driver found
WirelessAttach: getInterfaceWithName failed
Jan 15 21:36:33 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:36:33 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:36:33 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:36:33 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:36:33 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:36:33 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:36:33 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:36:33 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:36:33 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
2007-01-15 21:36:35.975 SystemUIServer[220] AirPortExtra: no card found, exiting
2007-01-15 21:36:35.975 SystemUIServer[220] failed to load Menu Extra: NSBundle </System/Library/CoreServices/Menu Extras/AirPort.menu> (loaded)
WirelessAttach: getInterfaceWithName failed
Jan 15 21:36:37 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:36:37 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:36:37 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:36:37 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:36:37 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:36:37 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:36:37 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:36:37 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:36:37 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
WirelessAttach: getInterfaceWithName failed
Jan 15 21:36:38 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:36:38 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:36:38 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:36:38 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:36:38 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:36:38 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:36:38 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:36:38 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:36:38 lance-computer /Applications/Internet Connect.app/Contents/MacOS/Internet Connect: WirelessAirPortDeviceNameCopy(): no AirPort driver found
2007-01-15 21:36:40.123 SystemUIServer[220] AirPortExtra: no card found, exiting
2007-01-15 21:36:40.123 SystemUIServer[220] failed to load Menu Extra: NSBundle </System/Library/CoreServices/Menu Extras/AirPort.menu> (loaded)

From the system log...

Jan 15 21:33:17 localhost configd[60]: WirelessAirPortDeviceNameCopy(): no AirPort driver found
Jan 15 21:33:17 localhost configd[60]: AppleTalk startup

Edited January 16, 2007 by BaselineAce

Picasosz · January 16, 2007

This may seem weird but after shutting down and restarting three times the computer started normally and showed the airport icon. In system profiler it showed third party wireless... could not connect with any network open or WPA Personal I have uninstalled the kext unless you need more detailed info I am willing to help.

HP Pavillion DV1000t CTO Intel wireless 3945 abg

Edited January 16, 2007 by Picasosz

patatester · January 16, 2007

Thanks for the first release! Its not working out so well for me, but its a start. The card is detected, although the MAC address is still at 00:00:00:00:00... There doesn't seem to be much happening though. Scanning yields no results, turning the airport off does nothing also, and if I try to assign a custom ap name , the kernel panics.

So here are some logs from my machine, theres the system.log , dmesg and ioreg

Theres one spot within the system.log where the kernel panics, and it is clearly indicated.

the dmesg output is the output after the kernel paniced and i had to reboot.

Let me know if you'd like anything help that would speed up the progress!!

EDIT : using 3945

ioreg.txt

dmesg.txt

system.txt

Edited January 16, 2007 by patatester

kinwah.lai · January 16, 2007

hi everybody,

since this post handle not only 2200, also 2100 and others

please state ur wireless card in ur signature.

please post ur ioreg,console log as attachment so its easier for us to read.

post only part of the log if u want to show the error.

thank you everyone.

eLMafUDd · January 16, 2007

I think that this thread should be moved to the X labs and given a more appropriate title.

macstibs · January 16, 2007

I have a Sony UX180p with the 8.4.1 kernel and 10.4.8 that was delta-upgraded from the Jas 10.4.6 DVD. The laptop has the 3945 chipset. I installed the kext, repaired, etc and rebooted. The icon is now in the menubar and it shows up on the Network Prefs list, but as reported by others, I can't get a connection to any AP. However, I haven't had a kernel panic yet (hope I don't jinx myself). I'll post some logs when I get a chance.

I did notice that in the System Profiler, the kext is listed as having two broken dependencies -- IO80211Family and IONetworkingFamily. Oddly, the NetworkingFamily (ver 1.5.0) is listed as loaded and the 80211Family (ver 1.0) is listed as not loaded because the NetworkingFamily dependency is listed as - No valid version of this dependency can be found.

Edit: Knucklehead that I am, I didn't notice the requirements for a 80211Family version of 1.1. I updated it to 1.1.1 but still no love.

------------

Intel 3945abg (not working yet)

Edited January 16, 2007 by macstibs

patatester · January 16, 2007

macstibs, if you want to test something, my kernel paniced when i tried the custom option to associate to my router. I put in the ESSID and bang, it paniced, we could maybe determine if this is the actual cause of my panic, or its something else...

kinwah.lai · January 16, 2007

Thanks for the first release! Its not working out so well for me, but its a start. The card is detected, although the MAC address is still at 00:00:00:00:00... There doesn't seem to be much happening though. Scanning yields no results, turning the airport off does nothing also, and if I try to assign a custom ap name , the kernel panics.

So here are some logs from my machine, theres the system.log , dmesg and ioreg

Theres one spot within the system.log where the kernel panics, and it is clearly indicated.

the dmesg output is the output after the kernel paniced and i had to reboot.

Let me know if you'd like anything help that would speed up the progress!!

EDIT : using 3945

patatester, can u post ur ioreg again using this command

ioreg -l -w 1024 > ioreg.txt

patatester · January 16, 2007

Here it is

ioreg.txt

macstibs · January 16, 2007

macstibs, if you want to test something, my kernel paniced when i tried the custom option to associate to my router. I put in the ESSID and bang, it paniced, we could maybe determine if this is the actual cause of my panic, or its something else...

I'm actually able to enter an AP through the Other... option but the association doesnt work. I get an error but no kernel panic. I've also noticed that the system isn't pulling the MAC addy off the card so its certainly possible the reason my system isn't panicing is because it's not getting far enough along in the load process to get there.

ioreg.txt

Edited January 16, 2007 by macstibs

xkazu · January 16, 2007

this is source code and binary of v4+my special version.

support scanning and associating 11a channel in 2945abg.
fixed sevaral bugs.
iwi2200_v4_ipw_assc.tar.gz is source code
iwi2200_v4_ipw_assc_bin.tar.gz is binary kext
my log for my environment.(association and authentication ) is successed

and ...

anyone use gdb for device driver development?

and know about gdb rebugging via network?

I set "debug=0x144" in boot time.

and try to connect "target remote-kdp" from remote machine .

but i dont connect tar machine.( set permanently arp entry )

You might check the firmware loading, i run a test with ipw_associate_network and get the same firmware bug

i found the reason of firmware error . i fixed this problem

the reason is tiny...

@@ -5035,14 +5102,16 @@ int darwin_iwi2200::ipw_associate_network

	err = sendCommand(IPW_CMD_SSID, &priv->essid,min(priv->essid_len, IW_ESSID_MAX_SIZE), 1);
	if (err) {
		   IOLog("Attempt to send SSID command failed.\n");
			return err;
	}
	rates->ieee_mode = priv->assoc_request.ieee_mode;
	rates->purpose = IPW_RATE_CONNECT;
-	   sendCommand(IPW_CMD_SUPPORTED_RATES, &rates,sizeof(rates), 0);
-
+
+	   sendCommand(IWI_CMD_SET_RATES, rates,sizeof(*rates), 0);

Jan 15 11:32:30 Y2 kernel[0]: darwin_iwi2200: setPOWER 1, 0 0 0 0

you're using the IO80211.kext from 10.4.8 i've tested this framework and i found out that it crashes the driver. on the other hand the setPOWER and other routines are called by the driver. don't you think it will be better to use the 10.4.7

IO80211 family for now?

problem of setPOWER is spcific 10.4.8?

i have not idea because i dont research this.

i don't know if you agree but if we keep the project going in this thread, other will help to go furter.

people that use iwi2100, iwi220 and iwi3945 will give lot of feedback and help to write the driver

I dont undersntad that status of iwi2200 project on sf.

I want to place for sharing sourecode ( with version controll system) because I do changing many thing .

there are many people whos test driver in this forum . it is not bad.

but i want place sharing source code ...

iwi2200_v4_ipw_assc_bin.tar.gz

iwi2200_v4_ipw_assc.tar.gz

iwi_v4.log.zip

rathalos · January 16, 2007

Thanks for it xkazu, will test it out and get back to you in a while...

edit: ok, loaded the file, but cannot associate to any ap... xkazu, any method u used? i am trying to connect to my school's open network.

edit 2: causes a kernel panic after a time of usage... approx 5min... happens everytime...

Edited January 16, 2007 by rathalos

Intel Wireless driver

Recommended Posts

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites
