apoc333 Posted January 5, 2007 Share Posted January 5, 2007 Waiting fot the release, too! Keep up the good work ;-) Link to comment Share on other sites More sharing options...
mifki Posted January 5, 2007 Share Posted January 5, 2007 Yeah the 3945 is being worked on, im currently doing firmware loading. But it would be good to work together on one project. I was wondering if we ould get together and maybe do the 2200BG before starting the 3945 together. I dunno, just a thought. Edit: Also when u release ur code, i'll give it a look over and see if there is anything i can use in the 3945 kext, if that is ok with you? Link to comment Share on other sites More sharing options...
james2mart Posted January 5, 2007 Share Posted January 5, 2007 Yeah the 3945 is being worked on, im currently doing firmware loading. But it would be good to work together on one project. I was wondering if we ould get together and maybe do the 2200BG before starting the 3945 together. I dunno, just a thought If you two do end up working together, PLEASE be cooperative and selfless!!!! That has been the downfall of nearly every team here in the past! Good luck to both of you! Link to comment Share on other sites More sharing options...
rathalos Posted January 5, 2007 Share Posted January 5, 2007 i agree... another important thing is also support from the forum users... previous attempts at the driver fail because of some think-they-are-so-damn-freaking-smart people who criticise the people who put in effort.... i believe as forum users, and people who desperately need their drivers, we should be patient and 100% supportive of their tireless effort and work... Link to comment Share on other sites More sharing options...
mifki Posted January 5, 2007 Share Posted January 5, 2007 Yeah i know, oh and are you still working on 9200? @ james2smart Link to comment Share on other sites More sharing options...
kinwah.lai Posted January 5, 2007 Share Posted January 5, 2007 i wish i can help but i only know Java programming.... thanks alot for your effort ..... Link to comment Share on other sites More sharing options...
Picasosz Posted January 5, 2007 Share Posted January 5, 2007 If the 3945 driver gets done I would be willing to pay for it. Link to comment Share on other sites More sharing options...
rathalos Posted January 5, 2007 Share Posted January 5, 2007 picasosz, wait for kiko... he's working on it..... Link to comment Share on other sites More sharing options...
BaselineAce Posted January 5, 2007 Share Posted January 5, 2007 Won't work with the 2100, eh? Link to comment Share on other sites More sharing options...
XNT Posted January 5, 2007 Share Posted January 5, 2007 Interresting project you guys got running up here, i would like to thank you all already for the efforts and i'm looking forward for future developments Link to comment Share on other sites More sharing options...
psionic68 Posted January 6, 2007 Share Posted January 6, 2007 Nice work Jalavoui (and any others involved)- I have been hoping for this for a long time. Many thanks in advance Link to comment Share on other sites More sharing options...
Guest bikedude880 Posted January 6, 2007 Share Posted January 6, 2007 As far as I know, Jalavoui hasn't been around for a while... shame... Link to comment Share on other sites More sharing options...
jalavoui Posted January 6, 2007 Author Share Posted January 6, 2007 this release is made for the 10.4.8 kernel. i've added 3 module parameters (see Info.plist in iwi2200.kext.): p_disable - prevents card from auto-starting p_led - enable/disable led p_mode - 0=IW_MODE_INFRA 1=IW_MODE_ADHOC 2= IW_MODE_MONITOR changing any of this parameters requires deleting Extensions.kextcache and Extensions.mkext from System/Library (and reboot) to prevent kernel cache to ignore them. don't use the IO80211Family.kext / Apple80211.framework from 10.4.8 (upgrade to 10.4.7 only) i'll do a install script one of these days... please post console logs iwi2200_v3.kext.zip Link to comment Share on other sites More sharing options...
jalavoui Posted January 6, 2007 Author Share Posted January 6, 2007 i've changed the driver and run it in linux with the latest firmware (3.0) and get this logs (i added code to get the firmware module sizes) i can use help on splitting this files. i'll have to build 2 files for each mode and a boot file. eg: mode bss will have -ipw_bss.fw.h -ipw_ucode_bss.fw.h this should be done for other intel drivers as a start. next step is to upload the firmware ipw2200: Intel® PRO/Wireless 2200/2915 Network Driver, 1.2.0mpr ipw2200: Copyright© 2003-2006 Intel Corporation ipw2200: U ipw_pci_probe pci_resource_len = 0x00001000 ipw2200: U ipw_pci_probe pci_resource_base = e047c000 ipw2200: U ipw_sw_reset Hardware crypto [off] ipw2200: Detected Intel PRO/Wireless 2200BG Network Connection ipw2200: U ipw_get_fw Read firmware 'ipw2200-bss.fw' image v3.0 (191126 bytes) ipw2200: U ipw_load boot firmware: 6464 ipw2200: U ipw_load initial device response after 10ms ipw2200: U ipw_stop_master stop master 0ms ipw2200: U ipw_load_ucode Microcode OK, rev. 53594 (0xd15a) dev. 3 (0x3) of 11/22/04 20:27 ipw2200: U ipw_load microcode : 16326 ipw2200: U ipw_load firmware : 168336 ipw2200: U ipw_load device response after 50ms ipw2200: U ipw_eeprom_init_sram Writing EEPROM data into SRAM ipw2200: Intel® PRO/Wireless 2200/2915 Network Driver, 1.2.0mpr ipw2200: Copyright© 2003-2006 Intel Corporation ipw2200: U ipw_pci_probe pci_resource_len = 0x00001000 ipw2200: U ipw_pci_probe pci_resource_base = e047c000 ipw2200: U ipw_sw_reset Hardware crypto [off] ipw2200: Detected Intel PRO/Wireless 2200BG Network Connection ipw2200: U ipw_get_fw Read firmware 'ipw2200-ibss.fw' image v3.0 (185644 bytes) ipw2200: U ipw_load boot firmware: 6464 ipw2200: U ipw_load initial device response after 10ms ipw2200: U ipw_stop_master stop master 0ms ipw2200: U ipw_load_ucode Microcode OK, rev. 53594 (0xd15a) dev. 3 (0x3) of 11/22/04 20:27 ipw2200: U ipw_load microcode : 16304 ipw2200: U ipw_load firmware : 162876 ipw2200: U ipw_load device response after 50ms ipw2200: U ipw_eeprom_init_sram Writing EEPROM data into SRAM ipw2200: Intel® PRO/Wireless 2200/2915 Network Driver, 1.2.0mpr ipw2200: Copyright© 2003-2006 Intel Corporation ipw2200: U ipw_pci_probe pci_resource_len = 0x00001000 ipw2200: U ipw_pci_probe pci_resource_base = e047c000 ipw2200: U ipw_sw_reset Hardware crypto [off] ipw2200: Detected Intel PRO/Wireless 2200BG Network Connection ipw2200: U ipw_get_fw Read firmware 'ipw2200-sniffer.fw' image v3.0 (187820 bytes) ipw2200: U ipw_load boot firmware: 6464 ipw2200: U ipw_load initial device response after 10ms ipw2200: U ipw_stop_master stop master 0ms ipw2200: U ipw_load_ucode Microcode OK, rev. 53593 (0xd159) dev. 3 (0x3) of 01/21/05 21:16 ipw2200: U ipw_load microcode : 16336 ipw2200: U ipw_load firmware : 165020 ipw2200: U ipw_load device response after 50ms ipw2200: U ipw_eeprom_init_sram Writing EEPROM data into SRAM Link to comment Share on other sites More sharing options...
rjtd Posted January 6, 2007 Share Posted January 6, 2007 What is the current status of the driver? Does it allow us to connect to an AP? Link to comment Share on other sites More sharing options...
banane Posted January 6, 2007 Share Posted January 6, 2007 darwin_iwi2200 iomemory length: 0x1000 @ 0xdfdfe000 darwin_iwi2200 virt: 0x194eb000 physical: 0xdfdfe000 darwin_iwi2200 IRQ: 11, Vendor ID: 8086, Product ID: 4220 setPowerState to 2 configureInterface darwin_iwi2200: Ethernet address 00:0e:35:a2:61:52 getSTATUS_DEV ifnet_t en = 1c19e04 old_mode 0 Radio disabled. QoS is enabled Hardware crypto [off] : Detected Intel PRO/Wireless 2200BG Network Connection boot firmware ok Microcode OK, rev. 53594 (0xd15a) dev. 3 (0x3) of 11/22/04 20:27 bss firmware ok Writing EEPROM data into SRAM getPOWER 0, 3984 424587264 32 77307904 getRATE_SET 0 r0:0 f0:0 getCHANNEL c:0 f:0 getSSID <hidden> l:0 getCHANNEL c:0 f:0 getCHANNEL c:0 f:0 en1: flags=8863<UP,BROADCAST,SMART,RUNNING,SIMPLEX,MULTICAST> mtu 1500 inet6 fe80::20e:35ff:fea2:6152%en1 prefixlen 64 scopeid 0x5 inet 169.254.230.77 netmask 0xffff0000 broadcast 169.254.255.255 ether 00:0e:35:a2:61:52 media: autoselect status: active supported media: none autoselect DS1 DS2 DS5 DS11 autoselect <unknown type> Toshiba Portégé R100 JaS 10.4.8 SSE2 Intel Link to comment Share on other sites More sharing options...
xkazu Posted January 6, 2007 Share Posted January 6, 2007 folllowing is log in my machine . and v3 dont connect to AP yet. my chip is 2915ABG. to jalavoui do you post v3 source code? (if v3 source code is not work , it is no problem because i want to help you ) I may help your hacking because I have experience of writing patch of ipw2200 in linux iwi2200 crash in getOutputQeueue() when I made v2 sources . so i comment out "break" code , if fTransmitQueue == NULL ... but ipw_up is not called and iwi2200 dont connect to AP with infrastructure mode. (i seem that ipw_up dont called in my env.) darwin_iwi2200 iomemory length: 0x1000 @ 0xe0200000 darwin_iwi2200 virt: 0x31988000 physical: 0xe0200000 darwin_iwi2200 IRQ: 7, Vendor ID: 8086, Product ID: 4223 setPowerState to 2 getCARD_CAPABILITIES 72 darwin_iwi2200: Ethernet address 00:0e:35:ac:06:95 dataLinkLayerAttachComplete getSTATUS_DEV ifnet_t en = 3557804 old_mode 0 Radio disabled. QoS is enabled Hardware crypto [off] : Detected Intel PRO/Wireless 2915ABG Network Connection boot firmware ok Microcode OK, rev. 53594 (0xd15a) dev. 3 (0x3) of 11/22/04 20:27 bss firmware ok Writing EEPROM data into SRAM getPOWER 0, 3984 832077824 32 203624448 getSSID <hidden> l:342865224 getCHANNEL c:0 f:0 getBSSID <hidden> getRATE_SET 0 r0:0 f0:0 getSSID <hidden> l:2 getCHANNEL c:0 f:0 getBSSID <hidden> getCHANNEL c:0 f:0 getSSID <hidden> l:0 display: Not usable setPOWER 1, 0 0 0 0 power off ignored Link to comment Share on other sites More sharing options...
mifki Posted January 6, 2007 Share Posted January 6, 2007 Waiting for source Link to comment Share on other sites More sharing options...
Guest bikedude880 Posted January 6, 2007 Share Posted January 6, 2007 Waiting for source Same here, looking forward to getting this running on the 3945 also Link to comment Share on other sites More sharing options...

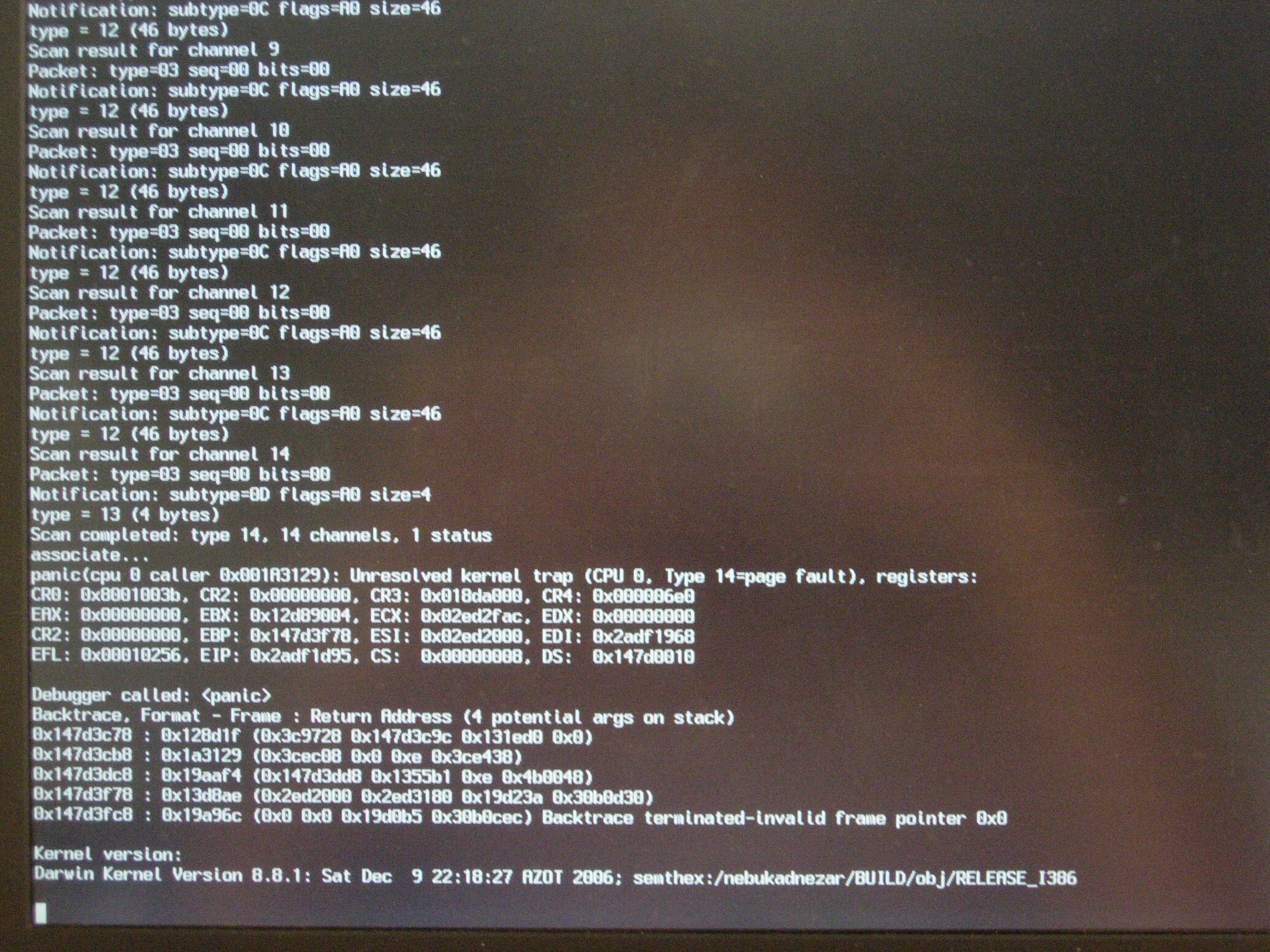

rathalos Posted January 7, 2007 Share Posted January 7, 2007 (edited) i tried changing the flag p_disabled from 1 to 0, then reboot.... it gave me a kernel panic when it was scanning all the channels at boot time..... i'll try to recreate the whole situation and post a screen shot... apparently, the error was not logged.... edit: recreated the error, happens all the time with any version of beta 9 kernel and any IO80211.kext and Apple80211.framework...... the only allowable mode currently is p_disable = 1, as 0 will give kernel panics.... the p_led option does not work.. i tried changing the values between 1 and 0 countless times, and the led refuses to light up.... have yet to try the p_mode yet, but its quite pointless as p_disable is not working and i cant scan for any AP.... attached is a screenshot of the point of error.... cant find the error from within my system logs.... not sure why it wasnt logged in.... Edited January 7, 2007 by rathalos Link to comment Share on other sites More sharing options...
Darkside Posted January 7, 2007 Share Posted January 7, 2007 I hope the Intel 3945ABG will soon have a driver of Mac OSX x86. Link to comment Share on other sites More sharing options...
kinwah.lai Posted January 7, 2007 Share Posted January 7, 2007 here is my log Jan 7 13:21:45 Darren-Mac kernel[0]: disable 0 led 1 mode 0 Jan 7 13:21:45 Darren-Mac kernel[0]: darwin_iwi2200 iomemory length: 0x1000 @ 0xb0106000 Jan 7 13:21:45 Darren-Mac kernel[0]: darwin_iwi2200 virt: 0x3a04f000 physical: 0xb0106000 Jan 7 13:21:45 Darren-Mac kernel[0]: darwin_iwi2200 IRQ: 20, Vendor ID: 8086, Product ID: 4220 Jan 7 13:21:45 Darren-Mac kernel[0]: setPowerState to 2 Jan 7 13:21:45 Darren-Mac kernel[0]: configureInterface Jan 7 13:21:45 Darren-Mac kernel[0]: darwin_iwi2200: Ethernet address 00:15:00:4f:b0:ee Jan 7 13:21:45 Darren-Mac kernel[0]: getSTATUS_DEV Jan 7 13:21:45 Darren-Mac kernel[0]: ifnet_t en = 3a56004 Jan 7 13:21:45 Darren-Mac kernel[0]: old_mode 0 Jan 7 13:21:45 Darren-Mac kernel[0]: QoS is enabled Jan 7 13:21:45 Darren-Mac kernel[0]: Hardware crypto [off] Jan 7 13:21:45 Darren-Mac kernel[0]: : Detected Intel PRO/Wireless 2200BG Network Connection Jan 7 13:21:45 Darren-Mac kernel[0]: boot firmware ok Jan 7 13:21:45 Darren-Mac kernel[0]: Microcode OK, rev. 53594 (0xd15a) dev. 3 (0x3) of 11/22/04 20:27 Jan 7 13:21:45 Darren-Mac kernel[0]: bss firmware ok Jan 7 13:21:45 Darren-Mac configd[59]: Error: WirelessGetInfo2() = 88001003 Jan 7 13:21:45 Darren-Mac kernel[0]: Writing EEPROM data into SRAM Jan 7 13:21:45 Darren-Mac kernel[0]: getPOWER 0, 3984 973402112 32 447873024 Jan 7 13:21:45 Darren-Mac kernel[0]: kIO80211NetworkLinkDown: linkDowning supplicant Jan 7 13:21:45 Darren-Mac kernel[0]: getRATE 612218748 Jan 7 13:21:45 Darren-Mac kernel[0]: getSSID <hidden> l:1 Jan 7 13:21:45 Darren-Mac configd[59]: Error: getGlobalMACAddress failed. Jan 7 13:21:45 Darren-Mac configd[59]: Error: WirelessConfigure() = 88001003 Jan 7 13:21:45 Darren-Mac configd[59]: Error: initCardWithStoredPrefs failed. Jan 7 13:23:13 Darren-Mac configd[59]: Error: WirelessGetInfo() = 88001003 Jan 7 13:23:14 Darren-Mac configd[59]: Error: WirelessGetInfo() = 88001003 Link to comment Share on other sites More sharing options...
kinwah.lai Posted January 7, 2007 Share Posted January 7, 2007 just to share with you all the command i used to load and unload the kext su cp -R iwi2200.kext /System/Library/Extensions/iwi2200.kext chmod -R 755 /System/Library/Extensions/iwi2200.kext chown -R root:wheel /System/Library/Extensions/iwi2200.kext kextload -t /System/Library/Extensions/iwi2200.kext kextunload -p /System/Library/Extensions/iwi2200.kext Link to comment Share on other sites More sharing options...
TaterSalad77 Posted January 7, 2007 Share Posted January 7, 2007 (edited) I installed the v3 kext and it said ipw2200.kext could not resolve kernel dependencies or something like that. Nothing detected or anything. Didn't seem to load at all. Could be because I'm using a 2915 card. Maybe can't find the PCIMatch address? I was under the impression that the two (2200 and 2915) drivers were interchangeable. Correct me if I'm wrong. Running 10.4.8, 8.8.1 beta9 kernel Using the suggested 10.4.7 kext and framework. Edited January 7, 2007 by TaterSalad77 Link to comment Share on other sites More sharing options...
rathalos Posted January 7, 2007 Share Posted January 7, 2007 tatersalad, check your permissions.... did u repair permissions correctly?? alternatively, check the info.plist for ur device and vendor id.... worse come to worse, try editing the dependencies...... Link to comment Share on other sites More sharing options...
