AudioGod's Aorus Z390 Pro Patched DSDT Mini Guide and Discussion

AudioGod

By AudioGod,
in Installation Guides

 Share
5539 posts in this topic

Recommended Posts

AudioGod
AudioGod
Posted
  • Author
Posted (edited)
8 hours ago, Cass67 said:

All good fella .. i have a 580 and all i care about with it is that it works oob (mostly) with osx and that it works oob with Linux .. Windows.. well every thing works with that .. I didnt like seeing that linux showed me using an iMac when i was not, so seeking to remedy that .. all input welcome bud ..

I can’t stand that myself. Yuck!



@ghelid I used to use Cubase on my old Z390 platform and never encountered anything like that and some of my sessions stretched on for days but my EFIs and MacOS revisions have always been up to date so I’m not sure what’s going there with you and Mojave. I shall rattle my brain and see what I can come up with for you.



I would definitely give smbios 1,1 a shot if I was you. You can do it as a test without signing into your iCloud account so if it doesn’t work for you it’s simple to switch back, just make sure you sign out of your iCloud account before trying it out. I would also advise flipping over to OpenCore or updating Clover to its latest version if you really don’t want to go down the Oc Path.

Edited by AudioGod
ghelid
ghelid
Posted
Posted (edited)

Thx for brainstorm !

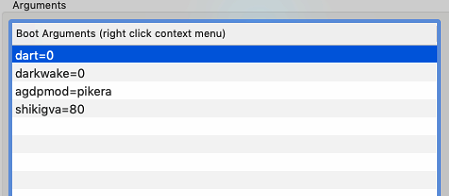

 I will try 1.1, I just need to deactivate the igpu in the bios, that's it. Certain boot arg need to be changed? here is what i have .

also do you have the old bios setting f12d? I would like to review it again. I save a old profile. but that's just in case to review it.

Capture d’écran 2021-02-12 à 13.09.06.png

Edited by ghelid
AudioGod
AudioGod
Posted
  • Author
Posted (edited)
49 minutes ago, ghelid said:

Thx for brainstorm !
 I will try 1.1, I just need to deactivate the igpu in the bios, that's it. Certain boot arg need to be changed? here is what i have .

also do you have the old bios setting f12d? I would like to review it again. I save a old profile. but that's just in case to review it.

Capture d’écran 2021-02-12 à 13.09.06.png

The Pre made 1,1 EFI on here has all the correct settings and boot arguments already inside it,

it’s just a case of moving your personal details across and done.



This Bios settings are the same across the versions really other then things like built in MSR Unlock so just use the settings laid out on page one and ignore any settings that are listed that you are missing.



If you really want to compare the old bios settings then you can find them on a EFI update notice if you look through the thread. Updates generally happen around the 4th of the month so just look around that date for each month until you find what your looking for.

Edited by AudioGod
  • Thanks 1
juan e. jot
juan e. jot
Posted
Posted
17 hours ago, Cass67 said:

All good fella .. i have a 580 and all i care about with it is that it works oob (mostly) with osx and that it works oob with Linux .. Windows.. well every thing works with that .. I didnt like seeing that linux showed me using an iMac when i was not, so seeking to remedy that .. all input welcome bud ..

Sweet, glad AG's steps worked for you! Ever tinkering, I've tried it too and HWINFO64 in Windows & dmidecode in Linux report the correct (real) mobo/UEFI BIOS version info. Testing in 3DMark yields nothing yet. But as AG said, the benefit may be slight, yet tangible. Leaving it for now so Linux & Windows know what they're on, because while not in macOS, why not?*



Thanks for new stuff to learn!



*(until & unless a future version of OC breaks how or why to do that; but that's a problem for "future us" and good documentation)

AudioGod
AudioGod
Posted
  • Author
Posted (edited)
35 minutes ago, juan e. jot said:

Testing in 3DMark yields nothing yet.

3D mark will show no gains what so ever other then by margin of error.
Best way to spot what’s going on is by gaming for an hour with out it enabled and then check your FPS average and then rerun the test again with it all bypassed and your notice a jump in your average and minimum FPS.
Cinibench shows a ever so slight gain, windows fast boot from shutdown is working properly again. (It’s not right when OC is in charge) and best of all, my devices and my smbios are what they are meant to be not generated.


p.s as far as future effects go I wouldn’t really worry as the OC crew like to totally rewrite OpenCore at least once every 3 months or so. :hysterical:

Thats something I miss about clover, it’s much more static and consistent then OC is with no total reworks all the time.

Edited by AudioGod
kiko89
kiko89
Posted
Posted (edited)

Hi @AudioGod,

I updated to OC 0.6.6 and my hack doesn't find any system update, safari etc..

For exaple I have now 11.2 and it doesn't find 11.2.1...

Can you help me?



Thank you!

Edited by kiko89
richi_music_on
richi_music_on
Posted
Posted

Hello again. Any recommendation network card to replace my disgusting fenvi t919? I was watching this other Fenvi FV-HB 1200 and Dual Band BCM94360CS2 but there is a lot of information and I am very lost...

Thanks a lot

deeveedee
deeveedee
Posted
Posted
18 hours ago, kiko89 said:

Hi @AudioGod,

I updated to OC 0.6.6 and my hack doesn't find any system update, safari etc..

For exaple I have now 11.2 and it doesn't find 11.2.1...

Can you help me?



Thank you!

Known to happen if you are partially or fully disabling SIP.  If you have fully or partially disabled SIP, try running with SIP enabled in your OC config.plist (NVRAM > Add > 7C436110-AB2A-4BBB-A880-FE41995C9F82 > csr-active-config > <00000000>).

  • Like 1
pkdesign
pkdesign
Posted
Posted
18 hours ago, RichardCk said:

Hello again. Any recommendation network card to replace my disgusting fenvi t919? I was watching this other Fenvi FV-HB 1200 and Dual Band BCM94360CS2 but there is a lot of information and I am very lost...

Thanks a lot

https://dortania.github.io/Wireless-Buyers-Guide/

kiko89
kiko89
Posted
Posted
2 hours ago, tonyx86 said:

Known to happen if you are partially or fully disabling SIP.  If you have fully or partially disabled SIP, try running with SIP enabled in your OC config.plist (NVRAM > Add > 7C436110-AB2A-4BBB-A880-FE41995C9F82 > csr-active-config > <00000000>).

Thank you! I set it to 67000000 and now I can update my hack!

nikhil96widhani
nikhil96widhani
Posted
Posted
On 2/14/2021 at 5:55 PM, kiko89 said:

Hi @AudioGod,

I updated to OC 0.6.6 and my hack doesn't find any system update, safari etc..

For exaple I have now 11.2 and it doesn't find 11.2.1...

Can you help me?



Thank you!

I have an issue play DRM content including netflix, Apple music Radio etc. Is there any fix anyone can suggest?



Thanks in advance

WizeMan
WizeMan
Posted
Posted
6 hours ago, nikhil96widhani said:

I have an issue play DRM content including netflix, Apple music Radio etc. Is there any fix anyone can suggest?



Thanks in advance



No fix for iMac19,1 as Big Sur has broken user space patching for Lilu. Only if you have AMD dGPU and switch your SMBIOS to iMacPro or MacPro

  • Like 1
deeveedee
deeveedee
Posted
Posted (edited)
On 2/15/2021 at 2:48 PM, kiko89 said:

Thank you! I set it to 67000000 and now I can update my hack!

I think you might have gotten lucky.  0x67 was valid with CLOVER if I remember correctly.  I had recommended <00000000> (SIP fully enabled) to you (which is how I run).



EDIT: The values below are provided by the Dortania Guide as 'Common Values.'  I had incorrectly stated that these were 'valid' values (incorrectly implying that other values were not valid).  Your 0x67 is probably still valid.  It may be a good idea to use CsrDecode to find out what the different bits do.



According to Dortania guide, valid common csr-active-config values for OpenCore are

Edited by tonyx86
scotty pro
scotty pro
Posted
Posted

Can I ask if I was to change GPU will the current EFI I am using still be OK or will I have to change a few things. I'm not very good with changing settings in the plist :(



AudioGod
AudioGod
Posted
  • Author
Posted (edited)
6 minutes ago, scotty pro said:

Can I ask if I was to change GPU will the current EFI I am using still be OK or will I have to change a few things. I'm not very good with changing settings in the plist :(



It will work just fine as long as you get a GPU that’s compatible.

if it’s a Navi then You need to put back 1 boot argument or just redownload the EFI as it’s set up for a Navi gpu as standard.

Edited by AudioGod
n19htz
n19htz
Posted
Posted

Updated today to 0.6.6 OC, like I was doing all the time before from @AudioGod EFI, but this time system boots up until the time it should showup a login screen, but nothing happens - just a black screen and then reboot. Anybody can guess what went wrong?

scotty pro
scotty pro
Posted
Posted
4 hours ago, AudioGod said:

It will work just fine as long as you get a GPU that’s compatible.

if it’s a Navi then You need to put back 1 boot argument or just redownload the EFI as it’s set up for a Navi gpu as standard.

Thanks Audiogod, actually I am going backwards from the RX590 I have to a Quadra K2000, going to give this to my son for his homework.

The EFI I am currently using is your iMac Pro with my serial numbers in, not changed anything from your original 0.6.6 RFI

  • Like 1
Serginio
Serginio
Posted
Posted

First of all , thanks for creating this guide and keeping it up to date! Was updating OC from here with no issues until this time.

Copied EFI, configured MLB / sn/uuid, reset nvram- boot error: no suitable signature,apple secure boot prohibits this entry, load image failed - security violation.

That’s for both Mojave and backup High Sierra.

Tried reflashing 12K, reset nvram- no changes default_sad.png

Update: Misc -> Security -> SecureBootModel disabled, and voila. Updated bios to 12L on the way.

Anthonythangaraj
Anthonythangaraj
Posted
Posted

Thanks Audiogod for the latest OC EFI files with Vega 64 and imac19,1 all working fine.



Just a query

I am about to get a RTX 2080 in couple of weeks from my friend. I thinking of using both GPU on the system. Dual boot Windows 10 (with GTX 2080) + Mac (with Vega 64)



Will the EFI works straight away without making any changes?? as the RTX is not compatible in MAC. Or any changes needs to be done in order to disable the Card completely.



Thanks

AudioGod
AudioGod
Posted
  • Author
Posted
30 minutes ago, Anthonythangaraj said:

Thanks Audiogod for the latest OC EFI files with Vega 64 and imac19,1 all working fine.



Just a query

I am about to get a RTX 2080 in couple of weeks from my friend. I thinking of using both GPU on the system. Dual boot Windows 10 (with GTX 2080) + Mac (with Vega 64)



Will the EFI works straight away without making any changes?? as the RTX is not compatible in MAC. Or any changes needs to be done in order to disable the Card completely.



Thanks

https://dortania.github.io/OpenCore-Install-Guide/extras/spoof.html

  • Like 1
rob1980
rob1980
Posted
Posted (edited)

Does anyone know how to get audio over DispalyPort?



Thanks



Edit* Sapphire 5700XT



After plugging in HDMI and then back to DisplayPort audio was detected losing keyboard volume control shortcut unfortunately but at least its working.

Edited by rob1980
