AudioGod's Aorus Z390 Pro Patched DSDT Mini Guide and Discussion

[pkdesign]

I have just updated to Clover 5112 and all is well. Versions 5109-5111 were having significant theme issues at boot, but the folks over at Clover have finally figured it out.

[Pieroman]

I just had a scary episode  while the computer was idle (screensaver) : 5700 XT fans started running at the highest (never heard them like this) + black screen + very hot GPU backplate. After a forced reboot I saw several messages like this in the console from before the crash :

com.apple.xpc.launchd[1] (com.apple.DumpGPURestart): Service only ran for 1 seconds. Pushing respawn out by 9 seconds.

This along with my previous issues about fans control seeming to be wonky after screen sleep (hence the screensaver, see earlier posts) + a few heavy graphics crashes under Windows while gaming (reboot needed) make me worry about my GPU. Did anyone experience this with the navi GPUs ? I don't want to rush to concluding "bad hardware" if it's just bad drivers on both macOS and windows, which seems in the realm of possible... I hate not having Navi temps readings in macOS, any news on that by the way ?

[laxattack]

7 hours ago, Cass67 said:

Looks related to power management (powerd) .. When you say random, what does this mean ?  using a specific app?  Using different apps?  Your doing nothing and the computer is idling then panic'ing?  going in or coming out of sleep?

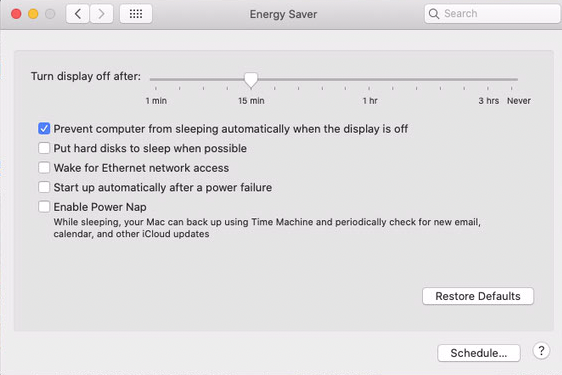

Do you have things like turn hard disks off after a period of time on?



When the computer is just sitting there, Idle, screens are asleep I have had different apps running/not running. I have attached my energy saver settings.

[Cass67]

21 hours ago, laxattack said:

When the computer is just sitting there, Idle, screens are asleep I have had different apps running/not running. I have attached my energy saver settings.



What EFI are you using since your using OC with a 1,1 SMBios? Is the iGPU disabled / enabled ?



Have you tried 19,1 ?  Does it happen with this if so?



There is not a lot to go on here .. you likely need to check the logs for more clues..

[Project 2501]

I have couple of quick questions for all of you who are using the Polaris version of the Clover EFI. My next upgrade I am planning is getting a new monitor, probably 1440p as a 4K 27" is probably overkill considering my usual viewing distance. All the monitors I am interested in either Display Port or HDMI inputs which my current monitors I have avaialbe don't have, so I haven't been able to test all the GPU ports.

Are the DP and HDMI ports working for you guys? Also, is it possible to have dual monitor set up?

It was a little tricky to get my GPU working in my last build... in fact, I had to stop at Yosemite since I couldn't get the El Capitan installer to work with my GPU.

[WizeMan]

10 minutes ago, Project 2501 said:

I have couple of quick questions for all of you who are using the Polaris version of the Clover EFI. My next upgrade I am planning is getting a new monitor, probably 1440p as a 4K 27" is probably overkill considering my usual viewing distance. All the monitors I am interested in either Display Port or HDMI inputs which my current monitors I have avaialbe don't have, so I haven't been able to test all the GPU ports.

Are the DP and HDMI ports working for you guys? Also, is it possible to have dual monitor set up?

It was a little tricky to get my GPU working in my last build... in fact, I had to stop at Yosemite since I couldn't get the El Capitan installer to work with my GPU.




I have not tested Dual Monitor setup but HDMI works fine with the Polaris EFI's on my RX 580 Pulse

[AudioGod]

11 minutes ago, Project 2501 said:

I have couple of quick questions for all of you who are using the Polaris version of the Clover EFI. My next upgrade I am planning is getting a new monitor, probably 1440p as a 4K 27" is probably overkill considering my usual viewing distance. All the monitors I am interested in either Display Port or HDMI inputs which my current monitors I have avaialbe don't have, so I haven't been able to test all the GPU ports.

Are the DP and HDMI ports working for you guys? Also, is it possible to have dual monitor set up?

It was a little tricky to get my GPU working in my last build... in fact, I had to stop at Yosemite since I couldn't get the El Capitan installer to work with my GPU.


Ive tested dual monitor on a Rx580 and 590 with no problems at all buddy. (Builds I have done for others)

[laxattack]

16 hours ago, Cass67 said:

What EFI are you using since your using OC with a 1,1 SMBios? Is the iGPU disabled / enabled ?



Have you tried 19,1 ?  Does it happen with this if so?



There is not a lot to go on here .. you likely need to check the logs for more clues..

I have tried 19,1 and 1,1, iGPU disabled.

Could some of the issue be with using a 1,1 serial/UUID/etc on a 19,1 smbios?

how would I check additional logs?

****Edit: this is for a secondary rig, Similar to my main rig, but with an RX580 instead of my Vega 64****

Edited April 16, 2020 by laxattack

[AudioGod]

17 minutes ago, laxattack said:

I have tried 19,1 and 1,1, iGPU disabled.

Could some of the issue be with using a 1,1 serial/UUID/etc on a 19,1 smbios?

how would I check additional logs?

****Edit: this is for a secondary rig, Similar to my main rig, but with an RX580 instead of my Vega 64****

You have to generate new details for 19,1 and no it’s not wise to use your 1,1 info apart from your MAC address, your details relate to your smbios too.

[laxattack]

5 hours ago, AudioGod said:

You have to generate new details for 19,1 and no it’s not wise to use your 1,1 info apart from your MAC address, your details relate to your smbios too.

Awesome, just corrected things for that computer, I will let it sit and see if another KP shows up, Thanks @AudioGod

[Project 2501]

17 hours ago, AudioGod said:

Ive tested dual monitor on a Rx580 and 590 with no problems at all buddy. (Builds I have done for others)



thanks for the quick reply. I'll assume that the DP and HDMI are working. I'm sure there would have been complaints if they weren't. the most "advanced" video port I've used so far is the DVI port which is not quite good enough for higher rez monitors.

[toun29]



Hello,
I also have a Gigabyte Aorus Z390 Pro Wifi (F12c), i7 9700K (intel 630) & RTX 2070.
I had successfully installed Mojave with the clover r5103 & HD630 Z390 Pro F12d EFI 140220.zip.

I tried to install Catalina 10.15.3 but I have a kernel panic.



I tested several boot flags

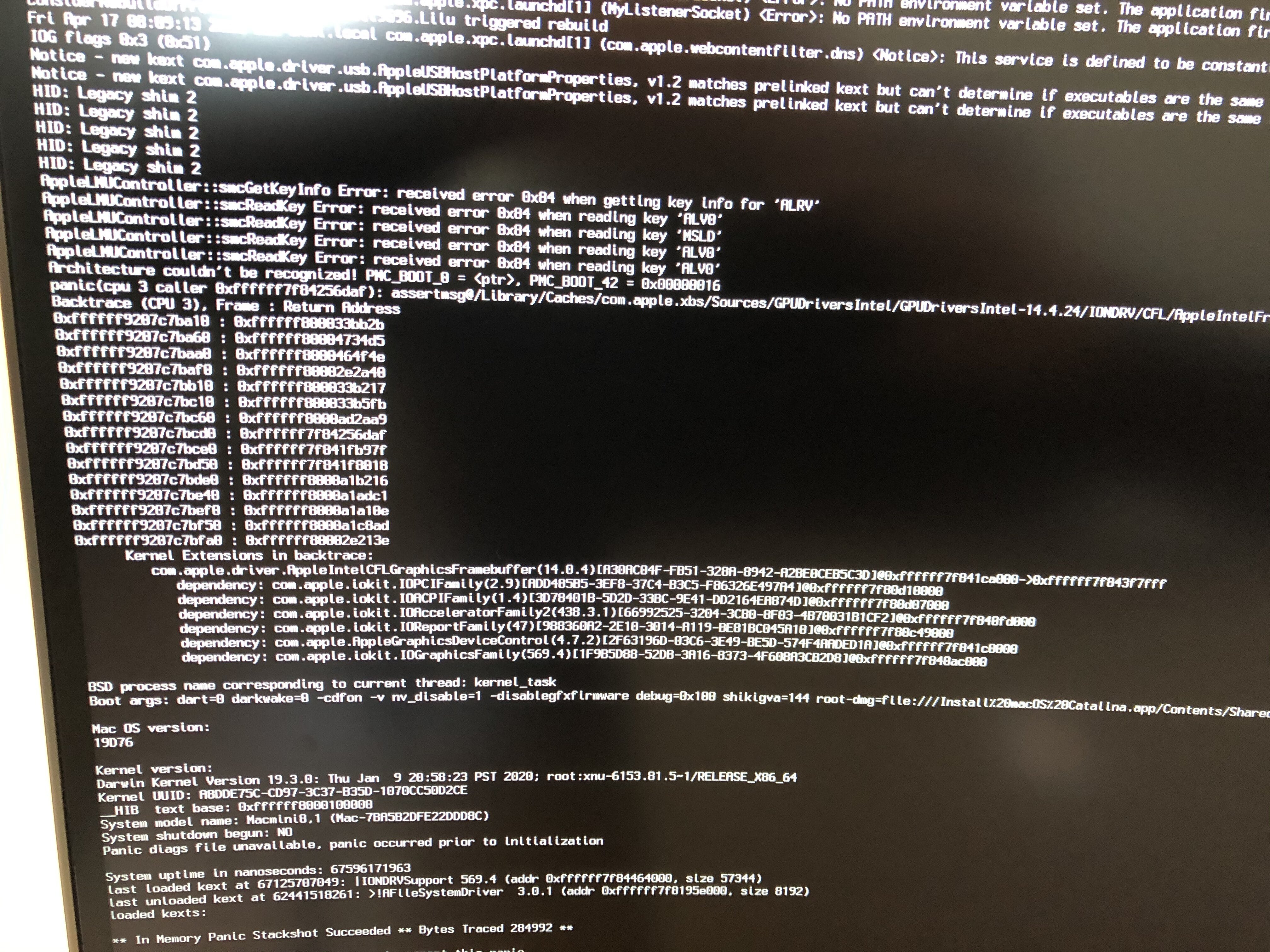

On the photo I put:

dart=0 darkwake=0 -cdfon -v nv_disable=1 -disablegfxfirmware debug=0x100 shikigva=144

Now I can't boot on mojave either. I have the same kernel panic. I do not understand.

If you have an idea



Edited April 17, 2020 by toun29

[MaLd0n]

29 minutes ago, toun29 said:

Hello,

use -igfxvesa to boot into system

[Olas]

Hello Gentlemen

I want SSDT & Kexts & Drivers for Fenvi T919 WiFi an Bluetooth Card

* My EFI opencore NDK

Thank you for your cooperation with us

My PC :
MB : Gigabyte Aorus Z390 Pro WiFi (F12c) | CPU : i9-9900K (@3.60 GHz) | GPU : ASUS Dual - OC - RX 580 8GB |  RAM : Kingston HyperX RGB (64 GB) | SSD : Samsung SSD 970 Pro (1TB) Bluetooth & Wifi : fenvi T919 for macOS PC PCI Wifi Card Continuity Handoff BCM94360CD Native Airport WiFi BT 4.0 1750Mbps | Thunderbolt 3 : GC-Titan Ridge |  OS : OSX 10.15.4 & Windows 10 Pro



Edited April 17, 2020 by Olas

[toun29]

20 minutes ago, MaLd0n said:

use -igfxvesa to boot into system

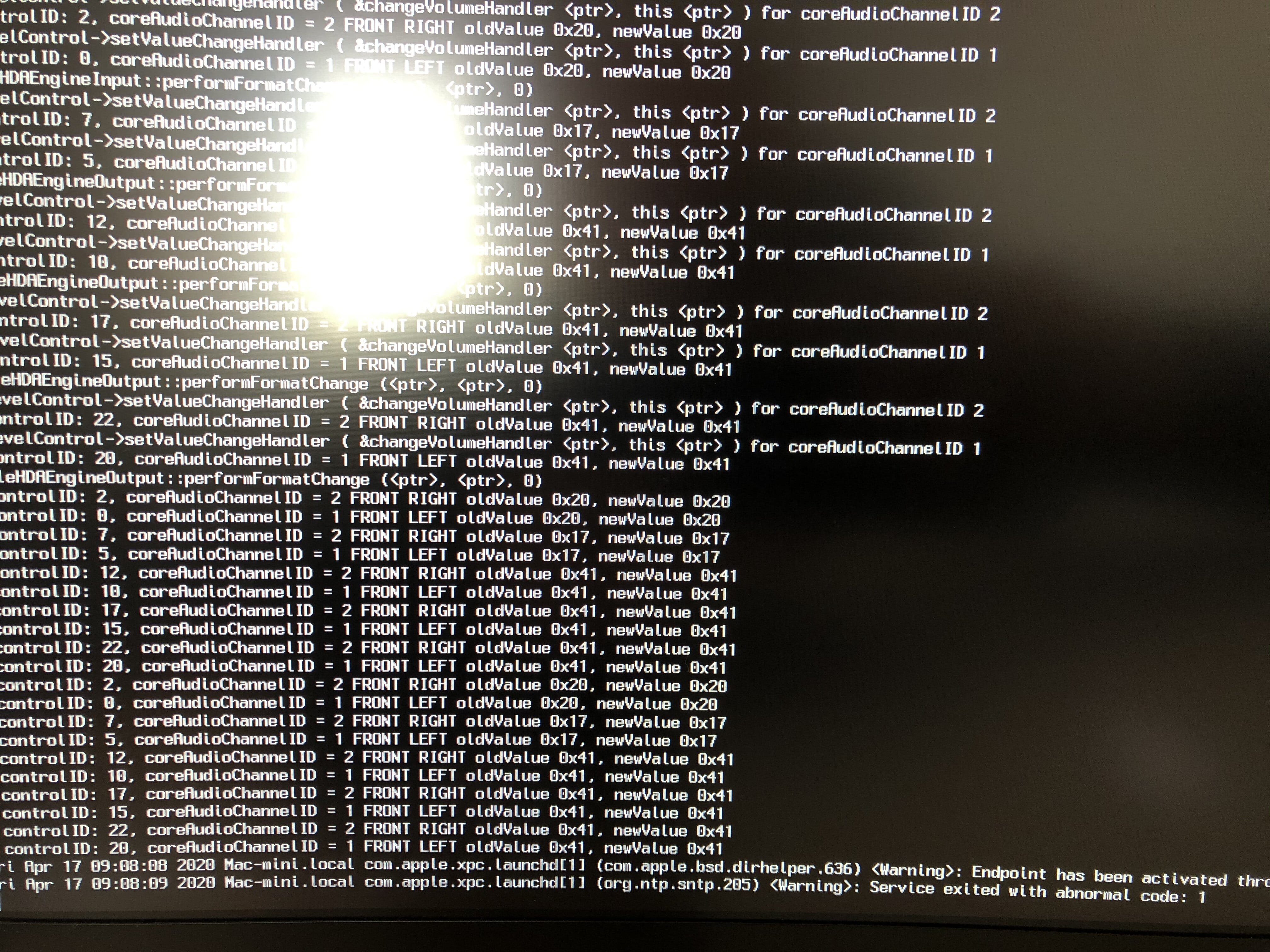

Thank you ! I no longer have a kernel panic, however the boot does not go further than :

[Olas]

1 hour ago, eSaF said:



You don't need them with this card, it should be OOB, just install it, reboot and Mac will find it if I remember correctly.

Thank you very much dear brother eSaF

[Olas]

For interest :



Windows 10  Pro boot works with me

The method is :



I removed the SSD from my pc and installed it in another pc and installed Windows 10 in it and I returned the SSD my device

It now the boot works without problems



all the best

[AudioGod]

4 minutes ago, Olas said:

For interest :



Windows 10  Pro boot works with me

The method is :



I removed the SSD from my pc and installed it in another pc and installed Windows 10 in it and I returned the SSD my device

It now the boot works without problems



all the best

Well done buddy but you know you could of done the exact reverse and just of removed your Catalina Drive and booted up windows on the same machine and once it was fully booted up and ready you just put back your macOS drive. This would of prevented windows from rewriting all the devices when you swapped systems over again. Not a big deal but a lot of clean up work is needed in windows after doing what you did.

Edited April 17, 2020 by AudioGod

[Olas]

It is true, my dear brother AudioGod



Thank you very much

[toun29]

3 hours ago, toun29 said:



Thank you ! I no longer have a kernel panic, however the boot does not go further than :





Could a nice person with a z390 aorus pro wifi with an i5 / i7 / i9 9xxx processor without GPU like me, only with intel uhd 630 could zip me his EFI.

I don't understand why I can't do it



Thx



[panosru]

Hello!



Is there any "hack" or config in clover that I can do to prevent my monitors to show up in sound output? I have two monitors connected to HDMI, two in Display port and one in DVI, those that are connected in hdmi and display port are also showing in Sound output devices :/



Thanks!

[laxattack]

18 hours ago, laxattack said:

Awesome, just corrected things for that computer, I will let it sit and see if another KP shows up, Thanks @AudioGod

Here is the newest CPU Panic. I am at a loss. My only thought could be the case fan controller (Corsair Commander Pro) could be the issue. Let me know your thoughts



panic(cpu 0 caller 0xffffff800e2c357e): "os_refcnt: overflow
(rc=0xffffff800e4c29b8)\n"@/AppleInternal/BuildRoot/Library/Caches/com.apple.xbs/Sources/xnu/xnu-6153.101.6/libkern/os/refcnt.c:58
Backtrace (CPU 0), Frame : Return Address
0xffffff83c02836b0 : 0xffffff800db215cd
0xffffff83c0283700 : 0xffffff800dc5a3c5
0xffffff83c0283740 : 0xffffff800dc4bf7e
0xffffff83c0283790 : 0xffffff800dac7a40
0xffffff83c02837b0 : 0xffffff800db20c97
0xffffff83c02838b0 : 0xffffff800db21087
0xffffff83c0283900 : 0xffffff800e2c2c7c
0xffffff83c0283970 : 0xffffff800e2c357e
0xffffff83c0283980 : 0xffffff800dc43366
0xffffff83c02839c0 : 0xffffff800db502c7
0xffffff83c0283a30 : 0xffffff800e071e6d
0xffffff83c0283a90 : 0xffffff800e071d9e
0xffffff83c0283ae0 : 0xffffff800e071196
0xffffff83c0283b50 : 0xffffff800e065baf
0xffffff83c0283f40 : 0xffffff800e1875f7
0xffffff83c0283fa0 : 0xffffff800dac8206

BSD process name corresponding to current thread: powerd
Boot args: shikigva=80 darkwake=0 alcid=7

Mac OS version:
19E287

Kernel version:
Darwin Kernel Version 19.4.0: Wed Mar  4 22:28:40 PST 2020;
root:xnu-6153.101.6~15/RELEASE_X86_64
Kernel UUID: AB0AA7EE-3D03-3C21-91AD-5719D79D7AF6
Kernel slide:     0x000000000d800000
Kernel text base: 0xffffff800da00000
__HIB  text base: 0xffffff800d900000
System model name: iMac19,1 (Mac-AA95B1DDAB278B95)
System shutdown begun: NO
Panic diags file available: YES (0x0)

System uptime in nanoseconds: 14298663616183



[AudioGod]

6 minutes ago, laxattack said:

Here is the newest CPU Panic. I am at a loss. My only thought could be the case fan controller (Corsair Commander Pro) could be the issue. Let me know your thoughts



panic(cpu 0 caller 0xffffff800e2c357e): "os_refcnt: overflow
(rc=0xffffff800e4c29b8)\n"@/AppleInternal/BuildRoot/Library/Caches/com.apple.xbs/Sources/xnu/xnu-6153.101.6/libkern/os/refcnt.c:58
Backtrace (CPU 0), Frame : Return Address
0xffffff83c02836b0 : 0xffffff800db215cd
0xffffff83c0283700 : 0xffffff800dc5a3c5
0xffffff83c0283740 : 0xffffff800dc4bf7e
0xffffff83c0283790 : 0xffffff800dac7a40
0xffffff83c02837b0 : 0xffffff800db20c97
0xffffff83c02838b0 : 0xffffff800db21087
0xffffff83c0283900 : 0xffffff800e2c2c7c
0xffffff83c0283970 : 0xffffff800e2c357e
0xffffff83c0283980 : 0xffffff800dc43366
0xffffff83c02839c0 : 0xffffff800db502c7
0xffffff83c0283a30 : 0xffffff800e071e6d
0xffffff83c0283a90 : 0xffffff800e071d9e
0xffffff83c0283ae0 : 0xffffff800e071196
0xffffff83c0283b50 : 0xffffff800e065baf
0xffffff83c0283f40 : 0xffffff800e1875f7
0xffffff83c0283fa0 : 0xffffff800dac8206

BSD process name corresponding to current thread: powerd
Boot args: shikigva=80 darkwake=0 alcid=7

Mac OS version:
19E287

Kernel version:
Darwin Kernel Version 19.4.0: Wed Mar  4 22:28:40 PST 2020;
root:xnu-6153.101.6~15/RELEASE_X86_64
Kernel UUID: AB0AA7EE-3D03-3C21-91AD-5719D79D7AF6
Kernel slide:     0x000000000d800000
Kernel text base: 0xffffff800da00000
__HIB  text base: 0xffffff800d900000
System model name: iMac19,1 (Mac-AA95B1DDAB278B95)
System shutdown begun: NO
Panic diags file available: YES (0x0)

System uptime in nanoseconds: 14298663616183



MacOS does not like anything made by Corsair connected via the internal usb hub.
It’s a constant trouble maker for a lot of people.

[laxattack]

17 minutes ago, AudioGod said:

MacOS does not like anything made by Corsair connected via the internal usb hub.
It’s a constant trouble maker for a lot of people.

Yeah, other than the different video card, that commander pro is the main difference between my main computer and that one. Looks like I will be removing that later on.

[dsynos80]

18 hours ago, eSaF said:



Yea Corsair developers are Billy Gates Kids

It must be corsair specific really. I have the NZXT Kraken X62 plugged in the internal usb and never encountered any issues. Pure luck.
