Glasgood's macOS Mojave [SUCCESS][GUIDE] for Aorus Z390 Pro

[larabee]

Just now, AudioGod said:



LoL, @larabee I will fight you I will...hahahaha



All Sorted now, Thank You @glasgood, How come I have to change it yet larabee is as it should be?







I used Glasgood EFI from earlier and still running Audio Layout ID 1 as I read some other posts before about the wrong audio layout in this thread. All I did for my EFI is adding the SSDT frame buffer to test and replace Glasgood config file with mine.

[AudioGod]

1 minute ago, larabee said:



I used Glasgood EFI from earlier and still running Audio Layout ID 1 as I read some other posts before about the wrong audio layout in this thread. All I did for my EFI is adding the SSDT frame buffer to test and replace Glasgood config file with mine.



I did the same thing at first but moved over to @glasgood efi when we were testing the new framebuffers and it wouldnt work so I changed over EFI to put myself in line with hes and just kept it cos im lazy...lol

[larabee]

2 minutes ago, AudioGod said:



I did the same thing at first but moved over to @glasgood efi when we were testing the new framebuffers and it wouldnt work so I changed over EFI to put myself in line with hes and just kept it cos im lazy...lol



This is somehow crack me up so bad, lol.

Again @glasgood makes our lives better with Vega56 Framebuffer patch. Reporting on the new frame buffer:

It gives me extra boost in openCL app. The infamous pinky lines are back but I don't care about that glitch. Even my real Mac sometimes has those. I feel like Capture one runs faster and Lux renderer is mile better.

[AudioGod]

13 minutes ago, larabee said:



This is somehow crack me up so bad, lol.

Again @glasgood makes our lives better with Vega56 Framebuffer patch. Reporting on the new frame buffer:

It gives me extra boost in openCL app. The infamous pinky lines are back but I don't care about that glitch. Even my real Mac sometimes has those. I feel like Capture one runs faster and Lux renderer is mile better.

No Way not the pink lines of death again....

I have only 1 small pink line left  in the top right side of my screen now. All the others have gone.

Are you using weg 1.3.1?

Edited August 1, 2019 by AudioGod

[larabee]

2 minutes ago, AudioGod said:

No Way not the pink lines of death again....

I have only I pink scotch in the top right side of my screen now. All the others have gone.

Are you using weg 1.3.1?



Yes, it's on 1.3.1 and sometimes the screen just tear after restart, but when it finished booting, it's totally fine, so I don't really care much. I tested out with 8K footage on my final cut pro and it works better with the new framebuffer. I'm happy.

[glasgood]



GIGABYTE AORUS RADEON RX 580 8GB

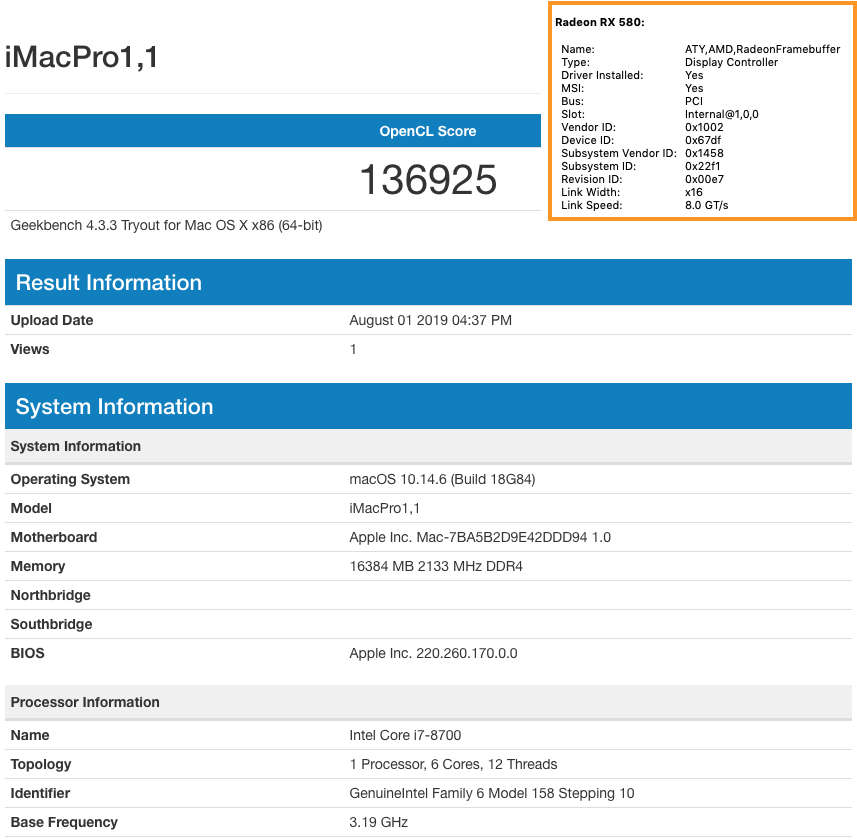

Framebuffer: ATY,AMD,RadeonFramebuffer

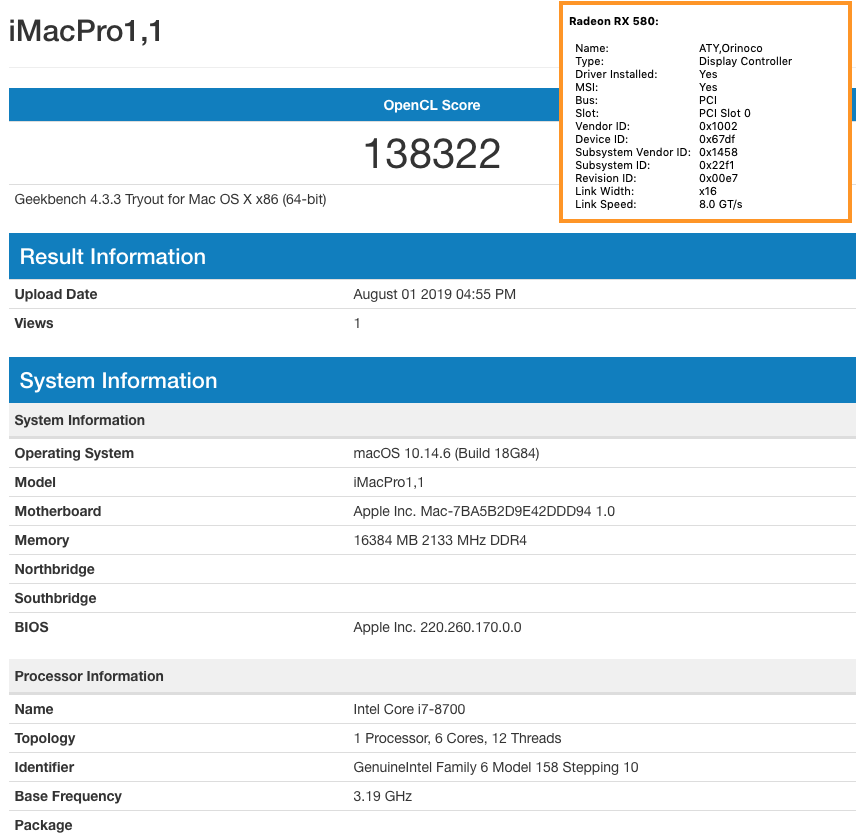

Framebuffer: Orinoco

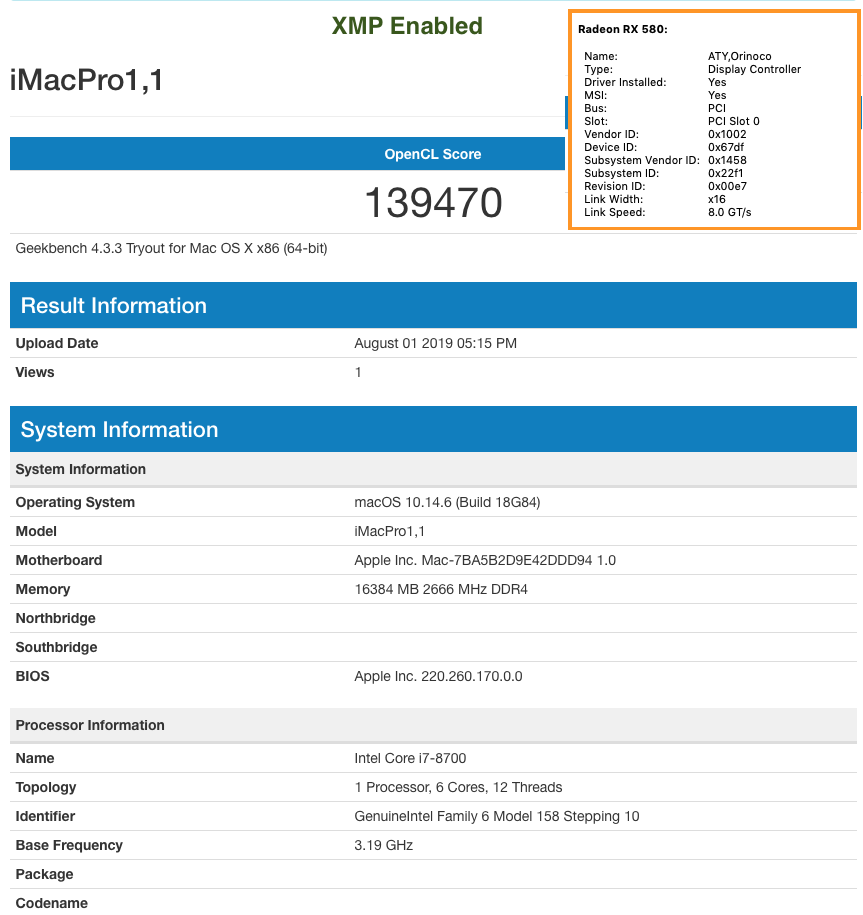

Framebuffer: Orinoco ( XMP enabled in BIOS )









The wombles of wimbledon common are we ( Uncle Orinoco )





Edited August 1, 2019 by glasgood

[AudioGod]

@larabee

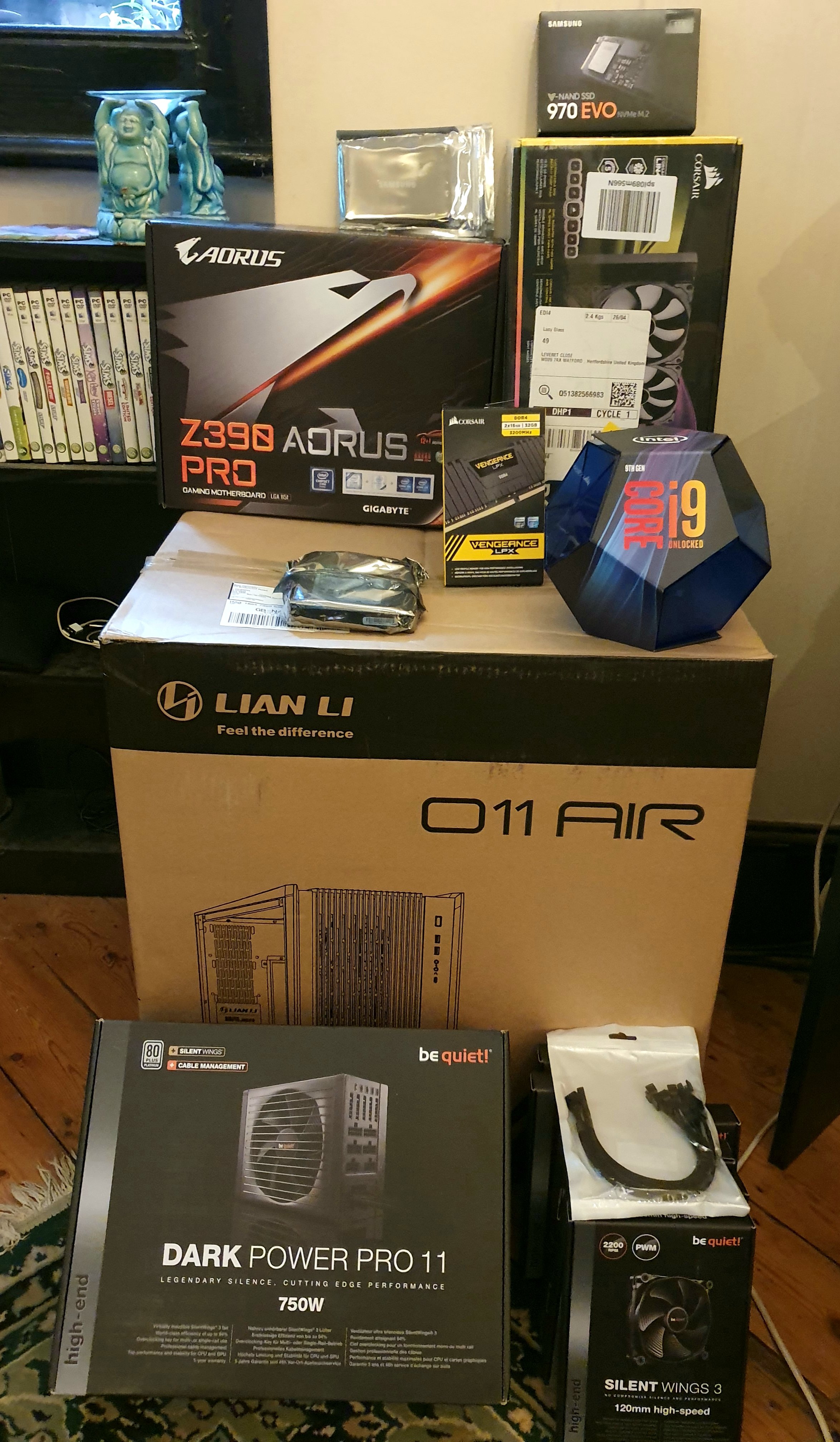

Look what just got delivered to me.

Build time!







Theres a rx580 Nitro+ Too togo into it.

It's for somebody else.....I wonder if the 9900k is less of a lemon then mine...I might have too swapshop....hahahaha

Edited August 1, 2019 by AudioGod

[larabee]

1 minute ago, AudioGod said:

@larabee

Look what just got delivered to me.

Build time!





My lord and savior, I will fly to EU, sneak in your house and steal those. haha. Send some hardwares to @glasgood to up his score. He needs more Power !!! (just kidding man, good score, good score)



[AudioGod]

1 minute ago, larabee said:



My lord and savior, I will fly to EU, sneak in your house and steal those. haha. Send some hardwares to @glasgood to up his score. He needs more Power !!! (just kidding man, good score, good score)





 My scores were mighty meaty and that's with all my overclocks across the system switched off. If I turn it all back on and test again I bet my score flys up by a silly amount. (Yeah Baby!)

[larabee]

1 minute ago, AudioGod said:



 My scores were mighty meaty and that's with all my overclocks across the system switched off. If I turn it all back on and test again I bet my score flys up by a silly amount. (Yeah Baby!)



I dare not to run OC during summer, feel like I'm sitting in a sauna room full of steam. haha.

[pkdesign]

Holy moly! How are you guys getting those scores? Is it just the video card? My specs are about the same but I get 37964 mutli-cire score. What am doing wrong?! Is that just the difference using an iMacPro1,1 SMBios?

[larabee]

6 minutes ago, pkdesign said:

Holy moly! How are you guys getting those scores? Is it just the video card? My specs are about the same but I get 37964 mutli-cire score. What am doing wrong?! Is that just the difference using an iMacPro1,1 SMBios?



Test OpenCL Compute and post it here buddy.

[AudioGod]

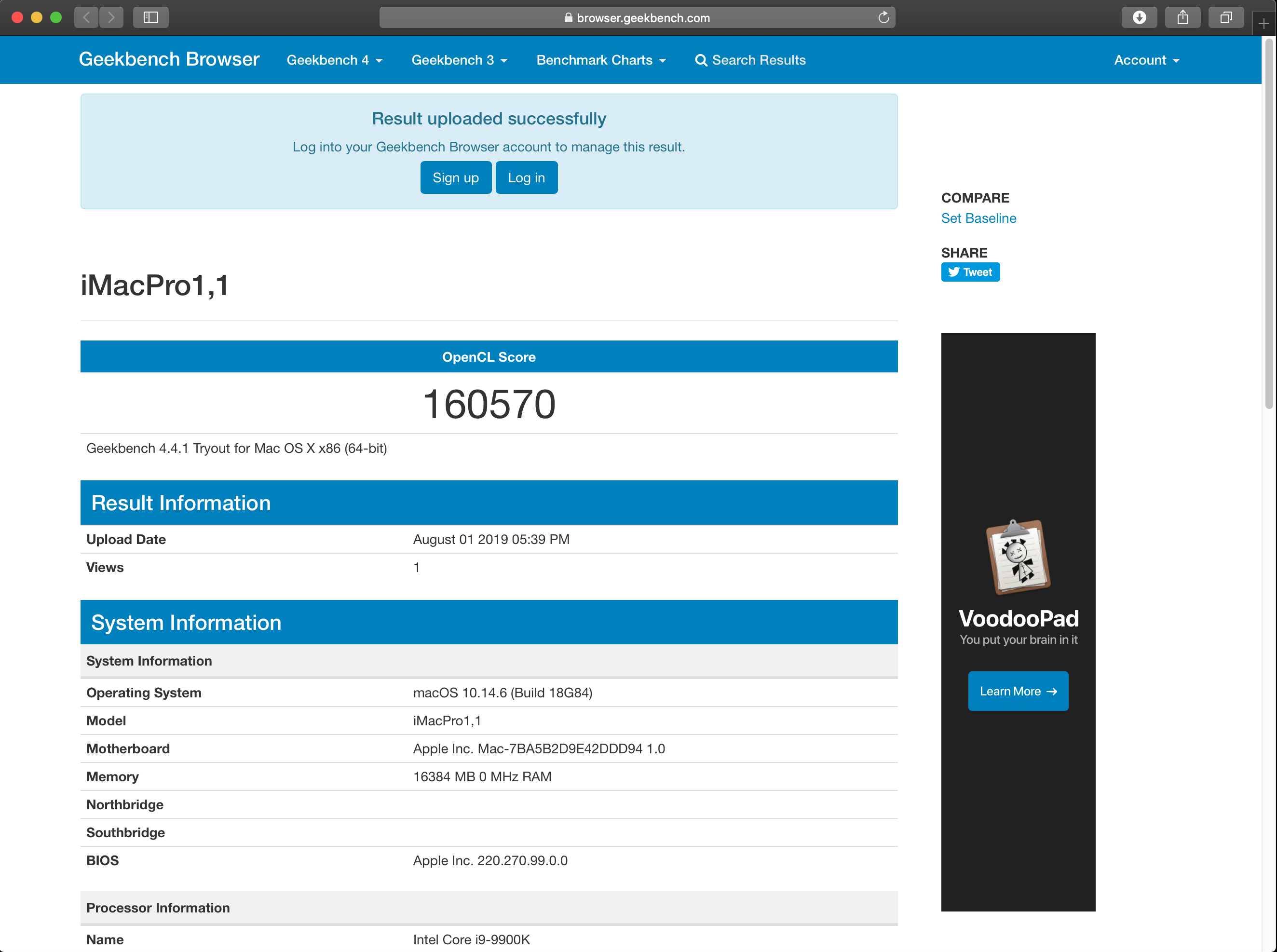

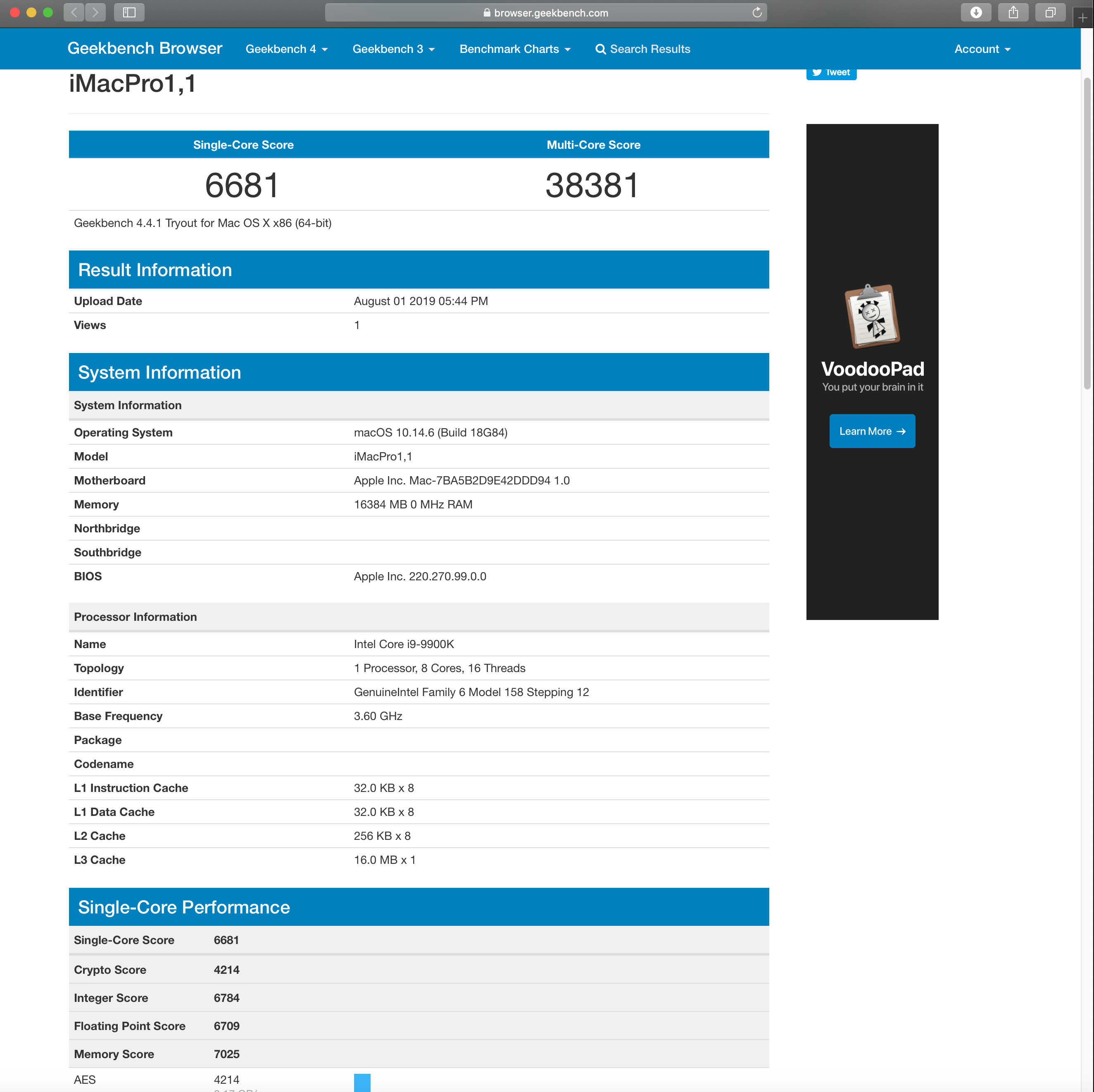

@larabee

I couldn't resist. haha



5Ghz all cores





Oh Hell Yeah!!!!!!!!!!!! LoL

Edited August 1, 2019 by AudioGod

[larabee]

1 minute ago, AudioGod said:

@larabee

I couldn't resist. haha



5Ghz all cores



Oh Hell Yeah!!!!!!!!!!!! LoL



Dude, you're on FIRE !!!!

[AudioGod]

8 minutes ago, larabee said:



Dude, you're on FIRE !!!!

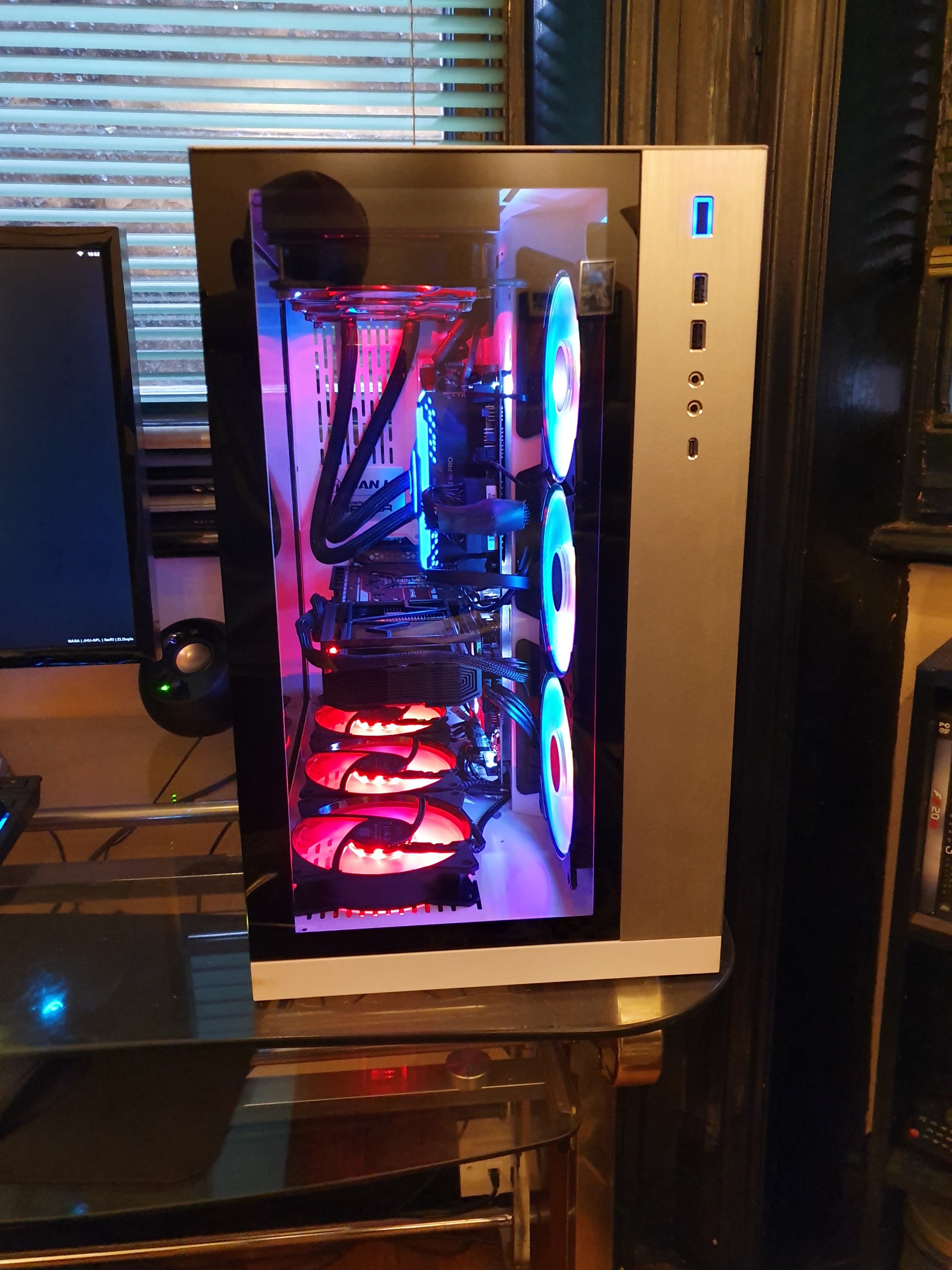

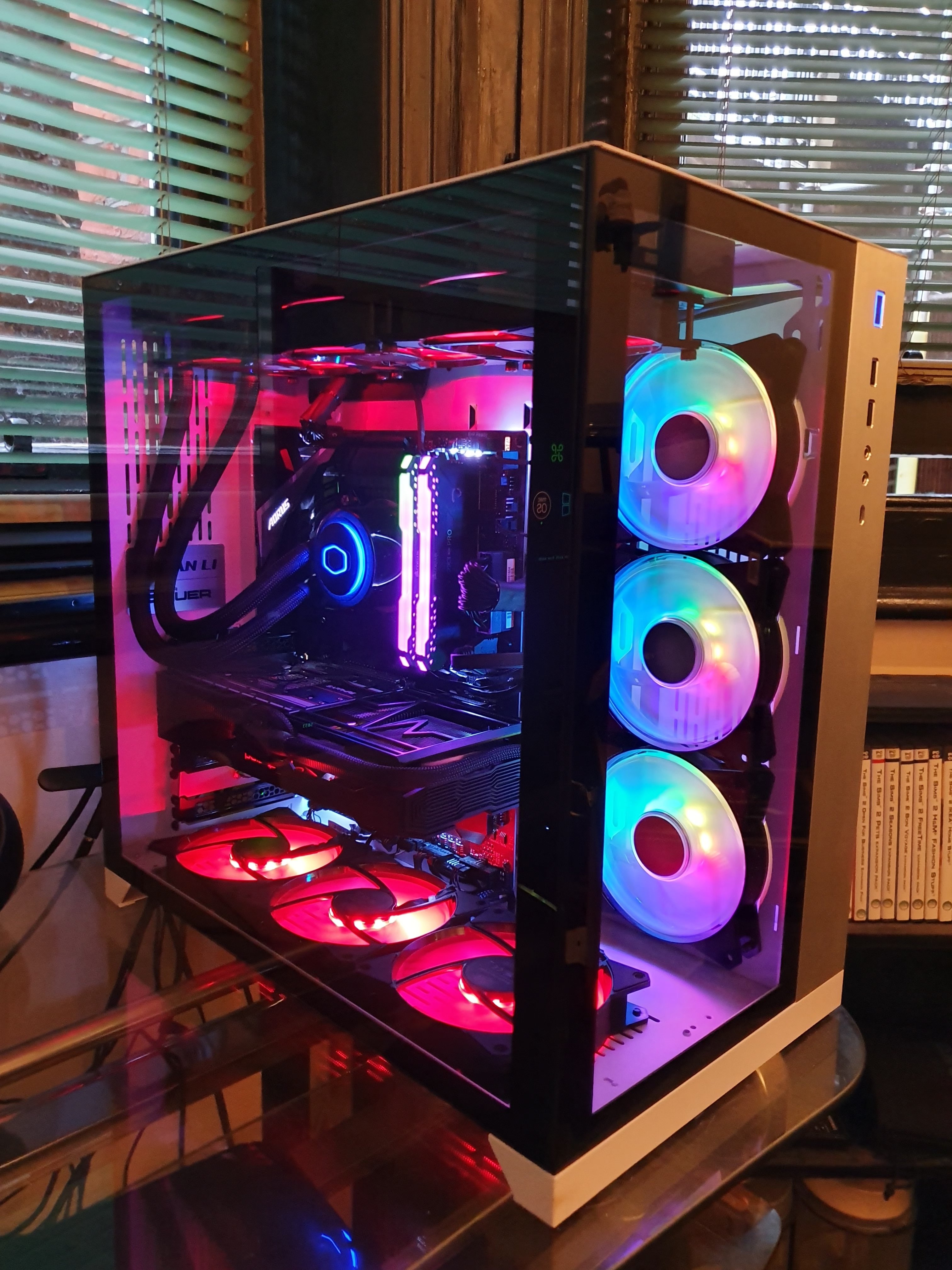

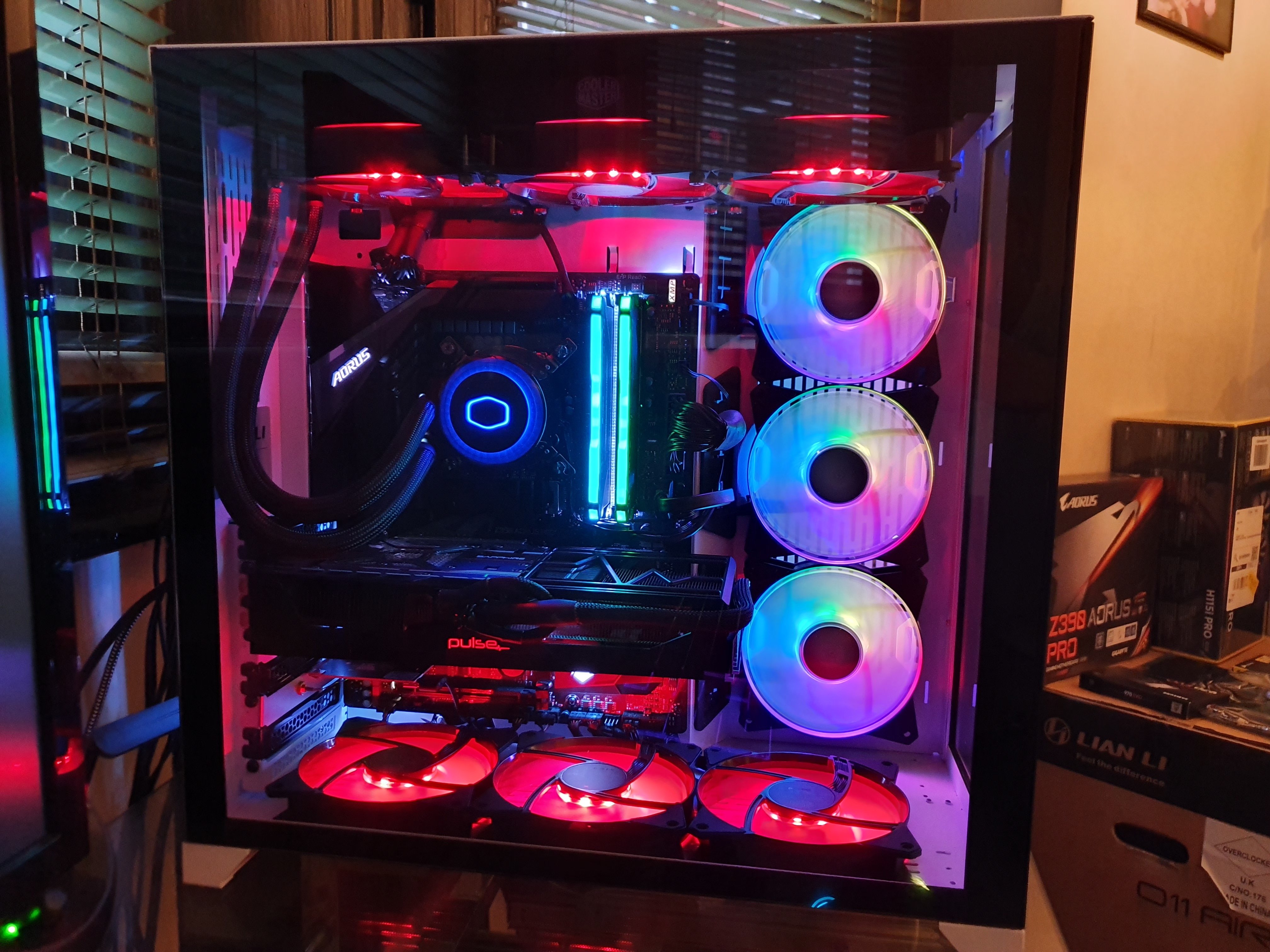

@larabee

She sure is buddy.











Fire!!!!!!! LoL



Show me yours when you can be bothered brother.

Edited August 1, 2019 by AudioGod

[ja99004]

how do I change the "About This Mac" GPU showing as 580 as I have a 570?

[larabee]

8 minutes ago, AudioGod said:



@larabee

She sure is buddy.



Fire!!!!!!! LoL



Show me yours when you can be bothered brother.

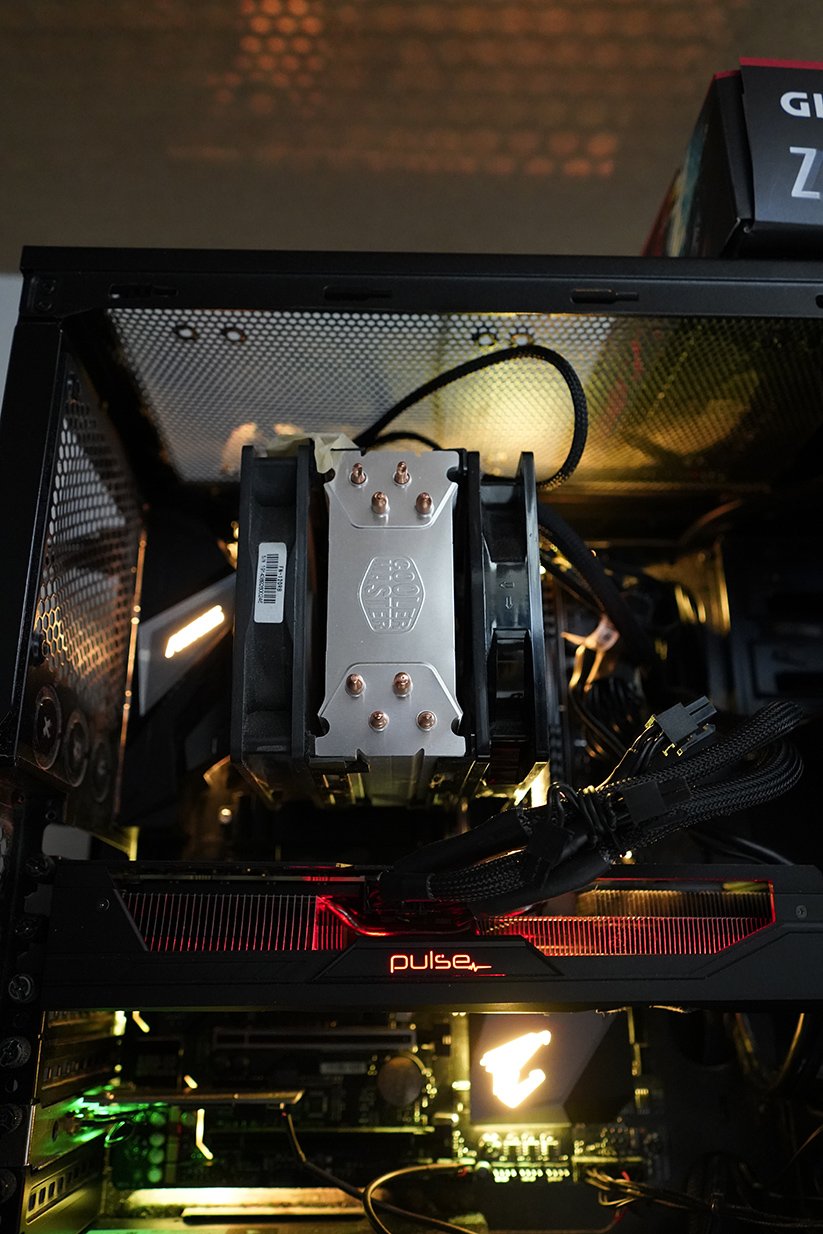

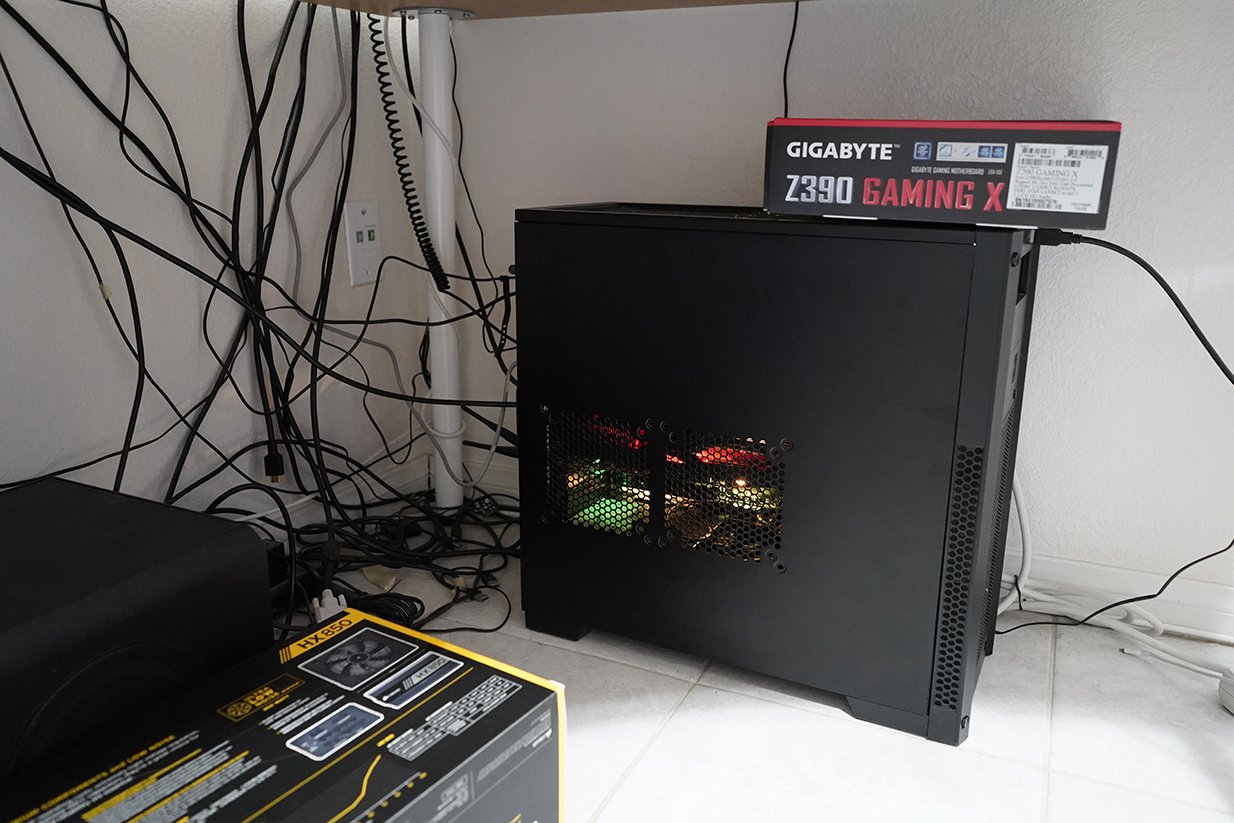

Lol, Mine looks like {censored} because I tucked it in a corner and forget about it haha.

Welcome to my shameful spider cave where you can see I use my old HX850 as a foot rest and a z390 gaming X motherboard I used before switching to aorus pro.





My EVO 212 can drive the 8700K up to 5GHZ , but not in summer heat haha.



[AudioGod]

@glasgood

My supplier has sent me a samsung 860 pro instead of a evo.

Does that SSD misbehave when used for mojave or windows 10 under clover or is it good too go?

[larabee]

1 minute ago, AudioGod said:

@glasgood

My supplier has sent me a samsung 860 pro instead of a evo.

Does that SSD misbehave when used for mojave or windows 10 under clover or is it good too go?



860 Pro works just fine. Only Evo Plus has problem.

[AudioGod]

2 minutes ago, larabee said:



860 Pro works just fine. Only Evo Plus has problem.



Phew, Thank you buddy your a star. I will use it for the windows 10 side and the 970 evo for mojave then. Perfecto



[soniferous_fox]

11 hours ago, glasgood said:

UPDATE



01/07/2019



POST-INSTALL Aorus Pro Z390 EFI - RX580 now updated to Clover v2.5k r5018



OsxAptioFix2Drv-free2000 is now replaced with OsxAptioFix3Drv.efi as lately Clover developer Apianti

announced  that OsxAptioFix2Drv-free2000 was unsafe to use. At present, OsxAptioFix3Drv.efi or OsxAptioFixDrv

is unusable when using SMBIOS for iMac 19,1 on Aorus Z390 motherboard with Initial Display Output - PCIe Slot & Internal Graphics enabled.



Therefore POST-INSTALL Aorus Pro Z390 EFI is now updated with SMBIOS for iMac Pro  1,1 and OsxAptioFix3Drv.efi

Internal Graphics should now be disable when using SMBIOS for iMac Pro 1,1.  Also, USBPorts.kext has been recreated for iMac Pro 1,1

as USBPorts.kext created for iMac 19,1 will not function properly when used with SMBIOS for iMac Pro 1,1.



Thanks to @AudioGod @larabee for bringing OsxAptioFix3Drv.efi to my attention as a working solution with SMBIOS for iMac Pro 1,1



And thanks to @hackinbot for resolving the display wake from sleep issue when RX580 is used with SMBIOS for iMac Pro 1,1





Pleased to see you got OsxAptioFix3Drv.efi working for you!

[soniferous_fox]

So, I tried the R580 aml for my RX570 (I edited to change the name), and sure enough it was showing Orinoco and getting an increase in Geekbench, but I have 3 displays connected to the 3 Display ports, and the 3rd no longer works with the aml. Any ideas why that would be? I have switched back to how it was before for now and all is fine again.



Thanks



[glasgood]

On 7/24/2019 at 12:20 PM, soniferous_fox said:

If anyone is interested, I decided I wanted to switch from OsxAptioFix2Drv-free2000.efi if there was even a slim chance of it causing issues, but had never had any joy with any of the others. I gave it another go, and finally got another working - OsxAptioFix3Drv.efi. Note, I am on a Gigabyte Z390 M Gaming, but it may relate to similar boards? It does come with a big caveat though, and that is disabling iGPU in the BIOS to free up more memory when booting. You also need to add "slide=0" to boot options if you don't have it. With both of those done, it worked for me. iGPU for me was only for hardware acceleration in some apps, but I then changed the model in SMBios to iMac Pro 1,1 and that enables hardware acceleration using my graphics card (RX570), so the iGPU become obsolete anyway - as an aside, it also fixed Netflix playback in Safari.



It is possible on different hardware you may be able to boot with iGPU, but you would need to calculate the slide number - I tried that, but there were only 1 area of memory I could use, and the slide number for that didn't work.



Hopefully that may help someone. I also successfully upgrade to 10.14.6 after doing the changes, and all was fine.



EDIT: Forgot to add, you also need to remove anything relating to Intel IGPU in your clover config.



@soniferous_fox



Apologies, Just looking back and I realise that you brought this solution to the post . Thank you ! after reading the post by Antiapi and reading about the success that @AudioGod and @larabee had I decided to include  OsxAptioFix3Drv.efi solution it in the guide.

Can you test SSDT-RX-570.aml and see it helps. Hopefully framebuffer will be working on all connectors.















[soniferous_fox]

6 minutes ago, glasgood said:

Apologies, Just looking back and I realise that you brought this solution to the post . Thank you ! after reading the post by Antiapi and reading about the success that @AudioGod and @larabee had I decided to include  OsxAptioFix3Drv.efi solution it in the guide.

Can you test SSDT-RX-570.aml and see it helps. Hopefully framebuffer will be working on all connectors.



No worries, just happy it helped  and a small  contribution compared to you! I found it fixed my no bluetooth after sleep issue as well, which was an added bonus!



I'll give that aml a test shortly. Thanks!

[Cass67]


860 Pro works just fine. Only Evo Plus has problem.

Evo plus has been fine for me after the release of the updated Samsung firmware.
