AMD Mojave Kernel Development and Testing

[Shaneee]

17 hours ago, jalavoui said:



this can be ported from 10.14.2 (need some fixes to compile)



i've just added a cpu errata code to xnu (from freebsd)

attached kernel for testing on 10.14.2



will also check https://github.com/torvalds/linux/blob/master/arch/x86/kernel/cpu/amd.c

kernel

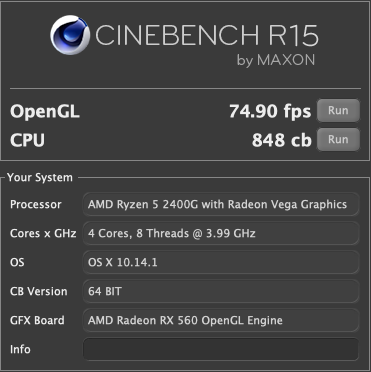

Can you share the source for that kernel? It performs really well in benchmarks.



[XLNC]

18 hours ago, jalavoui said:



this can be ported from 10.14.2 (need some fixes to compile)

int __cdecl necp_client_add_flow(necp_fd_data *fd_data, necp_client_action_args *uap, int *retval)
{
  vm_size_t v3; // rdx
  vm_size_t v4; // rsi
  bool v5; // ST2F_1
  bool v6; // ST2D_1
  user_addr_t v7; // rdx
  vm_size_t v8; // rsi
  int result; // eax
  unsigned __int8 *necp_client_uuid; // [rsp+50h] [rbp-230h]
  unsigned int copy_error; // [rsp+7Ch] [rbp-204h]
  necp_stats_bufreq bufreq; // [rsp+80h] [rbp-200h]
  necp_client_flow_stats *stats_request; // [rsp+98h] [rbp-1E8h]
  int request_error; // [rsp+A4h] [rbp-1DCh]
  necp_client_interface_option *option_0; // [rsp+A8h] [rbp-1D8h]
  necp_client_interface_option *option; // [rsp+B0h] [rbp-1D0h]
  u_int32_t option_i; // [rsp+BCh] [rbp-1C4h]
  _Bool found_nexus; // [rsp+C3h] [rbp-1BDh]
  uint32_t_0 interface_index; // [rsp+C4h] [rbp-1BCh]
  size_t_0 assigned_results_length; // [rsp+C8h] [rbp-1B8h]
  void *assigned_results; // [rsp+D0h] [rbp-1B0h]
  necp_client_flow_registration *new_registration; // [rsp+D8h] [rbp-1A8h]
  pid_t pid; // [rsp+E4h] [rbp-19Ch]
  necp_client_add_flow *v24; // [rsp+E8h] [rbp-198h]
  necp_client_add_flow *allocated_add_request; // [rsp+F0h] [rbp-190h]
  necp_client_add_flow *add_request; // [rsp+F8h] [rbp-188h]
  proc *proc; // [rsp+100h] [rbp-180h]
  necp_client *client; // [rsp+108h] [rbp-178h]
  int error; // [rsp+114h] [rbp-16Ch]
  int *retvala; // [rsp+118h] [rbp-168h]
  necp_client_action_args *uapa; // [rsp+120h] [rbp-160h]
  necp_fd_data *fd_dataa; // [rsp+128h] [rbp-158h]
  __int64 v33; // [rsp+130h] [rbp-150h]
  vm_size_t nbytes; // [rsp+138h] [rbp-148h]
  void *kernel_addr; // [rsp+140h] [rbp-140h]
  user_addr_t user_addr; // [rsp+148h] [rbp-138h]
  __int64 v37; // [rsp+150h] [rbp-130h]
  vm_size_t v38; // [rsp+158h] [rbp-128h]
  void *v39; // [rsp+160h] [rbp-120h]
  user_addr_t v40; // [rsp+168h] [rbp-118h]
  __int64 v41; // [rsp+170h] [rbp-110h]
  vm_size_t v42; // [rsp+178h] [rbp-108h]
  void *v43; // [rsp+180h] [rbp-100h]
  user_addr_t v44; // [rsp+188h] [rbp-F8h]
  __int64 v45; // [rsp+190h] [rbp-F0h]
  vm_size_t v46; // [rsp+198h] [rbp-E8h]
  user_addr_t v47; // [rsp+1A0h] [rbp-E0h]
  void *v48; // [rsp+1A8h] [rbp-D8h]
  necp_client_add_flow_default default_add_request; // [rsp+1B0h] [rbp-D0h]
  necp_client_nexus_parameters parameters; // [rsp+1F0h] [rbp-90h]
  uuid_t client_id; // [rsp+250h] [rbp-30h]
  __int64 v52; // [rsp+268h] [rbp-18h]

  fd_dataa = fd_data;
  uapa = uap;
  retvala = retval;
  error = 0;
  client = 0LL;
  secure_memset(&parameters, 0, 0x60uLL);
  proc = 0LL;
  add_request = 0LL;
  allocated_add_request = 0LL;
  secure_memset(&default_add_request, 0, 0x3CuLL);
  if ( !uap->client_id || uapa->client_id_len != 16 )
  {
    error = 22;
    log(3, "%s: necp_client_add_flow invalid client_id (length %zu)\n", "necp_client_add_flow", uapa->client_id_len);
    goto LABEL_64;
  }
  if ( !uapa->buffer || uapa->buffer_size < 0x24 )
  {
    error = 22;
    log(3, "%s: necp_client_add_flow invalid buffer (length %zu)\n", "necp_client_add_flow", uapa->buffer_size);
    goto LABEL_64;
  }
  user_addr = uapa->client_id;
  kernel_addr = client_id;
  nbytes = 16LL;
  v33 = 16LL;
  error = copyin(user_addr, client_id, 0x10uLL);
  if ( error )
  {
    log(3, "%s: necp_client_add_flow copyin client_id error (%d)\n", "necp_client_add_flow", (unsigned int)error);
    goto LABEL_64;
  }
  if ( uapa->buffer_size > 0x3C )
  {
    v24 = (necp_client_add_flow *)_MALLOC(uapa->buffer_size, 118, 4, &necp_client_add_flow_site);
    allocated_add_request = v24;
    if ( !v24 )
    {
      error = 12;
      goto LABEL_64;
    }
    v4 = uapa->buffer_size;
    v44 = uapa->buffer;
    v43 = allocated_add_request;
    v42 = v4;
    v41 = -1LL;
    if ( v4 > 0xFFFFFFFFFFFFFFFFLL )
      panic(
        "\"__copyin_chk object size check failed: uaddr %p, kaddr %p, (%zu < %zu)\"@/BuildRoot/Library/Caches/com.apple.x"
        "bs/Sources/xnu_debug/xnu-4903.231.4/bsd/libkern/copyio.h:45",
        v44,
        v43,
        v42,
        v41);
    error = copyin(v44, v43, v42);
    if ( error )
    {
      log(
        3,
        "%s: necp_client_add_flow copyin default_add_request error (%d)\n",
        "necp_client_add_flow",
        (unsigned int)error);
      goto LABEL_64;
    }
    add_request = allocated_add_request;
  }
  else
  {
    v3 = uapa->buffer_size;
    v40 = uapa->buffer;
    v39 = &default_add_request;
    v38 = v3;
    v37 = 60LL;
    if ( v3 > 0x3C )
      panic(
        "\"__copyin_chk object size check failed: uaddr %p, kaddr %p, (%zu < %zu)\"@/BuildRoot/Library/Caches/com.apple.x"
        "bs/Sources/xnu_debug/xnu-4903.231.4/bsd/libkern/copyio.h:45",
        v40,
        v39,
        v38,
        v37);
    error = copyin(v40, v39, v38);
    if ( error )
    {
      log(
        3,
        "%s: necp_client_add_flow copyin default_add_request error (%d)\n",
        "necp_client_add_flow",
        (unsigned int)error);
      goto LABEL_64;
    }
    add_request = (necp_client_add_flow *)&default_add_request;
  }
  lck_mtx_lock((lck_mtx_t *)&fd_dataa->fd_lock);
  pid = fd_dataa->proc_pid;
  proc = proc_find(pid);
  if ( proc )
  {
    client = necp_client_fd_find_client_and_lock(fd_dataa, client_id);
    if ( client )
    {
      *((_BYTE *)client + 100) &= 0xFBu;
      necp_client_retain_locked(client);
      necp_client_copy_parameters_locked(client, &parameters);
      new_registration = necp_client_create_flow_registration(fd_dataa, client);
      if ( new_registration )
      {
        new_registration->flags = add_request->flags;
        uuid_copy(add_request->registration_id, new_registration->registration_id);
        if ( add_request->flags & 1 )
        {
          assigned_results = 0LL;
          assigned_results_length = 0LL;
          interface_index = 0;
          found_nexus = 0;
          for ( option_i = 0; option_i < client->interface_option_count; ++option_i )
          {
            if ( option_i >= 4 )
            {
              option_0 = &client->extra_interface_options[option_i - 4];
              if ( !uuid_compare(option_0->nexus_agent, add_request->agent_uuid) )
              {
                interface_index = option_0->interface_index;
                found_nexus = 1;
                break;
              }
            }
            else
            {
              option = &client->interface_options[option_i];
              if ( !uuid_compare(option->nexus_agent, add_request->agent_uuid) )
              {
                interface_index = option->interface_index;
                found_nexus = 1;
                break;
              }
            }
          }
          if ( found_nexus )
          {
            necp_client_add_nexus_flow_if_needed(new_registration, add_request->agent_uuid, interface_index);
            if ( new_registration->flags & 2 )
              necp_client_uuid = client->client_id;
            else
              necp_client_uuid = new_registration->registration_id;
            request_error = netagent_client_message_with_params(
                              add_request->agent_uuid,
                              necp_client_uuid,
                              pid,
                              client->agent_handle,
                              0xAu,
                              &parameters,
                              &assigned_results,
                              &assigned_results_length);
            if ( request_error )
            {
              if ( assigned_results )
                v5 = assfail(
                       "assigned_results == NULL",
                       "/BuildRoot/Library/Caches/com.apple.xbs/Sources/xnu_debug/xnu-4903.231.4/bsd/net/necp_client.c",
                       6107) != 0;
              if ( assigned_results_length )
                v6 = assfail(
                       "assigned_results_length == 0",
                       "/BuildRoot/Library/Caches/com.apple.xbs/Sources/xnu_debug/xnu-4903.231.4/bsd/net/necp_client.c",
                       6108) != 0;
              log(3, "%s: netagent_client_message error (%d)\n", "necp_client_add_flow", (unsigned int)request_error);
            }
            else if ( assigned_results && assigned_results_length )
            {
              if ( !necp_assign_client_result_locked(
                      proc,
                      fd_dataa,
                      client,
                      new_registration,
                      add_request->agent_uuid,
                      (u_int8_t *)assigned_results,
                      assigned_results_length,
                      0)
                && assigned_results )
              {
                FREE(assigned_results, 124);
              }
            }
            else if ( assigned_results )
            {
              FREE(assigned_results, 124);
            }
          }
          else
          {
            log(3, "%s: %s\n", "necp_client_add_flow", "Requested nexus not found");
          }
        }
        if ( (signed int)add_request->stats_request_count > 0 && !necp_arena_initialize(fd_dataa, 1) )
        {
          stats_request = (necp_client_flow_stats *)&add_request[1];
          secure_memset(&bufreq, 0, 0x18uLL);
          bufreq.necp_stats_bufreq_id = 191;
          *(_QWORD *)&bufreq.necp_stats_bufreq_type = *(_QWORD *)&stats_request->stats_type;
          bufreq.necp_stats_bufreq_size = stats_request->stats_size;
          bufreq._anon_0.necp_stats_bufreq_uaddr = stats_request->stats_addr;
          necp_stats_initialize(fd_dataa, client, new_registration, &bufreq);
          *(_QWORD *)&stats_request->stats_type = *(_QWORD *)&bufreq.necp_stats_bufreq_type;
          stats_request->stats_size = bufreq.necp_stats_bufreq_size;
          stats_request->stats_addr = bufreq._anon_0.necp_stats_bufreq_uaddr;
        }
        lck_mtx_unlock((lck_mtx_t *)&client->lock);
        lck_mtx_unlock((lck_mtx_t *)&fd_dataa->fd_lock);
        necp_client_release(client);
        v7 = uapa->buffer;
        v8 = uapa->buffer_size;
        v48 = add_request;
        v47 = v7;
        v46 = v8;
        v45 = -1LL;
        if ( v8 > 0xFFFFFFFFFFFFFFFFLL )
          panic(
            "\"__copyout_chk object size check failed: uaddr %p, kaddr %p, (%zu < %zu)\"@/BuildRoot/Library/Caches/com.ap"
            "ple.xbs/Sources/xnu_debug/xnu-4903.231.4/bsd/libkern/copyio.h:54",
            v47,
            v48,
            v46,
            v45);
        copy_error = copyout(v48, v47, v46);
        if ( copy_error )
          log(3, "%s: necp_client_add_flow copyout add_request error (%d)\n", "necp_client_add_flow", copy_error);
      }
      else
      {
        error = 12;
        lck_mtx_unlock((lck_mtx_t *)&client->lock);
        lck_mtx_unlock((lck_mtx_t *)&fd_dataa->fd_lock);
        log(3, "%s: %s\n", "necp_client_add_flow", "Failed to allocate flow registration");
      }
    }
    else
    {
      error = 2;
      lck_mtx_unlock((lck_mtx_t *)&fd_dataa->fd_lock);
    }
  }
  else
  {
    lck_mtx_unlock((lck_mtx_t *)&fd_dataa->fd_lock);
    log(
      3,
      "%s: necp_client_add_flow process not found for pid %d error (%d)\n",
      "necp_client_add_flow",
      (unsigned int)pid,
      (unsigned int)error);
    error = 3;
  }
LABEL_64:
  *retvala = error;
  if ( error )
    log(3, "%s: Add flow error (%d)\n", "necp_client_add_flow", (unsigned int)error);
  if ( allocated_add_request )
    FREE(allocated_add_request, 118);
  if ( proc )
    proc_rele(proc);
  result = error;
  if ( _stack_chk_guard == v52 )
    result = error;
  return result;
}



i've just added a cpu errata code to xnu (from freebsd)

static void init_amd_erratas(i386_cpu_info_t *info_p)
{
    uint64_t msr;

    /*
     * Work around Erratum 721 for Family 10h and 12h processors.
     * These processors may incorrectly update the stack pointer
     * after a long series of push and/or near-call instructions,
     * or a long series of pop and/or near-return instructions.
     *
     * http://support.amd.com/us/Processor_TechDocs/41322_10h_Rev_Gd.pdf
     * http://support.amd.com/us/Processor_TechDocs/44739_12h_Rev_Gd.pdf
     *
     * Hypervisors do not provide access to the errata MSR,
     * causing #GP exception on attempt to apply the errata.  The
     * MSR write shall be done on host and persist globally
     * anyway, so do not try to do it when under virtualization.
     */

    switch (info_p->cpuid_family) {
        case 0x10:
        case 0x12:
            if ((info_p->cpuid_features & 0x80000000) == 0)
                wrmsr64(0xc0011029, rdmsr64(0xc0011029) | 1);
            break;
    }

    /*
     * BIOS may fail to set InitApicIdCpuIdLo to 1 as it should per BKDG.
     * So, do it here or otherwise some tools could be confused by
     * Initial Local APIC ID reported with CPUID Function 1 in EBX.
     */
    if (info_p->cpuid_family == 0x10) {
        if ((info_p->cpuid_features & 0x80000000) == 0) {
            msr = rdmsr64(0xc001001f);
            msr |= (uint64_t)1 << 54;
            wrmsr64(0xc001001f, msr);
        }
    }

    /*
     * BIOS may configure Family 10h processors to convert WC+ cache type
     * to CD.  That can hurt performance of guest VMs using nested paging.
     * The relevant MSR bit is not documented in the BKDG,
     * the fix is borrowed from Linux.
     */
    if (info_p->cpuid_family == 0x10) {
        if ((info_p->cpuid_features & 0x80000000) == 0) {
            msr = rdmsr64(0xc001102a);
            msr &= ~((uint64_t)1 << 24);
            wrmsr64(0xc001102a, msr);
        }
    }

    /*
     * Work around Erratum 793: Specific Combination of Writes to Write
     * Combined Memory Types and Locked Instructions May Cause Core Hang.
     * See Revision Guide for AMD Family 16h Models 00h-0Fh Processors,
     * revision 3.04 or later, publication 51810.
     */
    if (info_p->cpuid_family== 0x16 && info_p->cpuid_model <= 0xf) {
        if ((info_p->cpuid_features & 0x80000000) == 0) {
            msr = rdmsr64(0xc0011020);
            msr |= (uint64_t)1 << 15;
            wrmsr64(0xc0011020, msr);
        }
    }

    /* Ryzen erratas. */
    if (info_p->cpuid_family == 0x17 && info_p->cpuid_model == 0x1 &&
        (info_p->cpuid_features & 0x80000000) == 0) {
        /* 1021 */
        msr = rdmsr64(0xc0011029);
        msr |= 0x2000;
        wrmsr64(0xc0011029, msr);

        /* 1033 */
        msr = rdmsr64(0xc0011020);
        msr |= 0x10;
        wrmsr64(0xc0011020, msr);

        /* 1049 */
        msr = rdmsr64(0xc0011028);
        msr |= 0x10;
        wrmsr64(0xc0011028, msr);

        /* 1095 */
        msr = rdmsr64(0xc0011020);
        msr |= 0x200000000000000;
        wrmsr64(0xc0011020, msr);
    }

    /*
     * Work around a problem on Ryzen that is triggered by executing
     * code near the top of user memory, in our case the signal
     * trampoline code in the shared page on amd64.
     *
     * This function is executed once for the BSP before tunables take
     * effect so the value determined here can be overridden by the
     * tunable.  This function is then executed again for each AP and
     * also on resume.  Set a flag the first time so that value set by
     * the tunable is not overwritten.
     *
     * The stepping and/or microcode versions should be checked after
     * this issue is fixed by AMD so that we don't use this mode if not
     * needed.
     */
    /*if (lower_sharedpage_init == 0) {
        lower_sharedpage_init = 1;
        if (info_p->cpuid_family == 0x17) {
            hw_lower_amd64_sharedpage = 1;
        }
    }
     amd64_lower_shared_page(struct sysentvec *sv)
    if (hw_lower_amd64_sharedpage != 0) {
                sv->sv_maxuser -= PAGE_SIZE;
                sv->sv_shared_page_base -= PAGE_SIZE;
                sv->sv_usrstack -= PAGE_SIZE;
                sv->sv_psstrings -= PAGE_SIZE;
            }*/
}

attached kernel for testing on 10.14.2



will also check https://github.com/torvalds/linux/blob/master/arch/x86/kernel/cpu/amd.c

kernel

nice !

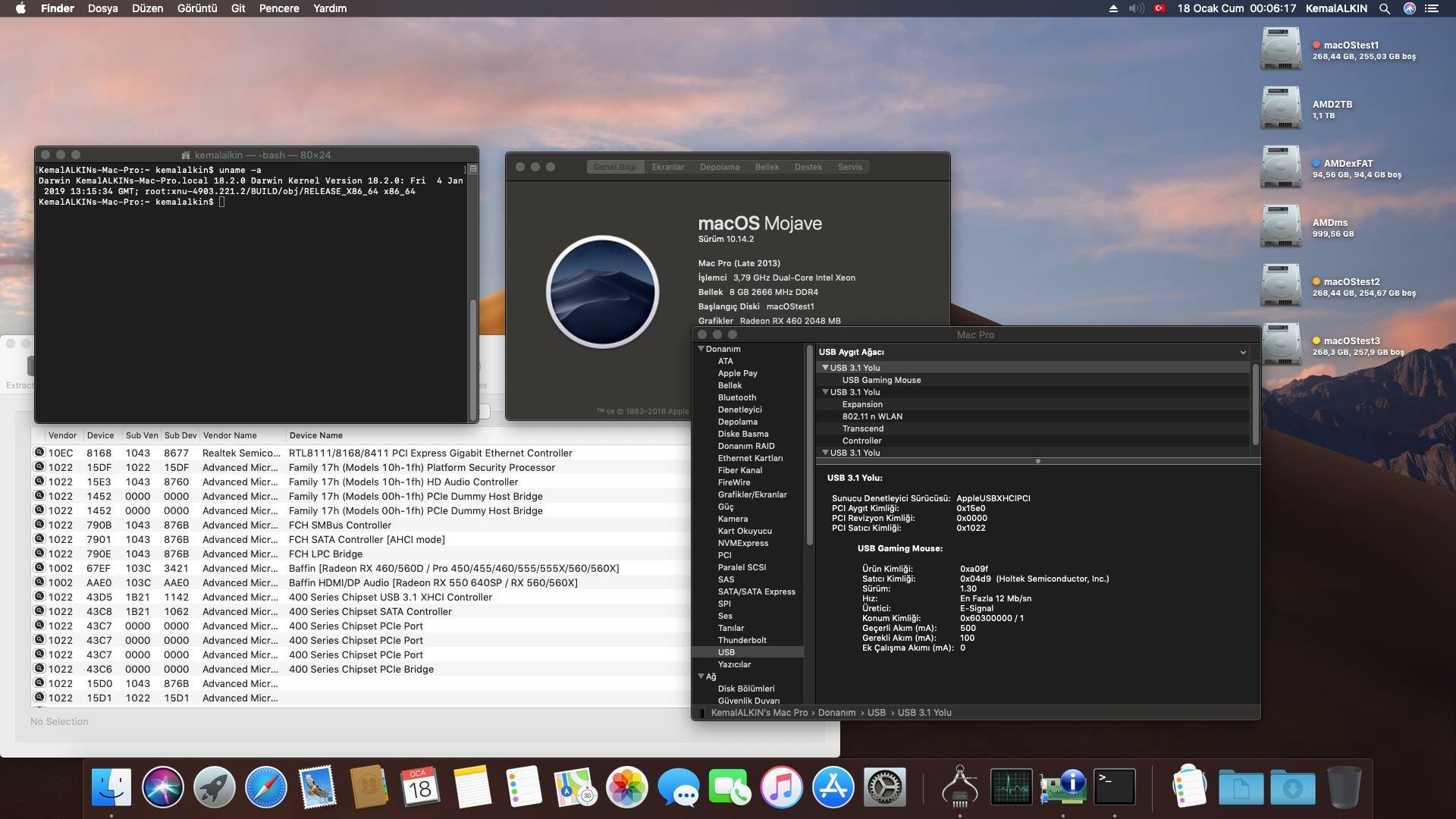

kernel booted on 10.14.2
can you also write a patch for the Networking issue (necp client) that will replace the stub function.
thanks !

[jsl2000]

On 1/12/2019 at 7:10 AM, jalavoui said:



this can be ported from 10.14.2 (need some fixes to compile)

int __cdecl necp_client_add_flow(necp_fd_data *fd_data, necp_client_action_args *uap, int *retval)
{
  vm_size_t v3; // rdx
  vm_size_t v4; // rsi
  bool v5; // ST2F_1
  bool v6; // ST2D_1
  user_addr_t v7; // rdx
  vm_size_t v8; // rsi
  int result; // eax
  unsigned __int8 *necp_client_uuid; // [rsp+50h] [rbp-230h]
  unsigned int copy_error; // [rsp+7Ch] [rbp-204h]
  necp_stats_bufreq bufreq; // [rsp+80h] [rbp-200h]
  necp_client_flow_stats *stats_request; // [rsp+98h] [rbp-1E8h]
  int request_error; // [rsp+A4h] [rbp-1DCh]
  necp_client_interface_option *option_0; // [rsp+A8h] [rbp-1D8h]
  necp_client_interface_option *option; // [rsp+B0h] [rbp-1D0h]
  u_int32_t option_i; // [rsp+BCh] [rbp-1C4h]
  _Bool found_nexus; // [rsp+C3h] [rbp-1BDh]
  uint32_t_0 interface_index; // [rsp+C4h] [rbp-1BCh]
  size_t_0 assigned_results_length; // [rsp+C8h] [rbp-1B8h]
  void *assigned_results; // [rsp+D0h] [rbp-1B0h]
  necp_client_flow_registration *new_registration; // [rsp+D8h] [rbp-1A8h]
  pid_t pid; // [rsp+E4h] [rbp-19Ch]
  necp_client_add_flow *v24; // [rsp+E8h] [rbp-198h]
  necp_client_add_flow *allocated_add_request; // [rsp+F0h] [rbp-190h]
  necp_client_add_flow *add_request; // [rsp+F8h] [rbp-188h]
  proc *proc; // [rsp+100h] [rbp-180h]
  necp_client *client; // [rsp+108h] [rbp-178h]
  int error; // [rsp+114h] [rbp-16Ch]
  int *retvala; // [rsp+118h] [rbp-168h]
  necp_client_action_args *uapa; // [rsp+120h] [rbp-160h]
  necp_fd_data *fd_dataa; // [rsp+128h] [rbp-158h]
  __int64 v33; // [rsp+130h] [rbp-150h]
  vm_size_t nbytes; // [rsp+138h] [rbp-148h]
  void *kernel_addr; // [rsp+140h] [rbp-140h]
  user_addr_t user_addr; // [rsp+148h] [rbp-138h]
  __int64 v37; // [rsp+150h] [rbp-130h]
  vm_size_t v38; // [rsp+158h] [rbp-128h]
  void *v39; // [rsp+160h] [rbp-120h]
  user_addr_t v40; // [rsp+168h] [rbp-118h]
  __int64 v41; // [rsp+170h] [rbp-110h]
  vm_size_t v42; // [rsp+178h] [rbp-108h]
  void *v43; // [rsp+180h] [rbp-100h]
  user_addr_t v44; // [rsp+188h] [rbp-F8h]
  __int64 v45; // [rsp+190h] [rbp-F0h]
  vm_size_t v46; // [rsp+198h] [rbp-E8h]
  user_addr_t v47; // [rsp+1A0h] [rbp-E0h]
  void *v48; // [rsp+1A8h] [rbp-D8h]
  necp_client_add_flow_default default_add_request; // [rsp+1B0h] [rbp-D0h]
  necp_client_nexus_parameters parameters; // [rsp+1F0h] [rbp-90h]
  uuid_t client_id; // [rsp+250h] [rbp-30h]
  __int64 v52; // [rsp+268h] [rbp-18h]

  fd_dataa = fd_data;
  uapa = uap;
  retvala = retval;
  error = 0;
  client = 0LL;
  secure_memset(&parameters, 0, 0x60uLL);
  proc = 0LL;
  add_request = 0LL;
  allocated_add_request = 0LL;
  secure_memset(&default_add_request, 0, 0x3CuLL);
  if ( !uap->client_id || uapa->client_id_len != 16 )
  {
    error = 22;
    log(3, "%s: necp_client_add_flow invalid client_id (length %zu)\n", "necp_client_add_flow", uapa->client_id_len);
    goto LABEL_64;
  }
  if ( !uapa->buffer || uapa->buffer_size < 0x24 )
  {
    error = 22;
    log(3, "%s: necp_client_add_flow invalid buffer (length %zu)\n", "necp_client_add_flow", uapa->buffer_size);
    goto LABEL_64;
  }
  user_addr = uapa->client_id;
  kernel_addr = client_id;
  nbytes = 16LL;
  v33 = 16LL;
  error = copyin(user_addr, client_id, 0x10uLL);
  if ( error )
  {
    log(3, "%s: necp_client_add_flow copyin client_id error (%d)\n", "necp_client_add_flow", (unsigned int)error);
    goto LABEL_64;
  }
  if ( uapa->buffer_size > 0x3C )
  {
    v24 = (necp_client_add_flow *)_MALLOC(uapa->buffer_size, 118, 4, &necp_client_add_flow_site);
    allocated_add_request = v24;
    if ( !v24 )
    {
      error = 12;
      goto LABEL_64;
    }
    v4 = uapa->buffer_size;
    v44 = uapa->buffer;
    v43 = allocated_add_request;
    v42 = v4;
    v41 = -1LL;
    if ( v4 > 0xFFFFFFFFFFFFFFFFLL )
      panic(
        "\"__copyin_chk object size check failed: uaddr %p, kaddr %p, (%zu < %zu)\"@/BuildRoot/Library/Caches/com.apple.x"
        "bs/Sources/xnu_debug/xnu-4903.231.4/bsd/libkern/copyio.h:45",
        v44,
        v43,
        v42,
        v41);
    error = copyin(v44, v43, v42);
    if ( error )
    {
      log(
        3,
        "%s: necp_client_add_flow copyin default_add_request error (%d)\n",
        "necp_client_add_flow",
        (unsigned int)error);
      goto LABEL_64;
    }
    add_request = allocated_add_request;
  }
  else
  {
    v3 = uapa->buffer_size;
    v40 = uapa->buffer;
    v39 = &default_add_request;
    v38 = v3;
    v37 = 60LL;
    if ( v3 > 0x3C )
      panic(
        "\"__copyin_chk object size check failed: uaddr %p, kaddr %p, (%zu < %zu)\"@/BuildRoot/Library/Caches/com.apple.x"
        "bs/Sources/xnu_debug/xnu-4903.231.4/bsd/libkern/copyio.h:45",
        v40,
        v39,
        v38,
        v37);
    error = copyin(v40, v39, v38);
    if ( error )
    {
      log(
        3,
        "%s: necp_client_add_flow copyin default_add_request error (%d)\n",
        "necp_client_add_flow",
        (unsigned int)error);
      goto LABEL_64;
    }
    add_request = (necp_client_add_flow *)&default_add_request;
  }
  lck_mtx_lock((lck_mtx_t *)&fd_dataa->fd_lock);
  pid = fd_dataa->proc_pid;
  proc = proc_find(pid);
  if ( proc )
  {
    client = necp_client_fd_find_client_and_lock(fd_dataa, client_id);
    if ( client )
    {
      *((_BYTE *)client + 100) &= 0xFBu;
      necp_client_retain_locked(client);
      necp_client_copy_parameters_locked(client, &parameters);
      new_registration = necp_client_create_flow_registration(fd_dataa, client);
      if ( new_registration )
      {
        new_registration->flags = add_request->flags;
        uuid_copy(add_request->registration_id, new_registration->registration_id);
        if ( add_request->flags & 1 )
        {
          assigned_results = 0LL;
          assigned_results_length = 0LL;
          interface_index = 0;
          found_nexus = 0;
          for ( option_i = 0; option_i < client->interface_option_count; ++option_i )
          {
            if ( option_i >= 4 )
            {
              option_0 = &client->extra_interface_options[option_i - 4];
              if ( !uuid_compare(option_0->nexus_agent, add_request->agent_uuid) )
              {
                interface_index = option_0->interface_index;
                found_nexus = 1;
                break;
              }
            }
            else
            {
              option = &client->interface_options[option_i];
              if ( !uuid_compare(option->nexus_agent, add_request->agent_uuid) )
              {
                interface_index = option->interface_index;
                found_nexus = 1;
                break;
              }
            }
          }
          if ( found_nexus )
          {
            necp_client_add_nexus_flow_if_needed(new_registration, add_request->agent_uuid, interface_index);
            if ( new_registration->flags & 2 )
              necp_client_uuid = client->client_id;
            else
              necp_client_uuid = new_registration->registration_id;
            request_error = netagent_client_message_with_params(
                              add_request->agent_uuid,
                              necp_client_uuid,
                              pid,
                              client->agent_handle,
                              0xAu,
                              &parameters,
                              &assigned_results,
                              &assigned_results_length);
            if ( request_error )
            {
              if ( assigned_results )
                v5 = assfail(
                       "assigned_results == NULL",
                       "/BuildRoot/Library/Caches/com.apple.xbs/Sources/xnu_debug/xnu-4903.231.4/bsd/net/necp_client.c",
                       6107) != 0;
              if ( assigned_results_length )
                v6 = assfail(
                       "assigned_results_length == 0",
                       "/BuildRoot/Library/Caches/com.apple.xbs/Sources/xnu_debug/xnu-4903.231.4/bsd/net/necp_client.c",
                       6108) != 0;
              log(3, "%s: netagent_client_message error (%d)\n", "necp_client_add_flow", (unsigned int)request_error);
            }
            else if ( assigned_results && assigned_results_length )
            {
              if ( !necp_assign_client_result_locked(
                      proc,
                      fd_dataa,
                      client,
                      new_registration,
                      add_request->agent_uuid,
                      (u_int8_t *)assigned_results,
                      assigned_results_length,
                      0)
                && assigned_results )
              {
                FREE(assigned_results, 124);
              }
            }
            else if ( assigned_results )
            {
              FREE(assigned_results, 124);
            }
          }
          else
          {
            log(3, "%s: %s\n", "necp_client_add_flow", "Requested nexus not found");
          }
        }
        if ( (signed int)add_request->stats_request_count > 0 && !necp_arena_initialize(fd_dataa, 1) )
        {
          stats_request = (necp_client_flow_stats *)&add_request[1];
          secure_memset(&bufreq, 0, 0x18uLL);
          bufreq.necp_stats_bufreq_id = 191;
          *(_QWORD *)&bufreq.necp_stats_bufreq_type = *(_QWORD *)&stats_request->stats_type;
          bufreq.necp_stats_bufreq_size = stats_request->stats_size;
          bufreq._anon_0.necp_stats_bufreq_uaddr = stats_request->stats_addr;
          necp_stats_initialize(fd_dataa, client, new_registration, &bufreq);
          *(_QWORD *)&stats_request->stats_type = *(_QWORD *)&bufreq.necp_stats_bufreq_type;
          stats_request->stats_size = bufreq.necp_stats_bufreq_size;
          stats_request->stats_addr = bufreq._anon_0.necp_stats_bufreq_uaddr;
        }
        lck_mtx_unlock((lck_mtx_t *)&client->lock);
        lck_mtx_unlock((lck_mtx_t *)&fd_dataa->fd_lock);
        necp_client_release(client);
        v7 = uapa->buffer;
        v8 = uapa->buffer_size;
        v48 = add_request;
        v47 = v7;
        v46 = v8;
        v45 = -1LL;
        if ( v8 > 0xFFFFFFFFFFFFFFFFLL )
          panic(
            "\"__copyout_chk object size check failed: uaddr %p, kaddr %p, (%zu < %zu)\"@/BuildRoot/Library/Caches/com.ap"
            "ple.xbs/Sources/xnu_debug/xnu-4903.231.4/bsd/libkern/copyio.h:54",
            v47,
            v48,
            v46,
            v45);
        copy_error = copyout(v48, v47, v46);
        if ( copy_error )
          log(3, "%s: necp_client_add_flow copyout add_request error (%d)\n", "necp_client_add_flow", copy_error);
      }
      else
      {
        error = 12;
        lck_mtx_unlock((lck_mtx_t *)&client->lock);
        lck_mtx_unlock((lck_mtx_t *)&fd_dataa->fd_lock);
        log(3, "%s: %s\n", "necp_client_add_flow", "Failed to allocate flow registration");
      }
    }
    else
    {
      error = 2;
      lck_mtx_unlock((lck_mtx_t *)&fd_dataa->fd_lock);
    }
  }
  else
  {
    lck_mtx_unlock((lck_mtx_t *)&fd_dataa->fd_lock);
    log(
      3,
      "%s: necp_client_add_flow process not found for pid %d error (%d)\n",
      "necp_client_add_flow",
      (unsigned int)pid,
      (unsigned int)error);
    error = 3;
  }
LABEL_64:
  *retvala = error;
  if ( error )
    log(3, "%s: Add flow error (%d)\n", "necp_client_add_flow", (unsigned int)error);
  if ( allocated_add_request )
    FREE(allocated_add_request, 118);
  if ( proc )
    proc_rele(proc);
  result = error;
  if ( _stack_chk_guard == v52 )
    result = error;
  return result;
}



i've just added a cpu errata code to xnu (from freebsd)

static void init_amd_erratas(i386_cpu_info_t *info_p)
{
    uint64_t msr;

    /*
     * Work around Erratum 721 for Family 10h and 12h processors.
     * These processors may incorrectly update the stack pointer
     * after a long series of push and/or near-call instructions,
     * or a long series of pop and/or near-return instructions.
     *
     * http://support.amd.com/us/Processor_TechDocs/41322_10h_Rev_Gd.pdf
     * http://support.amd.com/us/Processor_TechDocs/44739_12h_Rev_Gd.pdf
     *
     * Hypervisors do not provide access to the errata MSR,
     * causing #GP exception on attempt to apply the errata.  The
     * MSR write shall be done on host and persist globally
     * anyway, so do not try to do it when under virtualization.
     */

    switch (info_p->cpuid_family) {
        case 0x10:
        case 0x12:
            if ((info_p->cpuid_features & 0x80000000) == 0)
                wrmsr64(0xc0011029, rdmsr64(0xc0011029) | 1);
            break;
    }

    /*
     * BIOS may fail to set InitApicIdCpuIdLo to 1 as it should per BKDG.
     * So, do it here or otherwise some tools could be confused by
     * Initial Local APIC ID reported with CPUID Function 1 in EBX.
     */
    if (info_p->cpuid_family == 0x10) {
        if ((info_p->cpuid_features & 0x80000000) == 0) {
            msr = rdmsr64(0xc001001f);
            msr |= (uint64_t)1 << 54;
            wrmsr64(0xc001001f, msr);
        }
    }

    /*
     * BIOS may configure Family 10h processors to convert WC+ cache type
     * to CD.  That can hurt performance of guest VMs using nested paging.
     * The relevant MSR bit is not documented in the BKDG,
     * the fix is borrowed from Linux.
     */
    if (info_p->cpuid_family == 0x10) {
        if ((info_p->cpuid_features & 0x80000000) == 0) {
            msr = rdmsr64(0xc001102a);
            msr &= ~((uint64_t)1 << 24);
            wrmsr64(0xc001102a, msr);
        }
    }

    /*
     * Work around Erratum 793: Specific Combination of Writes to Write
     * Combined Memory Types and Locked Instructions May Cause Core Hang.
     * See Revision Guide for AMD Family 16h Models 00h-0Fh Processors,
     * revision 3.04 or later, publication 51810.
     */
    if (info_p->cpuid_family== 0x16 && info_p->cpuid_model <= 0xf) {
        if ((info_p->cpuid_features & 0x80000000) == 0) {
            msr = rdmsr64(0xc0011020);
            msr |= (uint64_t)1 << 15;
            wrmsr64(0xc0011020, msr);
        }
    }

    /* Ryzen erratas. */
    if (info_p->cpuid_family == 0x17 && info_p->cpuid_model == 0x1 &&
        (info_p->cpuid_features & 0x80000000) == 0) {
        /* 1021 */
        msr = rdmsr64(0xc0011029);
        msr |= 0x2000;
        wrmsr64(0xc0011029, msr);

        /* 1033 */
        msr = rdmsr64(0xc0011020);
        msr |= 0x10;
        wrmsr64(0xc0011020, msr);

        /* 1049 */
        msr = rdmsr64(0xc0011028);
        msr |= 0x10;
        wrmsr64(0xc0011028, msr);

        /* 1095 */
        msr = rdmsr64(0xc0011020);
        msr |= 0x200000000000000;
        wrmsr64(0xc0011020, msr);
    }

    /*
     * Work around a problem on Ryzen that is triggered by executing
     * code near the top of user memory, in our case the signal
     * trampoline code in the shared page on amd64.
     *
     * This function is executed once for the BSP before tunables take
     * effect so the value determined here can be overridden by the
     * tunable.  This function is then executed again for each AP and
     * also on resume.  Set a flag the first time so that value set by
     * the tunable is not overwritten.
     *
     * The stepping and/or microcode versions should be checked after
     * this issue is fixed by AMD so that we don't use this mode if not
     * needed.
     */
    /*if (lower_sharedpage_init == 0) {
        lower_sharedpage_init = 1;
        if (info_p->cpuid_family == 0x17) {
            hw_lower_amd64_sharedpage = 1;
        }
    }
     amd64_lower_shared_page(struct sysentvec *sv)
    if (hw_lower_amd64_sharedpage != 0) {
                sv->sv_maxuser -= PAGE_SIZE;
                sv->sv_shared_page_base -= PAGE_SIZE;
                sv->sv_usrstack -= PAGE_SIZE;
                sv->sv_psstrings -= PAGE_SIZE;
            }*/
}

attached kernel for testing on 10.14.2

source is based on https://github.com/Shaneee92/Mojave_AMD_XNU (with opemu) + 2 functions (check p1.diff)



will also check https://github.com/torvalds/linux/blob/master/arch/x86/kernel/cpu/amd.c



the mach_msg_destroy_from_kernel_proper() will be available as soon as 10.14.2 sources are out.

kernel

p1.diff

Thanks for this new kernel which can login desktop & rebuild prelinkedkernel at 10.14.2 & 10.14.3 beta in Ryzen 1700X & FX-6300 hackintoshs.

Firefox, cpu-x & EFI Mount V3, etc. apps worked as usually.

But App Store & Safari crashed on open in FX-6300 & Ryzen 1700X hackintoshs at 10.14.2 only, without this issue at 10.14.1 & 10.14.3.

[Edit]

At 10.14.1/10.14.3 it worked perfectly without any issue in Ryzen 1700X hackintosh.

Also performance of CineBench R15 was the best !

But in FX-6300 hackintosh video play issue in Safari still occured which may be due to RX-560 GPU &/or FX-6300 CPU instead of kernel.

Edited January 17, 2019 by jsl2000

[XLNC]

On 1/12/2019 at 4:40 AM, jalavoui said:



this can be ported from 10.14.2 (need some fixes to compile)

int __cdecl necp_client_add_flow(necp_fd_data *fd_data, necp_client_action_args *uap, int *retval)
{
  vm_size_t v3; // rdx
  vm_size_t v4; // rsi
  bool v5; // ST2F_1
  bool v6; // ST2D_1
  user_addr_t v7; // rdx
  vm_size_t v8; // rsi
  int result; // eax
  unsigned __int8 *necp_client_uuid; // [rsp+50h] [rbp-230h]
  unsigned int copy_error; // [rsp+7Ch] [rbp-204h]
  necp_stats_bufreq bufreq; // [rsp+80h] [rbp-200h]
  necp_client_flow_stats *stats_request; // [rsp+98h] [rbp-1E8h]
  int request_error; // [rsp+A4h] [rbp-1DCh]
  necp_client_interface_option *option_0; // [rsp+A8h] [rbp-1D8h]
  necp_client_interface_option *option; // [rsp+B0h] [rbp-1D0h]
  u_int32_t option_i; // [rsp+BCh] [rbp-1C4h]
  _Bool found_nexus; // [rsp+C3h] [rbp-1BDh]
  uint32_t_0 interface_index; // [rsp+C4h] [rbp-1BCh]
  size_t_0 assigned_results_length; // [rsp+C8h] [rbp-1B8h]
  void *assigned_results; // [rsp+D0h] [rbp-1B0h]
  necp_client_flow_registration *new_registration; // [rsp+D8h] [rbp-1A8h]
  pid_t pid; // [rsp+E4h] [rbp-19Ch]
  necp_client_add_flow *v24; // [rsp+E8h] [rbp-198h]
  necp_client_add_flow *allocated_add_request; // [rsp+F0h] [rbp-190h]
  necp_client_add_flow *add_request; // [rsp+F8h] [rbp-188h]
  proc *proc; // [rsp+100h] [rbp-180h]
  necp_client *client; // [rsp+108h] [rbp-178h]
  int error; // [rsp+114h] [rbp-16Ch]
  int *retvala; // [rsp+118h] [rbp-168h]
  necp_client_action_args *uapa; // [rsp+120h] [rbp-160h]
  necp_fd_data *fd_dataa; // [rsp+128h] [rbp-158h]
  __int64 v33; // [rsp+130h] [rbp-150h]
  vm_size_t nbytes; // [rsp+138h] [rbp-148h]
  void *kernel_addr; // [rsp+140h] [rbp-140h]
  user_addr_t user_addr; // [rsp+148h] [rbp-138h]
  __int64 v37; // [rsp+150h] [rbp-130h]
  vm_size_t v38; // [rsp+158h] [rbp-128h]
  void *v39; // [rsp+160h] [rbp-120h]
  user_addr_t v40; // [rsp+168h] [rbp-118h]
  __int64 v41; // [rsp+170h] [rbp-110h]
  vm_size_t v42; // [rsp+178h] [rbp-108h]
  void *v43; // [rsp+180h] [rbp-100h]
  user_addr_t v44; // [rsp+188h] [rbp-F8h]
  __int64 v45; // [rsp+190h] [rbp-F0h]
  vm_size_t v46; // [rsp+198h] [rbp-E8h]
  user_addr_t v47; // [rsp+1A0h] [rbp-E0h]
  void *v48; // [rsp+1A8h] [rbp-D8h]
  necp_client_add_flow_default default_add_request; // [rsp+1B0h] [rbp-D0h]
  necp_client_nexus_parameters parameters; // [rsp+1F0h] [rbp-90h]
  uuid_t client_id; // [rsp+250h] [rbp-30h]
  __int64 v52; // [rsp+268h] [rbp-18h]

  fd_dataa = fd_data;
  uapa = uap;
  retvala = retval;
  error = 0;
  client = 0LL;
  secure_memset(&parameters, 0, 0x60uLL);
  proc = 0LL;
  add_request = 0LL;
  allocated_add_request = 0LL;
  secure_memset(&default_add_request, 0, 0x3CuLL);
  if ( !uap->client_id || uapa->client_id_len != 16 )
  {
    error = 22;
    log(3, "%s: necp_client_add_flow invalid client_id (length %zu)\n", "necp_client_add_flow", uapa->client_id_len);
    goto LABEL_64;
  }
  if ( !uapa->buffer || uapa->buffer_size < 0x24 )
  {
    error = 22;
    log(3, "%s: necp_client_add_flow invalid buffer (length %zu)\n", "necp_client_add_flow", uapa->buffer_size);
    goto LABEL_64;
  }
  user_addr = uapa->client_id;
  kernel_addr = client_id;
  nbytes = 16LL;
  v33 = 16LL;
  error = copyin(user_addr, client_id, 0x10uLL);
  if ( error )
  {
    log(3, "%s: necp_client_add_flow copyin client_id error (%d)\n", "necp_client_add_flow", (unsigned int)error);
    goto LABEL_64;
  }
  if ( uapa->buffer_size > 0x3C )
  {
    v24 = (necp_client_add_flow *)_MALLOC(uapa->buffer_size, 118, 4, &necp_client_add_flow_site);
    allocated_add_request = v24;
    if ( !v24 )
    {
      error = 12;
      goto LABEL_64;
    }
    v4 = uapa->buffer_size;
    v44 = uapa->buffer;
    v43 = allocated_add_request;
    v42 = v4;
    v41 = -1LL;
    if ( v4 > 0xFFFFFFFFFFFFFFFFLL )
      panic(
        "\"__copyin_chk object size check failed: uaddr %p, kaddr %p, (%zu < %zu)\"@/BuildRoot/Library/Caches/com.apple.x"
        "bs/Sources/xnu_debug/xnu-4903.231.4/bsd/libkern/copyio.h:45",
        v44,
        v43,
        v42,
        v41);
    error = copyin(v44, v43, v42);
    if ( error )
    {
      log(
        3,
        "%s: necp_client_add_flow copyin default_add_request error (%d)\n",
        "necp_client_add_flow",
        (unsigned int)error);
      goto LABEL_64;
    }
    add_request = allocated_add_request;
  }
  else
  {
    v3 = uapa->buffer_size;
    v40 = uapa->buffer;
    v39 = &default_add_request;
    v38 = v3;
    v37 = 60LL;
    if ( v3 > 0x3C )
      panic(
        "\"__copyin_chk object size check failed: uaddr %p, kaddr %p, (%zu < %zu)\"@/BuildRoot/Library/Caches/com.apple.x"
        "bs/Sources/xnu_debug/xnu-4903.231.4/bsd/libkern/copyio.h:45",
        v40,
        v39,
        v38,
        v37);
    error = copyin(v40, v39, v38);
    if ( error )
    {
      log(
        3,
        "%s: necp_client_add_flow copyin default_add_request error (%d)\n",
        "necp_client_add_flow",
        (unsigned int)error);
      goto LABEL_64;
    }
    add_request = (necp_client_add_flow *)&default_add_request;
  }
  lck_mtx_lock((lck_mtx_t *)&fd_dataa->fd_lock);
  pid = fd_dataa->proc_pid;
  proc = proc_find(pid);
  if ( proc )
  {
    client = necp_client_fd_find_client_and_lock(fd_dataa, client_id);
    if ( client )
    {
      *((_BYTE *)client + 100) &= 0xFBu;
      necp_client_retain_locked(client);
      necp_client_copy_parameters_locked(client, &parameters);
      new_registration = necp_client_create_flow_registration(fd_dataa, client);
      if ( new_registration )
      {
        new_registration->flags = add_request->flags;
        uuid_copy(add_request->registration_id, new_registration->registration_id);
        if ( add_request->flags & 1 )
        {
          assigned_results = 0LL;
          assigned_results_length = 0LL;
          interface_index = 0;
          found_nexus = 0;
          for ( option_i = 0; option_i < client->interface_option_count; ++option_i )
          {
            if ( option_i >= 4 )
            {
              option_0 = &client->extra_interface_options[option_i - 4];
              if ( !uuid_compare(option_0->nexus_agent, add_request->agent_uuid) )
              {
                interface_index = option_0->interface_index;
                found_nexus = 1;
                break;
              }
            }
            else
            {
              option = &client->interface_options[option_i];
              if ( !uuid_compare(option->nexus_agent, add_request->agent_uuid) )
              {
                interface_index = option->interface_index;
                found_nexus = 1;
                break;
              }
            }
          }
          if ( found_nexus )
          {
            necp_client_add_nexus_flow_if_needed(new_registration, add_request->agent_uuid, interface_index);
            if ( new_registration->flags & 2 )
              necp_client_uuid = client->client_id;
            else
              necp_client_uuid = new_registration->registration_id;
            request_error = netagent_client_message_with_params(
                              add_request->agent_uuid,
                              necp_client_uuid,
                              pid,
                              client->agent_handle,
                              0xAu,
                              &parameters,
                              &assigned_results,
                              &assigned_results_length);
            if ( request_error )
            {
              if ( assigned_results )
                v5 = assfail(
                       "assigned_results == NULL",
                       "/BuildRoot/Library/Caches/com.apple.xbs/Sources/xnu_debug/xnu-4903.231.4/bsd/net/necp_client.c",
                       6107) != 0;
              if ( assigned_results_length )
                v6 = assfail(
                       "assigned_results_length == 0",
                       "/BuildRoot/Library/Caches/com.apple.xbs/Sources/xnu_debug/xnu-4903.231.4/bsd/net/necp_client.c",
                       6108) != 0;
              log(3, "%s: netagent_client_message error (%d)\n", "necp_client_add_flow", (unsigned int)request_error);
            }
            else if ( assigned_results && assigned_results_length )
            {
              if ( !necp_assign_client_result_locked(
                      proc,
                      fd_dataa,
                      client,
                      new_registration,
                      add_request->agent_uuid,
                      (u_int8_t *)assigned_results,
                      assigned_results_length,
                      0)
                && assigned_results )
              {
                FREE(assigned_results, 124);
              }
            }
            else if ( assigned_results )
            {
              FREE(assigned_results, 124);
            }
          }
          else
          {
            log(3, "%s: %s\n", "necp_client_add_flow", "Requested nexus not found");
          }
        }
        if ( (signed int)add_request->stats_request_count > 0 && !necp_arena_initialize(fd_dataa, 1) )
        {
          stats_request = (necp_client_flow_stats *)&add_request[1];
          secure_memset(&bufreq, 0, 0x18uLL);
          bufreq.necp_stats_bufreq_id = 191;
          *(_QWORD *)&bufreq.necp_stats_bufreq_type = *(_QWORD *)&stats_request->stats_type;
          bufreq.necp_stats_bufreq_size = stats_request->stats_size;
          bufreq._anon_0.necp_stats_bufreq_uaddr = stats_request->stats_addr;
          necp_stats_initialize(fd_dataa, client, new_registration, &bufreq);
          *(_QWORD *)&stats_request->stats_type = *(_QWORD *)&bufreq.necp_stats_bufreq_type;
          stats_request->stats_size = bufreq.necp_stats_bufreq_size;
          stats_request->stats_addr = bufreq._anon_0.necp_stats_bufreq_uaddr;
        }
        lck_mtx_unlock((lck_mtx_t *)&client->lock);
        lck_mtx_unlock((lck_mtx_t *)&fd_dataa->fd_lock);
        necp_client_release(client);
        v7 = uapa->buffer;
        v8 = uapa->buffer_size;
        v48 = add_request;
        v47 = v7;
        v46 = v8;
        v45 = -1LL;
        if ( v8 > 0xFFFFFFFFFFFFFFFFLL )
          panic(
            "\"__copyout_chk object size check failed: uaddr %p, kaddr %p, (%zu < %zu)\"@/BuildRoot/Library/Caches/com.ap"
            "ple.xbs/Sources/xnu_debug/xnu-4903.231.4/bsd/libkern/copyio.h:54",
            v47,
            v48,
            v46,
            v45);
        copy_error = copyout(v48, v47, v46);
        if ( copy_error )
          log(3, "%s: necp_client_add_flow copyout add_request error (%d)\n", "necp_client_add_flow", copy_error);
      }
      else
      {
        error = 12;
        lck_mtx_unlock((lck_mtx_t *)&client->lock);
        lck_mtx_unlock((lck_mtx_t *)&fd_dataa->fd_lock);
        log(3, "%s: %s\n", "necp_client_add_flow", "Failed to allocate flow registration");
      }
    }
    else
    {
      error = 2;
      lck_mtx_unlock((lck_mtx_t *)&fd_dataa->fd_lock);
    }
  }
  else
  {
    lck_mtx_unlock((lck_mtx_t *)&fd_dataa->fd_lock);
    log(
      3,
      "%s: necp_client_add_flow process not found for pid %d error (%d)\n",
      "necp_client_add_flow",
      (unsigned int)pid,
      (unsigned int)error);
    error = 3;
  }
LABEL_64:
  *retvala = error;
  if ( error )
    log(3, "%s: Add flow error (%d)\n", "necp_client_add_flow", (unsigned int)error);
  if ( allocated_add_request )
    FREE(allocated_add_request, 118);
  if ( proc )
    proc_rele(proc);
  result = error;
  if ( _stack_chk_guard == v52 )
    result = error;
  return result;
}



i've just added a cpu errata code to xnu (from freebsd)

static void init_amd_erratas(i386_cpu_info_t *info_p)
{
    uint64_t msr;

    /*
     * Work around Erratum 721 for Family 10h and 12h processors.
     * These processors may incorrectly update the stack pointer
     * after a long series of push and/or near-call instructions,
     * or a long series of pop and/or near-return instructions.
     *
     * http://support.amd.com/us/Processor_TechDocs/41322_10h_Rev_Gd.pdf
     * http://support.amd.com/us/Processor_TechDocs/44739_12h_Rev_Gd.pdf
     *
     * Hypervisors do not provide access to the errata MSR,
     * causing #GP exception on attempt to apply the errata.  The
     * MSR write shall be done on host and persist globally
     * anyway, so do not try to do it when under virtualization.
     */

    switch (info_p->cpuid_family) {
        case 0x10:
        case 0x12:
            if ((info_p->cpuid_features & 0x80000000) == 0)
                wrmsr64(0xc0011029, rdmsr64(0xc0011029) | 1);
            break;
    }

    /*
     * BIOS may fail to set InitApicIdCpuIdLo to 1 as it should per BKDG.
     * So, do it here or otherwise some tools could be confused by
     * Initial Local APIC ID reported with CPUID Function 1 in EBX.
     */
    if (info_p->cpuid_family == 0x10) {
        if ((info_p->cpuid_features & 0x80000000) == 0) {
            msr = rdmsr64(0xc001001f);
            msr |= (uint64_t)1 << 54;
            wrmsr64(0xc001001f, msr);
        }
    }

    /*
     * BIOS may configure Family 10h processors to convert WC+ cache type
     * to CD.  That can hurt performance of guest VMs using nested paging.
     * The relevant MSR bit is not documented in the BKDG,
     * the fix is borrowed from Linux.
     */
    if (info_p->cpuid_family == 0x10) {
        if ((info_p->cpuid_features & 0x80000000) == 0) {
            msr = rdmsr64(0xc001102a);
            msr &= ~((uint64_t)1 << 24);
            wrmsr64(0xc001102a, msr);
        }
    }

    /*
     * Work around Erratum 793: Specific Combination of Writes to Write
     * Combined Memory Types and Locked Instructions May Cause Core Hang.
     * See Revision Guide for AMD Family 16h Models 00h-0Fh Processors,
     * revision 3.04 or later, publication 51810.
     */
    if (info_p->cpuid_family== 0x16 && info_p->cpuid_model <= 0xf) {
        if ((info_p->cpuid_features & 0x80000000) == 0) {
            msr = rdmsr64(0xc0011020);
            msr |= (uint64_t)1 << 15;
            wrmsr64(0xc0011020, msr);
        }
    }

    /* Ryzen erratas. */
    if (info_p->cpuid_family == 0x17 && info_p->cpuid_model == 0x1 &&
        (info_p->cpuid_features & 0x80000000) == 0) {
        /* 1021 */
        msr = rdmsr64(0xc0011029);
        msr |= 0x2000;
        wrmsr64(0xc0011029, msr);

        /* 1033 */
        msr = rdmsr64(0xc0011020);
        msr |= 0x10;
        wrmsr64(0xc0011020, msr);

        /* 1049 */
        msr = rdmsr64(0xc0011028);
        msr |= 0x10;
        wrmsr64(0xc0011028, msr);

        /* 1095 */
        msr = rdmsr64(0xc0011020);
        msr |= 0x200000000000000;
        wrmsr64(0xc0011020, msr);
    }

    /*
     * Work around a problem on Ryzen that is triggered by executing
     * code near the top of user memory, in our case the signal
     * trampoline code in the shared page on amd64.
     *
     * This function is executed once for the BSP before tunables take
     * effect so the value determined here can be overridden by the
     * tunable.  This function is then executed again for each AP and
     * also on resume.  Set a flag the first time so that value set by
     * the tunable is not overwritten.
     *
     * The stepping and/or microcode versions should be checked after
     * this issue is fixed by AMD so that we don't use this mode if not
     * needed.
     */
    /*if (lower_sharedpage_init == 0) {
        lower_sharedpage_init = 1;
        if (info_p->cpuid_family == 0x17) {
            hw_lower_amd64_sharedpage = 1;
        }
    }
     amd64_lower_shared_page(struct sysentvec *sv)
    if (hw_lower_amd64_sharedpage != 0) {
                sv->sv_maxuser -= PAGE_SIZE;
                sv->sv_shared_page_base -= PAGE_SIZE;
                sv->sv_usrstack -= PAGE_SIZE;
                sv->sv_psstrings -= PAGE_SIZE;
            }*/
}

attached kernel for testing on 10.14.2

source is based on https://github.com/Shaneee92/Mojave_AMD_XNU (with opemu) + 2 functions (check p1.diff)



will also check https://github.com/torvalds/linux/blob/master/arch/x86/kernel/cpu/amd.c



the mach_msg_destroy_from_kernel_proper() will be available as soon as 10.14.2 sources are out.

the necp_client_add_flow() doesnt exist in 10.14.1 sources - maybe remove it and test ?



update:

- fixed cpu errata call spot









kernel

p2.diff

any changes between p1 and p2 diff ?
coz they both look the same .

[KemalALKIN]

Fixed reboot/shutdown and usb list via delete GenericXHCI kext.

Edited January 17, 2019 by KemalALKIN

[Shaneee]

28 minutes ago, KemalALKIN said:

Fixed reboot/shutdown and usb list via delete GenericXHCI kext.





If you've only got USB 3.1 no USB fix is required anyway.

[KemalALKIN]

14 hours ago, Shaneee said:



If you've only got USB 3.1 no USB fix is required anyway.

My motherboard:

https://www.asus.com/Motherboards/TUF-B450-PLUS-GAMING/

[jalavoui]

i've changed the pat patch in mtrr.c (check .diff)

need re-check amd errata flags - linux as many more.



please test it on 10.14.1/2



safari issues might be fixed when we get 10.14.2 sources (this is 10.14.1 hacked version)



updated with bsd code (for errata) - this rises others questions (check amd features code)



shanee u need to revert previous github pach to apply this one.



bsd sources can be found here http://fxr.watson.org/fxr/source/amd64/amd64/initcpu.c#L135



xlnc this is from 10.14.2

int __cdecl necp_client_action(proc *p, necp_client_action_args *uap, int *retval)
{
  u_int32_t action; // [rsp+1Ch] [rbp-34h]
  necp_fd_data *fd_data; // [rsp+20h] [rbp-30h]
  int return_value; // [rsp+28h] [rbp-28h]
  int error; // [rsp+2Ch] [rbp-24h]
  int *retvala; // [rsp+30h] [rbp-20h]
  necp_client_action_args *uapa; // [rsp+38h] [rbp-18h]
  proc *pa; // [rsp+40h] [rbp-10h]
  int v11; // [rsp+4Ch] [rbp-4h]

  pa = p;
  uapa = uap;
  retvala = retval;
  error = 0;
  return_value = 0;
  fd_data = 0LL;
  error = necp_find_fd_data(uap->necp_fd, &fd_data);
  if ( error )
  {
    log(3, "%s: necp_client_action find fd error (%d)\n", "necp_client_action", (unsigned int)error);
    v11 = error;
  }
  else
  {
    action = uapa->action;
    switch ( action )
    {
      case 1u:
        return_value = necp_client_add(pa, fd_data, uapa, retvala);
        break;
      case 2u:
        return_value = necp_client_remove(fd_data, uapa, retvala);
        break;
      case 3u:
      case 4u:
      case 16u:
        return_value = necp_client_copy(fd_data, uapa, retvala);
        break;
      case 5u:
        return_value = necp_client_list(fd_data, uapa, retvala);
        break;
      case 6u:
        return_value = necp_client_request_nexus(fd_data, uapa, retvala);
        break;
      case 7u:
        return_value = necp_client_agent_action(fd_data, uapa, retvala);
        break;
      case 8u:
        return_value = necp_client_copy_agent(fd_data, uapa, retvala);
        break;
      case 9u:
        return_value = necp_client_copy_interface(fd_data, uapa, retvala);
        break;
      case 10u:
        return_value = 45;
        break;
      case 11u:
        return_value = necp_client_copy_route_statistics(fd_data, uapa, retvala);
        break;
      case 12u:
        return_value = necp_client_agent_use(fd_data, uapa, retvala);
        break;
      case 13u:
        return_value = necp_client_map_sysctls(fd_data, uapa, retvala);
        break;
      case 14u:
        return_value = necp_client_update_cache(fd_data, uapa, retvala);
        break;
      case 15u:
        return_value = necp_client_copy_client_update(fd_data, uapa, retvala);
        break;
      case 17u:
        return_value = necp_client_add_flow(fd_data, uapa, retvala);
        break;
      case 18u:
        return_value = necp_client_remove_flow(fd_data, uapa, retvala);
        break;
      default:
        log(3, "%s: necp_client_action unknown action (%u)\n", "necp_client_action", action);
        return_value = 22;
        break;
    }
    file_drop(uapa->necp_fd);
    v11 = return_value;
  }
  return v11;
}

we will get this code with new sources, i tried to start porting some code but it as so many calls - i'll wait for apple to release it.



i'll keep this code here for further checking

/*
  753                  * AMD CPUID Specification
  754                  * http://support.amd.com/us/Embedded_TechDocs/25481.pdf
  755                  *
  756                  * Intel Processor Identification and CPUID Instruction
  757                  * http://www.intel.com/assets/pdf/appnote/241618.pdf
  758                  */
  759                 if (cpu_high > 0) {
  760
  761                         /*
  762                          * Here we should probably set up flags indicating
  763                          * whether or not various features are available.
  764                          * The interesting ones are probably VME, PSE, PAE,
  765                          * and PGE.  The code already assumes without bothering
  766                          * to check that all CPUs >= Pentium have a TSC and
  767                          * MSRs.
  768                          */
  769                         printf("\n  Features=0x%b", cpu_feature,
  770                         "\020"
  771                         "\001FPU"       /* Integral FPU */
  772                         "\002VME"       /* Extended VM86 mode support */
  773                         "\003DE"        /* Debugging Extensions (CR4.DE) */
  774                         "\004PSE"       /* 4MByte page tables */
  775                         "\005TSC"       /* Timestamp counter */
  776                         "\006MSR"       /* Machine specific registers */
  777                         "\007PAE"       /* Physical address extension */
  778                         "\010MCE"       /* Machine Check support */
  779                         "\011CX8"       /* CMPEXCH8 instruction */
  780                         "\012APIC"      /* SMP local APIC */
  781                         "\013oldMTRR"   /* Previous implementation of MTRR */
  782                         "\014SEP"       /* Fast System Call */
  783                         "\015MTRR"      /* Memory Type Range Registers */
  784                         "\016PGE"       /* PG_G (global bit) support */
  785                         "\017MCA"       /* Machine Check Architecture */
  786                         "\020CMOV"      /* CMOV instruction */
  787                         "\021PAT"       /* Page attributes table */
  788                         "\022PSE36"     /* 36 bit address space support */
  789                         "\023PN"        /* Processor Serial number */
  790                         "\024CLFLUSH"   /* Has the CLFLUSH instruction */
  791                         "\025<b20>"
  792                         "\026DTS"       /* Debug Trace Store */
  793                         "\027ACPI"      /* ACPI support */
  794                         "\030MMX"       /* MMX instructions */
  795                         "\031FXSR"      /* FXSAVE/FXRSTOR */
  796                         "\032SSE"       /* Streaming SIMD Extensions */
  797                         "\033SSE2"      /* Streaming SIMD Extensions #2 */
  798                         "\034SS"        /* Self snoop */
  799                         "\035HTT"       /* Hyperthreading (see EBX bit 16-23) */
  800                         "\036TM"        /* Thermal Monitor clock slowdown */
  801                         "\037IA64"      /* CPU can execute IA64 instructions */
  802                         "\040PBE"       /* Pending Break Enable */
  803                         );
  804
  805                         if (cpu_feature2 != 0) {
  806                                 printf("\n  Features2=0x%b", cpu_feature2,
  807                                 "\020"
  808                                 "\001SSE3"      /* SSE3 */
  809                                 "\002PCLMULQDQ" /* Carry-Less Mul Quadword */
  810                                 "\003DTES64"    /* 64-bit Debug Trace */
  811                                 "\004MON"       /* MONITOR/MWAIT Instructions */
  812                                 "\005DS_CPL"    /* CPL Qualified Debug Store */
  813                                 "\006VMX"       /* Virtual Machine Extensions */
  814                                 "\007SMX"       /* Safer Mode Extensions */
  815                                 "\010EST"       /* Enhanced SpeedStep */
  816                                 "\011TM2"       /* Thermal Monitor 2 */
  817                                 "\012SSSE3"     /* SSSE3 */
  818                                 "\013CNXT-ID"   /* L1 context ID available */
  819                                 "\014SDBG"      /* IA32 silicon debug */
  820                                 "\015FMA"       /* Fused Multiply Add */
  821                                 "\016CX16"      /* CMPXCHG16B Instruction */
  822                                 "\017xTPR"      /* Send Task Priority Messages*/
  823                                 "\020PDCM"      /* Perf/Debug Capability MSR */
  824                                 "\021<b16>"
  825                                 "\022PCID"      /* Process-context Identifiers*/
  826                                 "\023DCA"       /* Direct Cache Access */
  827                                 "\024SSE4.1"    /* SSE 4.1 */
  828                                 "\025SSE4.2"    /* SSE 4.2 */
  829                                 "\026x2APIC"    /* xAPIC Extensions */
  830                                 "\027MOVBE"     /* MOVBE Instruction */
  831                                 "\030POPCNT"    /* POPCNT Instruction */
  832                                 "\031TSCDLT"    /* TSC-Deadline Timer */
  833                                 "\032AESNI"     /* AES Crypto */
  834                                 "\033XSAVE"     /* XSAVE/XRSTOR States */
  835                                 "\034OSXSAVE"   /* OS-Enabled State Management*/
  836                                 "\035AVX"       /* Advanced Vector Extensions */
  837                                 "\036F16C"      /* Half-precision conversions */
  838                                 "\037RDRAND"    /* RDRAND Instruction */
  839                                 "\040HV"        /* Hypervisor */
  840                                 );
  841                         }
  842
  843                         if (amd_feature != 0) {
  844                                 printf("\n  AMD Features=0x%b", amd_feature,
  845                                 "\020"          /* in hex */
  846                                 "\001<s0>"      /* Same */
  847                                 "\002<s1>"      /* Same */
  848                                 "\003<s2>"      /* Same */
  849                                 "\004<s3>"      /* Same */
  850                                 "\005<s4>"      /* Same */
  851                                 "\006<s5>"      /* Same */
  852                                 "\007<s6>"      /* Same */
  853                                 "\010<s7>"      /* Same */
  854                                 "\011<s8>"      /* Same */
  855                                 "\012<s9>"      /* Same */
  856                                 "\013<b10>"     /* Undefined */
  857                                 "\014SYSCALL"   /* Have SYSCALL/SYSRET */
  858                                 "\015<s12>"     /* Same */
  859                                 "\016<s13>"     /* Same */
  860                                 "\017<s14>"     /* Same */
  861                                 "\020<s15>"     /* Same */
  862                                 "\021<s16>"     /* Same */
  863                                 "\022<s17>"     /* Same */
  864                                 "\023<b18>"     /* Reserved, unknown */
  865                                 "\024MP"        /* Multiprocessor Capable */
  866                                 "\025NX"        /* Has EFER.NXE, NX */
  867                                 "\026<b21>"     /* Undefined */
  868                                 "\027MMX+"      /* AMD MMX Extensions */
  869                                 "\030<s23>"     /* Same */
  870                                 "\031<s24>"     /* Same */
  871                                 "\032FFXSR"     /* Fast FXSAVE/FXRSTOR */
  872                                 "\033Page1GB"   /* 1-GB large page support */
  873                                 "\034RDTSCP"    /* RDTSCP */
  874                                 "\035<b28>"     /* Undefined */
  875                                 "\036LM"        /* 64 bit long mode */
  876                                 "\0373DNow!+"   /* AMD 3DNow! Extensions */
  877                                 "\0403DNow!"    /* AMD 3DNow! */
  878                                 );
  879                         }
  880
  881                         if (amd_feature2 != 0) {
  882                                 printf("\n  AMD Features2=0x%b", amd_feature2,
  883                                 "\020"
  884                                 "\001LAHF"      /* LAHF/SAHF in long mode */
  885                                 "\002CMP"       /* CMP legacy */
  886                                 "\003SVM"       /* Secure Virtual Mode */
  887                                 "\004ExtAPIC"   /* Extended APIC register */
  888                                 "\005CR8"       /* CR8 in legacy mode */
  889                                 "\006ABM"       /* LZCNT instruction */
  890                                 "\007SSE4A"     /* SSE4A */
  891                                 "\010MAS"       /* Misaligned SSE mode */
  892                                 "\011Prefetch"  /* 3DNow! Prefetch/PrefetchW */
  893                                 "\012OSVW"      /* OS visible workaround */
  894                                 "\013IBS"       /* Instruction based sampling */
  895                                 "\014XOP"       /* XOP extended instructions */
  896                                 "\015SKINIT"    /* SKINIT/STGI */
  897                                 "\016WDT"       /* Watchdog timer */
  898                                 "\017<b14>"
  899                                 "\020LWP"       /* Lightweight Profiling */
  900                                 "\021FMA4"      /* 4-operand FMA instructions */
  901                                 "\022TCE"       /* Translation Cache Extension */
  902                                 "\023<b18>"
  903                                 "\024NodeId"    /* NodeId MSR support */
  904                                 "\025<b20>"
  905                                 "\026TBM"       /* Trailing Bit Manipulation */
  906                                 "\027Topology"  /* Topology Extensions */
  907                                 "\030PCXC"      /* Core perf count */
  908                                 "\031PNXC"      /* NB perf count */
  909                                 "\032<b25>"
  910                                 "\033DBE"       /* Data Breakpoint extension */
  911                                 "\034PTSC"      /* Performance TSC */
  912                                 "\035PL2I"      /* L2I perf count */
  913                                 "\036MWAITX"    /* MONITORX/MWAITX instructions */
  914                                 "\037<b30>"
  915                                 "\040<b31>"
  916                                 );
  917                         }
  918
  919                         if (cpu_stdext_feature != 0) {
  920                                 printf("\n  Structured Extended Features=0x%b",
  921                                     cpu_stdext_feature,
  922                                        "\020"
  923                                        /* RDFSBASE/RDGSBASE/WRFSBASE/WRGSBASE */
  924                                        "\001FSGSBASE"
  925                                        "\002TSCADJ"
  926                                        "\003SGX"
  927                                        /* Bit Manipulation Instructions */
  928                                        "\004BMI1"
  929                                        /* Hardware Lock Elision */
  930                                        "\005HLE"
  931                                        /* Advanced Vector Instructions 2 */
  932                                        "\006AVX2"
  933                                        /* FDP_EXCPTN_ONLY */
  934                                        "\007FDPEXC"
  935                                        /* Supervisor Mode Execution Prot. */
  936                                        "\010SMEP"
  937                                        /* Bit Manipulation Instructions */
  938                                        "\011BMI2"
  939                                        "\012ERMS"
  940                                        /* Invalidate Processor Context ID */
  941                                        "\013INVPCID"
  942                                        /* Restricted Transactional Memory */
  943                                        "\014RTM"
  944                                        "\015PQM"
  945                                        "\016NFPUSG"
  946                                        /* Intel Memory Protection Extensions */
  947                                        "\017MPX"
  948                                        "\020PQE"
  949                                        /* AVX512 Foundation */
  950                                        "\021AVX512F"
  951                                        "\022AVX512DQ"
  952                                        /* Enhanced NRBG */
  953                                        "\023RDSEED"
  954                                        /* ADCX + ADOX */
  955                                        "\024ADX"
  956                                        /* Supervisor Mode Access Prevention */
  957                                        "\025SMAP"
  958                                        "\026AVX512IFMA"
  959                                        "\027PCOMMIT"
  960                                        "\030CLFLUSHOPT"
  961                                        "\031CLWB"
  962                                        "\032PROCTRACE"
  963                                        "\033AVX512PF"
  964                                        "\034AVX512ER"
  965                                        "\035AVX512CD"
  966                                        "\036SHA"
  967                                        "\037AVX512BW"
  968                                        "\040AVX512VL"
  969                                        );
  970                         }
  971
  972                         if (cpu_stdext_feature2 != 0) {
  973                                 printf("\n  Structured Extended Features2=0x%b",
  974                                     cpu_stdext_feature2,
  975                                        "\020"
  976                                        "\001PREFETCHWT1"
  977                                        "\002AVX512VBMI"
  978                                        "\003UMIP"
  979                                        "\004PKU"
  980                                        "\005OSPKE"
  981                                        "\027RDPID"
  982                                        "\037SGXLC"
  983                                        );
  984                         }
  985
  986                         if (cpu_stdext_feature3 != 0) {
  987                                 printf("\n  Structured Extended Features3=0x%b",
  988                                     cpu_stdext_feature3,
  989                                        "\020"
  990                                        "\033IBPB"
  991                                        "\034STIBP"
  992                                        "\035L1DFL"
  993                                        "\036ARCH_CAP"
  994                                        "\040SSBD"
  995                                        );
  996                         }
  997
  998                         if ((cpu_feature2 & CPUID2_XSAVE) != 0) {
  999                                 cpuid_count(0xd, 0x1, regs);
 1000                                 if (regs[0] != 0) {
 1001                                         printf("\n  XSAVE Features=0x%b",
 1002                                             regs[0],
 1003                                             "\020"
 1004                                             "\001XSAVEOPT"
 1005                                             "\002XSAVEC"
 1006                                             "\003XINUSE"
 1007                                             "\004XSAVES");
 1008                                 }
 1009                         }
 1010
 1011                         if (cpu_ia32_arch_caps != 0) {
 1012                                 printf("\n  IA32_ARCH_CAPS=0x%b",
 1013                                     (u_int)cpu_ia32_arch_caps,
 1014                                        "\020"
 1015                                        "\001RDCL_NO"
 1016                                        "\002IBRS_ALL"
 1017                                        "\003RSBA"
 1018                                        "\004SKIP_L1DFL_VME"
 1019                                        "\005SSB_NO"
 1020                                        );
 1021                         }
 1022
 1023                         if (amd_extended_feature_extensions != 0) {
 1024                                 printf("\n  "
 1025                                     "AMD Extended Feature Extensions ID EBX="
 1026                                     "0x%b", amd_extended_feature_extensions,
 1027                                     "\020"
 1028                                     "\001CLZERO"
 1029                                     "\002IRPerf"
 1030                                     "\003XSaveErPtr");
 1031                         }

btw the attached kernel is from 10.14.1 sources so it should work better on same os x version.



found pci/quircks fixs from linux we might need todo on xnu

https://elixir.bootlin.com/linux/v5.0-rc3/source/arch/x86/pci/fixup.c

https://elixir.bootlin.com/linux/v5.0-rc3/source/arch/x86/kernel/quirks.c#L50

the usb fix is just great.



kernel



p3rupN.diff

Edited January 23, 2019 by jalavoui

[Shaneee]

1 hour ago, jalavoui said:

i've changed the pat patch in mtrr.c (check .diff)

need re-check amd errata flags - linux as many more.



please test it on 10.14.1/2



safari issues might be fixed when we get 10.14.2 sources (this is 10.14.1 hacked version)









p4.diff

kernel



Can you make the diff like so please,



diff -rupN "original xnu folder" "patched xnu folder" > "output.name"

Having issues applying it to my source.



Edit: Runs well. Not noticing any improvements from previous source though.

[XLNC]

1 hour ago, jalavoui said:

i've changed the pat patch in mtrr.c (check .diff)

need re-check amd errata flags - linux as many more.



please test it on 10.14.1/2



safari issues might be fixed when we get 10.14.2 sources (this is 10.14.1 hacked version)









p4.diff

kernel

Please post the unified diff using -u flag

thanks

[Mc Jacej]

8 minutes ago, XLNC said:

Please post the unified diff using -u flag

thanks

did your radeon 7750 works in mojave?using your fx 8320

[XLNC]

did your radeon 7750 works in mojave?using your fx 8320

Yes !

https://www.insanelymac.com/forum/topic/335877-amd-mojave-kernel-development-and-testing/?do=findComment&comment=2658085

[jsl2000]

2 hours ago, jalavoui said:

i've changed the pat patch in mtrr.c (check .diff)

need re-check amd errata flags - linux as many more.



please test it on 10.14.1/2



safari issues might be fixed when we get 10.14.2 sources (this is 10.14.1 hacked version)



updated with bsd code (for errata)

shanee u need to revert previous github pach to apply this one.











p5.diff

Thanks for this p4 version which worked perfectly at 10.14.1 & 10.14.3 beta, but App Store & Safari still crashed on open at 10.14.2 in Ryzen 1700X hackintosh.

[Mc Jacej]

1 hour ago, XLNC said:

my sapphire r7 250 rebranded radeon 7750 doesnt work,,can you share your efi folder
Yes !

https://www.insanelymac.com/forum/topic/335877-amd-mojave-kernel-development-and-testing/?do=findComment&comment=2658085



[innerd]

Hi guys, tried to update to 10.14.3 but I'm having problem to rebuild the prelinkedkernel

Link failed (error code 5).
Prelink failed for com.apple.driver.AppleMobileFileIntegrity; omitting from prelinked kernel.
Can't use AppleMobileFileIntegrity.kext - not linked.
Prelink failed for com.apple.security.sandbox; omitting from prelinked kernel.
Can't use Sandbox.kext - not linked.
Prelink failed for com.apple.security.quarantine; omitting from prelinked kernel.
Can't use AppleMobileFileIntegrity.kext - not linked.
Prelink failed for com.apple.AppleSystemPolicy; aborting prelink.
Failed to generate prelinked kernel.
Child process /usr/sbin/kextcache[856] exited with status 71.
Error 107 rebuilding /System/Library/PrelinkedKernels/prelinkedkernel



[Shaneee]

5 minutes ago, innerd said:

Hi guys, tried to update to 10.14.3 but I'm having problem to rebuild the prelinkedkernel

Link failed (error code 5).
Prelink failed for com.apple.driver.AppleMobileFileIntegrity; omitting from prelinked kernel.
Can't use AppleMobileFileIntegrity.kext - not linked.
Prelink failed for com.apple.security.sandbox; omitting from prelinked kernel.
Can't use Sandbox.kext - not linked.
Prelink failed for com.apple.security.quarantine; omitting from prelinked kernel.
Can't use AppleMobileFileIntegrity.kext - not linked.
Prelink failed for com.apple.AppleSystemPolicy; aborting prelink.
Failed to generate prelinked kernel.
Child process /usr/sbin/kextcache[856] exited with status 71.
Error 107 rebuilding /System/Library/PrelinkedKernels/prelinkedkernel





Use the kernel attached to this post,

Don't use a custom System kext and it'll work.





[jsl2000]



Thanks for this p3rupN kernel which can login to desktop and rebuild prelinkedkernel at 10.14.1, 10.14.2, & 10.14.3 beta.

Video play issue in Safari still occured at 10.14.1 & 10.14.3 beta in FX-6300 hackintosh.

App Store & Safari crashed on open at 10.14.2.

[Edit]

Darwin JSs-iMac-2.local 18.2.0 Darwin Kernel Version 18.2.0: Mon Jan 21 23:01:11 WET 2019; root:xnu-4903.221.2/BUILD/obj/RELEASE_X86_64 x86_64

This kernel can login to desktop and rebuild prelinkedkernel at 10.14.4 beta1 in Ryzen 1700X hackintosh, but not working in FX-6300 hackintosh.

[Edit 2]

App Store & Safari crashed on open at 10.14.2 can be fixed by

Replace this framework in /System/Library/PrivateFrameworks

After open Safari and other Apple app.

AppleMediaServices.framework.zip provided by gengik84



Edited February 3, 2019 by jsl2000

[XLNC]

UPDATE 5 :-

The reloading bug seems to be only on FX 8xxx/9xxx model cpu's and some apu's . Ryzen cpu's/apu's are unaffected ofc.
To fix the reloading issue's i mentioned on "UPDATE-4" post
Go to System Preferences -> General

And set the Accent Color to the last one color i.e ( Grey ) .
NOTE : You can keep the Appereance settings to Light or Dark , its your choice.

but this workaround still doesnt fix this one issue " Fast forwarding any video on youtube in safari will reload the webpage ."
but fixes the rest of the issues .

XLNC_10.14.1.zip

sysctl.txt

[jsl2000]

55 minutes ago, XLNC said:

UPDATE 5 :-

The reloading bug seems to be only on FX 8xxx/9xxx model cpu's and some apu's . Ryzen cpu's/apu's are unaffected ofc.
To fix the reloading issue's i mentioned on "UPDATE-4" post
Go to System Preferences -> General

And set the Accent Color to the last one color i.e ( Grey ) .
NOTE : You can keep the Appereance settings to Light or Dark , its your choice.

but this workaround still doesnt fix this one issue " Fast forwarding any video on youtube in safari will reload the webpage ."
but fixes the rest of the issues .

XLNC_10.14.1.zip

sysctl.txt

Thanks, but it did not fix video play issue of Safari at 10.14.1 in my FX-6300 hackintosh.

FX-6300.txt.zip

Edited January 29, 2019 by jsl2000

[XLNC]

1 hour ago, jsl2000 said:

Thanks, but it did not fix video play issue of Safari at 10.14.1 in my FX-6300 hackintosh.

FX-6300.txt.zip

yes i know .
thats why i mentioned    " but this workaround still doesnt fix this one issue " Fast forwarding any video on youtube in safari will reload the webpage ." "
in my above post .
but it fixes rest of the issues like while opening facebook.com reloads the webpage issue etc .

[jsl2000]

8 hours ago, XLNC said:

yes i know .
thats why i mentioned    " but this workaround still doesnt fix this one issue " Fast forwarding any video on youtube in safari will reload the webpage ." "
in my above post .
but it fixes rest of the issues like while opening facebook.com reloads the webpage issue etc .

Yes, but I mean that it's worse in FX-6300 hackintosh.

Every movement in Safari for video will induce webpage reload issue.

[XLNC]

1 minute ago, jsl2000 said:

Yes, but I mean that it's worse in FX-6300 hackintosh.

Every movement in Safari for video will induce webpage reload issue.

Yes !

but others browsers are fine !

[justinjohn0306]

AMD FX-4100 // Gigabyte -970A-DS3P // Sapphire AMD/ATI Radeon HD 6670



I'm getting kernel panic after keyboard layout screen...the one after data and privacy screen



[myrsikus]

05.02.2019 в 04:59 justinjohn0306 сказал:

AMD FX-4100  // Gigabyte  -970A-DS3P  // Сапфир AMD / ATI Radeon HD 6670



Я получаю панику ядра после раскладки экрана клавиатуры ... после экрана данных и конфиденциальности



Read the post carefully

Edited February 9, 2019 by myrsikus

[fagneroliveira]

M With the NVIDIA 1080 ti  using   fx 8350  and workaround NVIDIA  my System  don’t pass the Login  screen without  Crash. Today with the ryzen 2200g   I don’t have Problem.  The  mac OS X goes  up



Edited February 10, 2019 by fagneroliveira
