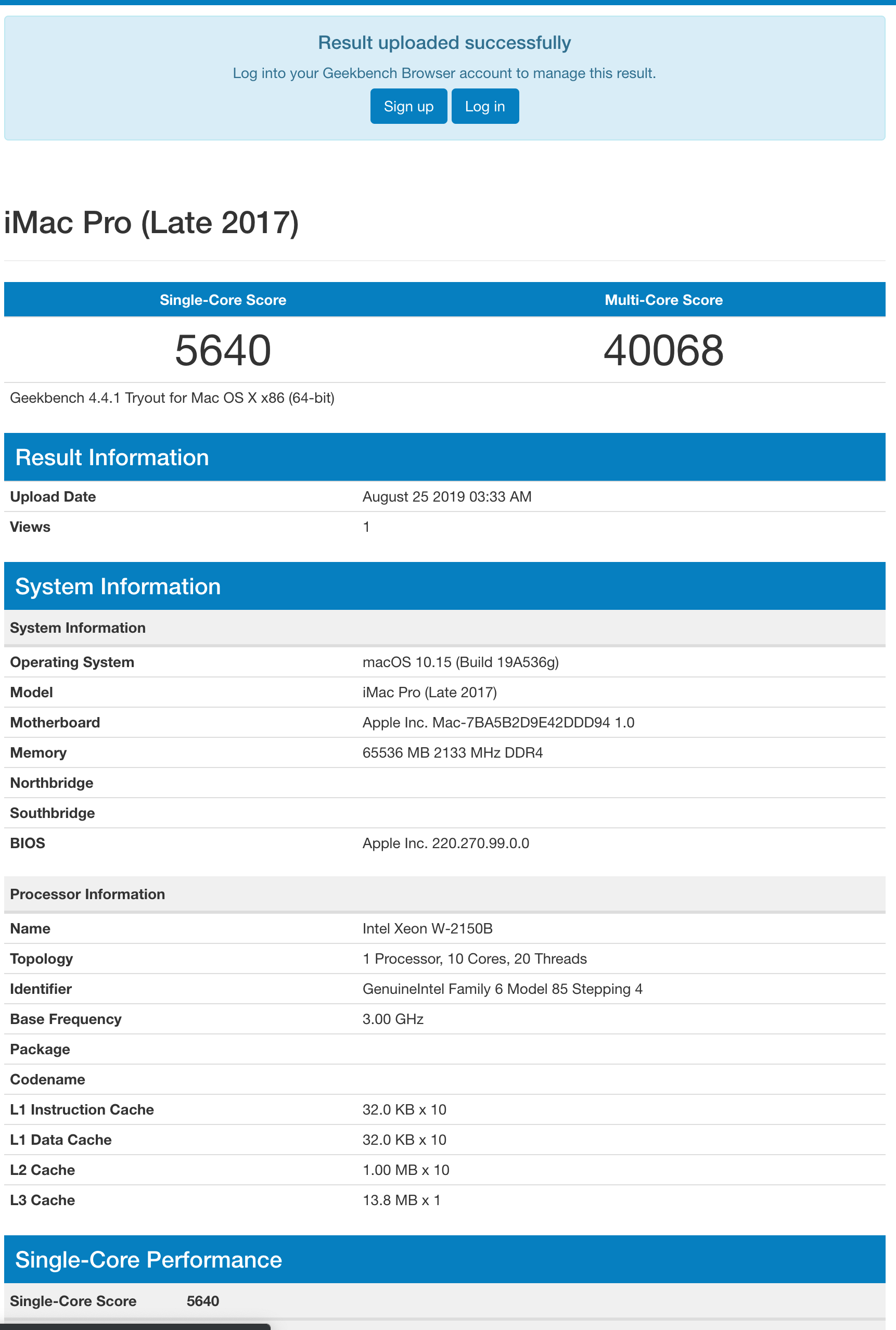

obus Posted August 29, 2019 Author Share Posted August 29, 2019 (edited) Geekbench has improved significantly. Cinebench shows approximately the same results. (all CPU settings in BIOS - in default or "Auto") Test Results.zip Nice to see. Edited August 29, 2019 by obus Link to comment Share on other sites More sharing options...
yapan4 Posted August 29, 2019 Share Posted August 29, 2019 (edited) I have never seen 5000 points or more in Geekbench on this processor, including Windows. So the result with the latest OC changes is very good for me I would like the same in Clover Edited August 29, 2019 by yapan4 Link to comment Share on other sites More sharing options...
hotbullet Posted September 7, 2019 Share Posted September 7, 2019 Hi anyone success or can help me please. i have borrowd asus c422 and xeon w2195 to play around with so it is not in my signature. i am stuck at random seed. i am using vega 56 in this build. msr lock is disabled in my bios. thanks. Link to comment Share on other sites More sharing options...
yapan4 Posted September 7, 2019 Share Posted September 7, 2019 1 hour ago, hotbullet said: Hi anyone success or can help me please. i have borrowd asus c422 and xeon w2195 to play around with so it is not in my signature. i am stuck at random seed. i am using vega 56 in this build. msr lock is disabled in my bios. thanks. You can try my minimal EFI folders Clover_5070_EFI.zip OC_005_EFI.zip Link to comment Share on other sites More sharing options...
hotbullet Posted September 7, 2019 Share Posted September 7, 2019 2 hours ago, yapan4 said: You can try my minimal EFI folders Clover_5070_EFI.zip OC_005_EFI.zip hi yapan. thanks for reply. clover freeze at end randomseed oc 005 would boot to bios directly. what should i do nexT? Link to comment Share on other sites More sharing options...
yapan4 Posted September 7, 2019 Share Posted September 7, 2019 Upload please you Clover preboot.log. For OC use EFI debug version from this topic https://www.insanelymac.com/forum/topic/335193-help-installing-mojave-on-xeon-w-2175-and-asus-ws-c422-mobo/?do=findComment&comment=2687732 Link to comment Share on other sites More sharing options...
yapan4 Posted September 7, 2019 Share Posted September 7, 2019 Hi, @obus Any news about MSR 0x1AA patch for Clover? I review BIOSes from different manufacturers, can't find any with MSR 0x1AA lock/unlock (similar to "Configure Lock" for MSE 0xE2). Probably not used at all. Link to comment Share on other sites More sharing options...
hotbullet Posted September 7, 2019 Share Posted September 7, 2019 2 hours ago, yapan4 said: Upload please you Clover preboot.log. For OC use EFI debug version from this topic https://www.insanelymac.com/forum/topic/335193-help-installing-mojave-on-xeon-w-2175-and-asus-ws-c422-mobo/?do=findComment&comment=2687732 how to do? Link to comment Share on other sites More sharing options...
yapan4 Posted September 7, 2019 Share Posted September 7, 2019 (edited) Press F2 button in Clover GUI, preboot.log will be created in EFI/CLOVER/misc/ folder In debug OC from link above file opencore-2019-09-07-xxxxxx.txt will be created avtomatically Is you install media created properly? what macOS version? Edited September 7, 2019 by yapan4 Link to comment Share on other sites More sharing options...
skyflying5 Posted September 8, 2019 Share Posted September 8, 2019 On 9/7/2019 at 6:28 PM, hotbullet said: hi yapan. thanks for reply. clover freeze at end randomseed oc 005 would boot to bios directly. what should i do nexT? try npci=0x2000 Link to comment Share on other sites More sharing options...

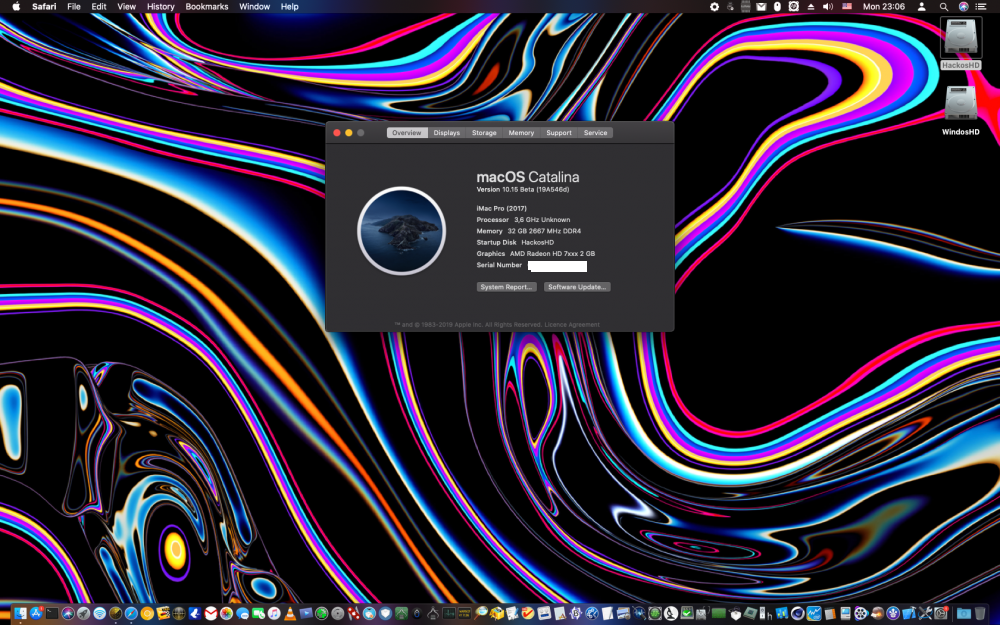

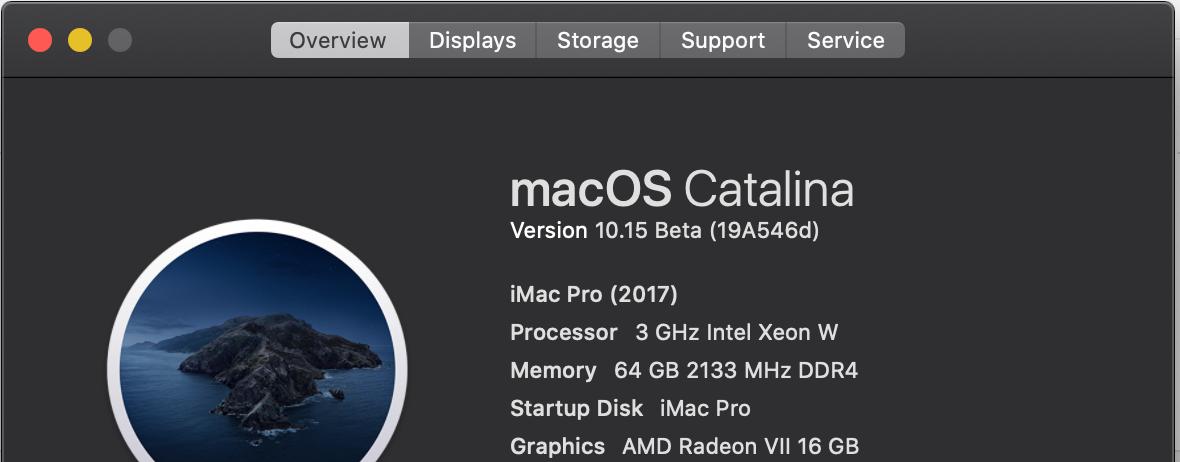

yapan4 Posted September 8, 2019 Share Posted September 8, 2019 (edited) Hi, @skyflying5 Is your CPU showing correctly in About This Mac? Edited September 8, 2019 by yapan4 Link to comment Share on other sites More sharing options...
obus Posted September 8, 2019 Author Share Posted September 8, 2019 On 9/7/2019 at 8:02 AM, hotbullet said: Hi anyone success or can help me please. i have borrowd asus c422 and xeon w2195 to play around with so it is not in my signature. i am stuck at random seed. i am using vega 56 in this build. msr lock is disabled in my bios. thanks. Send me your OC EFI folder. Link to comment Share on other sites More sharing options...
skyflying5 Posted September 9, 2019 Share Posted September 9, 2019 23 hours ago, yapan4 said: Hi, @skyflying5 Is your CPU showing correctly in About This Mac? 1 Link to comment Share on other sites More sharing options...
yapan4 Posted September 9, 2019 Share Posted September 9, 2019 (edited) Well, using a native CPU is still a better option, since mine is always "Unknown"(with or w/o 0x0F01 CPU Type - no difference) Edited September 9, 2019 by yapan4 Link to comment Share on other sites More sharing options...
yapan4 Posted September 10, 2019 Share Posted September 10, 2019 @hotbullet Any progress? Link to comment Share on other sites More sharing options...
hotbullet Posted September 10, 2019 Share Posted September 10, 2019 (edited) finally i can see the install screen i use olarila x299 chipset efi folder and added _xcpm_pkg_scope_msrs_PMhart from obus post Posted August 17, 2018 (edited) For the first time with this rig I can get rid of FakeCPUID in Clover thanks to my saver @fabiosun with this (only) kernel patch: 89D804C4 3C227722 -> 89D804C1 3C227722 xcpm_bootstrap © Pike R. Alpha will update how it goes.. thanks obus and yapan. for OC i have no idea at all how it works. EVERYTHING seems ok geekbench 4 32K+ -SAME in windows. CINEBENCH20 5200 5300 Edited September 10, 2019 by hotbullet 1 Link to comment Share on other sites More sharing options...
hotbullet Posted September 11, 2019 Share Posted September 11, 2019 ok now other issue. cpu w2195 is always at 3.0Ghz seems like no speed step. can anyone help please? Link to comment Share on other sites More sharing options...
Guest Posted September 11, 2019 Share Posted September 11, 2019 5 minutes ago, hotbullet said: ok now other issue. cpu w2195 is always at 3.0Ghz seems like no speed step. can anyone help please? read all thread because with only boot strap patch you can't achieve xcpm and correct steps for your rig Link to comment Share on other sites More sharing options...
hotbullet Posted September 11, 2019 Share Posted September 11, 2019 26 minutes ago, fabiosun said: read all thread because with only boot strap patch you can't achieve xcpm and correct steps for your rig thanks fabiousm, I am reading I hope to find soon answer. if you happen to know can you please help. thanks. Link to comment Share on other sites More sharing options...
Guest Posted September 11, 2019 Share Posted September 11, 2019 follow @yapan4 and @obus they have a pretty similar rig of yours Now OC supports new xeon maybe also clover does not need anymore of a manual kernel patching..I do not know! Link to comment Share on other sites More sharing options...
Guest Posted September 11, 2019 Share Posted September 11, 2019 @hotbullet try to read here https://www.macos86.it/viewtopic.php?f=23&t=669 Link to comment Share on other sites More sharing options...
hotbullet Posted September 11, 2019 Share Posted September 11, 2019 6 minutes ago, fabiosun said: @hotbullet try to read here https://www.macos86.it/viewtopic.php?f=23&t=669 thanks I have read I have to add 3 more patches? I have attached my efi folder. thanks fro your guide. I am reading. if I hv doubt may I message you? thanks alot √ 31D2E87E FCFFFF replace 31D29090 909090 comment_xcpm_smt_scope find 31D2E891 FCFFFF replace 31D29090 909090 comment_xcpm_core_scope find 31D2E8AE FCFFFF replace 31D29090 909090 comment_pkg_core_scope EFI.zip Link to comment Share on other sites More sharing options...
Guest Posted September 11, 2019 Share Posted September 11, 2019 start from that link..you will find many answer to your problems or follow @obus or @yapan4 here Link to comment Share on other sites More sharing options...

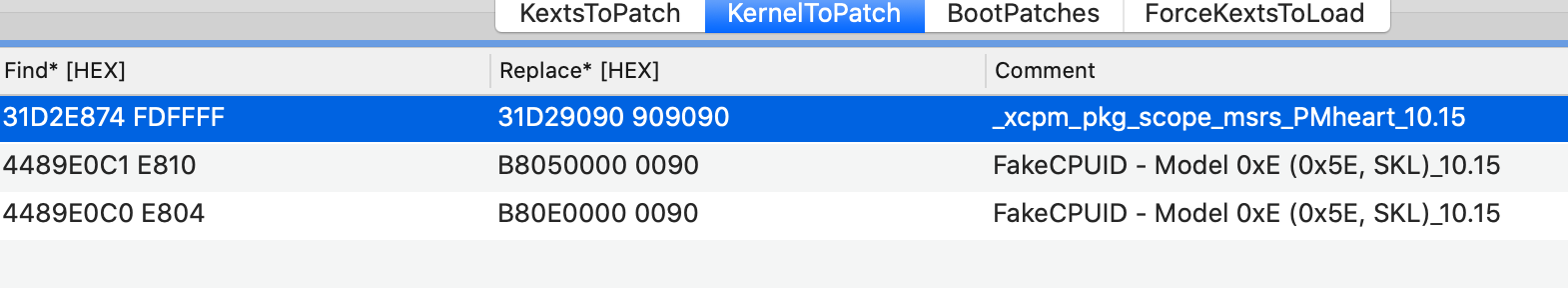

yapan4 Posted September 11, 2019 Share Posted September 11, 2019 (edited) 2 hours ago, hotbullet said: thanks I have read I have to add 3 more patches? I have attached my efi folder. thanks fro your guide. I am reading. if I hv doubt may I message you? thanks alot √ 31D2E87E FCFFFF replace 31D29090 909090 comment_xcpm_smt_scope find 31D2E891 FCFFFF replace 31D29090 909090 comment_xcpm_core_scope find 31D2E8AE FCFFFF replace 31D29090 909090 comment_pkg_core_scope EFI.zip For Mojave you need only FakeCPUID 0506E4(not 050654!) + _xcpm_pkg_scope_msrs_PMhart 31d2e8b4fcffff -> 31D29090909090 Edited September 11, 2019 by yapan4 Link to comment Share on other sites More sharing options...
hotbullet Posted September 12, 2019 Share Posted September 12, 2019 9 hours ago, yapan4 said: For Mojave you need only FakeCPUID 0506E4(not 050654!) + _xcpm_pkg_scope_msrs_PMhart 31d2e8b4fcffff -> 31D29090909090 @yapan4 if I put those my system will stuck at randomseed. I tried using this as @obus discovery but my system will only boot in os with bootstrap enabled. otherwise it will stuck at ranndomseed. I have tested a little bit further.With FakeCPUID my rig boots with full powermanagment (xcpm) together with this patches:1._xcpm_pkg_scope_msrs_PMhart 31D2E8AE FCFFFF ->31D29090 9090902.pikeralpha reboot fix554889E5 41574156 41554154 53504189 D64889FB 4189F54C 8D3D7662 -> C34889E5 41574156 41554154 53504189 D64889FB 4189F54C 8D3D76623._xcpm_smt_scope31D2E87E FCFFFF -> 31D29090 909090With xcpm_bootstrap © Pike R. Alpha 89D804C4 3C227722 -> 89D804C1 3C227722 my rig is booting without FakeCPUID and with any other patch but always without native powermanagment (xcpm). Link to comment Share on other sites More sharing options...
