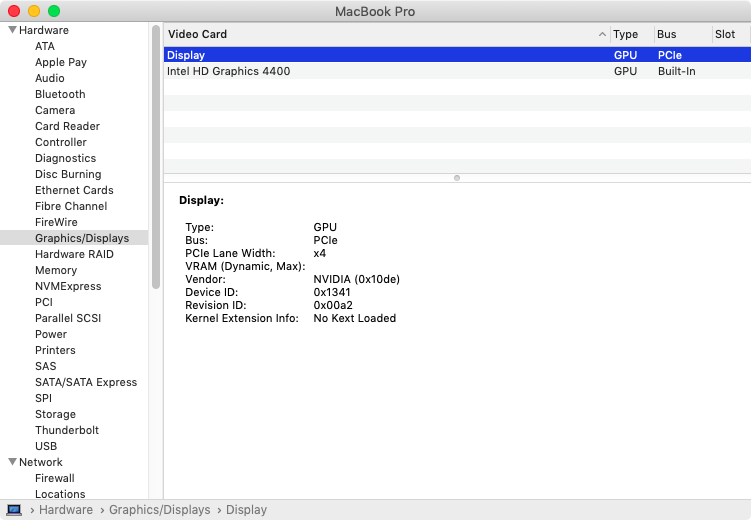

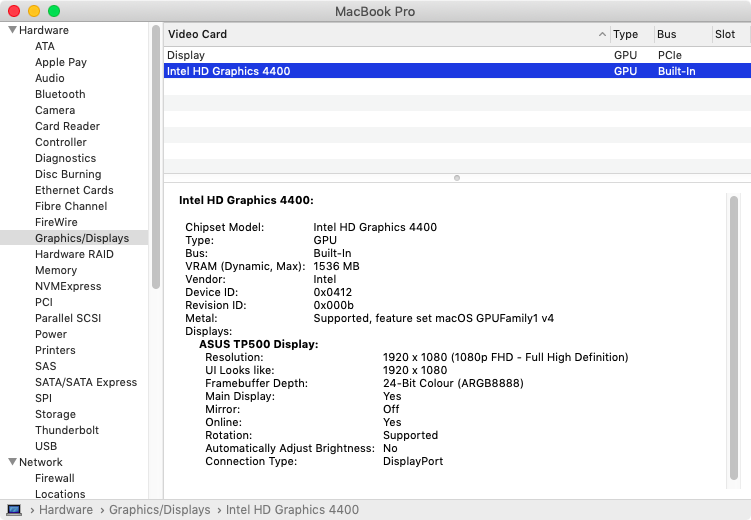

SavageAUS Posted October 22, 2018 Share Posted October 22, 2018 (edited) Add device-id 12040000 That solved that issue. Now to disable the nvidia card and test hdmi and see if I need to disable any ports etc. Do we still need boot flag nv_disable with WEG? EDIT: Im not sure if anything else needs patching yet. I havnt tested HDMI yet. Is WEG meant to disable the nvidia card in my laptop because it doesn't (disabled now with ssdt) Attached is ioreg, config and AppleIntelFramebuffer_6_18.2 Edit2: HDMI is not working, previously I was using fakepci hdmi kext. As soon as I plug in a hdmi cable my laptop goes all laggy, mouse barely moves and outputs nothing to external display. Was working before the change to WEG for framebuffer. Sent from my iPhone using Tapatalk framebuffer.zip Edited October 22, 2018 by SavageAUS Link to comment https://www.insanelymac.com/forum/topic/334899-intel-framebuffer-patching-using-whatevergreen/page/8/#findComment-2642321 Share on other sites More sharing options...
Andrey1970 Posted October 22, 2018 Share Posted October 22, 2018 (edited) 3 hours ago, SavageAUS said: That solved that issue. Now to disable the nvidia card and test hdmi and see if I need to disable any ports etc. Do we still need boot flag nv_disable with WEG? EDIT: Im not sure if anything else needs patching yet. I havnt tested HDMI yet. Is WEG meant to disable the nvidia card in my laptop because it doesn't (disabled now with ssdt) Attached is ioreg, config and AppleIntelFramebuffer_6_18.2 Edit2: HDMI is not working, previously I was using fakepci hdmi kext. As soon as I plug in a hdmi cable my laptop goes all laggy, mouse barely moves and outputs nothing to external display. Was working before the change to WEG for framebuffer. Sent from my iPhone using Tapatalk framebuffer.zip I remade your patches from Clover in WEG. config.plist.zip Edited October 22, 2018 by Andrey1970 Link to comment https://www.insanelymac.com/forum/topic/334899-intel-framebuffer-patching-using-whatevergreen/page/8/#findComment-2642359 Share on other sites More sharing options...
SavageAUS Posted October 22, 2018 Share Posted October 22, 2018 (edited) 58 minutes ago, Andrey1970 said: I remade your patches from Clover in WEG. config.plist.zip Thanks, added. Rebooting to test now. Yet to test HDMI, will update post when i do. Nvidia GPU still unable to disable. Edited October 22, 2018 by SavageAUS Link to comment https://www.insanelymac.com/forum/topic/334899-intel-framebuffer-patching-using-whatevergreen/page/8/#findComment-2642362 Share on other sites More sharing options...
Andrey1970 Posted October 22, 2018 Share Posted October 22, 2018 14 minutes ago, SavageAUS said: Thanks, added. Rebooting to test now. Yet to test HDMI, will update post when i do. Nvidia GPU still unable to disable. Use disable nvidia from ssdt. WEG disable not always works. Link to comment https://www.insanelymac.com/forum/topic/334899-intel-framebuffer-patching-using-whatevergreen/page/8/#findComment-2642367 Share on other sites More sharing options...
SavageAUS Posted October 22, 2018 Share Posted October 22, 2018 Use disable nvidia from ssdt. WEG disable not always works.Ok thanks for the info. I’ll keep searching how to enable hdmi and how to convert kexttopatch to WEG. Sent from my iPhone using Tapatalk Link to comment https://www.insanelymac.com/forum/topic/334899-intel-framebuffer-patching-using-whatevergreen/page/8/#findComment-2642370 Share on other sites More sharing options...

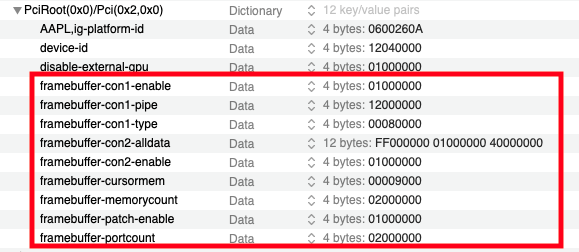

Andrey1970 Posted October 22, 2018 Share Posted October 22, 2018 (edited) 2 hours ago, SavageAUS said: Ok thanks for the info. I’ll keep searching how to enable hdmi and how to convert kexttopatch to WEG. Sent from my iPhone using Tapatalk Here full equivalent of patches AzulPatcher4600. config.plist.zip Edited October 22, 2018 by Andrey1970 update config.plist Link to comment https://www.insanelymac.com/forum/topic/334899-intel-framebuffer-patching-using-whatevergreen/page/8/#findComment-2642397 Share on other sites More sharing options...
vit9696 Posted October 22, 2018 Share Posted October 22, 2018 @SavageAUS, I guess we could try to understand why WEG NVIDIA switchoff does not happen. I will need a full log created by liludump=TIMEOUT in -liludbg -wegdbg mode by the latest DEBUG versions of the extensions. Plus the IOReg and EFI folder. Link to comment https://www.insanelymac.com/forum/topic/334899-intel-framebuffer-patching-using-whatevergreen/page/8/#findComment-2642430 Share on other sites More sharing options...
SavageAUS Posted October 22, 2018 Share Posted October 22, 2018 [mention=1083558]SavageAUS[/mention], I guess we could try to understand why WEG NVIDIA switchoff does not happen. I will need a full log created by liludump=TIMEOUT in -liludbg -wegdbg mode by the latest DEBUG versions of the extensions. Plus the IOReg and EFI folder.Ok I’ll get those for you today at some point. I understand the boot args (-lilidbg -wegdbg) but unsure about liludump=TIME-OUT. Is that a boot flag?Sent from my iPhone using Tapatalk Link to comment https://www.insanelymac.com/forum/topic/334899-intel-framebuffer-patching-using-whatevergreen/page/8/#findComment-2642483 Share on other sites More sharing options...
Dragster27 Posted October 22, 2018 Share Posted October 22, 2018 8 hours ago, Andrey1970 said: Here full equivalent of patches AzulPatcher4600. config.plist.zip Cool, thanks. So, what section of the config plist covers the equivalent parameters? devices/properties? Thx! Link to comment https://www.insanelymac.com/forum/topic/334899-intel-framebuffer-patching-using-whatevergreen/page/8/#findComment-2642487 Share on other sites More sharing options...
SavageAUS Posted October 22, 2018 Share Posted October 22, 2018 9 hours ago, Andrey1970 said: Here full equivalent of patches AzulPatcher4600. config.plist.zip Will these work for HD4400 as well? Link to comment https://www.insanelymac.com/forum/topic/334899-intel-framebuffer-patching-using-whatevergreen/page/8/#findComment-2642497 Share on other sites More sharing options...
Andrey1970 Posted October 22, 2018 Share Posted October 22, 2018 1 hour ago, Dragster27 said: Cool, thanks. So, what section of the config plist covers the equivalent parameters? devices/properties? Thx! Link to comment https://www.insanelymac.com/forum/topic/334899-intel-framebuffer-patching-using-whatevergreen/page/8/#findComment-2642498 Share on other sites More sharing options...
headkaze Posted October 22, 2018 Author Share Posted October 22, 2018 21 hours ago, Dragster27 said: I am not sure which fixes my issue... I wonder if these can be created using IntelFBPatcher... I was trying to post how but I get an error "[[Template forums/front/topics/topic is throwing an error. This theme may be out of date. Run the support tool in the AdminCP to restore the default theme.]]". Link to comment https://www.insanelymac.com/forum/topic/334899-intel-framebuffer-patching-using-whatevergreen/page/8/#findComment-2642501 Share on other sites More sharing options...

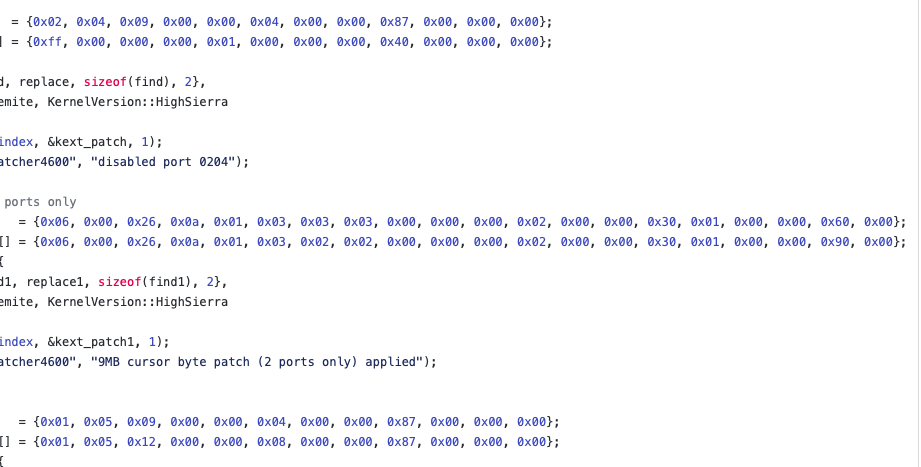

Andrey1970 Posted October 22, 2018 Share Posted October 22, 2018 (edited) 40 minutes ago, SavageAUS said: Will these work for HD4400 as well? Yes of course. You wrote that used AzulPatcher4600 earlier. Pay attention: AzulPatcher4600 or this equivalent patches are made specially only for AAPL,ig-platform-id 0600260A You can check my equivalent patches, having compared them to patches in the source code. Edited October 22, 2018 by Andrey1970 Link to comment https://www.insanelymac.com/forum/topic/334899-intel-framebuffer-patching-using-whatevergreen/page/8/#findComment-2642502 Share on other sites More sharing options...
SavageAUS Posted October 23, 2018 Share Posted October 23, 2018 Yes of course. You wrote that used AzulPatcher4600 earlier. Pay attention: AzulPatcher4600 or this equivalent patches are made specially only for AAPL,ig-platform-id 0600260A You can check my equivalent patches, having compared them to patches in the source code.I think that was@Dragster27 who was using AzulPatcher4600Sent from my iPhone using Tapatalk Link to comment https://www.insanelymac.com/forum/topic/334899-intel-framebuffer-patching-using-whatevergreen/page/8/#findComment-2642518 Share on other sites More sharing options...
Dragster27 Posted October 23, 2018 Share Posted October 23, 2018 1 hour ago, Andrey1970 said: Awesome, thanks. I will test right away.... now the next question...do these work with Mojave? Azulpatcher4600 works with High Sierra but not with Mojave...therefore I need these for WEG to work with Mojave... Cheers, Dragster. Link to comment https://www.insanelymac.com/forum/topic/334899-intel-framebuffer-patching-using-whatevergreen/page/8/#findComment-2642521 Share on other sites More sharing options...
Andrey1970 Posted October 23, 2018 Share Posted October 23, 2018 31 minutes ago, Dragster27 said: Awesome, thanks. I will test right away.... now the next question...do these work with Mojave? Azulpatcher4600 works with High Sierra but not with Mojave...therefore I need these for WEG to work with Mojave... Cheers, Dragster. AzulPatcher4600.kext deprecated and not supported for Mojave. Use these patches for Mojave and for old systems too. Link to comment https://www.insanelymac.com/forum/topic/334899-intel-framebuffer-patching-using-whatevergreen/page/8/#findComment-2642526 Share on other sites More sharing options...
Andrey1970 Posted October 23, 2018 Share Posted October 23, 2018 3 hours ago, SavageAUS said: Ok I’ll get those for you today at some point. I understand the boot args (-lilidbg -wegdbg) but unsure about liludump=TIME-OUT. Is that a boot flag? Sent from my iPhone using Tapatalk liludump=N to let Lilu DEBUG version dump log to /var/log/Lilu_VERSION_KERN_MAJOR.KERN_MINOR.txt after N seconds Link to comment https://www.insanelymac.com/forum/topic/334899-intel-framebuffer-patching-using-whatevergreen/page/8/#findComment-2642527 Share on other sites More sharing options...
SavageAUS Posted October 23, 2018 Share Posted October 23, 2018 liludump=N to let Lilu DEBUG version dump log to /var/log/Lilu_VERSION_KERN_MAJOR.KERN_MINOR.txt after N secondsThanks for that. So it’s another bootflag? Does it need the - like the others?Sent from my iPhone using Tapatalk Link to comment https://www.insanelymac.com/forum/topic/334899-intel-framebuffer-patching-using-whatevergreen/page/8/#findComment-2642528 Share on other sites More sharing options...
Dragster27 Posted October 23, 2018 Share Posted October 23, 2018 11 minutes ago, Andrey1970 said: AzulPatcher4600.kext deprecated and not supported for Mojave. Use these patches for Mojave and for old systems too. Yes, that's my question... I'm not talking about Azulpatcher4600 and Mojave but *these* patches with Mojave... Do they work with Mojave then? I've tested them with High Sierra and they work! Thank you. Link to comment https://www.insanelymac.com/forum/topic/334899-intel-framebuffer-patching-using-whatevergreen/page/8/#findComment-2642529 Share on other sites More sharing options...
SavageAUS Posted October 23, 2018 Share Posted October 23, 2018 9 hours ago, vit9696 said: @SavageAUS, I guess we could try to understand why WEG NVIDIA switchoff does not happen. I will need a full log created by liludump=TIMEOUT in -liludbg -wegdbg mode by the latest DEBUG versions of the extensions. Plus the IOReg and EFI folder. I hope i did this right. WEG Files.zip Link to comment https://www.insanelymac.com/forum/topic/334899-intel-framebuffer-patching-using-whatevergreen/page/8/#findComment-2642533 Share on other sites More sharing options...
SavageAUS Posted October 23, 2018 Share Posted October 23, 2018 Also how do i go about converting these 2 patches to use into WEG? <dict> <key>Comment</key> <string>0x0a260006 disable 0204 port, change 0105 DP port to 0204 HDMI (RehabMan)</string> <key>Disabled</key> <true/> <key>Find</key> <data>AQUJAAAEAACHAAAAAgQJAAAEAACHAAAA</data> <key>InfoPlistPatch</key> <false/> <key>Name</key> <string>AppleIntelFramebufferAzul</string> <key>Replace</key> <data>AgQJAAAIAACHAAAA/wAAAAEAAABAAAAA</data> </dict> <dict> <key>Comment</key> <string>Enable 9MB cursor bytes, 0x0a260006</string> <key>Disabled</key> <true/> <key>Find</key> <data>BgAmCgEDAwMAAAACAAAwAQAAYAA=</data> <key>InfoPlistPatch</key> <false/> <key>Name</key> <string>com.apple.driver.AppleIntelFramebufferAzul</string> <key>Replace</key> <data>BgAmCgEDAwMAAAACAAAwAQAAkAA=</data> </dict> They are only disabled to get working with WEG. Link to comment https://www.insanelymac.com/forum/topic/334899-intel-framebuffer-patching-using-whatevergreen/page/8/#findComment-2642534 Share on other sites More sharing options...
headkaze Posted October 23, 2018 Author Share Posted October 23, 2018 (edited) 1 hour ago, SavageAUS said: Also how do i go about converting these 2 patches to use into WEG? I've just uploaded a new version of Intel FB-Patcher. It has a new menu item Patch->AzulPatcher4600 The two patches you have are basically the same as AzulPatcher4600 but with an additional step. So here are some instructions: 1. Run Intel FB-Patcher and select Patch->AzulPatcher4600 2. Select Patch->Import KextsToPatch and enter: Find: 010509000004000087000000 Replace: 020409000008000087000000 3. File->Export->Clover config.plist (overwrite your existing one) Edited October 23, 2018 by headkaze 1 Link to comment https://www.insanelymac.com/forum/topic/334899-intel-framebuffer-patching-using-whatevergreen/page/8/#findComment-2642536 Share on other sites More sharing options...
Dragster27 Posted October 23, 2018 Share Posted October 23, 2018 2 hours ago, Andrey1970 said: AzulPatcher4600.kext deprecated and not supported for Mojave. Use these patches for Mojave and for old systems too. Awesome! Tested on Mojave 10.14.1 Beta and it works GREAT! Thank you!!! Link to comment https://www.insanelymac.com/forum/topic/334899-intel-framebuffer-patching-using-whatevergreen/page/8/#findComment-2642538 Share on other sites More sharing options...
SavageAUS Posted October 23, 2018 Share Posted October 23, 2018 I've just uploaded a new version of Intel FB-Patcher. It has a new menu item Patch->AzulPatcher4600 The two patches you have are basically the same as AzulPatcher4600 but with an additional step. So here are some instructions: 1. Run Intel FB-Patcher and select Patch->AzulPatcher4600 2. Select Patch->Import KextsToPatch and enter:Find: 010509000004000087000000Replace: 020409000008000087000000 3. File->Export->Clover config.plist (make a backup first)Thanks for that. Now off topic sorry if not appropriate here but maybe Intel FB-Patcher could make a backup to home folder or something of the config.plist if it’s over written? Sorry just trying to help. Sent from my iPhone using Tapatalk Link to comment https://www.insanelymac.com/forum/topic/334899-intel-framebuffer-patching-using-whatevergreen/page/8/#findComment-2642539 Share on other sites More sharing options...
headkaze Posted October 23, 2018 Author Share Posted October 23, 2018 41 minutes ago, SavageAUS said: Now off topic sorry if not appropriate here but maybe Intel FB-Patcher could make a backup to home folder or something of the config.plist if it’s over written? Sorry just trying to help. I agree, done. 1 Link to comment https://www.insanelymac.com/forum/topic/334899-intel-framebuffer-patching-using-whatevergreen/page/8/#findComment-2642541 Share on other sites More sharing options...
