Guest Posted March 19, 2018 Share Posted March 19, 2018 (edited) could you post cinebench 15 cpu test and relative Intel power graphics gadget during your test? I think we also should refine better your EFI Maybe you can avoid some things My advice is to stay with original bios till you are sure all is working perfectly Edited March 19, 2018 by Guest Link to comment Share on other sites More sharing options...

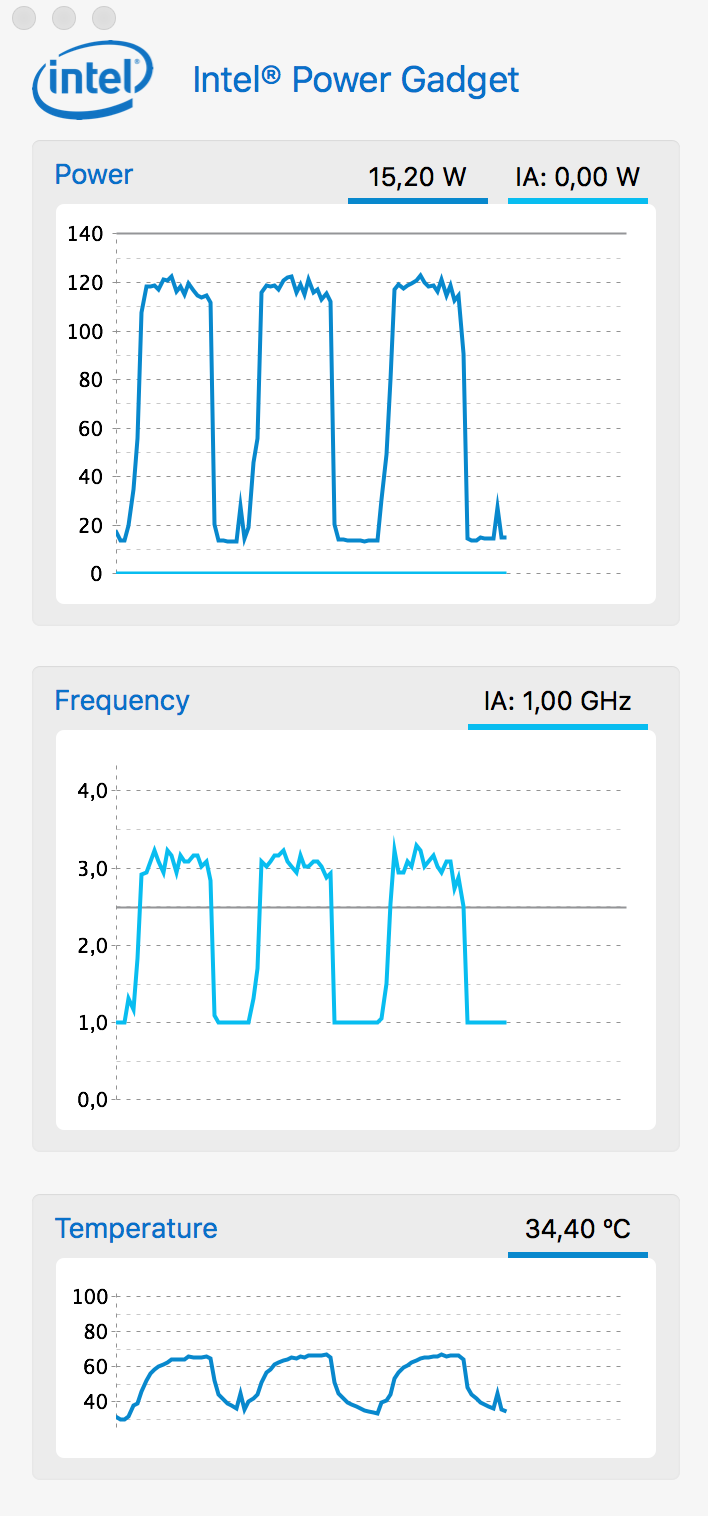

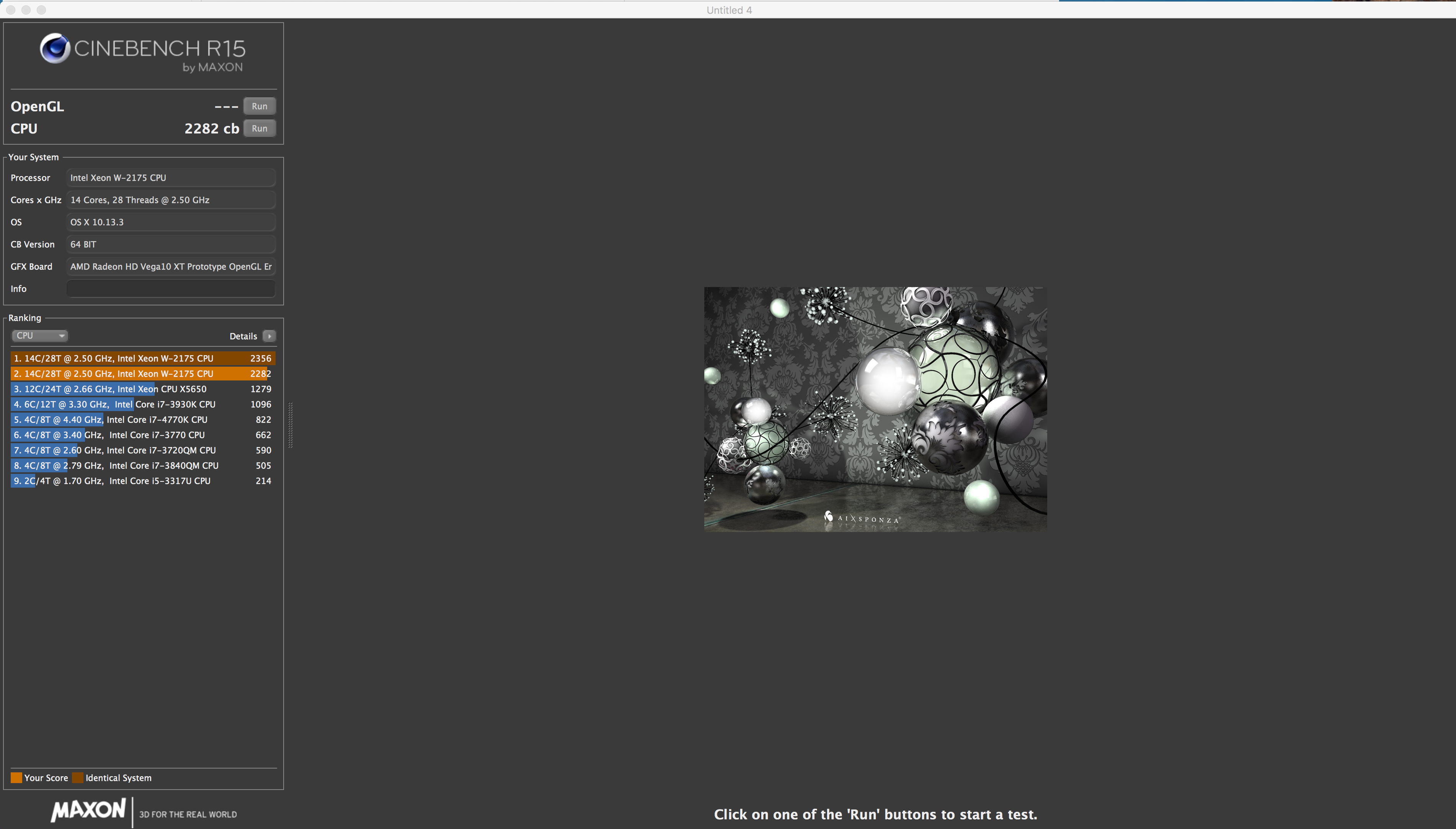

obus Posted March 19, 2018 Author Share Posted March 19, 2018 17 minutes ago, fabiosun said: could you post cinebench 15 cpu test and relative Intel power graphics gadget during your test? I think we also should refine better your EFI Maybe you can avoid some things My advice is to stay with original bios till you are sure all is working perfectly Here you go. Hi @fabiosun Do you know how to get my Intel I210-AT Nic:s working? Link to comment Share on other sites More sharing options...
Guest Posted March 19, 2018 Share Posted March 19, 2018 thank you max frequency for all cores in turbo mode is (for your xeon)? Have you EIST and SpeedShift enabled in bios? Link to comment Share on other sites More sharing options...

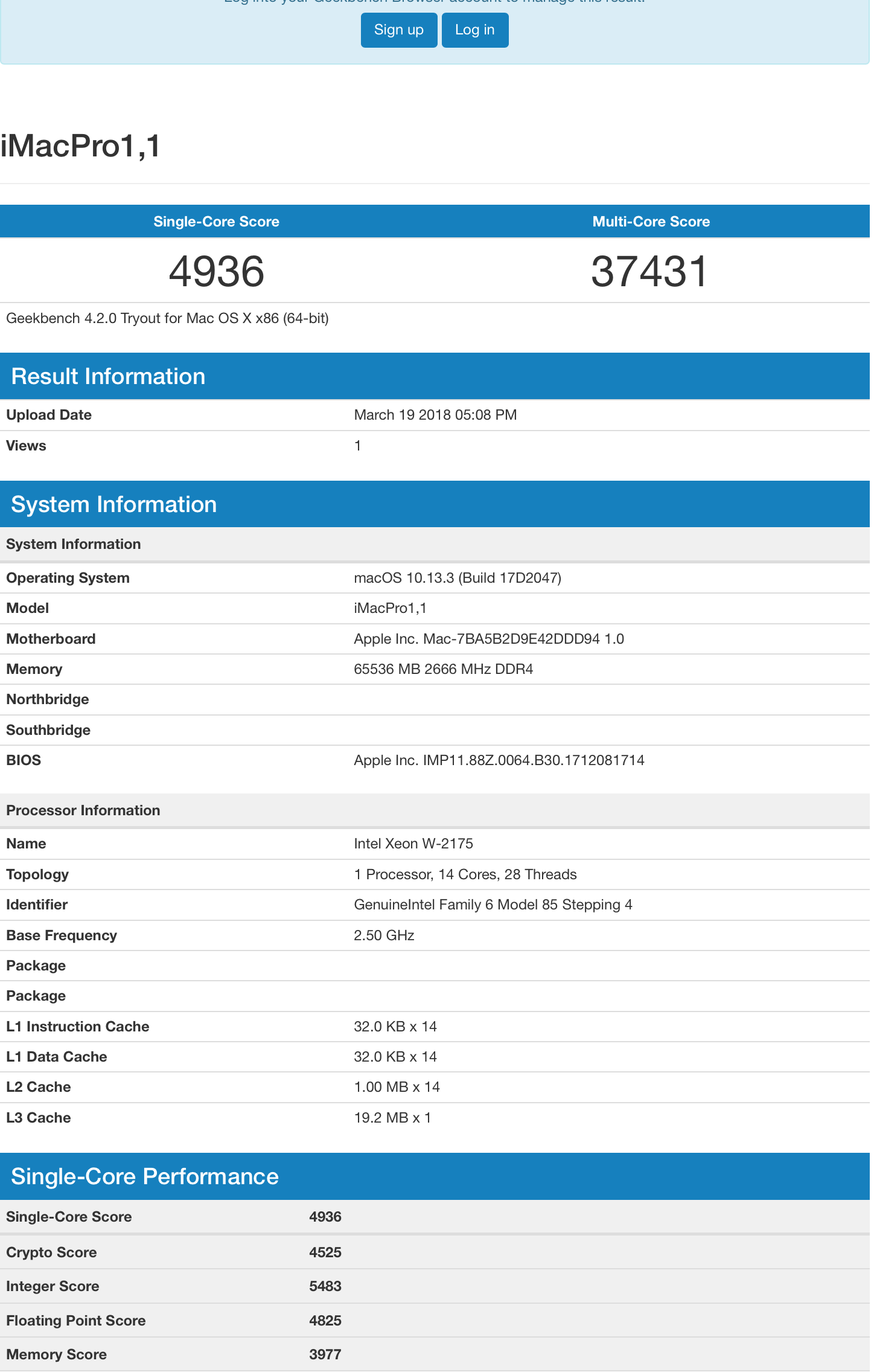

obus Posted March 19, 2018 Author Share Posted March 19, 2018 3 minutes ago, fabiosun said: thank you max frequency for all cores in turbo mode is (for your xeon)? Have you EIST and SpeedShift enabled in bios? I don't know if it's turbo mode. How could I check that? EIST and Intel speedshift is enabled Geekbench score. Link to comment Share on other sites More sharing options...
Guest Posted March 19, 2018 Share Posted March 19, 2018 from your IPG graph turbo mode for all cores/thread seems to be about 3.2 Ghz base freq 2.5 Ghz turbo for single core 4.3 Ghz if so your result are good if you want to try disable only EIST in bios and post again result and IPG graph Link to comment Share on other sites More sharing options...
joedm ru Posted March 19, 2018 Share Posted March 19, 2018 @obus, could you please take a look at my post? Link to comment Share on other sites More sharing options...

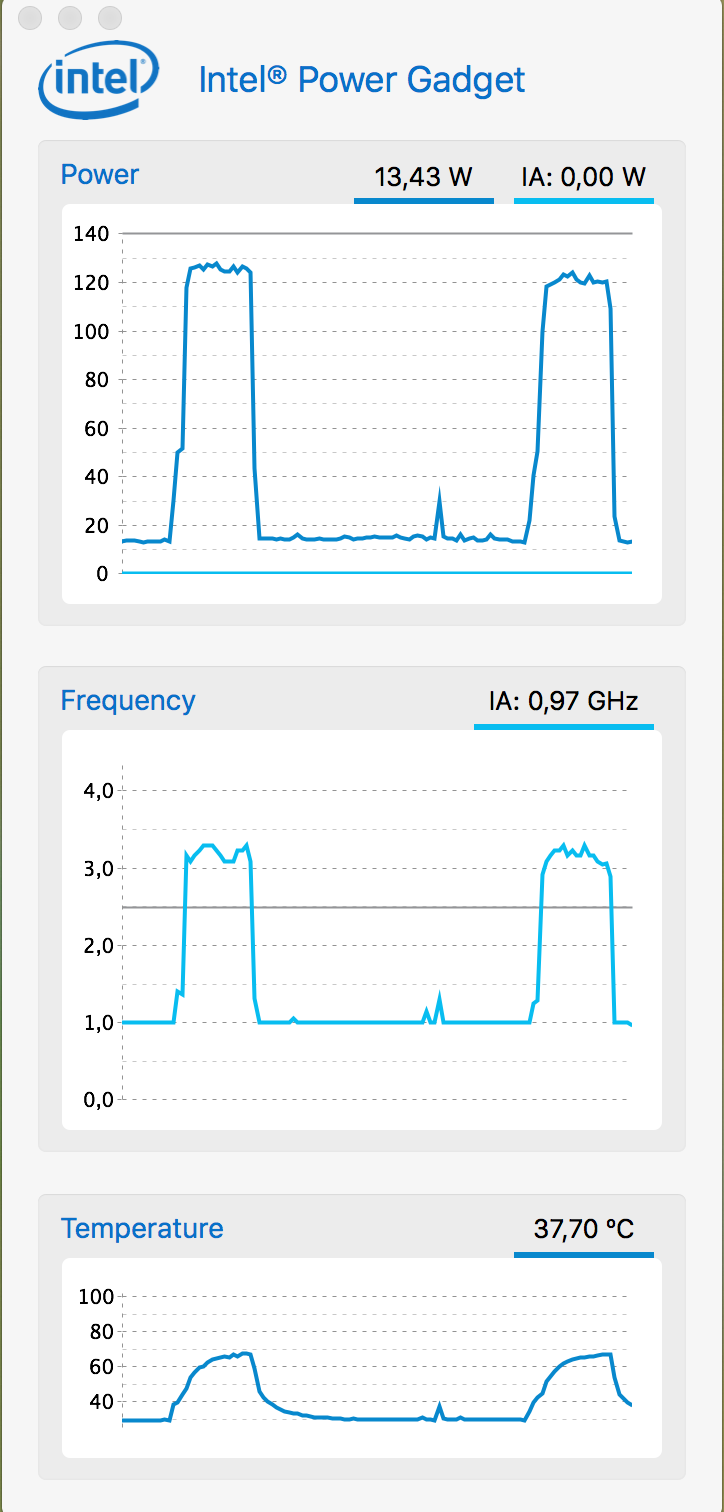

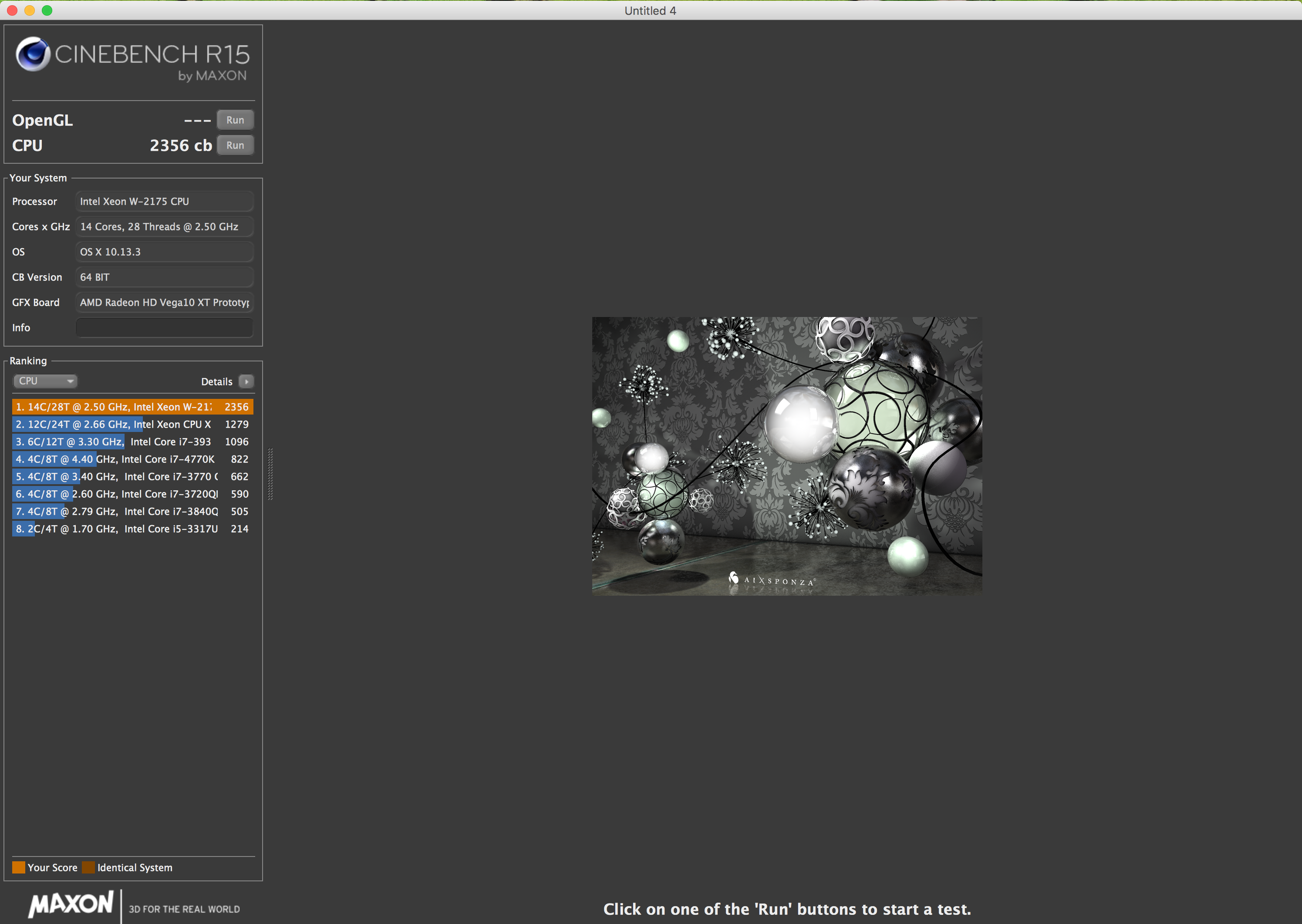

obus Posted March 19, 2018 Author Share Posted March 19, 2018 (edited) 46 minutes ago, fabiosun said: from your IPG graph turbo mode for all cores/thread seems to be about 3.2 Ghz base freq 2.5 Ghz turbo for single core 4.3 Ghz if so your result are good if you want to try disable only EIST in bios and post again result and IPG graph Turbo is enabled in bios. Eist is now disabled. Edited March 19, 2018 by obus Link to comment Share on other sites More sharing options...
obus Posted March 19, 2018 Author Share Posted March 19, 2018 12 minutes ago, joedm ru said: @obus, could you please take a look at my post? I've read your post but I'm still not sure what you want from me. Is it if native NVRAM is working with AptioMemoryFix? Link to comment Share on other sites More sharing options...
joedm ru Posted March 19, 2018 Share Posted March 19, 2018 Just now, obus said: Is it if native NVRAM is working with AptioMemoryFix? Yes. Exactly it. Also I need to know if your bios has 'Above 4G decoding' enabled or disabled. Link to comment Share on other sites More sharing options...
obus Posted March 19, 2018 Author Share Posted March 19, 2018 1 minute ago, joedm ru said: Yes. Exactly it. Also I need to know if your bios has 'Above 4G decoding' enabled or disabled. The answer after reboot is "zzz" so my conclusion is that NVRAM is working on my rig with AptioMemoryFix.kext (R16). 4G decoding is on/enabled in bios Link to comment Share on other sites More sharing options...
joedm ru Posted March 19, 2018 Share Posted March 19, 2018 Thank you very much. Could you please try the same with 4G decoding off/disabled? Set the 'mycoolvar' variable to 'yyy' to ensure it still works. I'm asking because nvram in my WS X299 PRO doesn't work if '4G decoding' is enabled. And works fine if it disabled, though it should be vice versa. Link to comment Share on other sites More sharing options...
obus Posted March 19, 2018 Author Share Posted March 19, 2018 @fabiosun Is it possible to get native powermanagment without patching bios? According to KGP:s site he achieved that thru patching bios. ssdtPRGen.sh-Beta isn't working because Pike R. Alpha has stopped updating as I understand it. Link to comment Share on other sites More sharing options...
Guest Posted March 19, 2018 Share Posted March 19, 2018 (edited) @obus in my opinion performance is fine and you should leave EIST enabled because performance is pretty the same and you have a better states use with it you should also search for spec in AVX load for all your cores and cpu and if under load they stay to they maximum My cpu (x99 Xeon 22 cores / 44 threads) has a base clock of 2.2 Ghz a turbo clock for all cores/thread of 2.8Ghz and a turbo core for 2 core/thread of 3.7 Ghz You have to find your AVX maximum and test it with some software like cinebench15 or rendering program but I am confident your system is fine Maybe you should find a way to not use Broadwell EP fakecpuid because your CPU should be supported vanilla by osx 10.13.3 but there you have to do some test by yourself 11 minutes ago, obus said: @fabiosun Is it possible to get native powermanagment without patching bios? According to KGP:s site he achieved that thru patching bios. ssdtPRGen.sh-Beta isn't working because Pike R. Alpha has stopped updating as I understand it. I repeat my self..your cpu is a Xeon and is different...follow your guide and stay simple as you can you should also try to set with clover configurator plugintype (check this) and see if your system starts Also I don't know if also new xeon freeze using appleintelinfo.kext by piker alpha.. Unlocking bios is not useful for performance at all... Trust me Edited March 19, 2018 by Guest image upload Link to comment Share on other sites More sharing options...

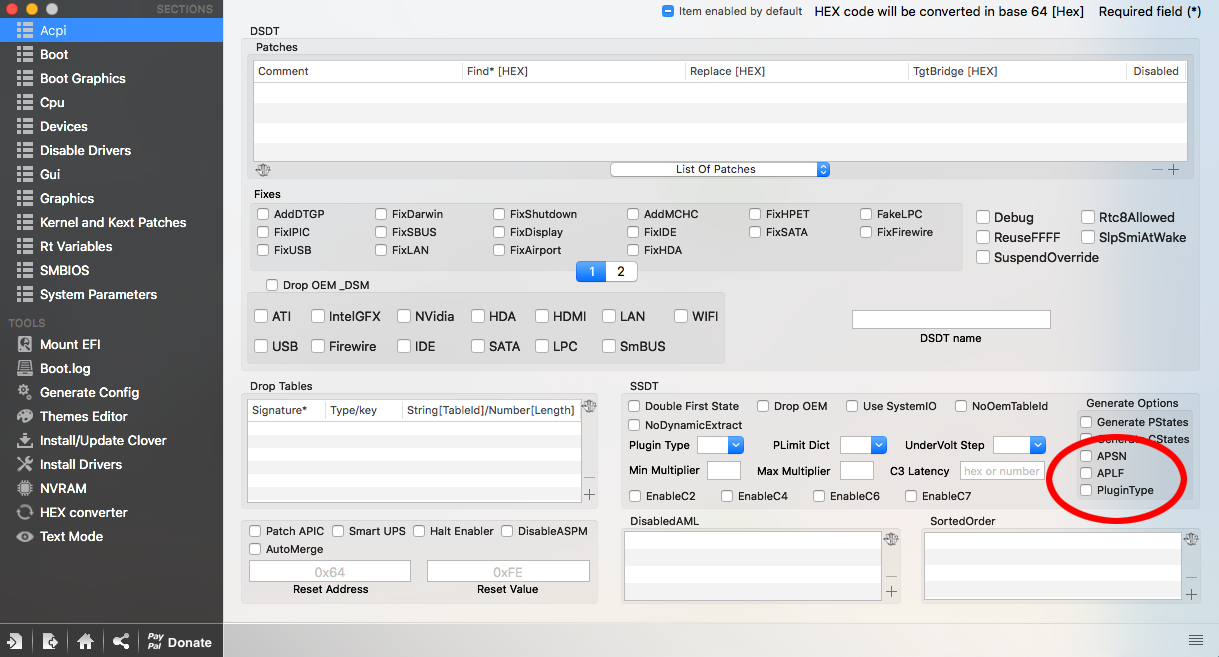

joedm ru Posted March 19, 2018 Share Posted March 19, 2018 You need to patch your bios only for unlocking MSR 0xE2 and get rid of TSC sync kext. Your CPU will work fine even if you drop all CPU-related SSDT tables and even without generated ones. Just make sure you have plugin-type added. To verify that XCPM works use command sysctl -n machdep.xcpm.mode If you see it displays '1' then you are fine. Link to comment Share on other sites More sharing options...
obus Posted March 19, 2018 Author Share Posted March 19, 2018 (edited) 9 minutes ago, joedm ru said: You need to patch your bios only for unlocking MSR 0xE2 and get rid of TSC sync kext. Your CPU will work fine even if you drop all CPU-related SSDT tables and even without generated ones. Just make sure you have plugin-type added. To verify that XCPM works use command sysctl -n machdep.xcpm.mode If you see it displays '1' then you are fine. Ok @joedm ru My native NVRAM is working fine with AptioMemoryFix.kext irrespective if 4G is enabled or disabled. Edited March 19, 2018 by obus Link to comment Share on other sites More sharing options...
Guest Posted March 19, 2018 Share Posted March 19, 2018 (edited) @joedm ru could you post an example or a task which creates some problems when msr0xE2 is locked? From latest clover I do not have anymore need to patch msr because all is simply working fine If I patchbios I can "program" msr to have some demotion and undemotion state but it is no relevant for a correct working or performance or c/p states output Xeon is a bit different from extreme or X cpu for your infos I have patched many "unpatchable x299 firmware" in other thread here but I think is not mandatory to do in these days Edited March 19, 2018 by Guest Link to comment Share on other sites More sharing options...
obus Posted March 19, 2018 Author Share Posted March 19, 2018 11 minutes ago, joedm ru said: You need to patch your bios only for unlocking MSR 0xE2 and get rid of TSC sync kext. Your CPU will work fine even if you drop all CPU-related SSDT tables and even without generated ones. Just make sure you have plugin-type added. To verify that XCPM works use command sysctl -n machdep.xcpm.mode If you see it displays '1' then you are fine. But now I need to have FakeCpuid 0x040674 otherwise I can't boot? So you mean I can drop that as long as I have checked plugin-type? sysctl -n machdep.xcpm.mode=1 so native powermanagment is working then? Link to comment Share on other sites More sharing options...
obus Posted March 19, 2018 Author Share Posted March 19, 2018 (edited) 13 minutes ago, fabiosun said: @joedm ru could you post an example or a task which creates some problems when msr0xE2 is locked? From latest clover I do not have anymore need to patch msr because all is simply working fine If I patchbios I can "program" msr to have some demotion and undemotion state but it is no relevant for a correct working or performance or c/p states output Xeon is a bit different from extreme or X cpu for your infos I have patched many "unpatchable x299 firmware" in other thread here I can't for the moment not point out any task or situation that have make problems with a locked msr0xE2 register. The only reason is that I want as little as possible in my config.plist/kextfolder. So if you can and want to put your time to help me with that I should be very pleased. Another thing is my config.plist. I now now that for the moment FakeCpuid and "PM" respectively "xcpm_program_msrs (c) Pike R. Alpha" patch is mandatory. But everything else is maybe not needed. Could you have a check? Last question is still my Intel I210-AT Nic:s. Do you know any working solution for them? config.plist Edited March 19, 2018 by obus Link to comment Share on other sites More sharing options...
obus Posted March 19, 2018 Author Share Posted March 19, 2018 49 minutes ago, joedm ru said: Thank you very much. Could you please try the same with 4G decoding off/disabled? Set the 'mycoolvar' variable to 'yyy' to ensure it still works. I'm asking because nvram in my WS X299 PRO doesn't work if '4G decoding' is enabled. And works fine if it disabled, though it should be vice versa. If understand it correctly you need to uncheck or if installed remove RC-scripts in clover to let AptioMemoryFix working. Just for information because I installed it from the beginning and my native NVRAM just didn't work. Link to comment Share on other sites More sharing options...
yapan4 Posted March 19, 2018 Share Posted March 19, 2018 2 hours ago, obus said: Do you know how to get my Intel I210-AT Nic:s working? macOs has driver for i210, bat only one DevID - 1533. You can add your own devID(no warranty, on your risk) Link to comment Share on other sites More sharing options...
joedm ru Posted March 19, 2018 Share Posted March 19, 2018 Just now, fabiosun said: could you post an example or a task which creates some problems when msr0xE2 is locked? According to my experience, locked 0xE2 on my former GA X299 Aorus Gaming 3 prevented waking up from sleep mode. It went panic on wake during appempt to write to MSR 0xE2. Patching bios OR applying Pike's patch solved the problem. Just now, obus said: But now I need to have FakeCpuid 0x040674 otherwise I can't boot? I don't think you need FakeCpuid at all. Your CPUID is supported natively by kernel. And it should work fine using HWP without any tables. Just now, obus said: sysctl -n machdep.xcpm.mode=1 so native powermanagment is working then? This is not quite correct. The command is sysctl -n machdep.xcpm.mode See this post for details. Just now, obus said: If understand it correctly you need to uncheck or if installed remove RC-scripts in clover to let AptioMemoryFix working. Yes, if you use AptioMemoryFix then installed RC-scripts should be removed as well as EmuVariable. Just now, obus said: My native NVRAM is working fine with AptioMemoryFix.kext irrespective if 4G is enabled or disabled. Thank you for your help! Link to comment Share on other sites More sharing options...
obus Posted March 19, 2018 Author Share Posted March 19, 2018 (edited) 25 minutes ago, yapan4 said: macOs has driver for i210, bat only one DevID - 1533. You can add your own devID(no warranty, on your risk) Hi @yapan4 Edit in which kext? Could you help me? Edited March 19, 2018 by obus Link to comment Share on other sites More sharing options...
obus Posted March 19, 2018 Author Share Posted March 19, 2018 25 minutes ago, joedm ru said: According to my experience, locked 0xE2 on my former GA X299 Aorus Gaming 3 prevented waking up from sleep mode. It went panic on wake during appempt to write to MSR 0xE2. Patching bios OR applying Pike's patch solved the problem. I don't think you need FakeCpuid at all. Your CPUID is supported natively by kernel. And it should work fine using HWP without any tables. This is not quite correct. The command is sysctl -n machdep.xcpm.mode See this post for details. Yes, if you use AptioMemoryFix then installed RC-scripts should be removed as well as EmuVariable. Thank you for your help! What I meant was that the input "sysctl -n machdep.xcpm.mode" in terminal gave me the answer 1. By that I draw the conclusion that native powermanagment was working. Is that correct? Link to comment Share on other sites More sharing options...
yapan4 Posted March 19, 2018 Share Posted March 19, 2018 7 minutes ago, obus said: Hi @yapan4 Edit in which kext? Could you help me? First you can try Fake devID in Devices section->Lan of Clover Configurator Link to comment Share on other sites More sharing options...
joedm ru Posted March 19, 2018 Share Posted March 19, 2018 Just now, obus said: What I meant was that the input "sysctl -n machdep.xcpm.mode" in terminal gave me the answer 1. By that I draw the conclusion that native powermanagment was working. Is that correct? Yes, it is. Link to comment Share on other sites More sharing options...
