El Capitan UEFI Clover on Sony Vaio S

midi-sama · August 12, 2016

There's a BIOS mod for the R0142C5:

It increases the base clock 500 MHz of the GT640M LE to one of these:

625MHz

735MHz

835MHz

950MHz

Sony Vaio S Bios Mod For Gt640m Le

At least you can check if it works for you, so it means that the BIOS is patcheable. In any case, it's not advisable to leave the card overclocked all the time, just use it to test if works. About displaying the advanced menu, didn't find it yet, doesn't mean that doesn't exist.

Yeah i saw this one and as SVS users with computers that came with windows 8 preinstalled we dont need it because we can over clock it to 1Ghz from within windows without flashing anything. The issue here is not the patchable bios, it's the flashback if we ever f**k up anything! This is for SVS models that came with windows 7 because of the retarded bios that is shipped on any Vaio! (Omg Sony is such a retarded company).

Sent from my 700T1C using Tapatalk

goldenmaterial · August 12, 2016

Here is the problem: BIOS.

Also, i've done some research and apparently you must not let it disable the HD4000 as it's the "bridge" from Nvidia to any port (VGA HDMI LVDS) and also, no known flashback way on our VAIOs. If you know yours tell me so that I give it a try brefore flashing a Patched bios (just to try a clean one at least, it should not be of any harm).

So, what do you want to achieve exactly, the discrete graphics working on the Vaio S?

On the post #141 of this thread, the user says it got working really well switchable graphics. What do you think he's talking about, it's a Vaio S but a different BIOS?

Sony Vaio SA/SB/SC/SE Advanced Menu BIOS Hack - Page 15

I would read the entire thread so see if there's something of use. I'm sorry I can't help you more with this. Check also this blog, has a lot of information about working with Insyde H2O BIOS:

http://donovan6000.blogspot.com/

cloud1250000 · August 12, 2016

Also, in my bios (windows 7 model) I can't disable the discrete card at all...

And, on the link you shared, the guy said it wasnt working with svs model (which is what we have)

@midi What do you think of the thread from rehab?

Edit: My power management looks like this, is it good?

Aug 12 15:28:14 MacBook-Pro kernel[0]: AICPUPMI: CPU Low Frequency Mode.............: 1200 MHz
Aug 12 15:28:14 MacBook-Pro kernel[0]: AICPUPMI: CPU Maximum non-Turbo Frequency....: 2500 MHz
Aug 12 15:28:14 MacBook-Pro kernel[0]: AICPUPMI: CPU Maximum Turbo Frequency........: 3100 MHz
Aug 12 15:28:14 MacBook-Pro kernel[0]: AICPUPMI: IGPU Current Frequency.............:  350 MHz
Aug 12 15:28:14 MacBook-Pro kernel[0]: AICPUPMI: IGPU Minimum Frequency.............:  350 MHz
Aug 12 15:28:14 MacBook-Pro kernel[0]: AICPUPMI: IGPU Maximum Non-Turbo Frequency...:  650 MHz
Aug 12 15:28:14 MacBook-Pro kernel[0]: AICPUPMI: IGPU Maximum Turbo Frequency.......: 1100 MHz
Aug 12 15:28:14 MacBook-Pro kernel[0]: AICPUPMI: IGPU Maximum limit.................: No Limit
Aug 12 15:28:15 MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ (12) 25 29 ] iGPU P-States [ (7) ]
Aug 12 15:28:15 MacBook-Pro kernel[0]: AICPUPMI: CPU C3-Cores [ 1 2 ]
Aug 12 15:28:15 MacBook-Pro kernel[0]: AICPUPMI: CPU C6-Cores [ 0 1 3 ]
Aug 12 15:28:15 MacBook-Pro kernel[0]: AICPUPMI: CPU C7-Cores [ 0 2 3 ]
Aug 12 15:28:15 MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ (12) 16 25 29 ] iGPU P-States [ (7) ]
Aug 12 15:28:15 MacBook-Pro kernel[0]: AICPUPMI: CPU C3-Cores [ 0 1 2 3 ]
Aug 12 15:28:15 MacBook-Pro kernel[0]: AICPUPMI: CPU C6-Cores [ 0 1 2 3 ]
Aug 12 15:28:15 MacBook-Pro kernel[0]: AICPUPMI: CPU C7-Cores [ 0 1 2 3 ]
Aug 12 15:28:16 MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ (12) 16 21 25 29 ] iGPU P-States [ (7) ]
Aug 12 15:28:16 MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ (12) 16 18 21 25 29 ] iGPU P-States [ (7) ]
Aug 12 15:28:17 MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 12 16 18 20 21 (25) 29 ] iGPU P-States [ (7) ]
Aug 12 15:28:17 MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ (12) 16 18 20 21 22 25 29 ] iGPU P-States [ (7) ]
Aug 12 15:28:19 MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ (12) 16 18 19 20 21 22 25 29 ] iGPU P-States [ (7) ]
Aug 12 15:28:19 MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ (12) 16 18 19 20 21 22 23 25 29 ] iGPU P-States [ (7) ]
Aug 12 15:28:20 MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ (12) 15 16 18 19 20 21 22 23 25 29 ] iGPU P-States [ (7) ]

Everything seems to be working fine, used appleALC for sound and there was a lot of entry already in the config.plist

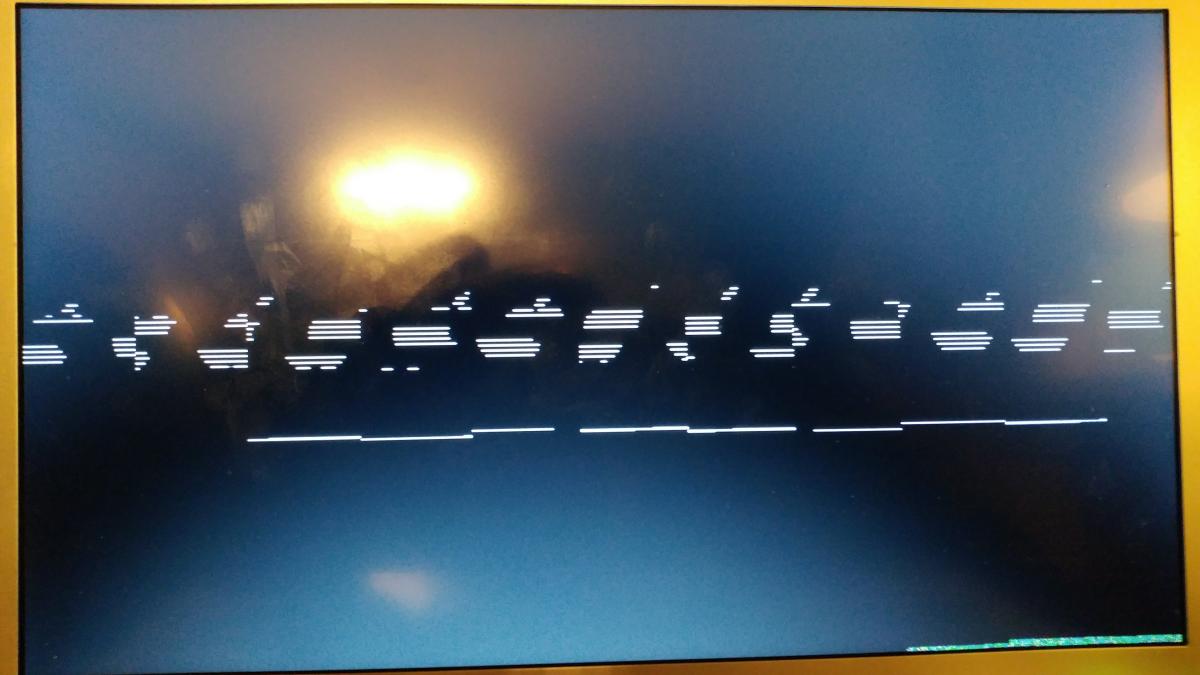

Edit2: Wait, i have some weird screen glitch when booting (when its around 50% loaded)

Edit3: 10.11.6 is fine right?

Edit4: Yeah it's fine.

I played around with SMBIOS, I couldn't boot anymore... Is there any way to connect/login using my appleID

Edit5: So everything is fine except my nvidia card. Let's see if I'll manage to disable it

Edit: not true, my usb3 port stopped working after sleep/wake, but my usb2 is fine..?

cloud1250000 · August 13, 2016

I think I disabled my nvidia card, but I don't know how to check if it's really the case...

To disable the card, simply add _OFF() in the only _INI function in ssdt-7. No need to go in the bios.

My idle temp is 51-55, I'm not doing anything and my cpu is at 1.7ghz, is there any way I can push it down a bit more?

Thank you again for this thread, everything is working fine Except my usb when I wake from sleep (it's taking forever to go on sleep btw)

Edit: Enabling disable turboboost in clover really works? my computer goes higher then 2.5ghz and it's the limit without turboboost...

Edit2: "It is also clear in the guide that DropOem=true is required when you have patched SSDTs in ACPI/patched. You have it set false."

Just asked rehab for some insight on disabling the discrete card.. and well.. apparently, when you're using patched SSDT, you need to enable DropOem in clover. Just gonna leave this here since it's not in the guide

a3om · August 16, 2016

This guide about disabling discrete nvidia videocard was helpful for me. My nvidia card is disabled now.

The text version: https://github.com/mental-boy/DSDT-SSDT-GUIDE/blob/master/k2.md

Just make changes in your DSDT and SSDT-7 only.

cloud1250000 · August 16, 2016

Okay so far I have this setup :

Working El Capitan 10.11.6

- Usbs (2.0,3.0)

- Power Management (3h30 on battery)

- Hdmi video/audio

- Wifi/Bluetooth

- Disabled discrete GPU in ssdt 7 (Called _OFF() in only the only _INI function) (followed rehab guide)

- Temp idle between 38 and 48

- Sleep/Wake

- SSD Trim

What's not working or is weird

- Display ram in About this mac

- Usb 3.0 when waking from sleep (usb 2.0 is still fine)

- Bluetooth can be disabled randomly after booting from a shutdown

- When I reduce the screen brigthness to 0, it turns off completely (needs reboot to get brigthness back)

- Weird screen when booting (second stage)

- It reset the settings.. it doesn't remember I disabled the guest account.

- iMessage/Facetime doesn't work (I was on the phone with apple for 3h and it's still not working)

rsd99 · August 22, 2016

so i am at the point where i am patching the DSDT and SSDT files, but it never creates SSDT-2.dsl. errors out saying can't open file. Out put from commands below. can anyone help?

bash-3.2# cp ~/Downloads/iasl /usr/bin

bash-3.2# cp ~/Downloads/patchmatic /usr/bin

bash-3.2# cp -r /Volumes/EFI/EFI/CLOVER/ACPI/origin ~/Desktop/origin

bash-3.2# cd ~/Desktop

bash-3.2# rm -r ACPI

rm: ACPI: No such file or directory

bash-3.2# mv origin ACPI

bash-3.2# cp -r ~/Downloads/Laptop-DSDT-Patch-master ~/Desktop/ACPI/patches-master

bash-3.2# cd ACPI

bash-3.2# rm APIC.aml

bash-3.2# rm ASF\!.aml

bash-3.2# rm ASPT.aml

bash-3.2# rm BGRT.aml

rm: BGRT.aml: No such file or directory

bash-3.2# rm BOOT.aml

bash-3.2# rm DBGP.aml

rm: DBGP.aml: No such file or directory

bash-3.2# rm FACP.aml

rm FACS.aml

rm FPDT.aml

rm HPET.aml

rm MCFG.aml

rm MSDM.aml

rm RSDP.aml

rm RSDT.aml

rm TCPA.aml

rm UEFI.aml

rm WDAT.aml

rm XSDT.aml

sleep 10

iasl -da -dl *.aml

patchmatic DSDT.dsl patches-master/system/system_WAK2.txt DSDT.dsl

patchmatic DSDT.dsl patches-master/system/system_HPET.txt DSDT.dsl

patchmatic DSDT.dsl patches-master/system/system_SMBUS.txt DSDT.dsl

patchmatic DSDT.dsl patches-master/system/system_IRQ.txt DSDT.dsl

patchmatic DSDT.dsl patches-master/system/system_RTC.txt DSDT.dsl

patchmatic DSDT.dsl patches-master/system/system_OSYS_win8.txt DSDT.dsl

patchmatic DSDT.dsl patches-master/system/system_Mutex.txt DSDT.dsl

patchmatic DSDT.dsl patches-master/system/system_IMEI.txt DSDT.dsl

patchmatic DSDT.dsl patches-master/graphics/graphics_Rename-GFX0.txt DSDT.dsl

patchmatic DSDT.dsl patches-master/graphics/graphics_PNLF_ivy_sandy.txt DSDT.dsl

patchmatic DSDT.dsl patches-master/usb/usb_7-series.txt DSDT.dsl

patchmatic DSDT.dsl patches-master/battery/battery_Sony-VAIO-S.txt DSDT.dslbash-3.2# rm FACS.aml

bash-3.2# rm FPDT.aml

bash-3.2# rm HPET.aml

bash-3.2# rm MCFG.aml

bash-3.2# rm MSDM.aml

rm: MSDM.aml: No such file or directory

bash-3.2# rm RSDP.aml

bash-3.2# rm RSDT.aml

bash-3.2# rm TCPA.aml

bash-3.2# rm UEFI.aml

bash-3.2# rm WDAT.aml

bash-3.2# rm XSDT.aml

bash-3.2# sleep 10
