Fresh Install from USB Installer El Capitan 10.11.1 Beta Build 15B38b on Skylake i7 6700 + Gigabyte Z170-HD3


343 posts in this topic

Recommended Posts

It has like 6 errors and I can't compile it to add Rehabman's NullEthernet patch.

You do know you don't need a custom DSDT to use that patch, right? Just put the patched SSDT into your EFI partition (I don't remember the exact path atm, but it's in the readme).



I don't want to dissuade you from creating a custom DSDT, just be aware that if your goal is to get NullEthernet working, there is a muuuuuch easier method.





Also, I'd skip the 6700k unless energy usage is an issue. The 5820k is a lot better at multi-tasked, hyper-threaded applications and the i5 is cheaper.

6700k still has better single core performance than the 5820k, though. If you want the best IPC possible, while still maintaining significantly better multi-core performance than the 6600k, the 6700k seems like a good choice.

  • Like 1
Link to comment
Share on other sites



6700k still has better single core performance than the 5820k, though. If you want the best IPC possible, while still maintaining significantly better multi-core performance than the 6600k, the 6700k seems like a good choice.



It's ~15% better single threaded performance but ~30% worse multithreaded performance (per geek bench).



At Microcenter the 6600k is $230, 6700k is $360 and 5820k is $320.  So there is a huge price jump from i5 to i7 but a 5820k can be LESS than a 6700k. At Newegg the 5820k is $375 and the 6700k is out of stock but I recall it being 3xx. So the 6700k and the 5820k are just too close in price. If someone needs the extra multithreaded performance then the 5820k is clearly superior. The only reason to get the 6700k is if energy usage matters as it's much more efficient.

Link to comment
Share on other sites



Asus Z170 Deluxe

WiFi
works


Lan
Intel I211-AT, 1 x Gigabit LAN Controller (s)
Intel® Gigabit LAN Connection- 802.3az Energy Efficient Ethernet

do not work


Audio
Realtek® ALC1150

not working.


Help.



The i211 controller needs the AppleIGB.kext.  The Realtek ALC1150 will need the id injected either via clover or dsdt/ssdt and then use toleda's cloveralc.

Link to comment
Share on other sites

I compiled HWSensors from Kozlek's git (https://github.com/kozlek/HWSensors) that included initial Skylake support for the CPUSensors plugin.  Tested and no longer causes freezing when booting with the CPUSensors.kext.  It is reporting weird percentage for my pwm fan, but other then that seems to be working well.


Thanks you very much :D

Link to comment
Share on other sites

  • 2 weeks later...
  • 2 weeks later...

Hi guys!


At this moment, I want to buy the following configuration:?





- Gigabyte GA-Z170-HD3P


- Intel Pentium G4400 or G4500


- Radeon 5770 video (my old card - work with EL Capitan)


- 8GB DDR3-1700 Ram  (my old RAM - work with EL Capitan)


- 120GB SSD


Link to comment
Share on other sites

  • 3 weeks later...



Hi guys!

At this moment, I want to buy the following configuration:?



- Gigabyte GA-Z170-HD3P

- Intel Pentium G4400 or G4500

- Radeon 5770 video (my old card - work with EL Capitan)

- 8GB DDR3-1700 Ram  (my old RAM - work with EL Capitan)

- 120GB SSD



It should be okay,, you can install OS X at those component. Just make USB Installer from App Store file (Install OS X El Capitan.app) + Clover Bootloader  :thumbsup_anim:

Link to comment
Share on other sites

It should be okay,, you can install OS X at those component. Just make USB Installer from App Store file (Install OS X El Capitan.app) + Clover Bootloader  :thumbsup_anim:

:) I bought:

GA-H170-HD3 DDR3 + Intel i3-6100

and

Radeon 5770 video

8GB DDR3-1700 Ram- 120GB SSD

And start 10.11.2 from our HDD with already installed EL Capitan with standart Clover 3330 options for EL Capitan, but only with deleted all plugins in FakeSMC!

Link to comment
Share on other sites

:) I bought:

GA-H170-HD3 DDR3 + Intel i3-6100

and

Radeon 5770 video

8GB DDR3-1700 Ram- 120GB SSD

And start 10.11.2 from our HDD with already installed EL Capitan with standart Clover 3330 options for EL Capitan, but only with deleted all plugins in FakeSMC!

Hmmm,, for SkyLake or Broadwell then you need FakeSMC that already support it. Try using FakeSMC from file that i have upload at this link http://www.insanelymac.com/forum/topic/309729-gigabyte-z170x-gaming-7-success-hackintosh/page-3. You can see files at "CLOVER/Kexts/10.11" . Your problem is related to "CPUSensor.kext" at FakeSMC's Plugins :)

  • Like 1
Link to comment
Share on other sites

Hmmm,, for SkyLake or Broadwell then you need FakeSMC that already support it. Try using FakeSMC from file that i have upload at this link http://www.insanelymac.com/forum/topic/309729-gigabyte-z170x-gaming-7-success-hackintosh/page-3. You can see files at "CLOVER/Kexts/10.11" . Your problem is related to "CPUSensor.kext" at FakeSMC's Plugins :)

May be :)

Link to comment
Share on other sites

  • 8 months later...

Im trying to map all the ports on my motherboard (Asus Z170 Premium) to make patch.
Currently i loaded USBInjectAll and enabled following patches in clover: change EHC1 to EH01, change EHC2 to EH02, change 15 port limit to 30, Skylake APIC fix. SMBIOS is iMac17,1.
All USB2 ports are working fine.
All USB3 ports are working fine both in USB2 and USB3 mode.
Unfortunately remaining two USB3.1 type 2 ports are not working at all - not even in USB2 mode.
Ive tried loading GenericUSBXHCI and doesnt make any difference.
Any advice?

[edit]

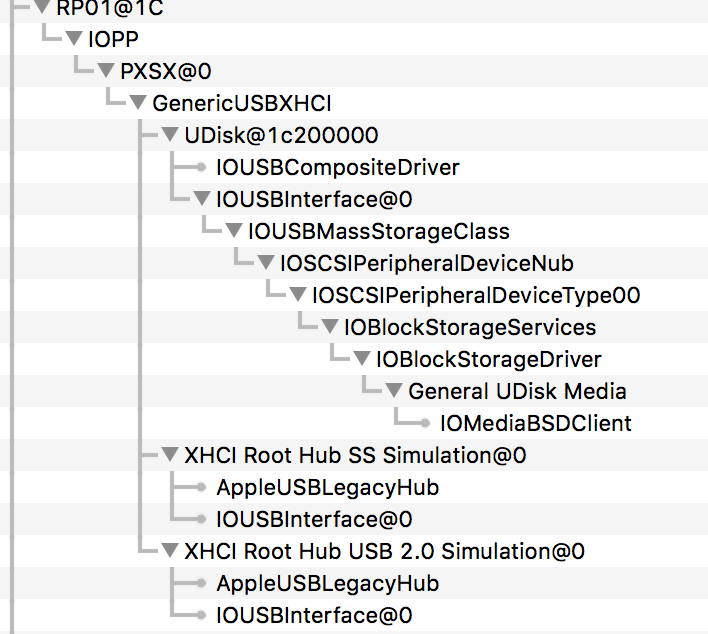

Actually i just found that one of them works in USB2 mode only but it's identifier is RP01


Link to comment
Share on other sites
