PMheart
PMheart
Posted
Posted

hello



sorry i wait for Slice answer to this .. but last days several bad commits in clover sources



inject kext .. kext_patcher .. nothing new and only problems



thanks

Ah all right. No. Actually kext_patcher.c changed in 3956.

@artur_pt

Hi. May have a try with this? (Compiled based on r3957 but with the kext_patcher.c of r3955)  :)







PMheart

Link to comment
Share on other sites
Sherlocks
Sherlocks
Posted
Posted

hello



is only working with com.apple.driver.AirPort.Brcm4360



and is a plugin from io80211



for me is not working other way



this is not good



thanks

Me too. I have to changed airport name like you in latest clover.







나의 LG-F410S 의 Tapatalk에서 보냄

Link to comment
Share on other sites
PMheart
PMheart
Posted
Posted

hello



maybe Slice have a solution to this .. kextpatcher should apply old config too .. and new ones is a user option ..



that's why u have here to post



thanks

But... Just r3956 made old configs not work in some cases... So just revert back them is enough?



PMheart

Link to comment
Share on other sites
Sherlocks
Sherlocks
Posted
Posted

hello



maybe Slice have a solution to this .. kextpatcher should apply old config too .. and new ones is a user option ..



that's why u have here to post



thanks

I mentioned it #1372

I used normal binary file name in config.plist like you in r3955 and older. Previous clover is no problem about kext_patcher.

But i have problem like you in 3956. Fred and Slice recommend full name in KextsToPatch if use binary name.

I followed this rules, and all change name in my config.plist



Maybe we need to follow this rules.



나의 LG-F410S 의 Tapatalk에서 보냄

Link to comment
Share on other sites
RehabMan
RehabMan
Posted
Posted

Fred and Slice recommend full name in KextsToPatch if use binary name.

Full name of the binary is AirPortBrcm4360:

SPEEDY-NUC:~ rehabman$ ls -l /System/Library/Extensions/IO80211Family.kext/Contents/PlugIns/AirPortBrcm4360.kext/Contents/MacOS/
total 17240
-rwxr-xr-x  1 root  wheel  8825904 Oct 21 02:08 AirPortBrcm4360
But it evidently Name=AirPortBrcm4360 does not work with the current code.

Needs fixing.

  • Like 2
Link to comment
Share on other sites
kylon
kylon
Posted
Posted

hi,



seems the problem is not in startLoader.

osi_type is correct, linux.

i disabled almost everything there but the smbios is still 3.0



i attached a log with my currently installed clover and i added dmidecode output



thanks

Link to comment
Share on other sites
Slice
Slice
Posted
Posted

Reports are that the old way does not work.

For example it is common to use AirPortBrcm4360 to patch bundle com.apple.driver.AirPort.Brcm4360







Yes, I see. There is a dot inside the name :)

Sure, I will correct this.

Link to comment
Share on other sites
syscl
syscl
Posted
Posted

List, please, both EFI partitions, disk1s1 and disk2s1.

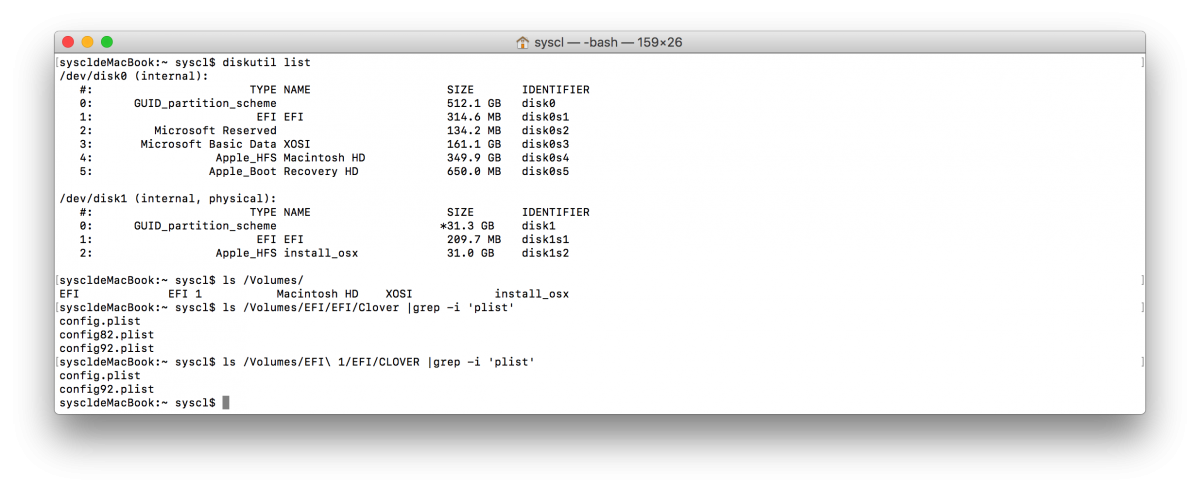

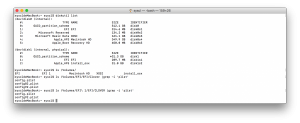

Here you go.






I download the latest source code, but failed to build it.



Edit:

TOOLCHAIN_DIR: /Users/syscl/cloverefiboot-code/../../opt/local
NASM_PREFIX:
NASM_VER: 0.98.40
your nasm is not good to build Clover!
Link to comment
Share on other sites
Slice
Slice
Posted
Posted

Rev 3958




Here you go.






I download the latest source code, but failed to build it.



Edit:

TOOLCHAIN_DIR: /Users/syscl/cloverefiboot-code/../../opt/local
NASM_PREFIX:
NASM_VER: 0.98.40
your nasm is not good to build Clover!

Download this one and place into

/usr/local/bin

nasm-2.12.02-macosx.zip



Look also into OEM folder. And check if your second config.plist contains name "MacBookPro1".

Link to comment
Share on other sites
syscl
syscl
Posted
Posted

Rev 3958

Download this one and place into

/usr/local/bin

nasm-2.12.02-macosx.zip



Look also into OEM folder. And check if your second config.plist contains name "MacBookPro1".

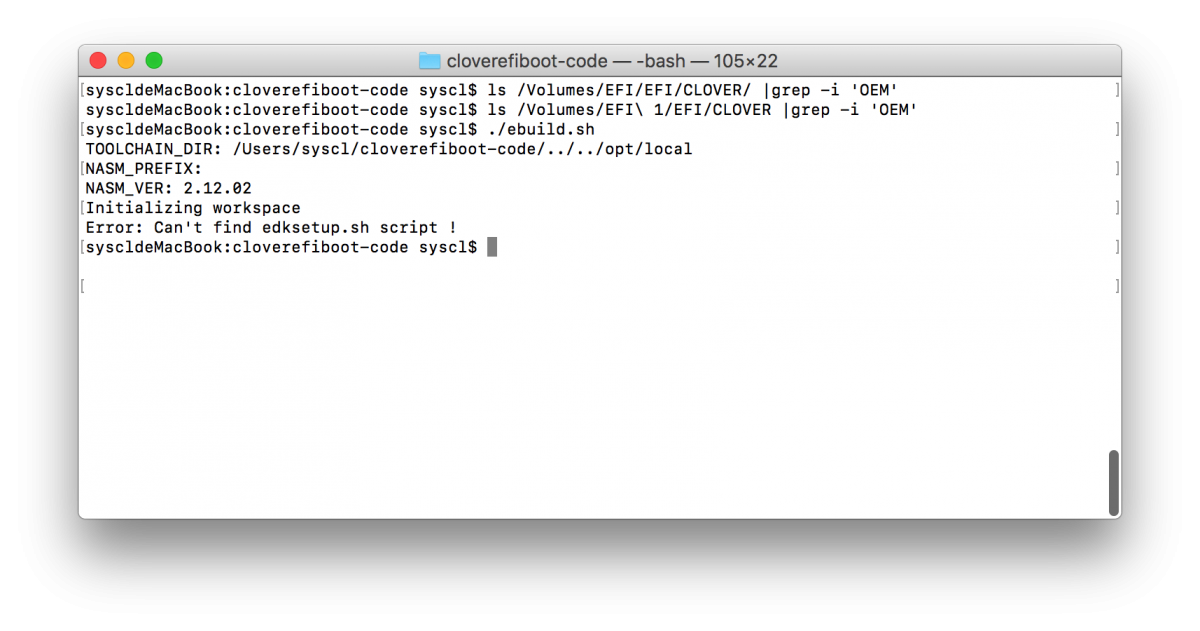

Thanks, here's the screenshot




Still failed to compile: Can't find edksetup.sh script



I double check all the config.plist, no there's no MacBookPro1, all is fine.



syscl

Link to comment
Share on other sites
syscl
syscl
Posted
Posted

Rename folder "cloverefiboot-code" to "Clover". There is name dependencies.

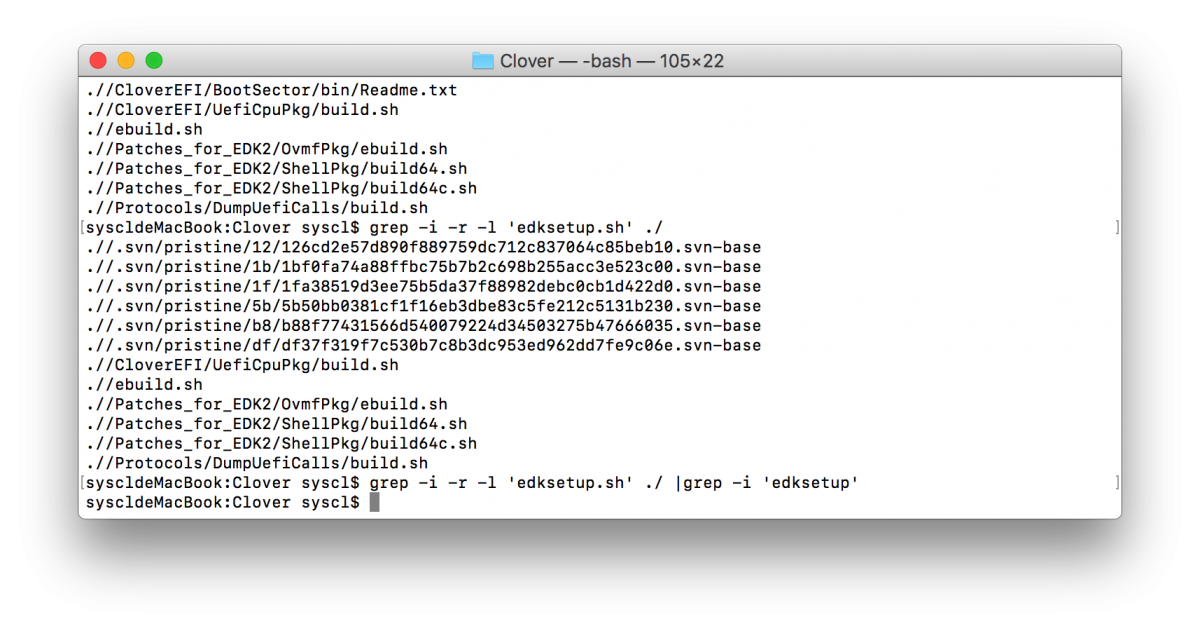

I renamed it, but failed. Then I search the edksetup under Clover/, no such file:




I use svn checkout svn://svn.code.sf.net/p/cloverefiboot/code/ cloverefiboot-code to download the source code, is that right?



syscl

Link to comment
Share on other sites
PMheart
PMheart
Posted
Posted

I renamed it, but failed. Then I search the edksetup under Clover/, no such file:




I use svn checkout svn://svn.code.sf.net/p/cloverefiboot/code/ cloverefiboot-code to download the source code, is that right?



syscl

Hi. Try Micky's script. May help. (http://www.insanelymac.com/forum/topic/313240-build-clovercommand-another-script-to-build-standard-clover-or-customized/)

And also you can use `svn co -r 3960 svn://svn.code.sf.net/p/cloverefiboot/code ~/src/edk2/Clover` to download Clover's source code.

Tips:

1. You can run `svn info svn://svn.code.sf.net/p/cloverefiboot/code | grep "Revision" | awk '{print $2;}'` to get the current latest version.

2. Also. You can try `svn co -r $(svn info svn://svn.code.sf.net/p/cloverefiboot/code | grep "Revision" | awk '{print $2;}') svn://svn.code.sf.net/p/cloverefiboot/code ~/src/edk2/Clover` to download Clover's latest version. LOL

3. ~/src/edk2/Clover is for me. You may change this.



PMheart

@Slice



fixed binary name(kext_patcher.c) in r3960. i returned binary name from bundle name of kext.



thank you.

Why... If you use bundle name then will only patch the kext itself. A more precise and speed-up way...



PMheart

Link to comment
Share on other sites
Sherlocks
Sherlocks
Posted
Posted

Hi. Try Micky's script. May help. (http://www.insanelymac.com/forum/topic/313240-build-clovercommand-another-script-to-build-standard-clover-or-customized/)

And also you can use `svn co -r 3960 svn://svn.code.sf.net/p/cloverefiboot/code ~/src/edk2/Clover` to download Clover's source code.

Tips:

1. You can run `svn info svn://svn.code.sf.net/p/cloverefiboot/code | grep "Revision" | awk '{print $2;}'` to get the current latest version.

2. Also. You can try `svn co -r $(svn info svn://svn.code.sf.net/p/cloverefiboot/code | grep "Revision" | awk '{print $2;}') svn://svn.code.sf.net/p/cloverefiboot/code ~/src/edk2/Clover` to download Clover's latest version. LOL

3. ~/src/edk2/Clover is for me. You may change this.



PMheart



Why... If you use bundle name then will only patch the kext itself. A more precise and speed-up way...



PMheart

I prefer to use binary name.

I have used this method a long time ago. many users too. Example AirPort and AppleHDA patches. Search config.plist.

Also config-sample-small.plist use binary name or bundle name.



Thank you











나의 LG-F410S 의 Tapatalk에서 보냄

Link to comment
Share on other sites
PMheart
PMheart
Posted
Posted

I prefer to use binary name.

I have used this method a long time ago. many users too. Example AirPort and AppleHDA patches. Search config.plist.

Also config-sample-small.plist use binary name or bundle name.



Thank you











나의 LG-F410S 의 Tapatalk에서 보냄

Yes. And Clover support both evidently when KextToPatch was introduced... But to use bundle name will speed up the patch speed.

Link to comment
Share on other sites
Sherlocks
Sherlocks
Posted
Posted

Yes. And Clover support both evidently when KextToPatch was introduced... But to use bundle name will speed up the patch speed.

I didn't see difference speed from bundle and or binary name. I use ssd.



Anyway i'm happy about this feature is back in latest commit



나의 LG-F410S 의 Tapatalk에서 보냄

Link to comment
Share on other sites
RehabMan
RehabMan
Posted
Posted

Yes. And Clover support both evidently when KextToPatch was introduced... But to use bundle name will speed up the patch speed.

What evidence do you have of this performance improvement?

I find with older Clover, you can already specify the complete bundle name, if you want (tested with v3766).

Link to comment
Share on other sites
PMheart
PMheart
Posted
Posted

I didn't see difference speed from bundle and or binary name. I use ssd.



Anyway i'm happy about this feature is back in latest commit



나의 LG-F410S 의 Tapatalk에서 보냄

Ah yes... The code is very fast to execute. So not necessary anyway. LOL





What evidence do you have of this performance improvement?

I find with older Clover, you can already specify the complete bundle name, if you want (tested with v3766).

e.g. If I use 'AppleHDA' then will try to patch AppleHDA itself and its dependencies like AppleHDAController etc. You can check the Info.plist of AppleHDA.

       If I use 'com.apple.driver.applehda' then will try to patch AppleHDA itself only. Will not patch its dependencies.

Obviously. This can bring performance improvement.

Yes. I prefer to use bundle name... About 2 years ago. Seemed Clover supported both since KextToPatch was firstly introduced.



PMheart

Link to comment
Share on other sites
RehabMan
RehabMan
Posted
Posted

e.g. If I use 'AppleHDA' then will try to patch AppleHDA itself and its dependencies like AppleHDAController etc. You can check the Info.plist of AppleHDA.

       If I use 'com.apple.driver.applehda' then will try to patch AppleHDA itself only. Will not patch its dependencies.

Obviously. This can bring performance improvement.

But this capability was already in the code. No changes were required.

Nice to hear the original functionality was restored.

Link to comment
Share on other sites
