RehabMan Posted December 6, 2015 Share Posted December 6, 2015 hi there my first post ever with something related to mac os but i worked hard still only WiFi so its Qualcomm Atheros AR956x Wireless Network Adapter with this details PCI\VEN_168C&DEV_0036&SUBSYS_061211AD&REV_01\4&3A8DB702&0&00E1 i know this one is a difficult to find is there any solution ? patch ... anything thanks in advance i learned many thinks in this forum. Atheros AR956x is not supported. Link to comment Share on other sites More sharing options...
salimtn Posted December 6, 2015 Share Posted December 6, 2015 so i guess i will leave in an early stage anyway thank you all . Atheros AR956x is not supported. so i guess i will leave in an early stage anyway thank you all . Link to comment Share on other sites More sharing options...
GhostRaider Posted December 10, 2015 Share Posted December 10, 2015 I wish it was that simple but as others have posted, Handoff no longer works in 10.11.1+ with the patches in the first post. Hey did you ever fix your issue? I also bought the GMYLE bluetooth 4.0 dongle and I can't enable Handoff even with the required kexts. I don't think CAT would work here since when I run it it doesn't detect any USB dongles in PRAM, which I don't think Hackintoshes have. Link to comment Share on other sites More sharing options...

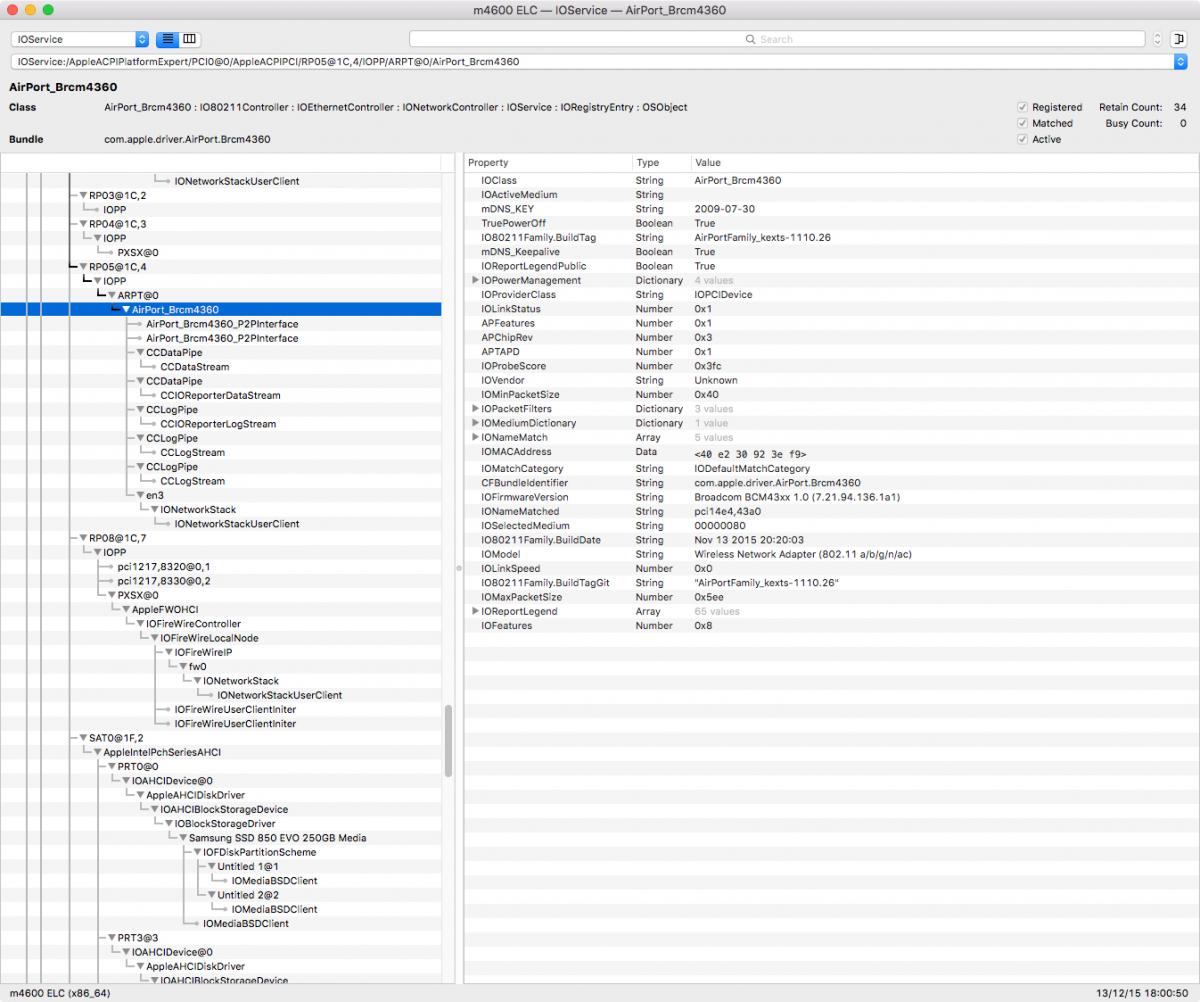

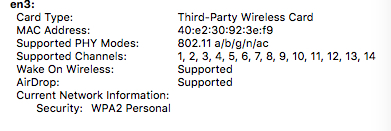

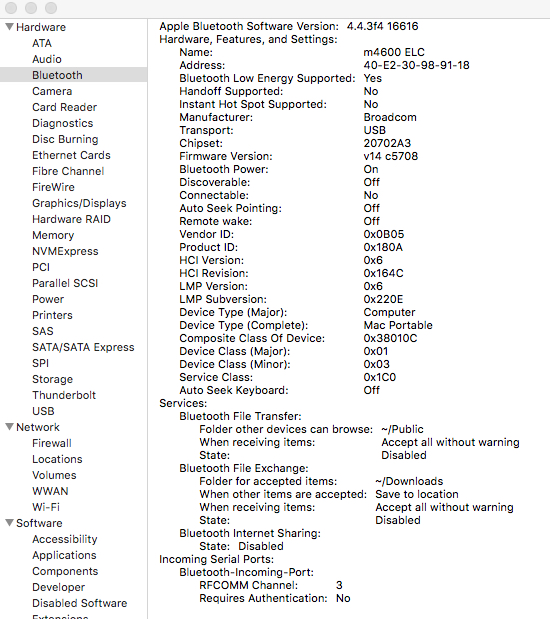

howoarang Posted December 13, 2015 Share Posted December 13, 2015 Hi, I have problem with new half miniPCIE wlan card. It is Azurewave AW-CB160H with Broadcom BCM94360HMB + 4.0BT. Wifi works, but I see only channels 1-14 and Bluetooth doesn't work. So could somebody help with it? I prefer Clover patches. Thanks bcm.tiff Link to comment Share on other sites More sharing options...
toleda Posted December 13, 2015 Author Share Posted December 13, 2015 Wifi works, but I see only channels 1-14 and Bluetooth doesn't work. See Problem Reporting, Post #1 Link to comment Share on other sites More sharing options...

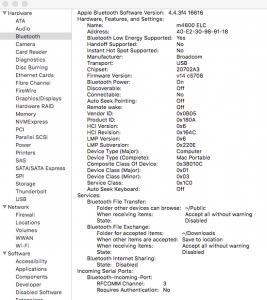

howoarang Posted December 13, 2015 Share Posted December 13, 2015 OK, so now, using "BrcmFirmwareData.kext" and "BrcmPatchRAM2.kext" BT now works, but Wifi only on channels 1-14. Link to comment Share on other sites More sharing options...
RehabMan Posted December 13, 2015 Share Posted December 13, 2015 OK, so now, using "BrcmFirmwareData.kext" and "BrcmPatchRAM2.kext" BT now works, but Wifi only on channels 1-14. You need FakePCIID.kext+FakePCIID_Broadcom_WiFi.kext. And 5Ghz patch (see post #1). Link to comment Share on other sites More sharing options...
howoarang Posted December 14, 2015 Share Posted December 14, 2015 You need FakePCIID.kext+FakePCIID_Broadcom_WiFi.kext.And 5Ghz patch (see post #1). Ok and these kexts must be located in S/L/E or in EFI/Clover folder? Link to comment Share on other sites More sharing options...
RehabMan Posted December 14, 2015 Share Posted December 14, 2015 Ok and these kexts must be located in S/L/E or in EFI/Clover folder? I install all kexts to /S/L/E or /L/E as Apple recommends. But these particular kexts will work when copied to EFI/Clover/kexts assuming you're injecting the kexts there (depends on a few options and where FakeSMC is). Not all kexts work from Clover/kexts though. Link to comment Share on other sites More sharing options...

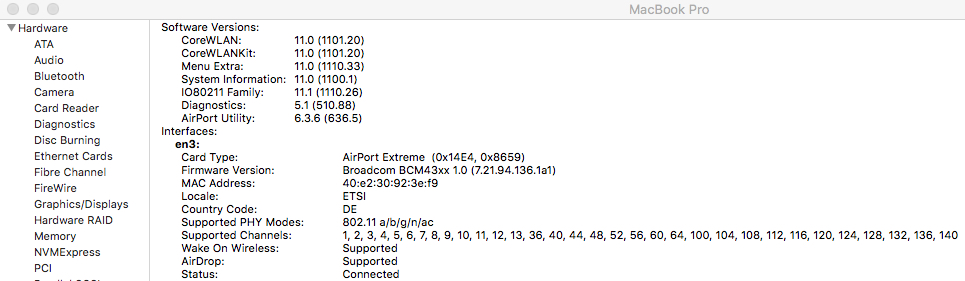

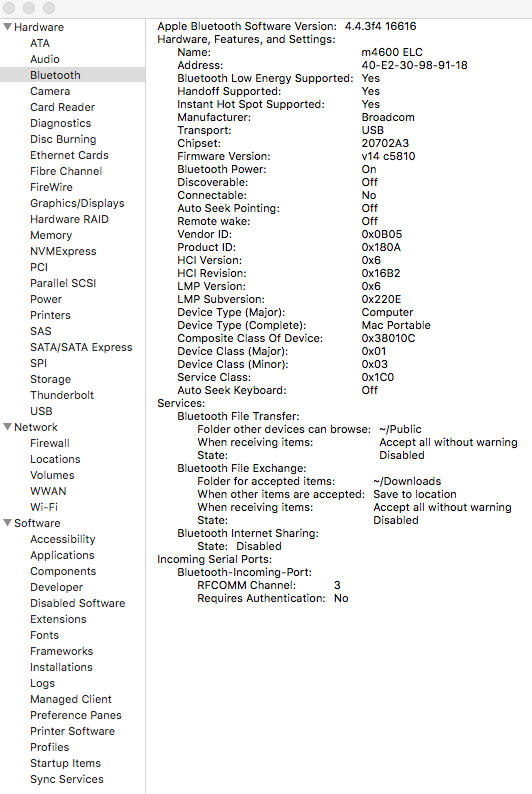

howoarang Posted December 15, 2015 Share Posted December 15, 2015 I install all kexts to /S/L/E or /L/E as Apple recommends. But these particular kexts will work when copied to EFI/Clover/kexts assuming you're injecting the kexts there (depends on a few options and where FakeSMC is). Not all kexts work from Clover/kexts though. Great, but I resolve my problem with these steps: 1. move BrcmFirmwareData.kext" and "BrcmPatchRAM2.kext to EFI/Clover/kexts/10.11 2. apply wireless_bcm94352-110-v4.0c.command with option "3" and country code "DE" now, my BT works with Handoff support and also Wifi works on 2,4GHz + 5GHz channels with Airdrop. (BCM94360HMB/AzureWave AW-CB160H) Link to comment Share on other sites More sharing options...
RehabMan Posted December 16, 2015 Share Posted December 16, 2015 Great, but I resolve my problem with these steps: 1. move BrcmFirmwareData.kext" and "BrcmPatchRAM2.kext to EFI/Clover/kexts/10.11 2. apply wireless_bcm94352-110-v4.0c.command with option "3" and country code "DE" now, my BT works with Handoff support and also Wifi works on 2,4GHz + 5GHz channels with Airdrop. (BCM94360HMB/AzureWave AW-CB160H) BrcmFirmwareData/BrcmPatchRAM2 may not work correctly from EFI/Clover/kexts (as reported by others). Also note that it is massively inefficient (as all firmwares are in memory instead of just the one you need for your device). You should read the README very carefully regarding procedures to be used for EFI/Clover/kexts. The best way to do it is to create a custom injector kext. It is covered in the README. You should be familiar with editing Info.plist files. Or just install to /L/E or /S/L/E. Link to comment Share on other sites More sharing options...
alfaSZ Posted December 26, 2015 Share Posted December 26, 2015 Hi, I'm on latest Yosemite with a x99 chipset and a 4352 mini pcie card that works great in 5ghz and with handoff ie BT4 all good so far. Am using OSXFirmwareUploader from osxlatitude but have also successfully used rehabman's BrcmPatchRam kext in the past. I just cannot get regular Bluetooth to work: from Bluetooth preferences when I scan for my wireless mouse or trackpad nothing is recognised (needless to say other macs recognise them immediately so is not a discoverable on/off issue) Any thoughts? I've seen people suggesting to restart the blued daemon etc but no luck there - I even run it in console debug mode and scanned through the messages - nothing obvious wrong.. Thanks for any help! Link to comment Share on other sites More sharing options...
RehabMan Posted December 26, 2015 Share Posted December 26, 2015 Hi, I'm on latest Yosemite with a x99 chipset and a 4352 mini pcie card that works great in 5ghz and with handoff ie BT4 all good so far. Am using OSXFirmwareUploader from osxlatitude but have also successfully used rehabman's BrcmPatchRam kext in the past. I just cannot get regular Bluetooth to work: from Bluetooth preferences when I scan for my wireless mouse or trackpad nothing is recognised (needless to say other macs recognise them immediately so is not a discoverable on/off issue) Any thoughts? I've seen people suggesting to restart the blued daemon etc but no luck there - I even run it in console debug mode and scanned through the messages - nothing obvious wrong.. Thanks for any help! https://github.com/RehabMan/OS-X-BrcmPatchRAM Link to comment Share on other sites More sharing options...
davidm71 Posted December 28, 2015 Share Posted December 28, 2015 Was wondering what you guys are using for Bluetooth? My USB Broadcom adapter has a range of like 2 ft with my Magic Trackpad so I have two options 1 get a USB extension cable or two something more solid. What do you guys recommend ? Thanks Link to comment Share on other sites More sharing options...
toleda Posted December 29, 2015 Author Share Posted December 29, 2015 My USB Broadcom adapter has a range of like 2 ft Thread: PCIe Half Mini. USB BT, off topic. Link to comment Share on other sites More sharing options...
alfaSZ Posted January 6, 2016 Share Posted January 6, 2016 Ok further to RehabMan's suggestion I tried the November build of BrcmPatchRam/Data pair with Clover injection and for the first time I managed to pair the original apple wireless mouse (Mighty Mouse I think it's called) Motion is a bit jerky but most importantly the buttons don't work! Scrollwheel does work though, very weird... Had a thought that maybe GenericUsbXhci.kext could be playing funny? My hardware is x99e-itx/ac with the included azureware 4352 based card.. Oh and the newest trackpad and wireless keyboard and mouse not found either (Apple says El Capitan required for these so maybe need to grab some relevant kext from there?) Any pointers welcome! Link to comment Share on other sites More sharing options...

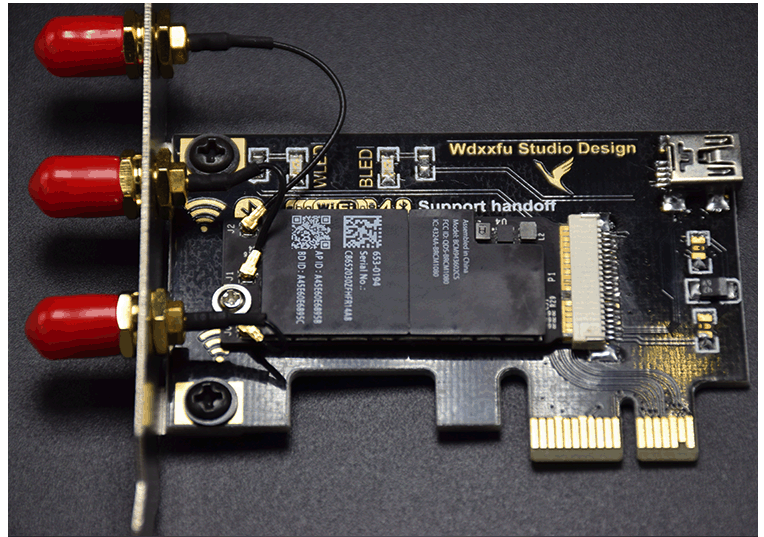

vanmoo Posted January 28, 2016 Share Posted January 28, 2016 Hi im suffering from some problem, it keeps showing FCC local, i've chaged with eeprom tools?? Link to comment Share on other sites More sharing options...
toleda Posted January 29, 2016 Author Share Posted January 29, 2016 it keeps showing FCC local, i've chaged with eeprom tools?? No specs, no idea. See Post #1, problem Reporting, attach requested files. Link to comment Share on other sites More sharing options...
Bunga Posted February 8, 2016 Share Posted February 8, 2016 hi,i need a hand with this modules that a buy Under Mavericks 10.9.5 and chameleon bootloader BCM943602CS wifi + bt 4.1 With the steps on first page i will be able to making work?? Actually the card is connected to the mobo (Asus P8P67 Deluxe) but no wifi and no BT Link to comment Share on other sites More sharing options...
Bunga Posted February 9, 2016 Share Posted February 9, 2016 Ideas guys??? Nobody help me?? Link to comment Share on other sites More sharing options...
toleda Posted February 9, 2016 Author Share Posted February 9, 2016 Actually the card is connected to the mobo (Asus P8P67 Deluxe) but no wifi and no BT See Post #1, Problem Reporting, attach requested files. Link to comment Share on other sites More sharing options...

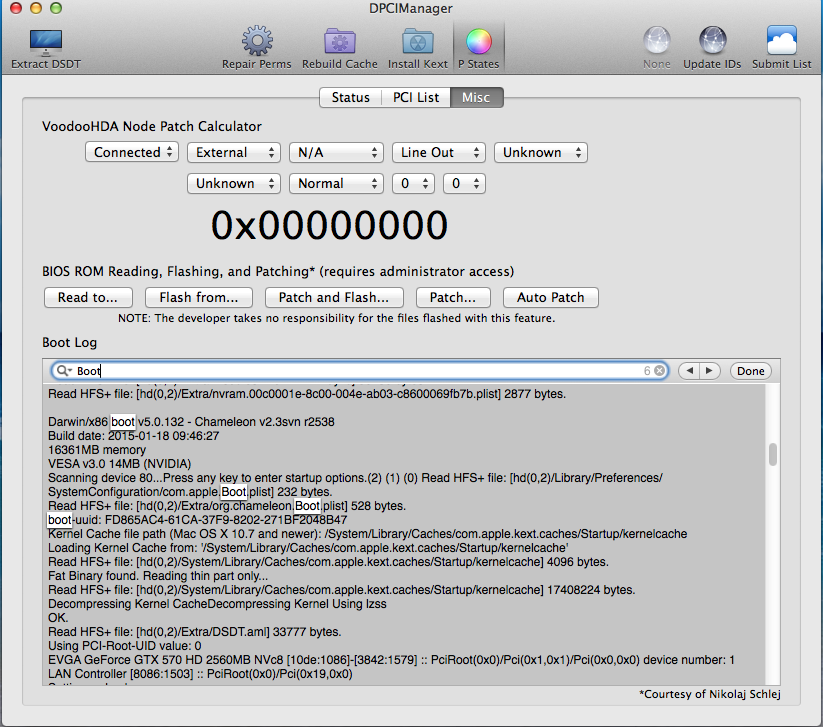

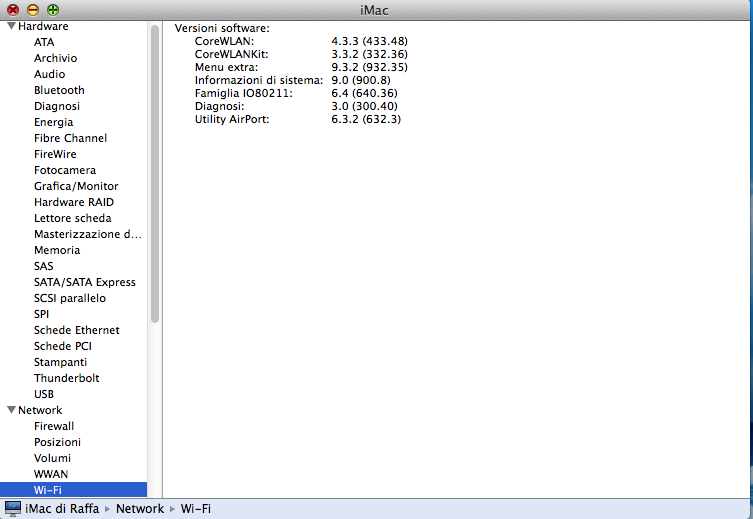

Bunga Posted February 15, 2016 Share Posted February 15, 2016 I see post #1,read all and i don't understand what steps i must fallow maybe i'm wrong but i don't see a method to making work BCM943602CS...Anyway this is my Problem Reporting: OSX: Mavericks 10.9.5 Bootlooader: Chameleon MotherBoard: Asus P8P67 Deluxe Bios Version: 2103 CPU: i7 2600K GPU: EVGA 570HD (2560MB VRAM) I almost forgot to say that i make a test with another SSD, Bootlooader Clover installed on a pen drive prepared to install El Capitan The BCM943602CS work's OOB,even during installation process ask me to turn on the magic mouse and Keyboard. Thank's for your Time and Patience IOReg iMac di Raffa.zip org.chameleon.Boot.plist.zip Link to comment Share on other sites More sharing options...
toleda Posted February 15, 2016 Author Share Posted February 15, 2016 i don't see a method to making work BCM943602CS... Very strange ACPI structure (SB.PCI0.PEX7.BR24.BR26.ARPT) Install attached ssdt, reply with new IOReg. SSDT-ARPT-BCM4360.aml.zip Link to comment Share on other sites More sharing options...
Bunga Posted February 16, 2016 Share Posted February 16, 2016 Ok,i put your SSDT in my extra folder,reboot and recreate IOReg IOReg II .zip Link to comment Share on other sites More sharing options...
toleda Posted February 16, 2016 Author Share Posted February 16, 2016 Ok,i put your SSDT in my extra folder,reboot and recreate IOReg Try attached, reply with IOReg, SSDT-ARPT-BCM4360-1.aml.zip Link to comment Share on other sites More sharing options...
