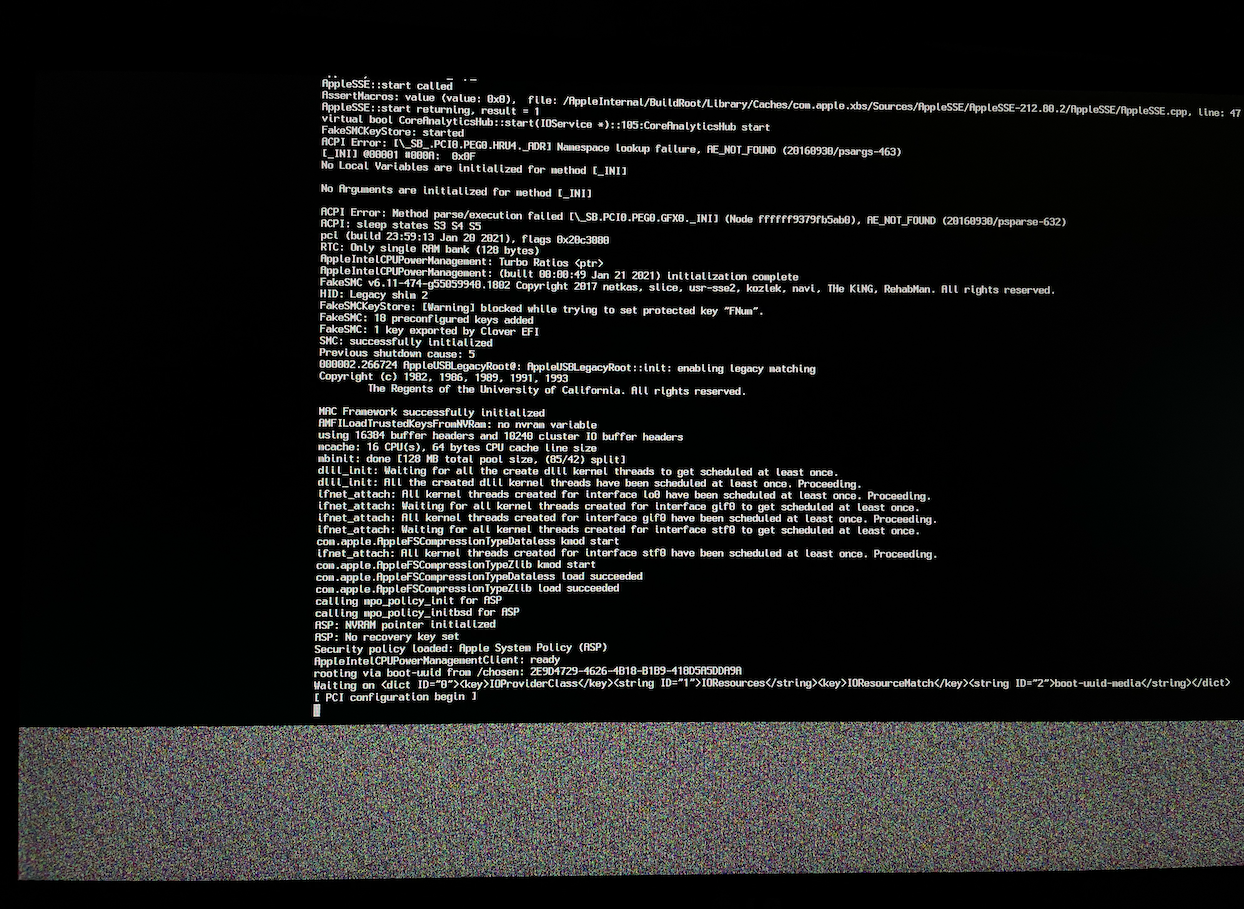

NEOSoftWare Posted August 25, 2021 Share Posted August 25, 2021 (edited) Good afternoon. There is an ASUS P9X79 Le motherboard, it has a built-in Ethernet - Realtek 8111F and when the operating system boots, the process hangs on [ PCI configuration begin ] If you disconnect the network card in the BIOS, then the operating system boots successfully. Tell me what you can do? I cannot execute the command "log show --predicate" processID == 0 "--debug" - since the operating system will not boot. I also cannot not use the boot flags "npci = 0x2000 or npci = 0x3000" - without them the video card does not work (I get such an image) Spoiler Edited August 25, 2021 by NEOSoftWare Link to comment https://www.insanelymac.com/forum/topic/287161-new-driver-for-realtek-rtl8111/page/64/#findComment-2765266 Share on other sites More sharing options...
martthie_08 Posted August 30, 2021 Share Posted August 30, 2021 searched through this thread but couldn't find an answer to these two questions: 1. is this driver compatible with add-on PCIe ethernet cards that have the 8111 chipset? (Sonnet Presto Gigabit PCIe in my case) 2. does it support AVB Audio? thankyou so much!! Link to comment https://www.insanelymac.com/forum/topic/287161-new-driver-for-realtek-rtl8111/page/64/#findComment-2765419 Share on other sites More sharing options...
MacUser2525 Posted August 30, 2021 Share Posted August 30, 2021 2 hours ago, martthie_08 said: searched through this thread but couldn't find an answer to these two questions: 1. is this driver compatible with add-on PCIe ethernet cards that have the 8111 chipset? (Sonnet Presto Gigabit PCIe in my case) 2. does it support AVB Audio? thankyou so much!! 1. PCIDs are PCIDs if they are contained in the .kext and it matches it loads the driver for it. That is how these things work in an OS during hardware discovery process, it does not matter if the chips are on the motherboard or add-in card. The way to be certain is to install the driver and see if it loads for your card. 2. No clue have never heard of it until now. Link to comment https://www.insanelymac.com/forum/topic/287161-new-driver-for-realtek-rtl8111/page/64/#findComment-2765424 Share on other sites More sharing options...
martthie_08 Posted August 30, 2021 Share Posted August 30, 2021 (edited) thanks for your reply. I installed the 2.4.2 version of this kext and verified it successfully loaded with kextstat. Unfortunately, when I go to System Preferences - Network - Advanced - Hardware there is no option for AVB too bad, might have to shell out some cash for the current Sonnet 10G card, which is supported natively and has AVB too. Bit overkill, but oh well... Edited August 30, 2021 by martthie_08 Link to comment https://www.insanelymac.com/forum/topic/287161-new-driver-for-realtek-rtl8111/page/64/#findComment-2765425 Share on other sites More sharing options...
martthie_08 Posted September 1, 2021 Share Posted September 1, 2021 just a quick follow-up to my last message: I did some more testing both with 2.4.2 and 2.2.2 version of this driver and although the interface shows up in the System Preferences - Network and I can configure it there, LAN does not work (only tested AVB the other day when I wrote my last post). When I insert the cable from my router into the NIC card (Sonnet Presto Gigabit PCIe), the Network System Preference keeps jumping back and forth between "Not Connected" and "Cable Unplugged". In the left column of the preference it stays red and says "Not Connected". Please note everything works fine with the onboard network interface. I assume the kext is not properly loaded or that it is in conflict with IntelMausi.kext or that there are other issues. This is with Big Sur 11.5 on OpenCore Version 0.6.7, RealtekRTL8111.kext in EFI - OC - Kexts and the extension listed in config.plist as the last entry after WhateverGreen. A couple pages back I noticed @aww adding it to /L/E to make it work, but I'd rather not go that route if it's avoidable. Link to comment https://www.insanelymac.com/forum/topic/287161-new-driver-for-realtek-rtl8111/page/64/#findComment-2765573 Share on other sites More sharing options...
MacUser2525 Posted September 1, 2021 Share Posted September 1, 2021 34 minutes ago, martthie_08 said: I assume the kext is not properly loaded or that it is in conflict with IntelMausi.kext or that there are other issues. This is with Big Sur 11.5 on OpenCore Version 0.6.7, RealtekRTL8111.kext in EFI - OC - Kexts and the extension listed in config.plist as the last entry after WhateverGreen. The IntelMausi should not be loading if you have done the proper thing and disabled the onboard when adding an internal pci-e card. A .kext will only load if it detects the hardware enabled during the hardware discovery process. Not to mention you should not have a .kext in the config,plist that is not intended to be used, it makes no sense to do it that way. Link to comment https://www.insanelymac.com/forum/topic/287161-new-driver-for-realtek-rtl8111/page/64/#findComment-2765575 Share on other sites More sharing options...
martthie_08 Posted September 1, 2021 Share Posted September 1, 2021 well, I will need to continue to use my mainboards Intel Ethernet for my internet. The extra PCI card is for my AVB audio interface that needs a completely separate network. Link to comment https://www.insanelymac.com/forum/topic/287161-new-driver-for-realtek-rtl8111/page/64/#findComment-2765576 Share on other sites More sharing options...
MacUser2525 Posted September 2, 2021 Share Posted September 2, 2021 6 hours ago, martthie_08 said: well, I will need to continue to use my mainboards Intel Ethernet for my internet. The extra PCI card is for my AVB audio interface that needs a completely separate network. So there is a method to your madness, a first for me never heard of an audio interface that needed a special network to work. Indeed you do learn something new every day. Link to comment https://www.insanelymac.com/forum/topic/287161-new-driver-for-realtek-rtl8111/page/64/#findComment-2765586 Share on other sites More sharing options...
kaoskinkae Posted October 2, 2021 Share Posted October 2, 2021 (edited) I have a gigabyte z390 ud motherboard with Realtek RTL8111 chip, version 2.3.0 does not work properly on both big sur and Monterey systems, it only works properly with version 2.4.2 I have tried to erase the network configuration and the system persists if you connect but there is a network connection delay that makes it impossible to do things decently Cat8 Ethernet cable I just asked for it I think the problem and the connection is bad if I update the kext it is a slow connection. I just ordered this cat8 cable to see but I think there is the problem, mine is cat5 Edited October 2, 2021 by kaoskinkae Link to comment https://www.insanelymac.com/forum/topic/287161-new-driver-for-realtek-rtl8111/page/64/#findComment-2768191 Share on other sites More sharing options...
macky1 Posted October 23, 2021 Share Posted October 23, 2021 (edited) On 10/3/2021 at 5:48 AM, kaoskinkae said: I have a gigabyte z390 ud motherboard with Realtek RTL8111 chip, version 2.3.0 does not work properly on both big sur and Monterey systems, it only works properly with version 2.4.2 I have tried to erase the network configuration and the system persists if you connect but there is a network connection delay that makes it impossible to do things decently Cat8 Ethernet cable I just asked for it I think the problem and the connection is bad if I update the kext it is a slow connection. I just ordered this cat8 cable to see but I think there is the problem, mine is cat5 I have Realtek RTL8111 chip on my motherboard. Try version 2.3.0d5 I have been using this kext for a long time with no issues. https://www.insanelymac.com/applications/core/interface/file/attachment.php?id=331774 Edited October 23, 2021 by macky1 Link to comment https://www.insanelymac.com/forum/topic/287161-new-driver-for-realtek-rtl8111/page/64/#findComment-2769818 Share on other sites More sharing options...
Adyjay Posted July 5, 2022 Share Posted July 5, 2022 (edited) Updated MacOS from BigSur to Monterey 12.4 due to a GPU change; now Realtek RTL8111 doesn't seem to work anymore. As someone described previously, it just switches between `Cable Unplugged` and `Not Connected`. This is on a GA Z490 UD; I've tested various versions of the kext, none of them changed anything. I can confirm the kext is loaded, but that's about it. Edited July 5, 2022 by Adyjay Link to comment https://www.insanelymac.com/forum/topic/287161-new-driver-for-realtek-rtl8111/page/64/#findComment-2788095 Share on other sites More sharing options...
LockDown Posted July 6, 2022 Share Posted July 6, 2022 4 hours ago, Adyjay said: now Realtek RTL8111 doesn't seem to work anymore. Just update whatever the latest of Mieze's release, since it has been almost a year that nobody (including me) reported about the issue you're having on monterey Link to comment https://www.insanelymac.com/forum/topic/287161-new-driver-for-realtek-rtl8111/page/64/#findComment-2788096 Share on other sites More sharing options...
Adyjay Posted July 6, 2022 Share Posted July 6, 2022 7 hours ago, LockDown said: Just update whatever the latest of Mieze's release, since it has been almost a year that nobody (including me) reported about the issue you're having on monterey Umm, what ? https://github.com/Mieze/RTL8111_driver_for_OS_X/issues/73 Link to comment https://www.insanelymac.com/forum/topic/287161-new-driver-for-realtek-rtl8111/page/64/#findComment-2788119 Share on other sites More sharing options...
Slice Posted July 6, 2022 Share Posted July 6, 2022 14 minutes ago, Adyjay said: Umm, what ? https://github.com/Mieze/RTL8111_driver_for_OS_X/issues/73 Can you test the driver Realtek LAN v3 from my signature? I am not sure if it is compatible with your chip revision but you may try. Link to comment https://www.insanelymac.com/forum/topic/287161-new-driver-for-realtek-rtl8111/page/64/#findComment-2788123 Share on other sites More sharing options...
LockDown Posted July 6, 2022 Share Posted July 6, 2022 1 hour ago, Adyjay said: Umm, what ? https://github.com/Mieze/RTL8111_driver_for_OS_X/issues/73 Oops 😁 Link to comment https://www.insanelymac.com/forum/topic/287161-new-driver-for-realtek-rtl8111/page/64/#findComment-2788128 Share on other sites More sharing options...
kocoman Posted November 13, 2022 Share Posted November 13, 2022 has anyone got iokdp added to it? Link to comment https://www.insanelymac.com/forum/topic/287161-new-driver-for-realtek-rtl8111/page/64/#findComment-2797164 Share on other sites More sharing options...
kocoman Posted January 9, 2023 Share Posted January 9, 2023 anyone have timeout and need reconnect/disconnect ethernet when high load in ventura? thx 1 Link to comment https://www.insanelymac.com/forum/topic/287161-new-driver-for-realtek-rtl8111/page/64/#findComment-2799775 Share on other sites More sharing options...
xenophon Posted August 18, 2024 Share Posted August 18, 2024 (edited) Thank you for your work - my stable of OSX86 machines depend on it. Ran into an issue with the current 2.4.2 release and WOL for a Gigabyte ga-h97m-d3h (with the Realtek® GbE LAN chip) running Sonoma 14.6.1. Tried all versions down to 2.2.2, with no success. Please note that ethernet is otherwise working fine, except for the wake-on-LAN capability. Because I really value the WOL function, I tried Rehabman's fork of your work (at https://github.com/RehabMan/OS-X-Realtek-Network) not expecting much. Of note, there is a "version 2.2.1" string in its .plist. Amazingly, it worked right away. FYI (with infinite gratitude, once again). Xen Realtek® GbE LAN chip (10/100/1000 Mbit) Edited August 18, 2024 by xenophon 1 Link to comment https://www.insanelymac.com/forum/topic/287161-new-driver-for-realtek-rtl8111/page/64/#findComment-2824247 Share on other sites More sharing options...

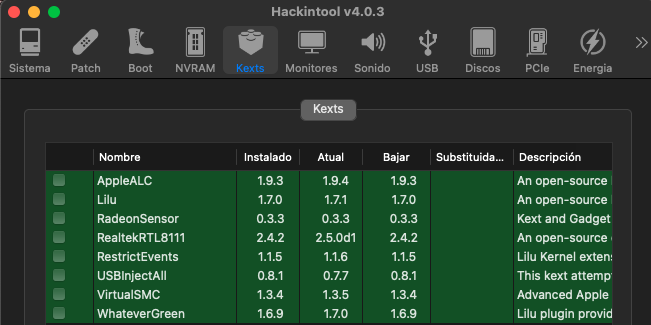

kaoskinkae Posted February 5, 2025 Share Posted February 5, 2025 RealtekRTL8111 2.50d1 I just saw that a new version of the Realtek network kext will be available soon. Although it is available to be compiled, it is not yet available. Has anyone compiled it or when will it be available? Link to comment https://www.insanelymac.com/forum/topic/287161-new-driver-for-realtek-rtl8111/page/64/#findComment-2830212 Share on other sites More sharing options...
Mieze Posted February 5, 2025 Author Share Posted February 5, 2025 I ran first successful tests last night 2am and I'm going to publish a test release during the next days. The main reason for the update is proper support for AppleVTD and a little bit of code cleanup. 2 Link to comment https://www.insanelymac.com/forum/topic/287161-new-driver-for-realtek-rtl8111/page/64/#findComment-2830213 Share on other sites More sharing options...
kaoskinkae Posted February 5, 2025 Share Posted February 5, 2025 1 hour ago, Mieze said: I ran first successful tests last night 2am and I'm going to publish a test release during the next days. The main reason for the update is proper support for AppleVTD and a little bit of code cleanup. AppleVTD I have a Gigabyte Z390 board see NEW: I have never had the AppeVTD option enabled and I don't know if it is necessary for this type of network card And I also don't find any use for this type of network card and the real function of having it active Link to comment https://www.insanelymac.com/forum/topic/287161-new-driver-for-realtek-rtl8111/page/64/#findComment-2830214 Share on other sites More sharing options...
Mieze Posted February 5, 2025 Author Share Posted February 5, 2025 Some users need AppleVTD because they also want to use Broadcom-based Wifi cards. 3 Link to comment https://www.insanelymac.com/forum/topic/287161-new-driver-for-realtek-rtl8111/page/64/#findComment-2830215 Share on other sites More sharing options...
Mieze Posted February 5, 2025 Author Share Posted February 5, 2025 (edited) Ok, as promised, here is the test version 2.5.0d3, which is compatible with AppleVTD. It replaces 2.5.0d2 which had a bug causing a memory leak when unloading the driver (never happens in normal driver lifecycle). Good luck testing❣️ Mieze 😺 RealtekRTL8111-V2.5.0d3.zip Edited February 6, 2025 by Mieze Update to version 2.5.0d3 2 1 Link to comment https://www.insanelymac.com/forum/topic/287161-new-driver-for-realtek-rtl8111/page/64/#findComment-2830216 Share on other sites More sharing options...
Mieze Posted February 6, 2025 Author Share Posted February 6, 2025 (edited) I published an update to 2.5.0d3 to solve a problem when trying to unload the driver. See post above! Edited February 6, 2025 by Mieze 1 Link to comment https://www.insanelymac.com/forum/topic/287161-new-driver-for-realtek-rtl8111/page/64/#findComment-2830219 Share on other sites More sharing options...
kaoskinkae Posted February 6, 2025 Share Posted February 6, 2025 (edited) 9 hours ago, Mieze said: I published an update to 2.5.0d3 to solve a problem when trying to unload the driver. See post above! I will try the beta version and publish and create a video for my Spanish hackintosh channel Edited February 6, 2025 by kaoskinkae 1 Link to comment https://www.insanelymac.com/forum/topic/287161-new-driver-for-realtek-rtl8111/page/64/#findComment-2830221 Share on other sites More sharing options...
