SMC Monitor is a Java front end for the command line tool smc by devnull. The app was written by el coniglio.






Download: SMC Monitor.zip



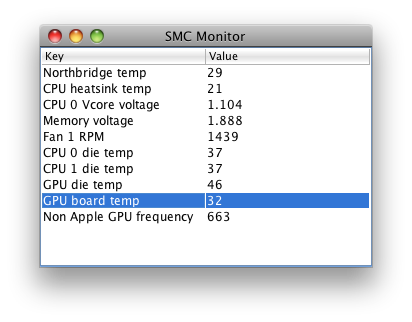

In the preferences window you can define which SMC keys should be shown in the main window, edit their descriptions and set the conversion type.

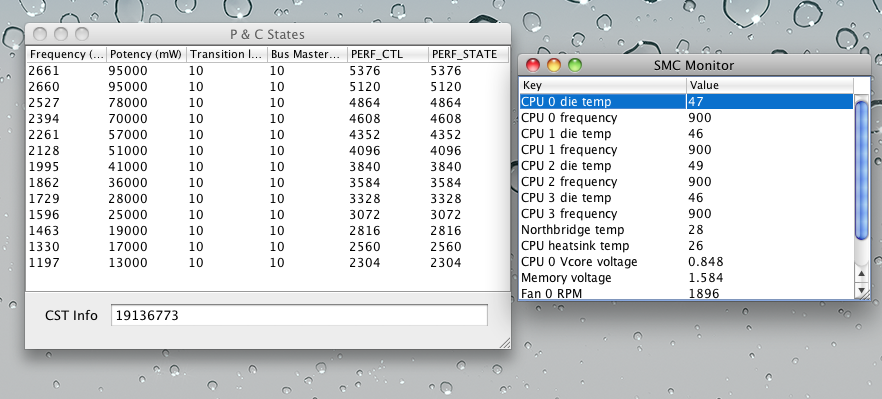

There's also a window with P and C states info parsed from ioreg.






You need this new version of FakeSMC and its plugins to have more keys available, such as CPU frequency and voltage (IntelCPUMonitor)

http://www.projectos...p?showforum=165

Share this post


Link to post
Share on other sites
Advertisement

Hi oldnaplam



Another app by el coniglio.... He's keeping busy ;)

Annway, thanks for posting this as it's a nice quick way for reading the keys.

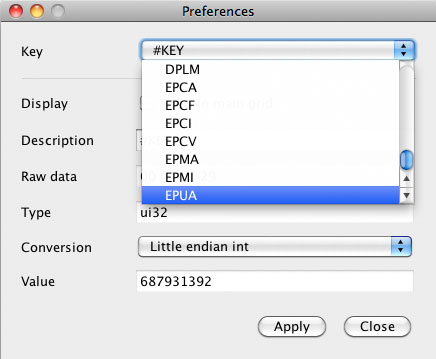

Just playing with it on my iMac but I notice the drop down list in preferences doesn't list all keys? See screenshot:


Is there a limit to the number it shows?

Share this post


Link to post
Share on other sites

You mean some keys returned by "smc -l" are not listed in the preferences?



In main window only keys with description are displayed by default.

Share this post


Link to post
Share on other sites

@blackosx



I'm not sure if its a JVM array limitation (prob not) or a limitation of the combobox component, or something else. If you post a text file with your "smc -l" output I can check it out.

Share this post


Link to post
Share on other sites
@blackosx



I'm not sure if its a JVM array limitation (prob not) or a limitation of the combobox component, or something else. If you post a text file with your "smc -l" output I can check it out.

Hi el coniglio



Nice job with the app ;)



Oldnapalm was right, in that smc -l returns the same values as I see in the preferences window of SMC Monitor.

$ ./smc -l
 #KEY  [ui32]  41 (bytes 00 00 01 29)
 $Adr  [ui32]  0 (bytes 00 00 03 00)
 $Num  [ui8 ]  1 (bytes 01)
 +LKS  [flag]  (bytes 07)
 AL!   [ui8 ]  0 (bytes 00)
 ALA0  [{ala]  (bytes 7a 04 00 34 00 90)
 ALA1  [{ala]  (bytes 1d c9 00 7a 00 c4)
 ALA2  [{ala]  (bytes 09 d6 00 ac 01 24)
 ALA3  [{ala]  (bytes 03 a9 00 f7 01 85)
 ALA4  [{ala]  (bytes 01 d3 01 3e 04 00)
 ALA5  [{ala]  (bytes 00 01 00 01 04 00)
 ALAT  [{alt]  (bytes 00 00 00 00)
 ALI0  [{ali]  (bytes 03 01 01)
 ALI1  [{ali]  (bytes 00 00 00)
 ALRV  [ui16]  0 (bytes 00 00)
 ALSC  [{alc]  (bytes 01 92 00 96 00 c8 00 02 00 01 01 5e 14 ea 01 00)
 ALSF  [fp1f]  (bytes 01 48)
 ALSL  [ui16]  0 (bytes 00 00)
 ALT0  [ui16]  0 (bytes 00 00)
 ALT1  [ui16]  0 (bytes 00 00)
 ALTH  [{alr]  (bytes 00 00 00 00 00 00 00 00 00 00)
 ALV0  [{alv]  (bytes 01 00 00 00 00 00)
 ALV1  [{alv]  (bytes 00 01 00 00 00 00)
 AUPO  [ui8 ]  0 (bytes 00)
 BATP  [flag]  (bytes 00)
 BEMB  [flag]  (bytes 00)
 BNum  [ui8 ]  0 (bytes 00)
 BSIn  [ui8 ]  66 (bytes 42)
 CLKT  [ui32]  213 (bytes 00 00 fb d5)
 CLSD  [ui16]  0 (bytes 00 00)
 CLWK  [ui16]  0 (bytes 00 00)
 CRCB  [ui32]  166 (bytes a3 da 51 a6)
 CRCU  [ui32]  114 (bytes 50 d6 c5 72)
 DPLM  [{lim]  (bytes 00 00 00)
 EPCA  [ui32]  0 (bytes 00 00 70 00)
 EPCF  [flag]  (bytes 01)
 EPCI  [ui32]  0 (bytes 05 80 07 00)
 EPCV  [ui16]  1 (bytes 00 01)
 EPMA  [ch8*]  (bytes 00 00 60 80)
 EPMI  [ui8 ]  0 (bytes 00)
 EPUA  [ui32]  0 (bytes 00 00 60 00)



So your app is working correctly.



I just wonder why the smc binary is only returning those keys when I know for example that the temperature data can be found in keys beginning with T i.e TCAH, TC0C etc. But then I know those keys from a MacPro3,1, maybe my iMac 11,3 that I'm using right now uses different keys?



Anyway, no problem. I'll test this again tonight on my hack.

Share this post


Link to post
Share on other sites

@blackosx



I don't know if these keys are 'default' or injected as additional features by fakesmc (or plugin). In apple hardware I don't know if these keys aren't present or the "smc" command just can't access them.



I tested on a macbook air and I got only 10 keys in the command line output, 8 of them start with A (ACEN, ACFP, etc).

Share this post


Link to post
Share on other sites
I don't know if these keys are 'default' or injected as additional features by fakesmc (or plugin). In apple hardware I don't know if these keys aren't present or the "smc" command just can't access them.

I think the keys are present on genuine macs and it's just that the smc binary doesn't access them.



smc-0.01 is not very recent (2006-2008), maybe it needs to be fixed to read keys present on newer Macs?



The source is inside smcFanControl app, if someone wants to give a shot :D

http://www.eidac.de/?p=134

Could be worth look but then I guess this will mostly be used with hacks and not real macs?



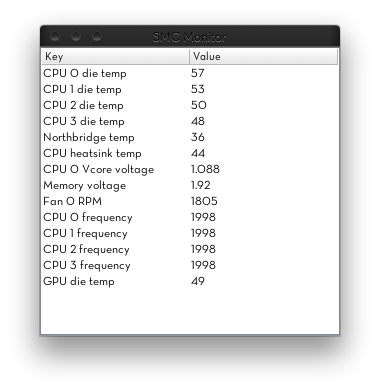

It's working fine with FakeSMC.

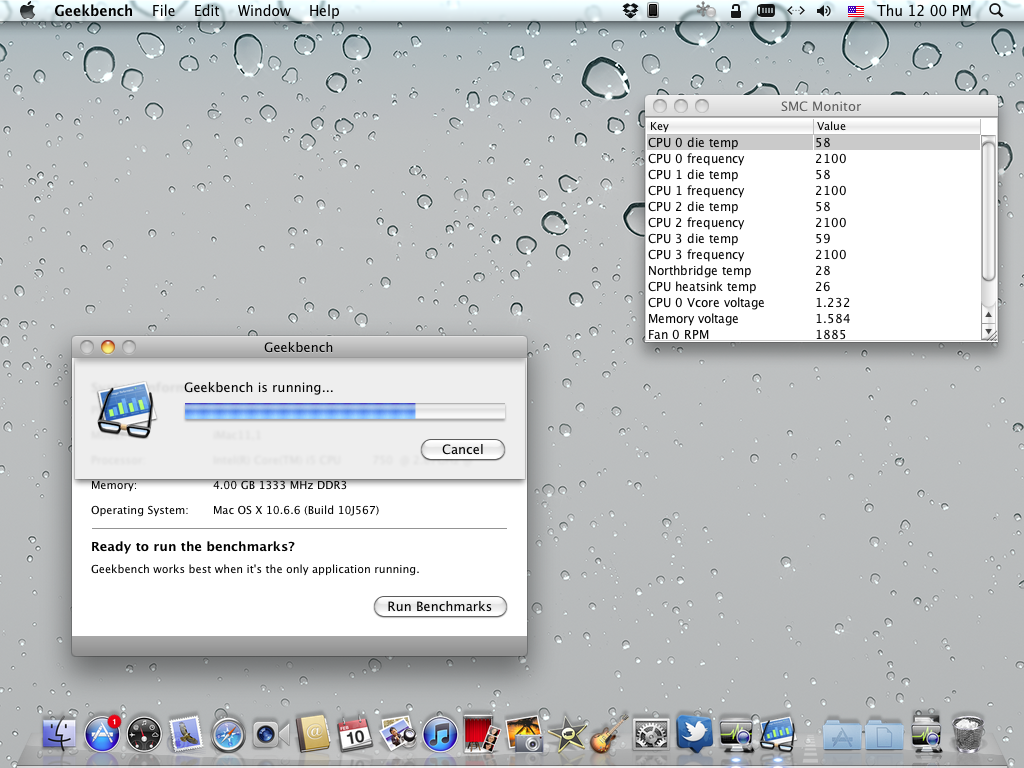

Yes. I agree - it works fine on my hack.


Share this post


Link to post
Share on other sites
@mald0n is your gpu idling? temps seem a tad bit warm to be idling around ~60



Yep



first model

HiS




The cooler is small

Win or Mac 60/65



BiosMod - 9000 RPM :D

Share this post


Link to post
Share on other sites

single slot cooler no wonder...



and for your fan readings I'm assuming you did a DSDT edit to show another fan because fakesmc only pics up one of my fans the same goes for the smc monitor.

Share this post


Link to post
Share on other sites
single slot cooler no wonder...



and for your fan readings I'm assuming you did a DSDT edit to show another fan because fakesmc only pics up one of my fans the same goes for the smc monitor.

Thermaltake ^_^

4700 RPM

Share this post


Link to post
Share on other sites

THank you so much for such a useful utility!

I do have some questions relating to the CPU frequency.

I have an i5-750 CPU on 10.6.6 in 64bit.

I can see that speedstep is working, but the frequencies are "different" from the actual ones.

The are just not the ones from the C/P-state table accessed from the menu. So what exactly does the values in the main window mean?



Plus I should have the turbo boost thing for my processor, but from the tables I can't find cant freq higher than the non-turbo max (2.67 GHz)

Share this post


Link to post
Share on other sites

Values in "P & C states" window are extracted from ioreg (PerformanceStateArray and CSTInfo), while the ones in main window are read from SMC (FakeSMC in hackintoshes).



I really don't understand why the frequency values are different. In my Core 2 Duo laptop the lowest P-state is 800 MHz in ioreg and 720 MHz in FakeSMC. Maybe we can have an explanation for this in FakeSMC forum (link in first post), more precisely in IntelCPUMonitor subforum. Of course if someone can and want to reply this here, we'll be grateful.

Share this post


Link to post
Share on other sites
THank you so much for such a useful utility!

I do have some questions relating to the CPU frequency.

I have an i5-750 CPU on 10.6.6 in 64bit.

I can see that speedstep is working, but the frequencies are "different" from the actual ones.

The are just not the ones from the C/P-state table accessed from the menu. So what exactly does the values in the main window mean?



Plus I should have the turbo boost thing for my processor, but from the tables I can't find cant freq higher than the non-turbo max (2.67 GHz)



similar Problem here with my i5 750



Frequenzies in SMC Monitor are not correct. It shows 1011 Mhz in Idle where 1350Mhz is correct .

And under Load the Monitor output only 2359Mhz where 3200 Mhz should be correct( with Turbo on 150MHZ FSB)



The "real" Frequenzies is correct( based on Bios Settings), only the IntelCPUMonitorValues are wrong

Share this post


Link to post
Share on other sites

On my system SMC Monitor shows only max CPU frequency when idle and under load althought there are proper values in "P & C states" window. I have latest Fakesmc.kext and IntelCPUMonitor.kext from projectosx forums.

Share this post


Link to post
Share on other sites
REQ: were to DL that P&C States tool (shown 3 posts above) ?

Thanks



From the first post: "There's also a window with P and C states info parsed from ioreg."



To view the P & C States window within the SMC Monitor.app, go to the File menu, then select the P & C States option.

Share this post


Link to post
Share on other sites

About smc-0.01 which comes with smcFanControl (http://www.eidac.de/?p=134), I guess it was compiled on Tiger. Trying to compile it on Snow Leopard I get this error

Undefined symbols:
 "_IOConnectMethodStructureIStructureO", referenced from:
  _SMCCall in smc.o
ld: symbol(s) not found
collect2: ld returned 1 exit status

"Intel Sensors Module" from iStat (http://www.islayer.com/help/istatmenus-intel/) uses IOConnectCallStructMethod instead of IOConnectMethodStructureIStructureO, this way it compiles fine on Snow, but the "list all keys and values" option doesn't work. SMCReadIndexCount returns correct value, but SMCCall return is != kIOReturnSuccess in SMCPrintAll. Any ideas on this?



@blackosx, can you read the keys you know exist, even if they are not listed, using smc binary?

./smc -k TCAH -r

Share this post


Link to post
Share on other sites

I can read a key that is not listed in 'smc -l'.



I got these results after reading the TC0D key with 3-4s interval on a macbook air.



TC0D [sp78] (bytes 32 60)

TC0D [sp78] (bytes 32 90)

TC0D [sp78] (bytes 33 10)



I'm not sure about its format, but I'd guess its the temp in celcius * 0xFF.

Share this post


Link to post
Share on other sites
