Fbalino
Fbalino
Posted
Posted
Appleintelcpupowerman.... -_-

you added in boot.plist Generate P & C states?

Use Chameleon RC5



your processor is Core i 9xx?

Use smbios MacPro4,1

smbios.plist.zip



look it

http://www.insanelymac.com/forum/index.php...t&p=1593362



Hey Mald0n,



Still getting that kernel panic

-I used Chameleon RC5

-Generate P and C states = yes

-Processor is Core i7 9xx yes

-I used the smbios you supplied.

-repaired permissions and booted -f -v



Second problem:

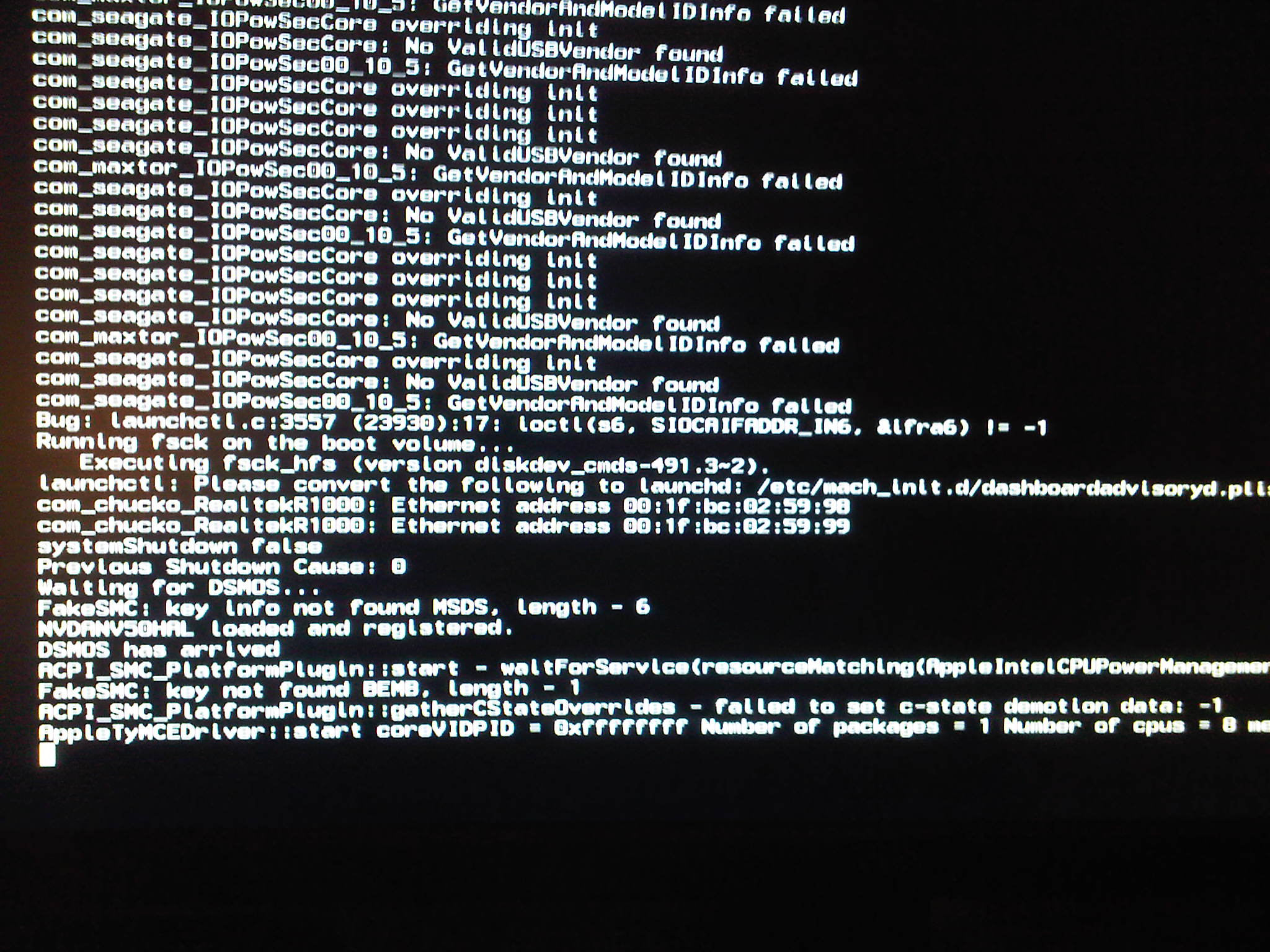

now when i try to boot from the USB stick (which has myHack 1.1) I get another error (see attached)..so I can't boot into my computer at all :unsure: Any ideas??



Thanks!


Link to comment
Share on other sites
MaLd0n
MaLd0n
Posted
  • Author
Posted
Hey Mald0n,



Still getting that kernel panic

-I used Chameleon RC5

-Generate P and C states = yes

-Processor is Core i7 9xx yes

-I used the smbios you supplied.

-repaired permissions and booted -f -v



Second problem:

now when i try to boot from the USB stick (which has myHack 1.1) I get another error (see attached)..so I can't boot into my computer at all :unsure: Any ideas??



Thanks!



BackUp and remove Appletymcedriver.kext(in System/Library/Extensions)







Use disabler(Nullcpu...)



you saw the link I sent you

problems with the bios

Link to comment
Share on other sites
Fbalino
Fbalino
Posted
Posted
BackUp and remove Appletymcedriver.kext(in System/Library/Extensions)







Use disabler(Nullcpu...)



you saw the link I sent you

problems with the bios



Great! Did as you said and now it boots just fine. My internet isn't working however--do I need a kext for that?



Thanks again!

Link to comment
Share on other sites
Larx
Larx
Posted
Posted

MaLd0n,



I need your confirmation!

you send me dsdt.aml for native speedstep.

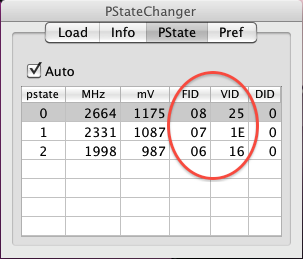

Your code with FID/VID from VoodooPState.kext



Processor (P001, 0x01, 0x00000810, 0x06)

{

Method (_PSS, 0, NotSerialized)

{

Return (Package (0x03)

{

Package (0x06)

{

Zero,

Zero,

0x10,

0x10,

0x0825,

Zero

},



Package (0x06)

{

Zero,

Zero,

0x10,

0x10,

0x071E,

One

},



Package (0x06)

{

Zero,

Zero,

0x10,

0x10,

0x0616,

0x02

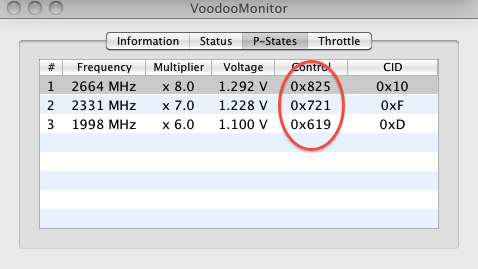

And I get code from VoodooMonitor and it is:



Processor (P001, 0x01, 0x00000810, 0x06)

{

Method (_PSS, 0, NotSerialized)

{

Return (Package (0x03)

{

Package (0x06)

{

Zero,

Zero,

0x10,

0x10,

0x0825,

Zero

},



Package (0x06)

{

Zero,

Zero,

0x10,

0x10,

0x0721,

One

},



Package (0x06)

{

Zero,

Zero,

0x10,

0x10,

0x0619,

0x02

}



It seems that SpeedStep works much better with the FID / VID from VoodooMonitor.

Is this correct? The temperature is much lower. Speedstep is working properly. I deleted VoodooPState.kext and it seems everything is normal. Can you confirm this? Is this code of VoodooMonitor wrong? I mean, can i use this code from VoodooMonitor in DSDT or ? Thanks!



Link to comment
Share on other sites
MaLd0n
MaLd0n
Posted
  • Author
Posted
It seems that SpeedStep works much better with the FID / VID from VoodooMonitor.

Is this correct? The temperature is much lower. Speedstep is working properly. I deleted VoodooPState.kext and it seems everything is normal. Can you confirm this? Is this code of VoodooMonitor wrong? I mean, can i use this code from VoodooMonitor in DSDT or ? Thanks!



WoW

I really do not know what the difference between the two

I always used the VoodooPState

but this method is outdated

Chameleon "is the world" :(

I currently only use the Chameleon

Link to comment
Share on other sites
Larx
Larx
Posted
Posted
WoW

I really do not know what the difference between the two

I always used the VoodooPState

but this method is outdated

Chameleon "is the world" :)

I currently only use the Chameleon

Yea, me too. No kexts. No VoodooPState also no VoodooMonitor. Chameleon only.



What I wanted to say is that the code of VoodooPstate was not good. The temperature was rising to 55 degrees, idle, while the code of VoodooMonitor which is obviously a bit differently (I do not know why) the temperature is quit normal.

It seems that we managed to get the Native SpeedStep on my system. :rolleyes: Thanks for help MaLd0n! Thanks a lot !

Link to comment
Share on other sites
MaLd0n
MaLd0n
Posted
  • Author
Posted
Yea, me too. No kexts. No VoodooPState also no VoodooMonitor. Chameleon only.



What I wanted to say is that the code of VoodooPstate was not good. The temperature was rising to 55 degrees, idle, while the code of VoodooMonitor which is obviously a bit differently (I do not know why) the temperature is quit normal.

It seems that we managed to get the Native SpeedStep on my system. :) Thanks for help MaLd0n! Thanks a lot !

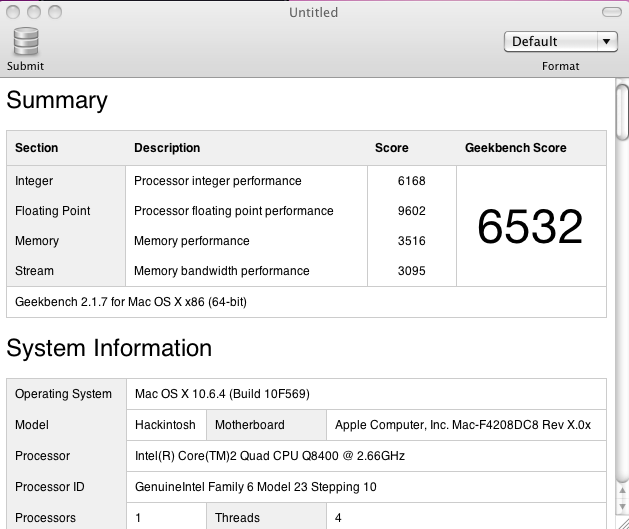

the ideal would be to test the processor performance with the two

:rolleyes:

Link to comment
Share on other sites
MaLd0n
MaLd0n
Posted
  • Author
Posted
thank you very much!



i will try it.



:(



@MaLd0n & everyone: hi, great work! here you'll find an UB of iasl tool, it's up to date, and I have the intention of keep building it. thanks for sharing!

Thanks man

Link to comment
Share on other sites
MaLd0n
MaLd0n
Posted
  • Author
Posted
I have an asus p5l-mx, the closest board in the auto-patcher is p5lp-le, it shares the same chipset but different audio/networking, the only thing I don't have is properly working sleep..

should I try the patch for that board?



my current dsdt

send_me.zip



dsdt.him.zip

RENAME

LAN

REMOVE

HID/CID

IRQs

SMBUS

LPC

SHUTDOWN

DTGP

FIX WARNINGS

Link to comment
Share on other sites
him
him
Posted
Posted

thanks, I used the dsdt you made but sleep still isn't working

instead of pressing the keyboard/mouse to wake which always restarted the computer, now it stays in sleep mode,

pressing the keyboard/mouse doesn't do anything



this is my boot.plist

<dict>

<key>Default Partition</key>

<string>hd(0,2)</string>

<key>Graphics Mode</key>

<string>1280x1024x32</string>

<key>DSDT</key>

<string>/Extra/dsdt.aml</string>

<key>GraphicsEnabler</key>

<string>no</string>

<key>Kernel</key>

<string>mach_kernel</string>

<key>Kernel Flags</key>

<string>arch=i386 -v</string>

<key>Theme</key>

<string>Default</string>

<key>Timeout</key>

<string>5</string>

<key>GeneratePStates</key>

<string>Yes</string>

<key>GenerateCStates</key>

<string>Yes</string>

</dict>

and the only kexts in extraaaa/etensions are

fakesmc.kext & nvenabler64.kext

Link to comment
Share on other sites
MaLd0n
MaLd0n
Posted
  • Author
Posted

Run on terminal

ioreg -lw0 | grep PerformanceStateArray

ioreg -lw0 | grep CSTInfo

kextstat

cat /var/log/kernel.log

grep Wake /var/log/kernel.log



send me all



what chipset this motherboard?



ICH9?

Link to comment
Share on other sites
MaLd0n
MaLd0n
Posted
  • Author
Posted
it's ICH7



I just tried it with Sleepenabler kext but that doesn't help at all

output.rtf



thanks for your help!

delete sleepenabler



--> AppleIntelCPUPowerManagement not loaded

you have deleted this kext?

what is your processor?

Link to comment
Share on other sites
MaLd0n
MaLd0n
Posted
  • Author
Posted
I've already deleted sleepenabler, and AppleIntelCPUPowerManagement & AppleIntelCPUPowerManagementClient are both deleted



processor is 2.4GHz core 2 duo



WoW

???

power management will not work without them

Link to comment
Share on other sites
