DSDT Auto-Patcher

[magnifico]

remove GraphicsEnabler

use kext





ok..great Maldon..

[MaLd0n]

The machine I am using is a HP P6140-F, that has a Asus IPIBL-LB motherboard.



Northbridge is Intel G33 Express, and Southbridge is ICH9R.

ok

now is to test

[slodad]

I am using a Gigabyte GA-X38-DS4 motherboard with Q6600 clocked at 3.0ghz. Used Lifehacker method to install SL and DSDTSE to modify HPET, RTC, TMR, PIC. It runs SL 10.6.5 great except for sleep but I cannot use parallels or fusion- they freeze on VM install. Can use Virtualbox 3.12 but it pauses every few seconds and it will run better but slowly if I load balance with 2 vm's running. Usually 1st Core is at 100% CPU. This machine also runs Win7 and XP by using a 3 way SATA Power switch and have 2 IDE DVD's attached which run in windows. I switch the drives by changing power and bios from AHCI to Raid. Anything else I can edit or change ??

[MaLd0n]

Dear MaLd0n,



Hi,



I request you to kindly make an auto patcher for my system.I have attached the sendme.zip file as required,also attached is the patched dsdt.aml that I am currently using for comparison.This is not specific for my system but mostly working for me.So I hope to get a dsdt.aml specific for my system as HP have recently updated the bios for various series.



I am using 64 bit patched kernel with lapic fix.Most things work with the patched dsdt.For audio I am using patched AppleHDA.kext.



Thanks in advance.



MY specs are;-



Model : HP Pavilion dv6t-2300

Boot loader:Chameleon_2.0_RC5_r654

CPU: Intel Core i7-720QM @1.6GHz, SC turbo up to 2.80GHz

RAM: 4GB DDR3 Dual Channel @ 1333 MHz

GFX card: NVIDIA GeForce GT 320M with CUDA, 1GB PCI-e (10DE-0A2D)

HD: 320GB SATA 7200RPM Hitachi

Sound: IDT High Definition Audio CODEC w/ NVIDIA High Definition Audio (111D-7603) w/ (10DE-000A)

Ethernet: Realtek RTL8168D/8111D Family PCI-E Gigabit Ethernet NIC (NDIS 6.20)

Wireless: Intel® Centrino® Advanced-N 6200 AGN

(not working)

Chipset: Northbridge: Intel PM55, Southbridge: Intel ICH9M

OS: Currently Mac OS X Snow Leopard 10.6.5 Update Retail with WIN 7 DUAL BOOT



dsdt.macq.zip



FIX ERRORS and WARNINGS

AC

ARPT

DTGP

EHCI

FIREWIRE

UHCI

IRQs

HDEF

LPC

PNLF

RENAME

RTC

SMBUS

SHUTDOWN



-I have not applied the video

-firewire, I need to read about it, nothing applied in GPE



Let me know whether it is working or not.



original

fix errors and warnings

dsdt.Fix_errors.zip

[MaLd0n]

I am using a Gigabyte GA-X38-DS4 motherboard with Q6600 clocked at 3.0ghz. Used Lifehacker method to install SL and DSDTSE to modify HPET, RTC, TMR, PIC. It runs SL 10.6.5 great except for sleep but I cannot use parallels or fusion- they freeze on VM install. Can use Virtualbox 3.12 but it pauses every few seconds and it will run better but slowly if I load balance with 2 vm's running. Usually 1st Core is at 100% CPU. This machine also runs Win7 and XP by using a 3 way SATA Power switch and have 2 IDE DVD's attached which run in windows. I switch the drives by changing power and bios from AHCI to Raid. Anything else I can edit or change ??



dsdt.slodad.zip







...is ICH9R.



dsdt.__gh0st3h.zip



[o=s=x_10.6.4-yeah!]

thx, great work. Helped alot...

[MaLd0n]

thx, great work. Helped alot...





[slodad]

dsdt.slodad.zip

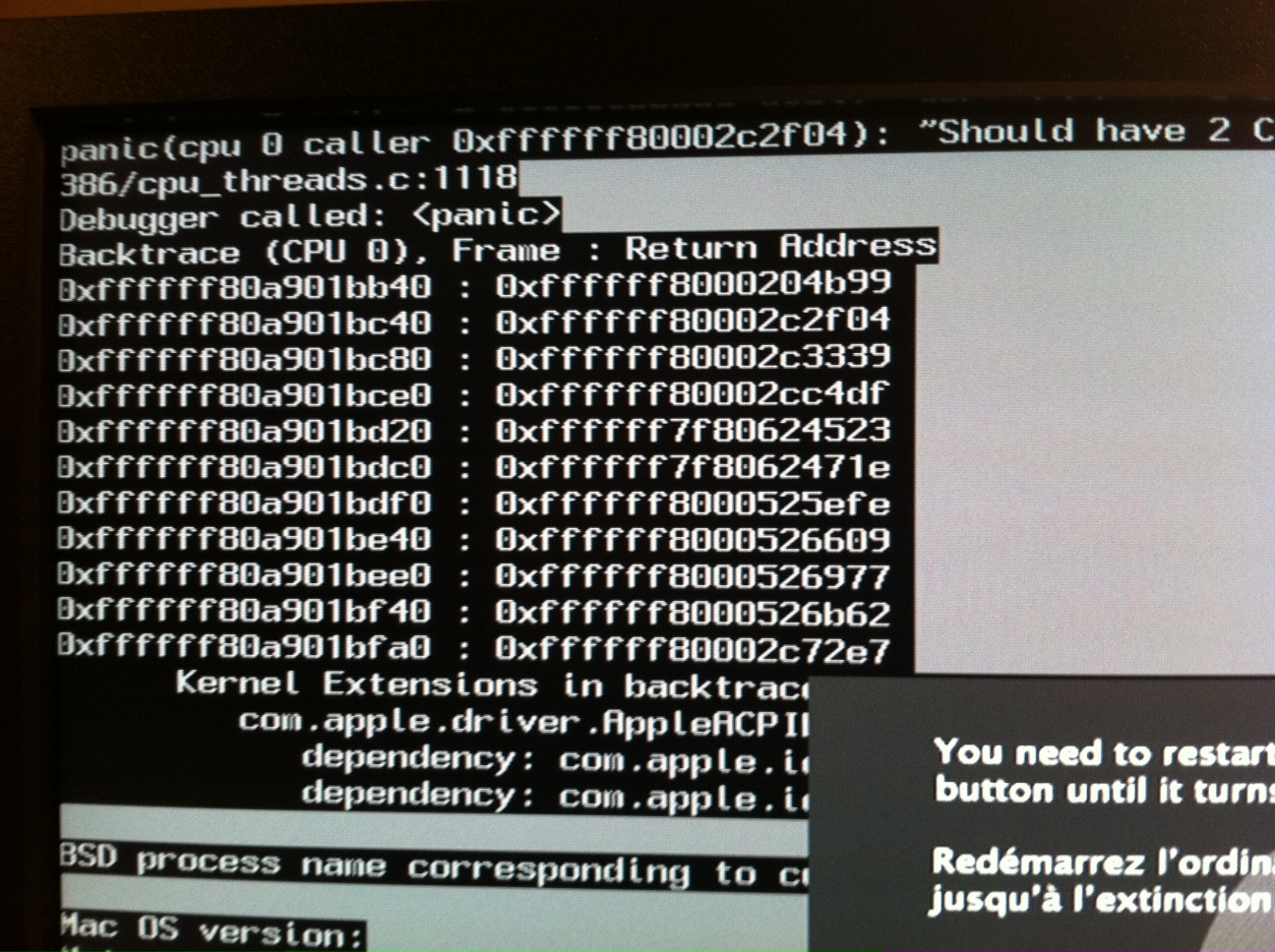

Thanks for the quick reply. Got a KP when I tried it -"should have 2 cores not 1....."

This is beyond my understanding -attached is a screen shot and thank you again.





dsdt.__gh0st3h.zip



[macq]

dsdt.macq.zip



FIX ERRORS and WARNINGS

AC

ARPT

DTGP

EHCI

FIREWIRE

UHCI

IRQs

HDEF

LPC

PNLF

RENAME

RTC

SMBUS

SHUTDOWN



-I have not applied the video

-firewire, I need to read about it, nothing applied in GPE



Let me know whether it is working or not.



original

fix errors and warnings

dsdt.Fix_errors.zip

Thanks,really thank you brother for the prompt reply and will try these fixes and report to you as soon as i get home.currently at work.





Much appreciated.



Err what is GPE if I may ask?

[MaLd0n]

@slodad



see first post

use Extra

http://www.insanelymac.com/forum/index.php...st&id=79503

and DSDT

do a clean install

I do not know what might be happening



Thanks,really thank you brother for the prompt reply and will try these fixes and report to you as soon as i get home.currently at work.





Much appreciated.



Err what is GPE if I may ask?



Notify

Scope (_GPE)

[TedLucky]

I downloaded your IOAHCIBlockStorageInjector.kext.zip and noticed you got using the old one. I've done only a short comparison (included Info.plist).

Open sidebar Preferences…> Finder Prefrences>The checkbox between Hard disks and External disks works.

The new version is here:

http://forge.voodooprojects.org/p/chameleo...k/package/Kexts

[macq]

@MaLd0n,



Hi,the dsdt patched by you works except for two things-



1.Video does not work,no CI/QE,as you mentioned you haven't patched the graphics



2.No sleep,-when using the patched dsdt that I am currently using I have sleep fully functional(from the start menu and by lid closing anf Fn+F5 buttons as well).



I request you to please compare my current patched dsdt that I am using with the one you have patched so that sleep and full graphic functionality can be achieved.



Also why have you given two files one with my name and the other fixed error one,any specific reason for that.



I am attaching my current dsdt.aml for comparison.



Hope its not too much of a bother for you.



Thanks

[MaLd0n]

@MaLd0n,



Hi,the dsdt patched by you works except for two things-



1.Video does not work,no CI/QE,as you mentioned you haven't patched the graphics



2.No sleep,-when using the patched dsdt that I am currently using I have sleep fully functional(from the start menu and by lid closing anf Fn+F5 buttons as well).



I request you to please compare my current patched dsdt that I am using with the one you have patched so that sleep and full graphic functionality can be achieved.



Also why have you given two files one with my name and the other fixed error one,any specific reason for that.



I am attaching my current dsdt.aml for comparison.



Hope its not too much of a bother for you.



Thanks



so that you can continue

DSDT is a lengthy process

things are not so easy



You are using native power management?

Chameleon RC5 + Generate P and C States?

[toketo]

great work!!! here is my send me. my mother es ep43t-usb3

send_me.zip

[MaLd0n]

great work!!! here is my send me. my mother es ep43t-usb3

you can test?

dsdt.toketo.zip



read first post --> native power management



this message is in the log

ACPI_SMC_PlatformPlugin::registerLPCDriver - WARNING - LPC device initialization failed: C-state power management not initialized



[H.3.X]

Fala Mald0n, great job, here is the send me of my Biostar TP45HP, i just need the alc888 patch, im trying to find the Azal device, or similar, but no sucess. Plz, check it for me, if you find something to be fixed, go ahead, but everything is working great here, speedstep, sleep, built in usb, etc...

Thank you, valeu!



TP45HP

[MaLd0n]

Fala Mald0n, great job, here is the send me of my Biostar TP45HP, i just need the alc888 patch, im trying to find the Azal device, or similar, but no sucess. Plz, check it for me, if you find something to be fixed, go ahead, but everything is working great here, speedstep, sleep, built in usb, etc...

Thank you, valeu!



TP45HP



dsdt.H.3.X.zip

HDEF/ALC888

ALIAS

DTGP

HID/CID

IRQs

MUTE

REMOVE

RENAME

SMBUS

SHUTDOWN



Use Chameleon RC5 --> Restart & power management

http://www.insanelymac.com/forum/index.php...st&id=82975

[H.3.X]

Mano, sem palavras, valeu!!!!!

Thank you!!!!

[MaLd0n]

Mano, sem palavras, valeu!!!!!

Thank you!!!!

Tranquilo



now you need a Legacy + AppleHda patched

or AppleHda with info.plist and binary patched

[H.3.X]

I already have the Hda for 888 (from my old mobo), working great here with your dsdt edits!!!

Thank you de novo mano!

[MaLd0n]

I already have the Hda for 888 (from my old mobo), working great here with your dsdt edits!!!

Thank you de novo mano!



[macq]

so that you can continue

DSDT is a lengthy process

things are not so easy



You are using native power management?

Chameleon RC5 + Generate P and C States?



Yes I am using native power management.





Chameleon RC5 latest build by iFabio + Generate P and C States= Yes. in boot.plist



My S/L/E is completely retail except for:



1.Patched AppleHDA.kext &



2.ethernet kext.



My E/E has the following only:



1.AppleACPIPS2NUB.Kext



2.VoodoPS2CONTROLLER



3.VoodoBattery



4.FakeSMC (guess its 2.5.,cant use the latest 2.72 as it causes KP)



5.Patched IDT kext. for audio



Rest by patched dsdt.



So what do I do next?



Thanks

[oliveg]

Dear MaLdOn,

I would be very grateful if you could help me patching my DSDT

I've tried many times but I'm not sure to have done everything well.

So I have a fresh install that I've just updated to 10.6.5.

I ran Myhackinstaller 1.1.4, and rebooted without DSDT.aml (32bit).

I will now run the latest version of Chameleon (678).



My specs are:

EP45-DS5

Q9550@3,2GHz

GTX285 1024MB

16GB OCZ Gold

Al889a internal sound card

Additionnal M-Audio 24/96 pci sound card

Thanks for your help!



Here are my files:

send_me.zip





- Edit -



I installed:

Chameleon rc5v678, (with "generate P and C-state" options)

Envy 64bit driver for my M-Audio sound card (works great)



Then I created my DSDT to which I applied some patches:

DGPT (but I did not see the difference between "before" and "after")

Alc889a

AZAL to HDEF

HPET

RTC

I wanted to install speedstep (4states 0-1-2-3) but "errors" so it is not installed

Do I need others?



Then I edited comm.apple.boot.plist to boot 64bit mode and I removed AppleRTC and NullCPU... to avoid kp

Kexts left are:

EvOreboot

FakeSMC

SleepEnabler (10.6.5)

IOAHCIBlockStorageInjector



I noticed that there is a little "contrast"problem with graphics (apple on the left corner is black and not grey to black)



Which improvements do you think I could apply?

THANK YOU!!!



New files added:

send_me2.zip

send_me.zip

send_me2.zip

[MaLd0n]

Yes I am using native power management.





Chameleon RC5 latest build by iFabio + Generate P and C States= Yes. in boot.plist



My S/L/E is completely retail except for:



1.Patched AppleHDA.kext &



2.ethernet kext.



My E/E has the following only:



1.AppleACPIPS2NUB.Kext



2.VoodoPS2CONTROLLER



3.VoodoBattery



4.FakeSMC (guess its 2.5.,cant use the latest 2.72 as it causes KP)



5.Patched IDT kext. for audio



Rest by patched dsdt.



So what do I do next?



Thanks



test it

dsdt.macq.zip

[MaLd0n]

My specs are:

EP45-DS5

Q9550@3,2GHz

GTX285 1024MB

16GB OCZ Gold

Al889a internal sound card

Additionnal M-Audio 24/96 pci sound card

Thanks for your help!



dsdt.oliveg.zip

HDEF/ALC889a

DTGP

EHCI

HID/CID

HPET

IRQs

LAN0

LPC

REMOVE

RENAME

RTC

SMBUS

SHUTDOWN

WAK



your "Extra" folder

oliveg_Extra.zip



Chameleon RC5

Chameleon_v2.0_RC5_r680.zip



use only that I sent you



1- Copy "Extra" folder to HD(do not forget the DSDT)

2- Install Chameleon RC5

3- Reboot

4- -v
