Larx Posted December 9, 2010 Share Posted December 9, 2010 Hi MaLd0n, I deleted EvORebot, VoodooPowerMini.kext, Disabler and NullCpuPowerMengament ... I send you the requested information again ... Thanks a lot! Kextstat_and_the_rest.zip Link to comment Share on other sites More sharing options...

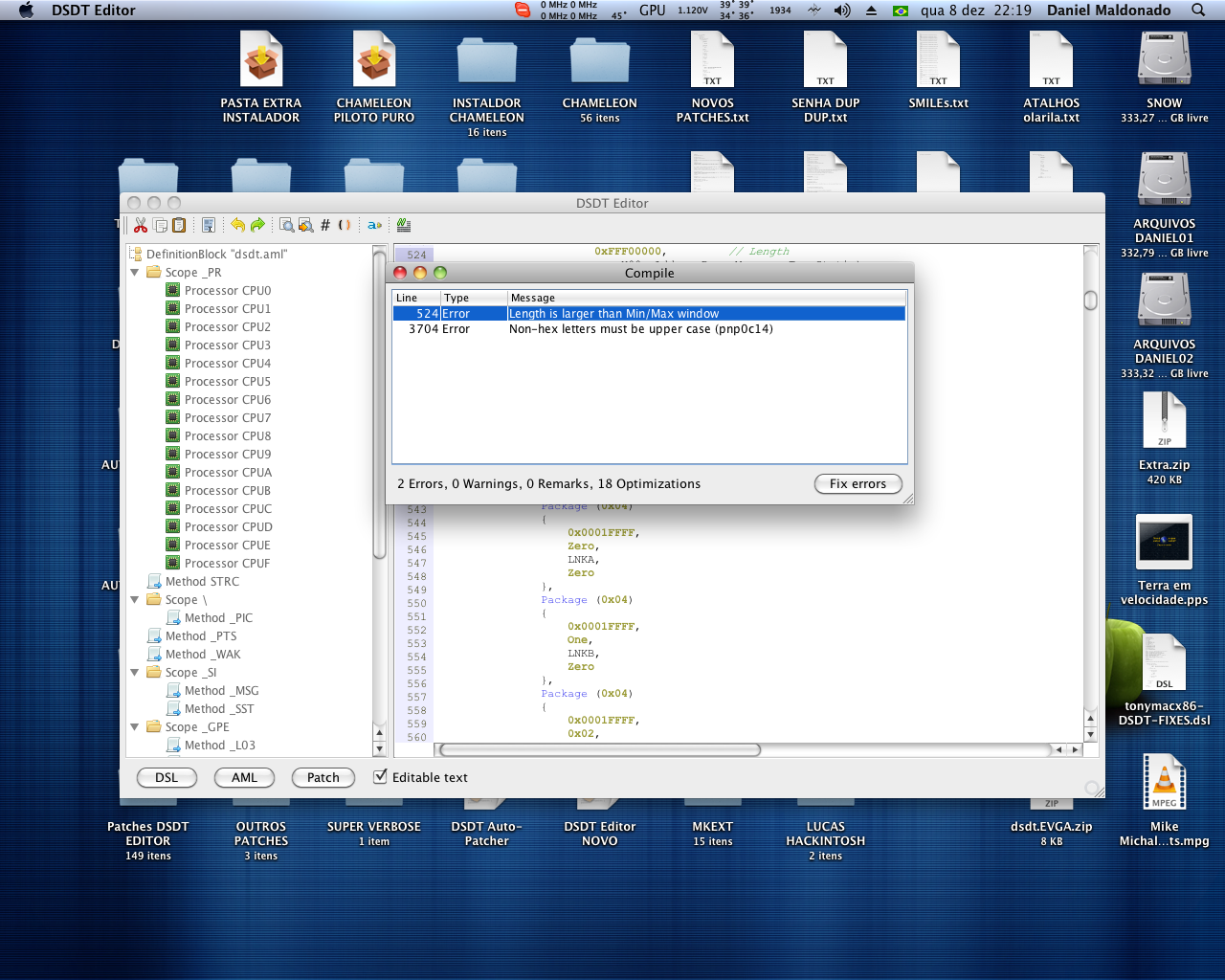

MaLd0n Posted December 9, 2010 Author Share Posted December 9, 2010 Hi MaLdOn,magnifico10 asked me some help on this topic because his english is not so good, I have also helped in patchin the dsdt (it was already fresh new one extracted from 7 after a BIOS update) so I hope to explain a little more the situation of this install.First, lookin at your modifications, can't understand why you changed this: 0xFFF00000, // Length with this: 0xFEB00000, // Length under BUF0 proprieties. Hi scrax also my english is horrible the DSDT EDITOR automatically corrects el Coniglio already added these fixes IASL version: 20101013 I just found another error the next update will already be automatically corrected Hi MaLd0n, I deleted EvORebot, VoodooPowerMini.kext, Disabler and NullCpuPowerMengament ... I send you the requested information again ... Thanks a lot! everything works fine? Wow that was pretty fast! Thank you... Noob question. What do I do with this file? Do I have to remove any kexts so as to not have any clashes between kexts and the DSDT file? Can i get a quick and easy step-by-step on what to do next? Thanks again man! EXAMPLE.zip Look it network, audio and video you decide Link to comment Share on other sites More sharing options...
Fbalino Posted December 9, 2010 Share Posted December 9, 2010 I'm so confused...no idea what to do with the dsdt.aml file and what kexts to delete Link to comment Share on other sites More sharing options...
MaLd0n Posted December 9, 2010 Author Share Posted December 9, 2010 I'm so confused...no idea what to do with the dsdt.aml file and what kexts to delete See Example the DSDT.aml is inside the folder EXTRA or the root HD /Extra/dsdt.aml or /dsdt.aml Link to comment Share on other sites More sharing options...
scrax Posted December 9, 2010 Share Posted December 9, 2010 I'm so confused...no idea what to do with the dsdt.aml file and what kexts to delete use the extra posted as EXAMPLE.zip , install the inluded chameleon build put in extra the correct dsdt for each mobo, reboot and after you will need the kext for what is not working, probably audio (binpatched AppleHDA and legacy kext) eth and if it does not work with graphics enabler in chameleon also video. Link to comment Share on other sites More sharing options...
Fbalino Posted December 9, 2010 Share Posted December 9, 2010 use the extra posted as EXAMPLE.zip , install the inluded chameleon build put in extra the correct dsdt for each mobo, reboot and after you will need the kext for what is not working, probably audio (binpatched AppleHDA and legacy kext) eth and if it does not work with graphics enabler in chameleon also video. I'm starting to feel really stupid here. I can't find an EXAMPLE.zip file, do you mean the EXTRAS.zip? I downloaded and extracted it. Should I replace my original /extra/extensions with this? My Extra folder in my Gigabyte build includes: Elliotforece....kext EvOreboor.kext Fakesmc.kext IONetwork...kext NullCPU...kext NVEnabler64.kext NVinject.kext SleepEnabler.kext The only extensions included in the EXTRAS.zip file I downloaded is "FakeSMC.kext." Is that the only one I need? Should I delete all the other ones I have? How do I INSTALL the dsdt.aml file? I don't see a dsdt.aml file in the folder Extra in my HDD, nor directly on my HDD. Do I just drag and drop it? What are the steps: For example: 1) delete kexts 2) install dsdt 3) Install chameleon RC5 4) repair permissions 5) reboot whats the order? Im confused....please help a noob out Link to comment Share on other sites More sharing options...
MaLd0n Posted December 9, 2010 Author Share Posted December 9, 2010 I'm starting to feel really stupid here. I can't find an EXAMPLE.zip file, do you mean the EXTRAS.zip? I downloaded and extracted it. Should I replace my original /extra/extensions with this? My Extra folder in my Gigabyte build includes: Elliotforece....kext EvOreboor.kext Fakesmc.kext IONetwork...kext NullCPU...kext NVEnabler64.kext NVinject.kext SleepEnabler.kext The only extensions included in the EXTRAS.zip file I downloaded is "FakeSMC.kext." Is that the only one I need? Should I delete all the other ones I have? How do I INSTALL the dsdt.aml file? I don't see a dsdt.aml file in the folder Extra in my HDD, nor directly on my HDD. Do I just drag and drop it? What are the steps: For example: 1) delete kexts 2) install dsdt 3) Install chameleon RC5 4) repair permissions 5) reboot whats the order? Im confused....please help a noob out WoW relax Backup and replaces it with the one I sent you http://www.insanelymac.com/forum/index.php...st&id=82225 Install Chameleon RC5 reboot -f -v after install audio, video and lan Link to comment Share on other sites More sharing options...
Fbalino Posted December 9, 2010 Share Posted December 9, 2010 WoW relax Hi Mald0n i'm not upset i just wish I knew more about this stuff! Backup and replaces it with the one I sent you Backup what exactly? My old dsdt or my Extra folder? I don't see a dsdt file in my Hard Drive. I only found one on /library/dsdt/dsdtfiles. Is that the one I have to replace with the one you sent me? reboot -f -v do i only do this once or do i have to do this everytime i reboot? I know -v is verbose but what is -f? after install audio, video and lan How? With kexts? Do I need to repair permissions at any point? Thanks again! Link to comment Share on other sites More sharing options...
MaLd0n Posted December 9, 2010 Author Share Posted December 9, 2010 WoWrelax Hi Mald0n i'm not upset i just wish I knew more about this stuff! Backup and replaces it with the one I sent you Backup what exactly? My old dsdt or my Extra folder? I don't see a dsdt file in my Hard Drive. I only found one on /library/dsdt/dsdtfiles. Is that the one I have to replace with the one you sent me? reboot -f -v do i only do this once or do i have to do this everytime i reboot? I know -v is verbose but what is -f? after install audio, video and lan How? With kexts? Do I need to repair permissions at any point? Thanks again! Back Up your old folder Extra Vídeo use GraphicsEnabler Lan the same kext that you wore Audio the same kext that you wore yes repair permissions delete mkext Link to comment Share on other sites More sharing options...
Larx Posted December 9, 2010 Share Posted December 9, 2010 Hi MaLd0n ! Native power menagement does not work as I expected. The increase in temperature by +10 degrees, idle 40C to 50C. Under load from goes to 60C-70C ... What's happening? Please can you check again, if I am wrong somewhere? Thank you a lot ! Link to comment Share on other sites More sharing options...
MaLd0n Posted December 9, 2010 Author Share Posted December 9, 2010 Hi MaLd0n ! Native power menagement does not work as I expected. The increase in temperature by +10 degrees, idle 40C to 50C. Under load from goes to 60C-70C ... What's happening? Please can you check again, if I am wrong somewhere? Thank you a lot ! Use voodoomonitor see if the frequencies / voltage swings are if I use null, my performance drops significantly, so my temperature drops along you can manually apply see values FID/VID Link to comment Share on other sites More sharing options...
Larx Posted December 9, 2010 Share Posted December 9, 2010 Use voodoomonitorsee if the frequencies / voltage swings are if I use null, my performance drops significantly, so my temperature drops along you can manually apply see values FID/VID MaLd0n, No way to find values FID/VID in my DSDT or i'm looking in the wrong place?!? Voodoo monitor is ok. It remains to me only, to lower the temperature. Please, can you look? .. There simply is no such FID/VID parameters. DSDT in attachement. Thanks a lot ! Thanks ! dsdt.aml.zip Link to comment Share on other sites More sharing options...

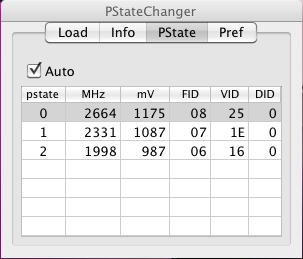

MaLd0n Posted December 9, 2010 Author Share Posted December 9, 2010 MaLd0n, No way to find values FID/VID in my DSDT or i'm looking in the wrong place?!? Voodoo monitor is ok. It remains to me only, to lower the temperature. Please, can you look? .. There simply is no such FID/VID parameters. DSDT in attachement. Thanks a lot ! Thanks ! use PStateChanger send me a SS Link to comment Share on other sites More sharing options...
Larx Posted December 9, 2010 Share Posted December 9, 2010 use PStateChanger send me a SS Now I feel like a complete fool. Under the "SS"you think SSDT or? I have them three! I guess I have them good extracted. Sorry MaLd0n, this is all new to me. Thank you for your understanding and patience. SSDT.zip Link to comment Share on other sites More sharing options...
MaLd0n Posted December 9, 2010 Author Share Posted December 9, 2010 Now I feel like a complete fool. Under the "SS"you think SSDT or? I have them three! I guess I have them good extracted. Sorry MaLd0n, this is all new to me. Thank you for your understanding and patience. dsdt.mlstudio.zip remove Generate P and C states(boot.plist) Link to comment Share on other sites More sharing options...

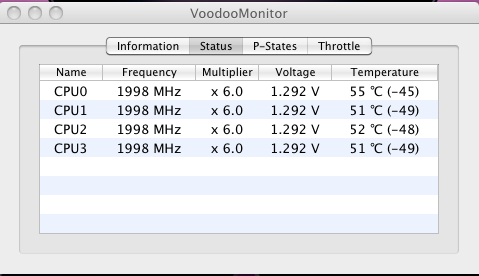

Larx Posted December 9, 2010 Share Posted December 9, 2010 dsdt.mlstudio.zip remove Generate P and C states(boot.plist) Processor warmer. Do not come down below 55C at idle! P and C States deleted from boot.plist! Voodoo Monitor shows a constant change in voltage and without reason ( system idle ) and also the multiplier factor! Any suggestions? Thanks! Link to comment Share on other sites More sharing options...
MaLd0n Posted December 9, 2010 Author Share Posted December 9, 2010 Processor warmer. Do not come down below 55C at idle! P and C States deleted from boot.plist! Voodoo Monitor shows a constant change in voltage and without reason ( system idle ) and also the multiplier factor! Any suggestions? Thanks! remove this DSDT use the old coolerbox you use? Use the Generate P & C States or a disabler unfortunately my processor is 47 degrees the stress is only 65 degrees normal send me a kextstat Link to comment Share on other sites More sharing options...

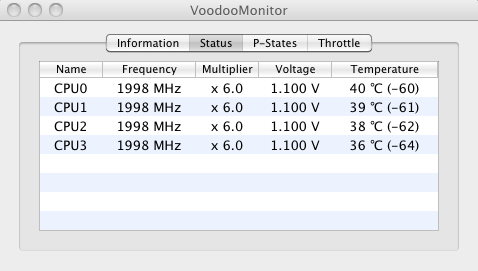

Larx Posted December 9, 2010 Share Posted December 9, 2010 remove this DSDTuse the old coolerbox you use? Use the Generate P & C States or a disabler unfortunately my processor is 47 degrees the stress is only 65 degrees normal send me a kextstat DSDT Removed. Installed old. The original cooler that came with the processor. Clean... No dust ! Again, created P&C States. And now... Look the voodoo monitor! Hm ! Interesting ! Temperature drop down for 15C! Here are Kextstat ... Now I do not understand anything. I'm totally confused. Kextstat.txt Link to comment Share on other sites More sharing options...
coscos Posted December 9, 2010 Share Posted December 9, 2010 1- you do not need it2- double click in bdmesg 3-copy "EXTRA" to your hard drive (root or EFI) -Install Chameleon RC5 http://www.insanelymac.com/forum/index.php...st&id=82190 -Reboot -v 4-I see no speed difference, only lose HotPlug OK, something is wrong. I followed the procedure, after installed 10.6.5 and Chameleon, when I reboot, I got a kernel panic: "No HPETs available ... CPU(s) configured incorrectly! /SourceCache/AppleIntelCPUPowerManagement/AppleIntelCPUPOwerManagement-105.13//pmThread.c:157" Another problem is when the computer reboots, the system BIOS is reset. Attached is my dsdt.aml. Can you check if there is anything wrong? thanks! dsdt.aml.zip Link to comment Share on other sites More sharing options...
Noam AA Posted December 9, 2010 Share Posted December 9, 2010 hey there MaLd0n, i'm kind of new to this hole osx project, and i have manged to install almost a successful 10.6 retail install by instructions here on this forum to my P5K-SE, the DSDT im currently using was extracted under 10.5.8 install with the app "DSDT SE", and it's untouched, now there are some thing i have problem with, like i want my system to be able to sleep, and sometimes i can hear my fans going a little crazy (i don't know if this thing is normal, but sometime when the system is idle the fans are quite and sometime i can really hear them spinning more faster the they should, and my temp is always between 33 to 38 Celsius when idle) and i want to know if there are anything else that needed to be fixed with my dsdt file, so if you can help me, i'm attaching the send_me file and if u can look at it it will be highly appreciated! thanks a lot send_me.zip Link to comment Share on other sites More sharing options...
magnifico Posted December 9, 2010 Share Posted December 9, 2010 Hi MaLdOn,magnifico10 asked me some help on this topic because his english is not so good, ...All good in order now. ... Maldon , look now please..it appeals to you now? send_me.zip Link to comment Share on other sites More sharing options...
Yehat Posted December 9, 2010 Share Posted December 9, 2010 Hi guys, here a dump from my Dell 745: send_me.zip Link to comment Share on other sites More sharing options...
MaLd0n Posted December 9, 2010 Author Share Posted December 9, 2010 DSDT Removed. Installed old.The original cooler that came with the processor. Clean... No dust ! Again, created P&C States. And now... Look the voodoo monitor! Hm ! Interesting ! Temperature drop down for 15C! Here are Kextstat ... Now I do not understand anything. I'm totally confused. WoW ok OK, something is wrong. I followed the procedure, after installed 10.6.5 and Chameleon, when I reboot, I got a kernel panic: "No HPETs available ... CPU(s) configured incorrectly! /SourceCache/AppleIntelCPUPowerManagement/AppleIntelCPUPOwerManagement-105.13//pmThread.c:157" Another problem is when the computer reboots, the system BIOS is reset. Attached is my dsdt.aml. Can you check if there is anything wrong? thanks! alright in DSDT make sure your DSDT is being read Extra folder or root use Wait=Yes -v Link to comment Share on other sites More sharing options...
MaLd0n Posted December 9, 2010 Author Share Posted December 9, 2010 hey there MaLd0n, i'm kind of new to this hole osx project, and i have manged to install almost a successful 10.6 retail install by instructions here on this forum to my P5K-SE, the DSDT im currently using was extracted under 10.5.8 install with the app "DSDT SE", and it's untouched, now there are some thing i have problem with, like i want my system to be able to sleep, and sometimes i can hear my fans going a little crazy (i don't know if this thing is normal, but sometime when the system is idle the fans are quite and sometime i can really hear them spinning more faster the they should, and my temp is always between 33 to 38 Celsius when idle) and i want to know if there are anything else that needed to be fixed with my dsdt file, so if you can help me, i'm attaching the send_me file and if u can look at it it will be highly appreciated! thanks a lot dsdt.Noam_AA.zip DTGP EHCI FGET HID/CID UHCI IRQs LAN0 LPC REMOVE RENAME SMBUS SHUTDOWN TGET VGET read the first post restart Power Management Chameleon RC5 Link to comment Share on other sites More sharing options...
magnifico Posted December 9, 2010 Share Posted December 9, 2010 Hi great Maldon , please you look my post 696 ? Link to comment Share on other sites More sharing options...
