Chameleon RC4 is out!

scrax · February 19, 2010

@ Gabo and scrax: try the new version modified for DDR2 owner here:
http://www.insanelymac.com/forum/index.php...t&p=1413138

It works for the detection, but I have the same oerrror of Blackosx now in System Profiler.

another strange thing is that at boot, before loading the GUI, i have a sort of lspci result, and after that i can see the RAM data collected, for every bank I need to press a key to go on. In this part the value are correct.

I saw the lspci thing also before the memory code, when i compiled myself the pre8 and pre9

rekursor · February 19, 2010

It works for the detection, but I have the same oerrror of Blackosx now in System Profiler.
another strange thing is that at boot, before loading the GUI, i have a sort of lspci result, and after that i can see the RAM data collected, for every bank I need to press a key to go on. In this part the value are correct.

I saw the lspci thing also before the memory code, when i compiled myself the pre8 and pre9

Yes I have DEBUG_SPD to 1 so that one could see if its memory is detected and how.

Too bad it seems not to work well with ddr2 because I think I added new code that conforms with DDR2 SPD specification (which btw is very different from the DDR3 one )

After all, it's only a one shot work, I didn't spend weeks on it ...

I'll see what I can do.

rachaf · February 19, 2010

Firstly sorry for my English;

I've tried rc5pre10 now and it gave this:

dv5_rc5pre10.tiff

i have hp dv5 laptop which have this:

<key>SMmemmanufacter_1</key>

<string>Ramaxel Technology</string>

<key>SMmemmanufacter_2</key>

<string>Hyundai Electronics</string>

<key>SMmempart_1</key>

<key>SMmempart_2</key>

<key>SMmemserial_1</key>

<key>SMmemserial_2</key>

<key>SMmemspeed</key>

<key>SMmemtype</key>

and i have the the same error of "scrax" I need to press a key many times to load the GUI.

Thank you for all your hard work and effort

rekursor · February 19, 2010

Welcome back rekursor. :censored2:
I'm really happy to see how fast things are progressing here again.

I'm also very happy to see the boot0hfs variant in the forge. It'll be very useful for dual boot users.

I wish I could test the new versions, but I seriously messed up my system. I hope I get it back up today, to test the memory detection.

I hope we can reach a final stable version of RC5 by the time 10.6.3 is released.

Once again, many thanks to everyone involved.

Thanks, I also broke one of my configs too while trying to help our folks ...

blackosx · February 19, 2010

and i have the the same error of "scrax" I need to press a key many times to load the GUI.

rachaf, That's because that version is a debug version.

It's not an error, it's supposed to be there to assist Rekursor in his work.

THe KiNG · February 19, 2010

There is smth wrong with pre 9, refuse to go on gui on my desk, no idea why...

Test is done w/o custom ACPI load(NOT even DSDT) b/c I have all in BIOS modded.

Also there is a 3 sec delay b/w flasher cursor and chameleon verbose menu.

pre 10 works in same conditions, weird

rachaf · February 19, 2010

rachaf, That's because that version is a debug version.
It's not an error, it's supposed to be there to assist Rekursor in his work.

Thank you "BlackOSX" for this clarification. :censored2:

THe KiNG · February 19, 2010

EDIT: Is not the booter, installer borked my leopard Extensions.mkext

Must be a bug on updating the mkext

rekursor · February 19, 2010

I added Hynix(Hyundai) and Ramaxel vendors,

removed debug code by default, user can still see what happens by dumping SPD with "DumpSPD=y"

Still no clue for ddr2 users, blackosx did you figured out whats happenings with the profile info ?

here:

http://www.insanelymac.com/forum/index.php...t&p=1413138

rachaf · February 19, 2010

thinks rekursor but

in my laptop only Ramaxel is detected, Hyundai not detected

ram2.tiff

and sorry for my english

rekursor · February 19, 2010

thinks rekursor but
in my laptop only Ramaxel is detected, Hyundai not detected

ram2.tiff

and sorry for my english

Interesting,

it seems to work for you even if one of your module vendor name is still not recognized ...

Do you have any error while gathering information when opening profile details from the about menu ?

rachaf · February 19, 2010

no i have no error;

blackosx · February 19, 2010

Still no clue for ddr2 users, blackosx did you figured out whats happenings with the profile info ?
here:

http://www.insanelymac.com/forum/index.php...t&p=1413138

Hi rekursor

I have just tried pre10C. How do I use the DumpSPD=y option? as I typed it directly in to Chameleon's GUI but didn't notice anything. I have 30 mins now to try anything you like for tests

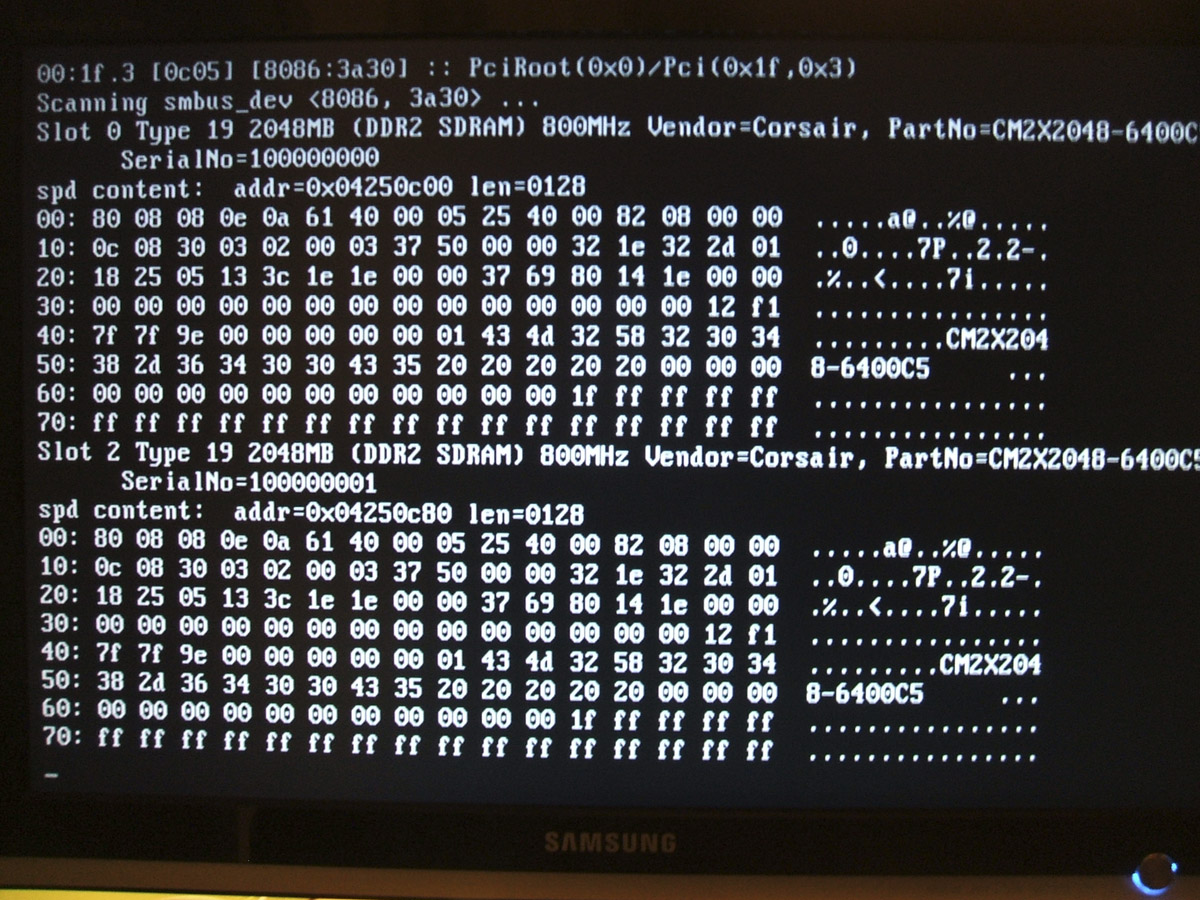

This is what I see using Pre10b. The memory is correctly detected at this point.

rekursor · February 19, 2010

no i have no error;

(!)

ahh, so I believe that my first ddr2 version pre10 screwed up something on ddr2 machines, but then 10b/c versions seem to work well...

When I start my broken core2duo/ddr2 config with a boot cd, I can get rid of this error I have, but *not* if I install a previous booter with no mem detection ...

So it seems that something has been changed in the boot config that makes this error happening.

maybe a kext changed or a bios config resetted ?

Will continue to investigate ...

rachaf · February 19, 2010

between when i use the boot of AsereBLN i have this:

ram_AsereBLN.tiff

rekursor · February 19, 2010

Hi rekursor

I have just tried pre10C. How do I use the DumpSPD=y option? as I typed it directly in to Chameleon's GUI but didn't notice anything. I have 30 mins now to try anything you like for tests

This is what I see using Pre10b. The memory is correctly detected at this point.

It would be nice if you could test from a backup disk the 10c version to see if it screws up the profile info.

Because it works well for rachaf (except a cosmetic vendor name that we'll find out later),

so I start to believe that only the first pre10 version screwed up something in ddr2 configs ...

inormally putting DumpSPD to y in the boot config should display the same info in 10c, but don't bother with :

if it worked with 10b it will work the same with 10c.

the only thing to fix is to get back to a state where you don't have the profile error (gathering information)

blackosx · February 19, 2010

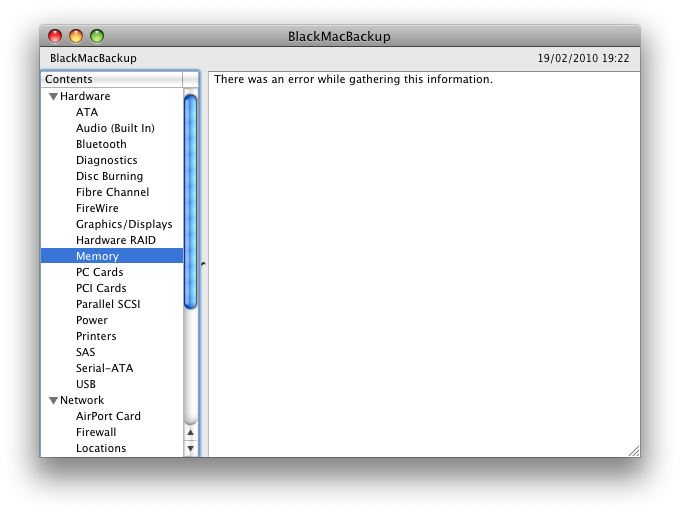

Okay I have tried booting two separate 10.5.8 installs from pre10c on HDD and from a USB stick. Still get the system profiler error.

I will now try with two separate 10.6 installs.

EDIT: Still no joy

I even tried booting without a SMBIOS.plist.

I have to go out now but post any other ideas you have for me to try later..

rekursor · February 19, 2010

between when i use the boot of AsereBLN i have this:
ram_AsereBLN.tiff

Please use the dump version 10b and write the hexadecimal values of bytes 64 to 71.

I can integrate this hynix brand if I can get the content of these fields

Thanks

THe KiNG · February 19, 2010

On my notebook:

As you can see only first dimm is recognized proper, except name since mine is:

--------[ SPD ]---------------------------------------------------------------------------------------------------------

 [ DIMM1: Unifosa GU332G0AJEPR8H2L4C ]

   Memory Module Properties:
     Module Name                                       Unifosa GU332G0AJEPR8H2L4C
     Serial Number                                     None
     Module Size                                       2 GB (2 ranks, 8 banks)
     Module Type                                       SO-DIMM
     Memory Type                                       DDR2 SDRAM
     Memory Speed                                      DDR2-667 (333 MHz)
     Module Width                                      64 bit
     Module Voltage                                    SSTL 1.8
     Error Detection Method                            None
     Refresh Rate                                      Reduced (7.8 us), Self-Refresh

   Memory Timings:
     @ 333 MHz                                         5-5-5-15  (CL-RCD-RP-RAS) / 20-43-3-5-3-3  (RC-RFC-RRD-WR-WTR-RTP)
     @ 266 MHz                                         4-4-4-12  (CL-RCD-RP-RAS) / 16-34-2-4-2-2  (RC-RFC-RRD-WR-WTR-RTP)
     @ 200 MHz                                         3-3-3-9  (CL-RCD-RP-RAS) / 12-26-2-3-2-2  (RC-RFC-RRD-WR-WTR-RTP)

   Memory Module Features:
     Analysis Probe                                    Not Present
     FET Switch External                               Disabled
     Weak Driver                                       Supported

 [ DIMM3: Unifosa GU332G0AJEPR8H2L4C ]

   Memory Module Properties:
     Module Name                                       Unifosa GU332G0AJEPR8H2L4C
     Serial Number                                     None
     Module Size                                       2 GB (2 ranks, 8 banks)
     Module Type                                       SO-DIMM
     Memory Type                                       DDR2 SDRAM
     Memory Speed                                      DDR2-667 (333 MHz)
     Module Width                                      64 bit
     Module Voltage                                    SSTL 1.8
     Error Detection Method                            None
     Refresh Rate                                      Reduced (7.8 us), Self-Refresh

   Memory Timings:
     @ 333 MHz                                         5-5-5-15  (CL-RCD-RP-RAS) / 20-43-3-5-3-3  (RC-RFC-RRD-WR-WTR-RTP)
     @ 266 MHz                                         4-4-4-12  (CL-RCD-RP-RAS) / 16-34-2-4-2-2  (RC-RFC-RRD-WR-WTR-RTP)
     @ 200 MHz                                         3-3-3-9  (CL-RCD-RP-RAS) / 12-26-2-3-2-2  (RC-RFC-RRD-WR-WTR-RTP)

   Memory Module Features:
     Analysis Probe                                    Not Present
     FET Switch External                               Disabled
     Weak Driver                                       Supported

And dump:

------[ 1 SMBus detected ]------

------[ Asus SPD Method 1 ]------

------[ SMBus Device B00-D50 ]------

 0000  80 08 08 0E 0A 61 40 00 05 30 45 00 82 08 00 00  .....a@..0E.....
 0010  0C 08 38 01 04 00 03 3D 50 50 60 3C 1E 3C 2D 01  ..8....=PP`<.<-.
 0020  20 27 10 17 3C 1E 1E 00 06 3C 7F 80 18 22 00 00   '..<....<.."..
 0030  00 00 00 00 00 00 00 00 00 00 00 00 00 00 12 15  ................
 0040  FF FF FF FF FF FF FF FF FF 47 55 33 33 32 47 30  .........GU332G0
 0050  41 4A 45 50 52 38 48 32 4C 34 43 42 00 00 00 00  AJEPR8H2L4CB....
 0060  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00  ................
 0070  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00  ................
 0080  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 0090  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00A0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00B0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00C0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00D0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00E0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00F0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................

------[ SMBus Device B00-D52 ]------

 0000  80 08 08 0E 0A 61 40 00 05 30 45 00 82 08 00 00  .....a@..0E.....
 0010  0C 08 38 01 04 00 03 3D 50 50 60 3C 1E 3C 2D 01  ..8....=PP`<.<-.
 0020  20 27 10 17 3C 1E 1E 00 06 3C 7F 80 18 22 00 00   '..<....<.."..
 0030  00 00 00 00 00 00 00 00 00 00 00 00 00 00 12 15  ................
 0040  FF FF FF FF FF FF FF FF FF 47 55 33 33 32 47 30  .........GU332G0
 0050  41 4A 45 50 52 38 48 32 4C 34 43 42 00 00 00 00  AJEPR8H2L4CB....
 0060  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00  ................
 0070  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00  ................
 0080  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 0090  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00A0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00B0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00C0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00D0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00E0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00F0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................

------[ Asus SPD Method 2 ]------

------[ SMBus Device B00-D50 ]------

 0000  80 08 08 0E 0A 61 40 00 05 30 45 00 82 08 00 00  .....a@..0E.....
 0010  0C 08 38 01 04 00 03 3D 50 50 60 3C 1E 3C 2D 01  ..8....=PP`<.<-.
 0020  20 27 10 17 3C 1E 1E 00 06 3C 7F 80 18 22 00 00   '..<....<.."..
 0030  00 00 00 00 00 00 00 00 00 00 00 00 00 00 12 15  ................
 0040  FF FF FF FF FF FF FF FF FF 47 55 33 33 32 47 30  .........GU332G0
 0050  41 4A 45 50 52 38 48 32 4C 34 43 42 00 00 00 00  AJEPR8H2L4CB....
 0060  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00  ................
 0070  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00  ................
 0080  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 0090  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00A0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00B0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00C0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00D0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00E0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00F0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................

------[ SMBus Device B00-D52 ]------

 0000  80 08 08 0E 0A 61 40 00 05 30 45 00 82 08 00 00  .....a@..0E.....
 0010  0C 08 38 01 04 00 03 3D 50 50 60 3C 1E 3C 2D 01  ..8....=PP`<.<-.
 0020  20 27 10 17 3C 1E 1E 00 06 3C 7F 80 18 22 00 00   '..<....<.."..
 0030  00 00 00 00 00 00 00 00 00 00 00 00 00 00 12 15  ................
 0040  FF FF FF FF FF FF FF FF FF 47 55 33 33 32 47 30  .........GU332G0
 0050  41 4A 45 50 52 38 48 32 4C 34 43 42 00 00 00 00  AJEPR8H2L4CB....
 0060  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00  ................
 0070  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00  ................
 0080  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 0090  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00A0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00B0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00C0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00D0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00E0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00F0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................

------[ Asus SPD Method 3 ]------

------[ SMBus Device B00-D50 ]------

 0000  80 08 08 0E 0A 61 40 00 05 30 45 00 82 08 00 00  .....a@..0E.....
 0010  0C 08 38 01 04 00 03 3D 50 50 60 3C 1E 3C 2D 01  ..8....=PP`<.<-.
 0020  20 27 10 17 3C 1E 1E 00 06 3C 7F 80 18 22 00 00   '..<....<.."..
 0030  00 00 00 00 00 00 00 00 00 00 00 00 00 00 12 15  ................
 0040  FF FF FF FF FF FF FF FF FF 47 55 33 33 32 47 30  .........GU332G0
 0050  41 4A 45 50 52 38 48 32 4C 34 43 42 00 00 00 00  AJEPR8H2L4CB....
 0060  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00  ................
 0070  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00  ................
 0080  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 0090  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00A0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00B0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00C0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00D0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00E0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00F0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................

------[ SMBus Device B00-D52 ]------

 0000  80 08 08 0E 0A 61 40 00 05 30 45 00 82 08 00 00  .....a@..0E.....
 0010  0C 08 38 01 04 00 03 3D 50 50 60 3C 1E 3C 2D 01  ..8....=PP`<.<-.
 0020  20 27 10 17 3C 1E 1E 00 06 3C 7F 80 18 22 00 00   '..<....<.."..
 0030  00 00 00 00 00 00 00 00 00 00 00 00 00 00 12 15  ................
 0040  FF FF FF FF FF FF FF FF FF 47 55 33 33 32 47 30  .........GU332G0
 0050  41 4A 45 50 52 38 48 32 4C 34 43 42 00 00 00 00  AJEPR8H2L4CB....
 0060  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00  ................
 0070  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00  ................
 0080  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 0090  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00A0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00B0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00C0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00D0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00E0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00F0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................

------[ Asus SPD Method 4 ]------

------[ SMBus Device B00-D50 ]------

 0000  80 08 08 0E 0A 61 40 00 05 30 45 00 82 08 00 00  .....a@..0E.....
 0010  0C 08 38 01 04 00 03 3D 50 50 60 3C 1E 3C 2D 01  ..8....=PP`<.<-.
 0020  20 27 10 17 3C 1E 1E 00 06 3C 7F 80 18 22 00 00   '..<....<.."..
 0030  00 00 00 00 00 00 00 00 00 00 00 00 00 00 12 15  ................
 0040  FF FF FF FF FF FF FF FF FF 47 55 33 33 32 47 30  .........GU332G0
 0050  41 4A 45 50 52 38 48 32 4C 34 43 42 00 00 00 00  AJEPR8H2L4CB....
 0060  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00  ................
 0070  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00  ................
 0080  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 0090  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00A0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00B0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00C0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00D0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00E0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00F0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................

------[ SMBus Device B00-D52 ]------

 0000  80 08 08 0E 0A 61 40 00 05 30 45 00 82 08 00 00  .....a@..0E.....
 0010  0C 08 38 01 04 00 03 3D 50 50 60 3C 1E 3C 2D 01  ..8....=PP`<.<-.
 0020  20 27 10 17 3C 1E 1E 00 06 3C 7F 80 18 22 00 00   '..<....<.."..
 0030  00 00 00 00 00 00 00 00 00 00 00 00 00 00 12 15  ................
 0040  FF FF FF FF FF FF FF FF FF 47 55 33 33 32 47 30  .........GU332G0
 0050  41 4A 45 50 52 38 48 32 4C 34 43 42 00 00 00 00  AJEPR8H2L4CB....
 0060  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00  ................
 0070  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00  ................
 0080  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 0090  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00A0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00B0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00C0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00D0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00E0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00F0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................

------[ Asus SPD Method 5 ]------

------[ SMBus Device B00-D50 ]------

 0000  80 08 08 0E 0A 61 40 00 05 30 45 00 82 08 00 00  .....a@..0E.....
 0010  0C 08 38 01 04 00 03 3D 50 50 60 3C 1E 3C 2D 01  ..8....=PP`<.<-.
 0020  20 27 10 17 3C 1E 1E 00 06 3C 7F 80 18 22 00 00   '..<....<.."..
 0030  00 00 00 00 00 00 00 00 00 00 00 00 00 00 12 15  ................
 0040  FF FF FF FF FF FF FF FF FF 47 55 33 33 32 47 30  .........GU332G0
 0050  41 4A 45 50 52 38 48 32 4C 34 43 42 00 00 00 00  AJEPR8H2L4CB....
 0060  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00  ................
 0070  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00  ................
 0080  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 0090  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00A0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00B0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00C0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00D0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00E0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00F0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................

------[ SMBus Device B00-D52 ]------

 0000  80 08 08 0E 0A 61 40 00 05 30 45 00 82 08 00 00  .....a@..0E.....
 0010  0C 08 38 01 04 00 03 3D 50 50 60 3C 1E 3C 2D 01  ..8....=PP`<.<-.
 0020  20 27 10 17 3C 1E 1E 00 06 3C 7F 80 18 22 00 00   '..<....<.."..
 0030  00 00 00 00 00 00 00 00 00 00 00 00 00 00 12 15  ................
 0040  FF FF FF FF FF FF FF FF FF 47 55 33 33 32 47 30  .........GU332G0
 0050  41 4A 45 50 52 38 48 32 4C 34 43 42 00 00 00 00  AJEPR8H2L4CB....
 0060  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00  ................
 0070  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00  ................
 0080  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 0090  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00A0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00B0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00C0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00D0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00E0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00F0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................

------[ Asus SPD Method 6 ]------

------[ SMBus Device B00-D50 ]------

 0000  80 08 08 0E 0A 61 40 00 05 30 45 00 82 08 00 00  .....a@..0E.....
 0010  0C 08 38 01 04 00 03 3D 50 50 60 3C 1E 3C 2D 01  ..8....=PP`<.<-.
 0020  20 27 10 17 3C 1E 1E 00 06 3C 7F 80 18 22 00 00   '..<....<.."..
 0030  00 00 00 00 00 00 00 00 00 00 00 00 00 00 12 15  ................
 0040  FF FF FF FF FF FF FF FF FF 47 55 33 33 32 47 30  .........GU332G0
 0050  41 4A 45 50 52 38 48 32 4C 34 43 42 00 00 00 00  AJEPR8H2L4CB....
 0060  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00  ................
 0070  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00  ................
 0080  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 0090  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00A0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00B0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00C0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00D0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00E0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00F0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................

------[ SMBus Device B00-D52 ]------

 0000  80 08 08 0E 0A 61 40 00 05 30 45 00 82 08 00 00  .....a@..0E.....
 0010  0C 08 38 01 04 00 03 3D 50 50 60 3C 1E 3C 2D 01  ..8....=PP`<.<-.
 0020  20 27 10 17 3C 1E 1E 00 06 3C 7F 80 18 22 00 00   '..<....<.."..
 0030  00 00 00 00 00 00 00 00 00 00 00 00 00 00 12 15  ................
 0040  FF FF FF FF FF FF FF FF FF 47 55 33 33 32 47 30  .........GU332G0
 0050  41 4A 45 50 52 38 48 32 4C 34 43 42 00 00 00 00  AJEPR8H2L4CB....
 0060  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00  ................
 0070  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00  ................
 0080  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 0090  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00A0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00B0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00C0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00D0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00E0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00F0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................

------[ Asus SPD Method 7 ]------

------[ SMBus Device B00-D50 ]------

 0000  80 08 08 0E 0A 61 40 00 05 30 45 00 82 08 00 00  .....a@..0E.....
 0010  0C 08 38 01 04 00 03 3D 50 50 60 3C 1E 3C 2D 01  ..8....=PP`<.<-.
 0020  20 27 10 17 3C 1E 1E 00 06 3C 7F 80 18 22 00 00   '..<....<.."..
 0030  00 00 00 00 00 00 00 00 00 00 00 00 00 00 12 15  ................
 0040  FF FF FF FF FF FF FF FF FF 47 55 33 33 32 47 30  .........GU332G0
 0050  41 4A 45 50 52 38 48 32 4C 34 43 42 00 00 00 00  AJEPR8H2L4CB....
 0060  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00  ................
 0070  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00  ................
 0080  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 0090  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00A0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00B0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00C0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00D0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00E0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00F0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................

------[ SMBus Device B00-D52 ]------

 0000  80 08 08 0E 0A 61 40 00 05 30 45 00 82 08 00 00  .....a@..0E.....
 0010  0C 08 38 01 04 00 03 3D 50 50 60 3C 1E 3C 2D 01  ..8....=PP`<.<-.
 0020  20 27 10 17 3C 1E 1E 00 06 3C 7F 80 18 22 00 00   '..<....<.."..
 0030  00 00 00 00 00 00 00 00 00 00 00 00 00 00 12 15  ................
 0040  FF FF FF FF FF FF FF FF FF 47 55 33 33 32 47 30  .........GU332G0
 0050  41 4A 45 50 52 38 48 32 4C 34 43 42 00 00 00 00  AJEPR8H2L4CB....
 0060  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00  ................
 0070  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00  ................
 0080  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 0090  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00A0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00B0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00C0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00D0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00E0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00F0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................

------[ Asus SPD Method 8 ]------

------[ SMBus Device B00-D50 ]------

 0000  80 08 08 0E 0A 61 40 00 05 30 45 00 82 08 00 00  .....a@..0E.....
 0010  0C 08 38 01 04 00 03 3D 50 50 60 3C 1E 3C 2D 01  ..8....=PP`<.<-.
 0020  20 27 10 17 3C 1E 1E 00 06 3C 7F 80 18 22 00 00   '..<....<.."..
 0030  00 00 00 00 00 00 00 00 00 00 00 00 00 00 12 15  ................
 0040  FF FF FF FF FF FF FF FF FF 47 55 33 33 32 47 30  .........GU332G0
 0050  41 4A 45 50 52 38 48 32 4C 34 43 42 00 00 00 00  AJEPR8H2L4CB....
 0060  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00  ................
 0070  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00  ................
 0080  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 0090  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00A0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00B0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00C0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00D0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00E0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00F0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................

------[ SMBus Device B00-D52 ]------

 0000  80 08 08 0E 0A 61 40 00 05 30 45 00 82 08 00 00  .....a@..0E.....
 0010  0C 08 38 01 04 00 03 3D 50 50 60 3C 1E 3C 2D 01  ..8....=PP`<.<-.
 0020  20 27 10 17 3C 1E 1E 00 06 3C 7F 80 18 22 00 00   '..<....<.."..
 0030  00 00 00 00 00 00 00 00 00 00 00 00 00 00 12 15  ................
 0040  FF FF FF FF FF FF FF FF FF 47 55 33 33 32 47 30  .........GU332G0
 0050  41 4A 45 50 52 38 48 32 4C 34 43 42 00 00 00 00  AJEPR8H2L4CB....
 0060  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00  ................
 0070  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00  ................
 0080  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 0090  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00A0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00B0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00C0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00D0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00E0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................
 00F0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ................

All OK on desktop, well not the freq.

I'm still concerned what cause the lag b/w flashing cursor and first chameleon screen, happen on lappie too, any idea?

rachaf · February 19, 2010

Please use the dump version 10b and write the hexadecimal values of bytes 64 to 71.
I can integrate this hynix brand if I can get the content of these fields

Thanks

sorry, but how can i get dump?

rekursor · February 19, 2010

sorry, but how can i get dump?

use the version: RC5pre10b upper in this thread and when the boot wait for a key read the dump ...

The fields range is in hexa: 0x40 to 0x47 for ddr2 vendor id.

@king: I have no idea about the lag on the laptop

But I KNOW now that I can't help for your dimm because all id fields for vendor name are FF, plus I had a check to this Unifosa vendor and it is not registered, sorry about that ...

DieBuche · February 19, 2010

Could u get the latest from the trunk&try again? hopefully should be working..

That would be very much appreciated!
D

THe KiNG · February 19, 2010

@king: I have no idea about the lag on the laptop
But I KNOW now that I can't help for your dimm because all id fields for vendor name are FF, plus I had a check to this Unifosa vendor and it is not registered, sorry about that ...

The lag is on desktop too... and shows up since pre8, pre7 is fine(with Andy ssdt load)

Thanks to iNDi & memtest guys:

	{ 0, 0x01, "AMD"},
	{ 0, 0x02, "AMI"},
	{ 0, 0x83, "Fairchild"},
	{ 0, 0x04, "Fujitsu"},
	{ 0, 0x85, "GTE"},
	{ 0, 0x86, "Harris"},
	{ 0, 0x07, "Hitachi"},
	{ 0, 0x08, "Inmos"},
	{ 0, 0x89, "Intel"},
	{ 0, 0x8a, "I.T.T."},
	{ 0, 0x0b, "Intersil"},
	{ 0, 0x8c, "Monolithic Memories"},
	{ 0, 0x0d, "Mostek"},
	{ 0, 0x0e, "Freescale (Motorola)"},
	{ 0, 0x8f, "National"},
	{ 0, 0x10, "NEC"},
	{ 0, 0x91, "RCA"},
	{ 0, 0x92, "Raytheon"},
	{ 0, 0x13, "Conexant (Rockwell)"},
	{ 0, 0x94, "Seeq"},
	{ 0, 0x15, "NXP (Philips)"},
	{ 0, 0x16, "Synertek"},
	{ 0, 0x97, "Texas Instruments"},
	{ 0, 0x98, "Toshiba"},
	{ 0, 0x19, "Xicor"},
	{ 0, 0x1a, "Zilog"},
	{ 0, 0x9b, "Eurotechnique"},
	{ 0, 0x1c, "Mitsubishi"},
	{ 0, 0x9d, "Lucent (AT&T)"},
	{ 0, 0x9e, "Exel"},
	{ 0, 0x1f, "Atmel"},
	{ 0, 0x20, "SGS/Thomson"},
	{ 0, 0xa1, "Lattice Semi."},
	{ 0, 0xa2, "NCR"},
	{ 0, 0x23, "Wafer Scale Integration"},
	{ 0, 0xa4, "IBM"},
	{ 0, 0x25, "Tristar"},
	{ 0, 0x26, "Visic"},
	{ 0, 0xa7, "Intl. CMOS Technology"},
	{ 0, 0xa8, "SSSI"},
	{ 0, 0x29, "MicrochipTechnology"},
	{ 0, 0x2a, "Ricoh"},
	{ 0, 0xab, "VLSI"},
	{ 0, 0x2c, "Micron Technology"},
	{ 0, 0xad, "Hynix Semiconductor"},
	{ 0, 0xae, "OKI Semiconductor"},
	{ 0, 0x2f, "ACTEL"},
	{ 0, 0xb0, "Sharp"},
	{ 0, 0x31, "Catalyst"},
	{ 0, 0x32, "Panasonic"},
	{ 0, 0xb3, "IDT"},
	{ 0, 0x34, "Cypress"},
	{ 0, 0xb5, "DEC"},
	{ 0, 0xb6, "LSI Logic"},
	{ 0, 0x37, "Zarlink (Plessey)"},
	{ 0, 0x38, "UTMC"},
	{ 0, 0xb9, "Thinking Machine"},
	{ 0, 0xba, "Thomson CSF"},
	{ 0, 0x3b, "Integrated CMOS (Vertex)"},
	{ 0, 0xbc, "Honeywell"},
	{ 0, 0x3d, "Tektronix"},
	{ 0, 0x3e, "Sun Microsystems"},
	{ 0, 0xbf, "SST"},
	{ 0, 0x40, "ProMos/Mosel Vitelic"},
	{ 0, 0xc1, "Infineon (Siemens)"},
	{ 0, 0xc2, "Macronix"},
	{ 0, 0x43, "Xerox"},
	{ 0, 0xc4, "Plus Logic"},
	{ 0, 0x45, "SanDisk"},
	{ 0, 0x46, "Elan Circuit Tech."},
	{ 0, 0xc7, "European Silicon Str."},
	{ 0, 0xc8, "Apple Computer"},
	{ 0, 0x49, "Xilinx"},
	{ 0, 0x4a, "Compaq"},
	{ 0, 0xcb, "Protocol Engines"},
	{ 0, 0x4c, "SCI"},
	{ 0, 0xcd, "Seiko Instruments"},
	{ 0, 0xce, "Samsung"},
	{ 0, 0x4f, "I3 Design System"},
	{ 0, 0xd0, "Klic"},
	{ 0, 0x51, "Crosspoint Solutions"},
	{ 0, 0x52, "Alliance Semiconductor"},
	{ 0, 0xd3, "Tandem"},
	{ 0, 0x54, "Hewlett-Packard"},
	{ 0, 0xd5, "Intg. Silicon Solutions"},
	{ 0, 0xd6, "Brooktree"},
	{ 0, 0x57, "New Media"},
	{ 0, 0x58, "MHS Electronic"},
	{ 0, 0xd9, "Performance Semi."},
	{ 0, 0xda, "Winbond Electronic"},
	{ 0, 0x5b, "Kawasaki Steel"},
	{ 0, 0xdc, "Bright Micro"},
	{ 0, 0x5d, "TECMAR"},
	{ 0, 0x5e, "Exar"},
	{ 0, 0xdf, "PCMCIA"},
	{ 0, 0xe0, "LG Semi (Goldstar)"},
	{ 0, 0x61, "Northern Telecom"},
	{ 0, 0x62, "Sanyo"},
	{ 0, 0xe3, "Array Microsystems"},
	{ 0, 0x64, "Crystal Semiconductor"},
	{ 0, 0xe5, "Analog Devices"},
	{ 0, 0xe6, "PMC-Sierra"},
	{ 0, 0x67, "Asparix"},
	{ 0, 0x68, "Convex Computer"},
	{ 0, 0xe9, "Quality Semiconductor"},
	{ 0, 0xea, "Nimbus Technology"},
	{ 0, 0x6b, "Transwitch"},
	{ 0, 0xec, "Micronas (ITT Intermetall)"},
	{ 0, 0x6d, "Cannon"},
	{ 0, 0x6e, "Altera"},
	{ 0, 0xef, "NEXCOM"},
	{ 0, 0x70, "QUALCOMM"},
	{ 0, 0xf1, "Sony"},
	{ 0, 0xf2, "Cray Research"},
	{ 0, 0x73, "AMS(Austria Micro)"},
	{ 0, 0xf4, "Vitesse"},
	{ 0, 0x75, "Aster Electronics"},
	{ 0, 0x76, "Bay Networks (Synoptic)"},
	{ 0, 0xf7, "Zentrum/ZMD"},
	{ 0, 0xf8, "TRW"},
	{ 0, 0x79, "Thesys"},
	{ 0, 0x7a, "Solbourne Computer"},
	{ 0, 0xfb, "Allied-Signal"},
	{ 0, 0x7c, "Dialog"},
	{ 0, 0xfd, "Media Vision"},
	{ 0, 0xfe, "Numonyx"},
	{ 1, 0x01, "Cirrus Logic"},
	{ 1, 0x02, "National Instruments"},
	{ 1, 0x83, "ILC Data Device"},
	{ 1, 0x04, "Alcatel Mietec"},
	{ 1, 0x85, "Micro Linear"},
	{ 1, 0x86, "Univ. of NC"},
	{ 1, 0x07, "JTAG Technologies"},
	{ 1, 0x08, "BAE Systems (Loral)"},
	{ 1, 0x89, "Nchip"},
	{ 1, 0x8a, "Galileo Tech"},
	{ 1, 0x0b, "Bestlink Systems"},
	{ 1, 0x8c, "Graychip"},
	{ 1, 0x0d, "GENNUM"},
	{ 1, 0x0e, "VideoLogic"},
	{ 1, 0x8f, "Robert Bosch"},
	{ 1, 0x10, "Chip Express"},
	{ 1, 0x91, "DATARAM"},
	{ 1, 0x92, "United Microelectronics Corp."},
	{ 1, 0x13, "TCSI"},
	{ 1, 0x94, "Smart Modular"},
	{ 1, 0x15, "Hughes Aircraft"},
	{ 1, 0x16, "Lanstar Semiconductor"},
	{ 1, 0x97, "Qlogic"},
	{ 1, 0x98, "Kingston"},
	{ 1, 0x19, "Music Semi"},
	{ 1, 0x1a, "Ericsson Components"},
	{ 1, 0x9b, "SpaSE"},
	{ 1, 0x1c, "Eon Silicon Devices"},
	{ 1, 0x9d, "Programmable Micro Corp"},
	{ 1, 0x9e, "DoD"},
	{ 1, 0x1f, "Integ. Memories Tech."},
	{ 1, 0x20, "Corollary"},
	{ 1, 0xa1, "Dallas Semiconductor"},
	{ 1, 0xa2, "Omnivision"},
	{ 1, 0x23, "EIV(Switzerland)"},
	{ 1, 0xa4, "Novatel Wireless"},
	{ 1, 0x25, "Zarlink (Mitel)"},
	{ 1, 0x26, "Clearpoint"},
	{ 1, 0xa7, "Cabletron"},
	{ 1, 0xa8, "STEC (Silicon Tech)"},
	{ 1, 0x29, "Vanguard"},
	{ 1, 0x2a, "Hagiwara Sys-Com"},
	{ 1, 0xab, "Vantis"},
	{ 1, 0x2c, "Celestica"},
	{ 1, 0xad, "Century"},
	{ 1, 0xae, "Hal Computers"},
	{ 1, 0x2f, "Rohm Company"},
	{ 1, 0xb0, "Juniper Networks"},
	{ 1, 0x31, "Libit Signal Processing"},
	{ 1, 0x32, "Mushkin Enhanced Memory"},
	{ 1, 0xb3, "Tundra Semiconductor"},
	{ 1, 0x34, "Adaptec"},
	{ 1, 0xb5, "LightSpeed Semi."},
	{ 1, 0xb6, "ZSP Corp."},
	{ 1, 0x37, "AMIC Technology"},
	{ 1, 0x38, "Adobe Systems"},
	{ 1, 0xb9, "Dynachip"},
	{ 1, 0xba, "PNY Electronics"},
	{ 1, 0x3b, "Newport Digital"},
	{ 1, 0xbc, "MMC Networks"},
	{ 1, 0x3d, "T Square"},
	{ 1, 0x3e, "Seiko Epson"},
	{ 1, 0xbf, "Broadcom"},
	{ 1, 0x40, "Viking Components"},
	{ 1, 0xc1, "V3 Semiconductor"},
	{ 1, 0xc2, "Flextronics (Orbit Semiconductor)"},
	{ 1, 0x43, "Suwa Electronics"},
	{ 1, 0xc4, "Transmeta"},
	{ 1, 0x45, "Micron CMS"},
	{ 1, 0x46, "American Computer & Digital Components"},
	{ 1, 0xc7, "Enhance 3000"},
	{ 1, 0xc8, "Tower Semiconductor"},
	{ 1, 0x49, "CPU Design"},
	{ 1, 0x4a, "Price Point"},
	{ 1, 0xcb, "Maxim Integrated Product"},
	{ 1, 0x4c, "Tellabs"},
	{ 1, 0xcd, "Centaur Technology"},
	{ 1, 0xce, "Unigen"},
	{ 1, 0x4f, "Transcend Information"},
	{ 1, 0xd0, "Memory Card Technology"},
	{ 1, 0x51, "CKD"},
	{ 1, 0x52, "Capital Instruments"},
	{ 1, 0xd3, "Aica Kogyo"},
	{ 1, 0x54, "Linvex Technology"},
	{ 1, 0xd5, "MSC Vertriebs"},
	{ 1, 0xd6, "AKM Company"},
	{ 1, 0x57, "Dynamem"},
	{ 1, 0x58, "NERA ASA"},
	{ 1, 0xd9, "GSI Technology"},
	{ 1, 0xda, "Dane-Elec (C Memory)"},
	{ 1, 0x5b, "Acorn Computers"},
	{ 1, 0xdc, "Lara Technology"},
	{ 1, 0x5d, "Oak Technology"},
	{ 1, 0x5e, "Itec Memory"},
	{ 1, 0xdf, "Tanisys Technology"},
	{ 1, 0xe0, "Truevision"},
	{ 1, 0x61, "Wintec Industries"},
	{ 1, 0x62, "Super PC Memory"},
	{ 1, 0xe3, "MGV Memory"},
	{ 1, 0x64, "Galvantech"},
	{ 1, 0xe5, "Gadzoox Networks"},
	{ 1, 0xe6, "Multi Dimensional Cons."},
	{ 1, 0x67, "GateField"},
	{ 1, 0x68, "Integrated Memory System"},
	{ 1, 0xe9, "Triscend"},
	{ 1, 0xea, "XaQti"},
	{ 1, 0x6b, "Goldenram"},
	{ 1, 0xec, "Clear Logic"},
	{ 1, 0x6d, "Cimaron Communications"},
	{ 1, 0x6e, "Nippon Steel Semi. Corp."},
	{ 1, 0xef, "Advantage Memory"},
	{ 1, 0x70, "AMCC"},
	{ 1, 0xf1, "LeCroy"},
	{ 1, 0xf2, "Yamaha"},
	{ 1, 0x73, "Digital Microwave"},
	{ 1, 0xf4, "NetLogic Microsystems"},
	{ 1, 0x75, "MIMOS Semiconductor"},
	{ 1, 0x76, "Advanced Fibre"},
	{ 1, 0xf7, "BF Goodrich Data."},
	{ 1, 0xf8, "Epigram"},
	{ 1, 0x79, "Acbel Polytech"},
	{ 1, 0x7a, "Apacer Technology"},
	{ 1, 0xfb, "Admor Memory"},
	{ 1, 0x7c, "FOXCONN"},
	{ 1, 0xfd, "Quadratics Superconductor"},
	{ 1, 0xfe, "3COM"},
	{ 2, 0x01, "Camintonn"},
	{ 2, 0x02, "ISOA"},
	{ 2, 0x83, "Agate Semiconductor"},
	{ 2, 0x04, "ADMtek"},
	{ 2, 0x85, "HYPERTEC"},
	{ 2, 0x86, "Adhoc Technologies"},
	{ 2, 0x07, "MOSAID Technologies"},
	{ 2, 0x08, "Ardent Technologies"},
	{ 2, 0x89, "Switchcore"},
	{ 2, 0x8a, "Cisco Systems"},
	{ 2, 0x0b, "Allayer Technologies"},
	{ 2, 0x8c, "WorkX AG (Wichman)"},
	{ 2, 0x0d, "Oasis Semiconductor"},
	{ 2, 0x0e, "Novanet Semiconductor"},
	{ 2, 0x8f, "E-M Solutions"},
	{ 2, 0x10, "Power General"},
	{ 2, 0x91, "Advanced Hardware Arch."},
	{ 2, 0x92, "Inova Semiconductors"},
	{ 2, 0x13, "Telocity"},
	{ 2, 0x94, "Delkin Devices"},
	{ 2, 0x15, "Symagery Microsystems"},
	{ 2, 0x16, "C-Port"},
	{ 2, 0x97, "SiberCore Technologies"},
	{ 2, 0x98, "Southland Microsystems"},
	{ 2, 0x19, "Malleable Technologies"},
	{ 2, 0x1a, "Kendin Communications"},
	{ 2, 0x9b, "Great Technology Microcomputer"},
	{ 2, 0x1c, "Sanmina"},
	{ 2, 0x9d, "HADCO"},
	{ 2, 0x9e, "Corsair"},
	{ 2, 0x1f, "Actrans System"},
	{ 2, 0x20, "ALPHA Technologies"},
	{ 2, 0xa1, "Silicon Laboratories (Cygnal)"},
	{ 2, 0xa2, "Artesyn Technologies"},
	{ 2, 0x23, "Align Manufacturing"},
	{ 2, 0xa4, "Peregrine Semiconductor"},
	{ 2, 0x25, "Chameleon Systems"},
	{ 2, 0x26, "Aplus Flash Technology"},
	{ 2, 0xa7, "MIPS Technologies"},
	{ 2, 0xa8, "Chrysalis ITS"},
	{ 2, 0x29, "ADTEC"},
	{ 2, 0x2a, "Kentron Technologies"},
	{ 2, 0xab, "Win Technologies"},
	{ 2, 0x2c, "Tachyon Semiconductor (ASIC)"},
	{ 2, 0xad, "Extreme Packet Devices"},
	{ 2, 0xae, "RF Micro Devices"},
	{ 2, 0x2f, "Siemens AG"},
	{ 2, 0xb0, "Sarnoff"},
	{ 2, 0x31, "Itautec SA"},
	{ 2, 0x32, "Radiata"},
	{ 2, 0xb3, "Benchmark Elect. (AVEX)"},
	{ 2, 0x34, "Legend"},
	{ 2, 0xb5, "SpecTek"},
	{ 2, 0xb6, "Hi/fn"},
	{ 2, 0x37, "Enikia"},
	{ 2, 0x38, "SwitchOn Networks"},
	{ 2, 0xb9, "AANetcom"},
	{ 2, 0xba, "Micro Memory Bank"},
	{ 2, 0x3b, "ESS Technology"},
	{ 2, 0xbc, "Virata"},
	{ 2, 0x3d, "Excess Bandwidth"},
	{ 2, 0x3e, "West Bay Semiconductor"},
	{ 2, 0xbf, "DSP Group"},
	{ 2, 0x40, "Newport Communications"},
	{ 2, 0xc1, "Chip2Chip"},
	{ 2, 0xc2, "Phobos"},
	{ 2, 0x43, "Intellitech"},
	{ 2, 0xc4, "Nordic VLSI ASA"},
	{ 2, 0x45, "Ishoni Networks"},
	{ 2, 0x46, "Silicon Spice"},
	{ 2, 0xc7, "Alchemy Semiconductor"},
	{ 2, 0xc8, "Agilent Technologies"},
	{ 2, 0x49, "Centillium Communications"},
	{ 2, 0x4a, "W.L. Gore"},
	{ 2, 0xcb, "HanBit Electronics"},
	{ 2, 0x4c, "GlobeSpan"},
	{ 2, 0xcd, "Element 14"},
	{ 2, 0xce, "Pycon"},
	{ 2, 0x4f, "Saifun Semiconductors"},
	{ 2, 0xd0, "Sibyte,"},
	{ 2, 0x51, "MetaLink Technologies"},
	{ 2, 0x52, "Feiya Technology"},
	{ 2, 0xd3, "I & C Technology"},
	{ 2, 0x54, "Shikatronics"},
	{ 2, 0xd5, "Elektrobit"},
	{ 2, 0xd6, "Megic"},
	{ 2, 0x57, "Com-Tier"},
	{ 2, 0x58, "Malaysia Micro Solutions"},
	{ 2, 0xd9, "Hyperchip"},
	{ 2, 0xda, "Gemstone Communications"},
	{ 2, 0x5b, "Anadigm (Anadyne)"},
	{ 2, 0xdc, "3ParData"},
	{ 2, 0x5d, "Mellanox Technologies"},
	{ 2, 0x5e, "Tenx Technologies"},
	{ 2, 0xdf, "Helix AG"},
	{ 2, 0xe0, "Domosys"},
	{ 2, 0x61, "Skyup Technology"},
	{ 2, 0x62, "HiNT"},
	{ 2, 0xe3, "Chiaro"},
	{ 2, 0x64, "MDT Technologies"},
	{ 2, 0xe5, "Exbit Technology A/S"},
	{ 2, 0xe6, "Integrated Technology Express"},
	{ 2, 0x67, "AVED Memory"},
	{ 2, 0x68, "Legerity"},
	{ 2, 0xe9, "Jasmine Networks"},
	{ 2, 0xea, "Caspian Networks"},
	{ 2, 0x6b, "nCUBE"},
	{ 2, 0xec, "Silicon Access Networks"},
	{ 2, 0x6d, "FDK"},
	{ 2, 0x6e, "High Bandwidth Access"},
	{ 2, 0xef, "MultiLink Technology"},
	{ 2, 0x70, "BRECIS"},
	{ 2, 0xf1, "World Wide Packets"},
	{ 2, 0xf2, "APW"},
	{ 2, 0x73, "Chicory Systems"},
	{ 2, 0xf4, "Xstream Logic"},
	{ 2, 0x75, "Fast-Chip"},
	{ 2, 0x76, "Zucotto Wireless"},
	{ 2, 0xf7, "Realchip"},
	{ 2, 0xf8, "Galaxy Power"},
	{ 2, 0x79, "eSilicon"},
	{ 2, 0x7a, "Morphics Technology"},
	{ 2, 0xfb, "Accelerant Networks"},
	{ 2, 0x7c, "Silicon Wave"},
	{ 2, 0xfd, "SandCraft"},
	{ 2, 0xfe, "Elpida"},
	{ 3, 0x01, "Solectron"},
	{ 3, 0x02, "Optosys Technologies"},
	{ 3, 0x83, "Buffalo (Formerly Melco)"},
	{ 3, 0x04, "TriMedia Technologies"},
	{ 3, 0x85, "Cyan Technologies"},
	{ 3, 0x86, "Global Locate"},
	{ 3, 0x07, "Optillion"},
	{ 3, 0x08, "Terago Communications"},
	{ 3, 0x89, "Ikanos Communications"},
	{ 3, 0x8a, "Preton Technology"},
	{ 3, 0x0b, "Nanya Technology"},
	{ 3, 0x8c, "Elite Flash Storage"},
	{ 3, 0x0d, "Mysticom"},
	{ 3, 0x0e, "LightSand Communications"},
	{ 3, 0x8f, "ATI Technologies"},
	{ 3, 0x10, "Agere Systems"},
	{ 3, 0x91, "NeoMagic"},
	{ 3, 0x92, "AuroraNetics"},
	{ 3, 0x13, "Golden Empire"},
	{ 3, 0x94, "Mushkin"},
	{ 3, 0x15, "Tioga Technologies"},
	{ 3, 0x16, "Netlist"},
	{ 3, 0x97, "TeraLogic"},
	{ 3, 0x98, "Cicada Semiconductor"},
	{ 3, 0x19, "Centon Electronics"},
	{ 3, 0x1a, "Tyco Electronics"},
	{ 3, 0x9b, "Magis Works"},
	{ 3, 0x1c, "Zettacom"},
	{ 3, 0x9d, "Cogency Semiconductor"},
	{ 3, 0x9e, "Chipcon AS"},
	{ 3, 0x1f, "Aspex Technology"},
	{ 3, 0x20, "F5 Networks"},
	{ 3, 0xa1, "Programmable Silicon Solutions"},
	{ 3, 0xa2, "ChipWrights"},
	{ 3, 0x23, "Acorn Networks"},
	{ 3, 0xa4, "Quicklogic"},
	{ 3, 0x25, "Kingmax Semiconductor"},
	{ 3, 0x26, "BOPS"},
	{ 3, 0xa7, "Flasys"},
	{ 3, 0xa8, "BitBlitz Communications"},
	{ 3, 0x29, "eMemory Technology"},
	{ 3, 0x2a, "Procket Networks"},
	{ 3, 0xab, "Purple Ray"},
	{ 3, 0x2c, "Trebia Networks"},
	{ 3, 0xad, "Delta Electronics"},
	{ 3, 0xae, "Onex Communications"},
	{ 3, 0x2f, "Ample Communications"},
	{ 3, 0xb0, "Memory Experts Intl"},
	{ 3, 0x31, "Astute Networks"},
	{ 3, 0x32, "Azanda Network Devices"},
	{ 3, 0xb3, "Dibcom"},
	{ 3, 0x34, "Tekmos"},
	{ 3, 0xb5, "API NetWorks"},
	{ 3, 0xb6, "Bay Microsystems"},
	{ 3, 0x37, "Firecron"},
	{ 3, 0x38, "Resonext Communications"},
	{ 3, 0xb9, "Tachys Technologies"},
	{ 3, 0xba, "Equator Technology"},
	{ 3, 0x3b, "Concept Computer"},
	{ 3, 0xbc, "SILCOM"},
	{ 3, 0x3d, "3Dlabs"},
	{ 3, 0x3e, "c?t Magazine"},
	{ 3, 0xbf, "Sanera Systems"},
	{ 3, 0x40, "Silicon Packets"},
	{ 3, 0xc1, "Viasystems Group"},
	{ 3, 0xc2, "Simtek"},
	{ 3, 0x43, "Semicon Devices Singapore"},
	{ 3, 0xc4, "Satron Handelsges"},
	{ 3, 0x45, "Improv Systems"},
	{ 3, 0x46, "INDUSYS"},
	{ 3, 0xc7, "Corrent"},
	{ 3, 0xc8, "Infrant Technologies"},
	{ 3, 0x49, "Ritek Corp"},
	{ 3, 0x4a, "empowerTel Networks"},
	{ 3, 0xcb, "Hypertec"},
	{ 3, 0x4c, "Cavium Networks"},
	{ 3, 0xcd, "PLX Technology"},
	{ 3, 0xce, "Massana Design"},
	{ 3, 0x4f, "Intrinsity"},
	{ 3, 0xd0, "Valence Semiconductor"},
	{ 3, 0x51, "Terawave Communications"},
	{ 3, 0x52, "IceFyre Semiconductor"},
	{ 3, 0xd3, "Primarion"},
	{ 3, 0x54, "Picochip Designs"},
	{ 3, 0xd5, "Silverback Systems"},
	{ 3, 0xd6, "Jade Star Technologies"},
	{ 3, 0x57, "Pijnenburg Securealink"},
	{ 3, 0x58, "takeMS International AG"},
	{ 3, 0xd9, "Cambridge Silicon Radio"},
	{ 3, 0xda, "Swissbit"},
	{ 3, 0x5b, "Nazomi Communications"},
	{ 3, 0xdc, "eWave System"},
	{ 3, 0x5d, "Rockwell Collins"},
	{ 3, 0x5e, "Picocel Co. (Paion)"},
	{ 3, 0xdf, "Alphamosaic"},
	{ 3, 0xe0, "Sandburst"},
	{ 3, 0x61, "SiCon Video"},
	{ 3, 0x62, "NanoAmp Solutions"},
	{ 3, 0xe3, "Ericsson Technology"},
	{ 3, 0x64, "PrairieComm"},
	{ 3, 0xe5, "Mitac International"},
	{ 3, 0xe6, "Layer N Networks"},
	{ 3, 0x67, "MtekVision (Atsana)"},
	{ 3, 0x68, "Allegro Networks"},
	{ 3, 0xe9, "Marvell Semiconductors"},
	{ 3, 0xea, "Netergy Microelectronic"},
	{ 3, 0x6b, "NVIDIA"},
	{ 3, 0xec, "Internet Machines"},
	{ 3, 0x6d, "Peak Electronics"},
	{ 3, 0x6e, "Litchfield Communication"},
	{ 3, 0xef, "Accton Technology"},
	{ 3, 0x70, "Teradiant Networks"},
	{ 3, 0xf1, "Scaleo Chip"},
	{ 3, 0xf2, "Cortina Systems"},
	{ 3, 0x73, "RAM Components"},
	{ 3, 0xf4, "Raqia Networks"},
	{ 3, 0x75, "ClearSpeed"},
	{ 3, 0x76, "Matsu{censored}a Battery"},
	{ 3, 0xf7, "Xelerated"},
	{ 3, 0xf8, "SimpleTech"},
	{ 3, 0x79, "Utron Technology"},
	{ 3, 0x7a, "Astec International"},
	{ 3, 0xfb, "AVM"},
	{ 3, 0x7c, "Redux Communications"},
	{ 3, 0xfd, "Dot Hill Systems"},
	{ 3, 0xfe, "TeraChip"},
	{ 4, 0x01, "T-RAM"},
	{ 4, 0x02, "Innovics Wireless"},
	{ 4, 0x83, "Teknovus"},
	{ 4, 0x04, "KeyEye Communications"},
	{ 4, 0x85, "Runcom Technologies"},
	{ 4, 0x86, "RedSwitch"},
	{ 4, 0x07, "Dotcast"},
	{ 4, 0x08, "Silicon Mountain Memory"},
	{ 4, 0x89, "Signia Technologies"},
	{ 4, 0x8a, "Pixim"},
	{ 4, 0x0b, "Galazar Networks"},
	{ 4, 0x8c, "White Electronic Designs"},
	{ 4, 0x0d, "Patriot Scientific"},
	{ 4, 0x0e, "Neoaxiom"},
	{ 4, 0x8f, "3Y Power Technology"},
	{ 4, 0x10, "Scaleo Chip"},
	{ 4, 0x91, "Potentia Power Systems"},
	{ 4, 0x92, "C-guys"},
	{ 4, 0x13, "Digital Communications Technology"},
	{ 4, 0x94, "Silicon-Based Technology"},
	{ 4, 0x15, "Fulcrum Microsystems"},
	{ 4, 0x16, "Positivo Informatica"},
	{ 4, 0x97, "XIOtech"},
	{ 4, 0x98, "PortalPlayer"},
	{ 4, 0x19, "Zhiying Software"},
	{ 4, 0x1a, "ParkerVision"},
	{ 4, 0x9b, "Phonex Broadband"},
	{ 4, 0x1c, "Skyworks Solutions"},
	{ 4, 0x9d, "Entropic Communications"},
	{ 4, 0x9e, "Pacific Force Technology"},
	{ 4, 0x1f, "Zensys A/S"},
	{ 4, 0x20, "Legend Silicon Corp."},
	{ 4, 0xa1, "Sci-worx"},
	{ 4, 0xa2, "SMSC (Standard Microsystems)"},
	{ 4, 0x23, "Renesas Technology"},
	{ 4, 0xa4, "Raza Microelectronics"},
	{ 4, 0x25, "Phyworks"},
	{ 4, 0x26, "MediaTek"},
	{ 4, 0xa7, "Non-cents Productions"},
	{ 4, 0xa8, "US Modular"},
	{ 4, 0x29, "Wintegra"},
	{ 4, 0x2a, "Mathstar"},
	{ 4, 0xab, "StarCore"},
	{ 4, 0x2c, "Oplus Technologies"},
	{ 4, 0xad, "Mindspeed"},
	{ 4, 0xae, "Just Young Computer"},
	{ 4, 0x2f, "Radia Communications"},
	{ 4, 0xb0, "OCZ"},
	{ 4, 0x31, "Emuzed"},
	{ 4, 0x32, "LOGIC Devices"},
	{ 4, 0xb3, "Inphi"},
	{ 4, 0x34, "Quake Technologies"},
	{ 4, 0xb5, "Vixel"},
	{ 4, 0xb6, "SolusTek"},
	{ 4, 0x37, "Kongsberg Maritime"},
	{ 4, 0x38, "Faraday Technology"},
	{ 4, 0xb9, "Altium"},
	{ 4, 0xba, "Insyte"},
	{ 4, 0x3b, "ARM"},
	{ 4, 0xbc, "DigiVision"},
	{ 4, 0x3d, "Vativ Technologies"},
	{ 4, 0x3e, "Endicott Interconnect Technologies"},
	{ 4, 0xbf, "Pericom"},
	{ 4, 0x40, "Bandspeed"},
	{ 4, 0xc1, "LeWiz Communications"},
	{ 4, 0xc2, "CPU Technology"},
	{ 4, 0x43, "Ramaxel Technology"},
	{ 4, 0xc4, "DSP Group"},
	{ 4, 0x45, "Axis Communications"},
	{ 4, 0x46, "Legacy Electronics"},
	{ 4, 0xc7, "Chrontel"},
	{ 4, 0xc8, "Powerchip Semiconductor"},
	{ 4, 0x49, "MobilEye Technologies"},
	{ 4, 0x4a, "Excel Semiconductor"},
	{ 4, 0xcb, "A-DATA Technology"},
	{ 4, 0x4c, "VirtualDigm"},
	{ 4, 0xcd, "G Skill Intl"},
	{ 4, 0xce, "Quanta Computer"},
	{ 4, 0x4f, "Yield Microelectronics"},
	{ 4, 0xd0, "Afa Technologies"},
	{ 4, 0x51, "KINGBOX Technology Co."},
	{ 4, 0x52, "Ceva"},
	{ 4, 0xd3, "iStor Networks"},
	{ 4, 0x54, "Advance Modules"},
	{ 4, 0xd5, "Microsoft"},
	{ 4, 0xd6, "Open-Silicon"},
	{ 4, 0x57, "Goal Semiconductor"},
	{ 4, 0x58, "ARC International"},
	{ 4, 0xd9, "Simmtec"},
	{ 4, 0xda, "Metanoia"},
	{ 4, 0x5b, "Key Stream"},
	{ 4, 0xdc, "Lowrance Electronics"},
	{ 4, 0x5d, "Adimos"},
	{ 4, 0x5e, "SiGe Semiconductor"},
	{ 4, 0xdf, "Fodus Communications"},
	{ 4, 0xe0, "Credence Systems Corp."},
	{ 4, 0x61, "Genesis Microchip"},
	{ 4, 0x62, "Vihana"},
	{ 4, 0xe3, "WIS Technologies"},
	{ 4, 0x64, "GateChange Technologies"},
	{ 4, 0xe5, "High Density Devices AS"},
	{ 4, 0xe6, "Synopsys"},
	{ 4, 0x67, "Gigaram"},
	{ 4, 0x68, "Enigma Semiconductor"},
	{ 4, 0xe9, "Century Micro"},
	{ 4, 0xea, "Icera Semiconductor"},
	{ 4, 0x6b, "Mediaworks Integrated Systems"},
	{ 4, 0xec, "O?Neil Product Development"},
	{ 4, 0x6d, "Supreme Top Technology"},
	{ 4, 0x6e, "MicroDisplay"},
	{ 4, 0xef, "Team Group"},
	{ 4, 0x70, "Sinett"},
	{ 4, 0xf1, "Toshiba"},
	{ 4, 0xf2, "Tensilica"},
	{ 4, 0x73, "SiRF Technology"},
	{ 4, 0xf4, "Bacoc"},
	{ 4, 0x75, "SMaL Camera Technologies"},
	{ 4, 0x76, "Thomson SC"},
	{ 4, 0xf7, "Airgo Networks"},
	{ 4, 0xf8, "Wisair"},
	{ 4, 0x79, "SigmaTel"},
	{ 4, 0x7a, "Arkados"},
	{ 4, 0xfb, "Compete IT Co. KG"},
	{ 4, 0x7c, "Eudar Technology"},
	{ 4, 0xfd, "Focus Enhancements"},
	{ 4, 0xfe, "Xyratex"},
	{ 5, 0x01, "Specular Networks"},
	{ 5, 0x02, "Patriot Memory (PDP Systems)"},
	{ 5, 0x83, "U-Chip Technology Corp."},
	{ 5, 0x04, "Silicon Optix"},
	{ 5, 0x85, "Greenfield Networks"},
	{ 5, 0x86, "CompuRAM"},
	{ 5, 0x07, "Stargen"},
	{ 5, 0x08, "NetCell"},
	{ 5, 0x89, "Excalibrus Technologies"},
	{ 5, 0x8a, "SCM Microsystems"},
	{ 5, 0x0b, "Xsigo Systems"},
	{ 5, 0x8c, "CHIPS & Systems"},
	{ 5, 0x0d, "Tier"},
	{ 5, 0x0e, "CWRL Labs"},
	{ 5, 0x8f, "Teradici"},
	{ 5, 0x10, "Gigaram"},
	{ 5, 0x91, "g2 Microsystems"},
	{ 5, 0x92, "PowerFlash Semiconductor"},
	{ 5, 0x13, "P.A. Semi"},
	{ 5, 0x94, "NovaTech Solutions, S.A."},
	{ 5, 0x15, "c2 Microsystems"},
	{ 5, 0x16, "Level5 Networks"},
	{ 5, 0x97, "COS Memory AG"},
	{ 5, 0x98, "Innovasic Semiconductor"},
	{ 5, 0x19, "02IC Co."},
	{ 5, 0x1a, "Tabula,"},
	{ 5, 0x9b, "Crucial Technology"},
	{ 5, 0x1c, "Chelsio Communications"},
	{ 5, 0x9d, "Solarflare Communications"},
	{ 5, 0x9e, "Xambala"},
	{ 5, 0x1f, "EADS Astrium"},
	{ 5, 0x20, "Terra Semiconductor"},
	{ 5, 0xa1, "Imaging Works"},
	{ 5, 0xa2, "Astute Networks"},
	{ 5, 0x23, "Tzero"},
	{ 5, 0xa4, "Emulex"},
	{ 5, 0x25, "Power-One"},
	{ 5, 0x26, "Pulse~LINK"},
	{ 5, 0xa7, "Hon Hai Precision Industry"},
	{ 5, 0xa8, "White Rock Networks"},
	{ 5, 0x29, "Telegent Systems USA"},
	{ 5, 0x2a, "Atrua Technologies"},
	{ 5, 0xab, "Acbel Polytech"},
	{ 5, 0x2c, "eRide"},
	{ 5, 0xad, "ULi Electronics"},
	{ 5, 0xae, "Magnum Semiconductor"},
	{ 5, 0x2f, "neoOne Technology"},
	{ 5, 0xb0, "Connex Technology"},
	{ 5, 0x31, "Stream Processors"},
	{ 5, 0x32, "Focus Enhancements"},
	{ 5, 0xb3, "Telecis Wireless"},
	{ 5, 0x34, "uNav Microelectronics"},
	{ 5, 0xb5, "Tarari"},
	{ 5, 0xb6, "Ambric"},
	{ 5, 0x37, "Newport Media"},
	{ 5, 0x38, "VMTS"},
	{ 5, 0xb9, "Enuclia Semiconductor"},
	{ 5, 0xba, "Virtium Technology"},
	{ 5, 0x3b, "Solid State System Co."},
	{ 5, 0xbc, "Kian Tech LLC"},
	{ 5, 0x3d, "Artimi"},
	{ 5, 0x3e, "Power Quotient International"},
	{ 5, 0xbf, "Avago Technologies"},
	{ 5, 0x40, "ADTechnology"},
	{ 5, 0xc1, "Sigma Designs"},
	{ 5, 0xc2, "SiCortex"},
	{ 5, 0x43, "Ventura Technology Group"},
	{ 5, 0xc4, "eASIC"},
	{ 5, 0x45, "M.H.S. SAS"},
	{ 5, 0x46, "Micro Star International"},
	{ 5, 0xc7, "Rapport"},
	{ 5, 0xc8, "Makway International"},
	{ 5, 0x49, "Broad Reach Engineering Co."},
	{ 5, 0x4a, "Semiconductor Mfg Intl Corp"},
	{ 5, 0xcb, "SiConnect"},
	{ 5, 0x4c, "FCI USA"},
	{ 5, 0xcd, "Validity Sensors"},
	{ 5, 0xce, "Coney Technology Co."},
	{ 5, 0x4f, "Spans Logic"},
	{ 5, 0xd0, "Neterion"},
	{ 5, 0x51, "Qimonda"},
	{ 5, 0x52, "New Japan Radio Co."},
	{ 5, 0xd3, "Velogix"},
	{ 5, 0x54, "Montalvo Systems"},
	{ 5, 0xd5, "iVivity"},
	{ 5, 0xd6, "Walton Chaintech"},
	{ 5, 0x57, "AENEON"},
	{ 5, 0x58, "Lorom Industrial Co."},
	{ 5, 0xd9, "Radiospire Networks"},
	{ 5, 0xda, "Sensio Technologies"},
	{ 5, 0x5b, "Nethra Imaging"},
	{ 5, 0xdc, "Hexon Technology Pte"},
	{ 5, 0x5d, "CompuStocx (CSX)"},
	{ 5, 0x5e, "Methode Electronics"},
	{ 5, 0xdf, "Connect One"},
	{ 5, 0xe0, "Opulan Technologies"},
	{ 5, 0x61, "Septentrio NV"},
	{ 5, 0x62, "Goldenmars Technology"},
	{ 5, 0xe3, "Kreton"},
	{ 5, 0x64, "Cochlear"},
	{ 5, 0xe5, "Altair Semiconductor"},
	{ 5, 0xe6, "NetEffect"},
	{ 5, 0x67, "Spansion"},
	{ 5, 0x68, "Taiwan Semiconductor Mfg"},
	{ 5, 0xe9, "Emphany Systems"},
	{ 5, 0xea, "ApaceWave Technologies"},
	{ 5, 0x6b, "Mobilygen"},
	{ 5, 0xec, "Tego"},
	{ 5, 0x6d, "Cswitch"},
	{ 5, 0x6e, "Haier (Beijing) IC Design Co."},
	{ 5, 0xef, "MetaRAM"},
	{ 5, 0x70, "Axel Electronics Co."},
	{ 5, 0xf1, "Tilera"},
	{ 5, 0xf2, "Aquantia"},
	{ 5, 0x73, "Vivace Semiconductor"},
	{ 5, 0xf4, "Redpine Signals"},
	{ 5, 0x75, "Octalica"},
	{ 5, 0x76, "InterDigital Communications"},
	{ 5, 0xf7, "Avant Technology"},
	{ 5, 0xf8, "Asrock"},
	{ 5, 0x79, "Availink"},
	{ 5, 0x7a, "Quartics"},
	{ 5, 0xfb, "Element CXI"},
	{ 5, 0x7c, "Innovaciones Microelectronicas"},
	{ 5, 0xfd, "VeriSilicon Microelectronics"},
	{ 5, 0xfe, "W5 Networks"},
	{ 6, 0x01, "MOVEKING"},
	{ 6, 0x02, "Mavrix Technology"},
	{ 6, 0x83, "CellGuide"},
	{ 6, 0x04, "Faraday Technology"},
	{ 6, 0x85, "Diablo Technologies"},
	{ 6, 0x86, "Jennic"},
	{ 6, 0x07, "Octasic"},
	{ 6, 0x08, "Molex"},
	{ 6, 0x89, "3Leaf Networks"},
	{ 6, 0x8a, "Bright Micron Technology"},
	{ 6, 0x0b, "Netxen"},
	{ 6, 0x8c, "NextWave Broadband"},
	{ 6, 0x0d, "DisplayLink"},
	{ 6, 0x0e, "ZMOS Technology"},
	{ 6, 0x8f, "Tec-Hill"},
	{ 6, 0x10, "Multigig"},
	{ 6, 0x91, "Amimon"},
	{ 6, 0x92, "Euphonic Technologies"},
	{ 6, 0x13, "BRN Phoenix"},
	{ 6, 0x94, "InSilica"},
	{ 6, 0x15, "Ember"},
	{ 6, 0x16, "Avexir Technologies"},
	{ 6, 0x97, "Echelon"},
	{ 6, 0x98, "Edgewater Computer Systems"},
	{ 6, 0x19, "XMOS Semiconductor"},
	{ 6, 0x1a, "GENUSION"},
	{ 6, 0x9b, "Memory Corp NV"},
	{ 6, 0x1c, "SiliconBlue Technologies"},
	{ 6, 0x9d, "Rambus"},
	{ 6, 0x9e, "Andes Technology"},
	{ 6, 0x1f, "Coronis Systems"},
	{ 6, 0x20, "Achronix Semiconductor"},
	{ 6, 0xa1, "Siano Mobile Silicon"},
	{ 6, 0xa2, "Semtech"},
	{ 6, 0x23, "Pixelworks"},
	{ 6, 0xa4, "Gaisler Research AB"},
	{ 6, 0x25, "Teranetics"},
	{ 6, 0x26, "Toppan Printing Co."},
	{ 6, 0xa7, "Kingxcon"},
	{ 6, 0xa8, "Silicon Integrated Systems"},
	{ 6, 0x29, "I-O Data Device"},
	{ 6, 0x2a, "NDS Americas"},
	{ 6, 0xab, "Solomon Systech Limited"},
	{ 6, 0x2c, "On Demand Microelectronics"},
	{ 6, 0xad, "Amicus Wireless"},
	{ 6, 0xae, "SMARDTV SNC"},
	{ 6, 0x2f, "Comsys Communication"},
	{ 6, 0xb0, "Movidia"},
	{ 6, 0x31, "Javad GNSS"},
	{ 6, 0x32, "Montage Technology Group"},
	{ 6, 0xb3, "Trident Microsystems"},
	{ 6, 0x34, "Super Talent"},
	{ 6, 0xb5, "Optichron"},
	{ 6, 0xb6, "Future Waves UK"},
	{ 6, 0x37, "SiBEAM"},
	{ 6, 0x38, "Inicore,"},
	{ 6, 0xb9, "Virident Systems"},
	{ 6, 0xba, "M2000"},
	{ 6, 0x3b, "ZeroG Wireless"},
	{ 6, 0xbc, "Gingle Technology Co."},
	{ 6, 0x3d, "Space Micro"},
	{ 6, 0x3e, "Wilocity"},
	{ 6, 0xbf, "Novafora, Ic."},
	{ 6, 0x40, "iKoa"},
	{ 6, 0xc1, "ASint Technology"},
	{ 6, 0xc2, "Ramtron"},
	{ 6, 0x43, "Plato Networks"},
	{ 6, 0xc4, "IPtronics AS"},
	{ 6, 0x45, "Infinite-Memories"},
	{ 6, 0x46, "Parade Technologies"},
	{ 6, 0xc7, "Dune Networks"},
	{ 6, 0xc8, "GigaDevice Semiconductor"},
	{ 6, 0x49, "Modu"},
	{ 6, 0x4a, "CEITEC"},
	{ 6, 0xcb, "Northrop Grumman"},
	{ 6, 0x4c, "XRONET"},
	{ 6, 0xcd, "Sicon Semiconductor AB"},
	{ 6, 0xce, "Atla Electronics Co."},
	{ 6, 0x4f, "TOPRAM Technology"},
	{ 6, 0xd0, "Silego Technology"},
	{ 6, 0x51, "Kinglife"},
	{ 6, 0x52, "Ability Industries"},
	{ 6, 0xd3, "Silicon Power Computer & Communications"},
	{ 6, 0x54, "Augusta Technology"},
	{ 6, 0xd5, "Nantronics Semiconductors"},
	{ 6, 0xd6, "Hilscher Gesellschaft"},
	{ 6, 0x57, "Quixant"},
	{ 6, 0x58, "Percello"},
	{ 6, 0xd9, "NextIO"},
	{ 6, 0xda, "Scanimetrics"},
	{ 6, 0x5b, "FS-Semi Company"},
	{ 6, 0xdc, "Infinera"},
	{ 6, 0x5d, "SandForce"},
	{ 6, 0x5e, "Lexar Media"},
	{ 6, 0xdf, "Teradyne"},
	{ 6, 0xe0, "Memory Exchange Corp."},
	{ 6, 0x61, "Suzhou Smartek Electronics"},
	{ 6, 0x62, "Avantium"},
	{ 6, 0xe3, "ATP Electronics"},
	{ 6, 0x64, "Valens Semiconductor"},
	{ 6, 0xe5, "Agate Logic"},
	{ 6, 0xe6, "Netronome"},
	{ 6, 0x67, "Zenverge"},
	{ 6, 0x68, "N-trig"},
	{ 6, 0xe9, "SanMax Technologies"},
	{ 6, 0xea, "Contour Semiconductor"},
	{ 6, 0x6b, "TwinMOS"},
	{ 6, 0xec, "Silicon Systems"},
	{ 6, 0x6d, "V-Color Technology"},
	{ 6, 0x6e, "Certicom"},
	{ 6, 0xef, "JSC ICC Milandr"},
	{ 6, 0x70, "PhotoFast Global"},
	{ 6, 0xf1, "InnoDisk"},
	{ 6, 0xf2, "Muscle Power"},
	{ 6, 0x73, "Energy Micro"},
	{ 6, 0xf4, "Innofidei"},
	{ 9, 0xff, ""}

Might help...

I'll try debug one.

rekursor · February 19, 2010

The lag is on desktop too... and shows up since pre8, pre7 is fine(with Andy ssdt load)

Thanks to iNDi & memtest guys:
	{ 0, 0x01, "AMD"},
...
	{ 9, 0xff, ""}
Might help...

I'll try debug one.

WOW thanks !

Unfortunately there is not your ram info in it , which confirms what I was saying but neithertheless, there might be another (non standard way to get it as well ...)

For now I strictly conform to DDR2 and DDR3 SPD specifications.

Btw, what tool did u use to dump the SPD and get the memory report ?

Looks interesting ...

Also who ar indi and memtest,

they seem to know already about SPD ...

I only have dealt with it since yesterday, so any suggestion is welcome

THe KiNG · February 19, 2010

iNDi is one of the Chameleon developers and my friend

Memtest is that test app for memory stuff..

Those dumps came from Lavalys Everest Corporate.

CPUZ:

Memory SPD
-------------------------------------------------------------------------

DIMM #				1
SMBus address		0x50
Memory type		DDR2
Module format		SO-DIMM
Manufacturer (ID)	 (FFFFFFFFFFFFFFFF)
Size			2048 MBytes
Max bandwidth		PC2-5300 (333 MHz)
Part number		GU332G0AJEPR8H2L4C
Number of banks		2
Data width		64 bits
Correction		None
Nominal Voltage		1.80 Volts
EPP			no
XMP			no
JEDEC timings table		CL-tRCD-tRP-tRAS-tRC @ frequency
JEDEC #1		3.0-3-3-9-12 @ 200 MHz
JEDEC #2		4.0-4-4-12-16 @ 266 MHz
JEDEC #3		5.0-5-5-15-20 @ 333 MHz
SPD registers
	00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
00	80 08 08 0E 0A 61 40 00 05 30 45 00 82 08 00 00
10	0C 08 38 01 04 00 03 3D 50 50 60 3C 1E 3C 2D 01
20	20 27 10 17 3C 1E 1E 00 06 3C 7F 80 18 22 00 00
30	00 00 00 00 00 00 00 00 00 00 00 00 00 00 12 15
40	FF FF FF FF FF FF FF FF FF 47 55 33 33 32 47 30
50	41 4A 45 50 52 38 48 32 4C 34 43 42 00 00 00 00
60	00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
70	00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
80	FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
90	FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
A0	FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
B0	FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
C0	FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
D0	FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
E0	FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
F0	FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF

DIMM #				2
SMBus address		0x52
Memory type		DDR2
Module format		SO-DIMM
Manufacturer (ID)	 (FFFFFFFFFFFFFFFF)
Size			2048 MBytes
Max bandwidth		PC2-5300 (333 MHz)
Part number		GU332G0AJEPR8H2L4C
Number of banks		2
Data width		64 bits
Correction		None
Nominal Voltage		1.80 Volts
EPP			no
XMP			no
JEDEC timings table		CL-tRCD-tRP-tRAS-tRC @ frequency
JEDEC #1		3.0-3-3-9-12 @ 200 MHz
JEDEC #2		4.0-4-4-12-16 @ 266 MHz
JEDEC #3		5.0-5-5-15-20 @ 333 MHz
SPD registers
	00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
00	80 08 08 0E 0A 61 40 00 05 30 45 00 82 08 00 00
10	0C 08 38 01 04 00 03 3D 50 50 60 3C 1E 3C 2D 01
20	20 27 10 17 3C 1E 1E 00 06 3C 7F 80 18 22 00 00
30	00 00 00 00 00 00 00 00 00 00 00 00 00 00 12 15
40	FF FF FF FF FF FF FF FF FF 47 55 33 33 32 47 30
50	41 4A 45 50 52 38 48 32 4C 34 43 42 00 00 00 00
60	00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
70	00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
80	FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
90	FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
A0	FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
B0	FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
C0	FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
D0	FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
E0	FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
F0	FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF

and RW Everything SPD binary dump:

SPD.zip

Chameleon RC4 is out!

Recommended Posts

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites
