ALC889A, Gigabyte (Intel): now having a working front mic

[VCH888]

@winktinkler

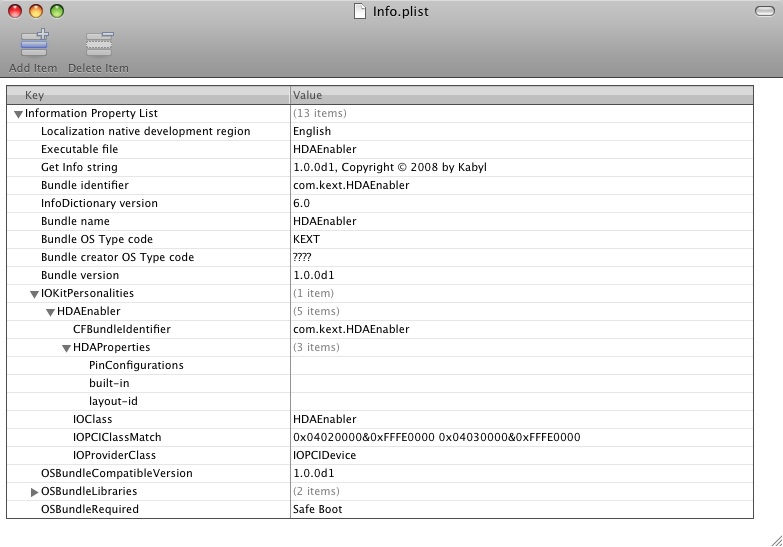

Q: Could you post your info.plist for hdaenabler.kext?

A:

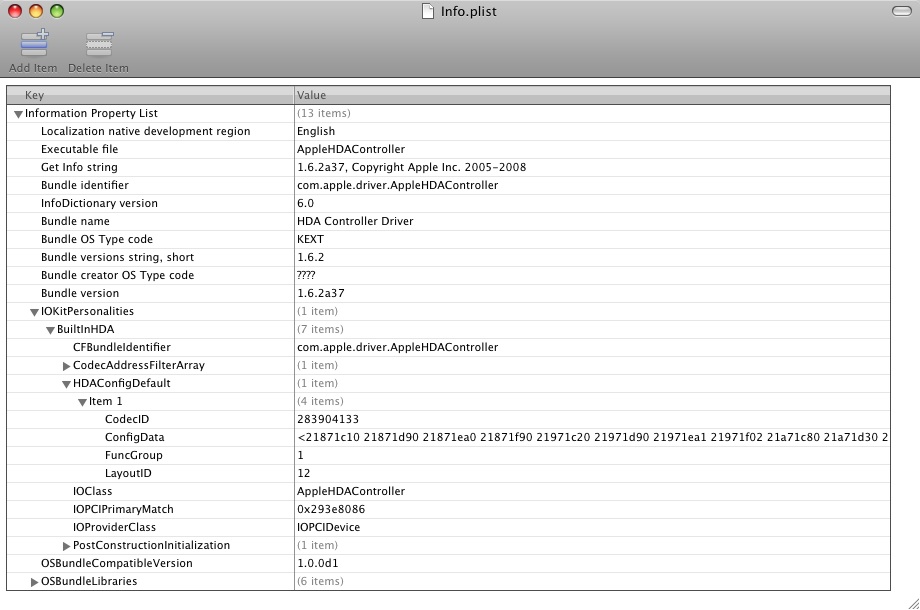

Q: Do you have the same in yours? or did you also change the IPPCIClassMatch key (and delete it...)

to the equivalent which you are using the the info.plist for AppleHDAController.kext info.plist file

A: before

try to test and it's working





Q: Where does the STRING (in HDAEnabler.kext info.plist) COME FROM?

A:

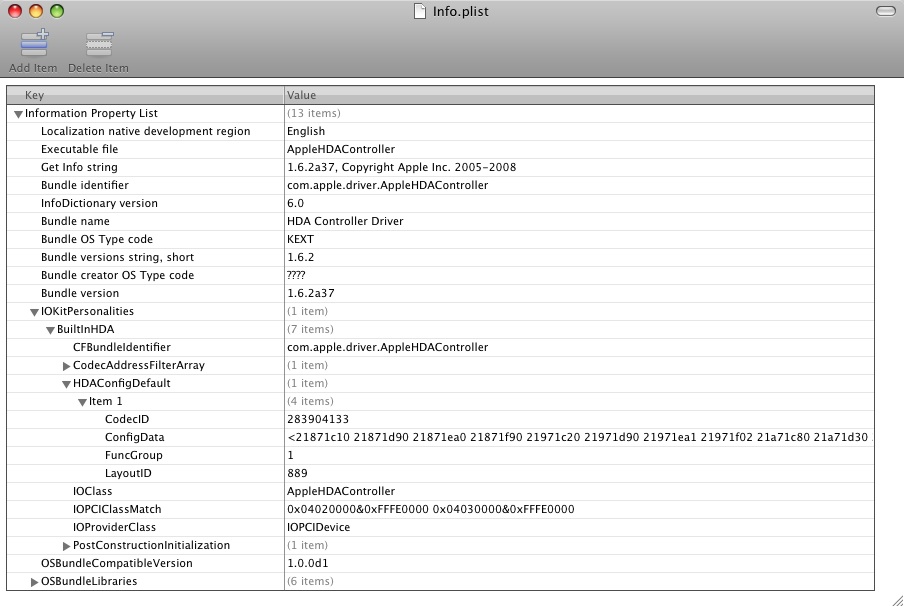

Q: What is the correct LAYOUT ID which should be used ....

A: It can be any number. For ALC885(889A), if using default & not modify info.plist of HDAEnabler.kext, Audio ID in System Profile should be 12. If you define LayoutID of AppleHDAPlatformDriver.kext as 888, you have to define LayoutID of AppleHDAController.kext and HDAEnabler.kext as 888. 888 in HDAEnabler.kext must be data, using calculator from DEC of 888 to HEX 0x378 ==> data of <78030000>

[winktinkler]

@tmongkol



Thank you again for taking so much time to try and help.



I have been away most of last 24 hours and will reply to this later ... and will try your suggestions



winktinkler







@winktinkler



Q: Could you post your info.plist for hdaenabler.kext?

A:

Q: Do you have the same in yours? or did you also change the IPPCIClassMatch key (and delete it...)

to the equivalent which you are using the the info.plist for AppleHDAController.kext info.plist file

A: before

try to test and it's working

Q: Where does the STRING (in HDAEnabler.kext info.plist) COME FROM?

A:

Q: What is the correct LAYOUT ID which should be used ....

A: It can be any number. For ALC885(889A), if using default & not modify info.plist of HDAEnabler.kext, Audio ID in System Profile should be 12. If you define LayoutID of AppleHDAPlatformDriver.kext as 888, you have to define LayoutID of AppleHDAController.kext and HDAEnabler.kext as 888. 888 in HDAEnabler.kext must be data, using calculator from DEC of 888 to HEX 0x378 ==> data of <78030000>

[thorazine74]

@winktinkler

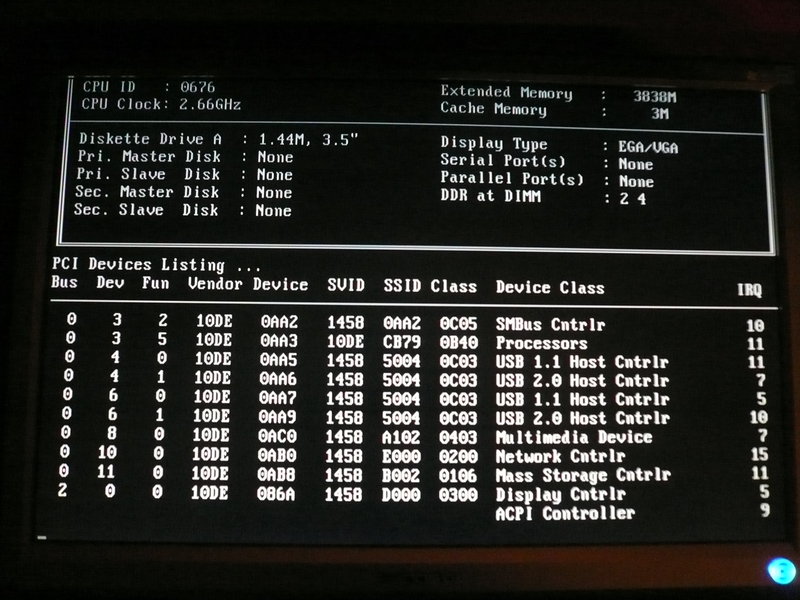

Thank you posting your PCI Devices Listing. Your listing is different from Gigabyte. I also asked someone from the thread of Gigabyte's Nvidia 9400 ... to take a picture as shown below.



10DE 0AC0 is HDA controller id that is the same as you have.

1458 A102 is Gigabyte audio id that should be the same as Subsystem Id in Linux_Codec_Dump. But your system didn't show something like this. So, it's hard to get it done.



I was thinking your system's going to be like this. Maybe I was wrong about this.



10DE 0AC0

..........|__10063842

..................|__10DE0101

..................|__10EC0000



for Gigabyte



10DE 0AC0

..........|__1458 A102



Susbsystem id is different because different motherboard manufacturer, I think sometimes they have discrepancies with some device ids not being identified correctly:



My config for example:



[HDA Controller on PCI bus]:

8086:293E (Vendor: Intel / Device: ICH9 HDA Controller) | [A002:1458] (Subsys Device: ? / Subsys Vendor: Gigabyte)

[Codec1 on HDA bus]:

10EC:0885 (Vendor: Realtek / Device: ALC885/9) | ([1458:A002] (Subsys Vendor: Gigabyte | Subsys Device: ? )



His config could be:



[HDA Controller on PCI bus]:

10DE:0AC0 (Vendor: NVIDIA / Device: MCP79/7A HDA Controller) | [1006:3842] (Subsys Device: ? / Subsys Vendor: EVGA)

[Codec1 on HDA Bus]:

10DE:0007 (Vendor NVIDIA / Device: HDMI Audio] | [10DE:0101] (Subsys Vendor: NVIDIA / Subsys Device: ? )

[Codec2 on HDA Bus]:

10EC:0888 (Vendor Realtek / Device: ALC888] | [10EC:0000] (Subsys Vendor: Realtek / Subsys Device: ? )



His board doesnt match, NVIDIA HDMI Vendor could be NVIDIA but certainly not Realtek's...

What is it need for AppleHDA, subsys vendor id from HDA controller or from codec?

Not sure if its of any help, just trying to understand how AppleHDA works...

Why does the Subsys Vendor id is important? It will never be the same as Apple hardware...

[VCH888]

@winktinkler

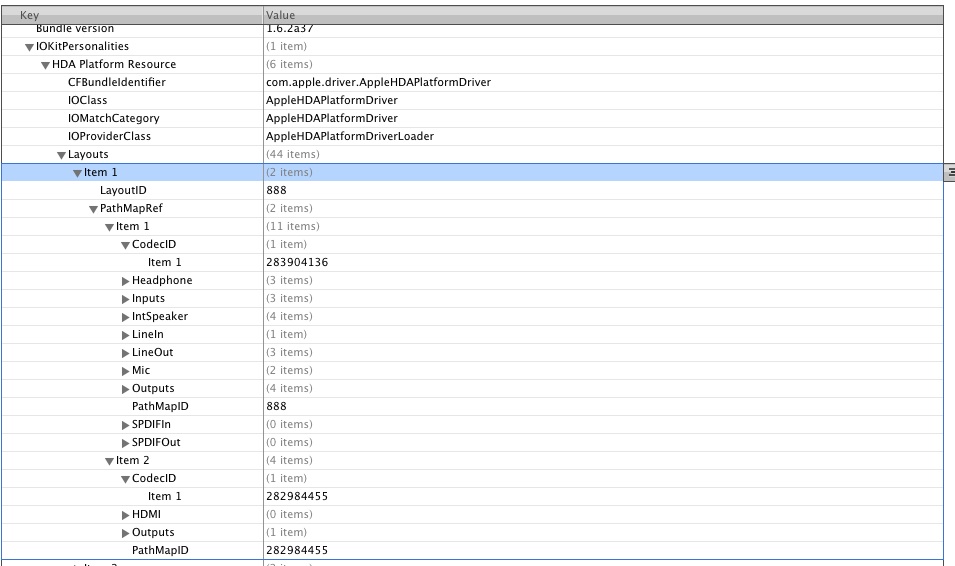

Try this 1.6.2a37_888.zip just added HDMI.

I took from Layouts--Items 43 of modified kext. HDMI is related to PathMaps--Item 30.



You can see CodecID of HDMI is 282984455 (DEC) = 0x10DE0007 (HEX).



Don't forget to enable Int Codec + Ext Codec and see what is going on.

[winktinkler]

Thanks @tmongkol



will try this asap and let you know



thanks for prior posts ... have worked with your edits (now that I can figure out how the pinconfig values for hdaenabler.kext info.plist were gotten, and edited the other kexts with values derived from my linux dump working audio (which also matched the values derived from the Vista Registry dumps) with those edits I still did not get 'real audio out' (yet... ) but noticed that even when I plug in an external headphone in front connector while viewiing the output panel in System Configuration Audio, the name of the device changes when I plug or unplug the headphones to and from Headphone ... so all of these things are being sensed correctly... I think the reason I still do not have real audio working is the 'connecting' of the pins to the correct port using the graphcodec chart etc... I am in process of trying that but I am color blind, and really am having a tough time following the reasoning when trying to connect the ports etc. as in that portion of the HowToPinConfig tutorial ... BUT , maybe when I try the file you just attached above, my problem will be solved ...



Thanks again ...



and yes, I do have both EXT and INT codecs enabled in BIOS on this motherboard ... (that is how everything works in Windows, and most of it works in Linux



@winktinkler



Try this 1.6.2a37_888.zip just added HDMI.

I took from Layouts--Items 43 of modified kext. HDMI is related to PathMaps--Item 30.



You can see CodecID of HDMI is 282984455 (DEC) = 0x10DE0007 (HEX).



Don't forget to enable Int Codec + Ext Codec and see what is going on.

[winktinkler]

@tmongkol



I tried the file you uploaded 2 posts above .... but no luck with audio still .... same behaviour as I have described ... get POP's when I click on emptying Trash, or checking sounds in the System Preferences Audio screen with all of the default system sounds .... no luck



I then took 'my own verbs' and pinconfig derived from them and pasted them into the proper files ... still the same (the listing of available ports etc. does change, obviously, but no real sound, regardless of which output I use ...



It was a great thought to add the HDMI settings and edits etc as you did. I even check (with each attempt at changing etc. any info.plist settings in any of the files) the SPDIF out (RCA connector on my system, as well as optical, but have working SPDIF out on rear when in Vista, ... as well as standard Line Out in Vista.



I wonder ALONG THIS LINE OF THINKING if one should create a new post in this Sound section of the Hardware forums or just maybe in the general forum asking the question : Has anyone gotten HDMI equipped motherboards to work fully INCLUDING HDMI Audio and Video, as well as getting full sound working ? (Not just using Azalia audio and ignoring the more full capabilities of the CHIPSETs for audio) Do you think that is worth thinking about or 'refining' the question. I am a total noob here, so do not know enough to make the decision. Your thoughts ??



I am still guessing that it has to do with the 'connections' in the HowToPinConfig tutorial ... it almost has to be ... where the Nodes are NOT being pointed to the correct Number or port or whatever it is called ...



Thanks for the great help ... will keep trying ... am thinking about posting a reply on this forum, or maybe as a new thread (the Everest system in Windows Vista identifies the Codec as ALC888/1200 ..... ) and literally starting from scratch, taking step by step in the post, starting with Linux Dump .... arriving at the Hex file with the values I am using, and also taking the Vista Registry listing using Diabolik pastebin page, and entering in, (they are the same ... 'almost' .... some of the verbs have a 'last digit' differ ... ... then taking these and generating the Pinconfig for HDEnabler as per your instructions. Then taking and showing the human readable Pin settings using MacGirl's scripts, confirming, then generating the graphic file with the Node Mapping, and posting all of this here, and see if there is something there which someone can 'pick up on' and maybe make suggestion on what to change ... to make it work properly.



Thanks again ..



winktinkler







@winktinkler



Try this 1.6.2a37_888.zip just added HDMI.

I took from Layouts--Items 43 of modified kext. HDMI is related to PathMaps--Item 30.



You can see CodecID of HDMI is 282984455 (DEC) = 0x10DE0007 (HEX).



Don't forget to enable Int Codec + Ext Codec and see what is going on.

[Markus23]

Just like to let everybody know, that with the patched ALC888 driver SP/DIF (digital out) together with HDAEnabler.kext is working with no problem on my gigabyte GA-EG31M-S2 (Rev.1) Mainboard (G31Chipset). Even DTS and AC3 is working after setting to "Encoded Digital Audio" .



Thanks for this nice patch ...





Markus

[winktinkler]

@Markus23



Link to that ALC888 specific file or post number ..? Thanks in advance ..



do you mean post # 154 above ... the 888 file attached?



winktinkler



Just like to let everybody know, that with the patched ALC888 driver SP/DIF (digital out) together with HDAEnabler.kext is working with no problem on my gigabyte GA-EG31M-S2 (Rev.1) Mainboard (G31Chipset). Even DTS and AC3 is working after setting to "Encoded Digital Audio" .



Thanks for this nice patch ...

Markus

[winktinkler]

@tmongkol OR anyone who may be able to help with this



tmongkol has already spent a huge amount of his time trying to get me going on this ... numerous posts and answers and help on this thread alone ... thank you very much





OK, have been working with this for a few hours again ... the file in #154 did not do it for me EITHER as sent or with patching in my own codec values (see VERBS below etc. in this post which I used in some of my attempts to

get ALC888/1200 working)



See my signature below for details on System and Device ID's etc. as needed





I have started over from scratch again ... and also generated the svg file ( with codecgraph and Graphviz)



My SVG GraphViz file to be viewed in Firefox for ALC888/1200 linux codec#0 working audio dump



SVG File HERE codec_0.svg.zip



My codec#0 linux dump HERE codec_0.zip



My codec#0 linux dump changed to decimal with munky script HERE convertedcodec_0decimal.txt.zip



My FULL VERB LIST (full) generated manually, checked out against the one from Vista, and edited to make sure

all 0's in the SEQUENCE value where needed



<01171CF0 01171D10 01171E11 01171F41 01271CFO 01271D11 01271E11 01271F41 01471C10 01471D44 01471E01 01471F01 01571C10 01571D14 01571E01 01571F01 01671C10 01671D64 01671E01 01671F01 01771C10 01771D24 01771E01 01771F01 01871C40 01871D9C 01871EA1 01871F01 01971C50 01971D9C 01971EA1 01971F02 01A71C40 01A71D34 01A71E81 01A71F01 01B71C20 01B71D4C 01B71E01 01B71F02 01C71CF0 01C71D11 01C71E11 01C71F41 01D71C00 01D71DE6 01D71E05 01D71F40 01E71C30 01E71D21 01E71E4B 01E71F01 01F71C60 01F71D61 01F71EC4 01F71F01>



My EDITED VERB LISTING (after removing some of the items which I don't think would be of use on my system)



<01471C10 01471D44 01471E01 01471F01 01571C10 01571D14 01571E01 01571F01 01671C10 01671D64 01671E01 01671F01 01771C10 01771D24 01771E01 01771F01 01871C40 01871D9C 01871EA1 01871F01 01971C50 01971D9C 01971EA1 01971F02 01A71C40 01A71D34 01A71E81 01A71F01 01B71C20 01B71D4C 01B71E01 01B71F02 01E71C30 01E71D21 01E71E4B 01E71F01>



My PINCONFIG string (derived from string just above ) for the info.plist in HDAEnabler.kext



<10440101 10140101 10640101 10240101 409CA101 509CA102 40348101 204C0102 30214B01>





---------------------



My QUESTION ? ....





How do I use the information from the GRAPH to correctly set the NODE connections in the proper plist file?



I think this is the last thing which has to be accomplished to get audio working and have read the threads in TheKings and patching appleHDA and other tutorials listed in your references at the start of this post, but am COMPLETELY confused as to what to do next ...





---------------------



I am posting other files which I have created just below in case they are of any service to anyone else who might be able to help me, or otherwise.



MacGirl script generated NODE Listing from my FULL codec dump



HERE MacGirl_AppleHDA_List_Fixed_CODEC_0.txt



----------------------



Listings of my nodes which I selected ... for use in above VERB string (from physically examining my system

input and output connections ....)



Line01: NID 0x14/20 [Jack] Line Out at Ext Rear - Front Speaker Out (Green)

Line02: NID 0x15/21 [Jack] Line Out at Ext Rear - Rear Speaker Out (Black)

Line03: NID 0x16/22 [Jack] Line Out at Ext Rear - Center/ Subwoofer (Orange)

Line04: NID 0x17/23 [Jack] Line Out at Ext Rear - Side Speaker (Grey)

Line05: NID 0x18/24 [Jack] Mic at Ext Rear (Pink)

Line06: NID 0x19/25 [Jack] Mic at Ext Front (Pink)

Line07: NID 0x1A/26 [Jack] Line In at Ext Rear (Blue)

Line08: NID 0x1B/27 [Jack] Line Out at Ext Front (Green)

Line09: NID 0x1E/30 [Jack] SPDIF Out at Ext Rear (Grey COMB)



-------------------------



codec#0 CLEANED with only the NODES which have Pin Default Values present

and VERBS for each of NODES



File HERE codec_0CleanWithVerbs.txt



--------------------------



Miscellaneous work file with Pin Descriptions used for working with verbs



File HERE Pin_Descriptions_List.txt



---------------------------



My Vista Registry Hive segment with the information used to generate the VERBS using Diabolik's pastebin

page

FILE HERE PinConOverVerbs_0007_ALC888.txt



My FULL UNCORRECTED VERB LIST from Vista Registry dump using Diabolik Pastebin

(IDENTICAL to FULL VERB list generated from uncorrected codec#0 dump) listed here for

comparison



FILE HERE VERB_Diabolik_Dump.txt



Pasted VERB LIST here directly (note THIS ONE STILL HAS ALL VERBS AND NON 0 values IN SOME OF THE sequence fields, same as LINUX DUMP Manual generated VERB list prior to EDITING out non 0 values)



<01171CF0 01171D10 01171E11 01171F41 01271CF0 01271D11 01271E11 01271F41 01471C10 01471D44 01471E01 01471F01 01571C12 01571D14 01571E01 01571F01 01671C11 01671D64 01671E01 01671F01 01771C14 01771D24 01771E01 01771F01 01871C40 01871D9C 01871EA1 01871F01 01971C50 01971D9C 01971EA1 01971F02 01A71C4F 01A71D34 01A71E81 01A71F01 01B71C20 01B71D4C 01B71E01 01B71F02 01C71CF0 01C71D11 01C71E11 01C71F41 01D71C01 01D71DE6 01D71E05 01D71F40 01E71C30 01E71D21 01E71E4B 01E71F01 01F71C60 01F71D61 01F71EC4 01F71F01>

codec_0_copy.TXT

[VCH888]

@winktinkler



Did you try to test Digital Out with the one that got in System Profile and System Preferences?



Have you ever tried to use Voodoo kernel and AnV AppleSMBIOS.kext (see my signature)?



Somenoe's using ASUS P5N7A-VM got soundcard working by using taruga's patched AppleHDA.kext.

[winktinkler]

@winktinkler



Did you try to test Digital Out with the one that got in System Profile and System Preferences?





YES ............. no go again, on 'SEVERAL' of the attempts using files you suggested, with and without edits,

and many variations, I get 'POP's' where there should be sounds.. i.e. emptying Trash,

copy and paste file, moving the speaker slider, beginnint to play an mp3 file, etc. BUT nothing else

With several of the KEXTS and EDITS I even get the 'sensing' function of the Headphone Jack, to work,

AND Sound POP's as described above on the headphones, AND if I have the System Audio menu open, where it shows the Outputs the NAME of the device changes back and forth from Speaker to Headphone as I insert and remove the pin from the front Jacks









Have you ever tried to use Voodoo kernel and AnV AppleSMBIOS.kext (see my signature)?



No the system is so stable and works so well with all other software, and hardware (firewire, usb, wireless

mouse and keyboard, etc. etc.) and has very good XBench scores, and great video, so I have not bothered to try.

I simply installed iPC OSX86 PPF5 final version, and using NVKush for video (others work also including NVDarwin, NVinject) ... all enabled and even EFI Strings (but slower XBench with this) ... also Azalia audio works (line out only HD stereo .. but I do not use it since I have been trying to get ALC888 to work







Somenoe's using ASUS P5N7A-VM got soundcard working by using taruga's patched AppleHDA.kext. Go to Kexts.com.



I have tried (a while back maybe 2 weeks ago last time, ) using Taruga Patch, and even the report at the end says all is ok, verified etc. or whatever the message is, I cannot recall, but have a screen cap somewhere ... so it did install but no Audio ... Maybe I will give this a clean try again ..



which Kext there would you suggest? (with ALC888/1200 and also HDMI equipped 730i Chipset motherboard)?



Also< I guess i would also patch in the correct device ID AND ADDRESSES for my system to whatever kext I woudl try somewhere in the file?





Thanks so much for all of your help. My mind is getting 'fried' from trying to work on this so much

[thorazine74]

@wingtinkler:

just another guess but if you have both codecs enabled maybe you should include the pins and verbs from the hdmi codec in the config.



@tmongkol:

I'm trying to modify your legacy for my mobo trying to understand how applehda works, but I got lost in the layout and pathmap part, how do I get the 3 (2 for digital) node id numbers for each input output connections?

[winktinkler]

@thorazine



I have the information from the Vista Registry file for the hdmi pins (I think ...)also one is the 0000 section ,the other is the 0007 section (which is the one patched in currently) .... the 0000 sections has fewer verbs



how would one do it? convert and get the string of hex values, then just concatenate them and place them both in the same place in the plist file config section?













@wingtinkler:

just another guess but if you have both codecs enabled maybe you should include the pins and verbs from the hdmi codec in the config.



@tmongkol:

I'm trying to modify your legacy for my mobo trying to understand how applehda works, but I got lost in the layout and pathmap part, how do I get the 3 (2 for digital) node id numbers for each input output connections?

[thorazine74]

@thorazine



I have the information from the Vista Registry file for the hdmi pins (I think ...)also one is the 0000 section ,the other is the 0007 section (which is the one patched in currently) .... the 0000 sections has fewer verbs



how would one do it? convert and get the string of hex values, then just concatenate them and place them both in the same place in the plist file config section?



I'm not the best one to answer, I'm just trying to learn how AppleHDA works, but I would say you can put them together, each verb has the codec address in the first bit so it wont overlap, I dont know about the order, I think it doesnt matter, not sure. You probably need to modify the layout and pathmaps accordingly.



Another maybe easier alternative would be disabling the hdmi codec completely, if thats indeed posible with that mobo...

[VCH888]

@tmongkol:

I'm trying to modify your legacy for my mobo trying to understand how applehda works, but I got lost in the layout and pathmap part, how do I get the 3 (2 for digital) node id numbers for each input output connections?

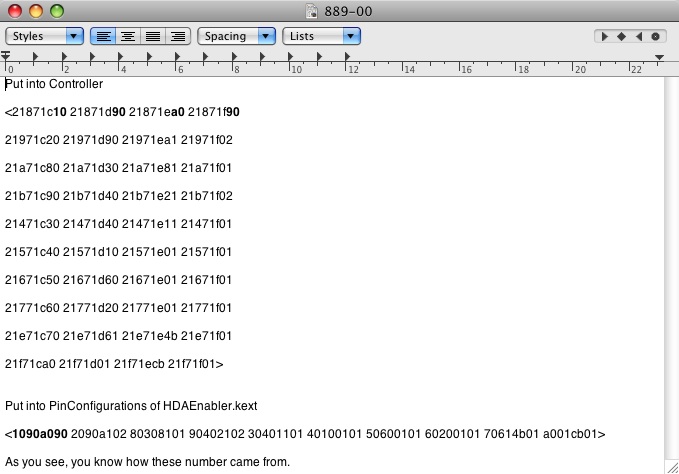

889A__.txtIs this that you want? See at bottom of the text file.

[thorazine74]

889A__.txtIs this that you want? See at bottom of the text file.



Yes thats it, thank you!

So is it just a matter of choosing any combination of pin complex + mixer + output/input nodes among all the available ones?

I was assuming that I needed a specific combination of nodes from each path map?

[Markus23]

@Markus23:

Link to that ALC888 specific file or post number ..? Thanks in advance ..

do you mean post # 154 above ... the 888 file attached?





Sorry, for replying so late, not reading this forum frequently at the moment...



In case of the driver, im NOT using the one from post #154 , but using the driver from post #72



I'm using this one from the Post #72:



"ALC888 Address 0 AppleHDA 1.6.2.a37 3 Anolog 1 Digital Outputs 2 Analog & 1 Digital inputs (Click to Download)"



Working with no Problem with my ALC888 Chipset and an extra Motherboard-to-Toslink-Bracket.

AC3, DTS, DigitalStereo , everything working :-)





Bye,



Markus

[kaedekai]

Hi all,



I am new to OSX86. I am having problem to get sound working.



My H/W spec:

Gigabyte X48-DS4, Intel9 SATA chipset using ALC889a Intel HD audio

Nvidia 9800GTX video card, running an internal SPDIF cable, so I could stream sound thru HDMI.



OSX86 IPC 10.5.6 Final using Voodoo 9.5.0 Kernal.



I tried the 10.5.6_Fix kext, but still no sound coming out. Can anyone give me some help?



Thanks,

Kaede

[teddiesmooth]

I have been following this thread for a couple weeks now and, like Yardie, I have a Dell Studio XPS desktop. I have looked at Yardie's configuration, followed the advice that others have provided to Yardie, and am having very similar problems.



I also have a quite odd situation as well. The ATI 3650 card that my computer came with has an HDMI port on it which I would like to use, however it's more important that I can get the built-in audio working first.

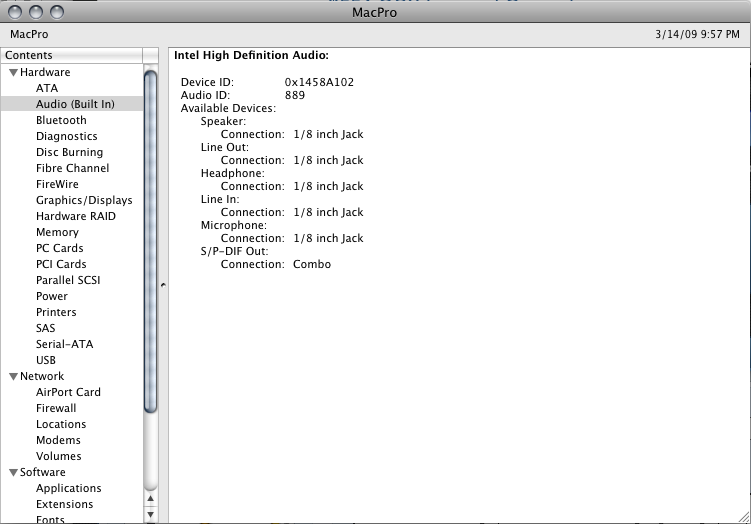

I've done a pci profile of my comp using osx86tools and found that the ATI HDMI port has a PCI ID of 0x1028aa20 and the motherboard audio ALC888 has a pci device ID of 0x80863a3e. It looks as though, from the "Available Devices" section, that the HDMI port on the Radeon is configured for all the pinouts despite the fact that I have not entered this information into the controller.kext for the HDMI device. Very odd.



SysProfile.tiff



And for some reason it thinks that the device ID for the onboard audio is 0x1028029c



SysProfile2.tiff

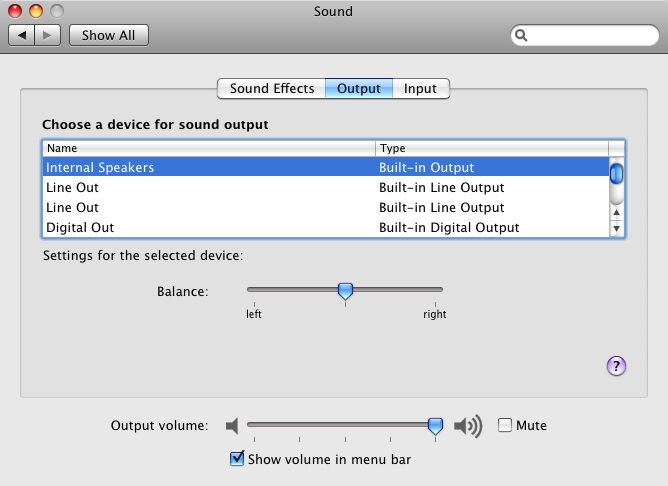

And for available outputs, here's what I get:



sound.tiff



Note that I do not get any sound on any of these interfaces. The AppleHDA kext that is attached to this post was patched with Taruga's AppleHDAPatcher 1.20 using Yardie's codec dump.

teddiesmooth_s_Kexts.zip

[winktinkler]

@tmongkol





Thanks for all your help, and everyone else ... DIGITAL OUT success with file suggested in thread for Asus 730i / 9300 Chipset motherboard (I have nForce 730i ... you are familiar ..)



see my post in reply to DiaboliK suggestion I try frodokenny applehda fix posted in the same thread on earlier post ...



http://www.insanelymac.com/forum/index.php...=0#entry1100075





---

BTW on reading of that thread last night I saw a post by you, regarding the HDMI dump for the 730i chipset MOBO



I don't have a 'dump' PER SE but I posted above in some post the Vista Registry Pinconfig portion with both HDMI and ALC888 (INT and EXT) audio enabled on my BIOS and working fully in Vista ...



From the Pinconfig registry hive, the second section is 0007 and the first is 0000 (with Verb information, the first one is shorter than the 0007) I wonder if that would apply to the HDMI PORTION and could be of help? don't know but just mentioning in case this would give you (or some other expert) ability to work with that portion in attempt to get the HDMI side of verbs working ....



Many thanks ....







889A__.txtIs this that you want? See at bottom of the text file.

[devDelay]

Has anyone with ALC889a been able to get SPDIF working at all. On my motherboard there is a header for SPDIF out for hooking up to a video card. I'd like to be able to use it through the HDMI port on my video card. After going through pretty much every possible combination of kexts and patching with HDAPatcher I've not once seen the SPDIF listed in system preferences. However, HDAPatcher when loading the dump detects a SPDIF output and System Profiler says it is a combo connection. Anyone have any ideas?

[soso!]

Hi, i just wanted to report that I now have Mic In working on my boot132 (dualbooting xp) Retail Leopard 10.5.6 gigabyte p35-ds3p (rev 2.0) thanks to you!



I used your n1_1.6.2a37_3outs3ins_digital_HDA_headphone.zip



must have made a little mistake somewhere as my sound preferences show 2 lineouts and 2 builtin internal mics. Thx again!

[VCH888]

Hi, i just wanted to report that I now have Mic In working on my boot132 (dualbooting xp) Retail Leopard 10.5.6 gigabyte p35-ds3p (rev 2.0) thanks to you!



I used your n1_1.6.2a37_3outs3ins_digital_HDA_headphone.zip



must have made a little mistake somewhere as my sound preferences show 2 lineouts and 2 builtin internal mics. Thx again!



@soso!



Could you get pictures of input and output?



They should be like these pictures.

[macgirl]

Is there a way to have 5 outputs instead of only 4, no matter if 1 input is deleted (like SPDIF IN) ?

[VCH888]

Is there a way to have 5 outputs instead of only 4, no matter if 1 input is deleted (like SPDIF IN) ?



@macgirl



I tried to have 5 outputs and deleted one input but it failed. So, I think I can get 4 maximum outputs of my ALC889A.
