PowerManagement bundle (with ACPI) for Leopard

[NHJ]

Hello,



the battery meter doesn't show up on latest iatkos 10.5.4, here's the output of kextstat command :



18 10 0x2dff3000 0x4000 0x3000 com.apple.iokit.IOACPIFamily (1.2.0) <12>

19 4 0x2e041000 0x3d000 0x3c000 com.apple.driver.AppleACPIPlatform (1.2.1) <18 17 12 7 5 4>

28 0 0x336fd000 0x3000 0x2000 com.apple.driver.AppleACPIPCI (1.2.1) <19 18 17 12>

30 0 0x337b8000 0x5000 0x4000 com.apple.driver.AppleACPIEC (1.2.1) <29 19 18 12>

35 0 0x33a73000 0x2000 0x1000 org.tgwbd.driver.ACPIPS2Nub (1.0.0d1) <19 18 12>

38 0 0x33d73000 0x4000 0x3000 com.apple.driver.AppleACPIButtons (1.2.1) <21 19 18 7 6 5 4 2>

74 0 0x33503000 0xc000 0xb000 com.apple.driver.ACPI_SMC_PlatformPlugin (3.1.6d0) <73 72 18 17 12 7 6 5 4



and here's the kernel i'm using :



9.4.0 Darwin Kernel Version 9.4.0: Mon Jun 9 19:30:53 PDT 2008; root:xnu-1228.5.20~1/RELEASE_I386 i386



if the matter is the file version, could someone please attach the correct ones in the replies please?



thanks in advance.

[dmdimoff]

jaro where from you got IOSMBusController.h ? can you post it here or PM me?

[dmdimoff]

ok I managed to make this from slightly modified Jaro sources. if somebady want to try - try with care)

EDIT - removed as obsolete, see this page below

Jaro, I hardly need actual header files from project



ApplicationServicesPriv.h - to compile battery faker app

IOSMBusController.h - to end up with smart battery manager(it is half-ready now) and probably whole thing

I only have this errored for now:

[Superhai]

ApplicationServicesPriv.h - to compile battery faker app

IOSMBusController.h - to end up with smart battery manager(it is half-ready now) and probably whole thing



Those are apple internal. Anyway why bother with creating more pm.bundles?



This thread is getting passé...

[Slice]

ApplicationServicesPriv.h - to compile battery faker app

BatteryFaker compileable!

//#import <ApplicationServices/ApplicationServicesPriv.h>

[dmdimoff]

>why bother with creating more pm.bundles



just to train my brain

if you try to compile unmodified sources in xcode 3.1 under 10.5.4 u'll get exactly 666 errors btw )



Slice tnx )

[chrisdarl]

This was not working in 10.5.4 but..



I checked that ACPIApplePlatform version listed in /System/Library/Extensions/AppleACPIPlatform.kext/Contents/Plugins/AppleACPIPowerSource.kext/Contents/Info.plist

- this was 1.2.1



matched against the version listed in /System/Library/Extensions/AppleACPIPlatform.kext/Contents/version.plist

- this was 1.1.0 - I changed that to 1.2.1 using VI editor in terminal



then reloaded the kext using



sudo kextload -t /System/Library/Extensions/AppleACPIPlatform.kext/Contents/Plugins/AppleACPIPowerSource.kext

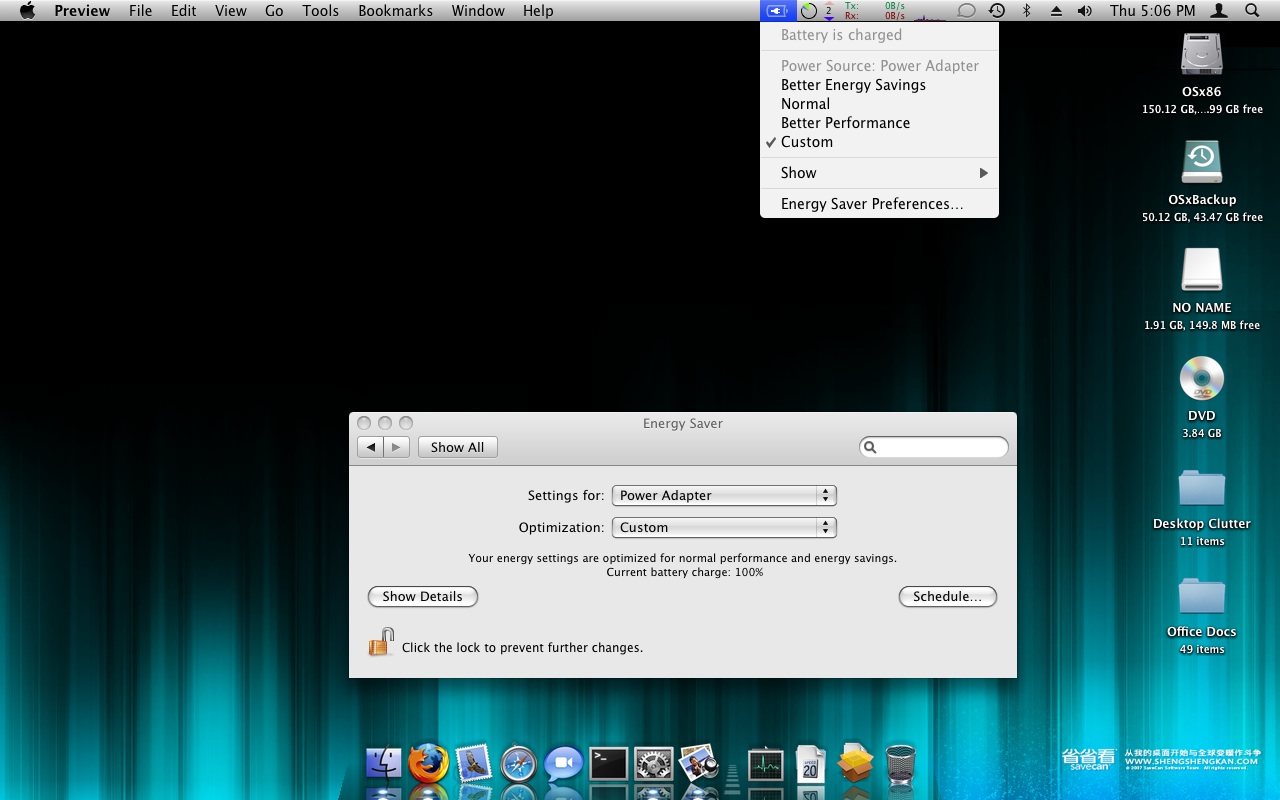

The battery symbol is now displayed, showing 100% charged. However I've not tested that the time goes down correctly or anything as of yet, but shall keep posted.





Thanks for your hard work OP.

Chris



Oh and my Laptop is a HP dv6955ea



just unplugged the mains, and it reduces in %age :]



Thanks again!!

[dmdimoff]

ok I cleaned a bit more things and now have all but AppleSmartBatteryManager compiled:

i just disabled menu items adding in battery faker.

Archive.zip

[chrisdarl]

Files I edited, req by NHJ

powermanagement.zip

[pnpatrick]

I installed PowerManagement bundle via kext helper and rebooted and it doesn't seem to have worked since there's no battery meter at the top.



Can anyone help?

[NHJ]

Files I edited, req by NHJ





thanks a lot, your advice was the right one, i edited the files and correct the version 1.0.5 to 1.2.1 and it's perfectly working now i have a battery jauge

[chrisdarl]

Only thing that is not working for me, is the time calculation.. %age seems okay though! (Y)

[Espionage724]

On iATKOS install DVD (once loaded up to the language choice screen) shows a battery meter but after install it doesn't. I'm attempting chrisdarl's method now.



Umm...maybe did it backwards....instead of changing it to 1.2.1 I did 1.0.5 and got a nice kernel panic on boot (not sure if it was from the edit though as I did install different drivers for audio before reboot) I'll be back soon maybe if all goes well



Awesome! I just used the modified Info and Version plist files and they work great. Thanks

[jvalera]

It works flawlessly in my Lenovo T60, Kalyway upgraded to 10.5.4,



The indicator shows percentage, and the sleep feature is still working,



Thanks!!



JVALERA

[RobNyc]

Batterymeter is not working on my HP DV6000T ..

I've installed the bundle, im running Vanilla 10.5.4



Source.kext/ is already loaded

robs-macpro31:~ rob$ kextstat | grep ACPI 18 11 0x2df62000 0x4000 0x3000 com.apple.iokit.IOACPIFamily (1.2.0) <12>

19 6 0x2dfb0000 0x3d000 0x3c000 com.apple.driver.AppleACPIPlatform (1.1.0) <18 17 12 7 4>

27 0 0x33e7f000 0x4000 0x3000 com.apple.driver.AppleACPIButtons (1.1.0) <21 19 18 7 6 5 4 2>

30 0 0x33f76000 0x5000 0x4000 com.apple.driver.AppleACPIEC (1.1.0) <29 19 18 12>

33 0 0x34122000 0x2000 0x1000 org.tgwbd.driver.ACPIPS2Nub (1.0.0d1) <19 18 12>

37 0 0x3434d000 0x3000 0x2000 com.apple.driver.AppleACPIPCI (1.1.0) <19 18 17 12>

66 0 0x2e0ac000 0xc000 0xb000 com.apple.driver.ACPI_SMC_PlatformPlugin (3.1.6d0) <65 64 18 17 12 7 6 5 4>

73 0 0x2e17c000 0x4000 0x3000 com.apple.driver.AppleACPIPowerSource (1.0.5) <19 18 12>

74 0 0x2e1ae000 0x4000 0x3000 com.apple.driver.AppleACPIThermal (1.0.5) <19 18 12>

[acecool9]

love this power programe

[jack28]

tks, muchas gracias me fue muy util el medidor de bateria, instale el kalyway 10.5.2 en una toshiba A135 sp8520, y labateria no se veia ahora con tu archivo si, gracias nuevamente, saludos desde mexico

[gui3]

i'm in the same boat as chris, i have 10.5.4 and it won't work.



EDIT: i followed chrisdarl's advice above and replaced the files by simply replacing them inside their respective folders.



BUT when i run:

sudo kextload -t /System/Library/Extensions/AppleACPIPlatform.kext/Contents/Plugins/AppleACPIPowerSource.kext



i get that there were insufficient privileges.





EDIT: i repaired permissions and it worked. i hope it stays that way!

[jaigandhi5]

ok my sleep was working perfectly fine...

but now with the powermanagement bundle when i go to sleep it just reboots the computer INSTANTLY.



help!

dell 1525

10.5.4 (kalway+combo+appleupdate)

[RobNyc]

ChuN-Nan worked great for me but thanks anyways

[Macrosong]

Hi!~

It works on my DELL 1520(T7250 2G 8600GT),but not perfect...because my restart&shutdown was broken ...

Test on:Brazilmac Leopard 10.5.0+Vinalla+10.5.1 10.5.2 10.5.3 10.5.4...and EFI...

Thank u 4 ur help!



Sorry 4 my Chinglish......

[krrr]

has anyone tried it on iAtkos v4i ? shall i install this?



bash-3.2# kextstat | grep ACPI
  18	9 0x37a86000 0x4000	 0x3000	 com.apple.iokit.IOACPIFamily (1.2.0) <12>
  19	4 0x37ad4000 0x3d000	0x3c000	com.apple.driver.AppleACPIPlatform (1.2.1) <18 17 12 7 5 4>
  27	0 0x3da27000 0x4000	 0x3000	 com.apple.driver.AppleACPIButtons (1.2.1) <21 19 18 7 6 5 4 2>
  30	0 0x3db1e000 0x5000	 0x4000	 com.apple.driver.AppleACPIEC (1.2.1) <29 19 18 12>
  33	0 0x3dccb000 0x2000	 0x1000	 org.tgwbd.driver.ACPIPS2Nub (1.0.0d1) <19 18 12>
  38	0 0x3e01b000 0x3000	 0x2000	 com.apple.driver.AppleACPIPCI (1.2.1) <19 18 17 12>
  79	0 0x3e0d7000 0xc000	 0xb000	 com.apple.driver.ACPI_SMC_PlatformPlugin (3.1.6d0) <78 77 18 17 12 7 6 5 4>
bash-3.2# uname -a
Darwin krrrs.local 9.4.0 Darwin Kernel Version 9.4.0: Mon Jun  9 19:30:53 PDT 2008; root:xnu-1228.5.20~1/RELEASE_I386 i386


  This laptop [HP 6000 Pavilion (6114tx Intel)] is running 10.5.4 from iAtkos v4i on Kernel is Stock 9.4
  What package should i use?



well i used installer from Xenon's sig and its solved.

[appleworm]

Hi krrr,



My Laptop is running 10.5.4 from iAtkos v4i on Stock ACPI & kernel 9.4:

kextstat | grep ACPI

  18	9 0x2df9e000 0x4000	 0x3000	 com.apple.iokit.IOACPIFamily (1.2.0) <12>
  19	4 0x2dfec000 0x3d000	0x3c000	com.apple.driver.AppleACPIPlatform (1.2.1) <18 17 12 7 5 4>
  27	0 0x33ea7000 0x4000	 0x3000	 com.apple.driver.AppleACPIButtons (1.2.1) <21 19 18 7 6 5 4 2>
  30	0 0x33f9e000 0x5000	 0x4000	 com.apple.driver.AppleACPIEC (1.2.1) <29 19 18 12>
  33	0 0x34152000 0x2000	 0x1000	 org.tgwbd.driver.ACPIPS2Nub (1.0.0d1) <19 18 12>
  38	0 0x344a2000 0x3000	 0x2000	 com.apple.driver.AppleACPIPCI (1.2.1) <19 18 17 12>
  68	0 0x34528000 0xc000	 0xb000	 com.apple.driver.ACPI_SMC_PlatformPlugin (3.1.6d0) <67 66 18 17 12 7 6 5 4>

uname -a

Darwin carlos-vgn-n21z-w.local 9.4.0 Darwin Kernel Version 9.4.0: Mon Jun  9 19:30:53 PDT 2008; root:xnu-1228.5.20~1/RELEASE_I386 i386



The meter of battery doesn' t work. Some suggestion?



Thanks and sorry for my Enlish

[robert_]

i tried it with a fresh kaly install (updated to 10.5.4) now i cant shutdown anymore.



after pressing shutdown, it apprears a msg after a few secs, telling me that i have to hold the shutdown button. then the system goes down.



i tried to recover the old powermanagement.bundle, but it still wont shutdown correct anymore







edit: i tried the original appleacpiplatform.kext....now my touchpad and my keyboard wont work anymore





any suggestions how to fix that???

[Jason_Thames]

Anyone having problems with iAtkos v4i and PowerManagement.bundle needs to simply get a cope of the VANILLA bundle for 10.5.4, as the one installed by default is hacked. After replacing the bundle with the vanilla one, simply use Superhai's ACPIBattery.kext. Works a treat. This is a superior solution.



-Jason
